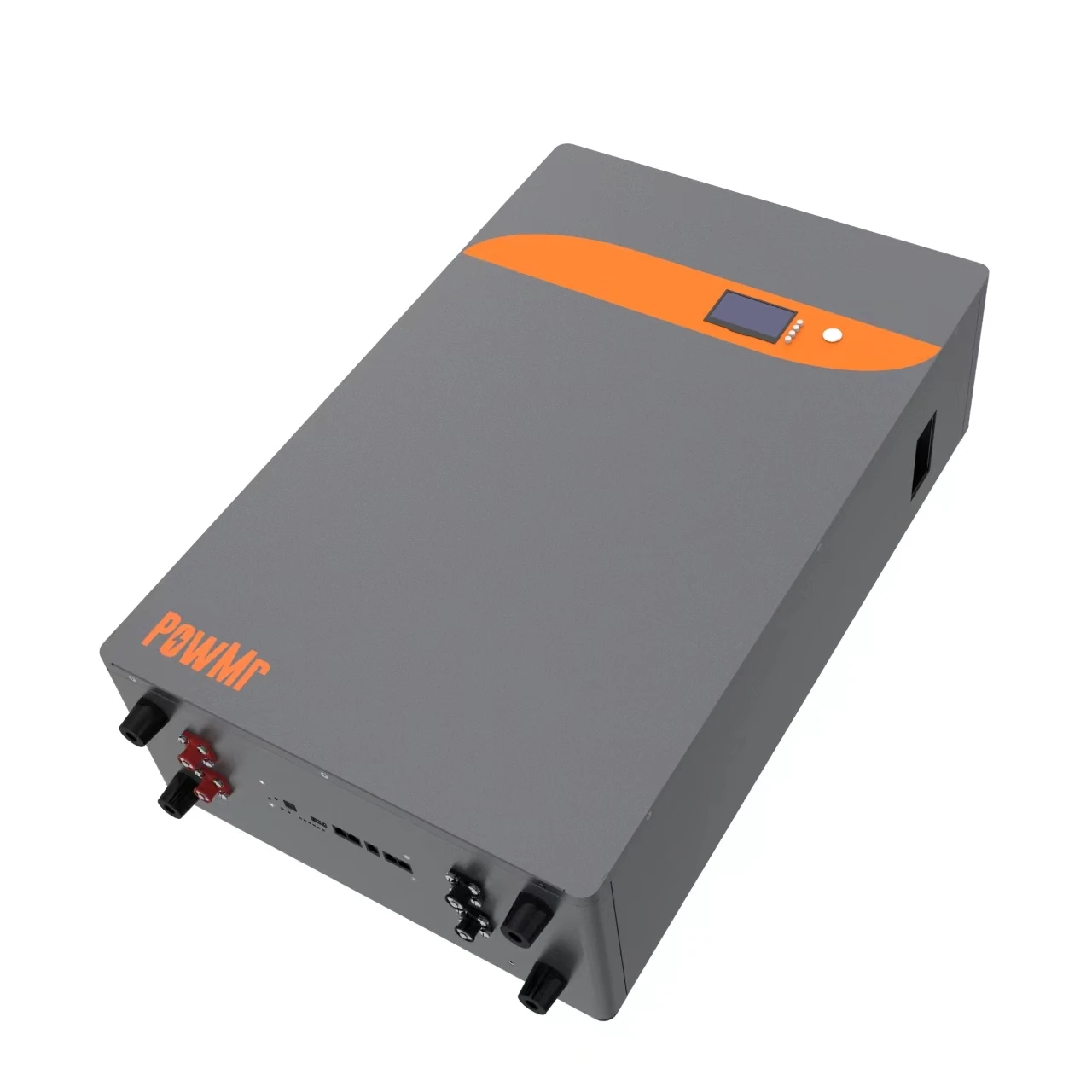

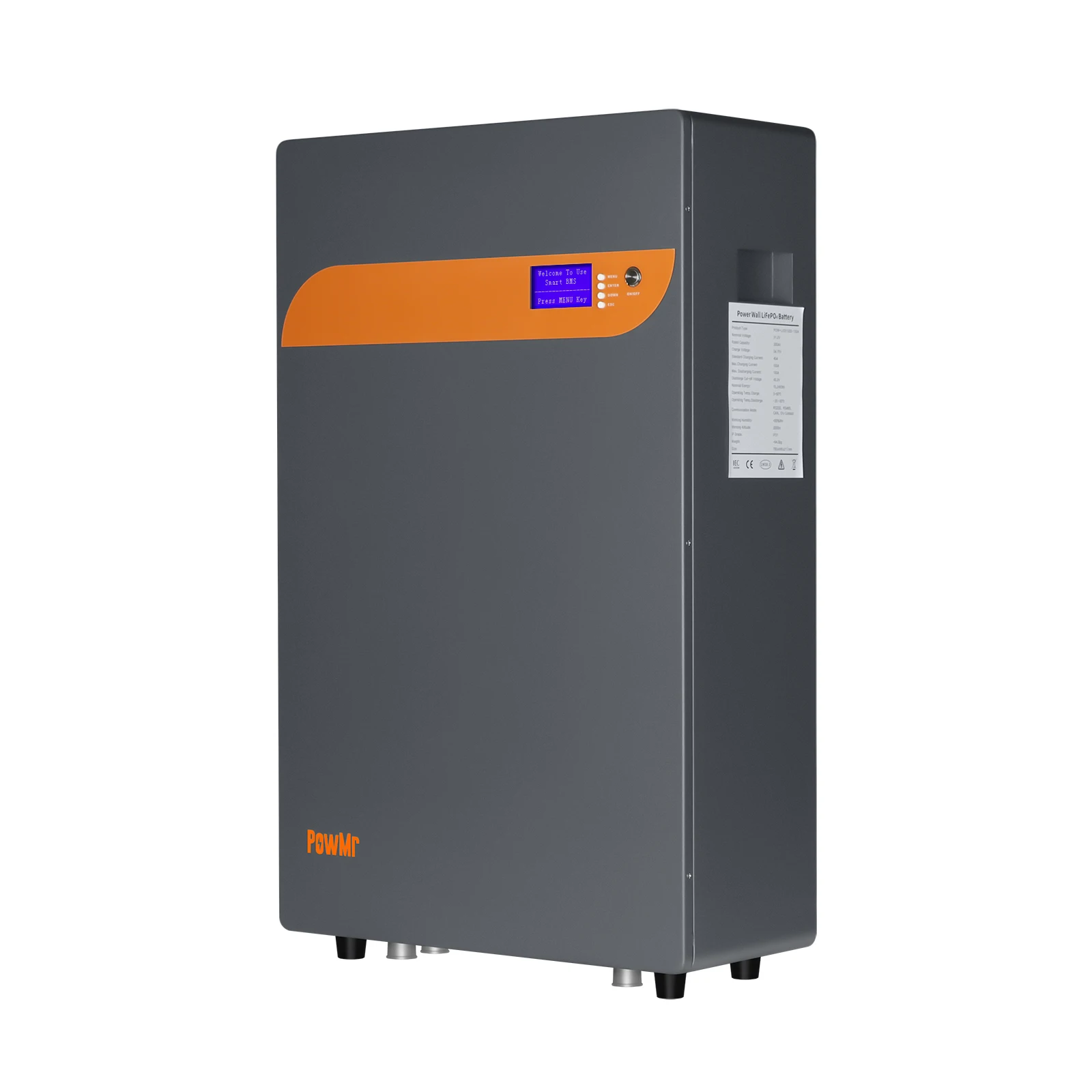

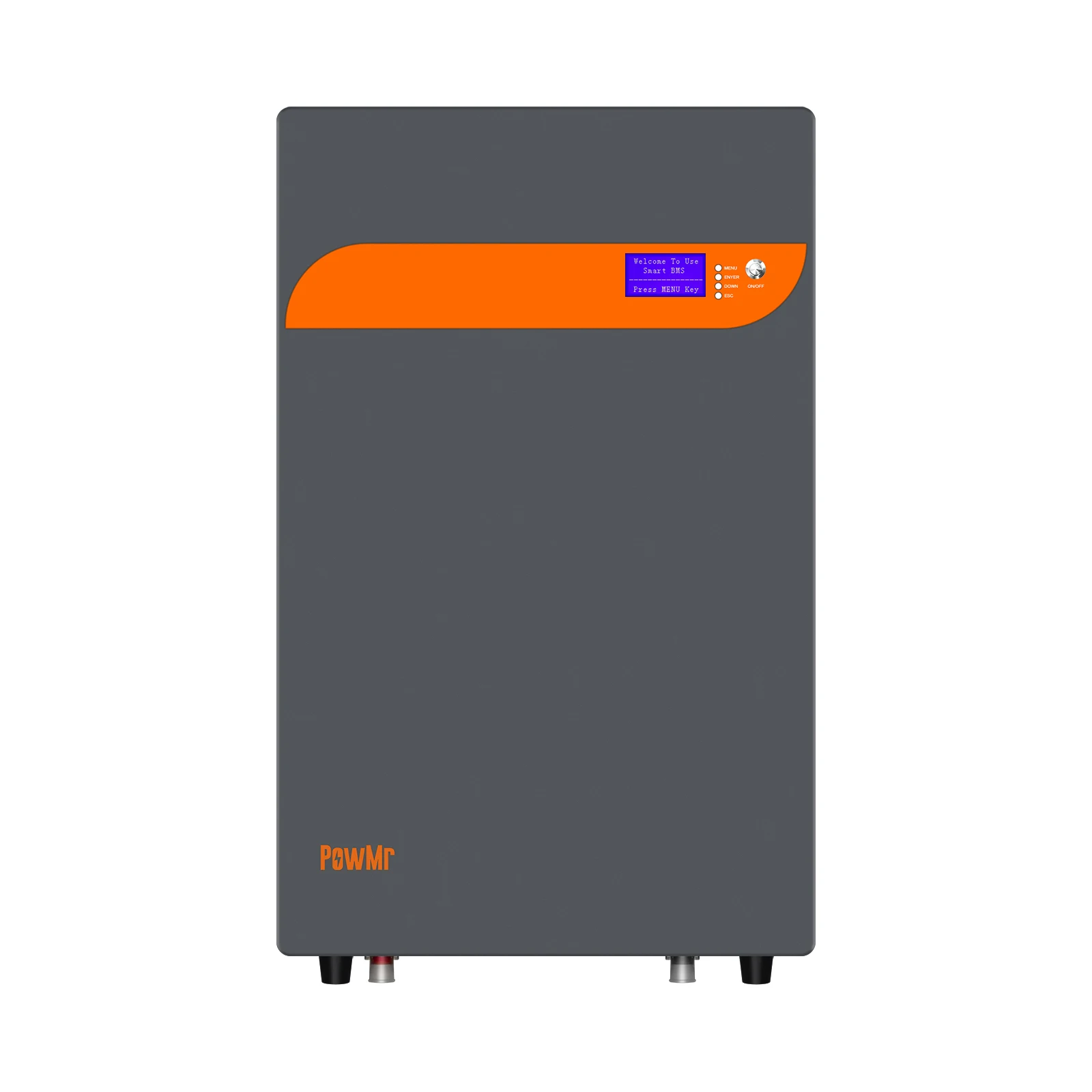

PowMr Wall mounted 51.2V 200Ah LiFePO4 Battery 10KWh Rechargeable Household Energy Storage Lithium ion Battery
- Category: >>>
- Supplier: Shenzhen Hehejin Industrial Co. Ltd.
Share on (1601088992372):
Product Overview
Description
Product Description
Product Introduction
* The POW-LIO51200-150A residential energy storage series is a battery module developed by PowMr for low-voltage lithium battery systems,primarily applied in the field of residential energy storage. It can achieve high-precision multi-cell voltage and temperature acquisition.
* The module adopts a passive balancing method, with a maximum balancing current of up to 300mA, improving the overall lifespan of the battery pack.
* The module features external communication interfaces using CAN, RS485, and dry contact communication methods, allowing communication in parallel for up to 16 batteries.
* Embedded BMS system effectively monitors phenomena such as over-temperature, over-voltage, and over-current, reducing the risk of battery damage or even fire, ensuring the safety of life and property.
* This manual introduces the types, sizes, performance, technical characteristics, warnings, and precautions of lithium battery systems. This specification is only applicable to the battery systems provided by PowMr.
* The module features external communication interfaces using CAN, RS485, and dry contact communication methods, allowing communication in parallel for up to 16 batteries.
* Embedded BMS system effectively monitors phenomena such as over-temperature, over-voltage, and over-current, reducing the risk of battery damage or even fire, ensuring the safety of life and property.
* This manual introduces the types, sizes, performance, technical characteristics, warnings, and precautions of lithium battery systems. This specification is only applicable to the battery systems provided by PowMr.
Product Advantages
※ The positive electrode material of the battery is lithium iron phosphate (LiFeP04) material,which has good safety performance, has a cycle life of more than 6,000 times.
※ The high-performance intelligent management system is adopted to realize comprehensive state control of battery charging, discharging, floating charging and hibernation, and multi-level protection is set for voltage, current, temperature, etc., so that the battery is always in an ideal state.
※ It has a comprehensive monitoring system to monitor the voltage, current, temperature.capacity and working status of the battery.
※ The system adopts an intelligent design method to meet the four remote control standards of the national standard: telemetry,remote signaling, remote control, and remote adjustment.
※ Built-in intelligent balance module to ensure the capacity consistency of the battery pack during long-term use and prolong the service life.
※ The control panel includes status display and alarm devices, which can visually see the working status and alarm information of the battery.
※ The system has its own intelligent thermal management device, which can work in a wide temperature range.
※ The high-performance intelligent management system is adopted to realize comprehensive state control of battery charging, discharging, floating charging and hibernation, and multi-level protection is set for voltage, current, temperature, etc., so that the battery is always in an ideal state.
※ It has a comprehensive monitoring system to monitor the voltage, current, temperature.capacity and working status of the battery.
※ The system adopts an intelligent design method to meet the four remote control standards of the national standard: telemetry,remote signaling, remote control, and remote adjustment.
※ Built-in intelligent balance module to ensure the capacity consistency of the battery pack during long-term use and prolong the service life.
※ The control panel includes status display and alarm devices, which can visually see the working status and alarm information of the battery.
※ The system has its own intelligent thermal management device, which can work in a wide temperature range.
Specification
item | value |
Brand Name | PowMr |
Battery Model | POW-LIO51200-150A |
Capacity | 200Ah |
Constant Voltage charging Voltage | 57.6V |
Float Charging Voltage | 56V |
Max. Discharge Cutoff Voltage | 43.2V |
Recommended Discharge Cutoff Voltage | 48V |
Max. Charging Current | 150A |
Recommended Charging Current | 40A |
Max. Discharge Current | 150A |
Recommended Discharge Current | 40-120A |
Max. Parallel Connection of Batteries | 16 |
Communication Interface | RS232/RS485/CAN |
Cycle Life | ≥6000 Times @80%DOD, 25°C |
Operating Temp | Charging: 0~60°C; Discharging: -10°C~65°C |
Nominal Operation Altitude | ＜3000m |
Recommended Operation Environment | Indoor |
Battery Dimensions (LxWxH) | 780*495*217mm |
Net Weight | 94.5Kg |
Recommend Product
Shenzhen HeHejin Industrial Co.,Ltd(Hongkong YSmart Technology Co.,Ltd) is an energetic and technological innovative company,
dedicated in researching, manufacturing and marketing solar related proudcts,the factory islocated in Shenzhen China.We provide
products including Solar Controllers,Micro Grid Tie Inverters,Solar Lamps,MC4 Connectors and other Solar Related Products. The
company presses the ISO9000 quality management system control product quantity strictly, the export production all passes the
relevant national company check (CE), get high evaluation of the customer. Since 2009, our service has been expanded to all over
world.Our products are widely used in Spain,United Kingdom,France,India,Italy,Australia and many other countries and regions ,and
have been extensively applied and highly appraised in a number of major projects. "Quality first, customer orientation" is our
purpose. YSmart Technology will be committed to provide the best service to you! Product line: 1A-100A Solar Charge Controllers;
500W-5000W Off Grid Tie Inverter; 200W-2000W Micro Grid Tie Inverters; MC-4 Solar Panel Connectors; Solar Water Pump; Solar
Related Products.
dedicated in researching, manufacturing and marketing solar related proudcts,the factory islocated in Shenzhen China.We provide
products including Solar Controllers,Micro Grid Tie Inverters,Solar Lamps,MC4 Connectors and other Solar Related Products. The
company presses the ISO9000 quality management system control product quantity strictly, the export production all passes the
relevant national company check (CE), get high evaluation of the customer. Since 2009, our service has been expanded to all over
world.Our products are widely used in Spain,United Kingdom,France,India,Italy,Australia and many other countries and regions ,and
have been extensively applied and highly appraised in a number of major projects. "Quality first, customer orientation" is our
purpose. YSmart Technology will be committed to provide the best service to you! Product line: 1A-100A Solar Charge Controllers;
500W-5000W Off Grid Tie Inverter; 200W-2000W Micro Grid Tie Inverters; MC-4 Solar Panel Connectors; Solar Water Pump; Solar
Related Products.
FAQ
Q1: How to insatll and use the solar inverter? A1: We have the English teaching manual and videos; All the videos about every step
of machine Disassembly, assembly, operation will be sent to our customers. Q2: What if I don't have export experience ? A2: We
have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the
most suitable shipping service. Q3. We want to know month capacity. A3: 20000-30000PCS per Month. Q4: How is your technical
support? A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer
you video call anytime,our engineer will also go to oversea help our customers if necessary. Q5: How can I make sure it's a secure
transaction ? A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money. Q6: Can you get the the solar inverter customized for us ? A6: Of course, brand name, machine
color, designed unique patterns available for customization. Q7:How to become your agent? A7:Contact us through Alibaba, we will
give you the best price and look forward to your greetings
of machine Disassembly, assembly, operation will be sent to our customers. Q2: What if I don't have export experience ? A2: We
have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the
most suitable shipping service. Q3. We want to know month capacity. A3: 20000-30000PCS per Month. Q4: How is your technical
support? A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer
you video call anytime,our engineer will also go to oversea help our customers if necessary. Q5: How can I make sure it's a secure
transaction ? A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money. Q6: Can you get the the solar inverter customized for us ? A6: Of course, brand name, machine
color, designed unique patterns available for customization. Q7:How to become your agent? A7:Contact us through Alibaba, we will
give you the best price and look forward to your greetings
