mcu igbt co2 mig 200 welder metal arc weld equipment gas welding machine MCU MIG 200
- Category: >>>
- Supplier: Shaodong Lida Tools Co. Ltd.
Share on (1601089201886):
Product Overview
Description
Product Description

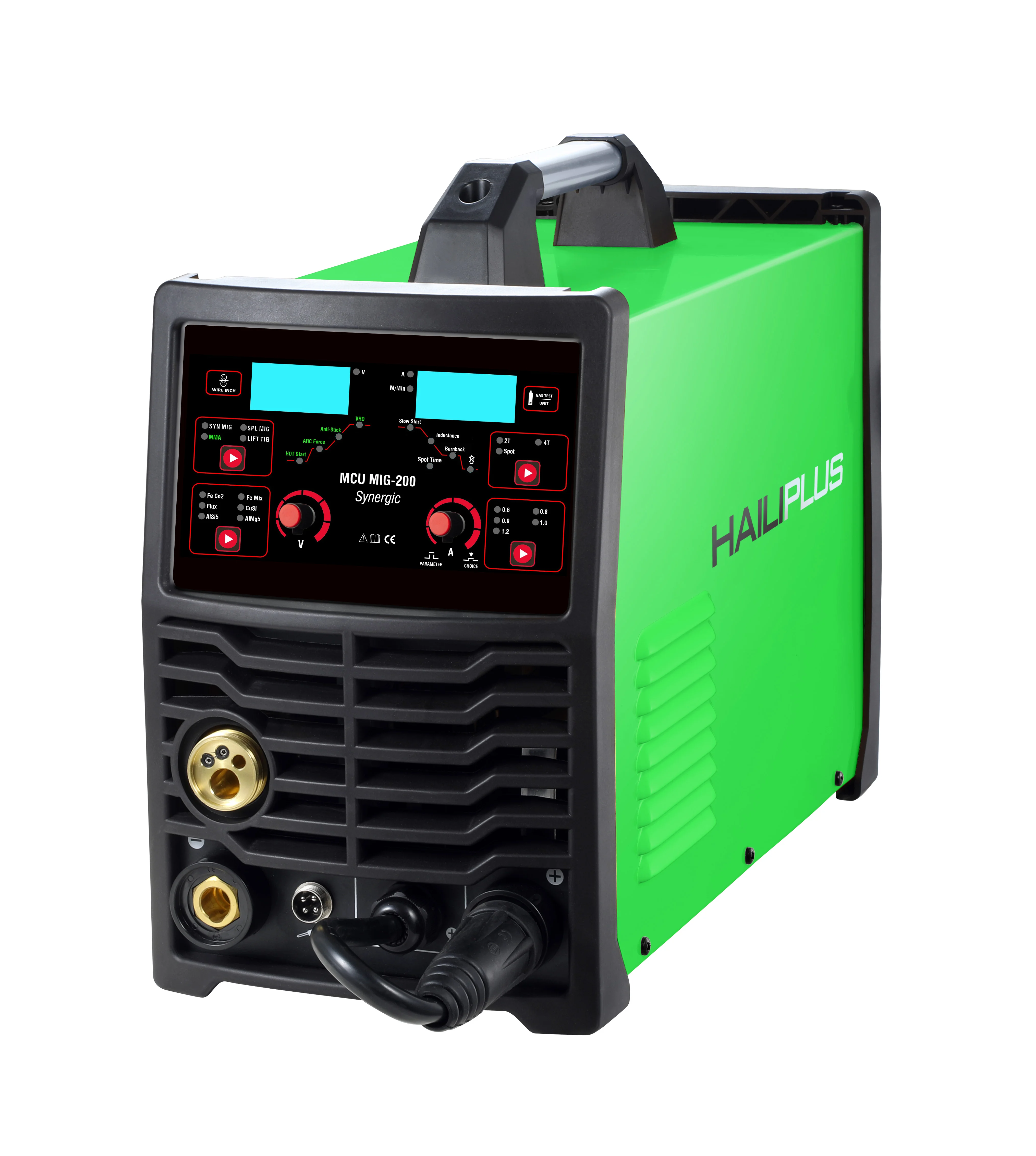

MCU MIG-200
Multi-process Functions
Extensive SYNERGIC Database
Extensive Sub-functions
Support to work with remote control torch.
Dual LED display
Excellent welding performance
Compact design
Hot Selling 3 in 1 MIG-200 Inverter IGBT MIG MMA/LIFT-TIG WELDER
Features
1), 110V/220V dual voltage can be optional. Adopt High performance 32-bit MCU and IGBT & advanced PWM technology.
2), DC Gas MIG/MAG, Gasless MIG, Lift-TIG, MMA, Support Spool Gun and multi-process functions.
3), Optional Digital control remote MIG Torch, allows you to adjust wire feed speed and voltage directly from the torch handle.
during real time welding, providing you the ultimate in fingertip control.

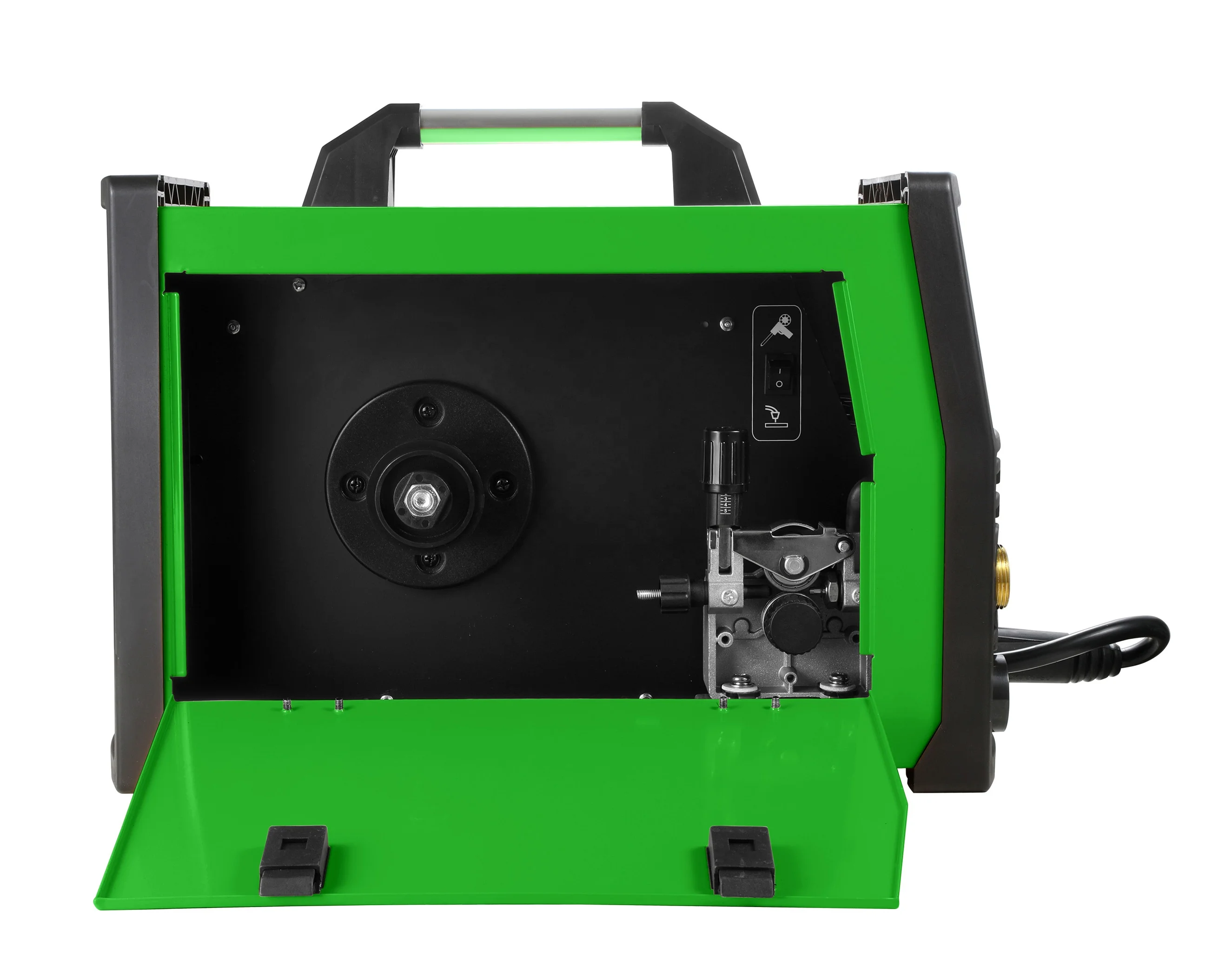

4), Compact, lightweight, Suitable for 1Kgs/5Kgs Wire. Inching wire function, easy to install wire.
5), Outstanding welding performance, especially for thin plate welding, little weld spatter.

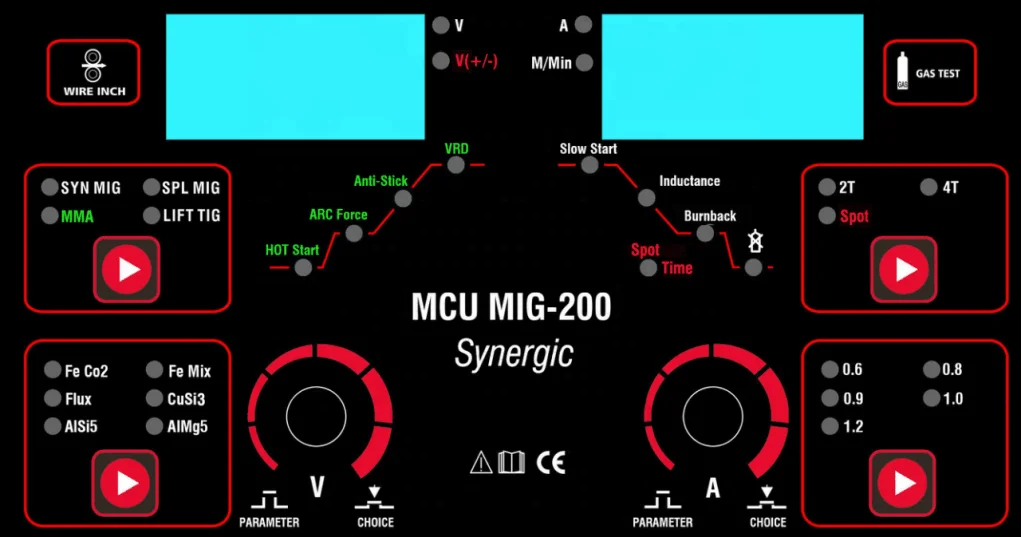

6), Easy-to-user interface, Synergic Home Function, dynamic control Digital display with very simple operations.
Synergic MIG, Manual adjustment MIG, MMA, Lift-TIG welding mode.
Preset synergic database:
Argon+Co2 Mixed and 100% Co2 solid wire, Flux wire, AlSi and AlMg aluminum wire, brazing cusi3 wire to choose.
0.6-0.8-0.9-1.0-1.2MM various welding wire diameter.
2T/4T/SPOT torch operate mode.
Adjustable arc length, slow-start, inductance, burn-back, spot time, VRD, ARC force and Anti-stick.
with these super functions and can let user without any experience also can operate machine very well only need 1 minute.
7), MIG welding voltage and wire speed also can be manual setting for skilled user.
8), Unique housing design with high-strength plastic All-around corner protection, innovative human engineering handle.
9), Premium 35-50MM2 cable connector, easy to change polarity conversion.
10), With Wide Voltage Function, work well and stable between voltage 150V-270V or together with Generator.
11), Spool gun can be optional.
1), 110V/220V dual voltage can be optional. Adopt High performance 32-bit MCU and IGBT & advanced PWM technology.
2), DC Gas MIG/MAG, Gasless MIG, Lift-TIG, MMA, Support Spool Gun and multi-process functions.
3), Optional Digital control remote MIG Torch, allows you to adjust wire feed speed and voltage directly from the torch handle.
during real time welding, providing you the ultimate in fingertip control.
4), Compact, lightweight, Suitable for 1Kgs/5Kgs Wire. Inching wire function, easy to install wire.
5), Outstanding welding performance, especially for thin plate welding, little weld spatter.
6), Easy-to-user interface, Synergic Home Function, dynamic control Digital display with very simple operations.
Synergic MIG, Manual adjustment MIG, MMA, Lift-TIG welding mode.
Preset synergic database:
Argon+Co2 Mixed and 100% Co2 solid wire, Flux wire, AlSi and AlMg aluminum wire, brazing cusi3 wire to choose.
0.6-0.8-0.9-1.0-1.2MM various welding wire diameter.
2T/4T/SPOT torch operate mode.
Adjustable arc length, slow-start, inductance, burn-back, spot time, VRD, ARC force and Anti-stick.
with these super functions and can let user without any experience also can operate machine very well only need 1 minute.
7), MIG welding voltage and wire speed also can be manual setting for skilled user.
8), Unique housing design with high-strength plastic All-around corner protection, innovative human engineering handle.
9), Premium 35-50MM2 cable connector, easy to change polarity conversion.
10), With Wide Voltage Function, work well and stable between voltage 150V-270V or together with Generator.
11), Spool gun can be optional.
Product Parameters
Model | MCU MIG-160 | MCU MIG-200 | MCU MIG-250 | ||
Rated input Voltage (V) | 1*220V-240V | 1*220V-240V | 1*220V-240V | ||
Rated input power (KVA) | 4.5 | 6.1 | 7.2 | ||
Current range (MMA) (A) | 10~140 | 10~180 | 10~180 | ||
Current range (MIG) (A) | 30~160 | 30~200 | 30~230 | ||
Voltage range (MIG) (V) | 11~22 | 11~26 | 11~28 | ||
No-Load voltage (V) | 60 | 60 | 60 | ||
Wire Feed speed (m/min) | 1.5~16 | 1.5~16 | 1.5~16 | ||
Wire diameter (mm) | 0.6/0.8/0.9 | 0.6/0.8/0.9/1.0 | 0.6/0.8/0.9/1.0 | ||
Rated Duty Cycle (%) | 60 | 60 | 60 | ||
Frequency (Hz) | 50/60 | 50/60 | 50/60 | ||
Efficiency (%) | 85 | 85 | 85 | ||
Power Factor | 0.75 | 0.75 | 0.75 | ||
Protective class | IP21S | IP21S | IP21S | ||
Dimension (mm) | 490*220*390 | 490*220*390 | 490*220*390 | ||
Weight (Kg) | 14 | 15 | 16 | ||
Accessories | 15AK TORCH WITH 3M CABLE, ELECTRODE HOLDER WITH 2M CABLE, EARTH CLAMP WITH 2M CABLE, 3M GAS HOSE, 2PCS HOSE CLAMP. | ||||
Moq | 100Pcs | 100Pcs | 100Pcs | ||
Price: Nylon Panels | |||||
Certifications
- Package standard: Export Carton With Foamed Plastic or Plywood with Honeycomb carton
- We offer OEM package as per your request.
Exhibition
Lida Tools attends Canton Fair, Beijing Welding & Essen fair, Germany Welding & Essen fair every time.
To know local markets and service our partners better, we visit Poland, Thailand, Brazil, Peru, Russia etc every year.
Packing & Delivery
- Package standard: Export Carton With Foamed Plastic or Plywood with Honeycomb carton.
- We offer OEM package as per your request.
FAQ
Q1: Why choose us?
1.We are China Leading manufacturer and export to more than 50 counrties all over the world.
2. We have high-experience R&D team, we can adjust the parameter and panels design as per your request3. A full professional team to handle OEM/ODM project.
3.100% QC inspection before shipping.
4.14 months warranty, life-long technical support and design service.
5. Europe is our main market, accounts for more than 45%. We can send a full series of CE certuficates.
1.We are China Leading manufacturer and export to more than 50 counrties all over the world.
2. We have high-experience R&D team, we can adjust the parameter and panels design as per your request3. A full professional team to handle OEM/ODM project.
3.100% QC inspection before shipping.
4.14 months warranty, life-long technical support and design service.
5. Europe is our main market, accounts for more than 45%. We can send a full series of CE certuficates.
Q2: How is your quality control?
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.
Each machine loading test at least 20 minute.
Q3: what voltage could you provide?
110/220v, 220/380V, 230V etc. We can adjust it as per your country voltage.
Q4: How long is the production lead time?
After receiving your 30% deposit , generally it is 5-10days if the goods are in stock, or 25-30 days if not .
Q5: What's your payment way?
T/T, Trade Assurance.
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.
Each machine loading test at least 20 minute.
Q3: what voltage could you provide?
110/220v, 220/380V, 230V etc. We can adjust it as per your country voltage.
Q4: How long is the production lead time?
After receiving your 30% deposit , generally it is 5-10days if the goods are in stock, or 25-30 days if not .
Q5: What's your payment way?
T/T, Trade Assurance.
Q6: Can I get customized sample?
Yes, we can adjust the circuit board and structure as per your request and send you samples.
Yes, we can adjust the circuit board and structure as per your request and send you samples.
