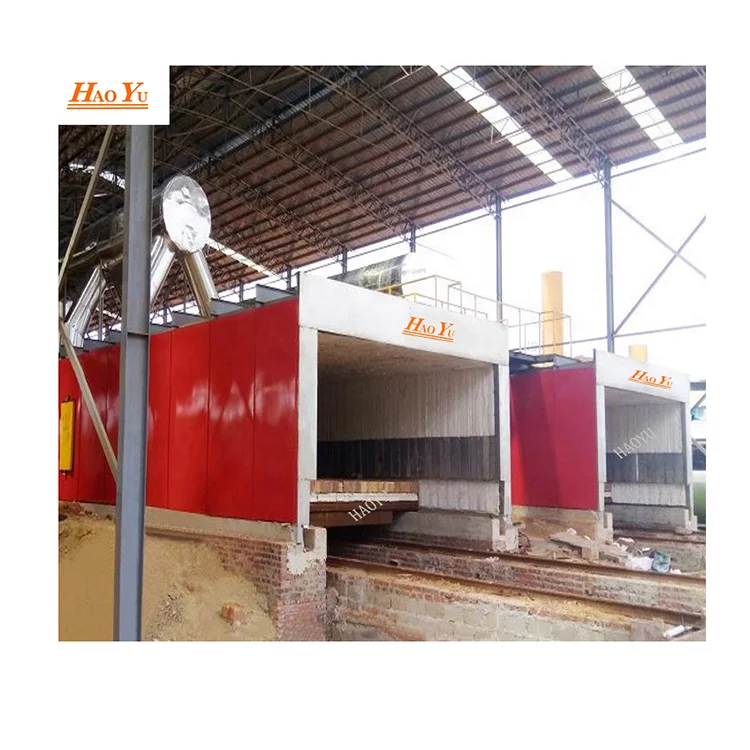

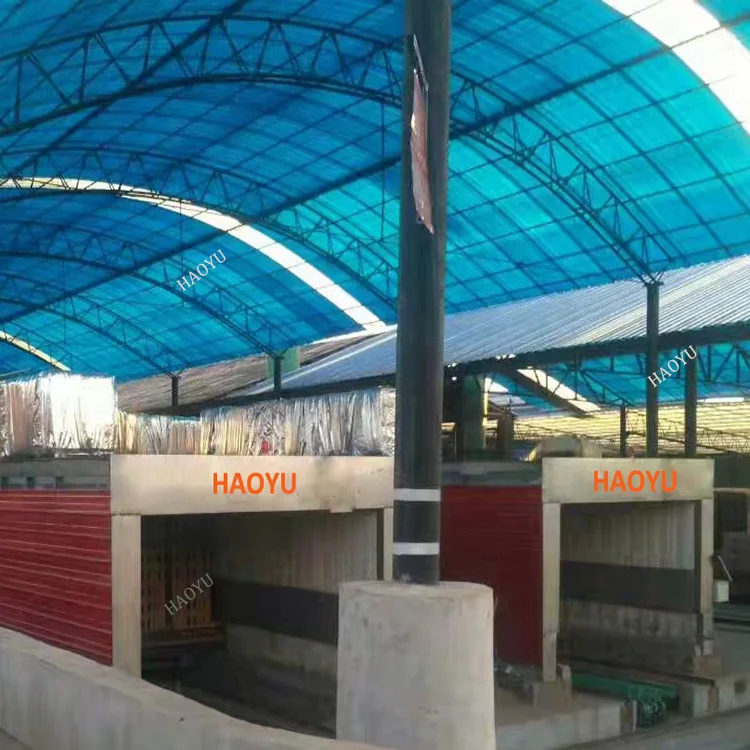

Coal fired tunnel kiln for fired clay red brick plant Brick furnace Assembled mobile tunnel brick kiln
- Category: >>>
- Supplier: Shaanxi Haoyang Yuxuan Machine Manufacturing Co. Ltd.
Share on (1601089298552):
Product Overview
Description

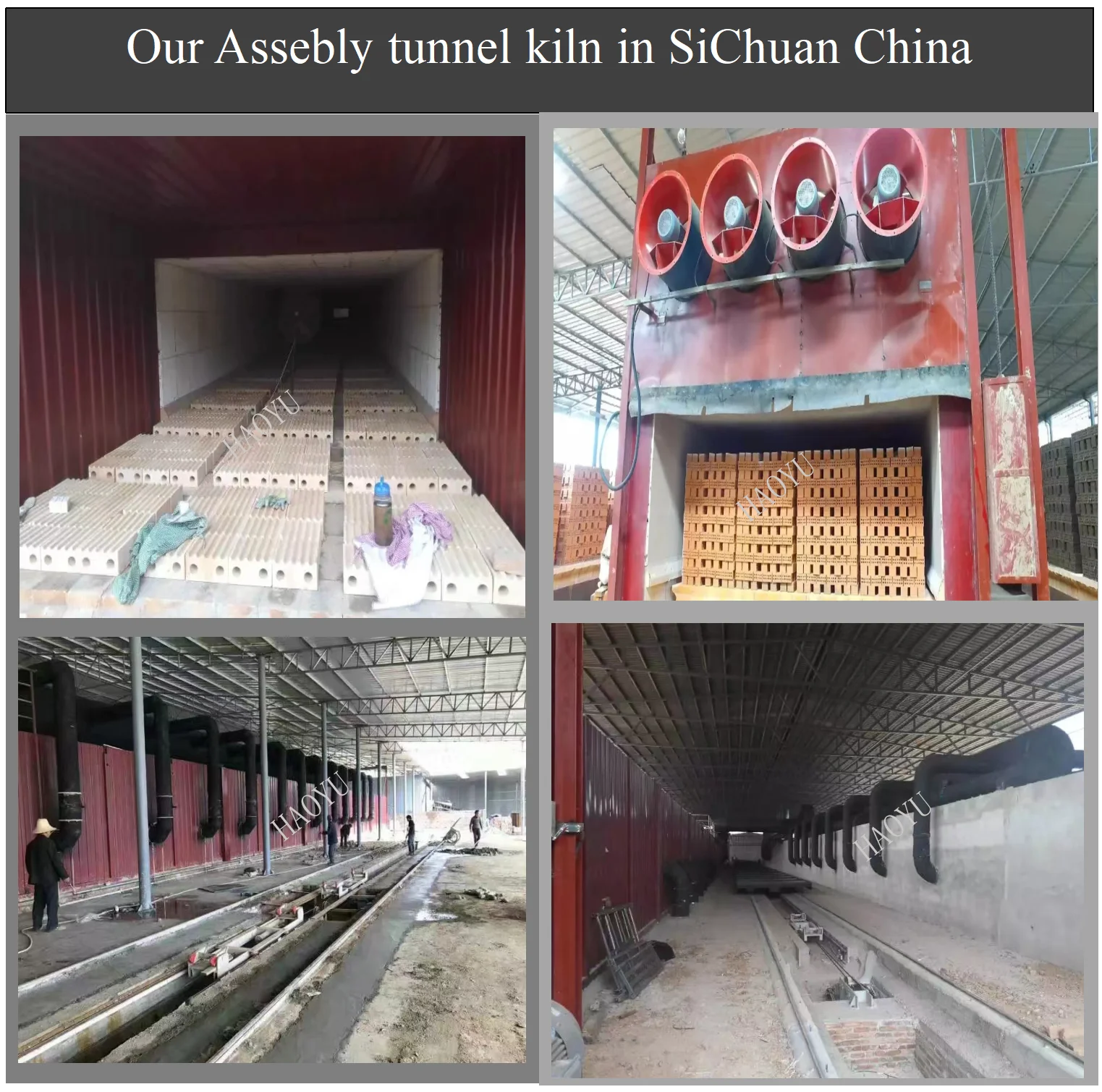

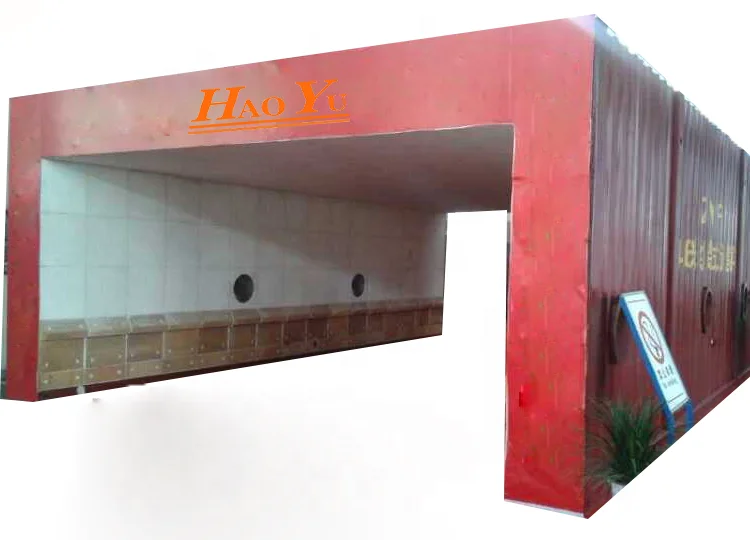

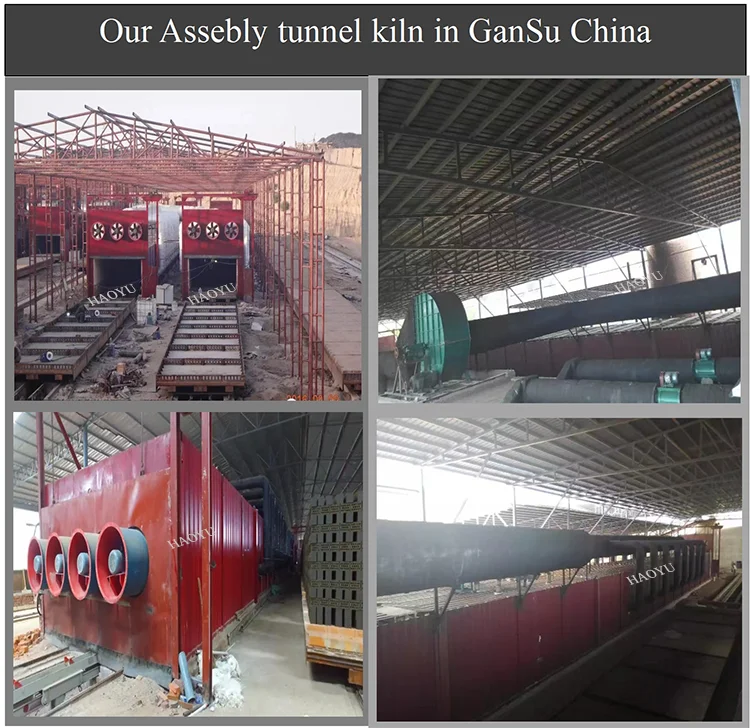

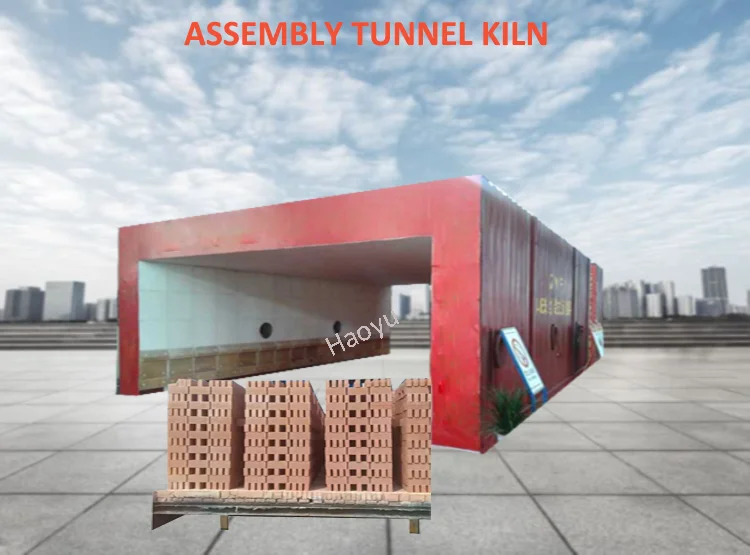

YZM series assembled tunnel kilns

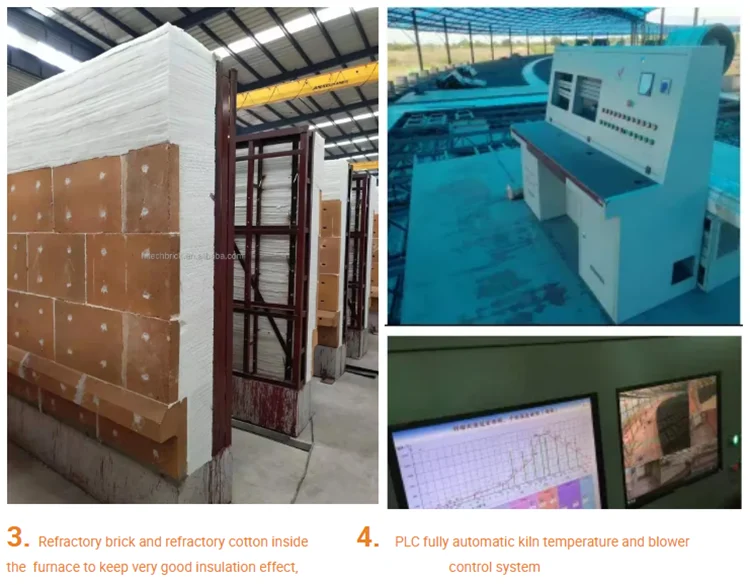

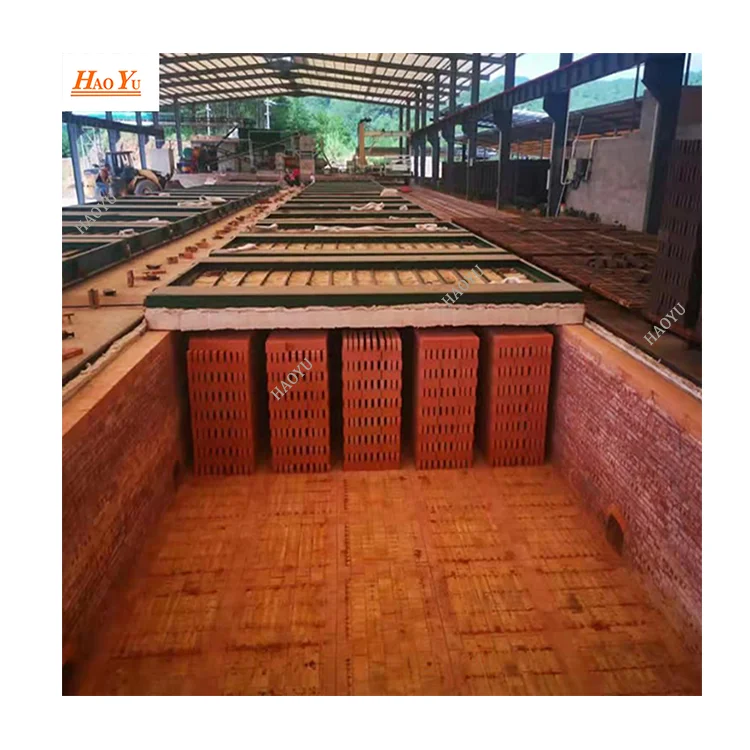

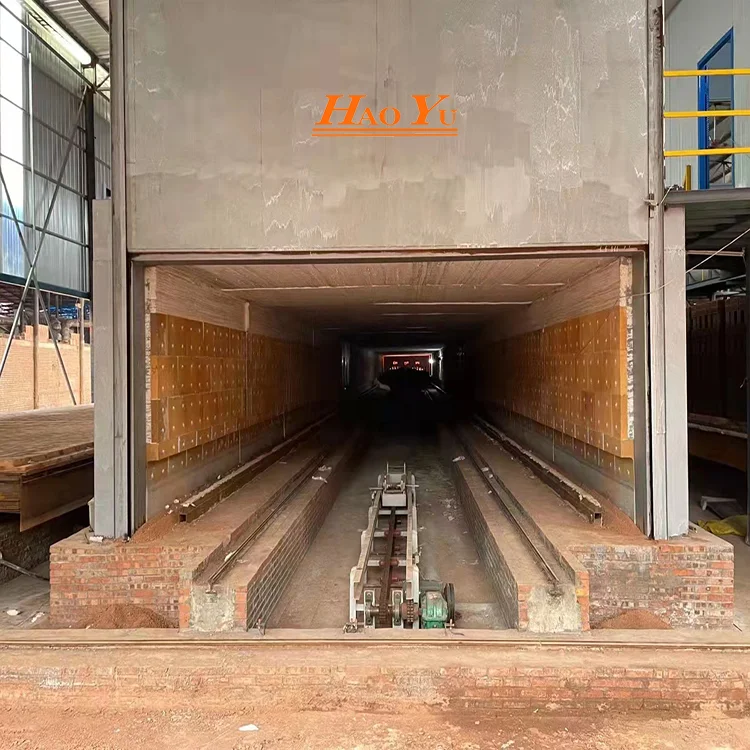

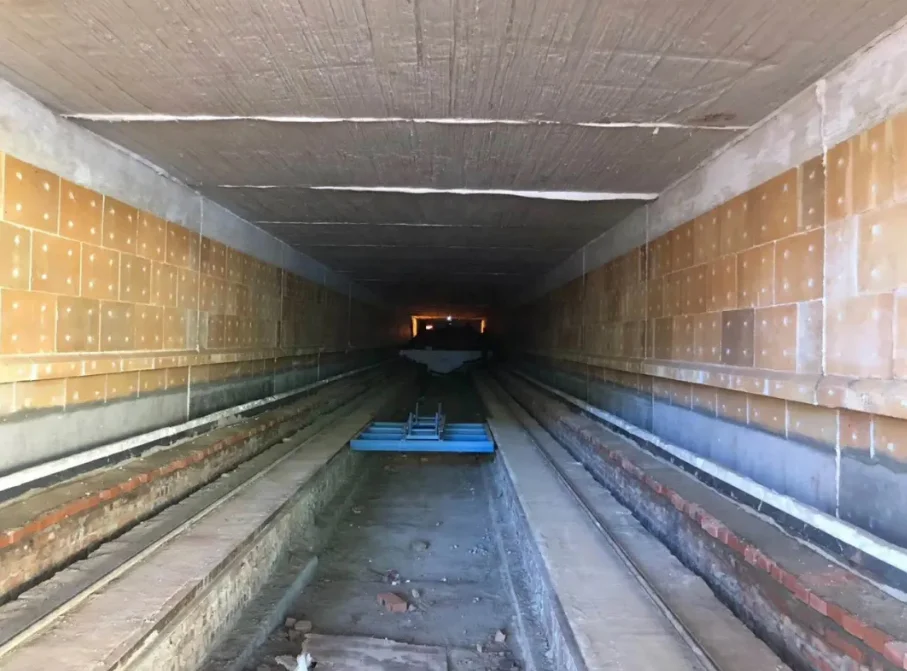

YZM series energy-saving assembled tunnel kiln is a new type of industrial kiln developed by our company, the frame is made of steel structure, the inner wall and top of the kiln are made of high temperature resistant high aluminum polyhydrogen insulation brick, the middle is made of high temperature resistant fiber cotton module, and the outer is inlaid with high strength corrugated board.
YZM series energy-saving assembled tunnel kiln is divided into Three Parts:
1.preheating section,
2.high temperature section and
3. cooling section.

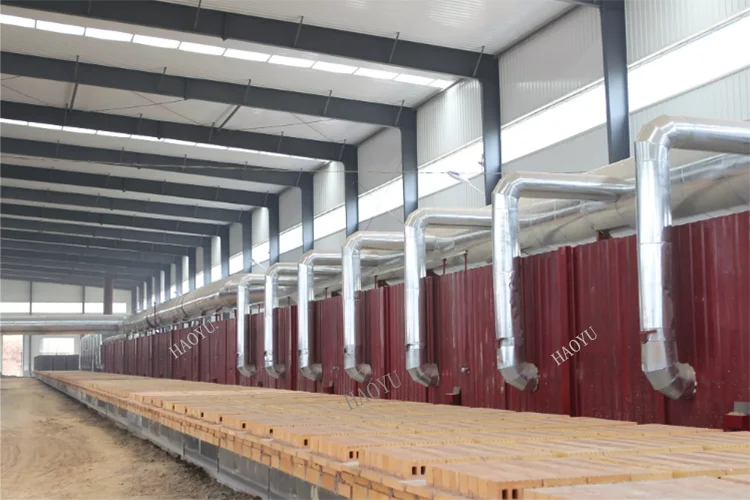

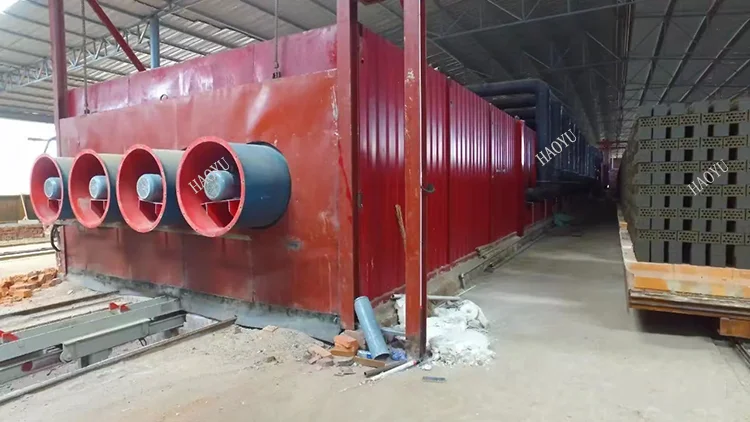

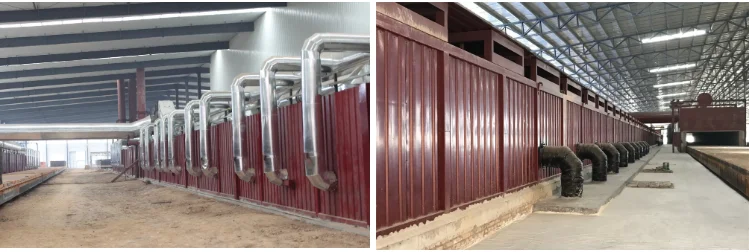

The three parts work independently and cooperate with each other.The flue gas in the preheating section is pumped into the flue gas purification system by the centrifugal fan, and then discharged.In the roasting stage, gas, liquid and solid fuel can be used to fire the bricks, and the waste heat extracted from the cooling stage is sent to the drying kiln through the pipeline to dry the bricks. It is energy saving and environmental protection, with high heat use efficiency. At the same time, it can also increase the water tank to provide domestic hot water for the brick factory.
The three parts work independently and cooperate with each other.The flue gas in the preheating section is pumped into the flue gas purification system by the centrifugal fan, and then discharged.In the roasting stage, gas, liquid and solid fuel can be used to fire the bricks, and the waste heat extracted from the cooling stage is sent to the drying kiln through the pipeline to dry the bricks. It is energy saving and environmental protection, with high heat use efficiency. At the same time, it can also increase the water tank to provide domestic hot water for the brick factory.

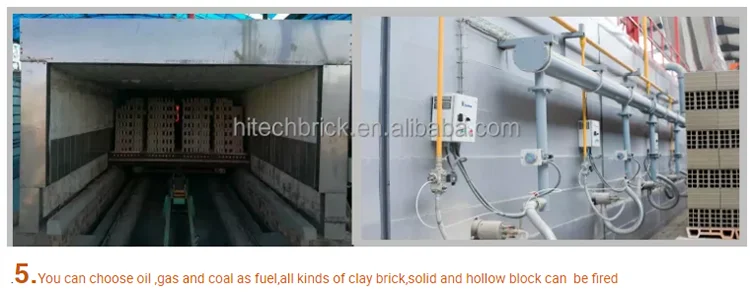

What Fuel can be Used for Assembly tunnel kiln ?
YZM series energy-saving assembled tunnel kilns can use coal gangue, raw coal, natural gas and other fuels, with high heat utilization rate and strong adaptability.The assembled tunnel kiln has high cost performance, no drying kiln can be directly ignited, the whole body can be removed and transferred, recycling and reuse.
