Punching PVC Card Machine 86*54 mm Plastic ID Card Die Cutter PVC Bank Card Die Cutting Machine
- Category: >>>
- Supplier: Zhengzhou Zomagtc Co. Ltd.Zhengzhou Ltd.
Share on (1601089352377):
Product Overview
Description

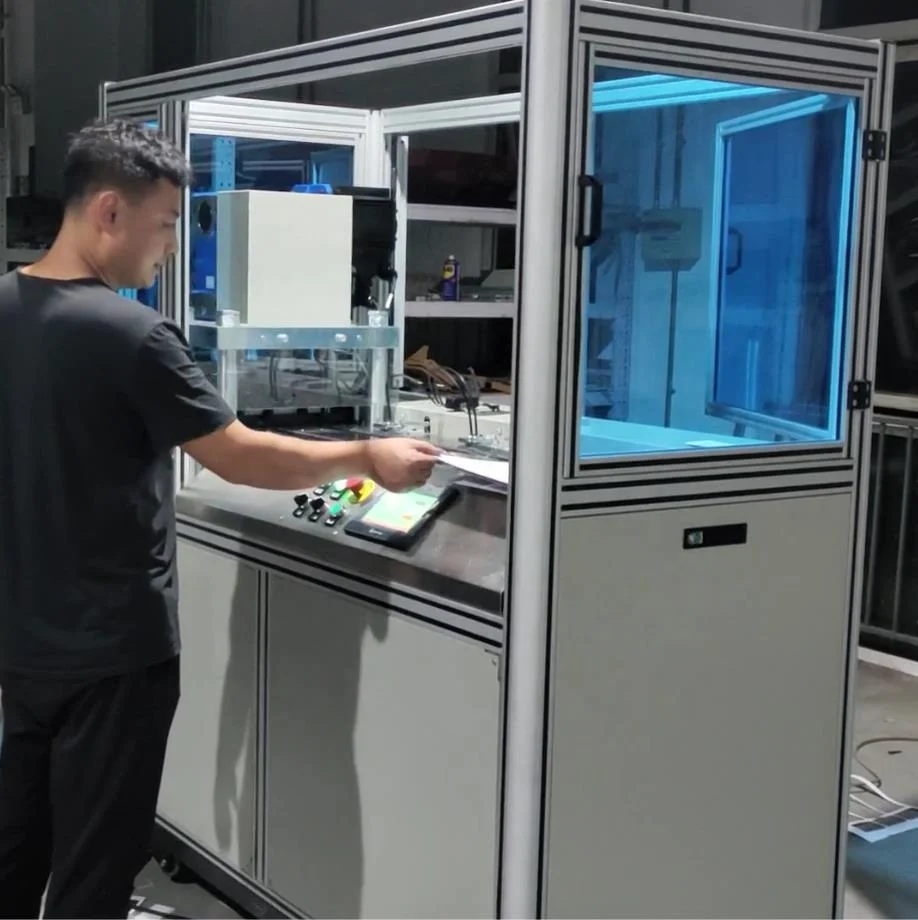

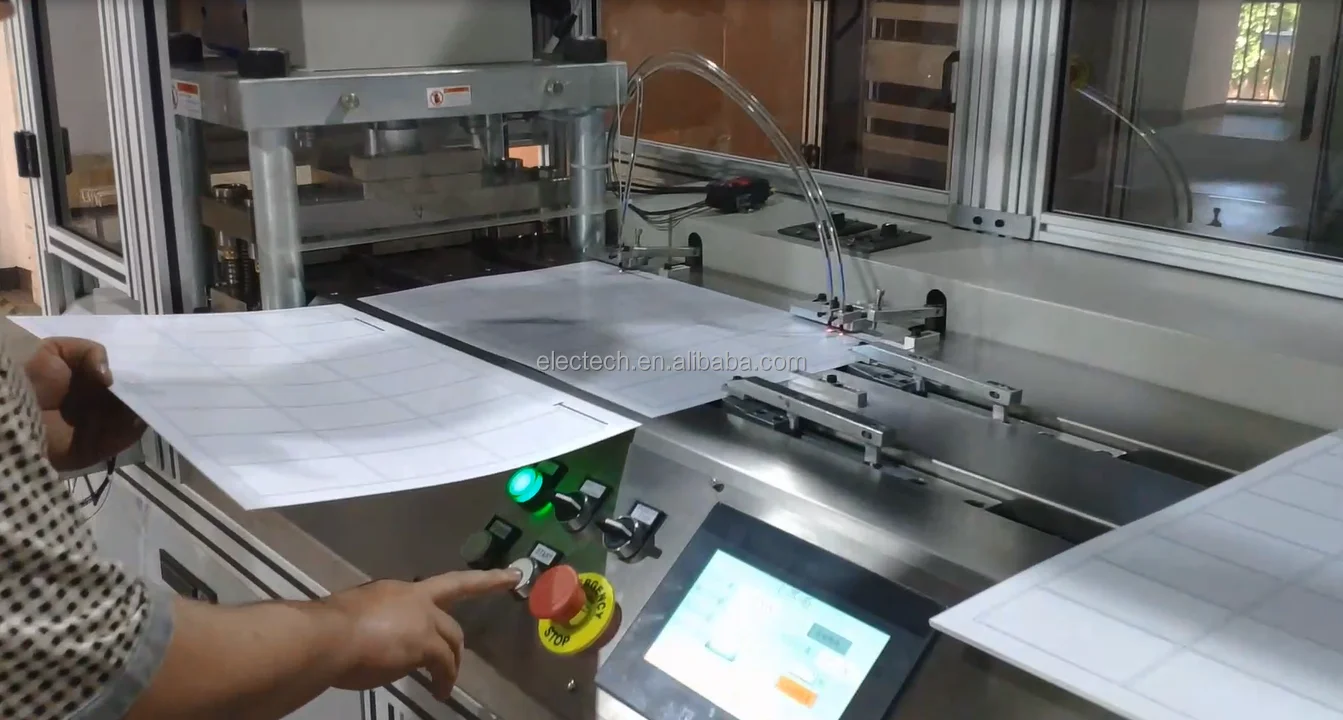

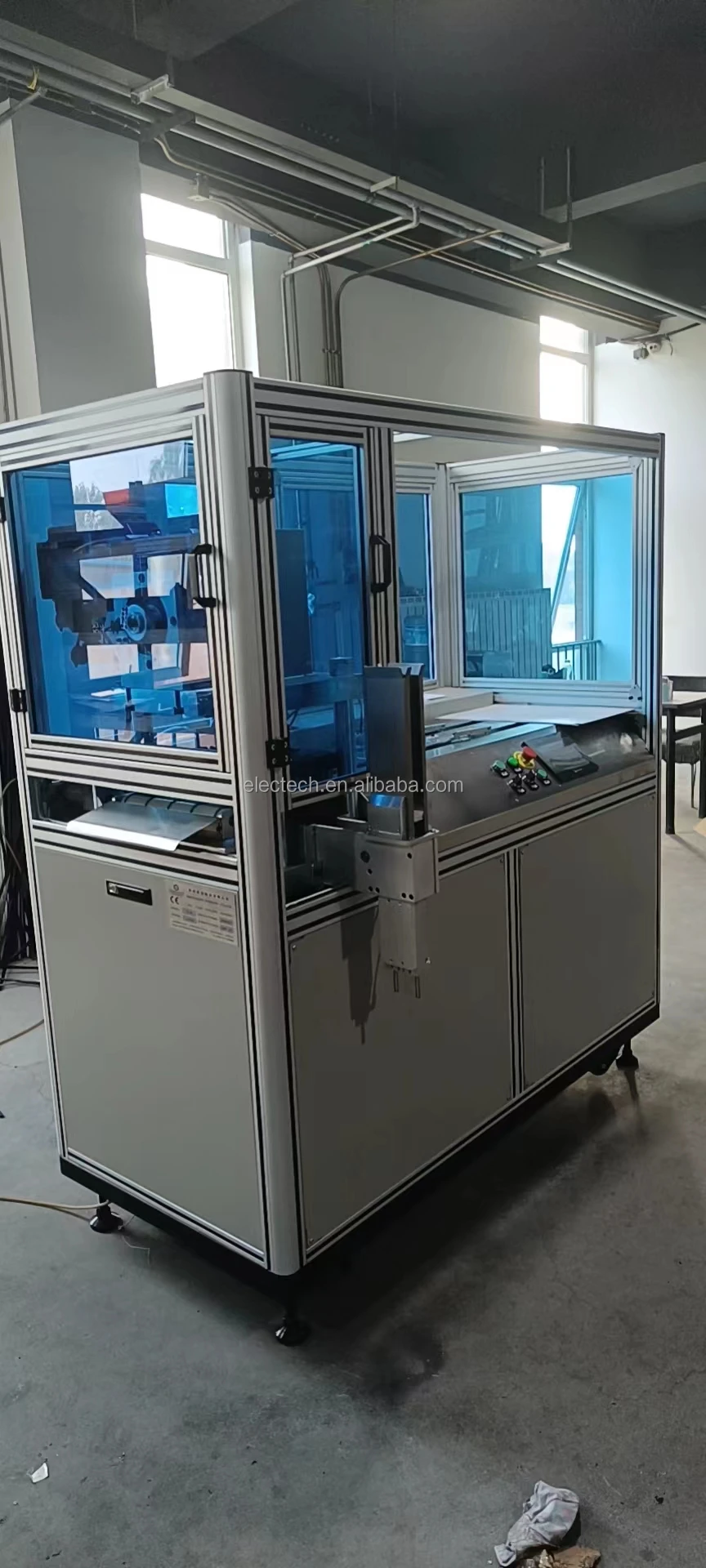

Punching PVC Card Machine 86*54 mm Plastic Card Die Cutter ID Card Cutter PVC Bank Card Die Cutting Machine
Product Description
Specification of Punching PVC Card Machine 86*54 mm Plastic Card Die Cutter ID Card Cutter PVC Bank Card Die Cutting Machine
1 | Model No. | ST-2B | ST-3B | ST-4B | ST-5B |

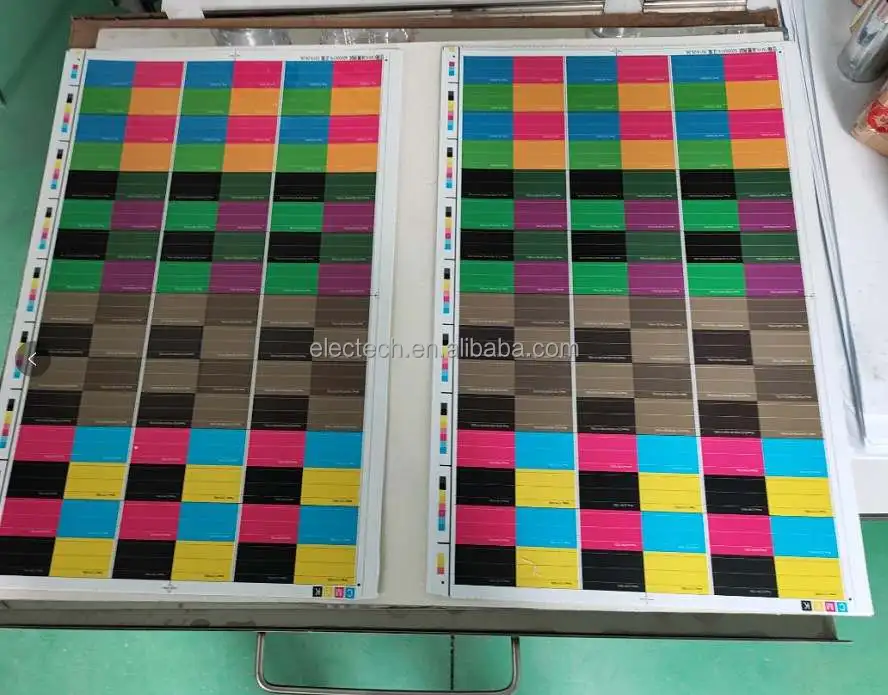

| 2 | Feed sheet size | A4 | A3 or A3+ | A3 or A3+ | A3 or A3+ |
| 3 | Punch layout | 2x5 | 3x7/8/9/10… | 4x7/8/9/10… | 5x5 |
| 4 | Punch die head / cavity quantity | 2 | 3 | 4 | 5 |
| 5 | Output per hour | 6000 Cards | 11000 Cards | 16000 Cards | 15000 Cards |
| 6 | PLC & HMI | YES | YES | YES | YES |
| 7 | PVC sheet putting | Manually | Manually | Manually | Manually |

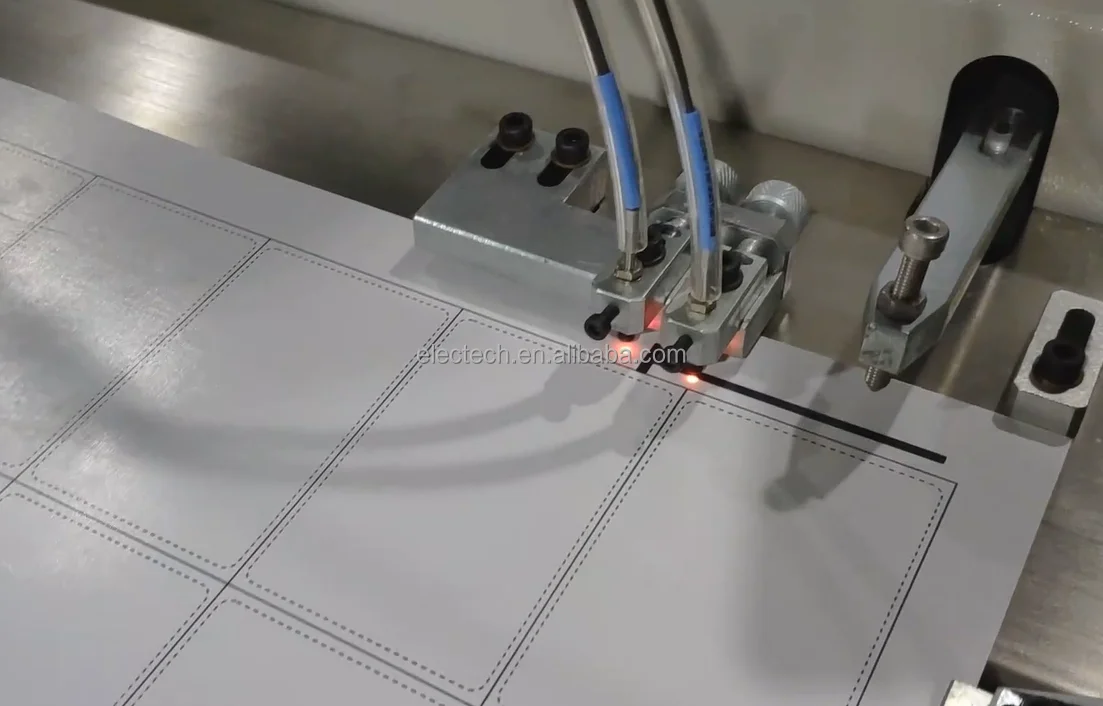

| 8 | Auto correction | YES | YES | YES | YES |

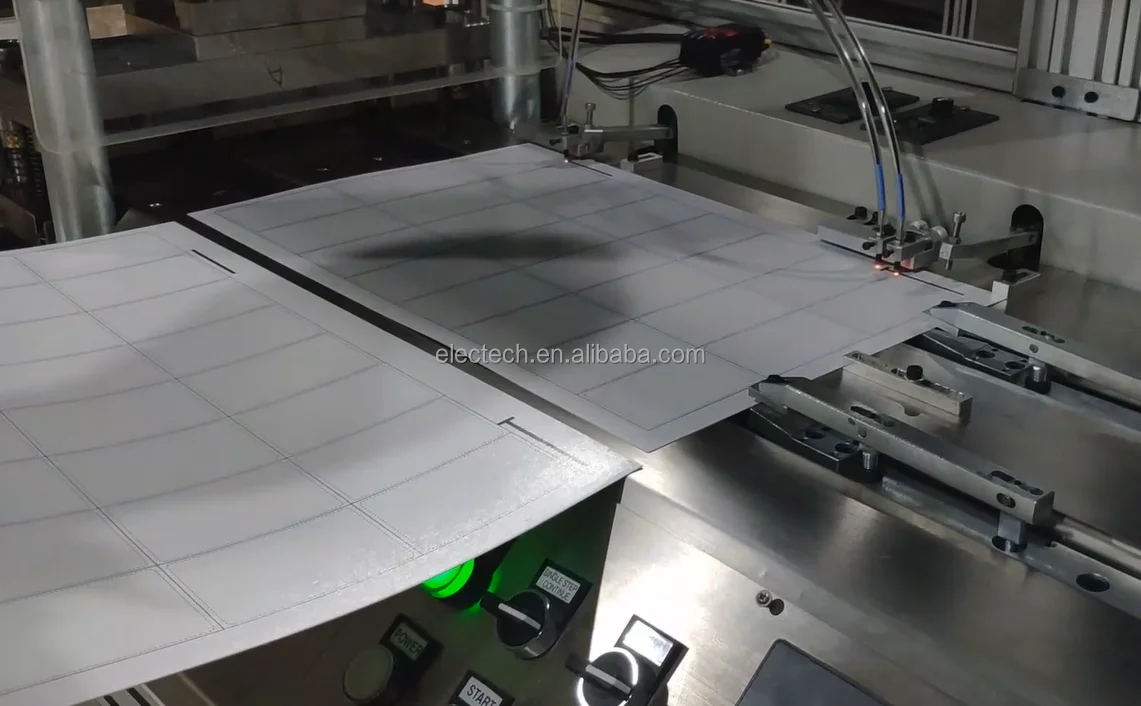

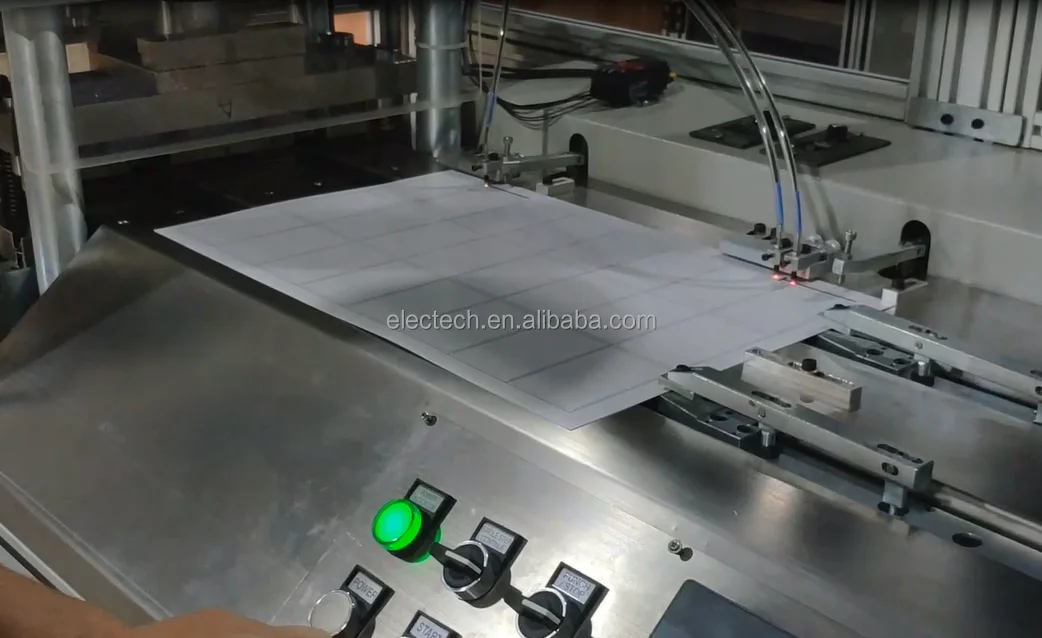

| 9 | Feed sheets | Auto: Servo Motor | Auto: Servo Motor | Auto: Servo Motor | Auto: Servo Motor |
| 10 | Trigger punch | Automatic | Automatic | Automatic | Automatic |

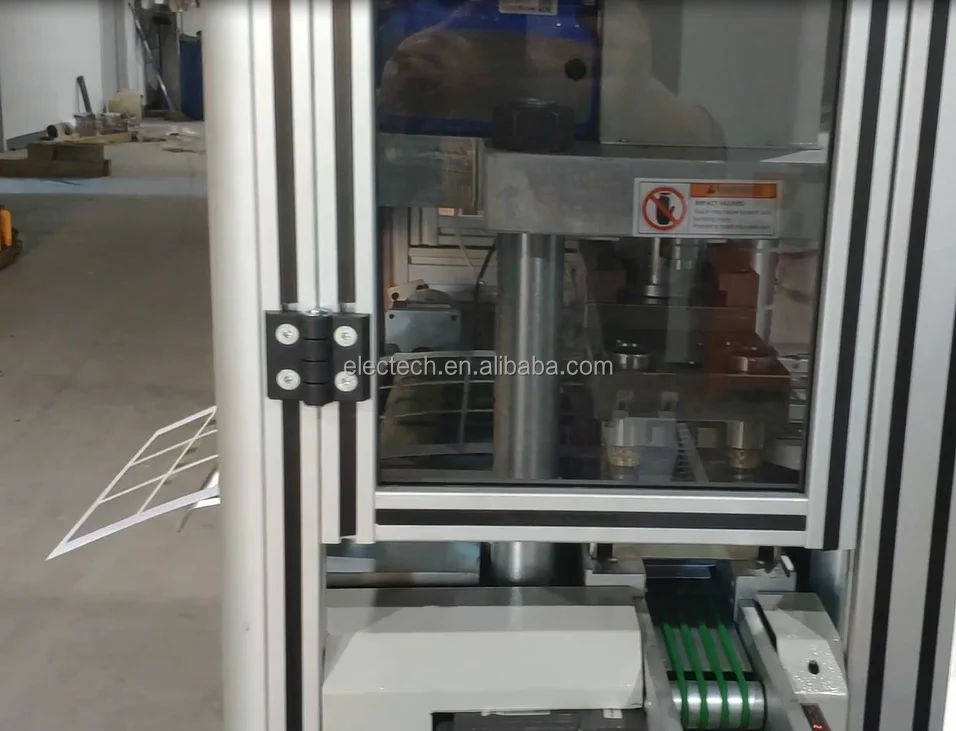

| 11 | Drive punch | Servo Motor | Servo Motor | Servo Motor | Servo Motor |

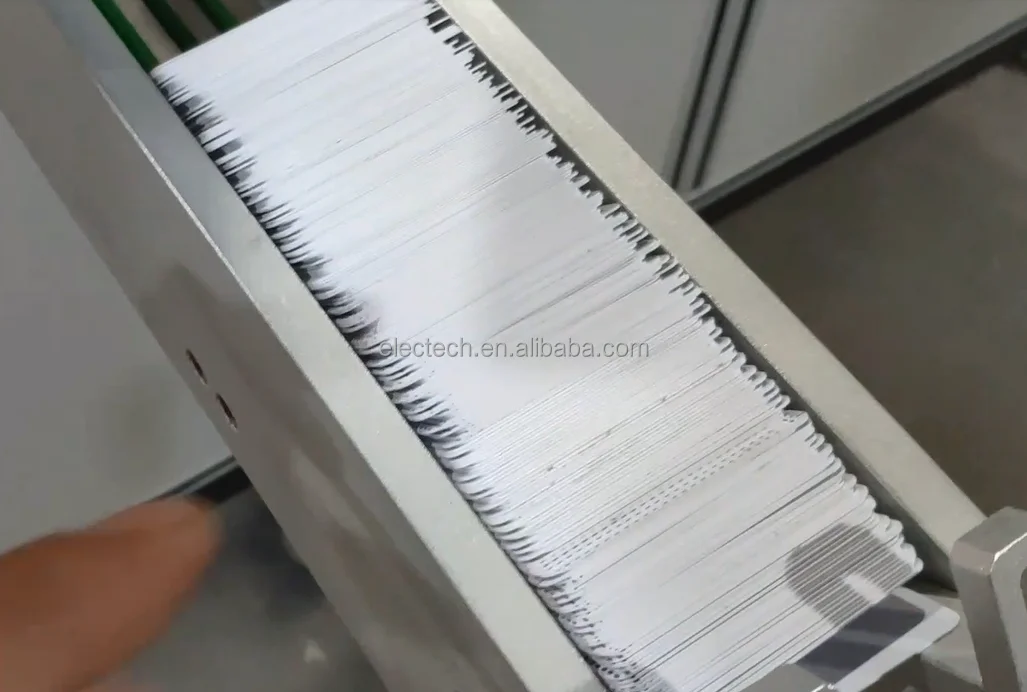

| 12 | Collect cards | Conveyor belt | Conveyor belt | Conveyor belt | Conveyor belt |
| 13 | Air source | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
| 14 | Air consumption | 50L/ Min. | 50L/ Min. | 50L/ Min. | 50L/ Min. |
| 15 | Power supply | AC 380V or 220V | AC 380V or 220V | AC 380V or 220V | AC 380V or 220V |
| 16 | Power | 3.5 kW | 4.5 kW | 4.5 kW | 4.5 kW |
| 17 | Dimensions | 1500x880x1530 mm | 1720x1320x1830mm | 1750x1400x1850mm | 1800x1250x1850mm |
| 18 | Weight | 400KG | 550KG | 600KG | 600KG |
Features of Punching PVC Card Machine 86*54 mm Plastic Card Die Cutter ID Card Cutter PVC Bank Card Die Cutting Machine
New Servo punching machines advantages:
1. There is no need to change the hydraulic oil and seals regularly, there is no problem of oil leakage, easy maintenance, low maintenance cost and clean.
2. Lower noise.
3. Higher speed.
4. More suitable for continuous long-term running.
Related Products

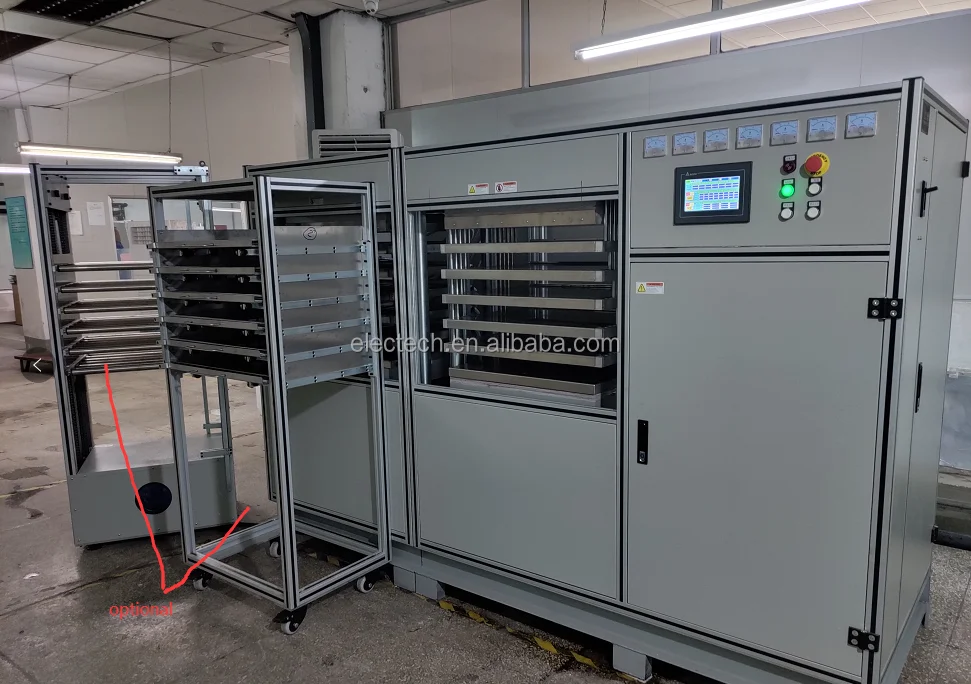

PVC card laminating machine
