YNTO custom industrial 2 Way pvc PPH electric ball valve supplier 1 2 3 4 6 inch ac 220v 240v Electric Actuator ball Valve
- Category: >>>
- Supplier: Guangdong Yuantong Industrial Technology Co. Ltd.
Share on (1601089359235):
Product Overview
Description
Product Showcase

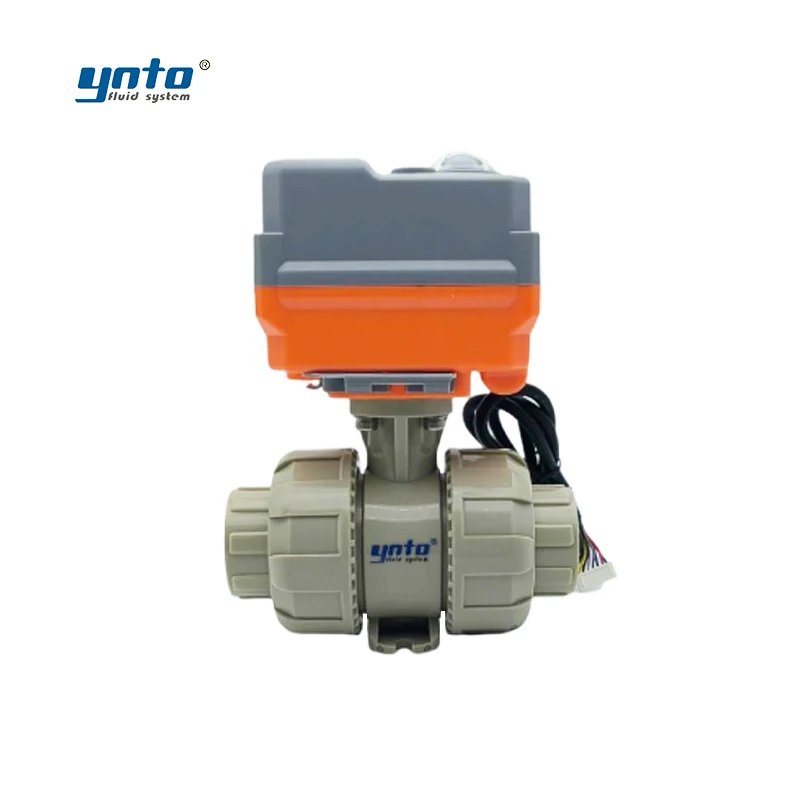

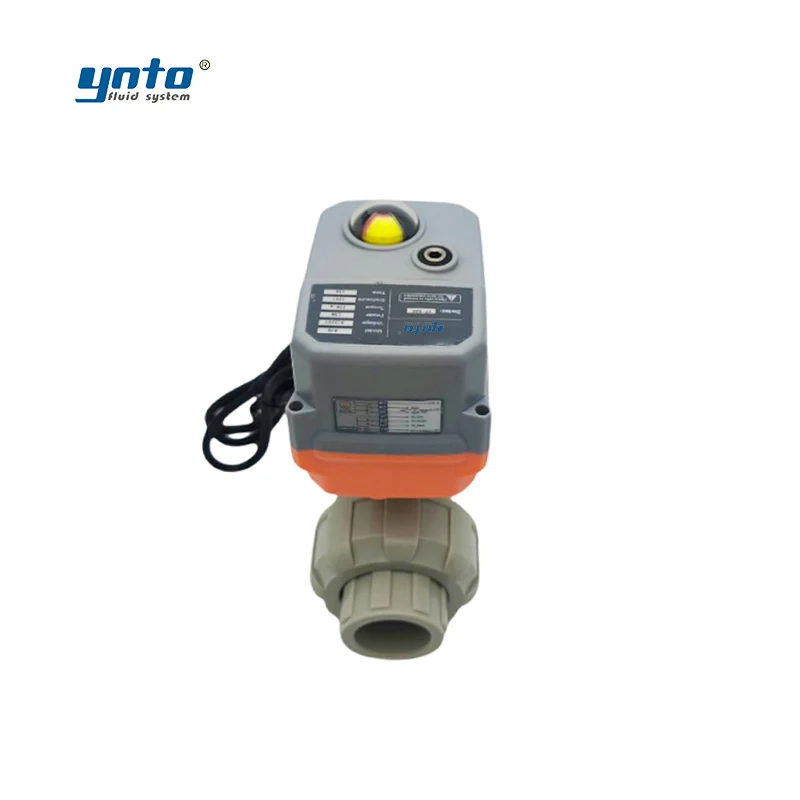

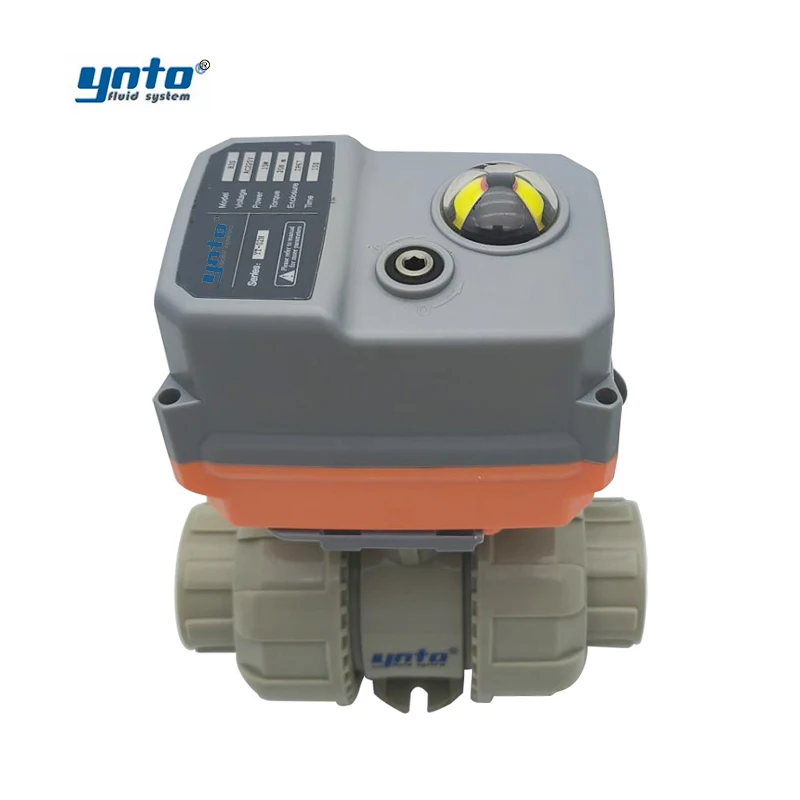

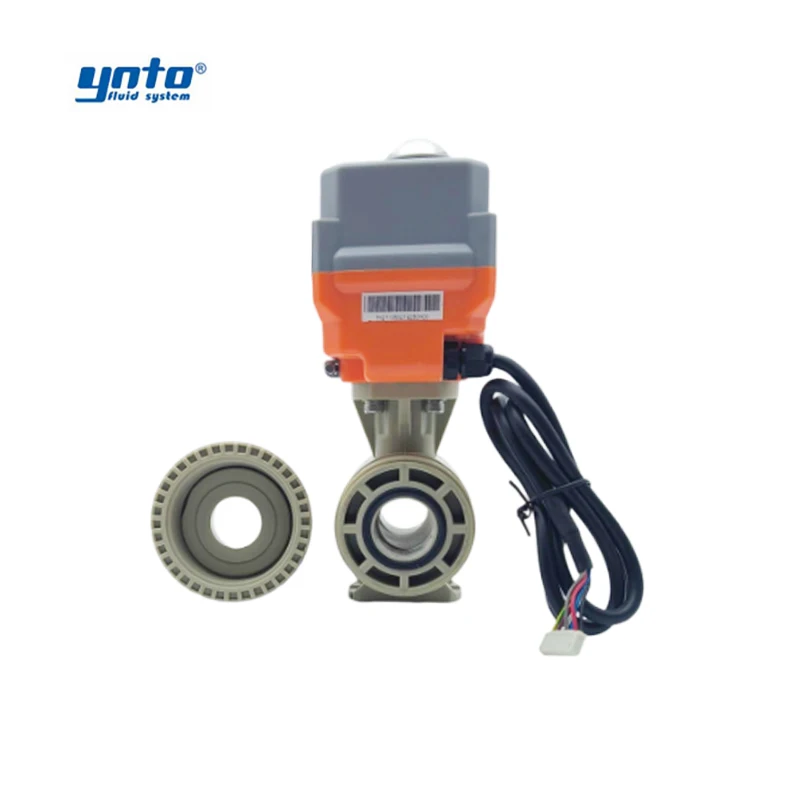

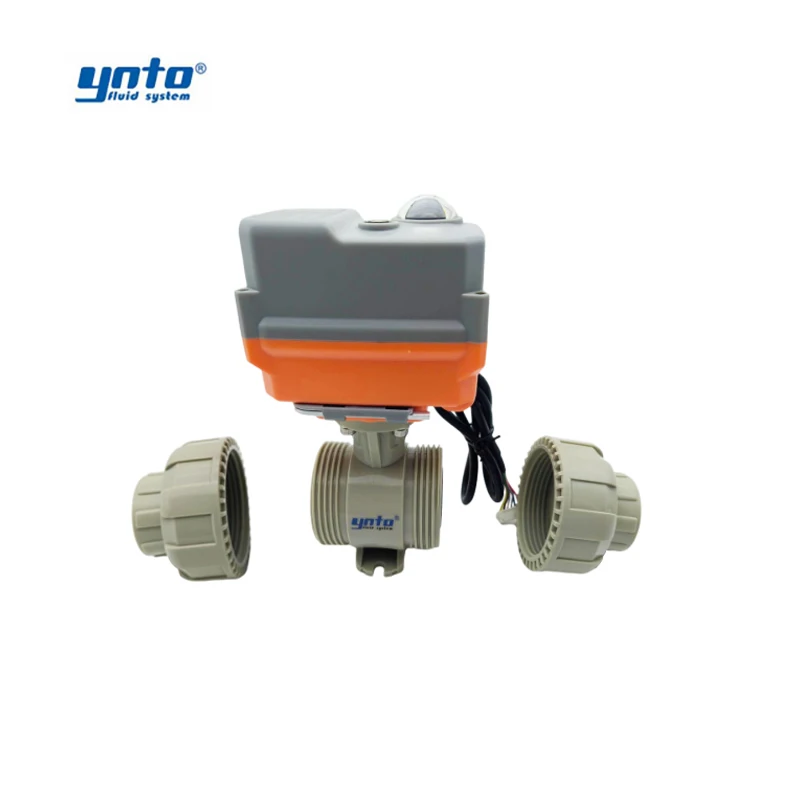

Electrically Actuated PVC Ball Valves
Electrically Actuated PVC Ball Valves are applied in industrial water treatment and chemical processes, especially for OEM
customers and equipment integrators who have higher requirements for volume, cost, and reliability. With external dimensions
minimized to the extreme without compromising any performance, they meet the needs of customers who require compact solutions.
customers and equipment integrators who have higher requirements for volume, cost, and reliability. With external dimensions
minimized to the extreme without compromising any performance, they meet the needs of customers who require compact solutions.

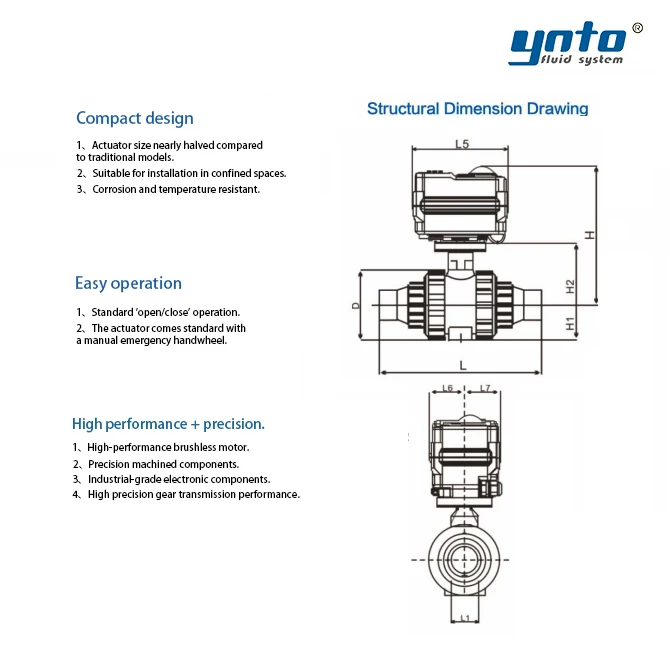

Main Performance Parameters & Specifications | ||
DN(mm) | DN15-DN100 | |
Operating Range | 0 ~ 90 degrees | |
Voltage | AC230V/110V/24V, DC24V/12V | |
Control Mode | switch type, control type, three-stage type (switch optional) | |
Nominal Pressure(Mpa) | PN10, PN16 | |
Medium Temperature | PVC-U 0 to 55℃ | |
PVC-C 0 to 95°C | ||
PP-H 0 to 90°C | ||
PVDF -20 to 140°C | ||
Body Material | PVC-U, CPVC, PP-H, PVDF | |
Seal Material | EPDM, FPM | |
Connection Method | socket, threaded (NPT, PT, BSPF), socket weld, butt-welding | |
Connection Standard | DIN, ANSI, JIS, CNS | |
Store Hot Sale
Why Choose Us?
Certifications
Product packaging
Exhibition
FAQ
1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
