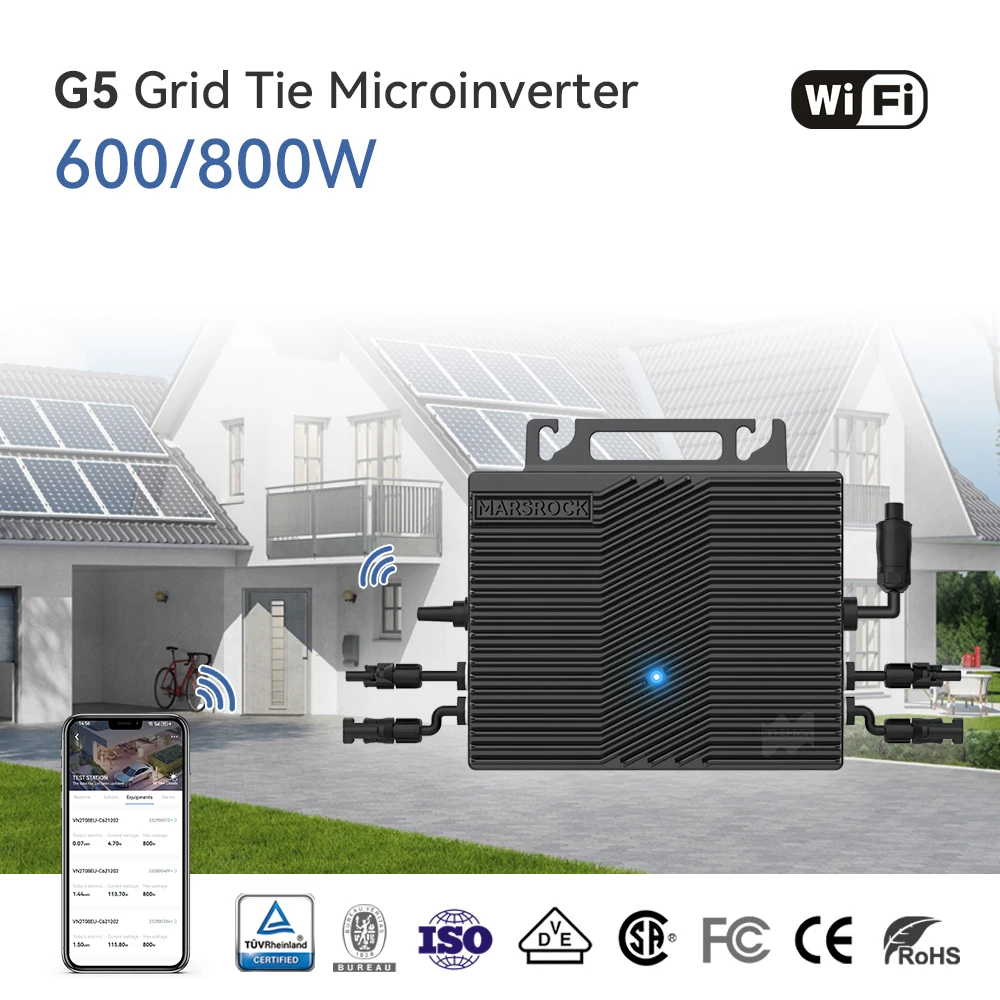

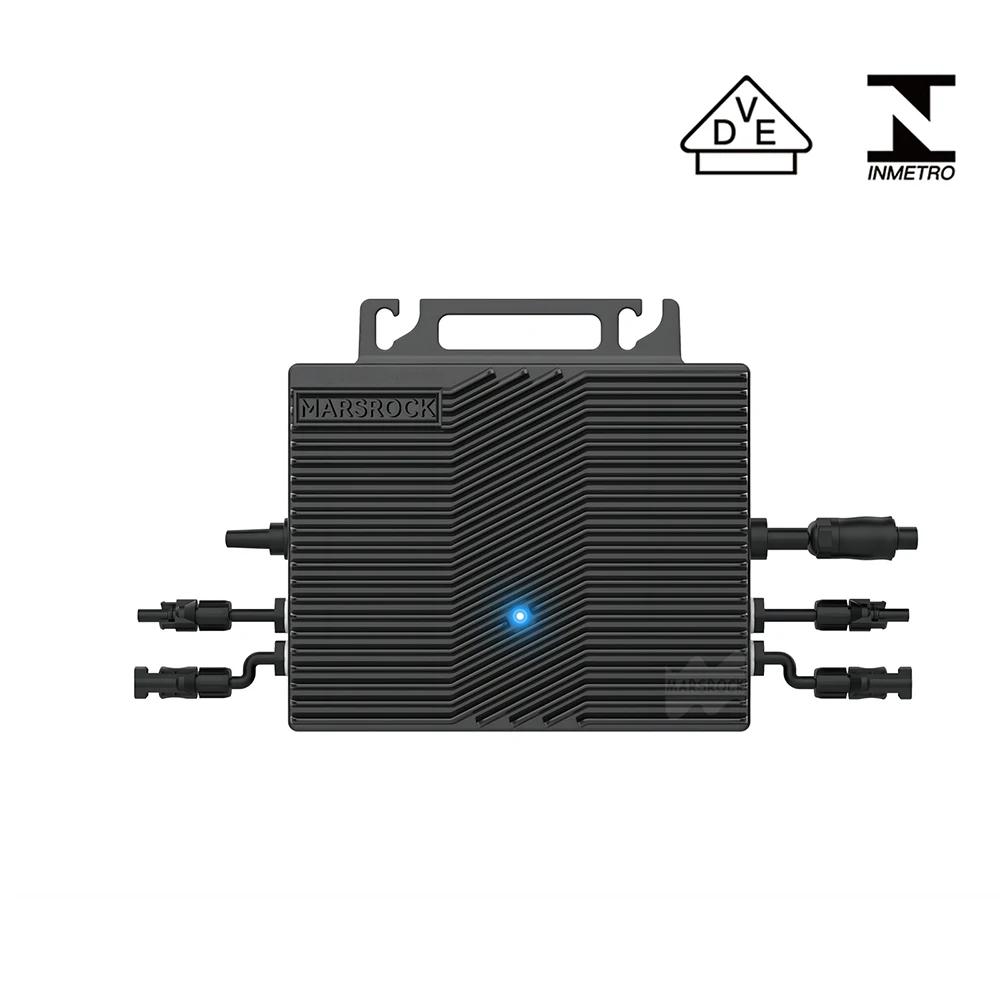

Chart topping 600w 800w IP67 2MPPT WiFi VDE Microinverter Grid tie Solar Inverter Available for Solar Panel
- Category: >>>
- Supplier: Xiamen Mars Rock Science Technology Co. Ltd.Xiamen Ltd.
Share on (1601089422046):
Product Overview
Description
Product Description
Feature
•Microinverters perform Maximum Power Point Tracking (MPPT) at the module level, which optimises the output power of each module to maximise the overall output power and improve the system's power generation efficiency.
•Higher safety, able to reduce the risk of electric shock during installation
•The small size and light weight greatly enhance the installation convenience as they do not require additional land for
placement.
•Smaller power of single unit, more flexible overall deployment, which can effectively improve the efficiency of installation,
expansion, operation and maintenance.
•With high reliability, it can operate stably under different weather conditions and provide continuous and stable power output.
•Equipped with intelligent sensors and communication interfaces, it can monitor the system operation status and power generation
in real time, and realise remote monitoring and O&M management through remote communication.
•Microinverters perform Maximum Power Point Tracking (MPPT) at the module level, which optimises the output power of each module to maximise the overall output power and improve the system's power generation efficiency.
•Higher safety, able to reduce the risk of electric shock during installation
•The small size and light weight greatly enhance the installation convenience as they do not require additional land for
placement.
•Smaller power of single unit, more flexible overall deployment, which can effectively improve the efficiency of installation,
expansion, operation and maintenance.
•With high reliability, it can operate stably under different weather conditions and provide continuous and stable power output.
•Equipped with intelligent sensors and communication interfaces, it can monitor the system operation status and power generation
in real time, and realise remote monitoring and O&M management through remote communication.
Specification
Power | 600W | 800W | 1000W | ||
Input Data | |||||
Suggested Solar | 2*300 ~ 550W | ||||
Start-Stop voltage | 18V~60V | ||||
MPPT | 25V~55V | ||||
Max Input Current | 13.3A | ||||
DC short current | 20A | ||||
Output(AC) | |||||
Max output Power | 600W | 800W | 1000W | ||
AC voltage | @240(211~264VAC) @208(183~228VAC) | ||||
Max Output Current | 2.5A@240VAC 2.88A@208VAC | 3.33A@240VAC 3.85A@208VAC | 4.17A@240VAC 4.80A@208VAC | ||
Max units per branch | 6 PCS | 5 PCS | 4 PCS | ||
Frequency | 60Hz(57~63Hz) | ||||
Output Efficiency | |||||
Peak Inverter Efficiency | 95.60% | ||||
Power Factor | >0.99 | ||||
EU Efficiency | 95.30% | ||||
Static MPPT | 99.90% | ||||
CEC Weighted Efficiency | 95.50% | ||||
Output Current Harmonic Distortion | <3% | ||||
Exterior | |||||
Ambient temperature | - 40℃ to +80℃ | ||||
Operating temperature | - 40℃ to +65℃ | ||||
Power Consumption | <50mW | ||||

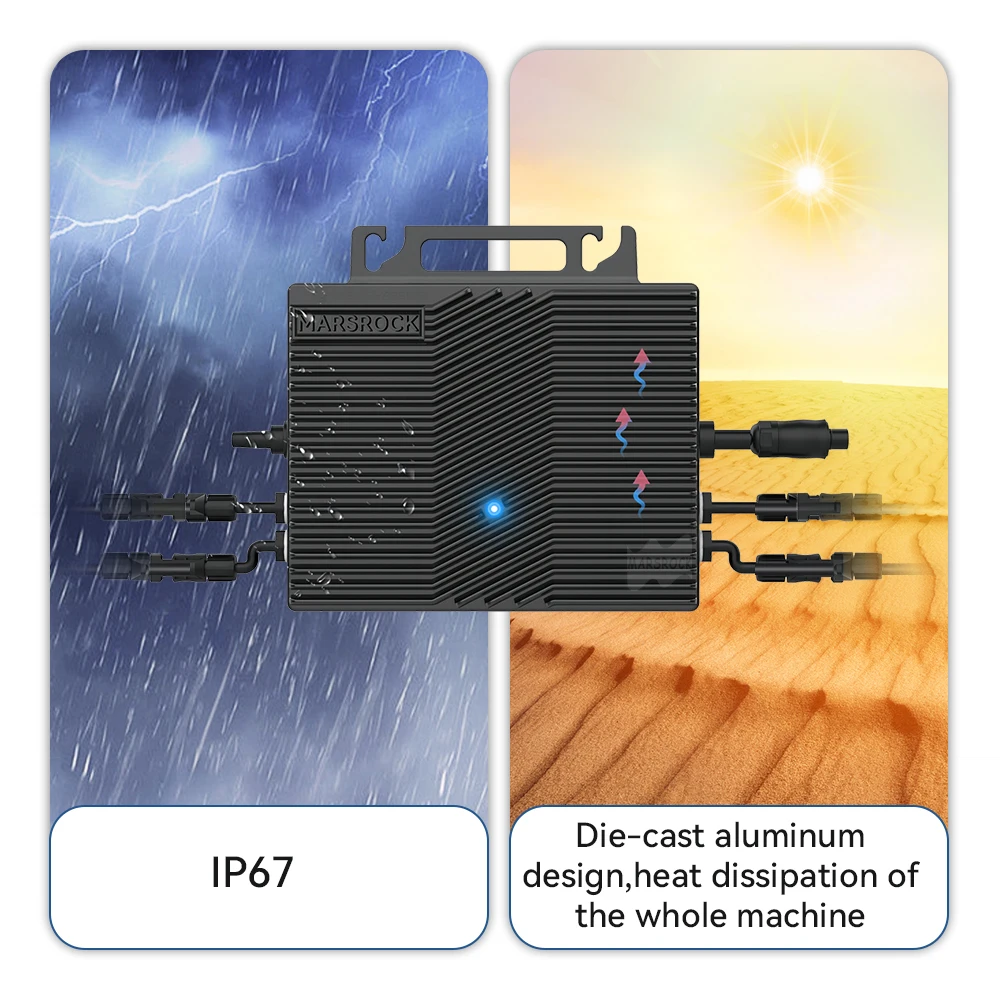

Waterproof Rating | IP67 | ||||
Cooling | Self-cooling | ||||
Feature | |||||
Compatibility | Compatible with 60~96 cell PV modules | ||||

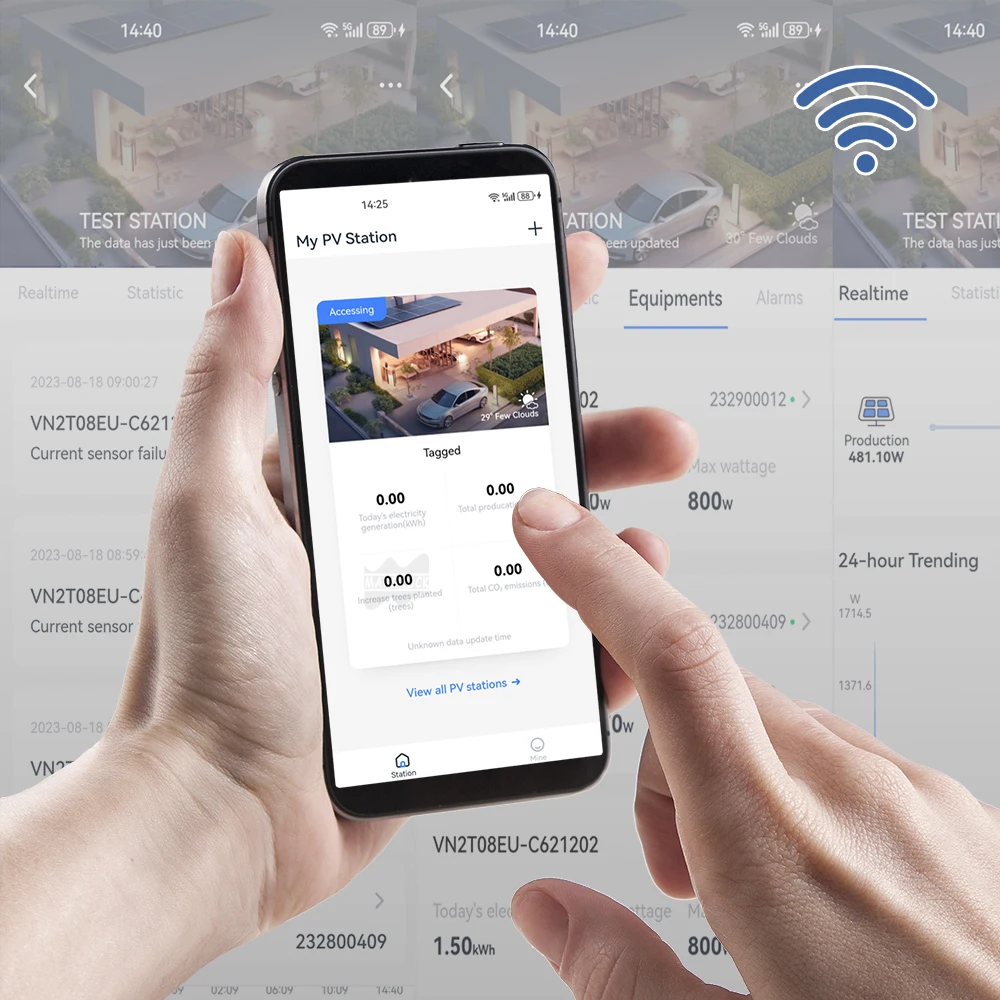

Communication | Smartphone APP / WIFI/Bluetooth/ | ||||
Monitoring System | Lifetime free | ||||
Electromagnetic compatibility | EN50081.part1 EN50082.part1 | ||||
Grid disturbance | EN61000-3-2 Safety EN62109 | ||||
Grid detection | DIN VDE 1026 UL1741 | ||||
Certificate | VDE4105、IEC62109、EN62109、EN IEC61000 | ||||
Dimensions (W×H×D mm) | 250 * 170 * 28 | ||||
Weight [kg] | 2KGS | ||||
包装规格 | 46*30*8CM | ||||
包装后毛重 | 3KGS | ||||
Packing & Delivery
Packaging Details:\tStrong cardboard boxes with enough foam
Delivery Detail:\tSamples can be delivered out within 15 days after payment
Delivery Detail:\tSamples can be delivered out within 15 days after payment
Company Profile

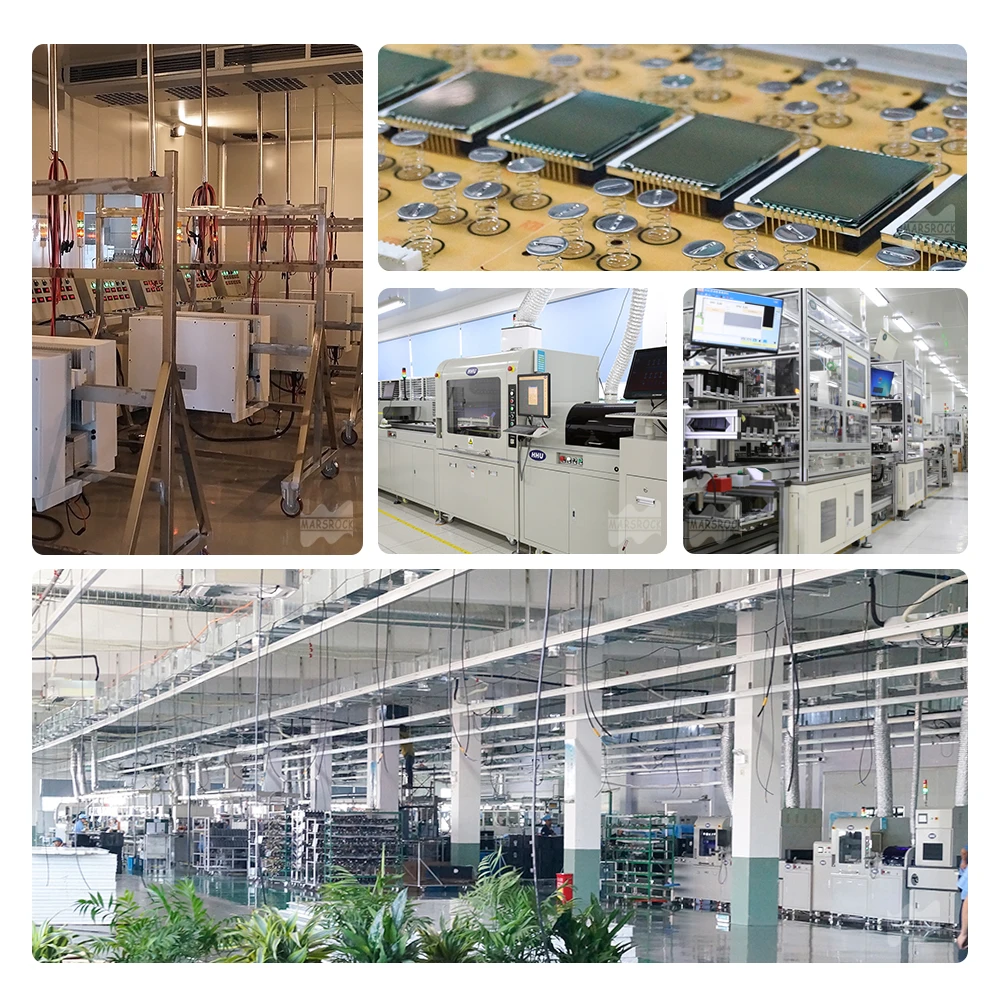

XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer, base on self-produce and self-market management. Our yearly output has grown to over USD120, 000,000, of which 80 percent are from exports. Considering the regional production advantage, we set Shenzhen Fleda Solar Produce Co., Ltd as our solar factory in Shenzhen. And Owing to competitive challenges and ascendant seaport condition, we set Xiamen Mars Rock Science Technology Co., Ltd. as our head office, which trades solar products with clients from Europe, North America, Africa and Asia.
For the past years, we have dedicated ourselves to the environment-friendly solar products, our products include: monocrystalline/polycrystalline solar cells, monocrystalline/polycrystalline epoxy solar panels, Laminated PET/TPT sealed solar modules,various toughened glass laminating solar modules, and noncrystalline silicon solar panels. The products are widely applied to the charge of digital-electronic products, out-of-doors illumination, and project power generation etc. Besides, to meet the demands of both domestic and aboard markets, we have manufactured many kinds of solar landscape illumination device, solar traffic lamps, solar charger, solar POLY arts and crafts, and solar power supply system. Furthermore, Since Our powerful production capacity we provide OEM service and correlative plan for the customers as well. We can also make necessary modification or innovation by customer design.
Based on the solid capability of research and development and the skilled professionals in each area, we have gained high reputation from our customers. The advanced producing equipment and detecting imported from abroad provide a daily capacity of appr 50,000 kw, and keep 20% increase yearly. We have established a long-term business relationship with Europe, South and North America, Mid-East, South-East and some Africa countries. Every year we ship thousands of orders, no order is big or small; with our just-in-time manufacturing we make every order to your specifications. Every single piece of product from MARS ROCK SOLAR is designed to deliver the perfection, innovation and reputation.
The ultimate relationship between MARS ROCK and its customers is "to grow together, to win together". To be the first choice of customers, once you choose MARS ROCK as your business partner, we can guarantee our quality and competitive prices. We are expecting to make the profit and share the glorious tomorrow with you by our eximious quality and first-grade services. Sincerely hope to receive your inquiries and enter into long-term relationships.
For the past years, we have dedicated ourselves to the environment-friendly solar products, our products include: monocrystalline/polycrystalline solar cells, monocrystalline/polycrystalline epoxy solar panels, Laminated PET/TPT sealed solar modules,various toughened glass laminating solar modules, and noncrystalline silicon solar panels. The products are widely applied to the charge of digital-electronic products, out-of-doors illumination, and project power generation etc. Besides, to meet the demands of both domestic and aboard markets, we have manufactured many kinds of solar landscape illumination device, solar traffic lamps, solar charger, solar POLY arts and crafts, and solar power supply system. Furthermore, Since Our powerful production capacity we provide OEM service and correlative plan for the customers as well. We can also make necessary modification or innovation by customer design.
Based on the solid capability of research and development and the skilled professionals in each area, we have gained high reputation from our customers. The advanced producing equipment and detecting imported from abroad provide a daily capacity of appr 50,000 kw, and keep 20% increase yearly. We have established a long-term business relationship with Europe, South and North America, Mid-East, South-East and some Africa countries. Every year we ship thousands of orders, no order is big or small; with our just-in-time manufacturing we make every order to your specifications. Every single piece of product from MARS ROCK SOLAR is designed to deliver the perfection, innovation and reputation.
The ultimate relationship between MARS ROCK and its customers is "to grow together, to win together". To be the first choice of customers, once you choose MARS ROCK as your business partner, we can guarantee our quality and competitive prices. We are expecting to make the profit and share the glorious tomorrow with you by our eximious quality and first-grade services. Sincerely hope to receive your inquiries and enter into long-term relationships.
FAQ
1. who are we?
We are based in Fujian, China, start from 2006,sell to South America(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),Africa(10.00%),Mid East(10.00%),North America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),Central America(1.00%),South Asia(0.50%),Southern Europe(0.50%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Cell,Solar Panel,Inverter,wind turbine,Battery
4. why should you buy from us not from other suppliers?
XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Fujian, China, start from 2006,sell to South America(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),Africa(10.00%),Mid East(10.00%),North America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),Central America(1.00%),South Asia(0.50%),Southern Europe(0.50%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Cell,Solar Panel,Inverter,wind turbine,Battery
4. why should you buy from us not from other suppliers?
XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
