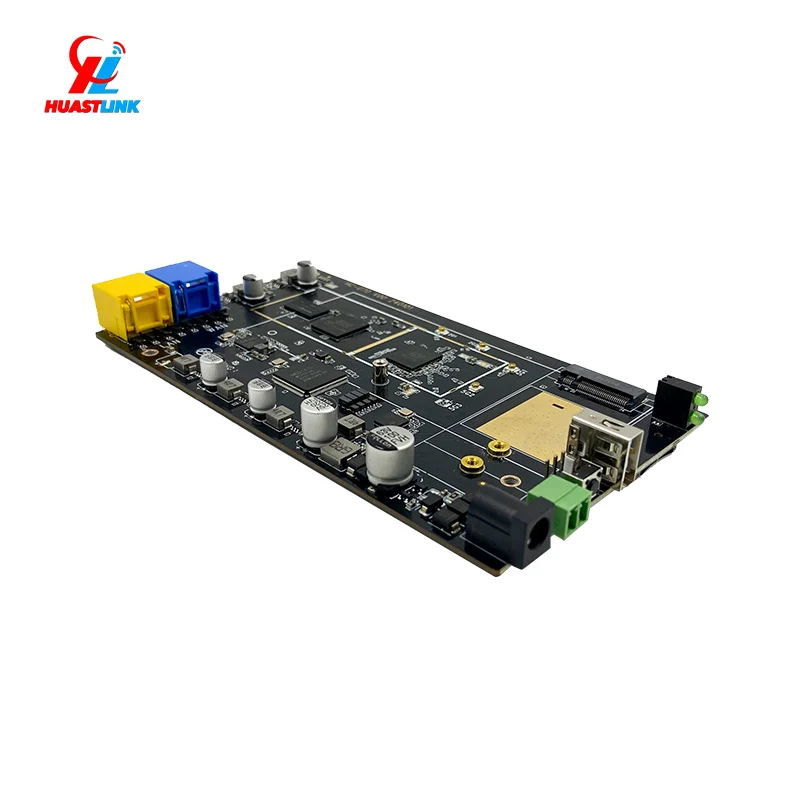

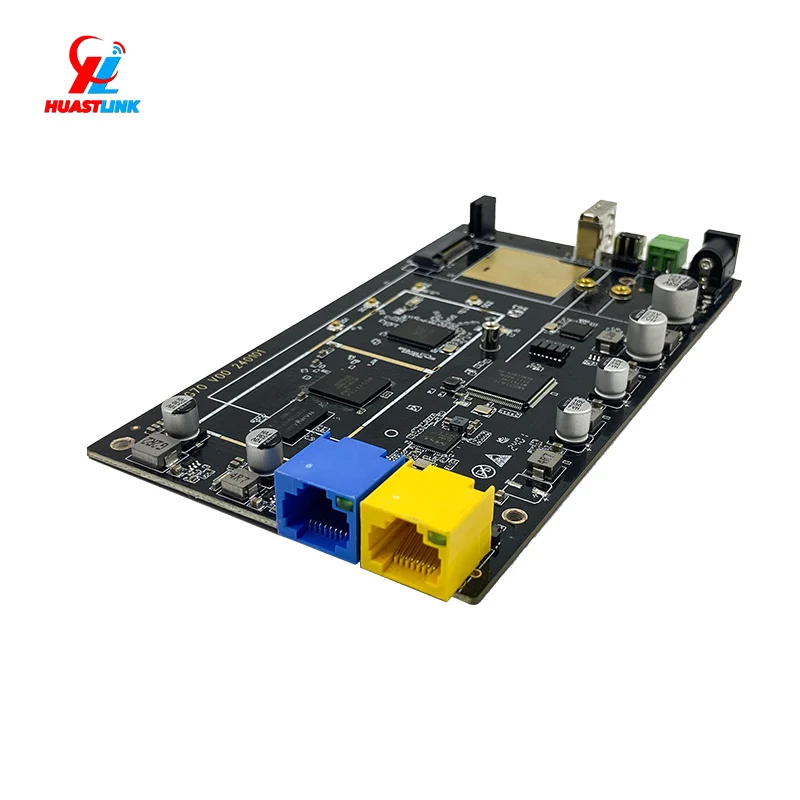

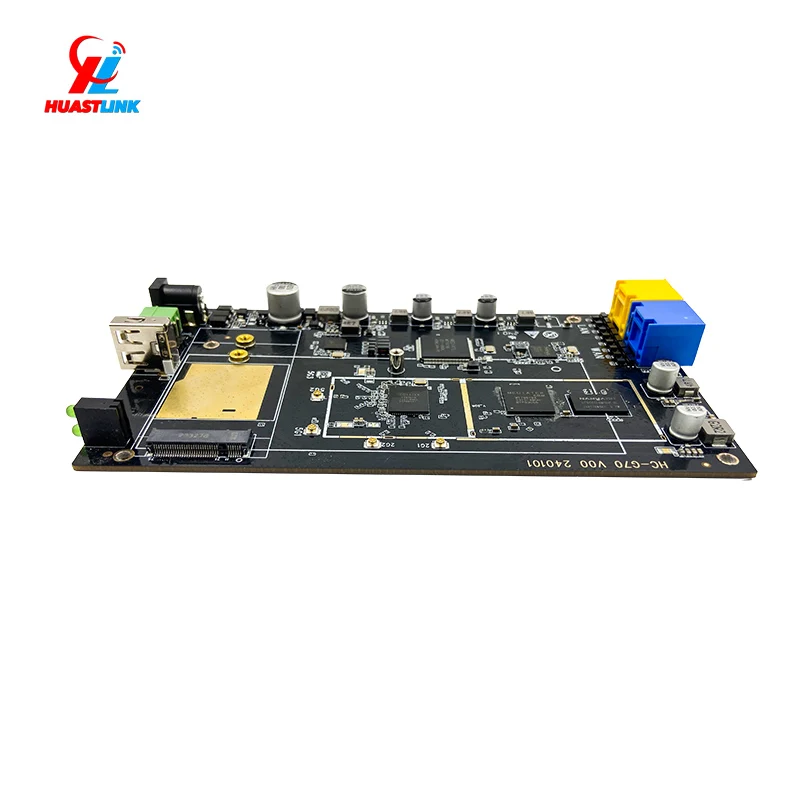

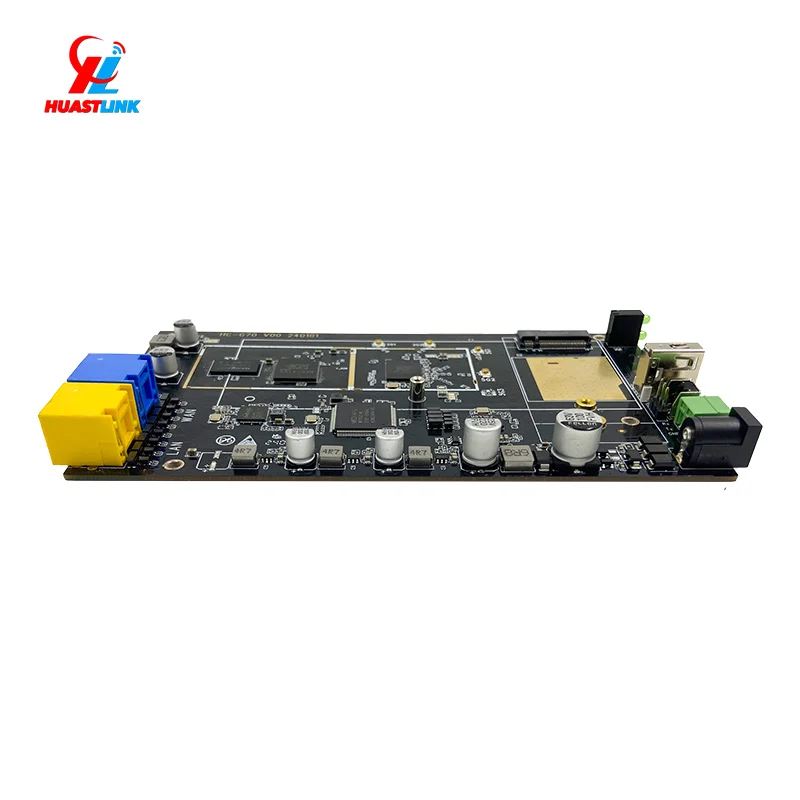

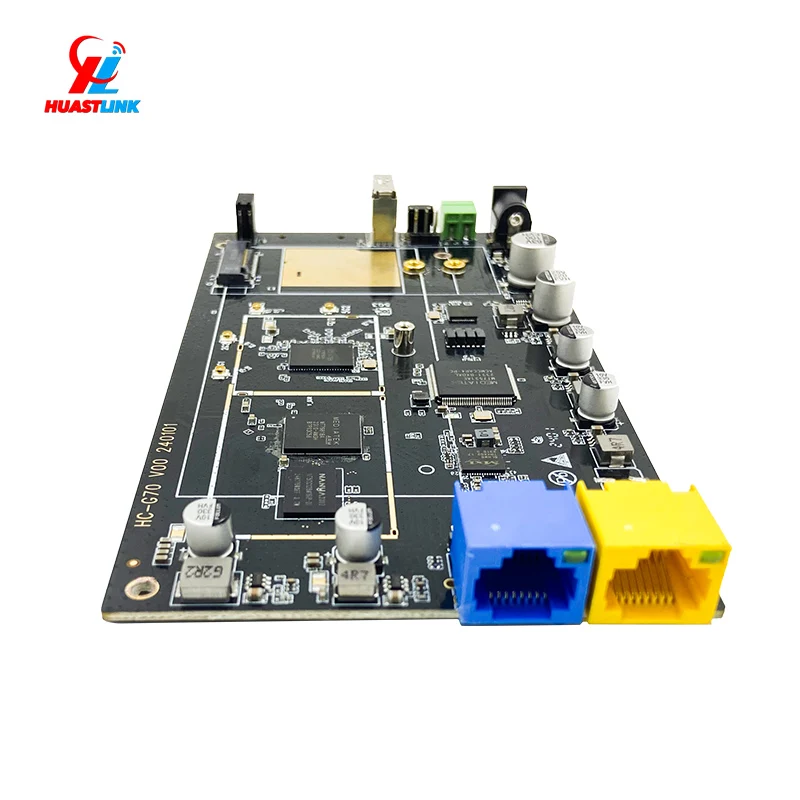

Huastlink New Arrival Mtk7981 2.5G WAN Gigabit LAN Wifi6 PCBA board With M.2 Slot 5G 4G Router Sim PCBA Motherboard
- Category: >>>
- Supplier: Shenzhen Huachuangyilian Electronics Co. Ltd.
Share on (1601089463026):
Product Overview
Description
Huastlink New Arrival Mtk7981 2.5G WAN Gigabit LAN Wifi6 PCBA board With M.2 Slot 5G 4G Router Sim PCBA Motherboard
Product Parameter Datasheet
Chipset | MTK7981 Dual Core ARM chipset, main frequency up to 1.2GHz MTK7976+MTK7531 |
Flash/RAM | 128MB/512MB |
Interface | 1*2.5G RJ45 WAN port 1*10/100/1000Mbps RJ45 LAN port 1*USB 3.0 port 1*SIM Card slot 1*DC Power port, support 9V-60V power 1*2pins Terminal Power port, support 9V-60V power |
Button | 1*Reset button |
5G/4G Interface | 1 M.2 slot |
Wifi Frequency | 2.4GHz, 5.8GHz, Dual Band Wifi6 3000Mbps |
System | openWRT |
The HC-G70 PCBA board is based on a new ARM-architecture embedded platform that meets the growing demands of mobile devices. NSA/SA dual-mode compatibility for all network types worldwide means you can enjoy ultra-high speed broadband.
Embedded OpenWrt system supports secondary development and customization of various functions.
With built-in 802.11ax (Wi-Fi 6) technology, a single 5G WiFi6 router provides greater wireless coverage and bandwidth. At the same time, the 5G WiFi6 router also brings higher security and better network performance.
Product Feature:
* Using MT7981B solution, ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ;
* Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps;
* High-speed 512MB RAM, with 128MB SPI NAND Flash;
* 1 2.5G WAN+1LAN 1000M adaptive network port, support automatic flip (Auto MDI/MDIX)
* 1 USB 3.0 port
* 1 2pin Terminal port, 1 DC power port, support 9V-60V power
* Support "one-key flashing mode", long press the reset button to enter the rescue flashing mode;
* Built-in M.2 standard interfaces (choose one of the two), which can be used to connect to 5G/4G mobile communication modules
* External 1 standard SIM card interface
* External high-gain WIFI antenna, 360-degree wireless signal without dead angle
* PreloadopenWRT system, support flash customer’s firmware
* Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps;
* High-speed 512MB RAM, with 128MB SPI NAND Flash;
* 1 2.5G WAN+1LAN 1000M adaptive network port, support automatic flip (Auto MDI/MDIX)
* 1 USB 3.0 port
* 1 2pin Terminal port, 1 DC power port, support 9V-60V power
* Support "one-key flashing mode", long press the reset button to enter the rescue flashing mode;
* Built-in M.2 standard interfaces (choose one of the two), which can be used to connect to 5G/4G mobile communication modules
* External 1 standard SIM card interface
* External high-gain WIFI antenna, 360-degree wireless signal without dead angle
* PreloadopenWRT system, support flash customer’s firmware
Details Images
Preload OpenWRT image, support APN setting, wireguard, openvpn, ttl setting, IMEI change, etc.
