Product Overview
Description
Products Description
Features
·Housing made from SAMSUNG/COVESTRO'S V0 flame retardant PC materials
·High efficiency up to 85 %
·Built-in active PFC function
·Protections: Short circuit, over load, over Voltage
·Suitable for indoor LED lighting application, such as down light, panel light, and so on

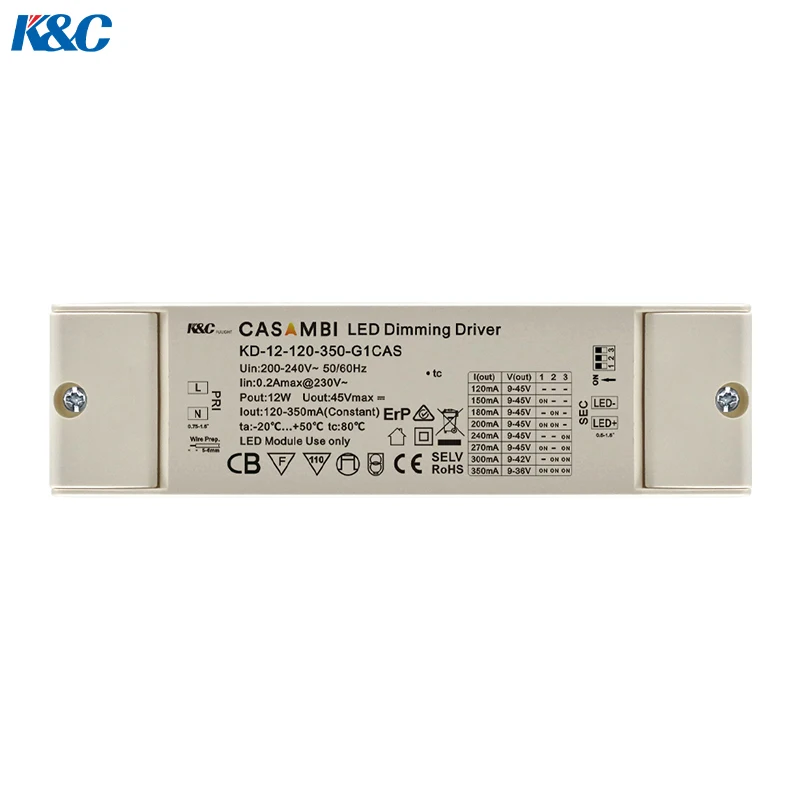

12W 120/150/180/200/240/270/300/350mA Casambi LED Dimming Driver
KD-12-120-350-G1CAS is a constant current output mode LED driver. The output current can be easily set via DIP switch.PWM digital
dimming technology, presenting a perfect visual experience.This series of power supply adopts the advanced full range DC constant
current dimming scheme, which can realize complete physical non-scintillation in the whole dimming range. It also has very good
low-light performance, can create a very elegant low-light environment and switch the light when the gradient experience.
·Housing made from SAMSUNG/COVESTRO'S V0 flame retardant PC materials
·High efficiency up to 85 %
·Built-in active PFC function
·Protections: Short circuit, over load, over Voltage
·Suitable for indoor LED lighting application, such as down light, panel light, and so on
12W 120/150/180/200/240/270/300/350mA Casambi LED Dimming Driver
KD-12-120-350-G1CAS is a constant current output mode LED driver. The output current can be easily set via DIP switch.PWM digital
dimming technology, presenting a perfect visual experience.This series of power supply adopts the advanced full range DC constant
current dimming scheme, which can realize complete physical non-scintillation in the whole dimming range. It also has very good
low-light performance, can create a very elegant low-light environment and switch the light when the gradient experience.
Technical Parameter
Model | KD-12-120-350-G1CAS | ||||
Input | Efficiency | 88%@230VAC, Full load | |||
Voltage | 220VAC-240VAC | ||||
Frequency | 50/60Hz | ||||
Power Factor | 0.2@230VAC,Full load | ||||
THD | <10%@230VAC, Full load | ||||
Current | 0.08Amax@230VAC, Full load | ||||
Inrush Current | Cold start,20A(twidth=10us measured at 50% Ipeak)@230VAC | ||||
Output | Current(mA)/Voltage (VDC)/ Power(W) | 120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-42VDC/7.56W 200mA/9-42VDC/8.4W 240mA/9-42VDC/10W 270mA/9-42VDC/11.34W 300mA/9-40VDC/12W 350mA/9-34VDC/11.9W | |||
Ripple Current | <3% | ||||
Channel | 1 | ||||
Current Tolerance | ±7% | ||||
Standby Power | <0.5W | ||||
No load output voltage | 50VDC Max | ||||
Turn On Delay Time | <3s, at 230Vac | ||||
Function | Dimming Mode | Casambi | |||
Dimming Range | 0.3%-100% | ||||
Protection | No Load | The LED Driver will not be damaged. | |||
Short Circuit | No Output, recovers automatically after fault condition is removed | ||||
Over Load | Hiccup mode, recovers automatically after fault condition is removed | ||||
Safety | Surge | L-N:1KV | |||
Withstand Voltage | I/P-O/P: 3000VAC | ||||
Others | Working Temp. | -20℃~50℃ | |||
Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||||
Tc | 75℃ | ||||
Material | PC | ||||
IP Rating | IP20 | ||||
Lifetime | 50,000h@tc:60℃ | ||||
Warranty Condition | 5 years | ||||
Switch Cycle | >100,000 times | ||||
Packing Size | 375*330*180mm(L*W*H), 6Kg/Carton/50PCS | ||||
Dimension | 125*30*23mm(L*W*H) | ||||
G.W | 105g | ||||
