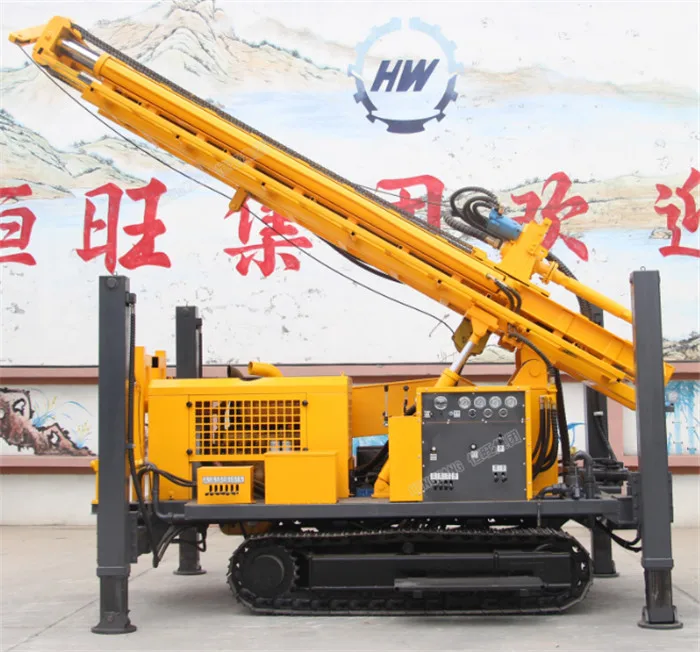

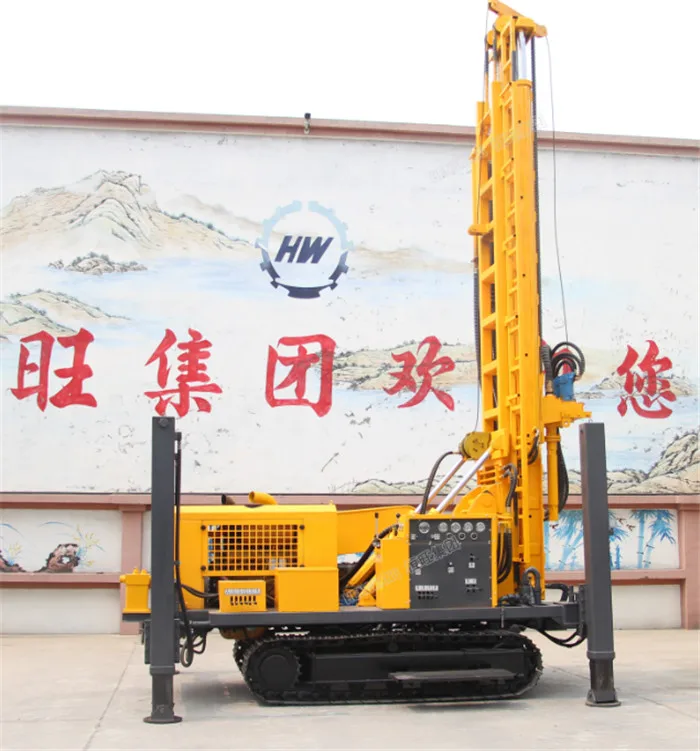

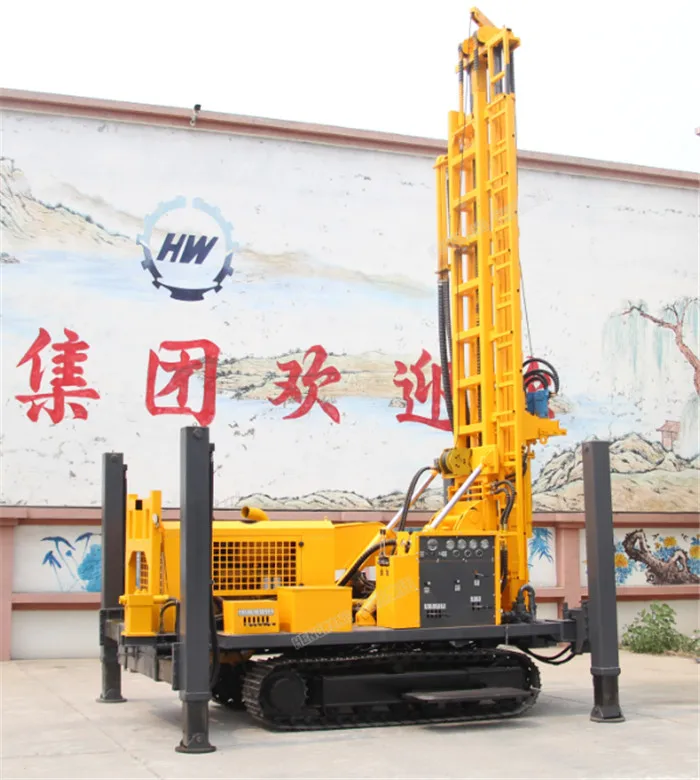

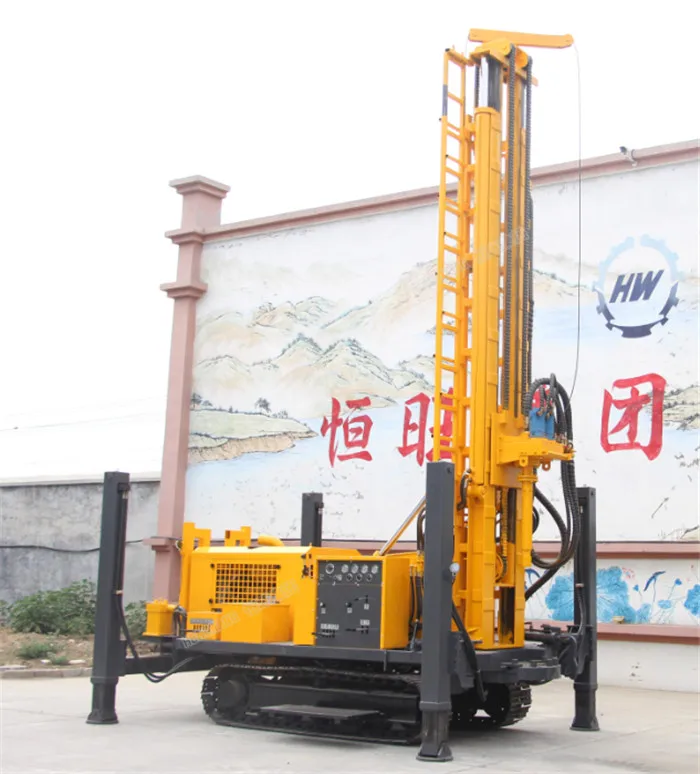

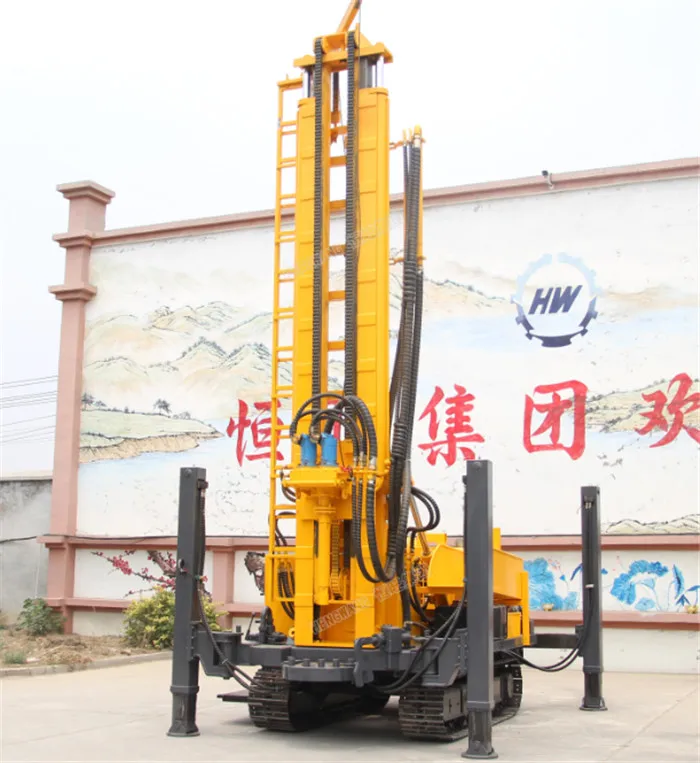

HENGWANG HQZ260 pneumatic drilling rig water well drilling rig
- Category: >>>
- Supplier: Shandong Hengwang Group Co. Ltd.
Share on (1601089565787):
Product Overview
Description
Product Description
deep hole dth mine borehole hydraulic water well drilling rig machine for water well
Pneumatic Drilling Rig Hengwang pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata. Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc.
* Drilling rock: 20m ~ 40m / hour
* Drilling depth: 200 m
* Drilling diameter: 140-300 mm
* Motor power: 73Kw
* Competitive price
* Site instruction and installation
*Professional after-sales team
* CE, BV, TUV, ISO Nueva plataforma de perforacion de pozos de agua tubular remolcable con compresor casero de granja hengwang 260
This drilling rig needs to be used with an air compressor. If you want to buy an air compressor at the same time, please tell us your drilling depth and diameter, and we will give the corresponding recommendation:

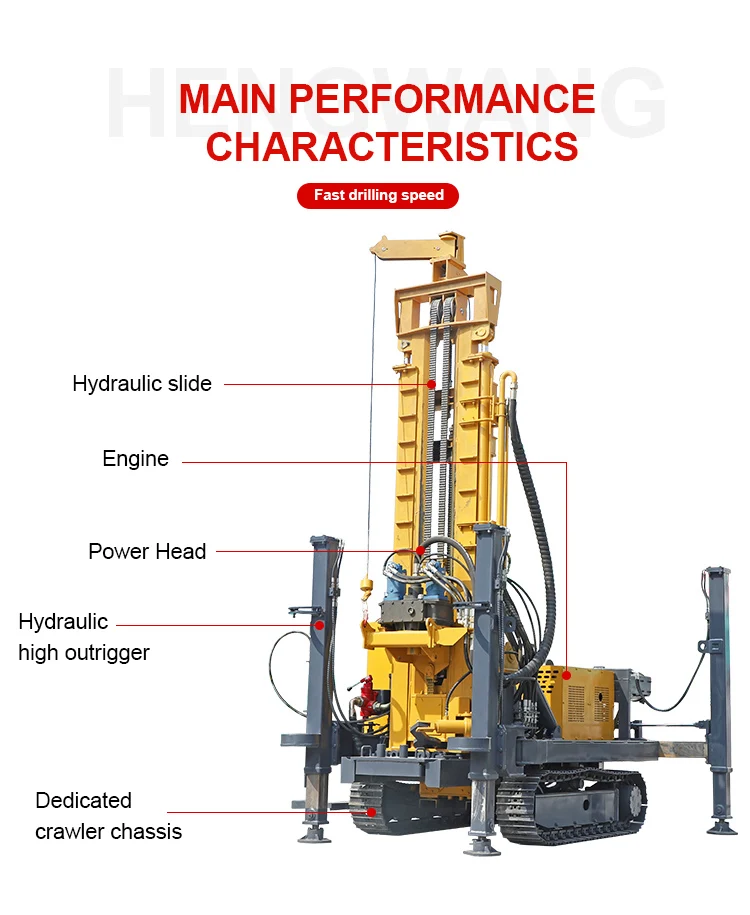

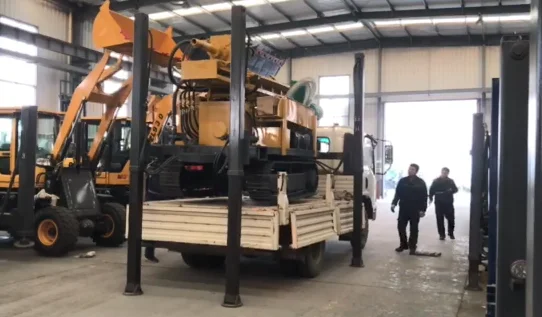

Our drilling rig is equipped with high hydraulic outriggers. If you need this function, we can provide you with this configuration extra, because it can be convenient for you to install the drilling rig on a truck for long-distance transportation.Nueva plataforma de perforacion de pozos de agua tubular remolcable con compresor casero de granja hengwang 260
To Customer
1. Recruiting agents, OA payment；
2. 24 months free maintenance service;
3. Free spare parts for 24 months；
4. Out-of-warranty service fee is 50% off；
5. Extended warranty for 1500 hours;
2. 24 months free maintenance service;
3. Free spare parts for 24 months；
4. Out-of-warranty service fee is 50% off；
5. Extended warranty for 1500 hours;
Recommended by seller Nueva plataforma de perforacion de pozos de agua tubular remolcable con compresor casero de granja hengwang 260

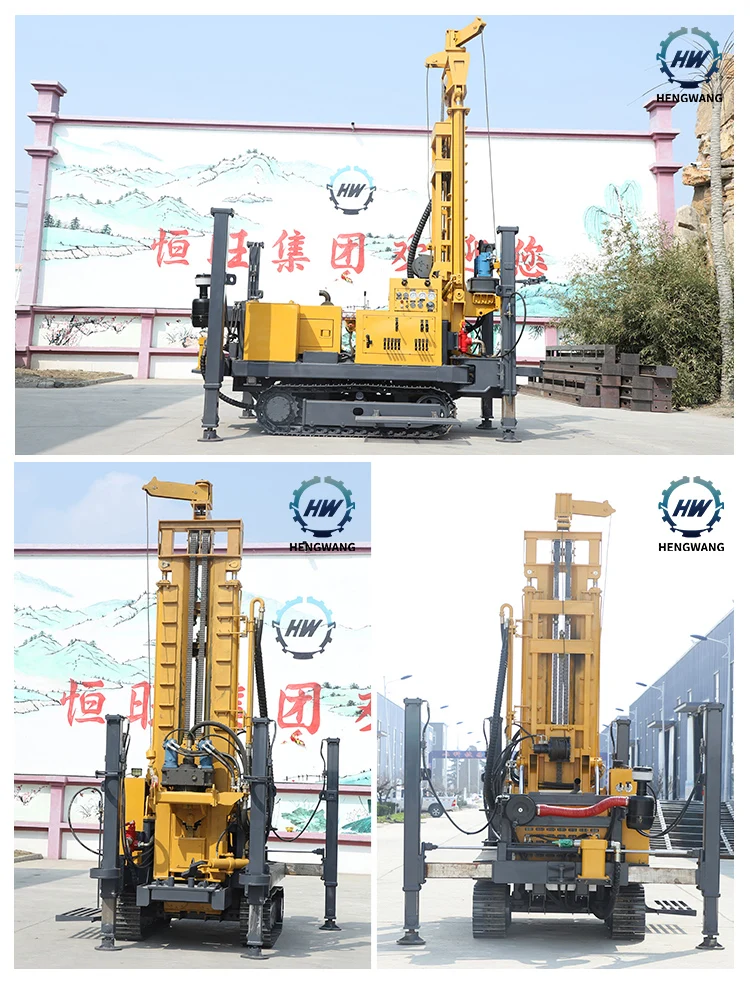

Product Details
Model | HWS260 |
Total Weight（T） | 6.4 |
Dimensions（mm） | 4100*1900*2600 |
Drilling Diameter（mm） | 140-300 |
Drilling Depth（m） | 260 |
One-time Advance Length of the Drill（mm） | 3000 |
Walking Speed（Km/h） | 2.5 |
Climbing Ability（max） | 30 |
Min. Ground Clearance（mm） | 250 |
Working Air pressure（Mpa） | 1.7-3.0 |
Air Consumption（m³/min） | 17-35 |
Main Power（kw） | 73/Yuchai |
Rotation（rpm） | 40-70 |
Rotary Torque（Nm） | 7000-9000 |
Model | HQZ220L |
Overall weight （T ) | 4.2 |
Dimension (mm ) | 3800*1700*2350 |
Drilling diameter (mm ) | 130-294 |
Drilling depth (m ) | 220 |
One-time advance length of the drill(mm) | 3000 |
Model | HQZ-320L |
Total Weight（T） | 7.5/9 |
Dimensions（mm） | 4200*1900*2600 |
Drilling Diameter（mm） | 140-350 |
Drilling Depth（m） | 320 |
Customer feedback

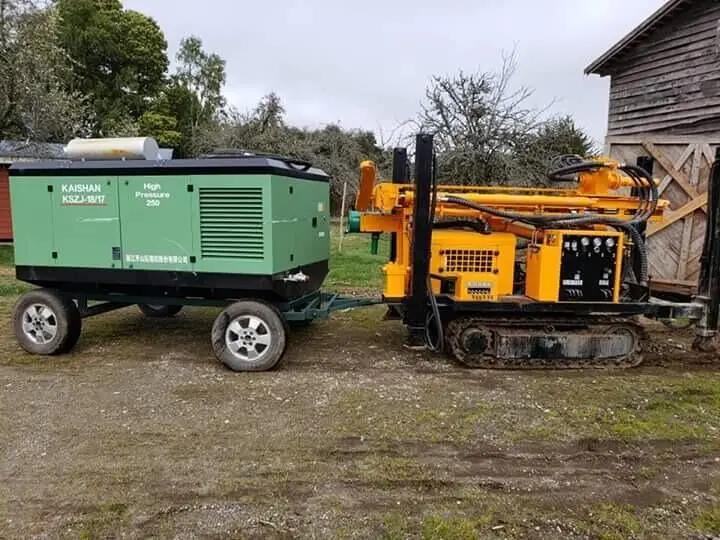

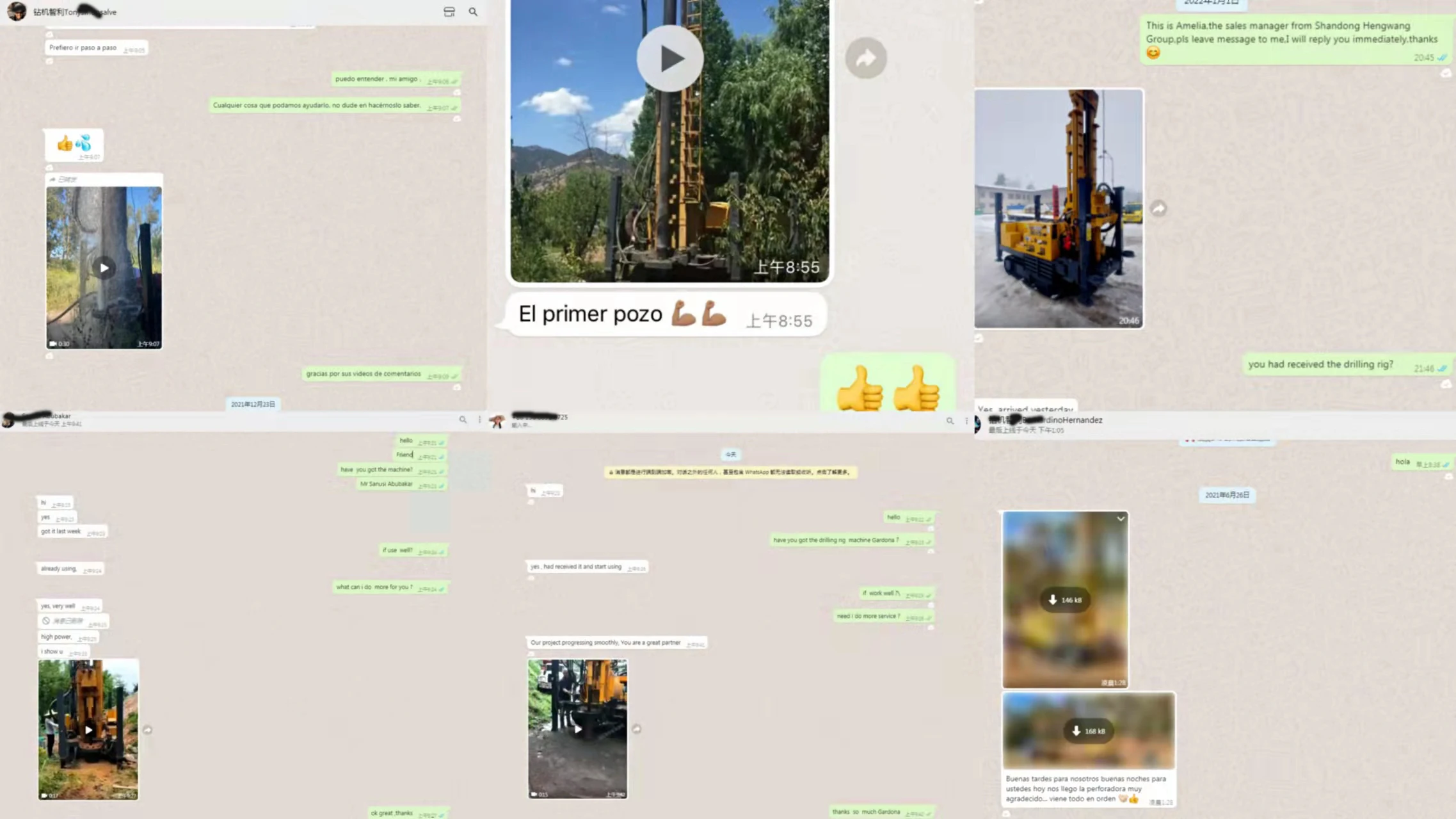

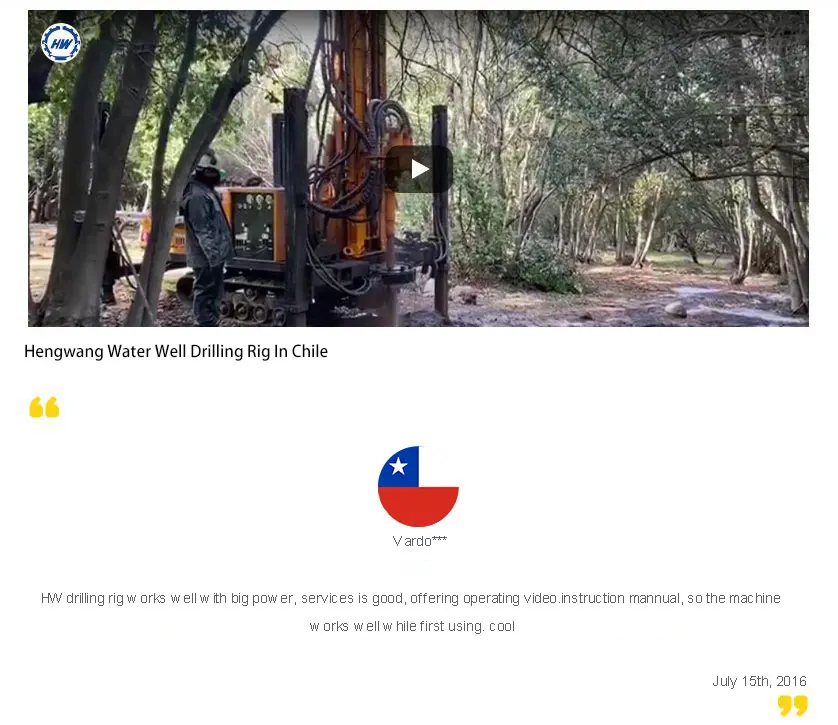

The following images are from customer feedback (Vietnam, Thailand, Chile, Mexico, South Africa, Philippines, Malaysia, Colombia, etc.), We also have a lot of customer feedback videos, if you are interested, contact us .Nueva plataforma de perforacion de pozos de agua tubular remolcable con compresor casero de granja hengwang 260
Product Configuration

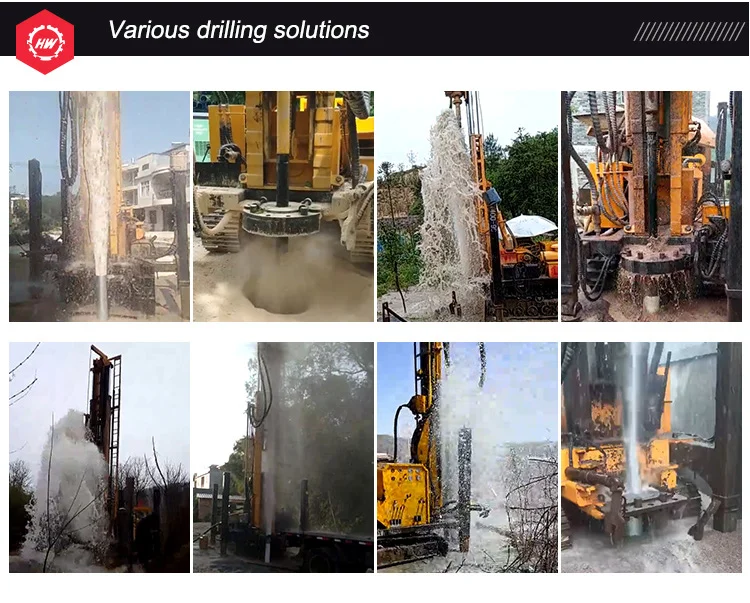

The drilling rig is multifunctional, with different configurations suitable for different geologies.Accept customization, any good ideas please contact us, our engineers will help you get what you want, we can also put the platform on a truck mounted chassis.Nueva plataforma de perforacion de pozos de agua tubular remolcable con compresor casero de granja hengwang 260

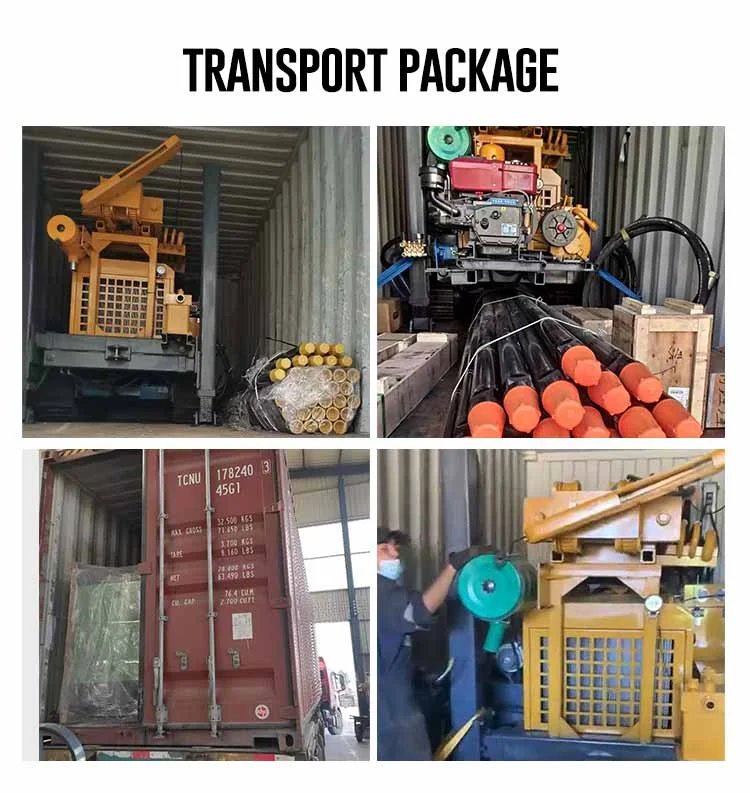

Packaging & Shipping
back hammer, impactors, bits and other accessories are packed in plywood cases.
1 set shipped with 20GP;
The complete set with air compressor needs a 40GP;Nueva plataforma de perforacion de pozos de agua tubular remolcable con compresor casero de granja hengwang 260
1 set shipped with 20GP;
The complete set with air compressor needs a 40GP;Nueva plataforma de perforacion de pozos de agua tubular remolcable con compresor casero de granja hengwang 260
Related products
Our Company
Shandong Hengwang Group Co., Ltd. is located in Shiqiao Industrial Park, Jining City, Shandong Province, China. Our Group occupies an area of about 40,000 square meters.It is a comprehensive enterprise integrating piling and drilling rig design, manufacture and installation.Nueva plataforma de perforacion de pozos de agua tubular remolcable con compresor casero de granja hengwang 260
Our group has over 300 workers, 35 senior engineers and 260 salesmen. The main processing equipment quantity reaches 100 sets,including of CNC lathe machines, advanced guide way grinder, and TK611-1A CNC milling & boring machine
Our group has over 300 workers, 35 senior engineers and 260 salesmen. The main processing equipment quantity reaches 100 sets,including of CNC lathe machines, advanced guide way grinder, and TK611-1A CNC milling & boring machine
Contact Us
If you have any questions for this drilling rig ,please contact me as below,i will stand by 24 hours.Thanks
