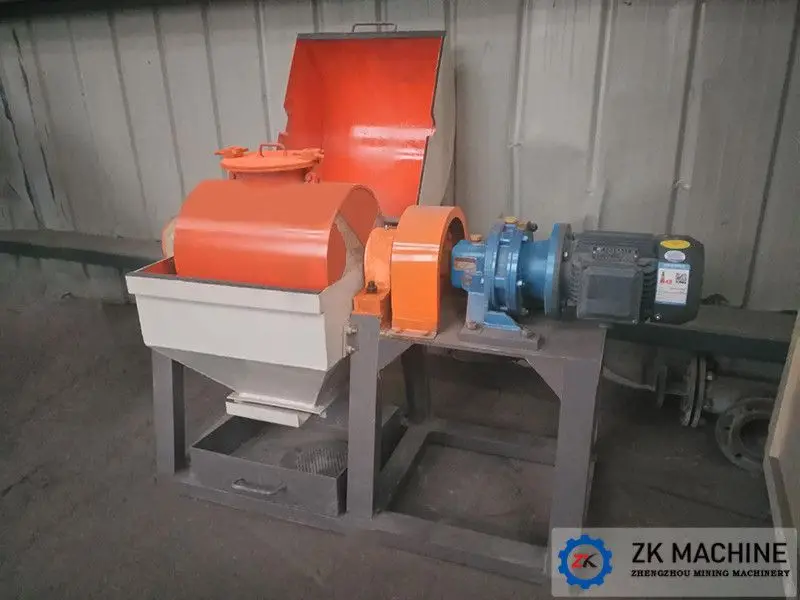

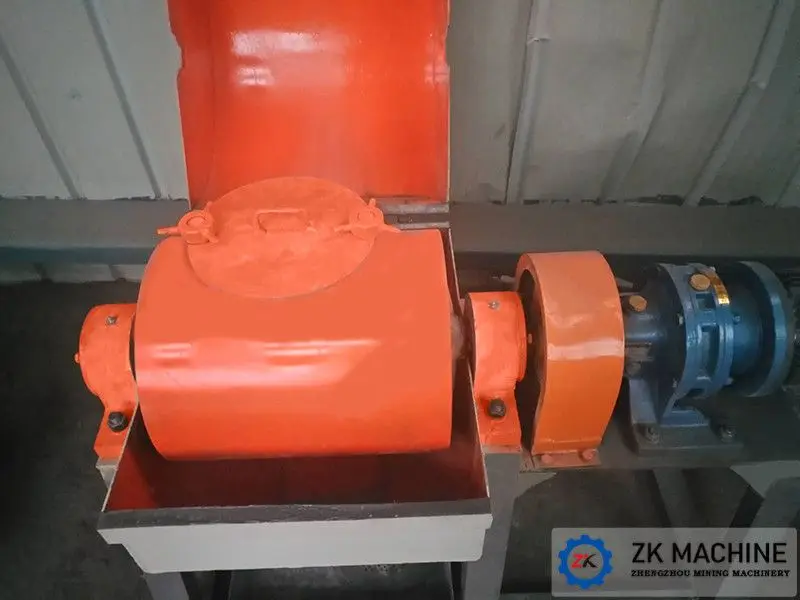

Laboratory Scale Ceramic Grinder Ball Mill Machine for Sale

Model : Lab Scale

Ball Mill Media: Steel Ball

Applied Material: cement, limestone, slag, ore, sand, coal etc

Application: Reaserch Institutes, Unverisities, Enterpries Investment

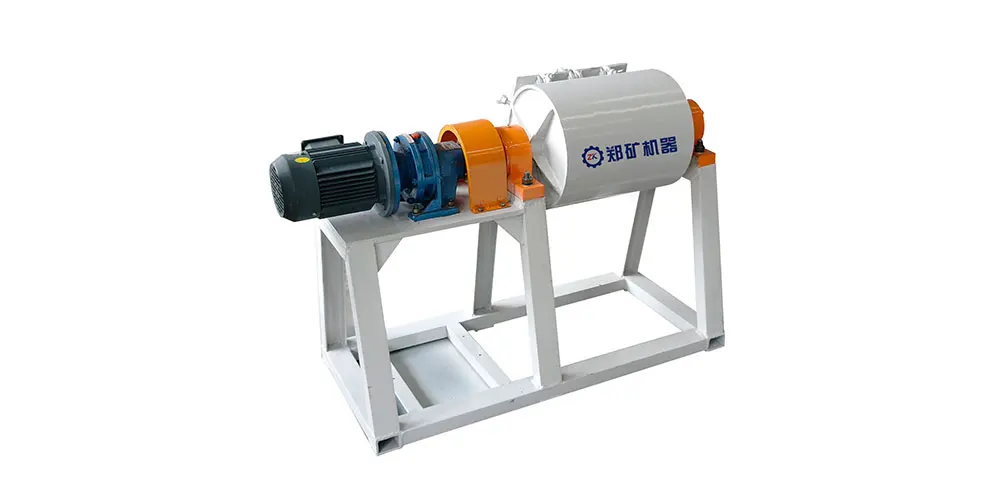

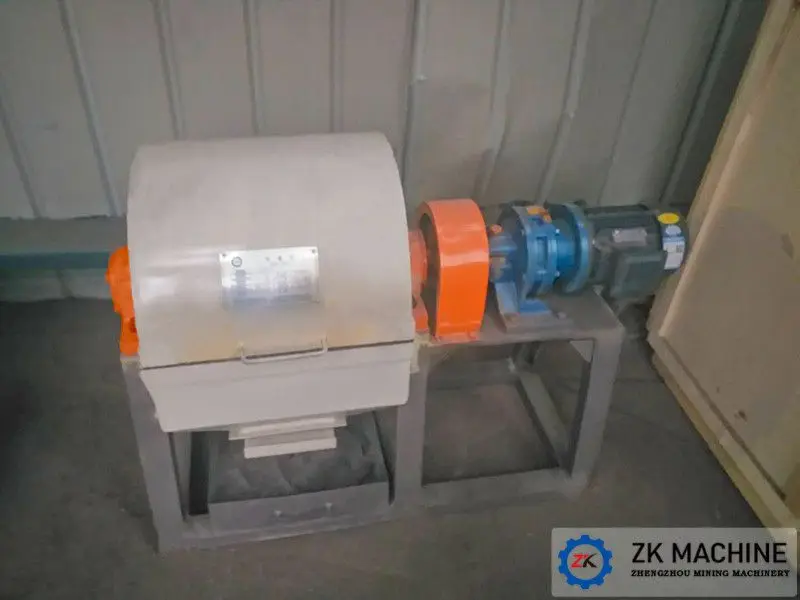

Lab scale ball mill (Laboratory ball mill) is used for making test of grinding materials like ores, chemicals, ceramic materials etc, with capacity from a few kgs to about 1000 kgs. Actually Laboratory ball mill can take care of any pulverizing, milling or grinding job that you can give it. Its multifunction design allows it to handle wet or dry, brittle or fibrous materials. It is a flexible, reliable, compact design, best for laboratory and research use.

According to clients' request, the laboratory ball mill can be produced by stainless steel, motor 3 phase or single phase.

1. Wide usage, simple structure, convenient maintenance;

2. Big capacity, continuous working;

3. Body liners and grinding medium could be made of various of materials, good corrosion resistance;

4. Easy installation, adjustment, and operation

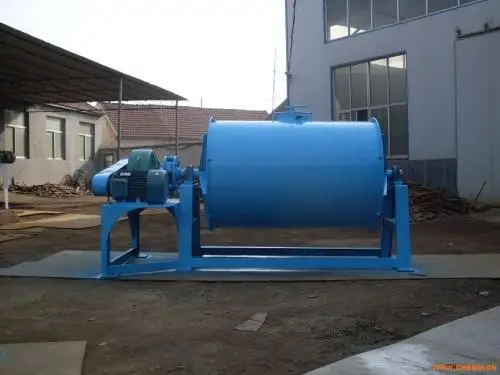

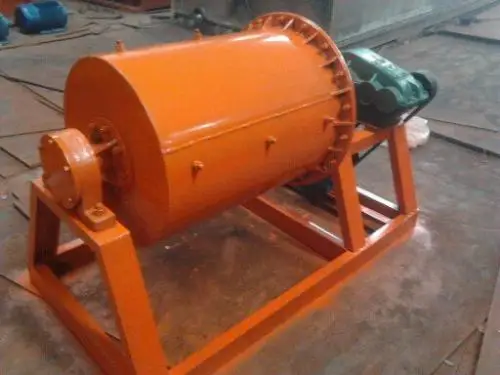

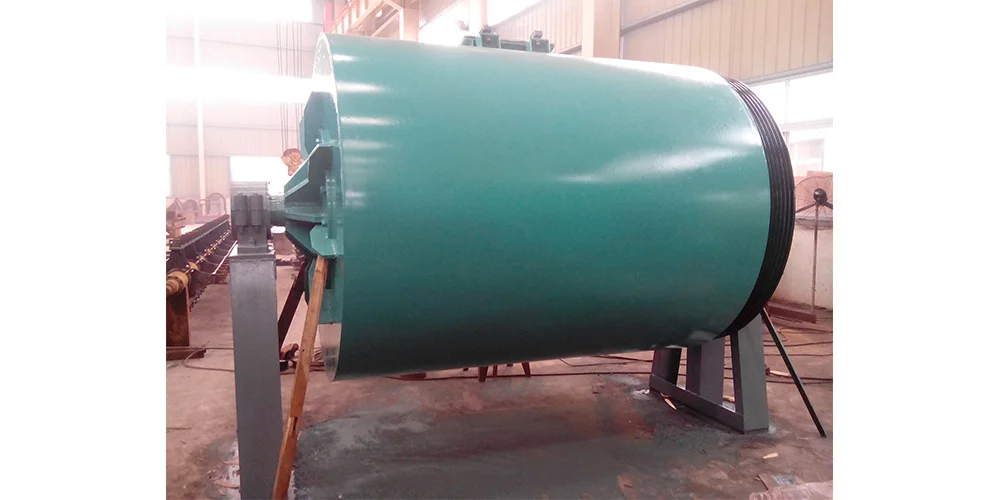

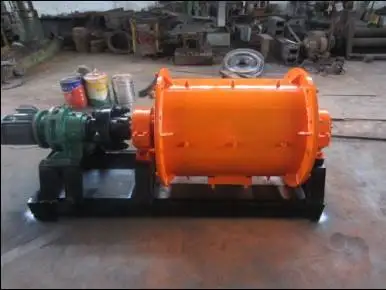

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging.

The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.

 Outlook of Henan Zhengzhou Mining Machinery Co., Ltd

The main products of company include: ball mill, rotary kiln, vertical pre-heater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, pre-heater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and region.

Over 60 Years Mining Equipment Manufacturing Experience

 A Team of Professional Engineers & Considerate After-sales Service

Address: Qiaolou caizhai industrial estate, Xingyang, Zhengzhou, Henan province, China.

Tel: +86 371  55902866

Welcome to visit our company and factory to learn more about us. Our factory is only 1 hour by car away from Zhengzhou Airport, which would be very convenient for your visit.
