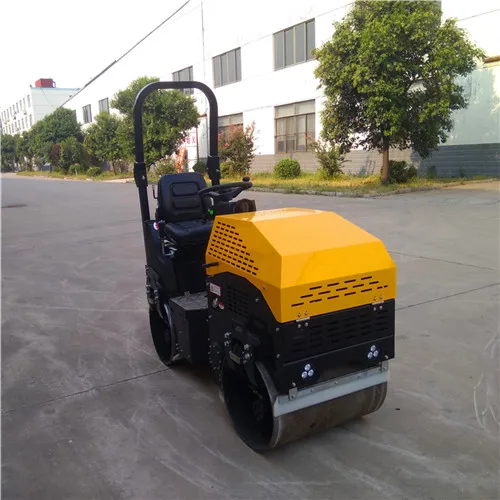

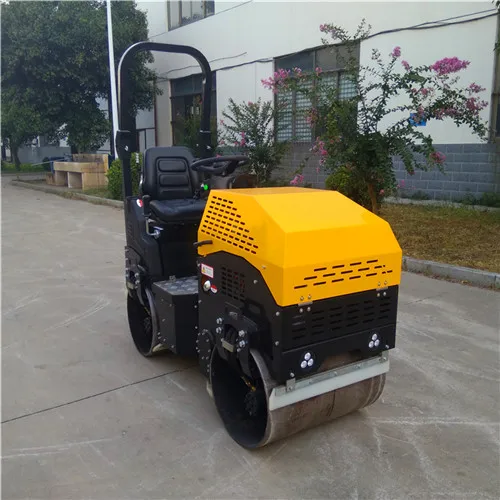

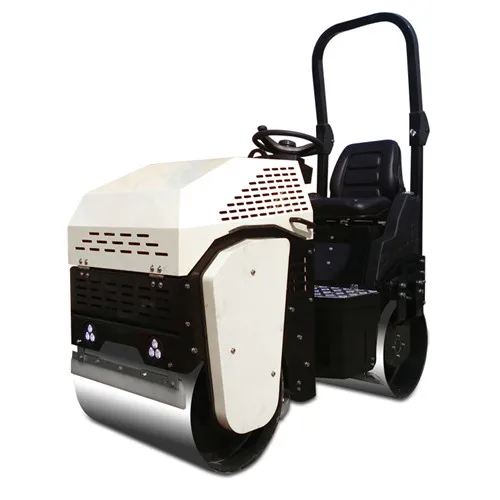

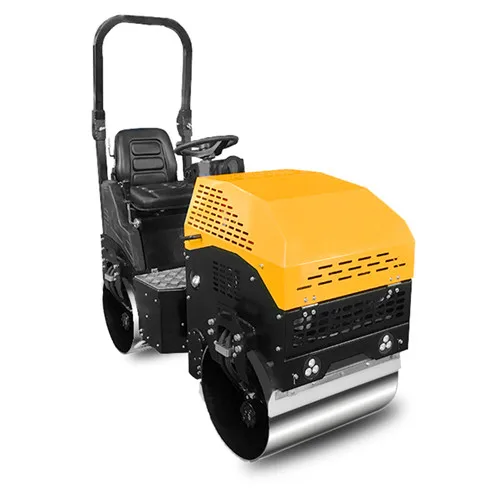

Vibratory Small Ride On Road Roller Double Drum Compactor For Sale
- Category: >>>
- Supplier: Jining Dingye Heavy Industry Machinery Co. Ltd.
Share on (1601089787225):
Product Overview
Description
factory provide wholesales road roller machine
Advantage
1.Operating radius is small, can work in a small area,suitable for groove backfill;
2.With EPA gasoline engine or famous water-cooled diesel engine,superior performance,easy to operate;
3.With international famous brand PH hydrauulic drive unit,infinitely variable speed;
4. Hydraulic steering, reversing conveniently. ry Road Roller
5.Internationally renowned NSK Bearings,MITSUBOSHI (Samsung) belt,
to ensure the work performance of machine;
6.This product has passed ISO9001 and CE certification.
Features:

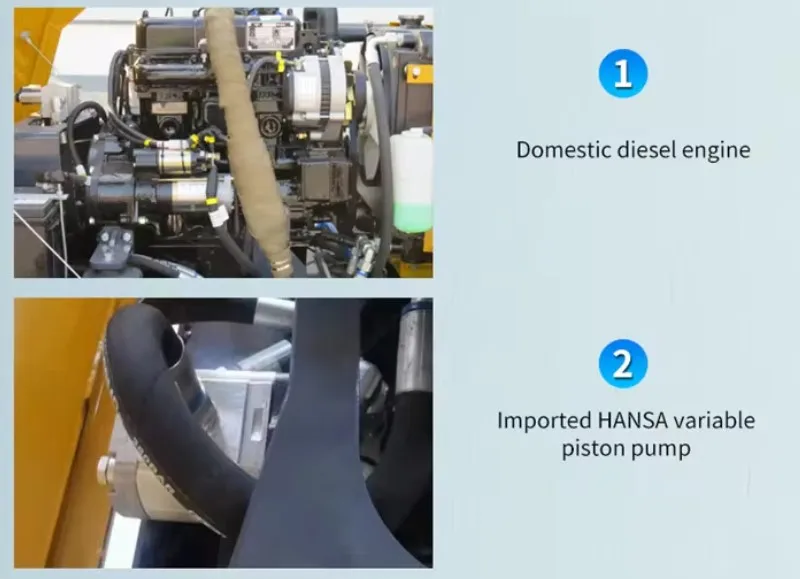

A):Famous Brand Engine
B):USA Suaer Pistion Pump

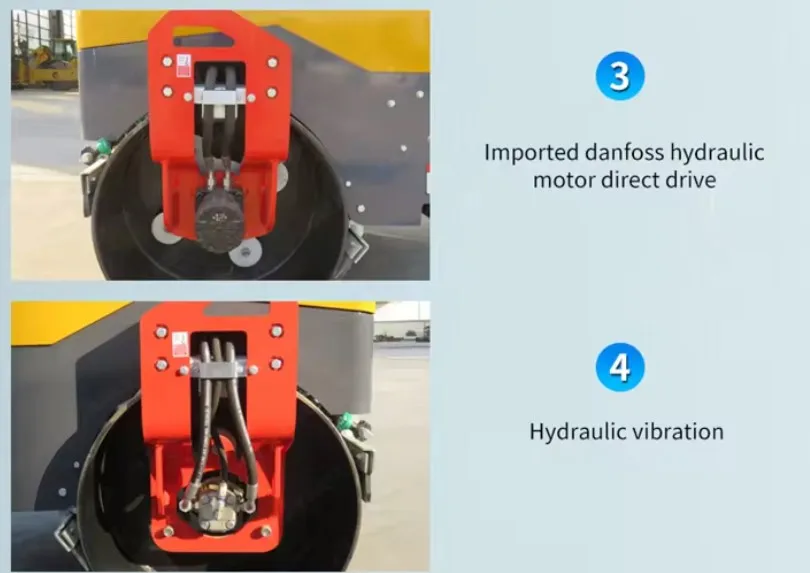

C):Double Denmark Danfoss Driving Motor
D):Denmark Danfoss Vibrating Motor

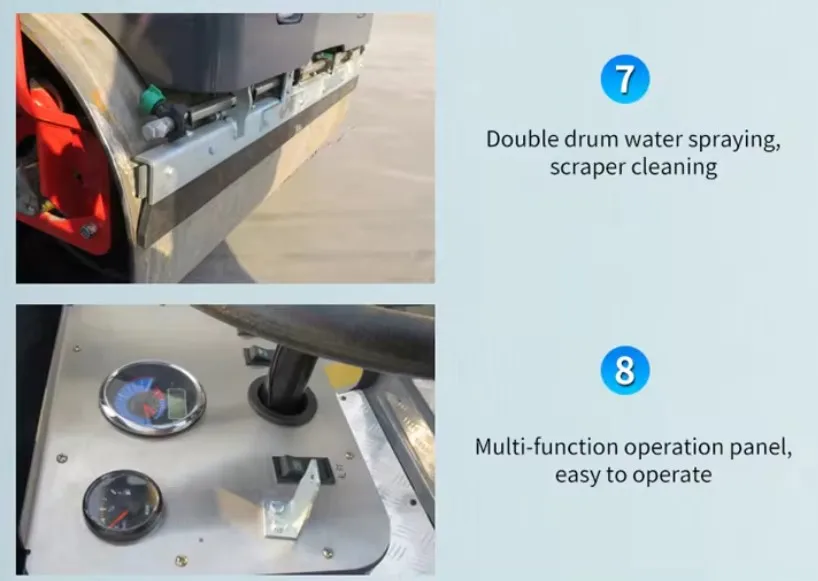

E):Electric Intermittent Spraying Systerm
F):Big Water Tank

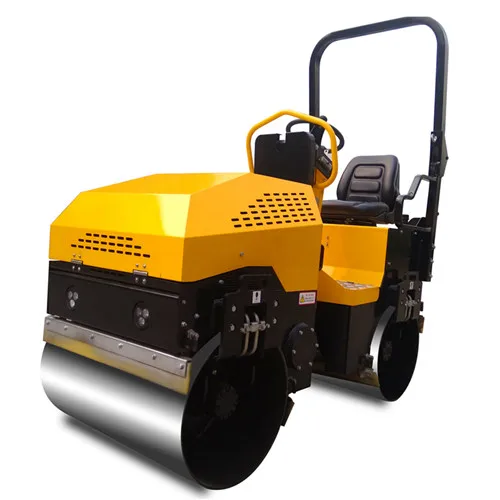

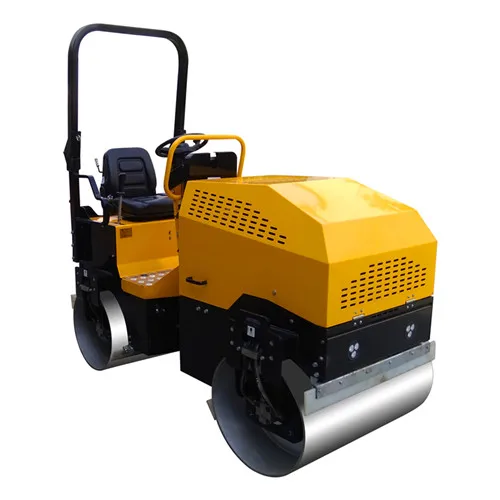

CE certification small vibration double drum road roller

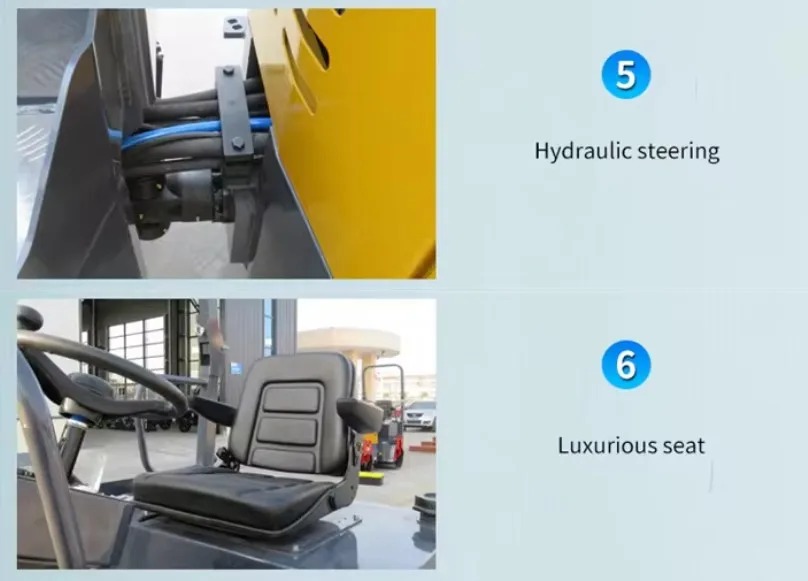

1. Fully hydraulic type: hydraulic driving, hydraulic steering and hydraulic vibrating.
2. Can adopt water-cooled/air-cooled diesel or gasoline engine, have good heat dissipation.
3. 30KN Exciting force, good compaction effect. Soil compactor vibratory roller.
4. Had large capacity water tank, so that can guarantee continuous work.
5. Full closed hydraulic control system, ensure the walking and compaction accuracy, and it's convenient and safe to maintenance and use.
6. One side of the road roller installed protecting cover, so that it is very easy and convenient to operate in the corners and edges.
7. Operation radius is small, so that it can work in small area, suitable for groove backfill.
8. Use famous engine, good quality assurance, superior performance, easy to start.
9. CE certificate
Product Application
1 ton ride on mini road roller China manufacturer
Mainly used in foundation ditch, road, sports venues built compaction, can also be used to compact asphalt surface.
1 ton ride on mini road roller China manufacturer
Model | DYR1000 | ||
Walk Speed | 0-12km/h | ||
Gradeability | 30% | ||
Drive Type | Hydraulic transmission | ||
Nominal Amplitude | 0.6mm | ||
Vibration Frequency | 70HZ | ||
Exciting Force | 35KN | ||
Water Tank | 65L | ||
Hydraulic Oil Tank | 13L | ||
Engine Model | water-cooled diesel 90N | CF186F | Honda GX390/ briggs& stratton ( EPA) |
Power | 9.0HP | 9.0HP | 13.0HP |
Steel Wheel Size | Φ800*560mm | ||
Package Size | 2100*1000*1650mm | ||
Operating Weight | 1000kg | ||
Starting Mode | Electric key start | ||
Full of our road roller model
Standard configurtion:
1. HONDA engine or Chinese top quality engine.
2. DENMARK DANFOSS driving motor.
3. USA WHITE vibrationg motor.
4. DENMARK DANFOSS PUMP
5. JAPANESE NSK bearing.
Company Information
Certifications

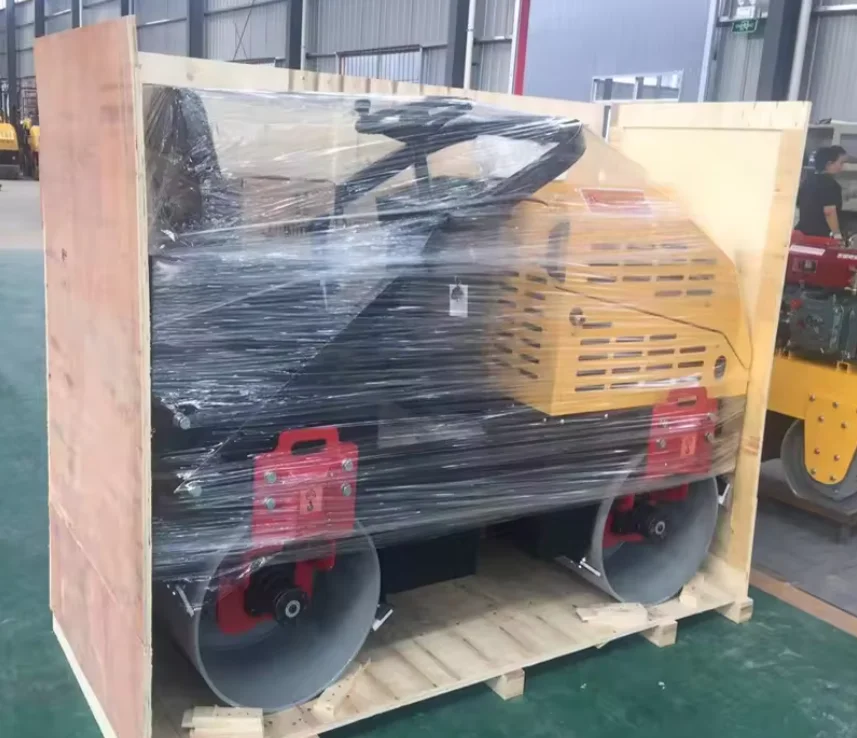

Packaging & Shipping
