Product Overview

Description



Products Description


PET geotextile is made up of filament or short fibers through different equipment and process arrangement reticulate, after acupuncture, etc to give different fiber interwoven together, mutual tangles fixation make normalized fabric, fabric soft,
rich,full-bodied, softness, to meet the needs of different thickness.
Non-woven geotextile clearance, has the very good fabric has good adhesion, because the fiber has a certain ability to resist tearing soft deformation at the same time has the very good adaptability, have good surface drainage capability at the same time, the soft surface more clearance has good friction coefficient increases the adhesion ability of soil particles and so on, can prevent the fine particles by preventing the loss of the particulate matter also ruled out excess water, soft surface has good protection.
According to use Fibre length is divided into filament non-woven geotextile or short silk non-woven geotextile.They can have very good filtering, isolation and the effect such as reinforcement, protection, is a kind of widely used geosynthetic materials.

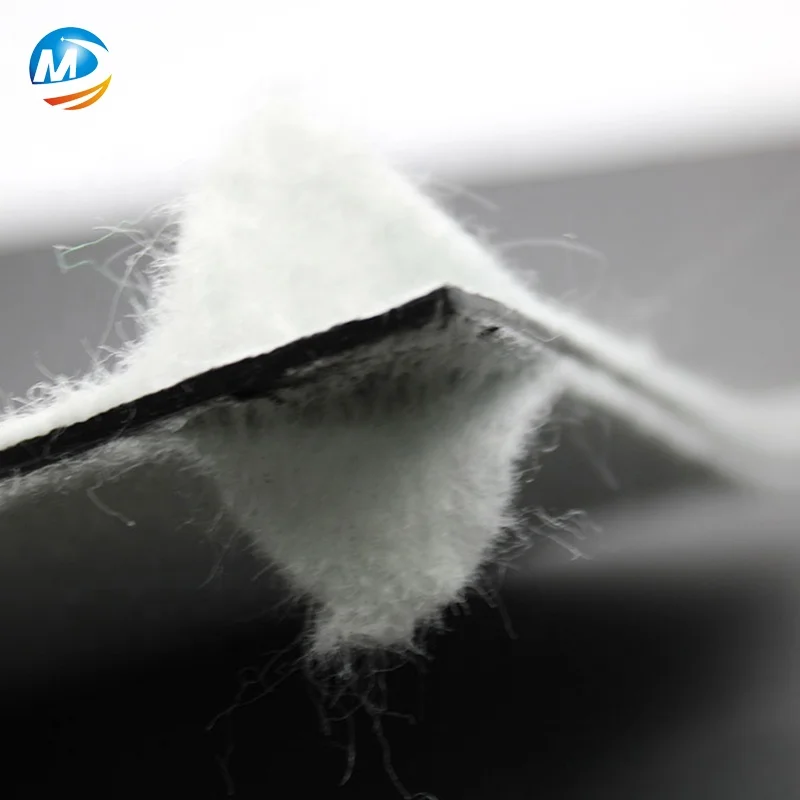

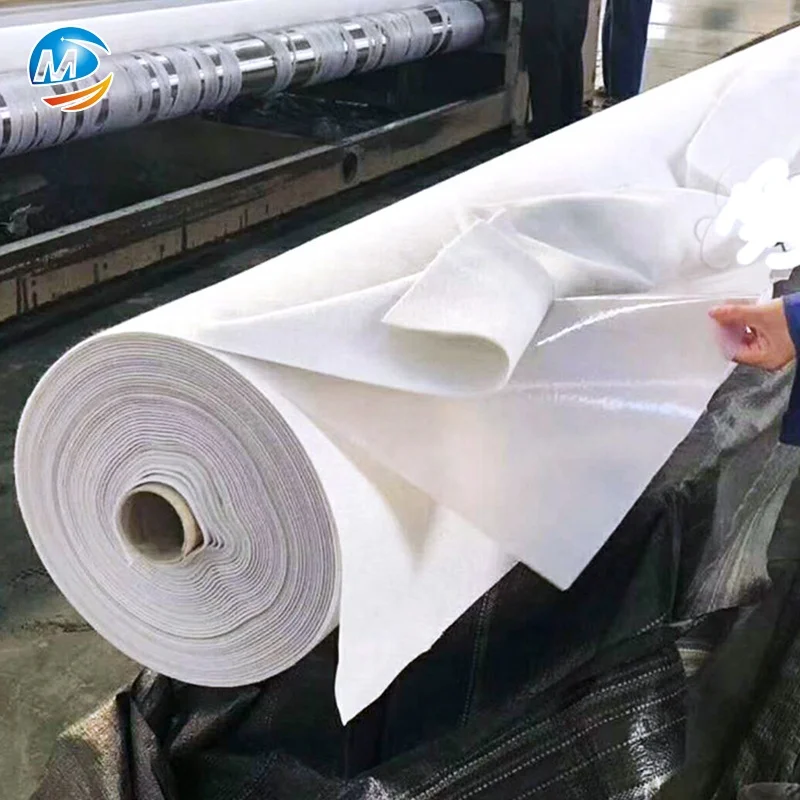

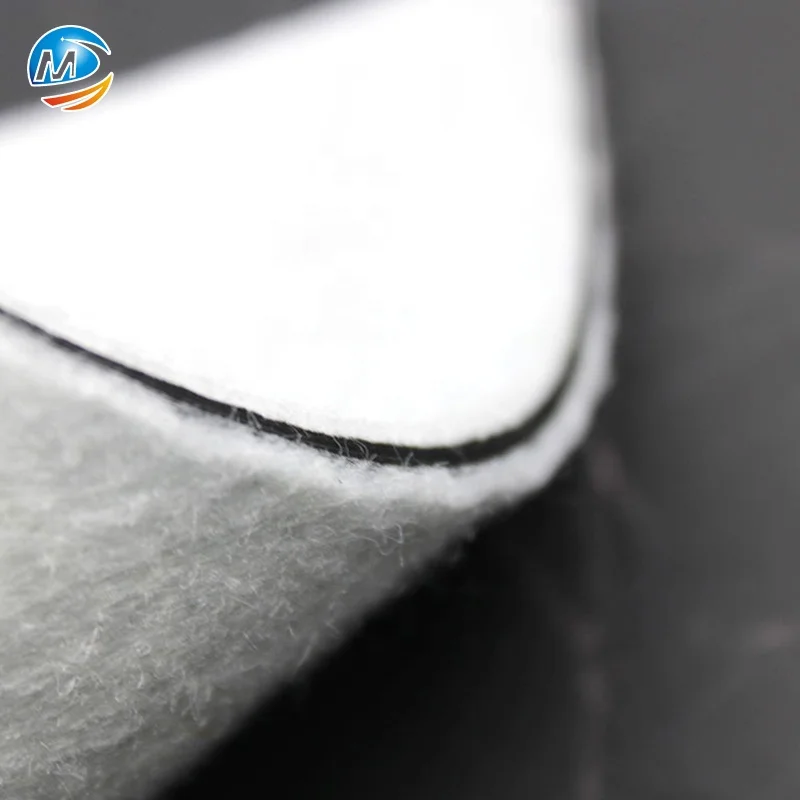

Composite geotextile
Composite geotextile is compounded with geotextiles and geomembrane impermeable material, it is mainly used for seepage control,
composite geotextile is divided into a cloth a film, a film and two cloth wide 4 to 6m, weight of 200--1500 g/m², tensile and
tearing resistance, bursting physical mechanics performance index is high, can satisfy the water conservancy, municipal,
construction, transportation, subway, tunnel and other civil engineering needs. Due to the choice of the polymer material and
production process to add the aging proof agent, it can be used in the abnormal temperature conditions.













Polyester filament geotextile parameters




Polyester staple fiber geotextile parameters




Composite geotextile Technical Parameter


Item
Specification
Breaking strength≥ (KN/m)
5
7.5
10
12
14
16
18
20
Elongation at break(%)
30-100
CBR puncture resistance≥ (KN)
1.1
1.5
1.9
2.2
2.5
2.8
3.0
3.2
Tearing strength≥(KN)
0.15
0.25
0.32
0.4
0.48
0.56
0.62
0.70
Peel strength≥(N/cm)
6
Vertical permeability coefficient(cm/s)

According to contract


Item
Thickness of geomembrance/mm
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Hydrostatic pressure resistance/(MPa)
Geotextile-geomembrance
0.4
0.5
0.6
0.8
1.0
1.2
1.4
1.6
Geotextile-geomembrance-geotextile
0.5
0.6
0.8
1.0
1.2
1.4
1.6
1.8




Composite Geomembrane Features
Specification:
(1). 80g/m2~1000g/m2
(2). 1m~8m in roll width, the length as client's request.
(3). Color: white , black , green or at your request
1.With Anti-seepage & drainage, lsolation and reinforcement.
2.Good environmental stress cracking resistance and excellent chemical resistance.
3.Wide temperature range for application and longer life.
4.Puncture-resisting,aging resisting,ultra-violet radiation,oil and salt,and corrosion resistance.
5.Complete width and thickness specification,low cost and easy installation.

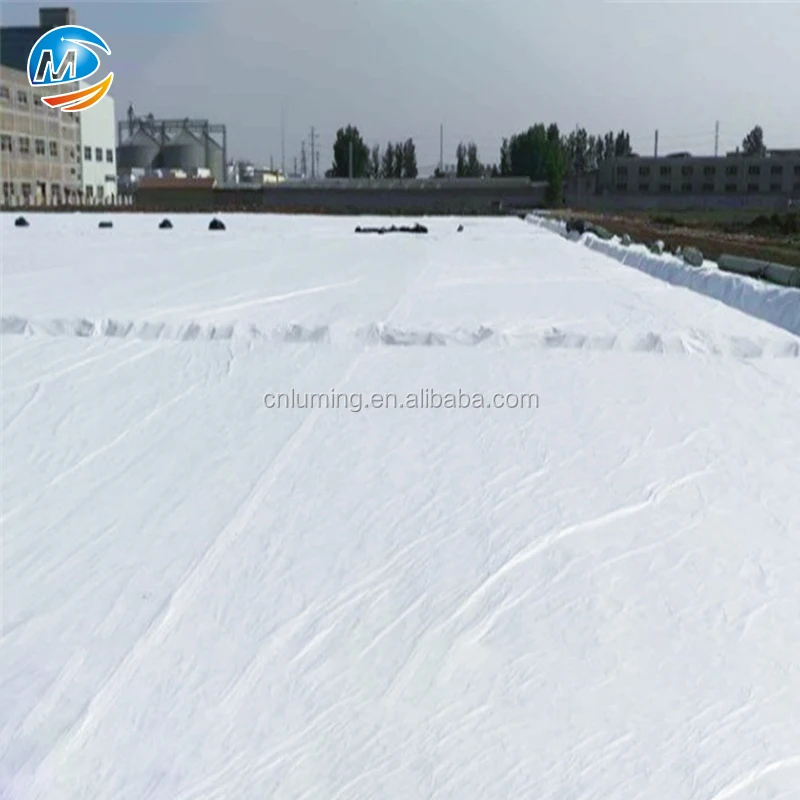

It can meet the needs of anti-seepage, isolation, reinforcement, crack prevention and reinforcement in water conservancy,
municipal engineering, construction, transportation, subway, tunnel and engineering construction. It is commonly used for seepage
control of dykes and drainage ditches, as well as anti pollution treatment of waste dump.


RELATED PRODUCTS








Company Information






Packing & Shipping








FAQ




Q1. Is free sample available?
A: Yes, we are happy to send free samples of some items for quality evaluation. Please contact us to get the sample application
process.

Q2. What is your lead time?
A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time
base on your order quantities.

Q3. How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) All raw material we used are non-toxic, environmental-friendly;
2) Skillful workers pay great attention to each details in handling the producing and packing processes;
3) We have a professional QA/QC team to ensure the quality.

Q4. Do you accept OEM or ODM order?
A: Yes, we accept both OEM and ODM for customers.

Q5. What are your terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.

Q6. What is the payment way?
A: TT, Pay Later, West Union,Online Bank Payment.

Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
