Product Overview
Description
Old Man Hydraulic Automotive Lift Cabinet 1 2 3 4 Meter Moving Machine Old Man Hydraulic Lift Machine

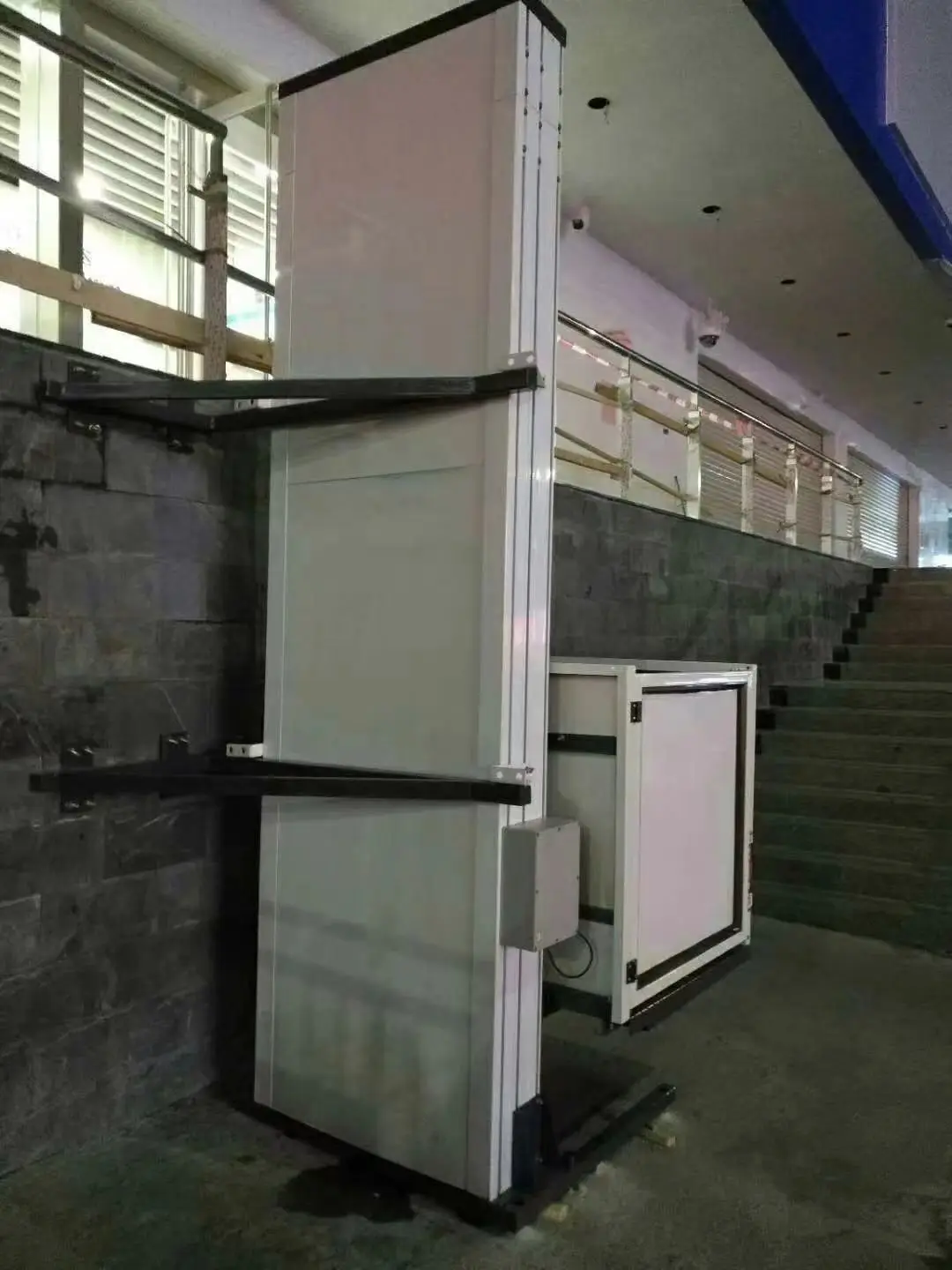

What is a non-enclosed vertical platform lift?
Non-enclosed vertical elevator can easily provide passengers with short-distance transportation in the vertical direction, and its applications include stairs and walkways.
Non-enclosed vertical elevator can easily provide passengers with short-distance transportation in the vertical direction, and its applications include stairs and walkways.
The wall, gate and optional automatic folding ramp of the platform will move together with the platform, providing safer protection for passengers.
W-type elevator is an ideal choice for indoor and outdoor applications, and it is a cost-effective barrier-free access solution.
YST--lift vertical elevator is suitable for occasions with small lifting distance.

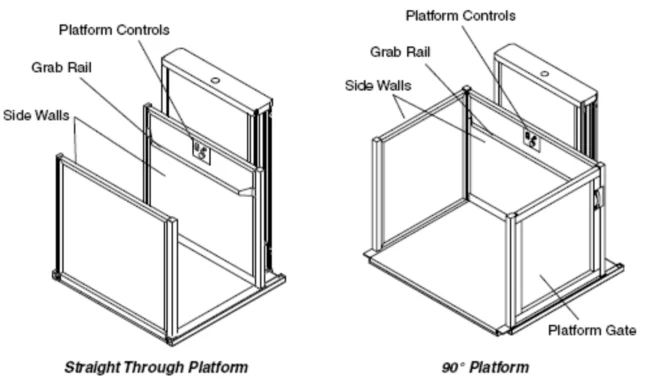

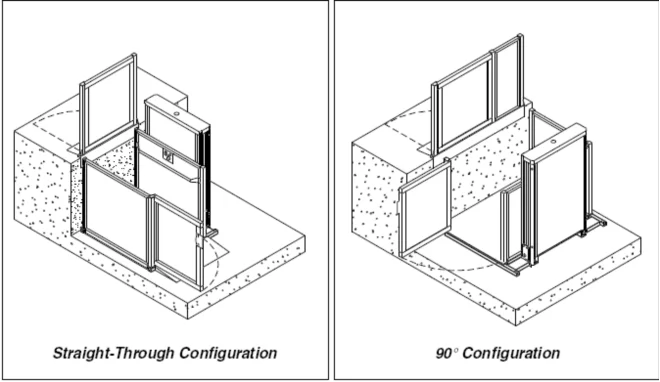

There are two layout forms: straight crossing or 90 entrance/exit, which can be used indoors and outdoors.
Please call our design hotline and tell us about your difficulties in barrier-free equipment.
Application places include:
-School - Government building
-Courts - Commercial buildings
-Theatre - Historic buildings
-Restaurant -Residence
-Hospitals -More other places
-Courts - Commercial buildings
-Theatre - Historic buildings
-Restaurant -Residence
-Hospitals -More other places

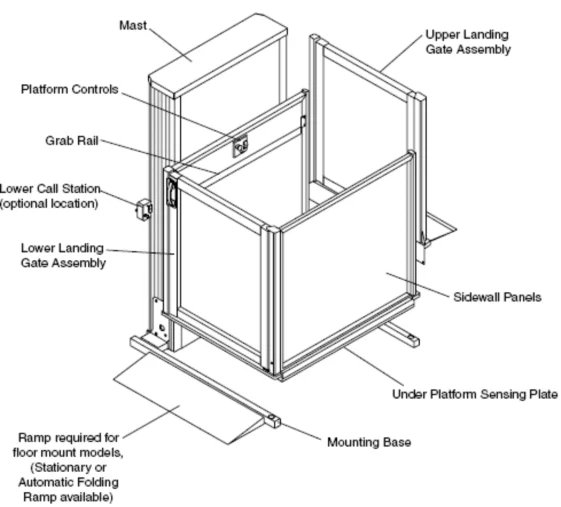

Component composition
YST--lift vertical platform elevator has a variety of models to choose from to adapt to different applications. This design and planning guide is applicable to W-type non-enclosed elevators.
W Barrier-free lifting platform includes a complete vertical lifting system, which can be installed on the ground or in a 76 mm deep pit. The elevator is made of champagne-colored, anodized aluminum profile and powder-sprayed hollow steel frame, platform and 1.5 mm thick powder-sprayed panel.
W Barrier-free lifting platform includes a complete vertical lifting system, which can be installed on the ground or in a 76 mm deep pit. The elevator is made of champagne-colored, anodized aluminum profile and powder-sprayed hollow steel frame, platform and 1.5 mm thick powder-sprayed panel.
Platform
YST--lift has three platform sizes to meet your needs.
(1) Standard (2) Medium (3) Large
The rated load capacity of elevators of the above three sizes is 340 kg.
(1) Standard (2) Medium (3) Large
The rated load capacity of elevators of the above three sizes is 340 kg.
For the convenience of passengers, handrails and platform controllers are installed on the side wall next to the driving frame.
Platform controller | ||
The platform controller includes 1 direction control switch, 1 emergency stop/alarm button that sounds bright, and 1 optional key switch. | ||
Net platform size

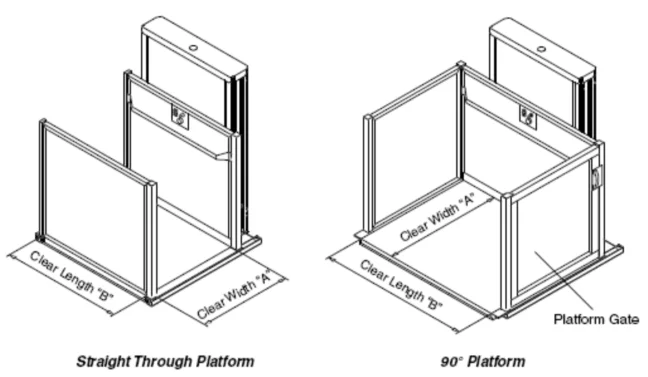

The net size of the inner circumference of the platform varies with the size of the platform and the layout of the entrance/exit positions (placing side walls). Please refer to the following figure for the actual size of the platform inner circumference.
Layout of straight-line crossing platform | ||||
Platform Size | Net width A | Net length B | ||
Standard | 867mm | 1237mm | ||
Medium | 867mm | 1389mm | ||
Large | 1045mm | 1542mm | ||
90 entrance/exit platform layout | ||||
Platform Size | Net width A | Net length B | ||
Large | 1104mm | 1485mm | ||
Platform safety features
* Platform bottom induction plate
A pressure sensitive sensing plate is installed at the bottom of the platform, which can sense obstacles at the bottom of the platform.
When the bottom sensing plate senses an obstacle, the elevator will automatically stop. The platform can move up to clear obstacles.
* Anti-skid surface
To ensure the safety of passengers, the steel platform deck is sprayed with rough anti-skid paint.
* Pit switch (optional)
For projects requiring maintenance pit switch by local regulations, a pit switch can be installed at the bottom of the column.
When the maintenance personnel work at the bottom of the platform, the pit switch will cut off the elevator control system.
A pressure sensitive sensing plate is installed at the bottom of the platform, which can sense obstacles at the bottom of the platform.
When the bottom sensing plate senses an obstacle, the elevator will automatically stop. The platform can move up to clear obstacles.
* Anti-skid surface
To ensure the safety of passengers, the steel platform deck is sprayed with rough anti-skid paint.
* Pit switch (optional)
For projects requiring maintenance pit switch by local regulations, a pit switch can be installed at the bottom of the column.
When the maintenance personnel work at the bottom of the platform, the pit switch will cut off the elevator control system.
