Product Description

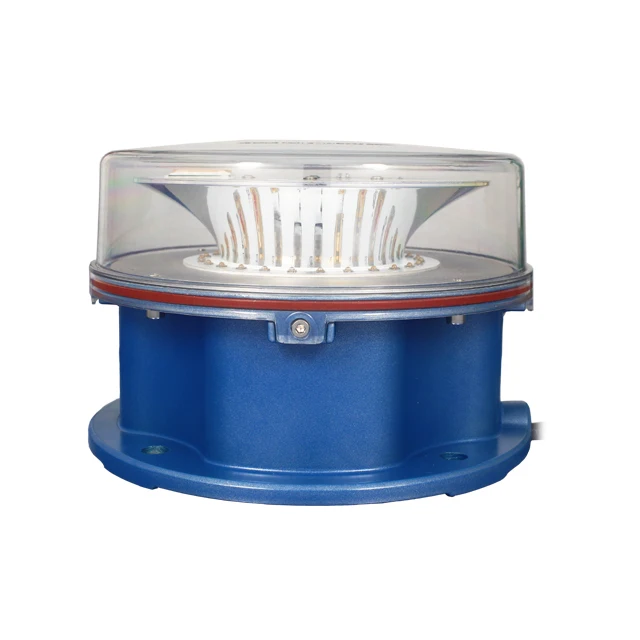

LED Aviation Obstruction Beacon L-864 Medium Intensity Flashing Simultaneously Red Obstruction Lights & Lighting Systems
Medium Intensity Obstacle Lights Type B should be used either alone or in combination with Low Intensity Obstacle Lights Type B for night mode, whereas Medium Intensity Obstacle Lights Type C should be used either alone or in combination with Medium Intensity Obstacle Lights Type AC for daily and night mode where the obstacle is particularly large and the height of the surrounding soil is more than 45m.
Aircraft Warning Obstruction Light Features:
* Based on LED technology
* RED light - Flashing (Medium Intensity Obstruction Light Type B)
* RED light - Steady Burning (Medium Intensity Obstruction Light Type C)
* Intensity: >2000cd
* Long life time >10 years life expectancy
* Low consumption
* Lightweight and compact
* Degree of Protection: IP65
* No RF-radiations
* Easy to install
* Wind resistance tested at 240km/h (150mph)
* Vibration resistance up to: 80m/s2
* RED light - Flashing (Medium Intensity Obstruction Light Type B)
* RED light - Steady Burning (Medium Intensity Obstruction Light Type C)
* Intensity: >2000cd
* Long life time >10 years life expectancy
* Low consumption
* Lightweight and compact
* Degree of Protection: IP65
* No RF-radiations
* Easy to install
* Wind resistance tested at 240km/h (150mph)
* Vibration resistance up to: 80m/s2
Aircraft Warning Obstruction Light Options:
* Twin version: two galvanically separated circuits in the same fixture(1 duty & 1 stand-by)
* Stainless Steel beacon support bracket
* Infrared version: IR wavelength 850nM
* Twin version: two galvanically separated circuits in the same fixture(1 duty & 1 stand-by)
* Stainless Steel beacon support bracket
* Infrared version: IR wavelength 850nM
Item Name | Obstruction Lighting Manufacturers |
Model | CK-16 |
Operating Voltage | AC90-260V |
Power consumption | ≤2W |
Flashing frequency | 20-60 times/min |
Light intensity | 2000cd |
Life span | ＞100,000 hours |
Emitting color | Red |
Beam angle | 360° horizontal,3° vertical |
Synchronization | Same power supply voltage signal mode |
Overall size | 210mm×140mm |
Installation size | 126mm×126mm×4-M10 |
Net weight | 1.9KG |
Ingress protection | IP66 |
Lightning protection level | 10KA |
Optical Sensitivity | 100Lux |
Operating temperature | -40℃～55℃ |
Wind load | 80m/sec. |
Specification
1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission
up to 95%,quite high impact resistance and fits the bad environment very well.
2. House of the light is made of aluminum alloy, painted by spraying plastics, the structure is
high strength, resistance to corrosion;
3. Using parabolic reflector optical design, range further;
4. Light source adopts LED with long lifespan, lower power consumption and high efficiency.
5. Based on the single chip computer control, automatic identification sync signal, do not
distinguish the main light and auxiliary light, and also could be controlled by the controller;
6. Same power supply voltage with synchronous signal, integrate in power supply cable,
eliminate the damage by error installation caused;
7. Used the photosensitive probe fit for the natural light spectrum curve, automatic control
light intensity level;
8. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5times,
Imax 15KA so that the light is suitable for a harsh environment;
9. Integral structure, protection level of Ip65;
10. Ignitability rate UL-94V0, fit for all kinds of industrial situation;
11. GPS synchronizing function is available.

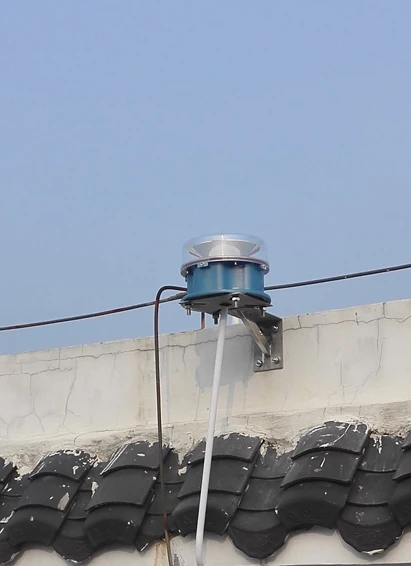

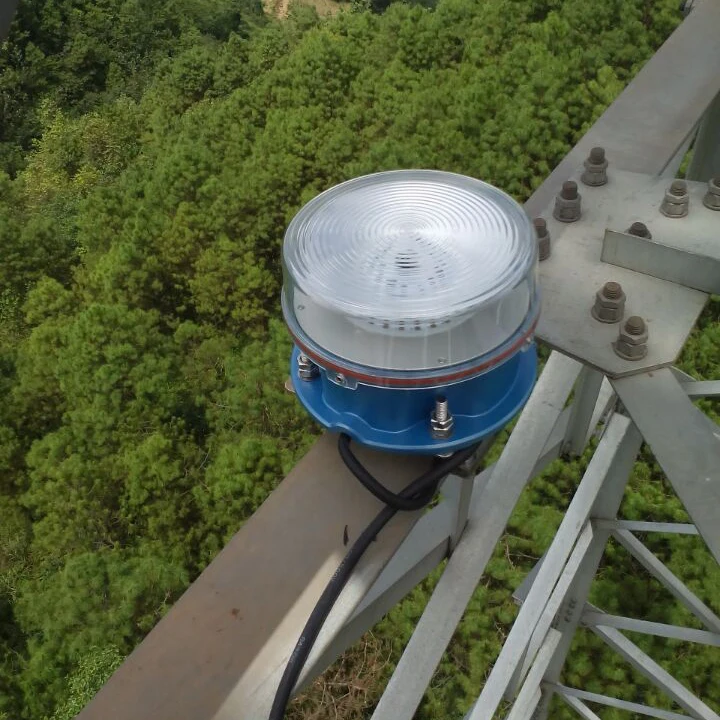

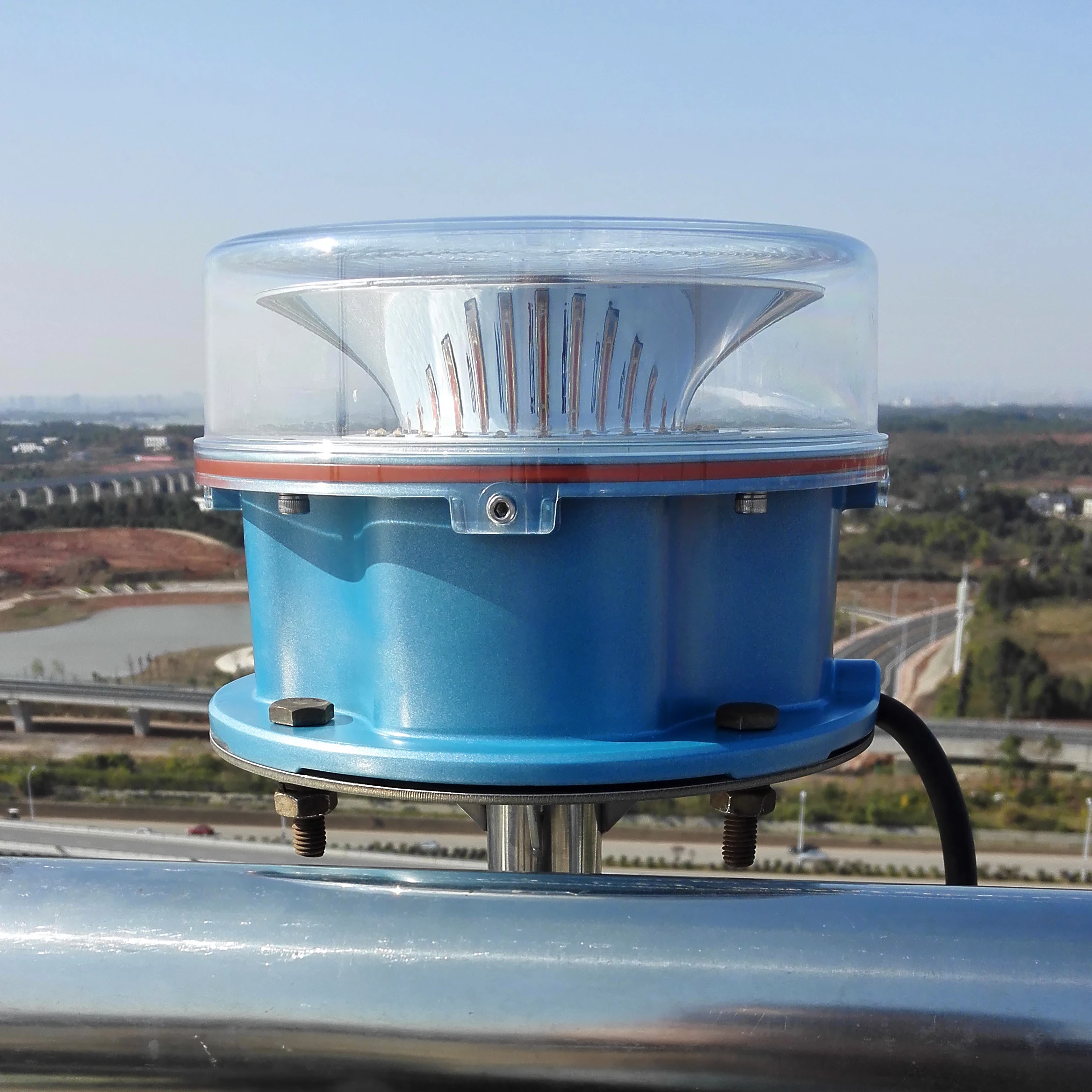

Installation Project
Aircraft Warning Light for utility tower lighting-Marking transmission towers, silos, chimneys, and water towers
Aviation Warning Light for Masts & Tower obstacles(Telecommunication, GSM, Radio & TV)
Aviation Obstruction Light for infrastructure crane(bridges, buildings, construction cranes)
Company Profile
Established in 2012, Hunan Chendong Technology Co., Ltd (CDT) is located in the historic city of Changsha, Hunan province, where is known as Yuelu Mountain, a part of Nanyue Hengshan Mountain and Yuelu Academy with a thousand years of history. CDT is a hi-tech company that focuses on R&D, production, and sells all kinds of aviation obstruction light and heliport lighting.CDT has approved by ISO9001, CAAC and ICAO, owned numerous patents. And keep long terms of cooperation with enterprises as ZTE, State Grid Corporation of China, China Southern Power Grid, CAH, CWAG, and Hunan Airport Management Group, etc. As a pioneer in aviation obstruction light, CDT expands the overseas market at the same time. We have exported to over 100 countries in Southeast Asia, Europe, South Africa, Middle East, North America, Africa, and Oceania.
Product Packaging
FAQ
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
