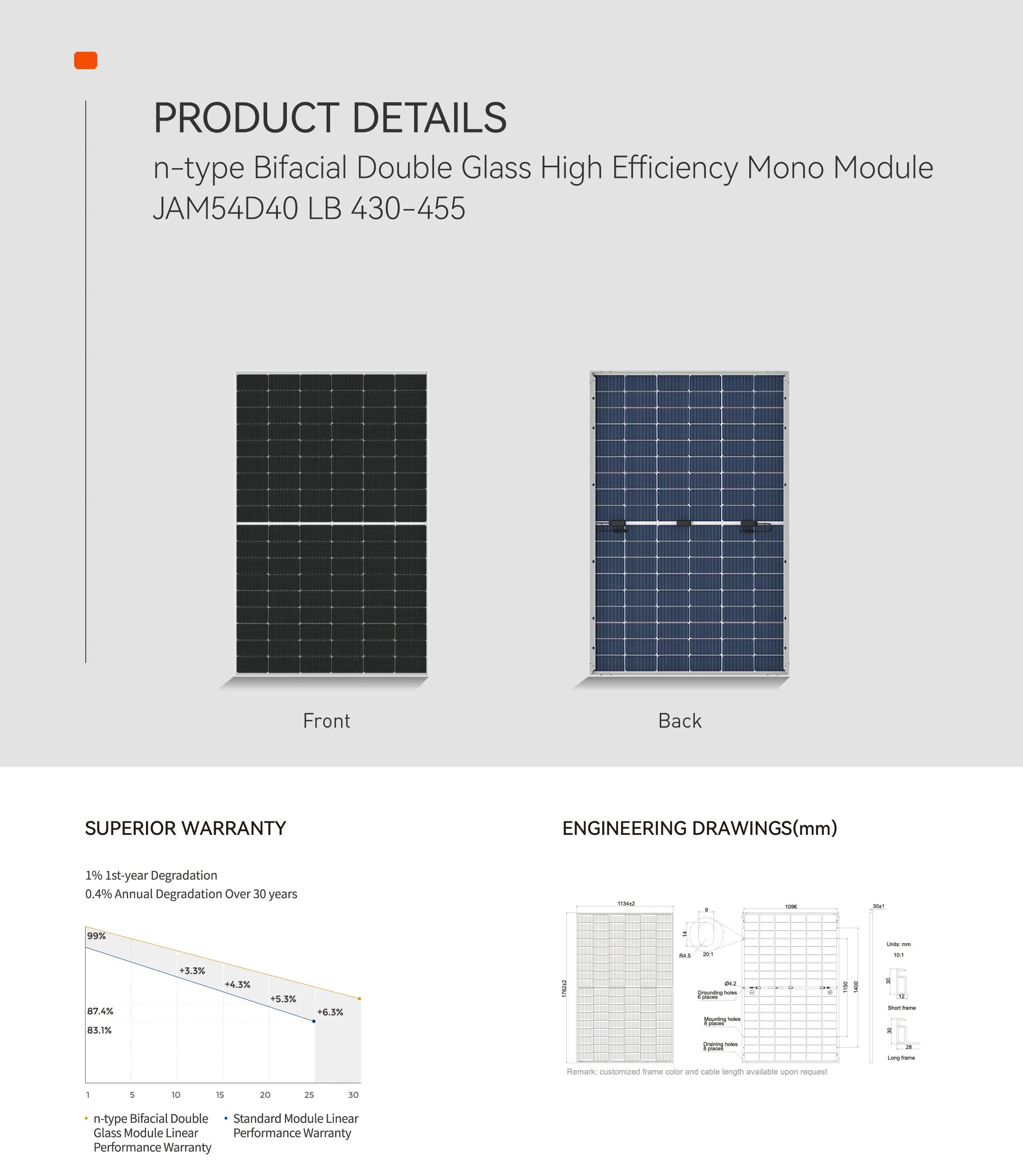

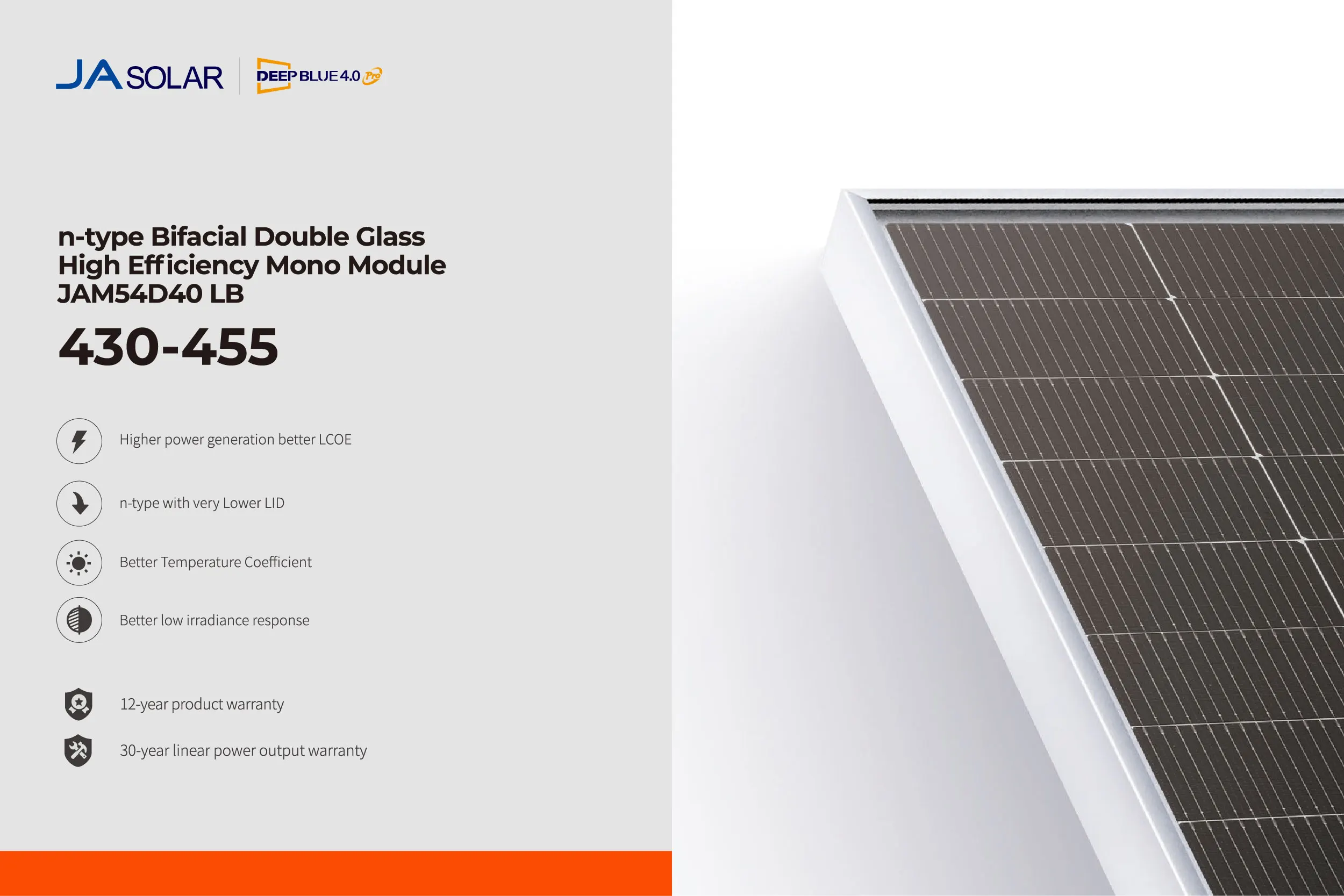

JA solar Deepblue 4.0 LB Series N type Bifacial Solar panel 450W 440W 445W 435W 430W double glass Solar Panel JAM54D40 LB
- Category: >>>
- Supplier: Nanjing Moge New Energy Co. Ltd.
Share on (1601090012445):
Product Overview
Description
Introduction
Nanjing Moge New Energy is Official Authorized Distributor of JA solar. We are China's Largest Authorized Distributor of Brand Solar Panels: LONGI SOLAR, CANADIAN SOLAR, Jinko solar, TRINA SOLAR, JA SOLAR...

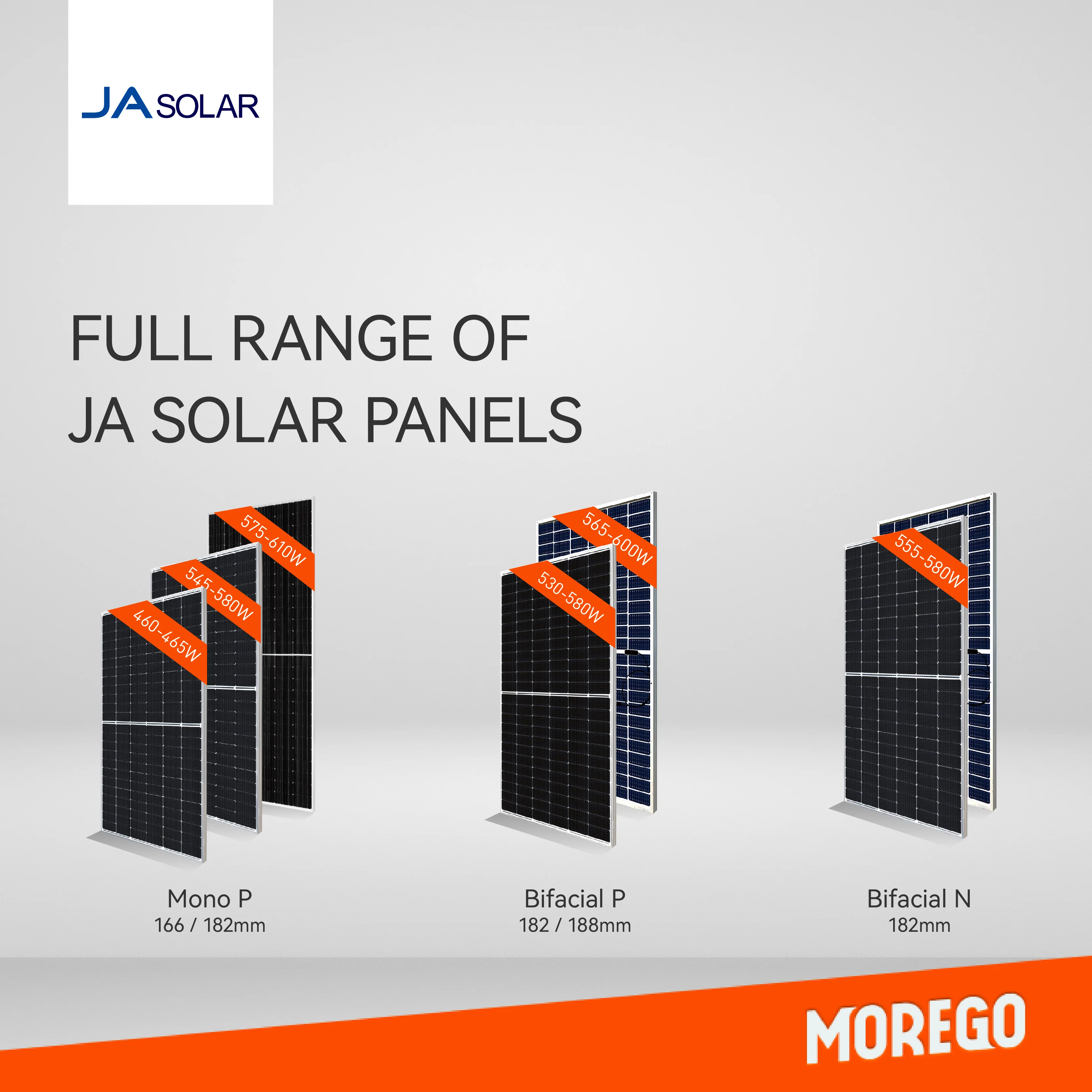

We Supplying Full Range of JA Solar Panels.
In Moregosolar, you can find the best price tier 1 solar panels, so don't waste time and safely buy the best products to start your business on Moregosolar.
Parameter
We Are Official Authorized Distributor of JA Solar.
Supply Full Line of Genuine JA Solar Panels
MECHANICAL SPECIFICATION | ||||||
Format | 1762mm x 1134mm x 30mm | |||||
Weight | 22kg±3% | |||||
Cell | 6 x 18 monocrystalline cells | |||||
Junction Box | IP68, 3 diodes | |||||
Cable | 4mm2 | |||||
ELECTRICAL CHARACTERISTICS | ||||||||||
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | ||||||||||
JAM54D40 | 430/LB | 435/LB | 440/LB | 445/LB | ||||||
Max. Power | Pmax | 430W | 435W | 440W | 445W | |||||
Open Circuit Voltage | Voc | 38.50V | 38.70V | 38.90V | 39.10V | |||||
Short Circuit Current | Isc | 14.14A | 14.23A | 14.31A | 14.40A | |||||
Max. Power Voltage | Vmp | 32.12V | 32.29V | 32.47V | 32.65V | |||||
Max. Power Current | Imp | 13.39A | 13.47A | 13.55A | 13.63A | |||||
Efficiency² | η | 21.5% | 21.8% | 22.0% | 22.3% | |||||

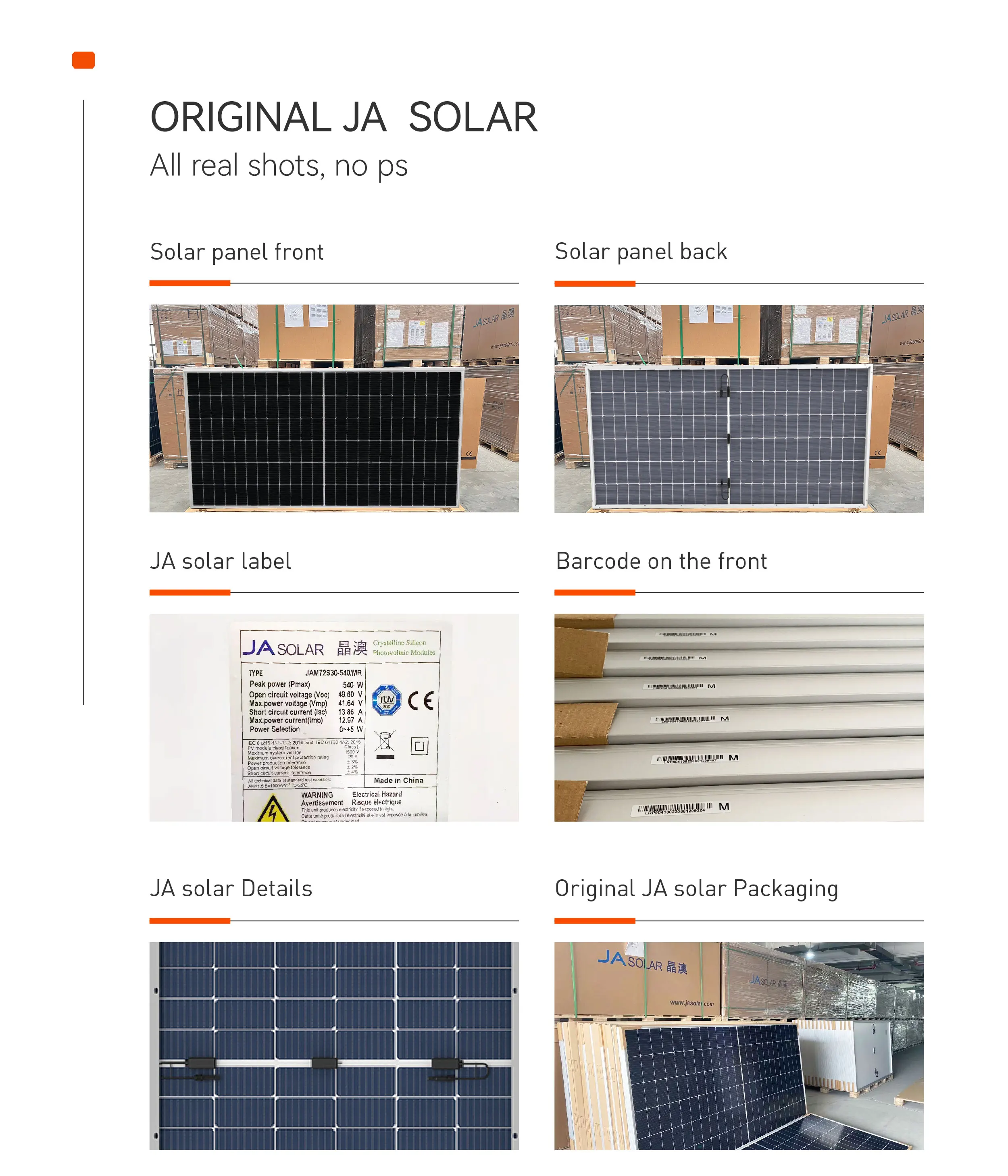

JA solar Genuine
