GSK FANUC optional vmc1160 vmc1270 5 axis cnc big machining center CHINA high standard BT40 cnc vertical milling machine tools
- Category: >>>
- Supplier: Shandong Yijin Cnc Machine Tool Co. Ltd.
Share on (1601090262003):
Product Overview
Description
The VMC1160 CNC vertical machining center is a common type of numerical control machine tool, referred to as the Vertical Machining Center. It is employed in carrying out operations such as drilling, milling, boring, and tapping during the processing process. It possesses the characteristics of high processing accuracy, high processing efficiency, and compact structure, and is widely utilized in the manufacturing industry.
Product Description

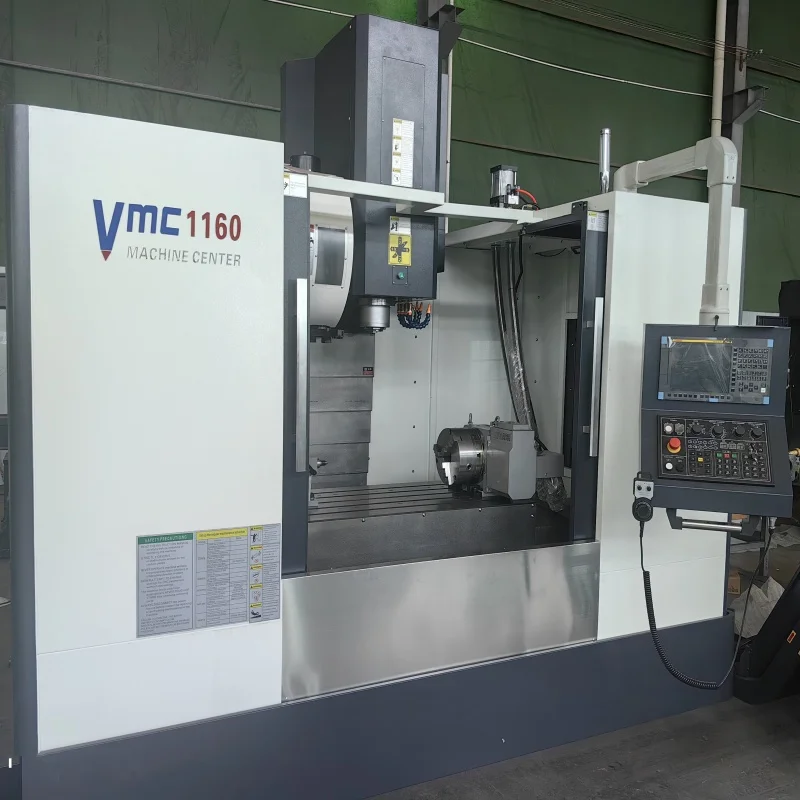

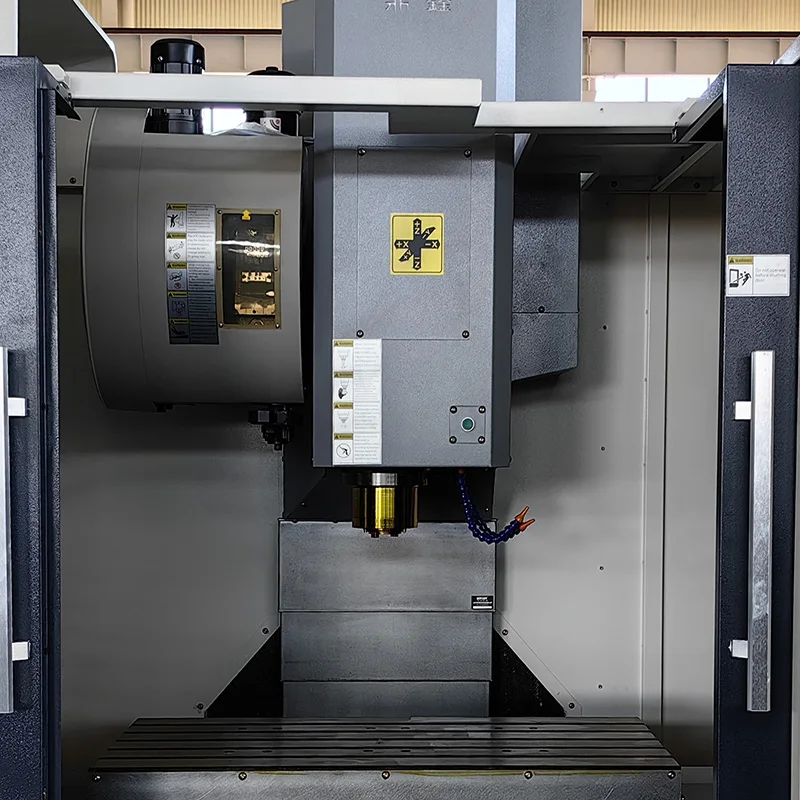

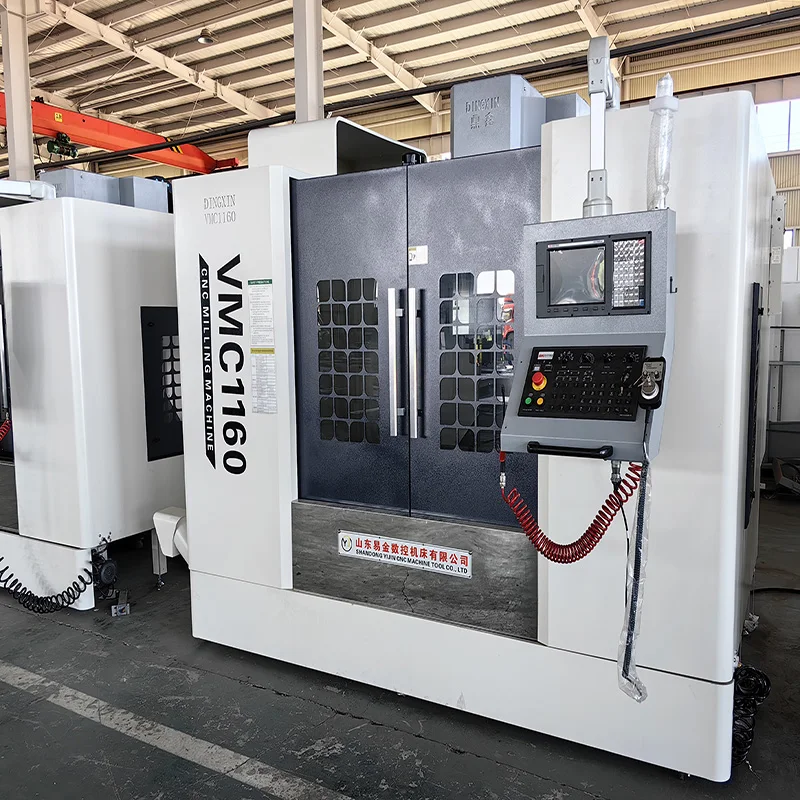

vmc1160
The base, slide seat, table, column, spindle box and other main foundation parts are made of high rigidity cast iron structure, and the reinforcing bars of network structure are distributed inside to ensure the high rigidity and anti-bending and shock absorption performance of the foundation parts. The base parts are made of resin sand molding and aged treatment, which ensures the stability of the long-term use accuracy of the machine tool and provides a guarantee for the stability of the machine tool performance
The advanced centralized automatic lubrication device is adopted, and the periodic and quantitative automatic intermittent lubrication is stable and reliable
The advanced centralized automatic lubrication device is adopted, and the periodic and quantitative automatic intermittent lubrication is stable and reliable
Specification
Product name | VMC1160 |
Table area | 1200*600mm |
X-axis travel | 1100mm |
Y-axis travel | 600mm |
Z-axis travel | 600mm |
Distance from spindle nose to table | 120-720mm |
Distance from spindle center to column | 650mm |
Rapid traverse of X/Y/Z-axis | 30/30/24min |
Cutting federate | 1-8000mm/min |
Spindle motor power | 11-15KW |
Spindle speed | 8000rpm |
Spindle diameter | 150mm |
Tool magazine capacity | 24T |
Machine dimensions(LxWxH) | 3100*2550*2650mm |
Machine weight | 7200 Kg |
Positioning accuracy | ±0.005/300mm |
Repeated positioning accuracy | ±0.003mm |
Company Profile
SHANDONG YIJIN CNC
Shandong Yijin CNC Machine Tool Co., Ltd. is a supplier of comprehensive intelligent solutions for high efficiency, special purpose, precision CNC machine tools, combined machine tools and CNC flexible automatic machining lines
The company has the core technology of the whole industrial chain of intelligent manufacturing from processing technology, processing equipment, measurement and detection to standard formulation, and has a strong independent research and development capability of special aircraft and equipment remanufacturing and a full set of technical service capabilities With a large number of rich design solutions can quickly respond to customer requirements to provide technical solutions.
The company has the core technology of the whole industrial chain of intelligent manufacturing from processing technology, processing equipment, measurement and detection to standard formulation, and has a strong independent research and development capability of special aircraft and equipment remanufacturing and a full set of technical service capabilities With a large number of rich design solutions can quickly respond to customer requirements to provide technical solutions.

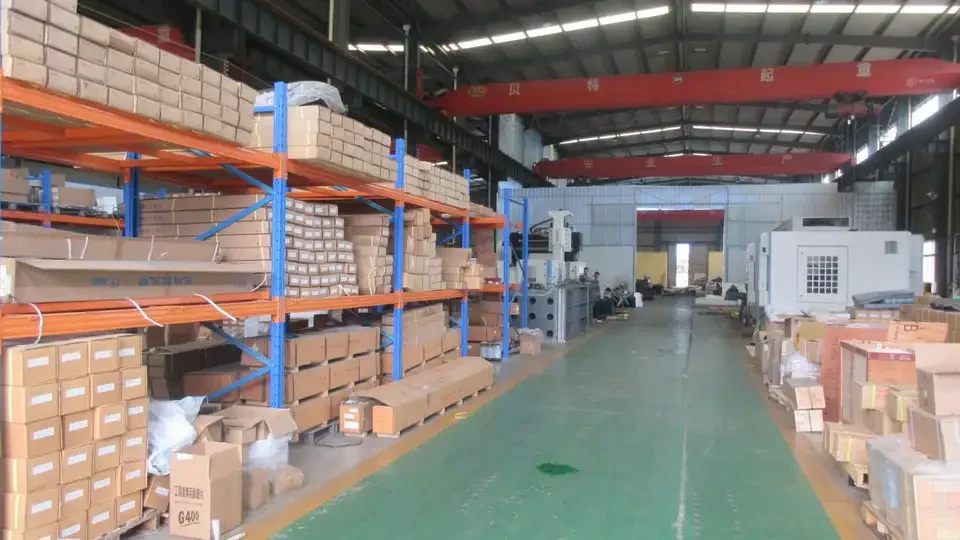

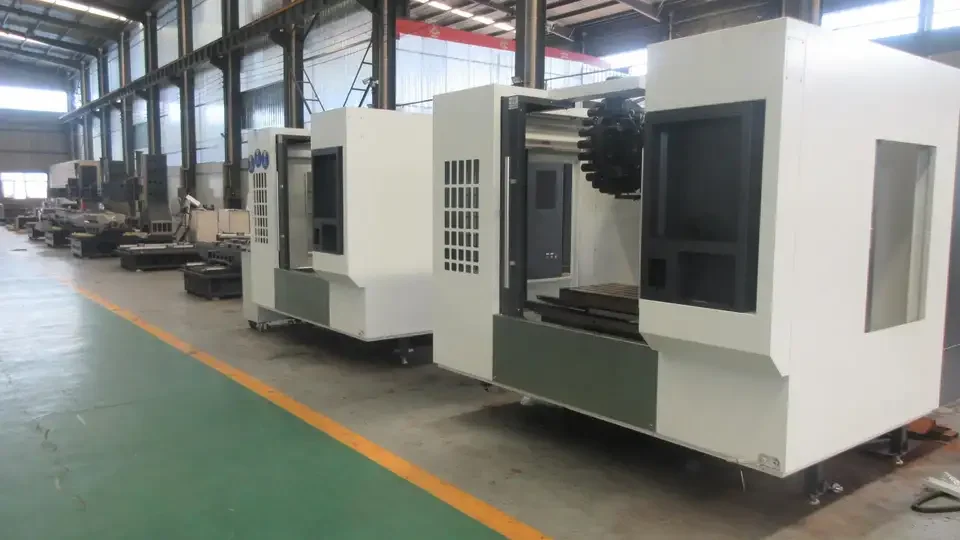

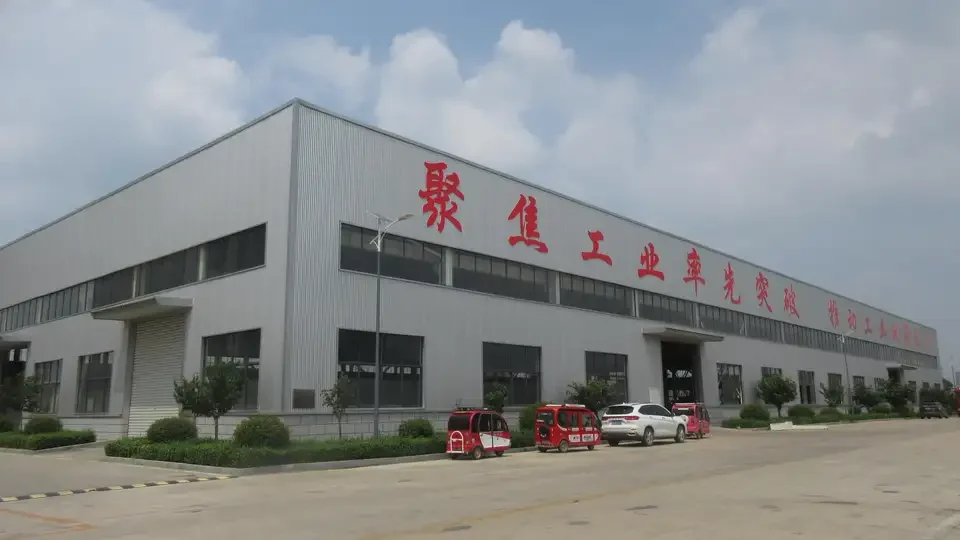

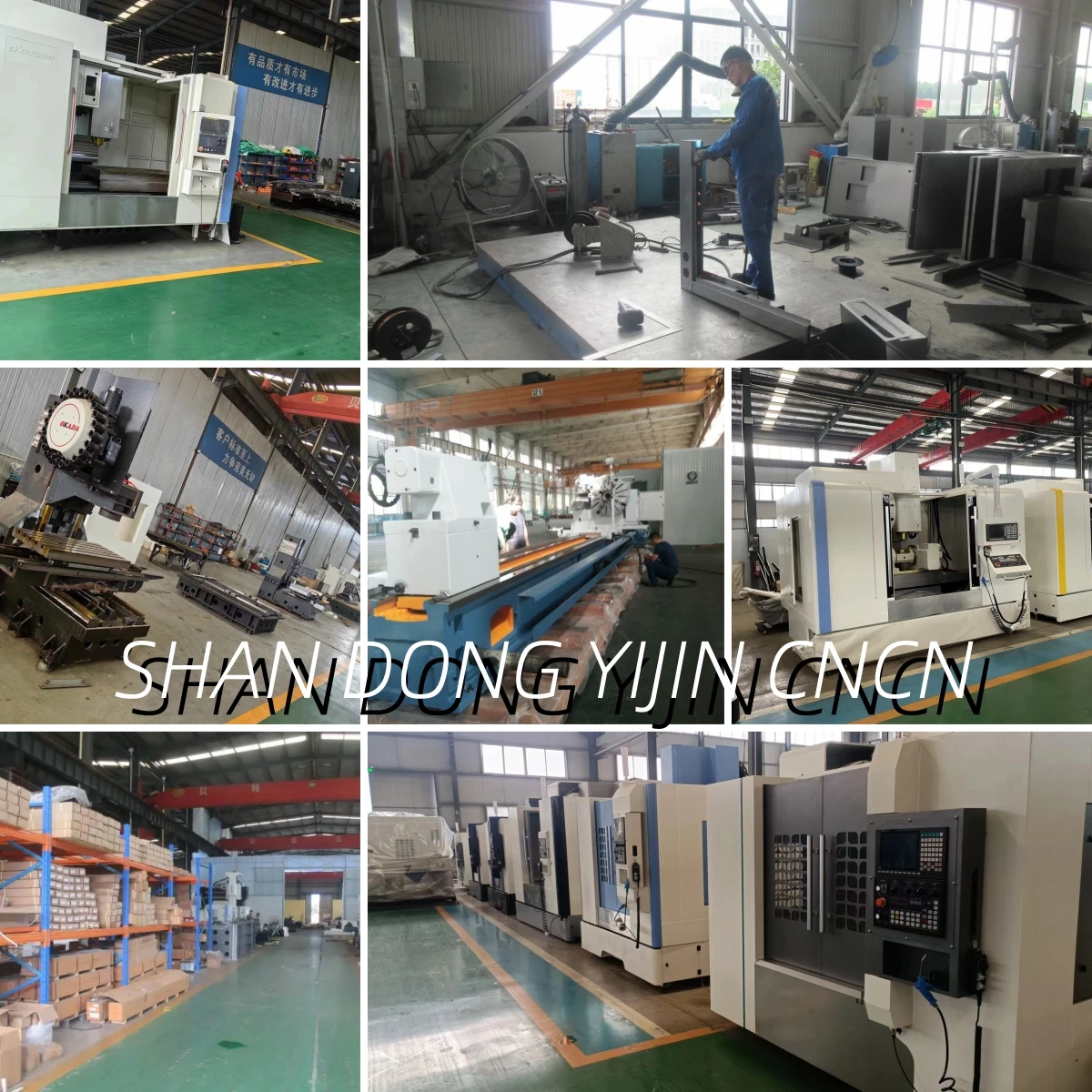

Factory photo
Shandong Yi Jin numerical control Co., LTD
Quality is the lifeblood of the enterprise, think what customers think, according to the details, open innovation.
Quality is the lifeblood of the enterprise, grasp the details, open innovation. The company invites to join and agent, willing to
work with our customers and strategic partners to create a better future together.

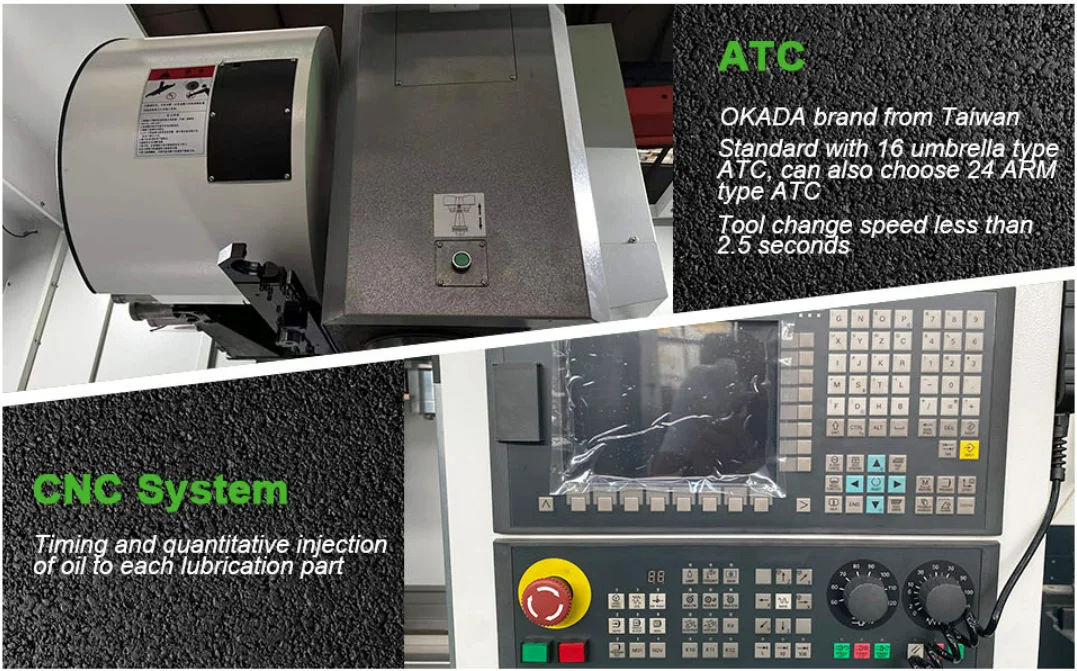

Detailed configuration

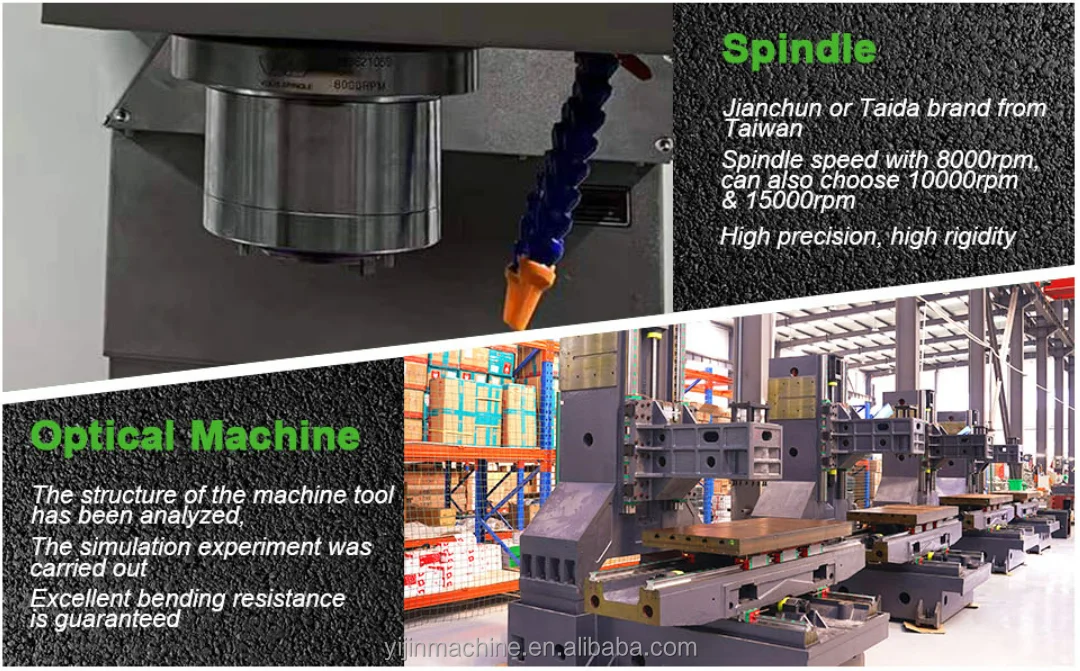

1, spindle unit, up to 8000rpm;

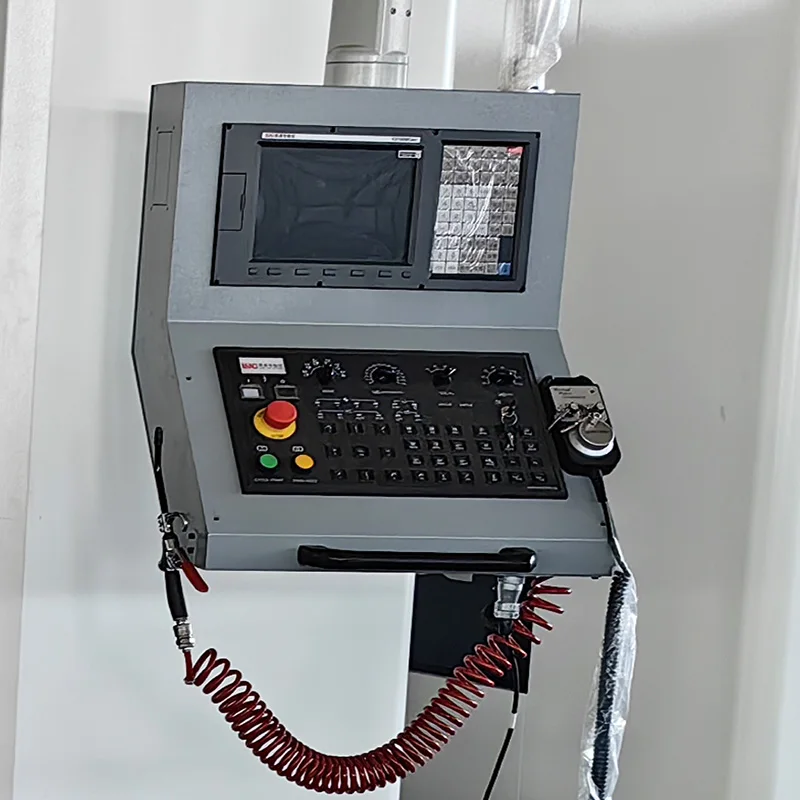

2, CNC system FANUC 0i MF;
3, automatic broach, pneumatic punching mechanism;

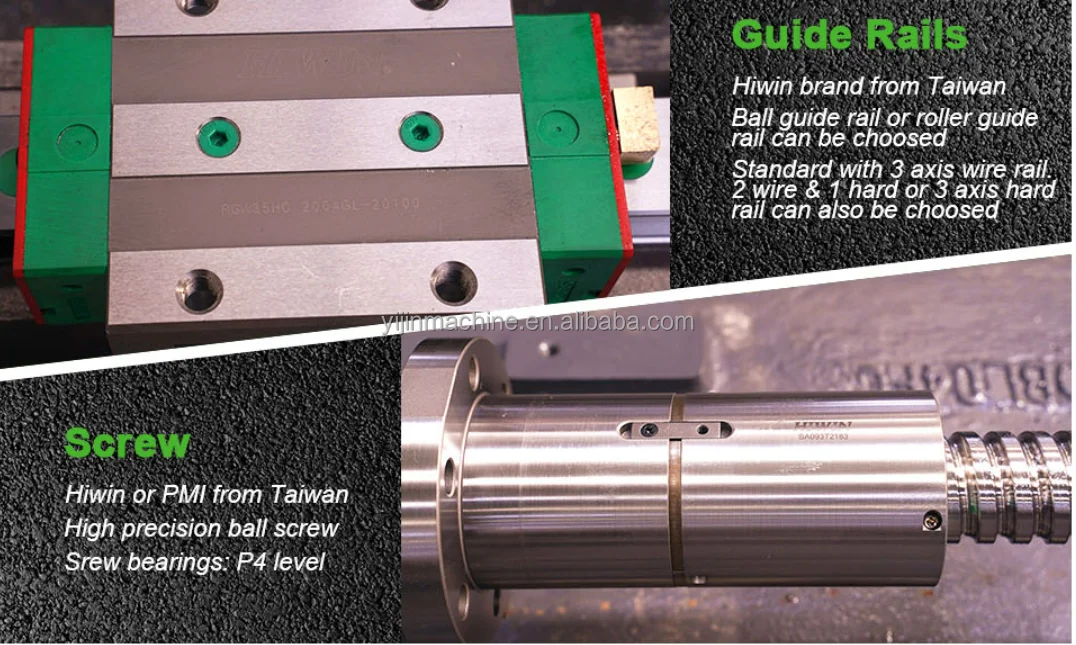

4. Automatic centralized forced oil lubrication of lead screw and guide rail;
5, high pressure water cooling;
6, air cooling;
7, back scrap, high pressure chip;
8, full protection sheet metal cover;
9, 24 disc knife library;
10, mobile hand pulse generator;
11, RS232 interface;
12, three color alarm light;
2, CNC system FANUC 0i MF;
3, automatic broach, pneumatic punching mechanism;
4. Automatic centralized forced oil lubrication of lead screw and guide rail;
5, high pressure water cooling;
6, air cooling;
7, back scrap, high pressure chip;
8, full protection sheet metal cover;
9, 24 disc knife library;
10, mobile hand pulse generator;
11, RS232 interface;
12, three color alarm light;
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
More Product recommendations
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
4.Check the acceptance.
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5:What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
