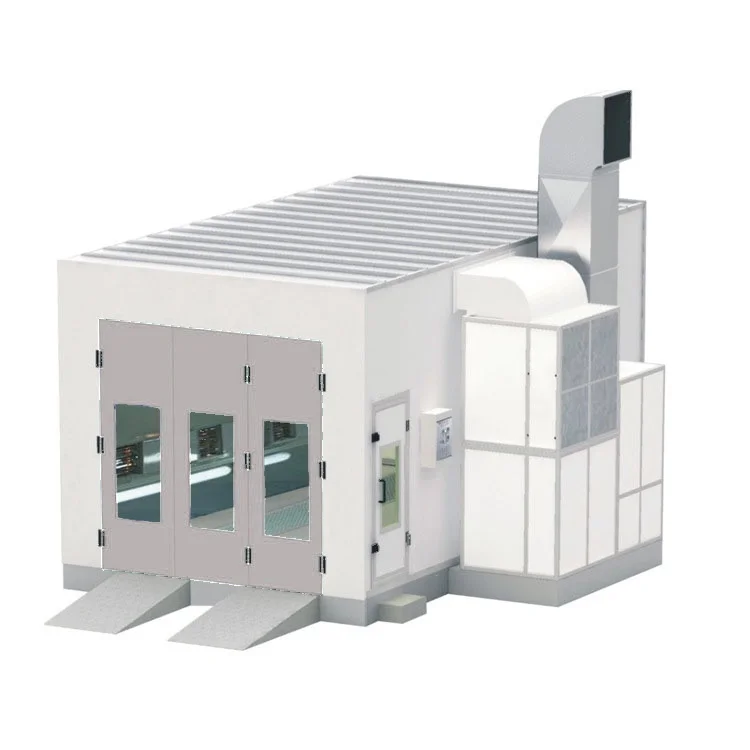

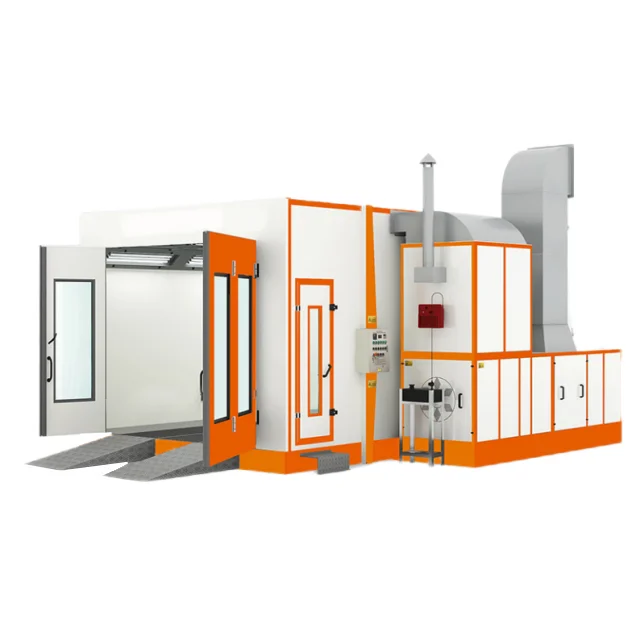

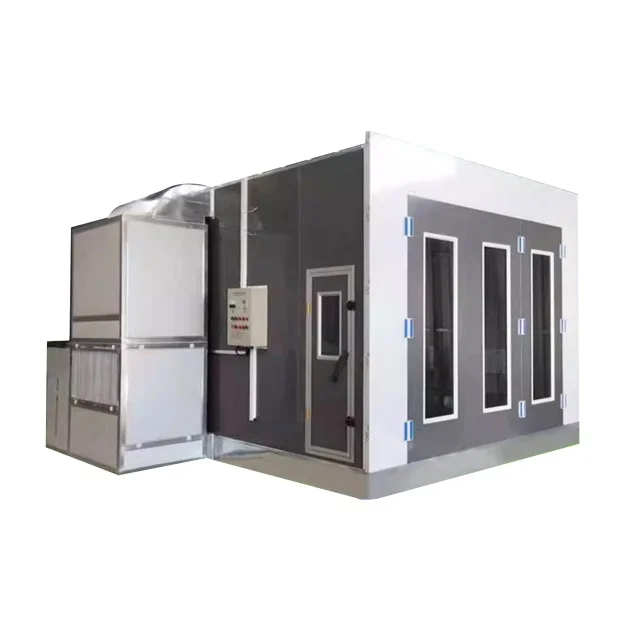

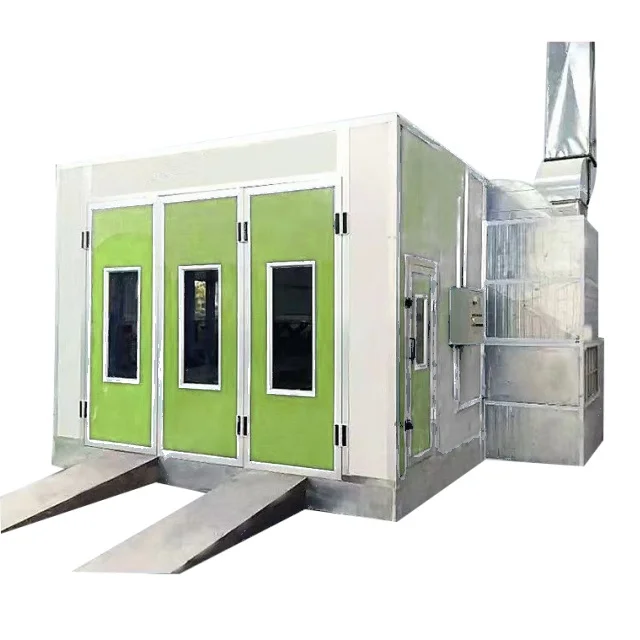

Hot Sale Car Paint Booth Economical Halogen Shortwave Infrared Heating Paint Room Spray Booth
- Category: >>>
- Supplier: Yancheng Biaosin Import&Export Co. Ltd.
Share on (1601090315883):
Product Overview
Description
Product Description
Product parameters
Model: JZJ-9200 | ||||||
Outside Dimension (mm) | 7006*5360*3480(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) | |||
Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 800*2000(W*H) | |||
Total Power | 19KW | Total Weight(Ton) | 3.8 | |||
Cabin System | Wall panel | 50mm rock-wool sandwich panel, steel sheet thickness: 0.6mm | ||||
Ceiling panel | Galvanized steel sheet. | |||||
Ramps | Three pieces 2000*900mm ramps | |||||
Basement | 300mm depth, full galvanized grids | |||||
Glass | 5mm safety tempered glass | |||||
Windows | Square glass windows | |||||
Air Make-up System | Air inlet fan system | 1*7.5kw turbo fan, proof-explosion ABB/Siemens motor,Ex rated | ||||
Exhausted fan system | 1*7.5kw turbo fan, proof-explosion ABB/Siemens motor,Ex rated | |||||
Air capacity | 25000m³/h | |||||
Exhausted ducting | 8 meters air duct, one flop damper and one weather hood | |||||
Purification System | Pre-filter | G3 grade, Pocket filter | ||||
Ceiling filter | EU5 / F5 | |||||
Floor filter | Green fiber glass filter / G3 grade | |||||
Exhausted fan filters | Pocket filter and active carbon | |||||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | ||||
Heating burner: | RielloG20 diesel burner | |||||
Heating productivity | 180000Kcal/h | |||||
Spray to baking switch | 20N BELIMO brand electrical damper | |||||
Chimney ducting | 3 meters stainless ducting and one chimney cap | |||||
Max heating temperature | 80℃ | |||||
fuel consumption | 6-8L/vehicle | |||||

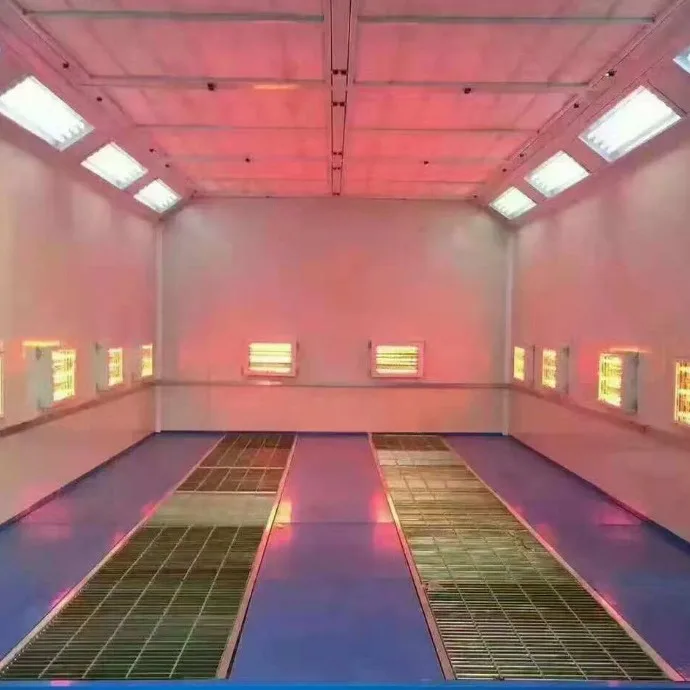

Lighting System | Ceiling lights | 8 Units, each 4 * 18W LED lamps. Total 576 W | ||||
Side lights | 8 Units, each 2 * 18W LED lamps, Total 288W | |||||
Illumination | 900LUX | |||||
Controlling System | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm | ||||
