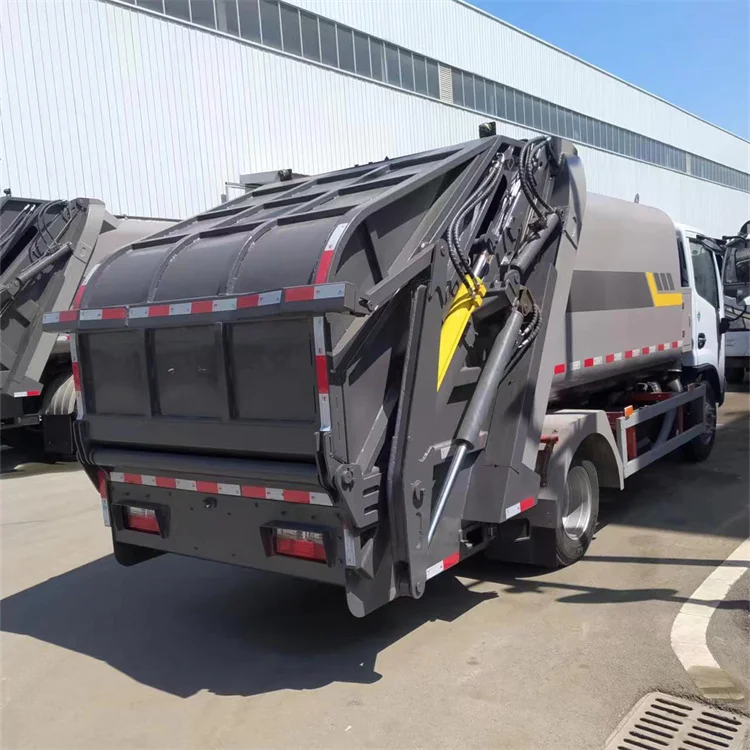

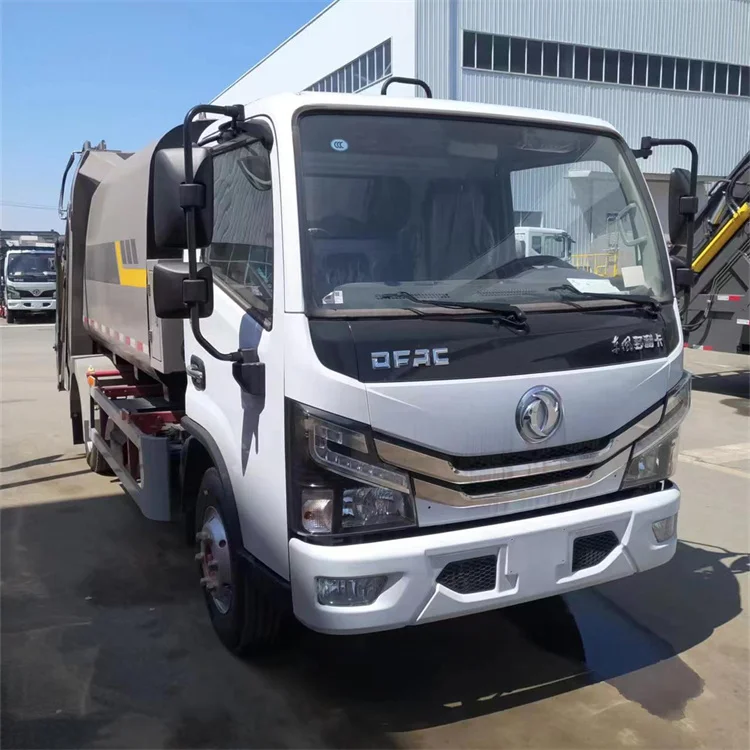

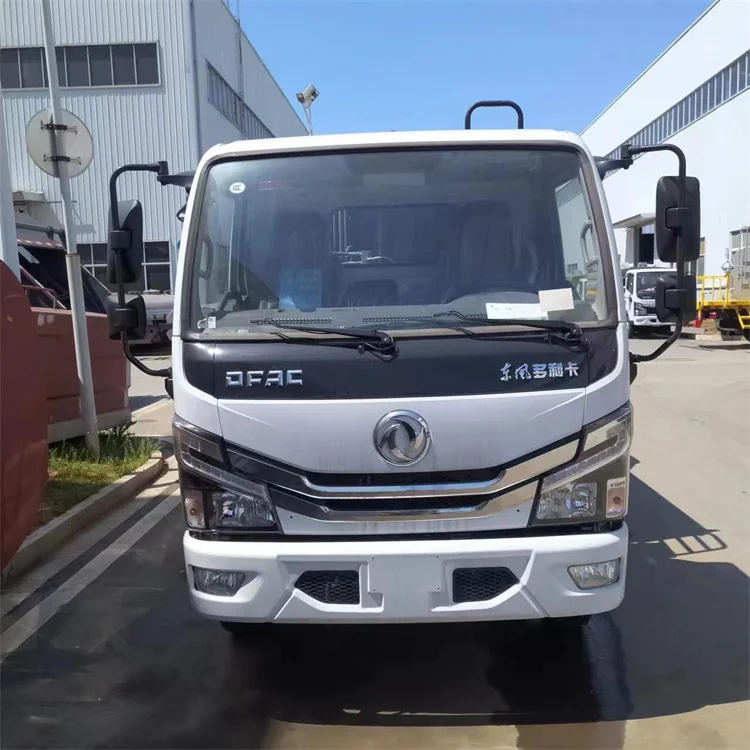

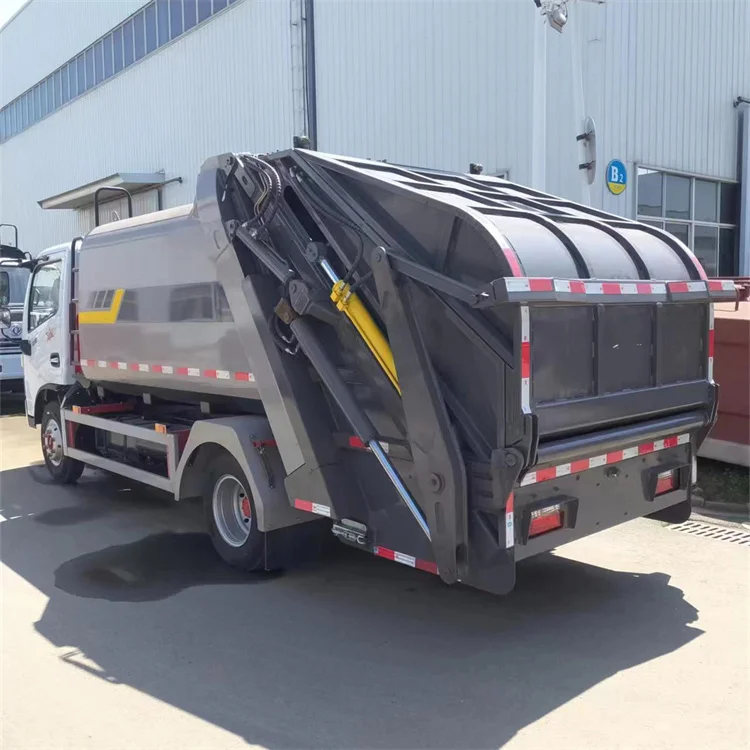

cheap Dongfeng 7cbm Waste rubbish Garbage Compressed Truck Rear loader trash truck with hopper Rear loader trash trucks
- Category: >>>
- Supplier: Hubei Changheng Special Automotive Sales Co. Ltd.
Share on (1601090517287):
Product Overview
Description
Product Description
It mainly used for municipal sanitation to transport various types of garbage.It is convenient way for the safe and efficient collection of waste.The advanced level of features for loading, compacting and transportation are sure to meet your needs. Making the collection process easy and efficient,so it is very popular around the world.

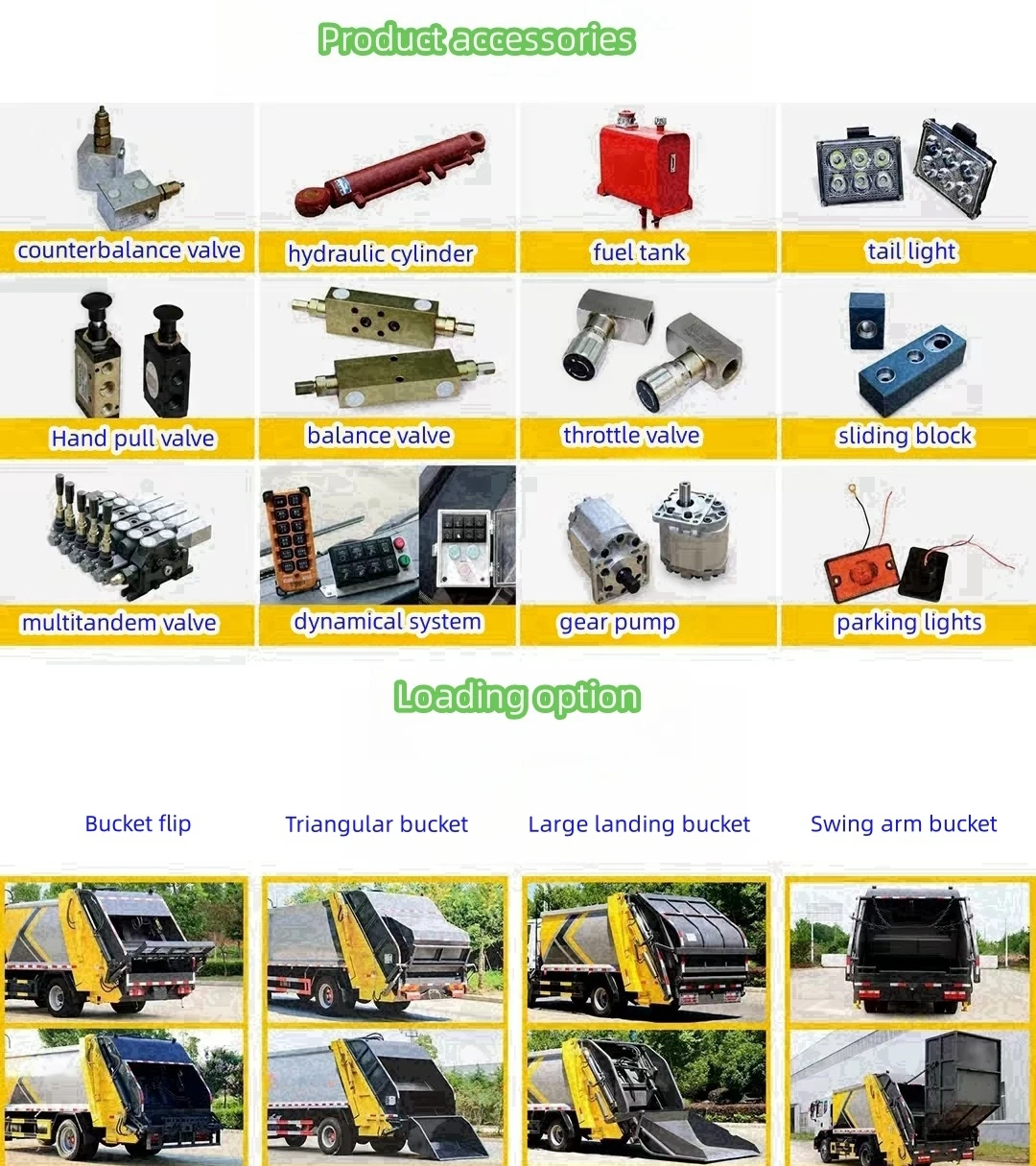

Our garbage compactor truck also bin lift and flip mechanism,swing arm flip mechanism,semi-sealed hopper flip mechanism,full-sealed hopper flip mechnism,etc.
Our garbage compactor truck also bin lift and flip mechanism,swing arm flip mechanism,semi-sealed hopper flip mechanism,full-sealed hopper flip mechnism,etc.
Specification
item | value |
Condition | New |
Transmission Type | Manual |
Emission Standard | EURO 5 |
Fuel Type | Diesel |
Dimensions (L x W x H) (mm) | 6645 * 2090 * 2650 mm |
Gross Vehicle Weight | 7360 |
Place of Origin | China |
Hubei | |
Brand Name | Dongfeng |
After-sales Service Provided | Video technical support, Online support, Free spare parts |
Engine power | 100KW(136HP) |
Displacement (lit) | 2.3L |
Number of gears | 6 |
Tires | 7.00R16LT |
Container capacity | 7cbm |
Container material | High strong manganese steel |
Container thickness | Side plate 4mm,bottom plate 5mm |
Color | Customer's Requirement |
Warranty | 1 Year |

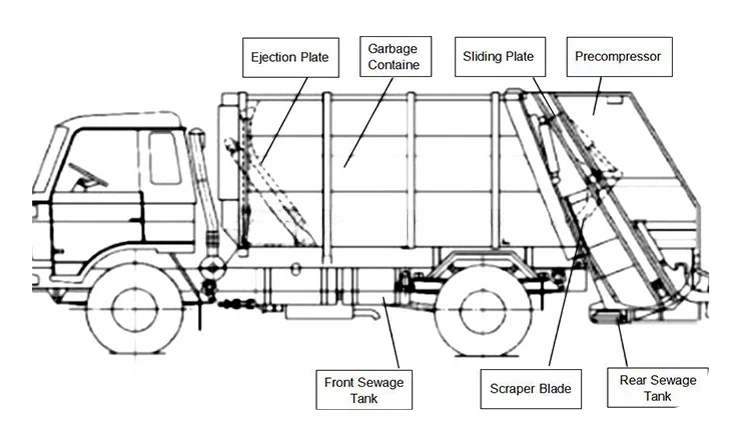

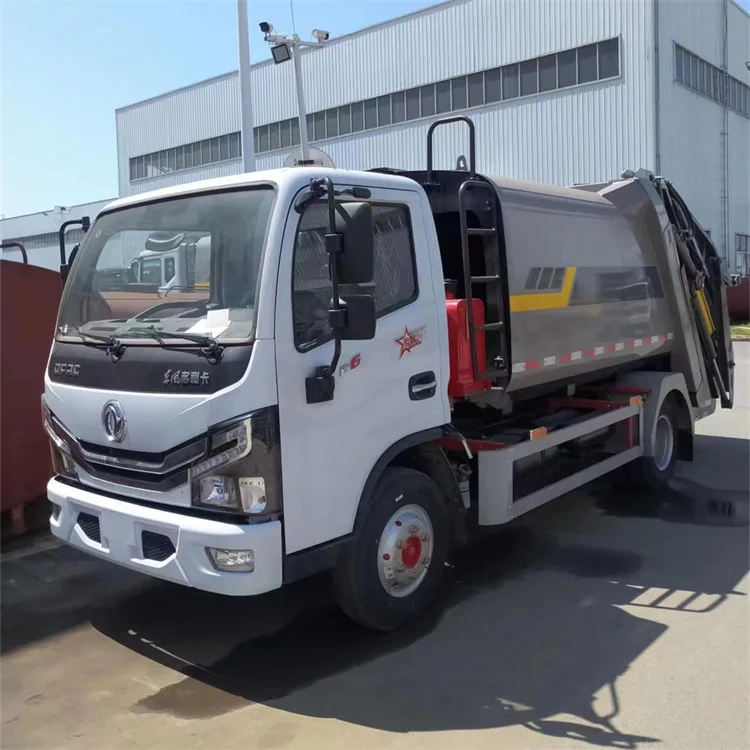

This compressed garbage truck has a simple and elegant appearance, excellent performance, and advanced handling, making it the most practical and popular garbage compression and transportation product on the market. The upper part is composed of a sealed compression box, a filler, a bulldozer, a hydraulic transmission system, and an electrical control system. It adopts market proven hydraulic transmission, electrical control, and bidirectional compression technology. Through an automated control system, it achieves garbage dumping, strong compression, and bidirectional pressure filling. It has the advantages of high pressure, good sealing, easy operation, and safety and stability. It is mainly suitable for municipal sanitation, enterprise factories Collection and transportation of domestic waste from construction sites, residential properties, government institutions, and other places.
The appearance of the box is a circular arc flow linear shape, and the overall folding of the bottom plate is non welded, eliminating the risk of leakage. Simple and beautiful, with strong deformation resistance, good structural reliability, and effectively increasing the actual filling volume, surpassing similar products. The material is made of high-strength manganese steel plate, which is not easy to deform, wear-resistant, and has strong corrosion resistance.
The power take-off adopts a well-known domestic brand, Jiashan power take-off. The entire vehicle is equipped with an electrical system that can achieve fully automatic control of engine output, ensuring automatic selection of acceleration or idle state under working or other working conditions, reducing power loss and fault occurrence rate, reducing fuel consumption, making it more stable and energy-saving.
The oil pump adopts a well-known domestic brand Anhui Wanye oil pump, equipped with a compaction valve to increase compression density and loading capacity. The loading capacity is equivalent to two and a half times the amount of non compressed waste discharged in the same tonnage. Weisen Bole multi way valve, Xuzhou Global Hydraulic Oil Steel Pipe, with hard connection at the multi way valve, neat and beautiful, fast heat dissipation, and high work efficiency. It adopts the latest external oil cylinder structure and bidirectional compression technology, and through first-class domestic and foreign brand accessories, achieves a compression ratio of over 1:2.5, a single cycle of ≤ 20 seconds, achieving multiple improvements in garbage collection and efficiency.
The oil tank is enlarged and the volume is increased to prevent high temperature of hydraulic oil. All hydraulic oil must be added to the tank through a hydraulic oil filter. High pressure pipeline filters can be installed on pressure pipelines of different pressure levels to further remove or block impurities caused by external wear or blockage into the components, as well as impurities generated by the chemical action of the internal medium. Equipped with a high pressure filter, the oil filtration accuracy is 0.01 micrometers. Reduce failure rate and effectively prevent component damage;
Job automation: The intelligent control system adopts an imported CAN bus design and a modular structure. By combining proximity switches and oil pressure sensing, an efficient, stable, and easy to maintain compression scheme is achieved. It has three sets of operation modes: manual, automatic, and semi-automatic. It can be operated inside the cab, in the front of the box, and at the back of the box, and is equipped with a remote control, which can operate in different working environments, making it convenient and efficient.
Dual insurance system: The operating system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles. Change the position of the pressure regulating valve to prevent customers from adjusting the pressure without authorization. Install warning signs on the power take-off to remind customers to switch on and off the power take-off to prevent damage to the power take-off. The tail can be optionally equipped with a flip mechanism with a garbage bin (or bucket)
The appearance of the box is a circular arc flow linear shape, and the overall folding of the bottom plate is non welded, eliminating the risk of leakage. Simple and beautiful, with strong deformation resistance, good structural reliability, and effectively increasing the actual filling volume, surpassing similar products. The material is made of high-strength manganese steel plate, which is not easy to deform, wear-resistant, and has strong corrosion resistance.
The power take-off adopts a well-known domestic brand, Jiashan power take-off. The entire vehicle is equipped with an electrical system that can achieve fully automatic control of engine output, ensuring automatic selection of acceleration or idle state under working or other working conditions, reducing power loss and fault occurrence rate, reducing fuel consumption, making it more stable and energy-saving.
The oil pump adopts a well-known domestic brand Anhui Wanye oil pump, equipped with a compaction valve to increase compression density and loading capacity. The loading capacity is equivalent to two and a half times the amount of non compressed waste discharged in the same tonnage. Weisen Bole multi way valve, Xuzhou Global Hydraulic Oil Steel Pipe, with hard connection at the multi way valve, neat and beautiful, fast heat dissipation, and high work efficiency. It adopts the latest external oil cylinder structure and bidirectional compression technology, and through first-class domestic and foreign brand accessories, achieves a compression ratio of over 1:2.5, a single cycle of ≤ 20 seconds, achieving multiple improvements in garbage collection and efficiency.
The oil tank is enlarged and the volume is increased to prevent high temperature of hydraulic oil. All hydraulic oil must be added to the tank through a hydraulic oil filter. High pressure pipeline filters can be installed on pressure pipelines of different pressure levels to further remove or block impurities caused by external wear or blockage into the components, as well as impurities generated by the chemical action of the internal medium. Equipped with a high pressure filter, the oil filtration accuracy is 0.01 micrometers. Reduce failure rate and effectively prevent component damage;
Job automation: The intelligent control system adopts an imported CAN bus design and a modular structure. By combining proximity switches and oil pressure sensing, an efficient, stable, and easy to maintain compression scheme is achieved. It has three sets of operation modes: manual, automatic, and semi-automatic. It can be operated inside the cab, in the front of the box, and at the back of the box, and is equipped with a remote control, which can operate in different working environments, making it convenient and efficient.
Dual insurance system: The operating system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles. Change the position of the pressure regulating valve to prevent customers from adjusting the pressure without authorization. Install warning signs on the power take-off to remind customers to switch on and off the power take-off to prevent damage to the power take-off. The tail can be optionally equipped with a flip mechanism with a garbage bin (or bucket)
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

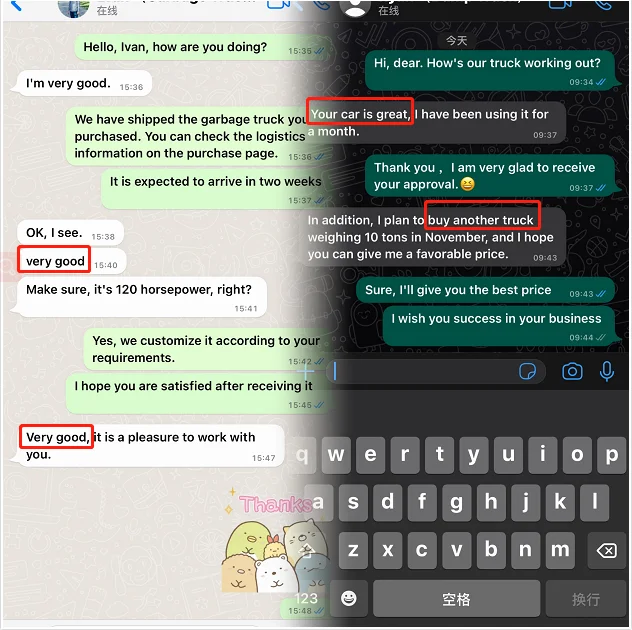

Customer Feedback
CONTACT US
FAQ
1. who are we?
We are based in Hubei, China, start from 2018,sell to Africa(30.00%),Mid East(30.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),South Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
compressed garbage truck,hook arm garbage truck,swing garbage truck,crane truck,asphalt distribution truck，Sewage suction truck, fecal suction truckwater truck，Dust suppression vehicle ,Aerial work vehicle, truck crane, wrecker tow truck, flatbed truck, ambulance, asphalt spreaders, RV,refrigerated truck,Fire truck ,Anti-collision Buffer Truck ，Electric tricycle garbage truck，Van,Bulk feed truck，etc.
4. why should you buy from us not from other suppliers?
Our company have a wide range of in-depth cooperation With the local special vehicle well-known enterprises, such as cheng li group, chusheng group and so on. This will ensure that we can provide customers with better products and services
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Hubei, China, start from 2018,sell to Africa(30.00%),Mid East(30.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),South Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
compressed garbage truck,hook arm garbage truck,swing garbage truck,crane truck,asphalt distribution truck，Sewage suction truck, fecal suction truckwater truck，Dust suppression vehicle ,Aerial work vehicle, truck crane, wrecker tow truck, flatbed truck, ambulance, asphalt spreaders, RV,refrigerated truck,Fire truck ,Anti-collision Buffer Truck ，Electric tricycle garbage truck，Van,Bulk feed truck，etc.
4. why should you buy from us not from other suppliers?
Our company have a wide range of in-depth cooperation With the local special vehicle well-known enterprises, such as cheng li group, chusheng group and so on. This will ensure that we can provide customers with better products and services
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
