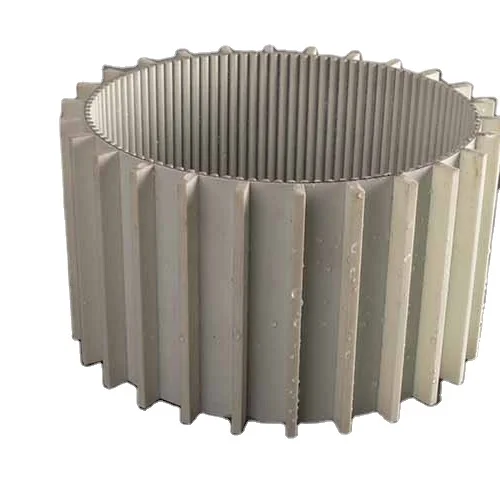

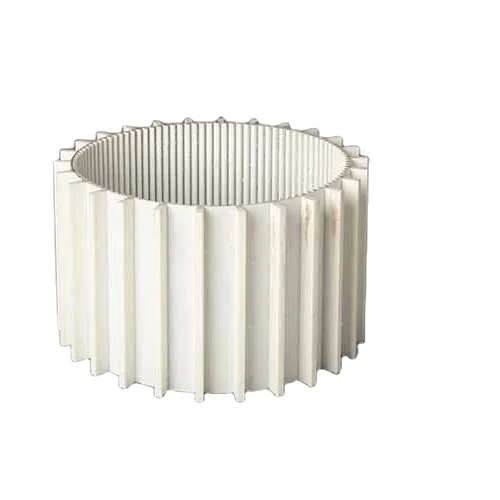

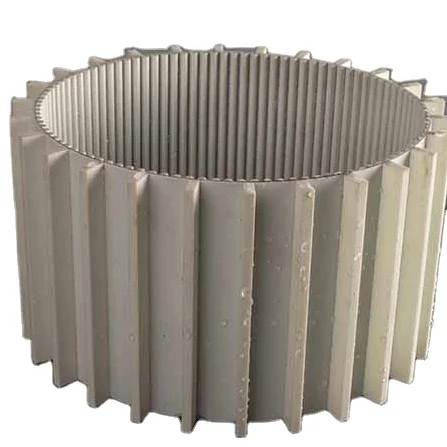

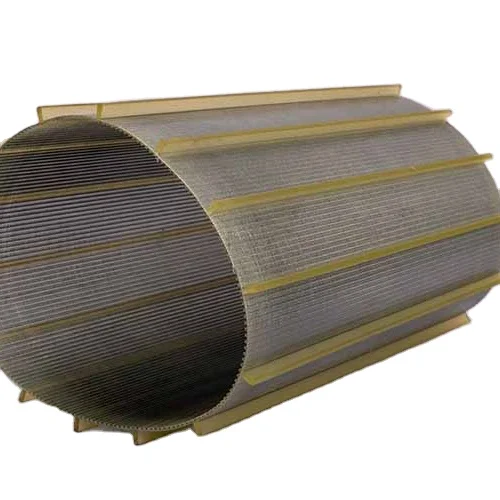

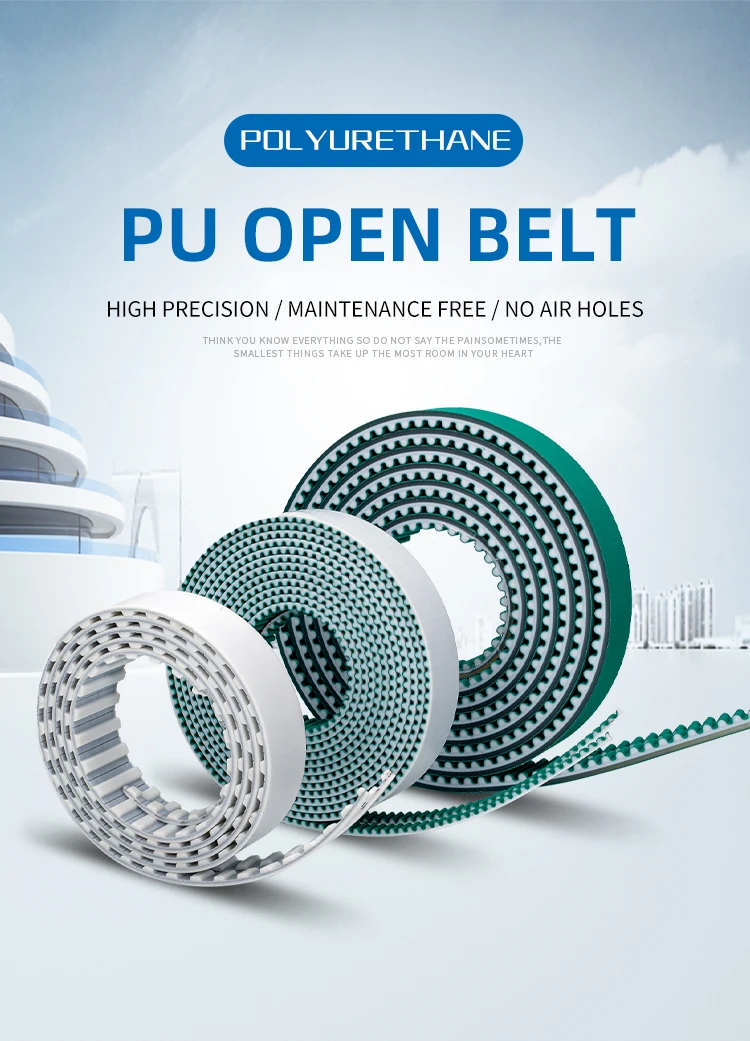

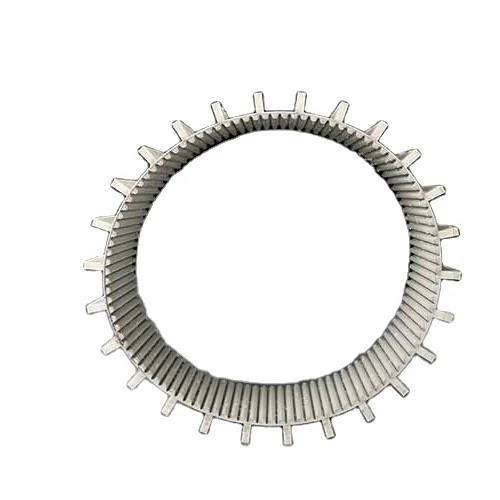

factory direct sale Timing Belt T2.5 AT20 STD2M HTD3M RPP PU open drive belt steel wire Industrial Transmission belt
- Category: >>>
- Supplier: Onlive Transmission Technology Co. Ltd.
Share on (1601090532376):
Product Overview
Description
Product Description
AT type tooth
T type tooth
RPP type tooth
HTD type tooth
STD type tooth
Type | Pt | Ht | Hs | weight(kg/m) width 10mm |
AT5 | 5 | 1.2 | 2.7 | 0.03 |
AT10 | 10 | 2.5 | 4.5 | 0.09 (width 16mm) |
AT20 | 20 | 5 | 8 | 0.24 (width 25mm) |
T2.5 | 2.5 | 0.7 | 1.6 | 0.014 |
T5 | 5 | 1.2 | 2.4 | 0.020 |
T10 | 10 | 2.5 | 4.5 | 0.05 |
T20 | 20 | 5 | 8 | 0.19 (width 25mm) |
RPP5M | 5 | 1.95 | 3.8 | 0.05 |
RPP8M | 8 | 3.2 | 5.4 | 0.07 |
RPP14M | 14 | 6 | 10 | 0.48 (width 40mm) |
HTD3M | 3 | 1.22 | 2.4 | 0.02 |
HTD5M | 5 | 2.06 | 3.8 | 0.03 |
HTD8M | 8 | 3.38 | 5.6 | 0.07 |
HTD14M | 14 | 6.02 | 10 | 0.26 (width 25mm) |
STD3M | 2 | 1.14 | 2.4 | 0.02 |
STD5M | 5 | 1.91 | 3.4 | 0.035 |
STD8M | 8 | 3.05 | 5.3 | 0.07 |
STD14M | 14 | 5.3 | 10.2 | 0.5 (width 40mm) |
Application Cases
Company Profile
Exhibition
Certifications
Cooperative Partner
FAQ
Q1 . Can I have a sample order for PU Timing belt ?
yes , we welcome sample order to test and check quality
Q2 . What about the leading time ?
1) 2-3 days for sample
2) 20-30 days for mass production
Q3 . Can you accepted the customized timing belt ?
Yes , the customized timing belt can be accepted by us according to your requirement
Q4 . Is it ok to print my logo on pu timing belt product ?
Yes , please inform us your logo or design before mass production
Q5 . How to guarantee your quality ?
We have the first synchronous belt physics / chemistry dual performance laboratory in China .
We have the professional exported testing equipment which can ensure our each type product will be in high quality before we send out to our customers
