Food Condiment Pack Edible Oil Ketchup Soy Bean Sauce Liquid Gravity Cream Piston Chili Paste Multi Head Bottle Filling Machine
- Category: >>>
- Supplier: Wenzhou Chunlai Packing Machinery Co. Ltd.
Share on (1601090644689):
Product Overview
Description
Product Description
Automatic Filling Machine
Food Condiment Pack Edible Oil Ketchup Soy Bean Sauce Liquid Gravity Cream Piston Chili Paste Multi Head Bottle Filling Machine
Application:
ZX Series filling machine is widely used for filling all kinds of fluid daily chemical industry, food, medicine, oil. For example liquid, milk, juice, water, shampoo, shower gel, edible oil, pesticides, fruit juice, Lubricating oil, liquid soap, disinfectant, detergent，honey, not very sticky liquid or other materials.Operating principle
By the reciprocating motion of the pistons in the material cylinders of the Filling Machine, negative
pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled by a signal valve so as to adjust filing amount and to achieve accurate filling results.
pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled by a signal valve so as to adjust filing amount and to achieve accurate filling results.
Features:
The Filling Machine with extra functions is designed and manufactured by our factory with reference to the same kind of foreign machines. This machine is simpler and easier in operation, error correction, adjustment, cleaning and maintenance.With automatic transmission, automatic filling, no bottle no filling, bottle positioning, prevent drip, lifting filling, and other functions. Can be equipped with protective cover.
The part contacting materials is made of 304 stainless steel.
Material contact parts can be customized SS316.
can install hopper. Hopper can be installed liquid level automatic control system
Line include following:
1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional)
1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional)
Model | ZX-2 | ZX-4 | ZX-6 | ||
Filling heads | 2 | 4 | 6 | ||
can be customized 8, 10, 12 heads | |||||
Powe supply | 220/110V 50/60Hz | ||||
Power | 500W | 800W | 1000W | ||
Air pressure | 0.4-0.6 MPa | ||||
Filling speed | 4-16 bottles/min | 8-32 bottles/min | 12-48 bottles/min | ||
Filling accuracy | ≤±1.5 | ||||
Filling volumes range | 5-15ml 20-50ml 50-500ml 500-1000ml 1000-3000ml 1000-5000ml | ||||
Conveyor line length | 1.5-2M | ||||
Optional Configuration
Options:
Mixing tank
Level control for tank
Double jacket tank
Plastic lid applicator or screw-on lid capper
Discharge conveyor
Inkjet coder for batch, lot number or date coding
Color ribbon date printer for roll film
Plexiglass cover
Servo-Drives
Clean-in-Place (CIP) system
Mixing tank
Level control for tank
Double jacket tank
Plastic lid applicator or screw-on lid capper
Discharge conveyor
Inkjet coder for batch, lot number or date coding
Color ribbon date printer for roll film
Plexiglass cover
Servo-Drives
Clean-in-Place (CIP) system
Details Images
without plexi-glass cover

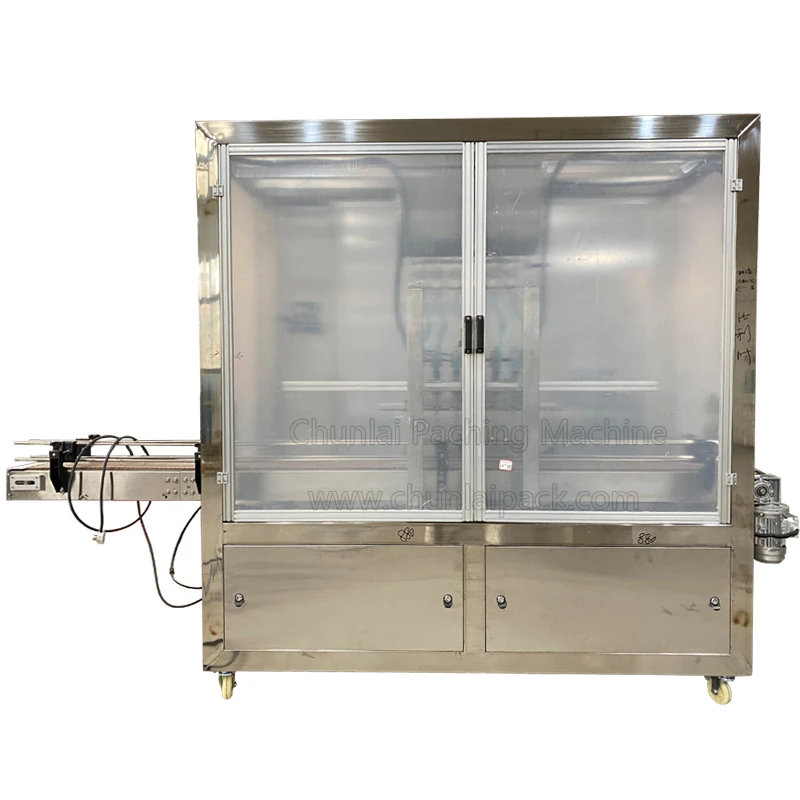

with plexi-glass cover

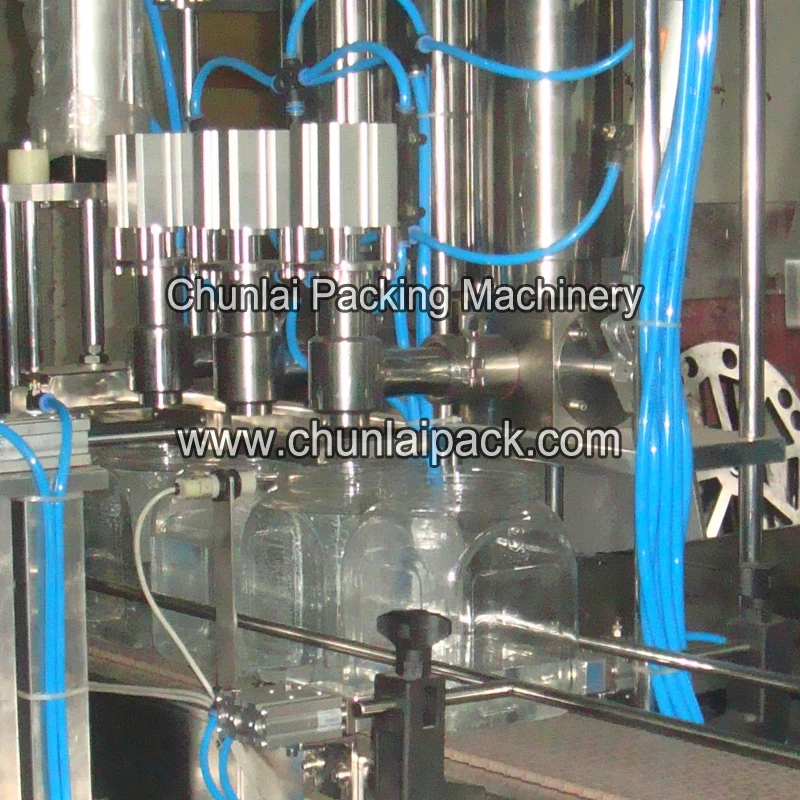

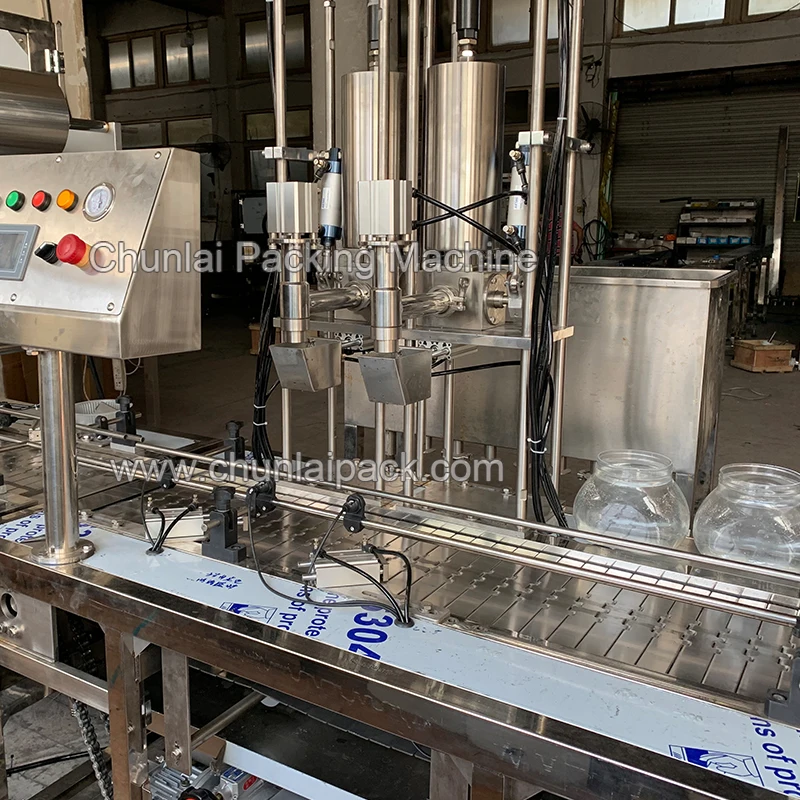

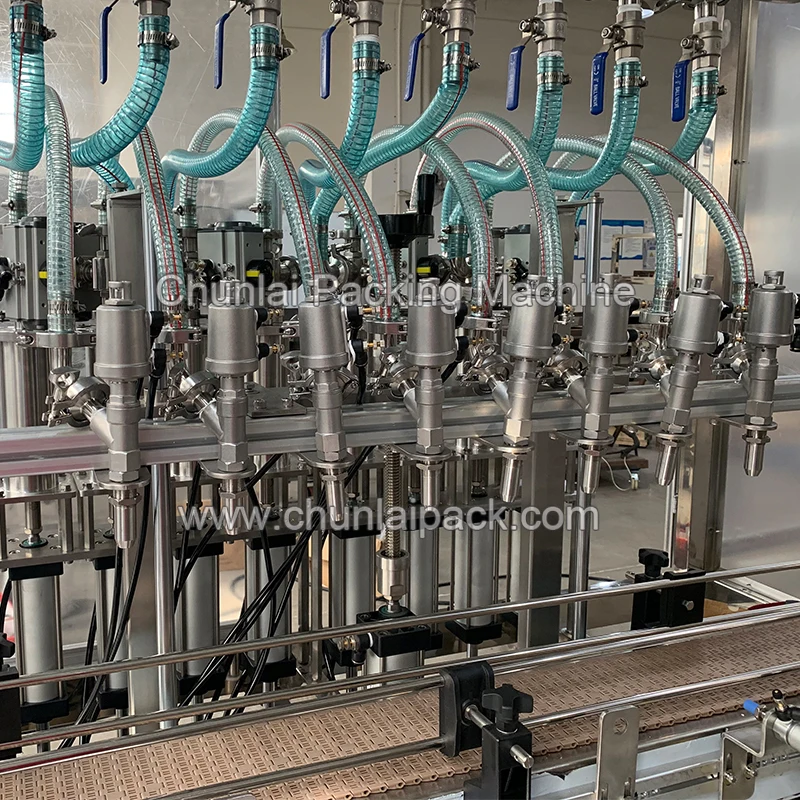

2 heads piston filling

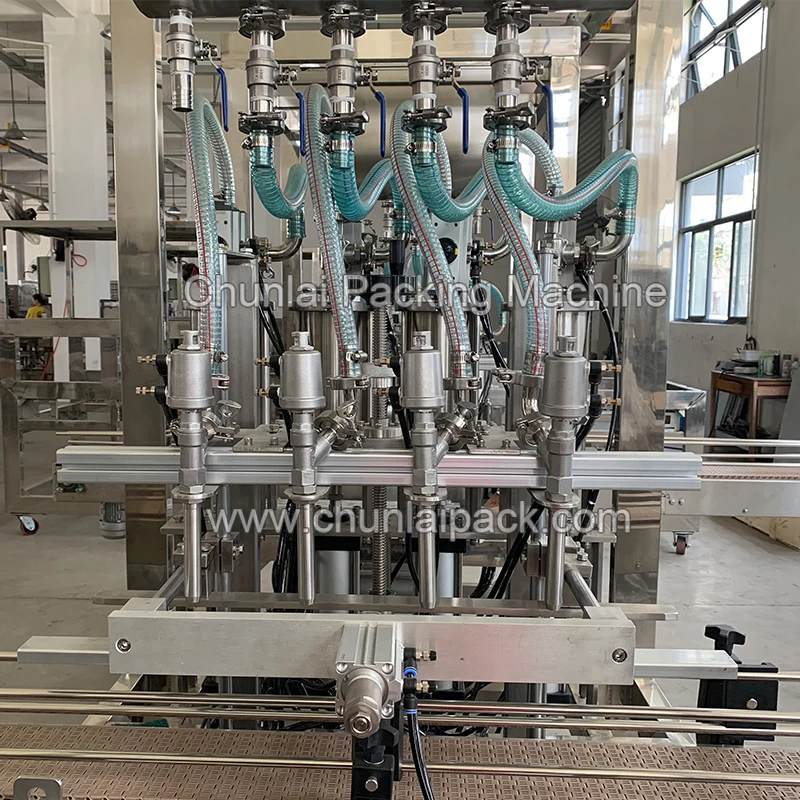

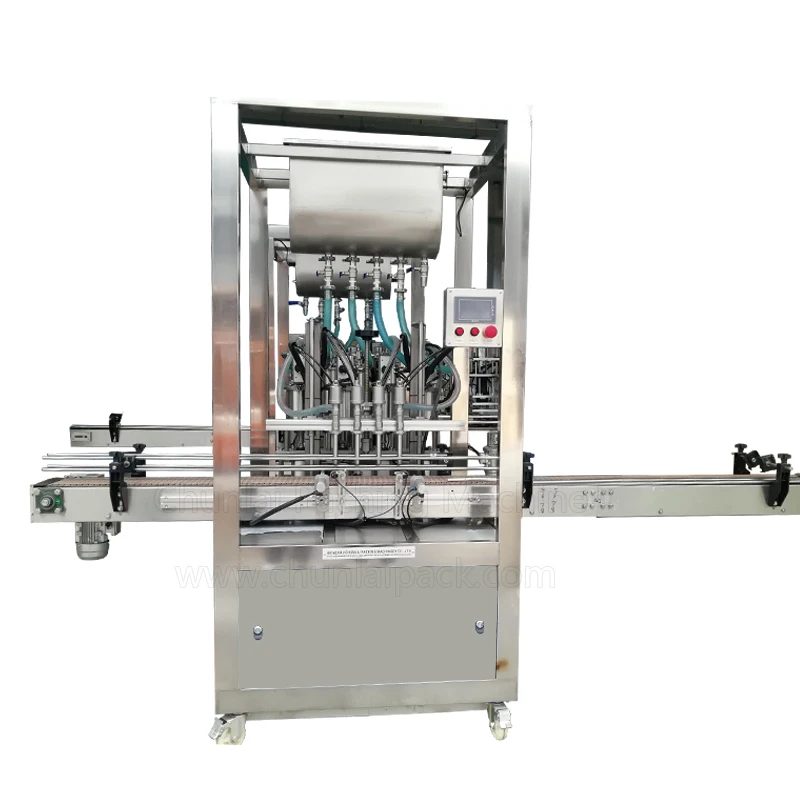

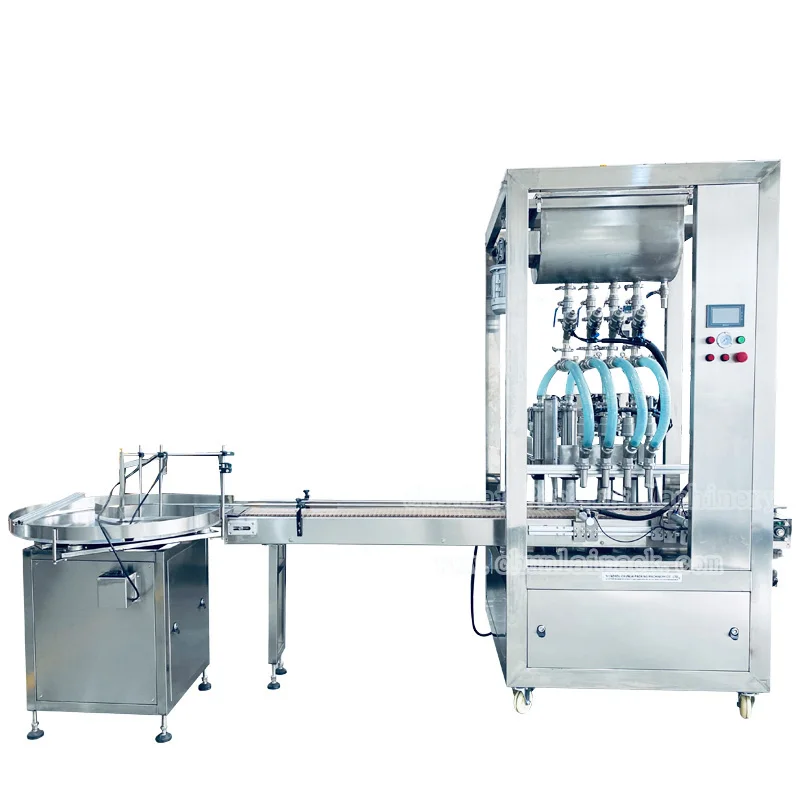

4 heads piston filling
6 heads gravity filling

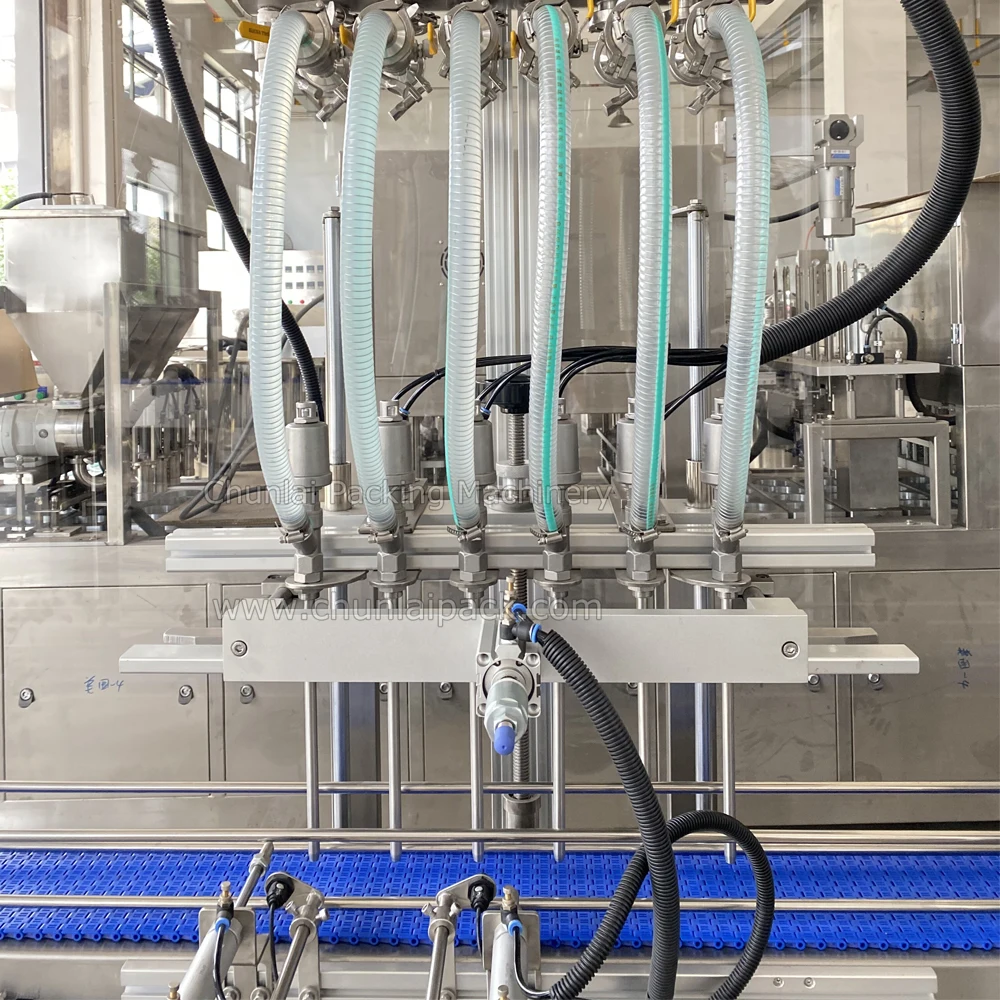

6 heads piston filling
8 heads piston filling
10 heads gravity filling
Can be equipped with bottle collection table, capping, labeling machine

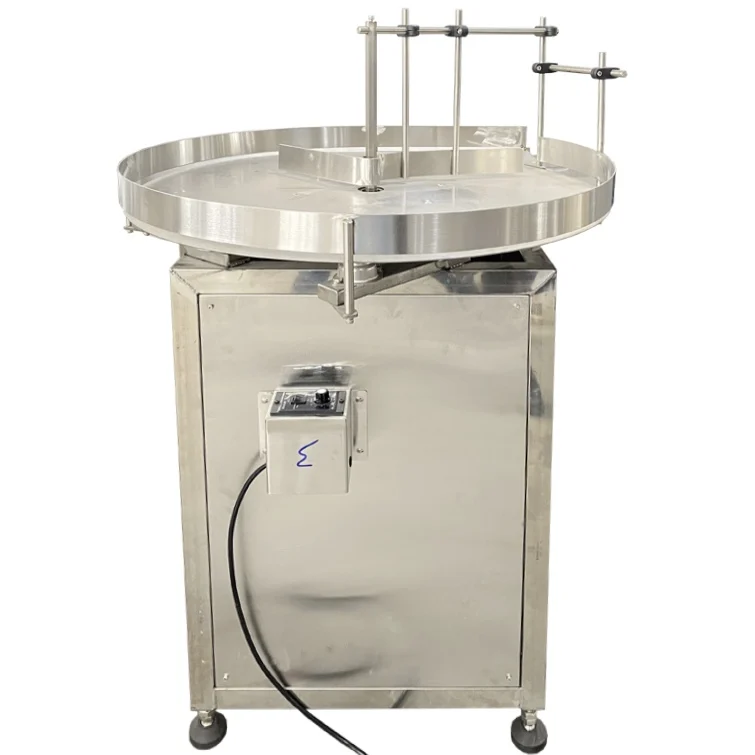

rotary feeding table

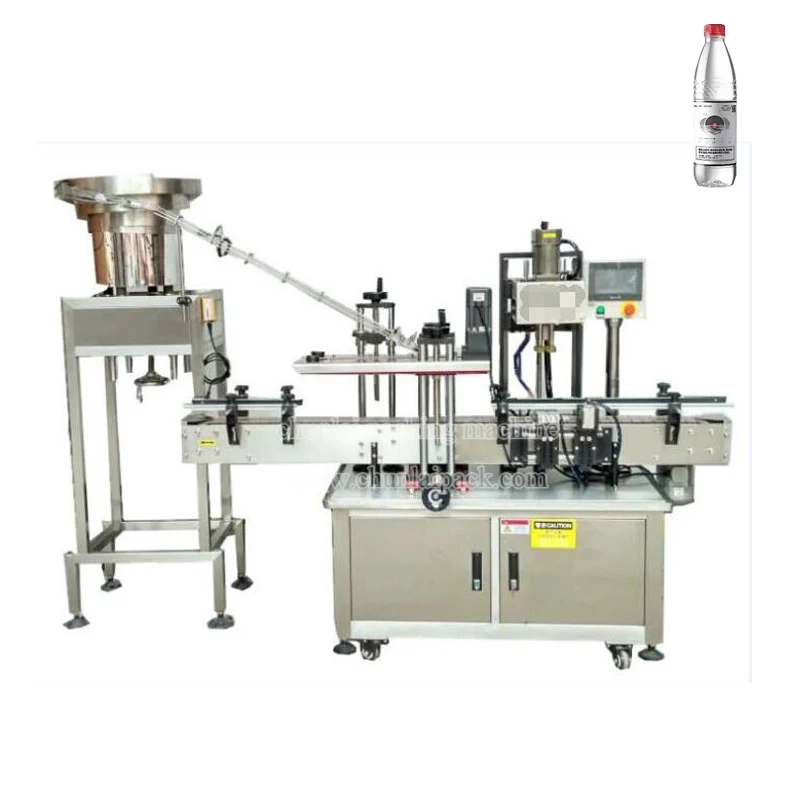

capping machine

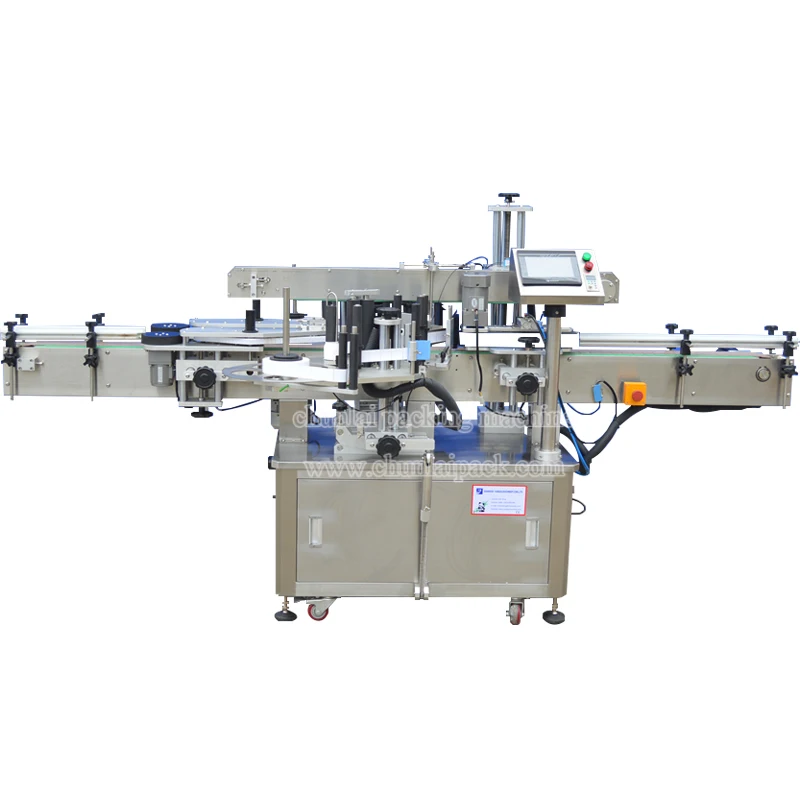

labeling machine
Scope Of Application | Scope Of Application | |||
Filling for liquid ,paste,granule,powder,and so on. Sealing for cup,bottle,bowl,tray,can,jar,bucket etc... | ||||
Yogurt /Milk/Chocolate Filling Sealing Machine | Water Filling Sealing Machine | Juice Filling Sealing Machine | ||
Jelly/Pudding Filling Sealing Machine | Jam Filling Sealing Machine | Sauce Filling Sealing Machine | ||
Instant Noodles Sealing Machine | Tofu/Beancurd Sealing Machine | Coffee Filling Sealing Machine | ||
Lunch box Sealing Machine | Frozen Food/MAP Packaging Machine | Potato Chips Canister Sealing Machine | ||
Porridge Filling Sealing Machine | Plastic Jar Sealing Machine | Plastic Bucket Sealing Machine | ||
Wet Wipe Can Sealing Machine | Dehumidifier Box Filling Sealing Machine | Cosmetic/Detergent Filling Sealing Machine | ||
Company Information
CHUNLAI PACKING MACHINERY CO.,LTD produces "CHUNLAI" brand packing machinery and food machinery. Our company has complete equipment, powerful technology, strict management, and high efficiency. Our company produces special order and kinds of machines such as manual tray sealer, automatic tray & cup denesting filling sealing and capping machine, rotary cup filling sealing
machine, linear continuous motion filling sealing machine, Modified Atmosphere Packaging (MAP), bottle filling capping machine, pre-made pouch filling sealing machine, etc.. The major products of our company have been pased by CE testing. "CHUNLAI" people have always been persisting in the policy"quality first, customer first" and our products are well sold to more than 30 countries and gets a great reputation from customers with high quality, reliable price and distinguished service. "CHUNLAI" people are willing to cooperate with friends from at home and abroad, march forward hand in hand and create brilliance.
machine, linear continuous motion filling sealing machine, Modified Atmosphere Packaging (MAP), bottle filling capping machine, pre-made pouch filling sealing machine, etc.. The major products of our company have been pased by CE testing. "CHUNLAI" people have always been persisting in the policy"quality first, customer first" and our products are well sold to more than 30 countries and gets a great reputation from customers with high quality, reliable price and distinguished service. "CHUNLAI" people are willing to cooperate with friends from at home and abroad, march forward hand in hand and create brilliance.
Office
Conference Room

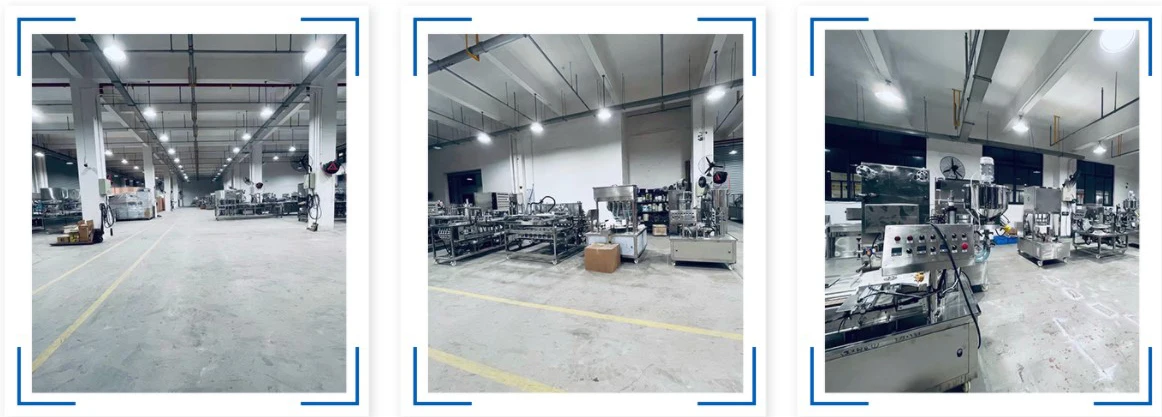

Production Workshop
