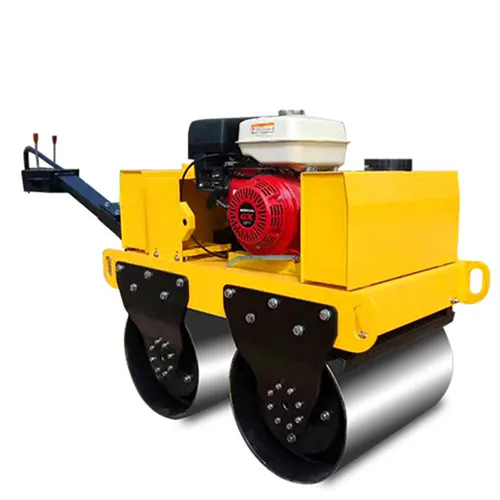

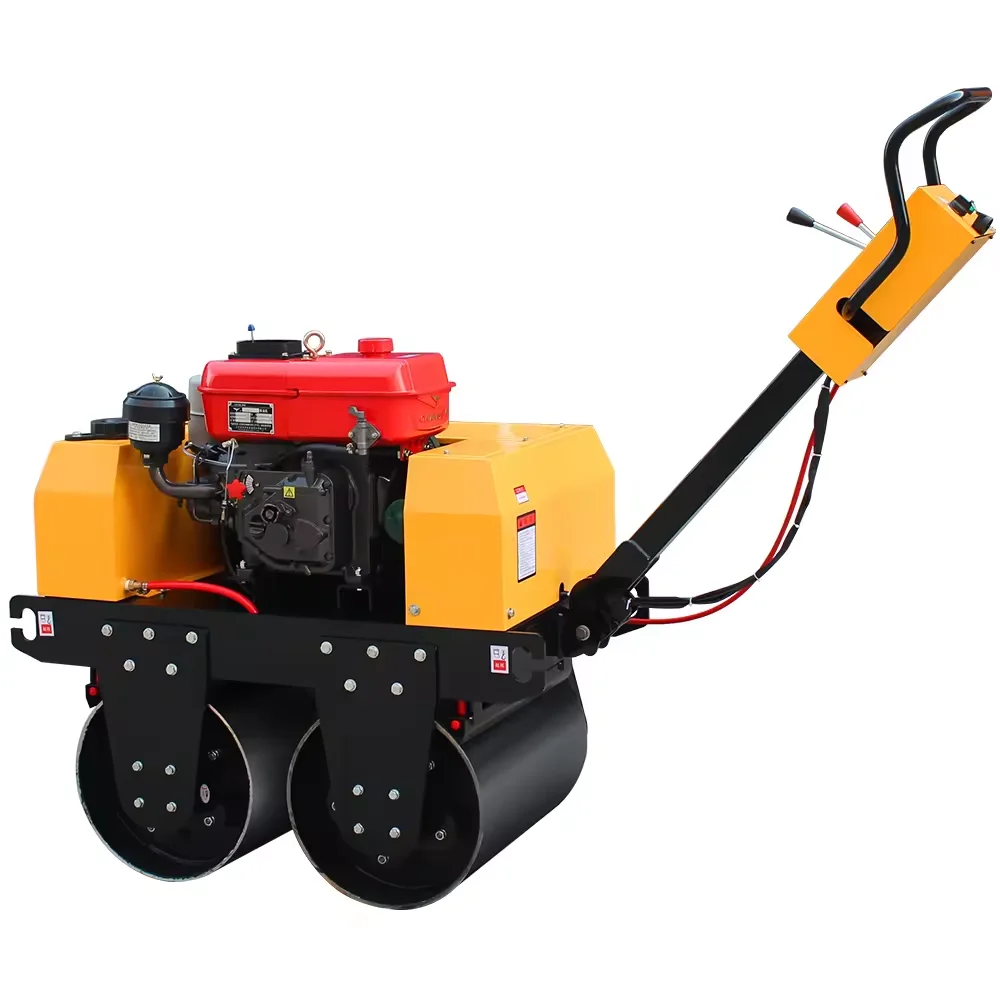

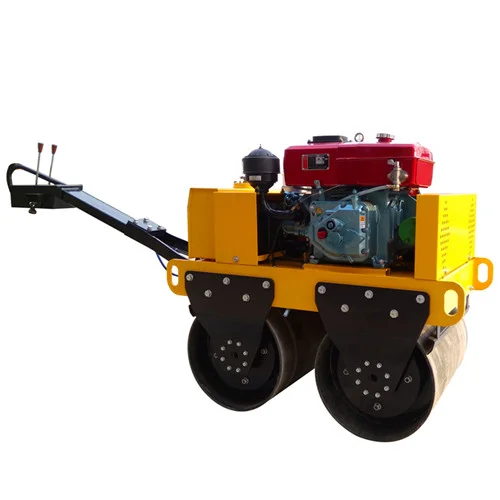

500kg 600 kg double drum road roller 800kg hydraulic walk behind road roller vibratory soil compactor
- Category: >>>
- Supplier: Jining Dingye Heavy Industry Machinery Co. Ltd.
Share on (1601090692189):
Product Overview
Description
Overview
1.Operating radius is small, can work in a small area,suitable for groove backfill;
2.With EPA gasoline engine or famous water-cooled diesel engine,superior performance,easy to operate;
3.With international famous brand PH hydrauulic drive unit,infinitely variable speed;
4. Hydraulic steering, reversing conveniently. ry Road Roller
5.Internationally renowned NSK Bearings,MITSUBOSHI (Samsung) belt,
to ensure the work performance of machine;
6.This product has passed ISO9001 and CE certification.
1.Operating radius is small, can work in a small area,suitable for groove backfill;
2.With EPA gasoline engine or famous water-cooled diesel engine,superior performance,easy to operate;
3.With international famous brand PH hydrauulic drive unit,infinitely variable speed;
4. Hydraulic steering, reversing conveniently. ry Road Roller
5.Internationally renowned NSK Bearings,MITSUBOSHI (Samsung) belt,
to ensure the work performance of machine;
6.This product has passed ISO9001 and CE certification.
Applications
Model | DYR600 | DYR600C | DYR700C |
Engine model | Honda Gx270/ briggs& stratton engine ( EPA) | Changfai/Changchai CF178 | CF180f |
Fuel type | Gasoline | Diesel | Diesel |
Power | 6.7KW/9HP | 4.4KW/6HP | 5.7KW/8HP |
Fuel capacity | 5.9L | 2.7L | 6.5L |
Static line load | 45N/cm | ||
Vibration frequency | 70HZ | 70HZ | 75HZ |
Nominal amplitude | 0.6MM | ||
Exciting force | 20KN | ||
Water tank capacity | 20L | 20L | 20L |
Walking speed | 0-4KM/H | ||
Climbing ability | 30% | ||
Hydraulic oil capacity | 5.9L | 2.7L | 6.5L |
Drum size | 426*600MM*2 | 700*450MM | |
Weight | 560KG | 560KG | 750 |

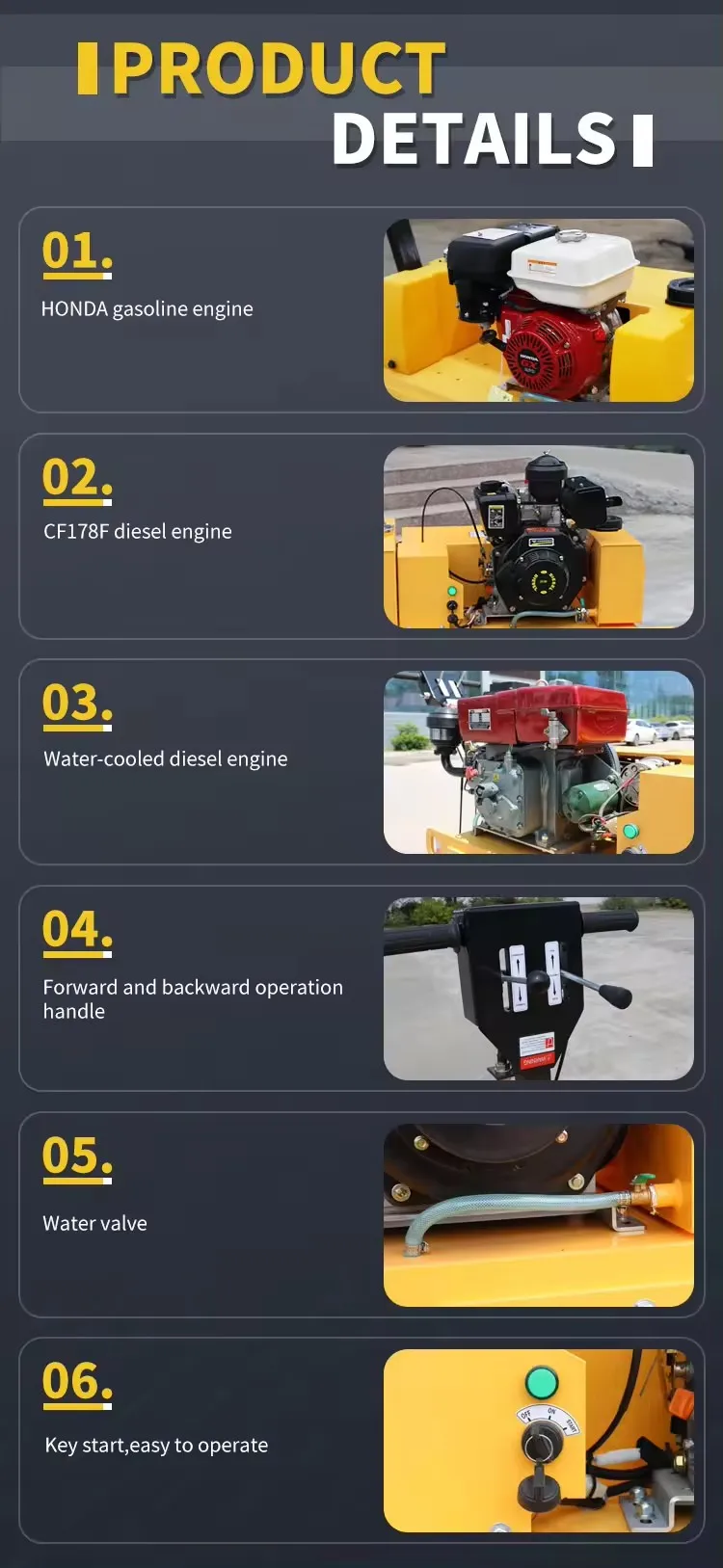

ENGINE can choose China diesel changchai engine water cooled or air cooled .

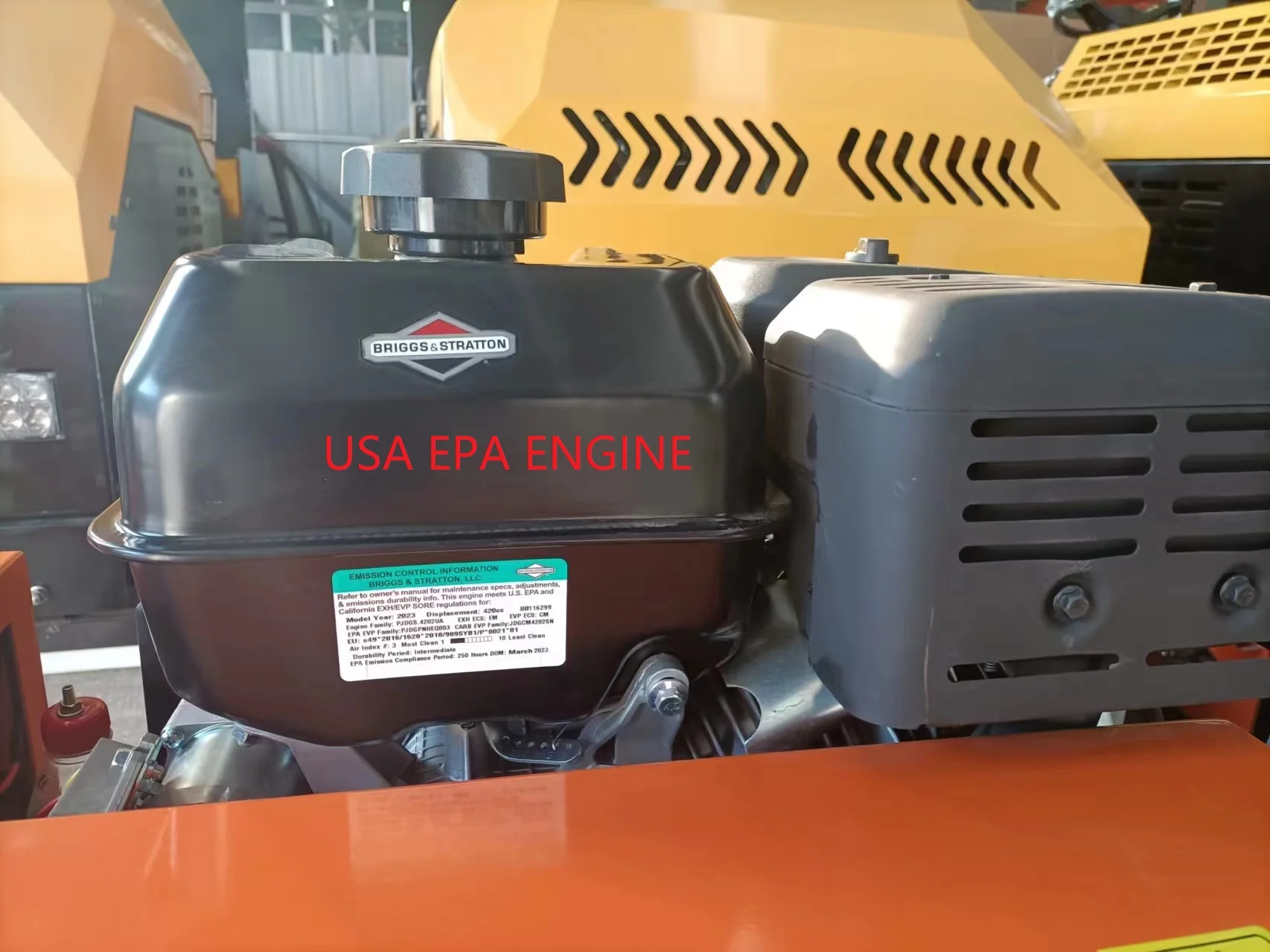

Engine also can choose gasoline JAPAN Honda engine or USA briggs& stratton engine ( EPA ENGINE ) or China Loncin engine ( EPA ENGINE)
Packaging & Shipping
Others big model if you have require plese feel free ask me send you specifications
Company Information
Jining DingYe Industry Co., Ltd is a profesional factory production for construction machinery, company founded in 2008 with ISO, Bureau ,SGS etc certification, production with CE EPA .
Our factory advantages:
1. More than 10 years production experience in this industry.
2. Short delivery time, we have specialized production and service team.
3. Warranty 2 years. If you are the agent, we will provide service in your city.
4.We can accept 1 sets as the first try order. formal orders we will give you discount price.
5.We can acceptance OEM if you have request.
