ex works Air source heat pumps for hot water underfloor heating
- Category: >>>
- Supplier: Zhejiang Handa New Energy Co. Ltd.
Share on (1601090807264):
Product Overview
Description
Products Description

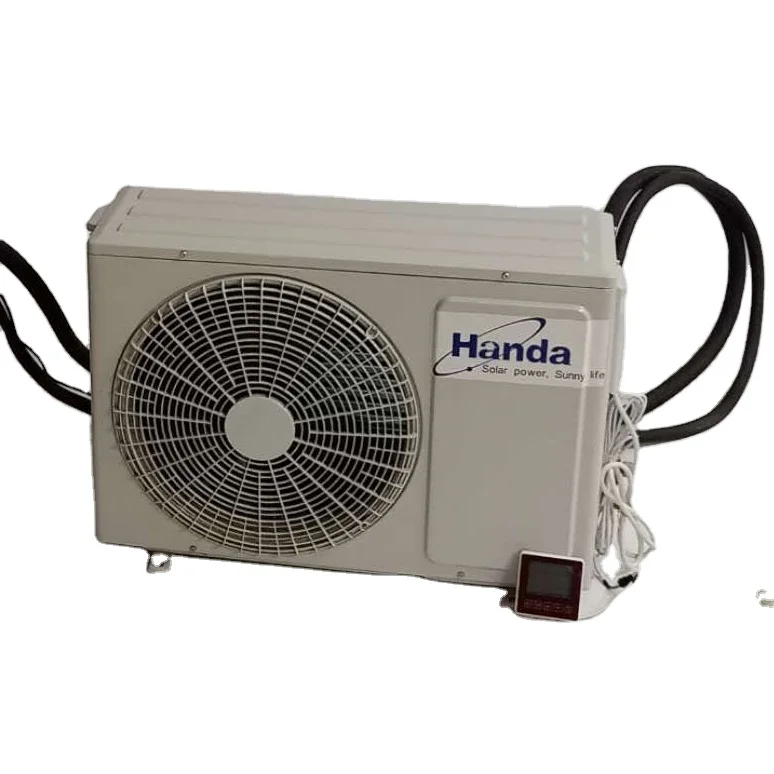

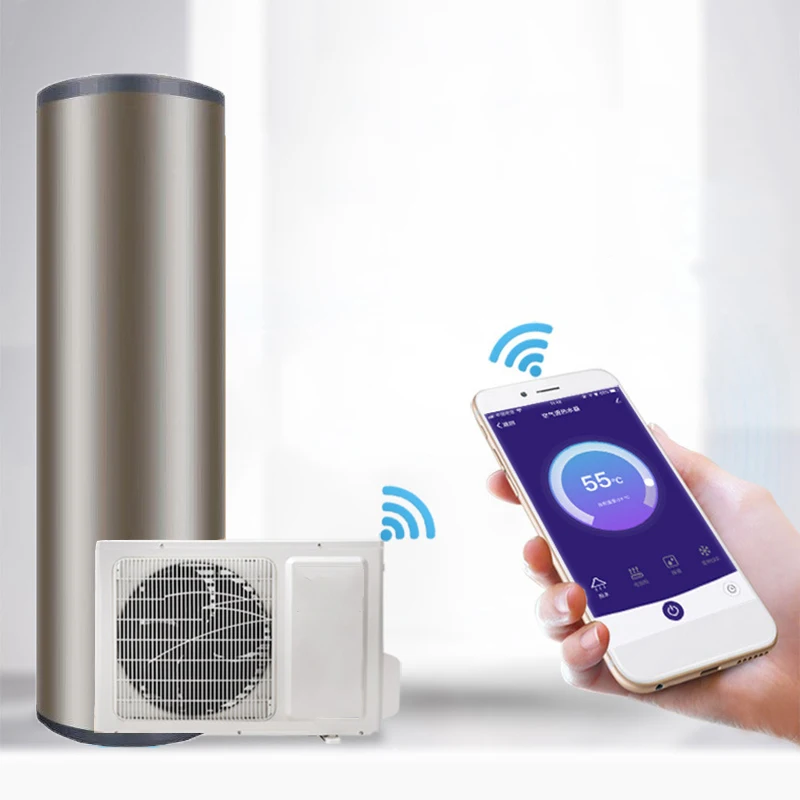

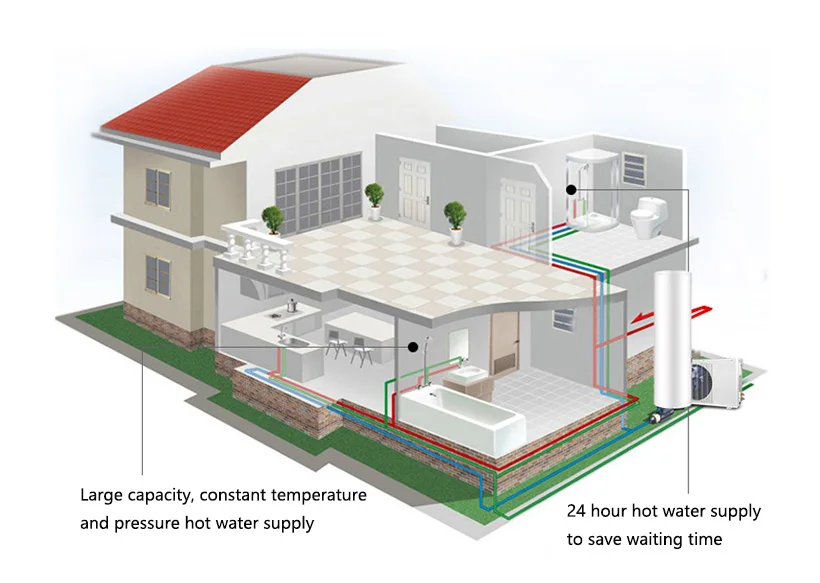

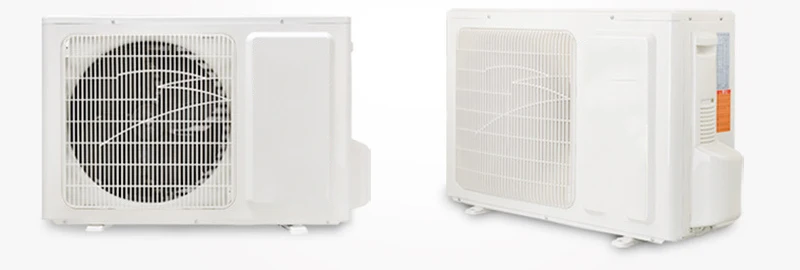

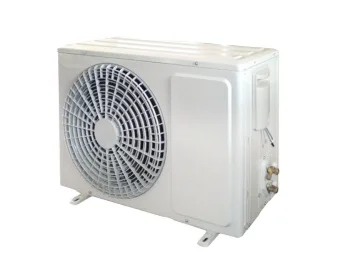

The refrigerant circle domestic split heat pump adopts refrigerant circle the water tank to heat water, outdoor and indoor split design, no water system outside, any freezing and damage to water system. The compact design with small dimension makes the heat pump convenient to be delivered, stored and installed at any place.
Suitable for family, villa, office, and restaurant and hotel.
Suitable for family, villa, office, and restaurant and hotel.
Features
● Fast water heating at temperatures up to 60°C.
● Mitsubishi or Panasonic Rotary type compressor, low vibration, low noise and high reliability.
● Multifunction LCD wired controller.
● Durable, long life time up to 15 years, extremely low maintenance cost.
● High efficiency up to COP 4.5, saving 75% energy compare to tradition electric heater.
● Automatically defrosting.
● Simple installation: Rooftop, balcony, yard or basement can be suitable places for the installation.
● Mitsubishi or Panasonic Rotary type compressor, low vibration, low noise and high reliability.
● Multifunction LCD wired controller.
● Durable, long life time up to 15 years, extremely low maintenance cost.
● High efficiency up to COP 4.5, saving 75% energy compare to tradition electric heater.
● Automatically defrosting.
● Simple installation: Rooftop, balcony, yard or basement can be suitable places for the installation.
Details Images
Model | KQN-100L | KQN-150L | KQN-200L | KQN-260L | KQN-300L | KQN-400L | KQN-500L |
Type | F-1P | F-1P | F-1P | F-1.5P | F-1.5P | F-2P | F-2P |
Size (L*W*H） | 780*260*530mm | 780*260*530mm | 780*260*530mm | 780*260*530mm | 780*260*530mm | 840*290*610mm | 840*290*610mm |
Compressor | Panasonic (2P17S225ANQ) | Panasonic (2P17S225ANQ) | Panasonic (2P17S225ANQ) | Panasonic (2K22S225BUA) | Panasonic (2K22S225BUA) | Panasonic (2V32S225AUA) | Panasonic (2V32S225AUA) |
Rated Power | 900W | 900W | 900W | 1350W | 1350W | 1800W | 1800W |
Heating capacity | 3700W | 3700W | 3700W | 4900W | 4900W | 6800W | 6800W |
Hot water production | 80L/h | 80L/h | 80L/h | 120L/h | 120L/h | 160L/h | 160L/h |
Refrigerant | R22 | R22 | R22 | R22 | R22 | R22 | R22 |
Max water output temperature | 60℃ | 60℃ | 60℃ | 60℃ | 60℃ | 60℃ | 60℃ |
Net weight | 27kg | 27kg | 27kg | 34kg | 34kg | 44kg | 44kg |
Accessory | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. |
Water tank dimension | φ470*1020mm | φ470*1440mm | φ500*1540mm | φ570*1560mm | φ570*1720mm | φ700*1520mm | φ700*1940mm |
Inner tank material and thickness | SUS304/1.0mm | SUS304/1.0mm | SUS304/1.2mm | SUS304/1.2mm | SUS304/1.2mm | SUS304/1.5mm | SUS304/1.5mm |
Outer tank material and thickness | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm |
Insulation layer | PU foam 50mm | PU foam 50mm | PU foam 50mm | PU foam 50mm | PU foam 50mm | PU foam 50mm | PU foam 50mm |
Stainless steel 316 coil | φ9.5/18m | φ9.5/18m | φ9.5/21m | φ9.5/28m | φ9.5/28m | φ9.5/40m | φ9.5/40m |
Caliber | DN15(G1/2") | DN15(G1/2") | DN15(G1/2") | DN15(G1/2") | DN20(G3/4") | DN20(G3/4") | DN20(G3/4") |
Accessory | check valve, MG bar | check valve, MG bar | check valve, MG bar | check valve, MG bar | check valve, MG bar | check valve, MG bar | check valve, MG bar |
Company Profile
Zhejiang Handa New Energy Co., Ltd is the leading solar water heater and solar thermal equipment manufacturer in China, provide high-quality solar water heaters, production lines and related accessories. Our company has a number of highly qualified technical persons, internationally advanced testing equipment and the first-class production equipment and technology and operates a perfect after-sales service system. our products are exported to overseas countries and regions such as Mexico, USA, Turkey, Australia, Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc.over 50 countries, and have found favor in the eyes of customers.
We also provide design-system or customized products which is suitable for customers local market.
We also provide design-system or customized products which is suitable for customers local market.
If you are interested in our products, please do not hesitate to contact us with more information. We are looking forward to cooperating with you!
Why Choose Us
1.Zhejiang Handa New Energy Co., Ltd Have top engineers and technicians in the industry can providing invaluable product design experience. We make solar manufacturing equipment for solar production line raw materials if needed.
2.Competitive price
3.Focus on High Quality, reliable manufacturing products
4.We have many stable and cooperative foreign companies, understand foreign markets and characteristics
5.We listen to our customers, and constantly work to provide better and better products and services that we are suited to local climates and market.
6.We provide design-system or customized products which is suitable for customers local market.
7.Commitment to fair labor practices, career advancement and open communication throughout the company
2.Competitive price
3.Focus on High Quality, reliable manufacturing products
4.We have many stable and cooperative foreign companies, understand foreign markets and characteristics
5.We listen to our customers, and constantly work to provide better and better products and services that we are suited to local climates and market.
6.We provide design-system or customized products which is suitable for customers local market.
7.Commitment to fair labor practices, career advancement and open communication throughout the company
