Deye SUN 20K SG01HP3 EU AM2 HV 20KW 25KW 22KW 30kw Three 3 phase hybrid Solar inverter
Deye SUN-20K-SG01HP3-EU-AM2 HV 20KW 25KW 22KW 30kw Three 3 phase hybrid Solar inverter
Deye SUN-20K-SG01HP3-EU-AM2 HV 20KW 25KW 22KW 30kw Three 3 phase hybrid Solar inverter
Deye SUN-20K-SG01HP3-EU-AM2 HV 20KW 25KW 22KW 30kw Three 3 phase hybrid Solar inverter
Deye SUN-20K-SG01HP3-EU-AM2 HV 20KW 25KW 22KW 30kw Three 3 phase hybrid Solar inverter
Deye SUN-20K-SG01HP3-EU-AM2 HV 20KW 25KW 22KW 30kw Three 3 phase hybrid Solar inverter
Deye SUN-20K-SG01HP3-EU-AM2 HV 20KW 25KW 22KW 30kw Three 3 phase hybrid Solar inverter

Deye SUN 20K SG01HP3 EU AM2 HV 20KW 25KW 22KW 30kw Three 3 phase hybrid Solar inverter

Share on (1601090863597):


Price:$1,650.00 - $1,980.00

Quantity:


Product Overview

Description

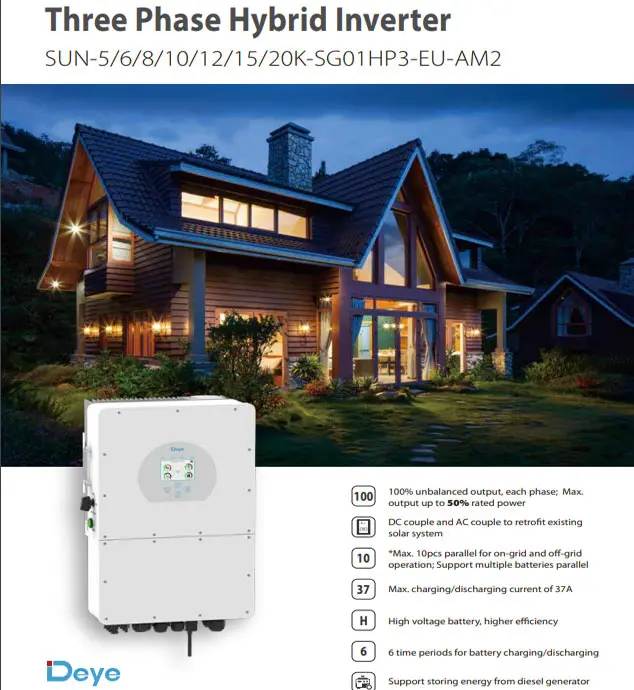

SUN 5/6/8/10/12/15/20K-SG01HP3-EU-AM2 is brand new three phase hybrid inverter with High voltage battery 160-700V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
1. Colorful touch LCD, IP65 protection degree
2. 6 time periods for battery charging/discharging
3. Max. charging/discharging current of 120A
4. Frequency droop control, Max.16pcs parallel
5. DC couple and AC couple to retrofit existing solar system 6.
Support storing energy from diesel generator


Model
SUN-20K-SG01HP3-EU-AM2
Battery Input Data
Battery Type
Lithium-ion
Battery Voltage Range (V)
160~700V
Max. Charging Current (A)
37
Max. Discharging Current (A)
37
Number of battery input
1
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
26000W
Max. DC Input Voltage (V)
1000
Start-up Voltage (V)
180V
MPPT Range (V)
150V-850V
Full Load DC Voltage Range (V)
500-850
Rated DC Input Voltage (V)
600
PV Input Current (A)
26A+26A
Max. PV ISC (A)
39A+39A
Number of MPPT / Strings per MPPT
2/2
AC Output Data
Rated AC Output and UPS Power (W)
20000W
Max. AC Output Power (W)
22000W
Peak Power (off grid)
1.5 times of rated power, 10 S
AC Output Rated Current (A)
30.4/29
Max. AC Current (A)
35
Max. Continuous AC Passthrough (A)
80A
Output Frequency and Voltage
50/60Hz;3L/N/PE 220/380Vac，230/400Vac
Grid Type
Three Phase
DC injection current (mA)
<0.5%1n
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Protection
PV Input Lightning Protection
Integrated
Anti-islanding Protection
Integrated
PV String Input Reverse Polarity Protection
Integrated
Insulation Resistor Detection
Integrated
Residual Current Monitoring Unit
Integrated
Output Over Current Protection
Integrated
Output Shorted Protection
Integrated
Surge protection
Integrated
Output Over Voltage Protection
DC Type II / AC Type Ⅲ
Certifications and Standards
Grid Regulation
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃)
-40~60℃, >45℃ Derating
Cooling
Smart cooling
Noise (dB)
<55 dB
Communication with BMS
RS485; CAN
Weight (kg)
35
Size (mm)
840W*345H*375D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 years

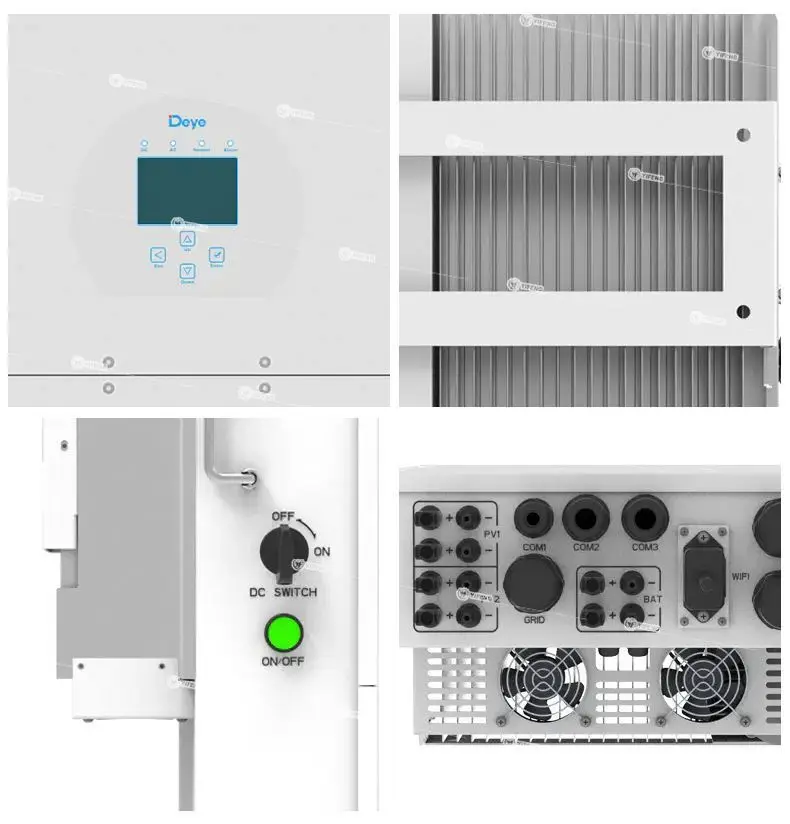

Products Description

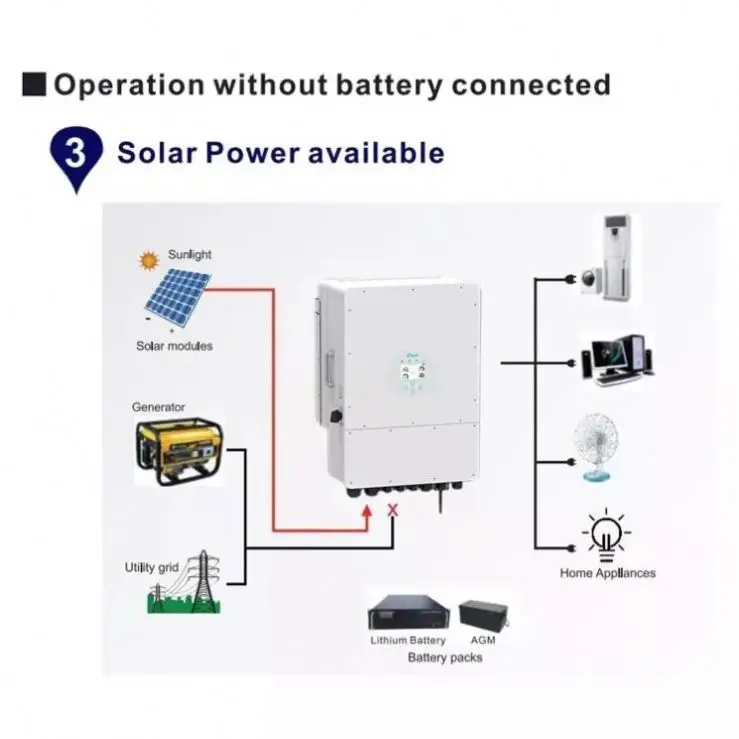

Application project

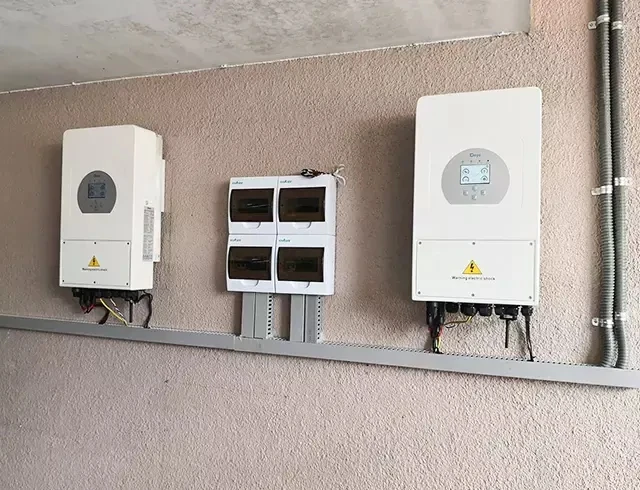

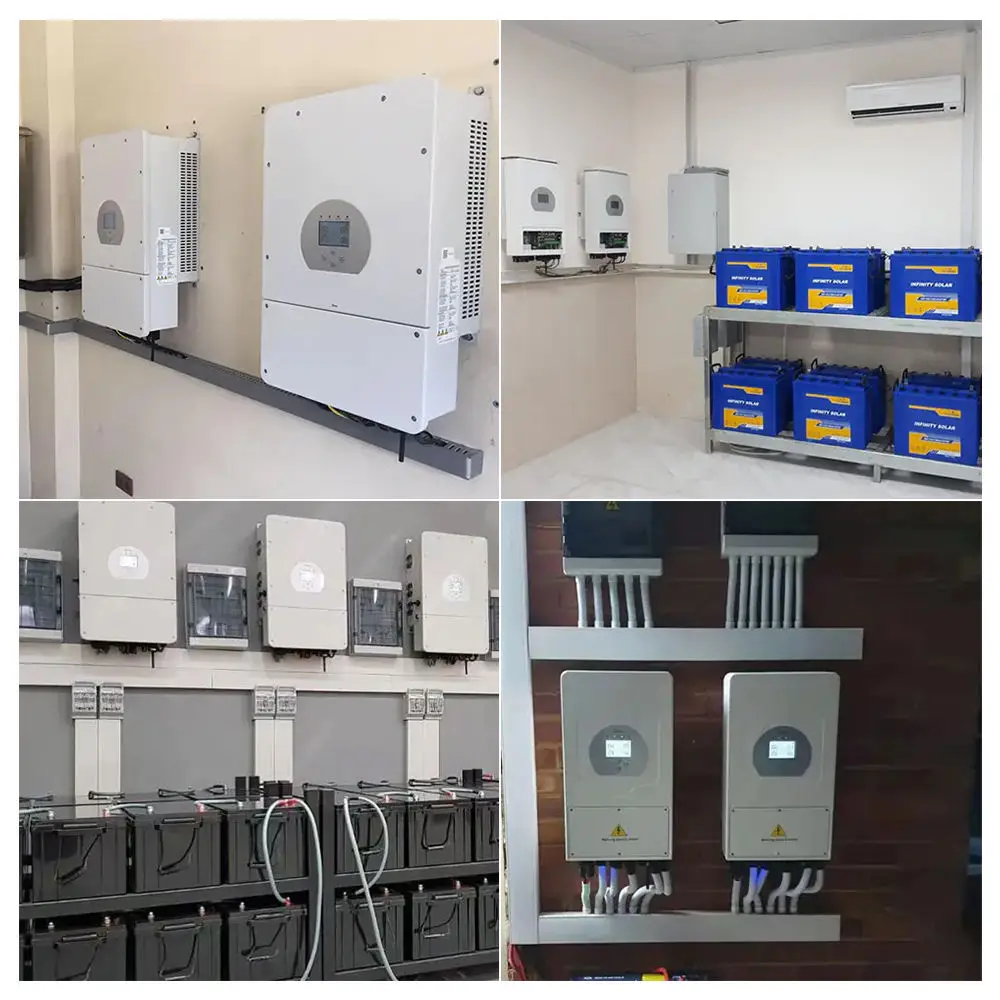

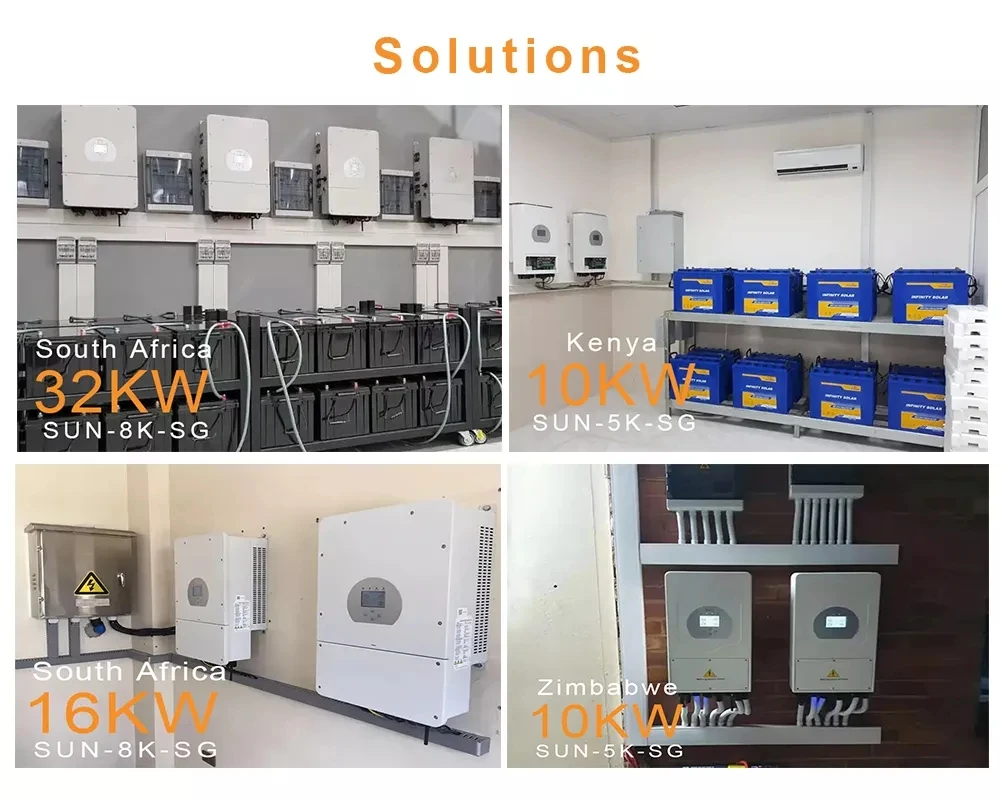

Customer's installation project results

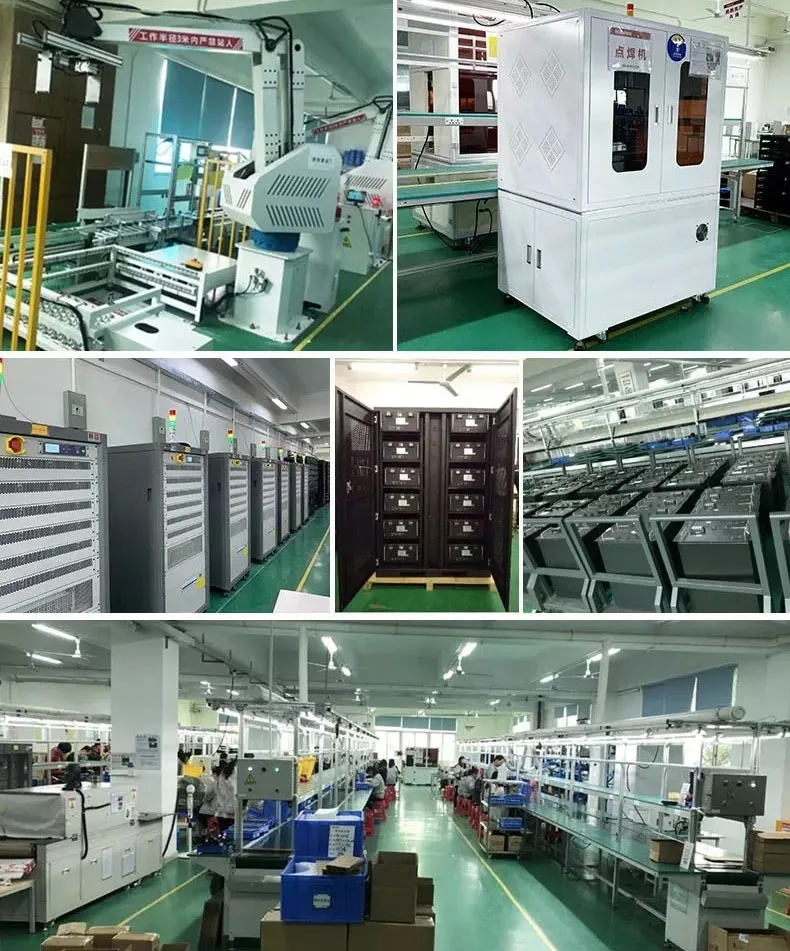

Production test






Packing & Delivery


Packing:
1. All shipping goods are 100% tested and packed very well.
2. Customized package available. Boxing packaging,carton case and wooden support or as your requirement.
