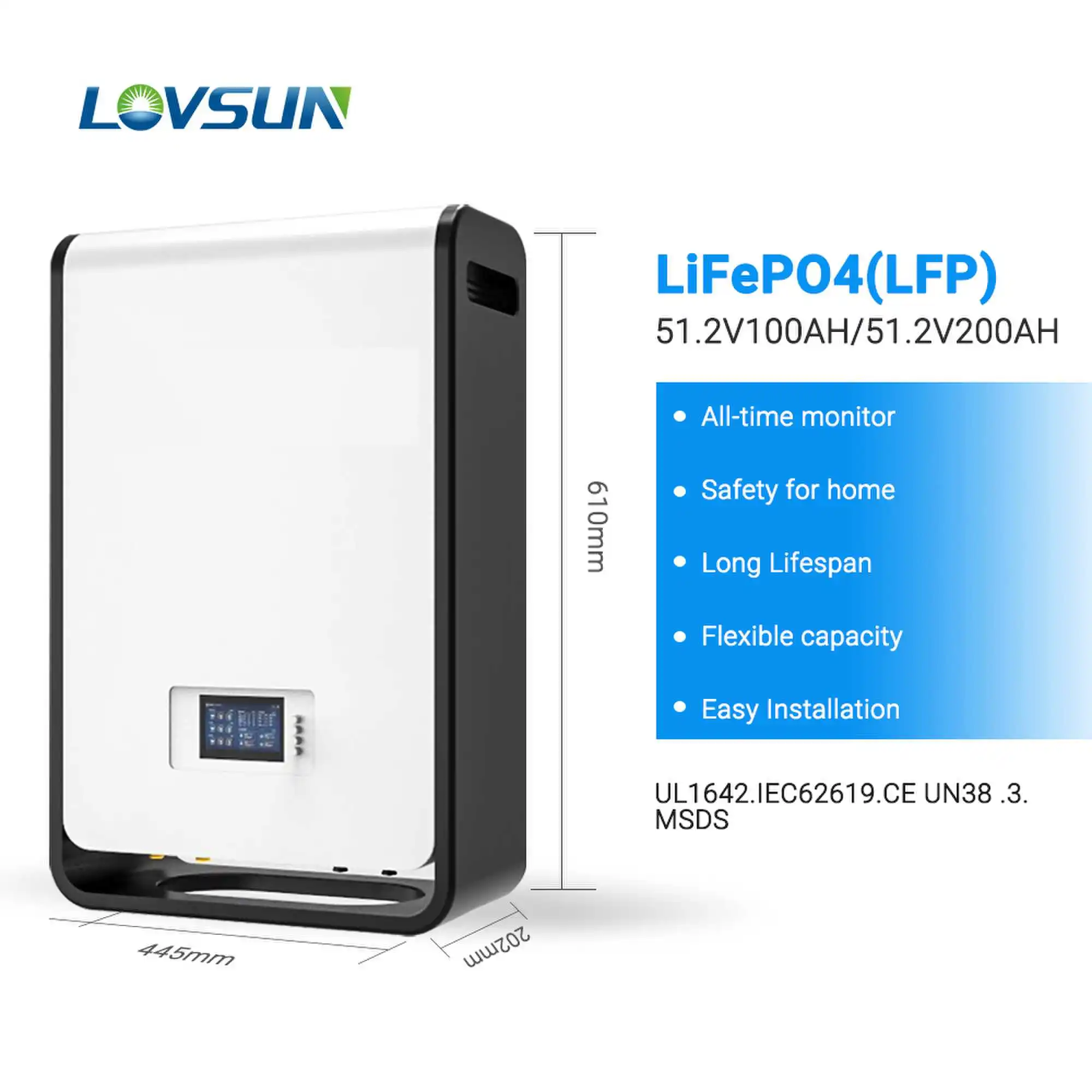

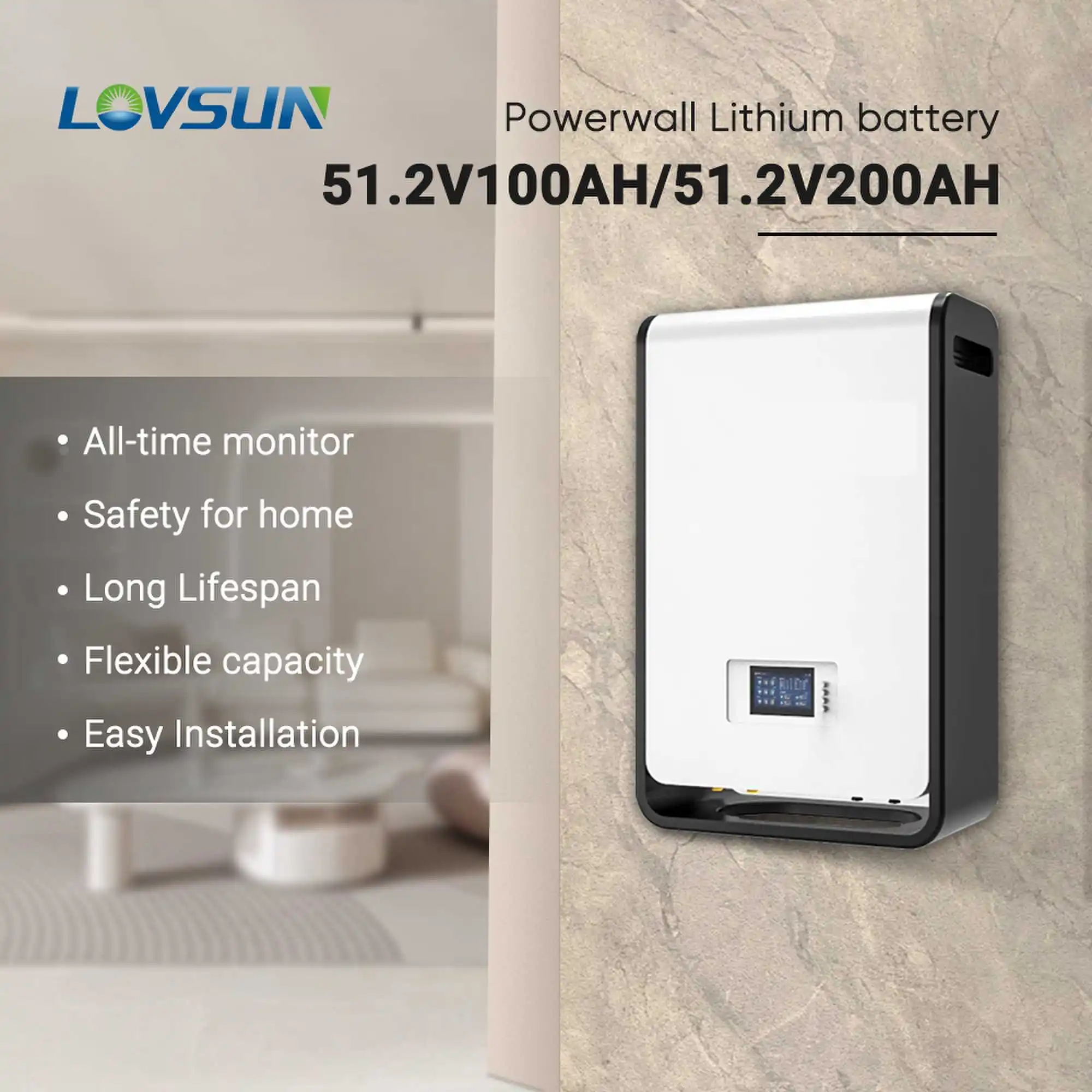

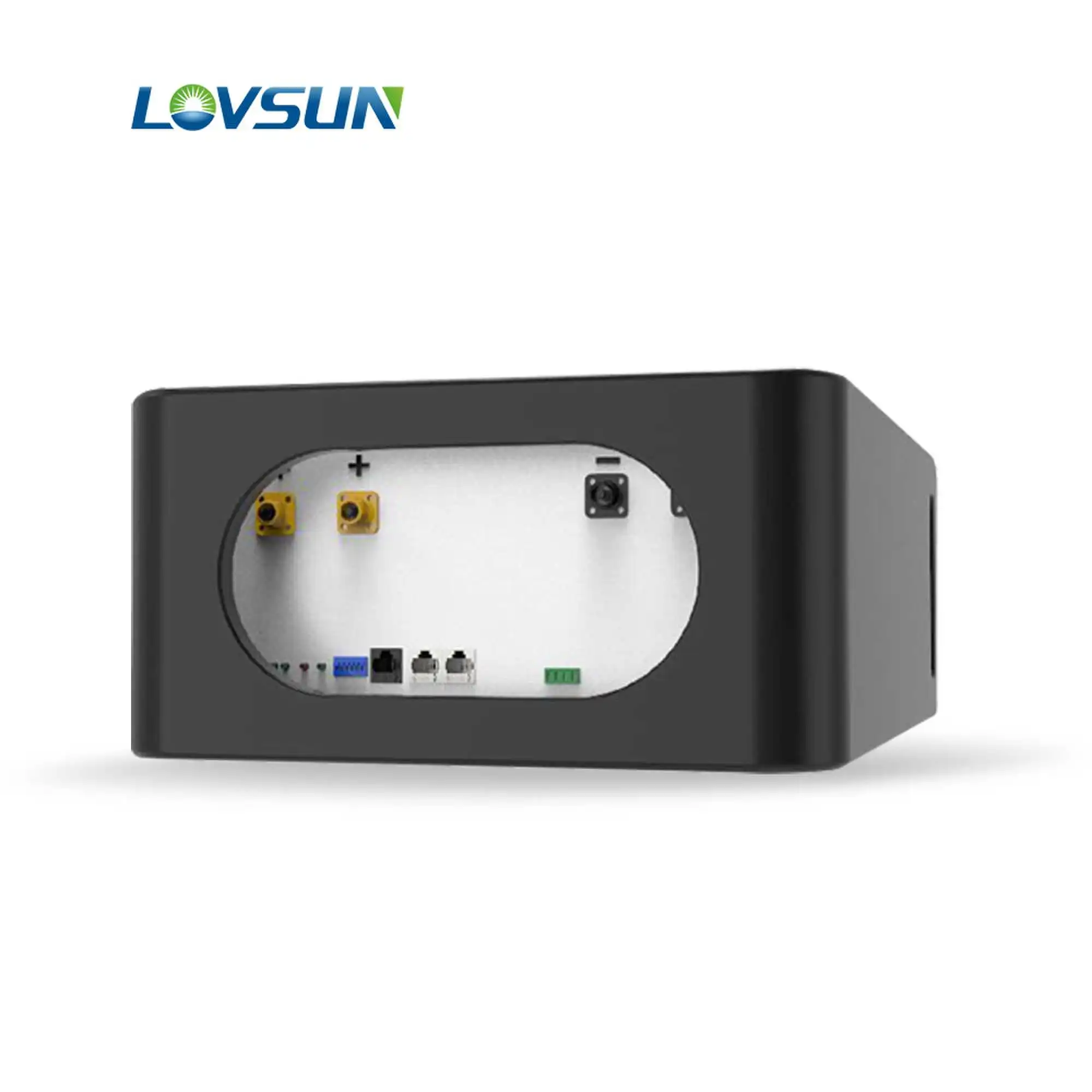

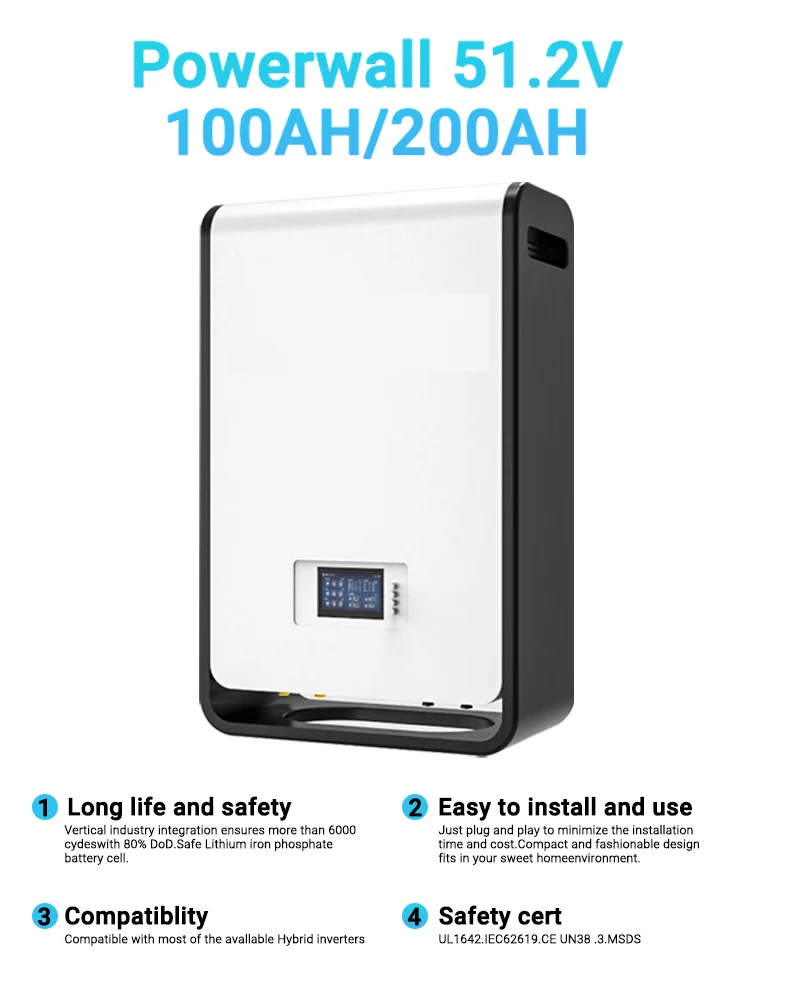

Powerwall Solar Batterie Solaire 100Ah 200Ah 10Kw 5kw 48V 51.2V Home Energy Storage Lifepo4 Lithium Ion Battery for solar system
- Category: >>>
- Supplier: Lovsun Tek Co.Ltd
Share on (1601090921696):
Product Overview
Description
Product Description
Specification

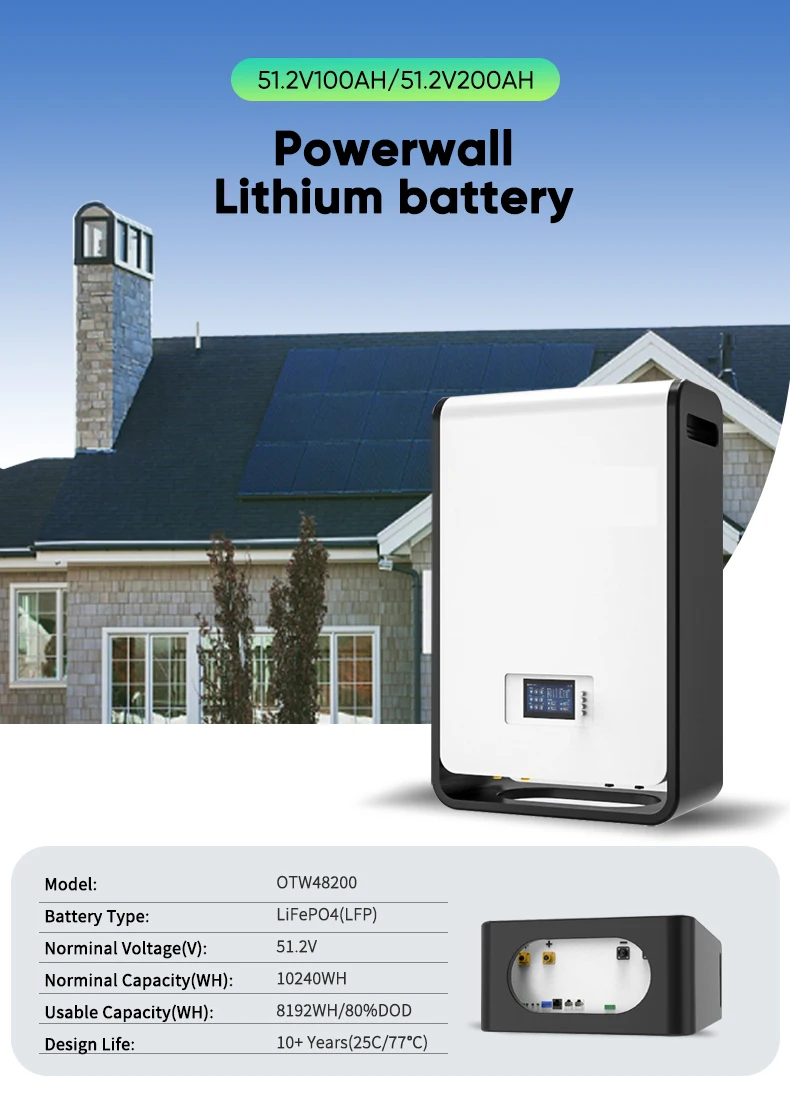

Model | OTW48100 | OTW48200 | |
Battert Type | LiFePO4(LFP) | ||
Norminal Voltage(V) | 51.2V | ||
Norminal Capacity(WH) | 5120WH | 10240WH | |
Usable Capacity(WH) | 4096WH/80%DOD | 8192WH/80%DOD | |
Design Life | 10+Years(25℃) | ||
Dimension(mm) | 610*445*200 | 580*950*250 | |
Weight(kg) | 59 | 115 | |
Cycle Life | >6000,25℃ | ||
Discharge Voltage(V) | 40~58.4 | ||
Charge Voltage(V) | 56~58.4 | ||
Charge/Discharge Current(A) | 50A (Recommended) 100A (Max) | ||
Internal Resistance | ≤30mΩ | ||
Power Consumption | <2W(Work)<100mW(Sleep) | ||
Monitoring Parameters | System voltage, current, cell voltage, cell temperature, module temperature | ||
SOC | Intelligent algorithm | ||
Communication | CAN/RS-485/RS-232 | ||
Operating Temperature Range | -10℃~50℃ | ||
Transport or Storage Temperature Range | -20℃~45℃ | ||
Humidity | 15%-85% (No Condensing) | ||
Product Warranty | 5 Years | ||
Pergormance Warranty | 10 Years | ||
Our Company&Factory

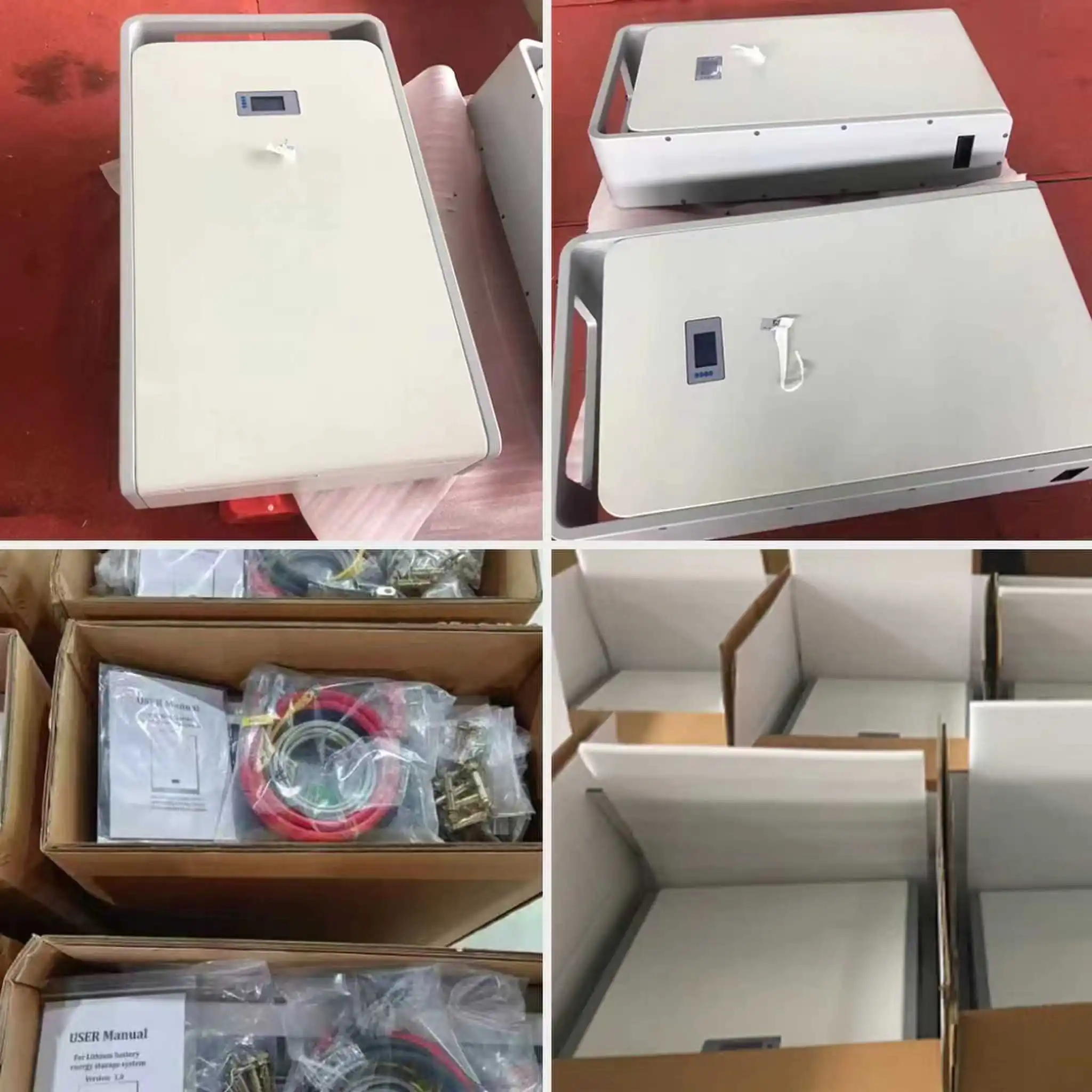

Packing & Delivery

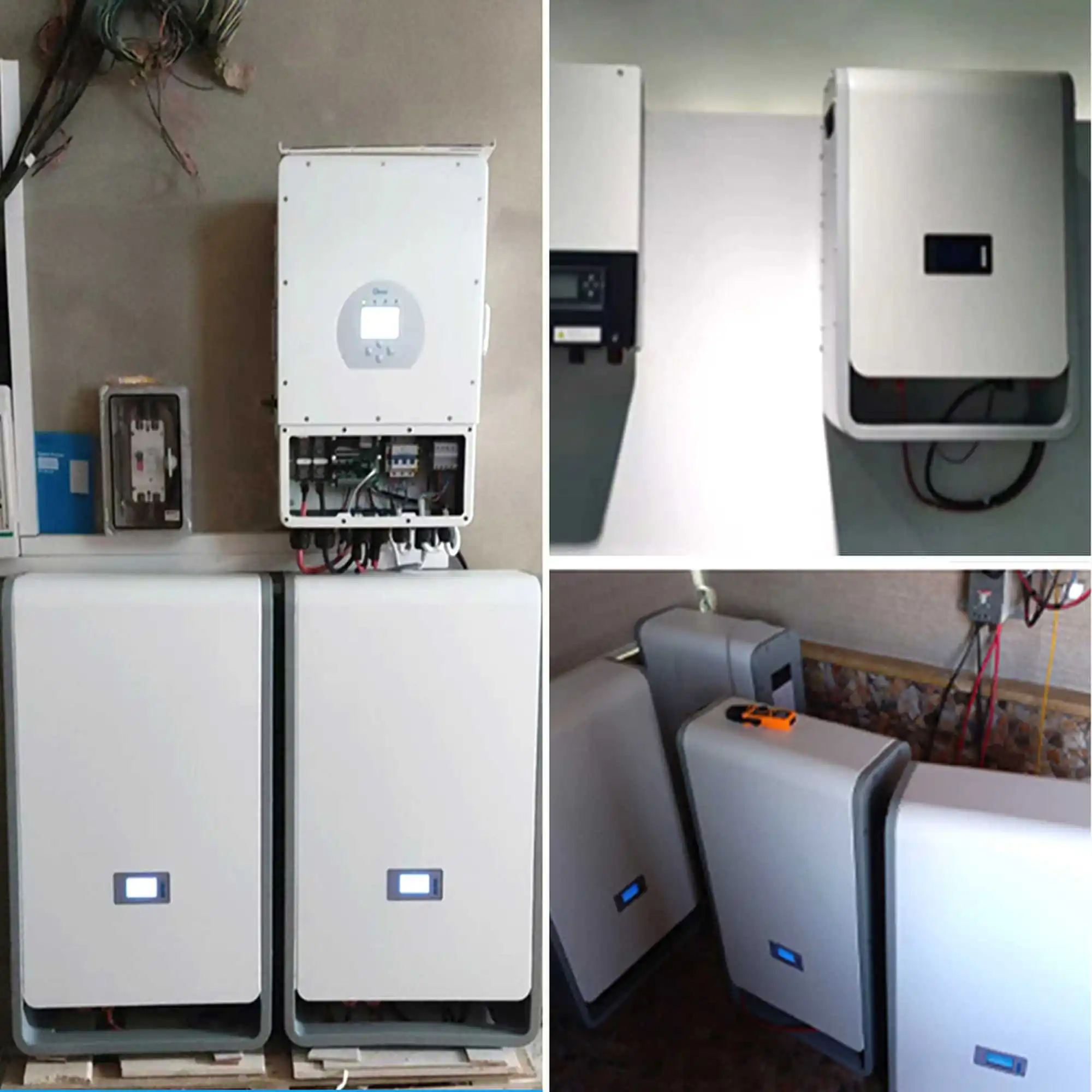

Project Case
Cooperation Partners

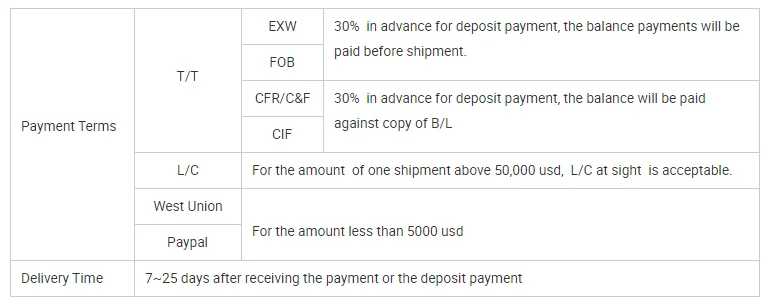

Payment term
We recommend you use alibaba Insurance Order Online, you will enjoy
100% Products quality protection 100% On time shipment
100% Payment safety protection
The third party inspection is optional
100% Payment safety protection
The third party inspection is optional
