Handheld Ultrasonic Welder for Plastic Spot Welding Probe of PP_PE_Nylon Belt Ultrasound Point Bonding_Soldering_Sealing Machine
- Category: >>>
- Supplier: Shenzhen Keepleader Machinery Co. Ltd.
Share on (1601090936030):
Product Overview
Description
Handheld Ultrasonic Welder for Plastic Spot-Welding Probe
Handheld Ultrasonic Welder for Plastic Spot Welding Probe has compact and novel portable design, that is paramount in maneuverable scenarios, its working principle is the same with universal ultrasonic welder, when an ultrasonic wave acts on the thermoplastic contact surface, it will produce tens of thousands of time of high frequency vibration per second, this high frequency vibration reaches a certain amplitude, through the upper welding parts, the ultrasonic energy is transferred to the welding area, and because of poor thermal conductivity of the plastic, it can not be distributed in time and gathered in the welding area, which causes the contact surface of two plastic to melt rapidly, after adding a certain pressure, it will be fused into one, when the ultrasonic wave stops acting, the hand pressing is continue for split second so that it solidifies and forms, so as to form a strong molecular chain, to achieve the purpose of welding, reforming, connecting, sealing, the welding strength can be close to the matrix material
Product Description
Handheld Ultrasonic Welder for Plastic Spot Welding Probe
01: Application
Handheld Ultrasonic Welder for Plastic Spot Welding Probe applies for spot welding, pressure welding, riveting, marking, sealing, screw embedding, applique welding, swagging, reforming, cutting, edge trimming and other processes, has good weldability on solid object and fabric cloth made of PVC, ABS, PP, PE, PS, PC, PMMA, PETG and APET and other amorphous and semi-crystalline thermoplastic, they are popular in plastic assembling, connection field in electronics, electric appliances, auto parts, packaging, medical, non-woven clothing, stationary daily necessaries, plastic toys, sporting goods, communications, car interior decorative linear, upholstery, PP/PVC manure belt, conveyor belt, bumper, soundproof cotton, waterproof board, mask non-woven cloth, Nylon fabric, fishing box and other industrial plastic assembling, bonding, connection and reforming
02: Parameter
Name | Handheld Ultrasonic Welder for Plastic Spot Welding Probe |
Model | KLC-5035 |
Ultrasonic Power | 500w |
Ultrasonic Frequency | 35khz |
Electric Connection | 110v,60hz ; 220v,50hz |
Time/Power/Energy SW off | Yes |
Amplitude adjustable | Programmable 70~100% |
Savable Weld Programs | 16 |
Acoustic Material | Titanium |
Qty of ceramic ring | 4 |
Probe Weight | 0.9kg |
Connect Screw | M8 |
Ambient Temperature | +5~+50ºC |
Storage Temperature | -5~+70ºC |
Welding Area | 1~12/1~15mm |
Max Working Current | 15A |
Welding Time | 0.1~10s |
Operation Control | Finger SW or Foot Pedal |
Ultrasonic Horn | Made to order |
Dimension | 320*280*128mm |
Weight | 10kgs |
03: Salient Character
Auto-tuning ultrasonic frequency between transducer stack and ultrasonic generator
Adjustable amplitude from 50%~100% with digital control
Auto frequency and power displayed after each processing cycle
LCD multi-function display, programmable logic control with touch screen
Overload, protection, short circuit power cutting-off to protect equipment
Novel portable structure design, quick and convenient operation and movement
Handgrip operation, flexible and practical simple operation
Unique appearance, all steel shell, all-aluminum heat dissipation
Time setting, overload/frequency deviation alarm, frequency, current display
Power intensity is adjustable to gratify maximum welding diameter within 15mm
Equipped with super folding gray industrial-grade cable for flexible safety

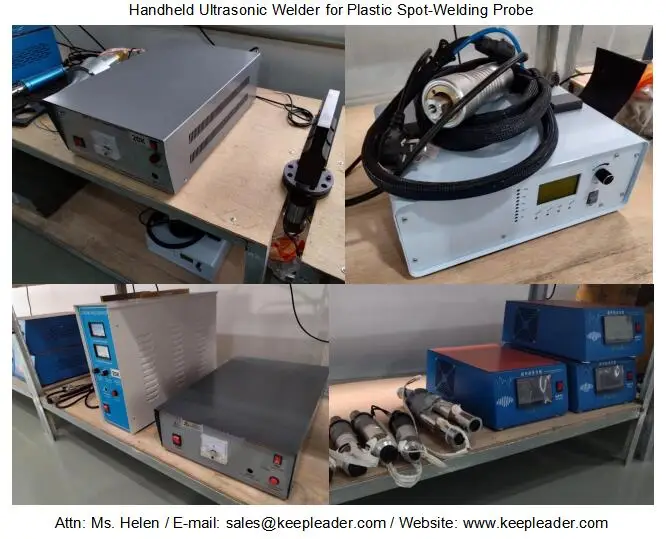

Detailed Images
Handheld Ultrasonic Welder for Plastic Spot Welding Probe applies in numerous manual assembly operation to bond, reshape, reform, tear-off cutting, or mold materials, typically used as as a handheld plastic spot welding, Handheld Ultrasonic Welder for Plastic Spot Welding Probe presents in industries including consumer goods, electronics, and staking, its salient traits increase recognizance, such as save time, energy and money on utilities; lightweight and maneuverable for easy of utility; utilizes advanced technology for performance and consistency; intelligent ultrasonic generator; ergonomic design and low weight of handheld ultrasonic welder guarantee fatigue-fee work without major modification or rewiring and maintenance cost-efficiency

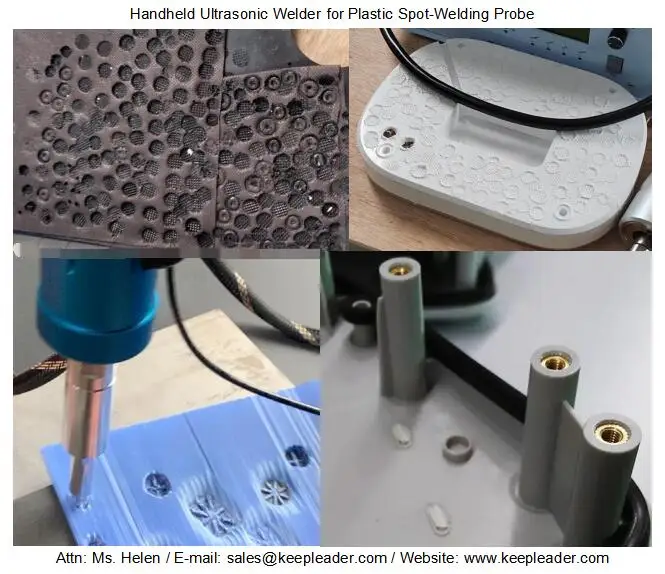

Product Uses
Handheld Ultrasonic Welder for Plastic Spot Welding Probe has applicable popularity, likely electronic appliance, automobile accessories, garment packaging, textile industry medical equipment, toy industry, stationary, PP PE conveyor belt, non-woven fabric, dashboard, sound insulation, cotton bumper footwear, waterproof board, fecal belt, eggs collection belt, communication equipment and other industries
Packaging & Shipping
Handheld Ultrasonic Welder for Plastic Spot Welding Probe is packed in plywood case for safe transportation
Contact Us
Keepleader is one high tech manufacturer who dedicates in technology development, fabricating and sales service of ultrasonic equipment, we improve our customer’s competition and creates value by quality products and excellent service, we adhere the business philosophy of customer first, teamwork self breakthrough with development concept of market, with service concept of start with customer demand and end with customer satisfaction we supply Handheld Ultrasonic Welder for Plastic Spot Welding Probe and best ultrasonic welding service
