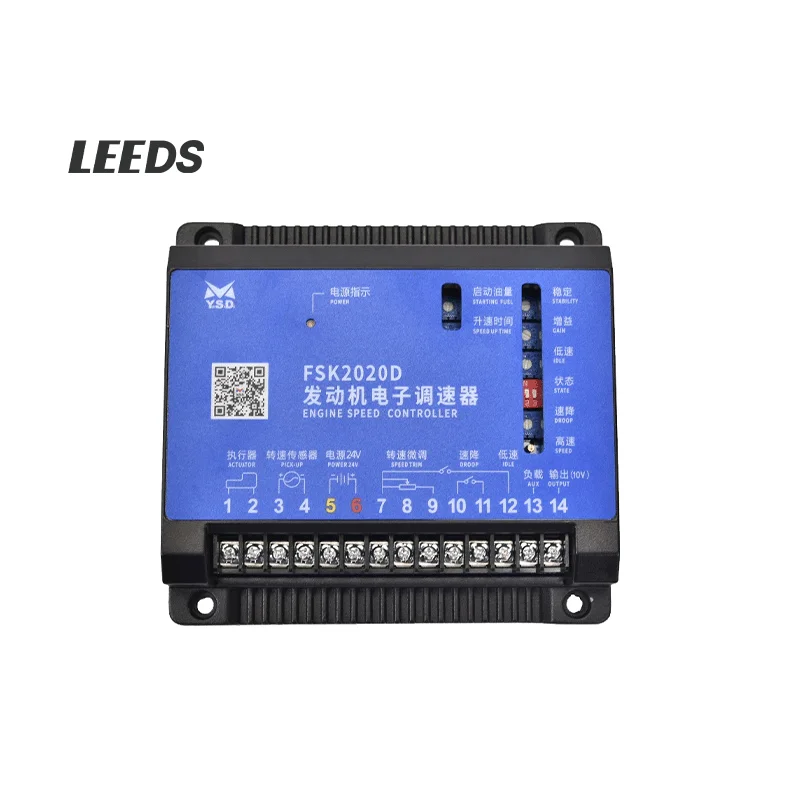

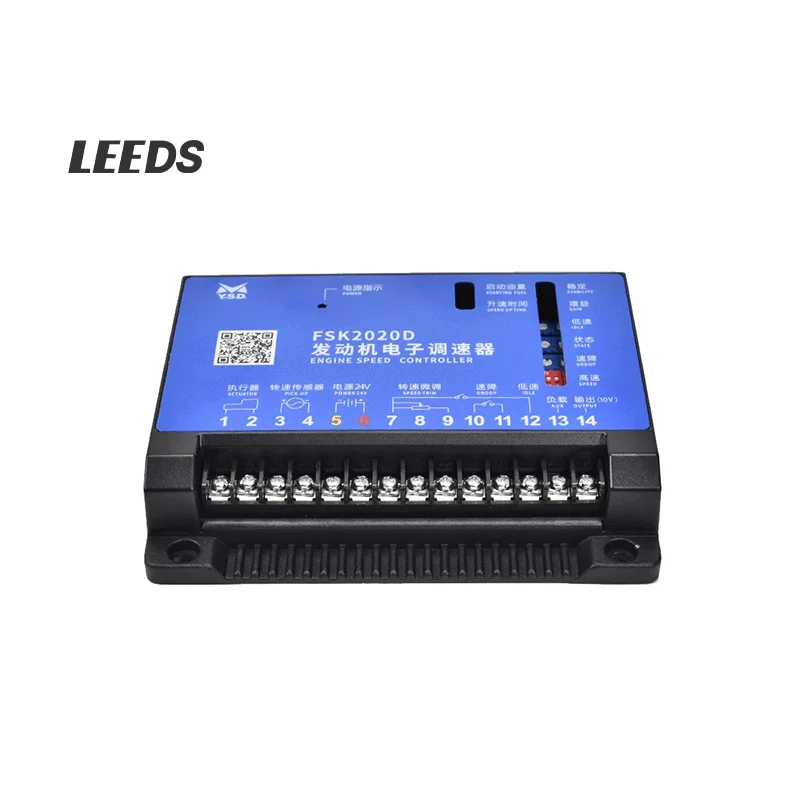

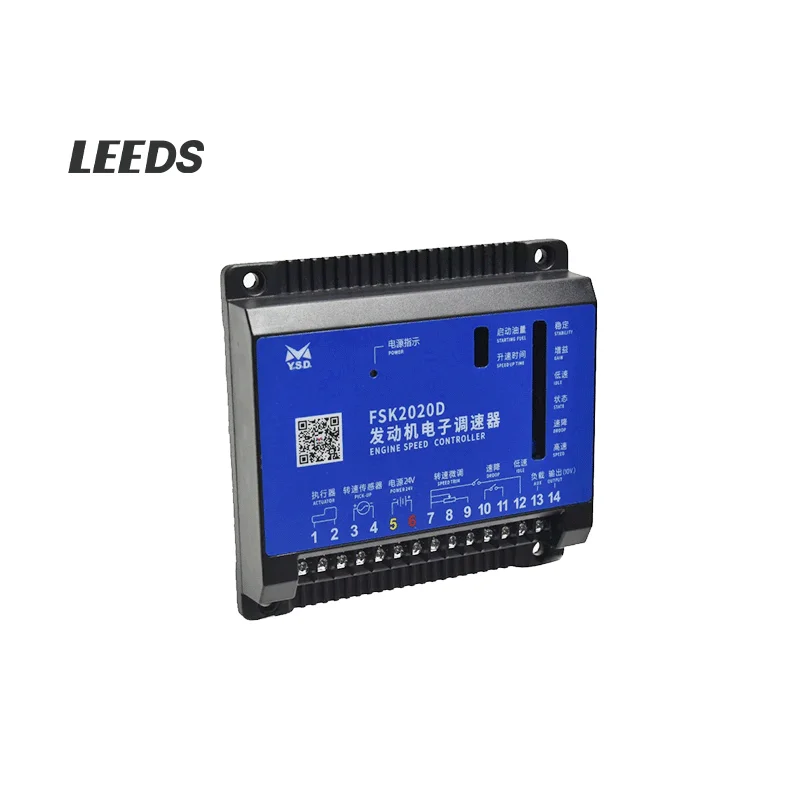

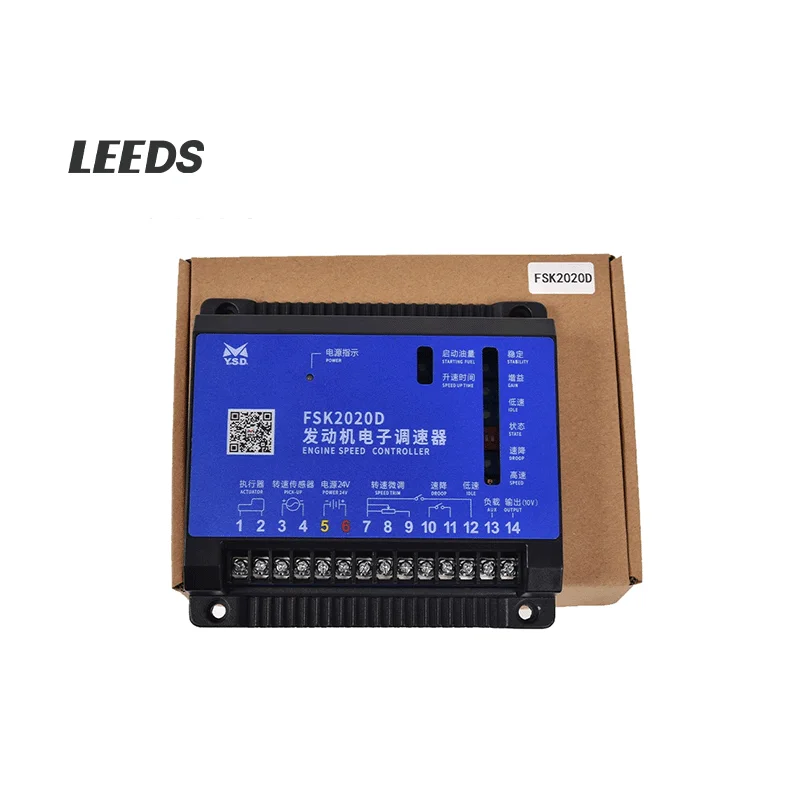

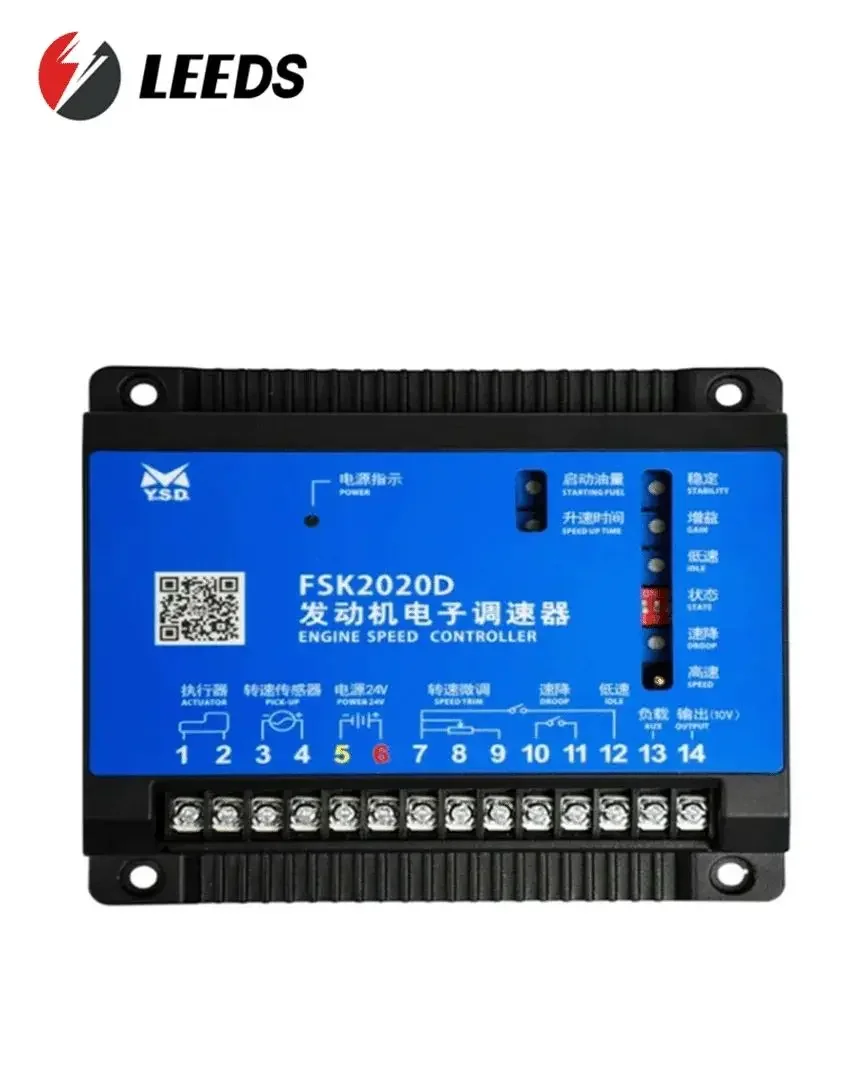

FSK2020D Diesel Generator Electric Control Engine Speed Controller Speed Control Board
- Category: >>>
- Supplier: Fuzhou Leeds Electric Co. Ltd.
Share on (1601090962272):
Product Overview
Description
Products Description
Model Number： | FSK2020D | Weight： | 1KG |
Stock： | 1000pcs | Brand Name： | Deep Sea |
Color： | Black | Place of Origin： | Fujian, China |
Quality： | High-Quality | Warranty： | 3months-1year |
Description
The FSK2020D engine electronic speed controller has precise and fast speed regulation, adjustable steady-state speed regulation
rate, and separate settings for high and low speeds
Wide speed setting range, adjustable starting oil volume, adjustable acceleration time, full range speed regulation, automatic
parallel interface, and other functions. Usually in
After the installation and connection are correct, users do not need to adjust and can use it normally. It, together with
actuators and sensors, forms the engine speed control system
The system can control small and medium-sized diesel and gas engines.
2、 Technical indicators
Power supply voltage: 24VDC
Speed fluctuation rate:<± 0.25%
Speed signal: 0.5~120VAC
Speed up and down time: 5-30 seconds adjustable
Temperature drift:<± 0.5%
Relative humidity:<95%
Output current:<5A
High speed setting range: 1K~7.5KHZ
Steady state speed regulation rate: 0~5%
Speed fine adjustment: ± 200Hz (external 10K potentiometer)
Environmental temperature:
-30C~+70C
Impact: 2G
rate, and separate settings for high and low speeds
Wide speed setting range, adjustable starting oil volume, adjustable acceleration time, full range speed regulation, automatic
parallel interface, and other functions. Usually in
After the installation and connection are correct, users do not need to adjust and can use it normally. It, together with
actuators and sensors, forms the engine speed control system
The system can control small and medium-sized diesel and gas engines.
2、 Technical indicators
Power supply voltage: 24VDC
Speed fluctuation rate:<± 0.25%
Speed signal: 0.5~120VAC
Speed up and down time: 5-30 seconds adjustable
Temperature drift:<± 0.5%
Relative humidity:<95%
Output current:<5A
High speed setting range: 1K~7.5KHZ
Steady state speed regulation rate: 0~5%
Speed fine adjustment: ± 200Hz (external 10K potentiometer)
Environmental temperature:
-30C~+70C
Impact: 2G
