Micro Drip Irrigation System Agricultural Plastic Drip Irrigation Pipe Production Line
- Category: >>>
- Supplier: Qingdao Xindacheng Plastic Machinery Co. Ltd.
Share on (1601090987292):
Product Overview
Description
Product Overview
Micro Drip Irrigation System Agricultural Plastic Drip Irrigation Pipe Production Line
● High degree of automation, saving labor costs；
● Production speed 400~450m/min；
● Obtained 16 national patents;
● Jointly popularized by XINDACHENG and the Water Conservancy & Hydropower Science Research Institute,the quality is very reliable.
Model | Max.Production Speed | Diameter | Thickness | Distance of Dripper | Pipe Wall |
XDC-400 | 400 m/min | φ12-25mm | 0.12-0.9mm | 100-1000mm | 1 & 2 & 3 layers |
XDC-450 | 450 m/min |
Main Components of Production Line

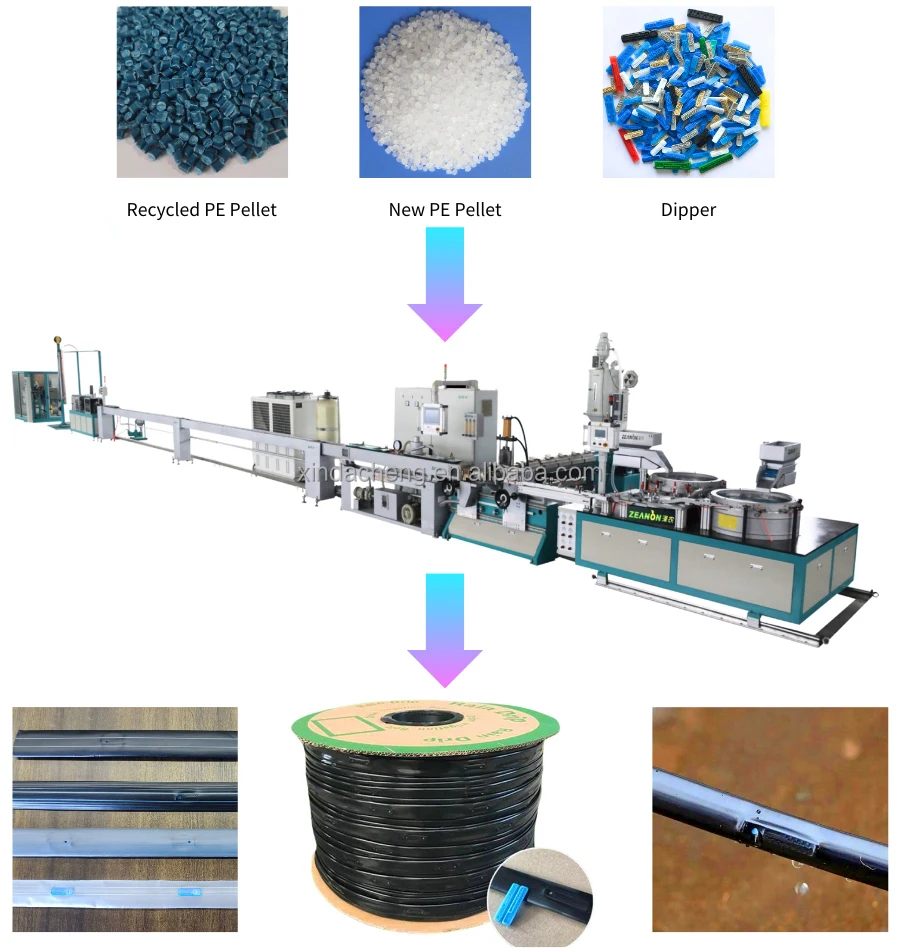

The whole Flat Dripper Irrigation Pipe Production Line mainly consists of the following parts:
No | Item | Quantity |
1 | Automatic dripper screening & storage & conveying & embedding unit | 1 set |
2 | Single screw extruder with automatic feeding system | 1 set |
3 | Die head and dripper sticking device | 1 set |
4 | Vacuum calibration tank and water cooling tank (including chiller & water circulation filtration system) | 1 set |
5 | Full automatic punching machine Automatic online imaging, monitoring, analyzing and alarming system Haul-off machine | 1 set 1 set 1 set |
6 | Accumulate device | 1 set |
7 | Full automatic winding and roll changing machine | 1 set |
8 | PLC automatic control system and electric cabinet | 1 set |

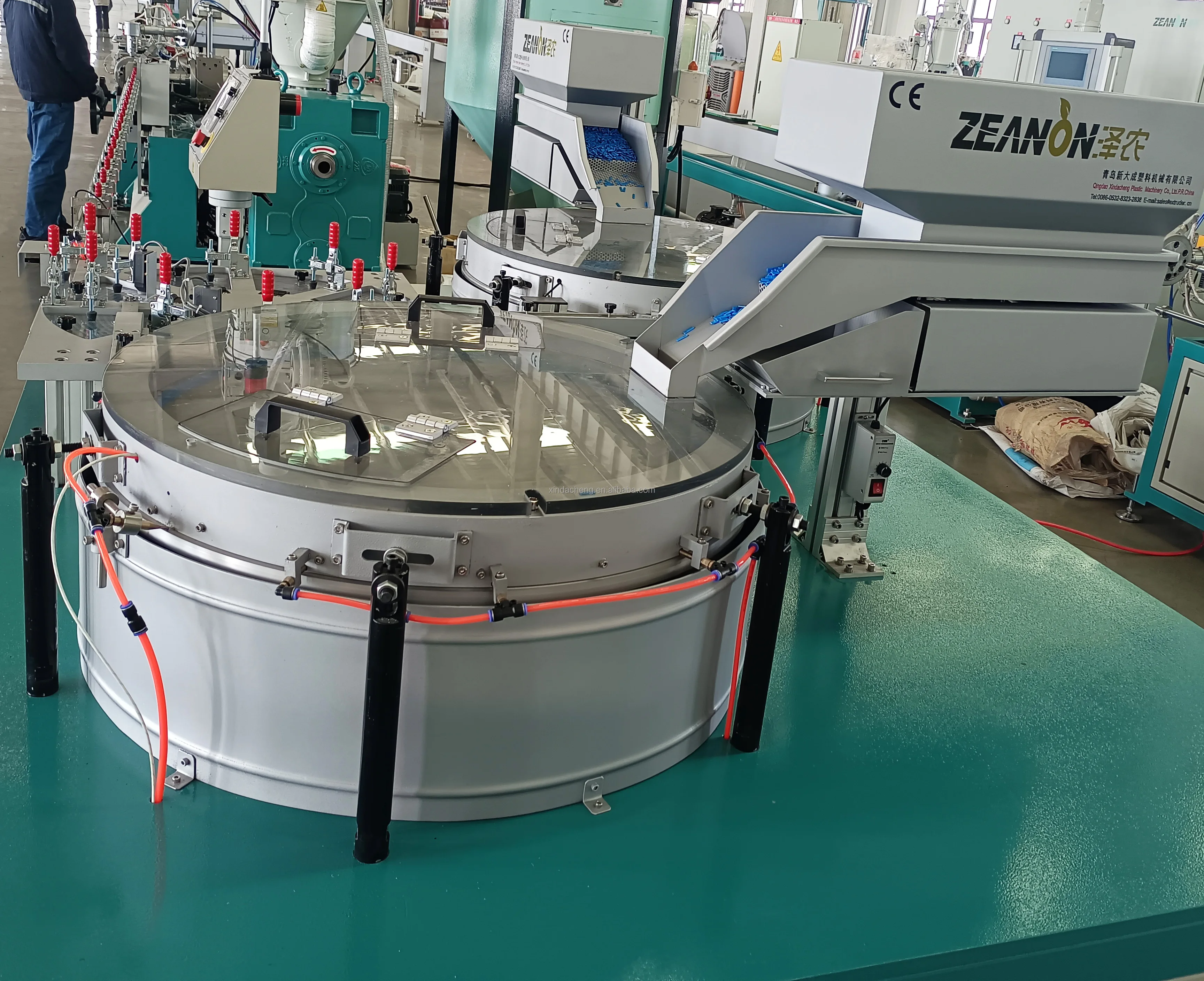

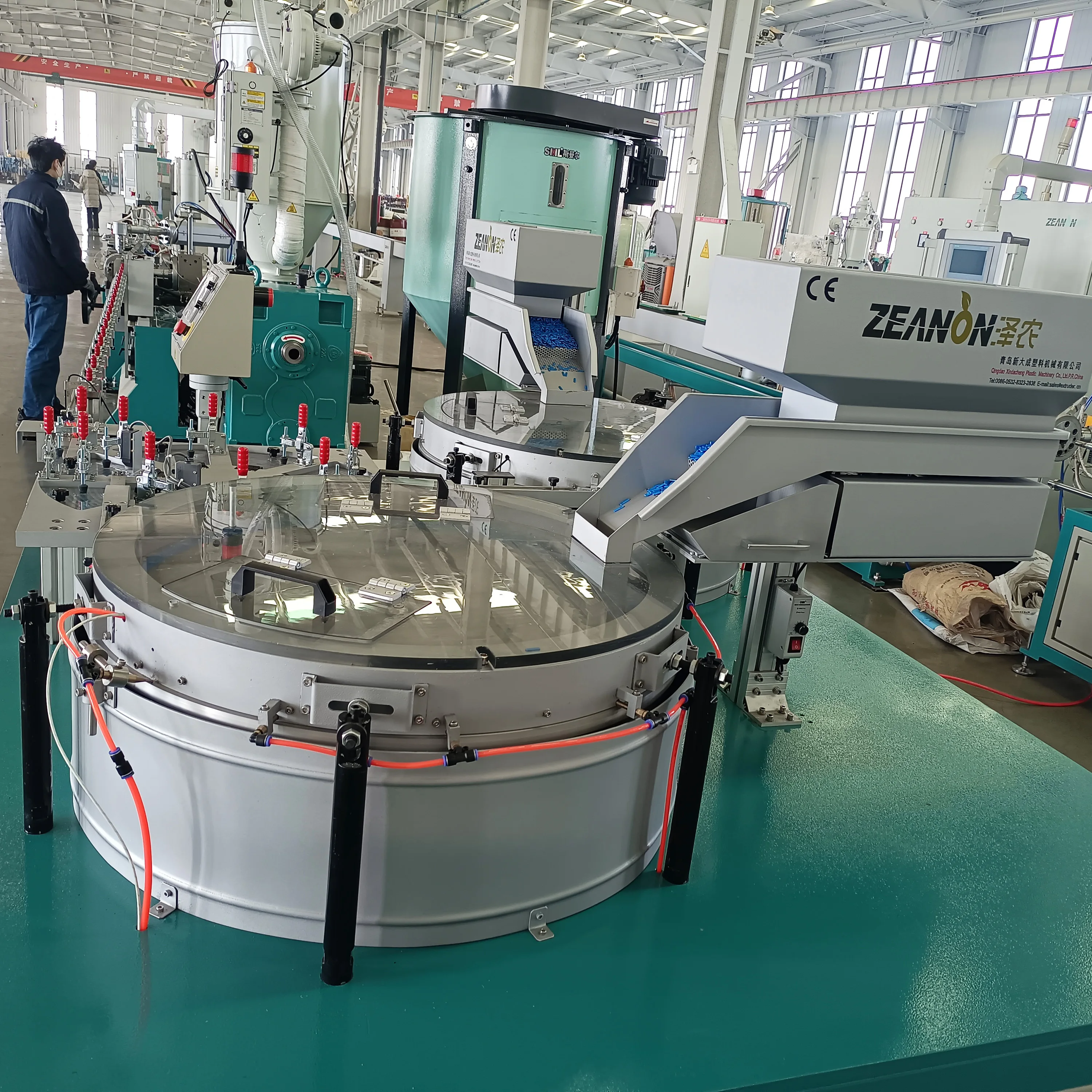

1. Automatic dripper screening & storage & conveying & embedding unit
(a) High-speed dripper screening machine introduced from Europe, can supply more than 2,500 or 4,500 drippers per minute.
(b) Storage device can store more than 1,500 drippers to ensure continuous and stable production.
(c) Special identification device can ensure that the dripper is 100% qualified.

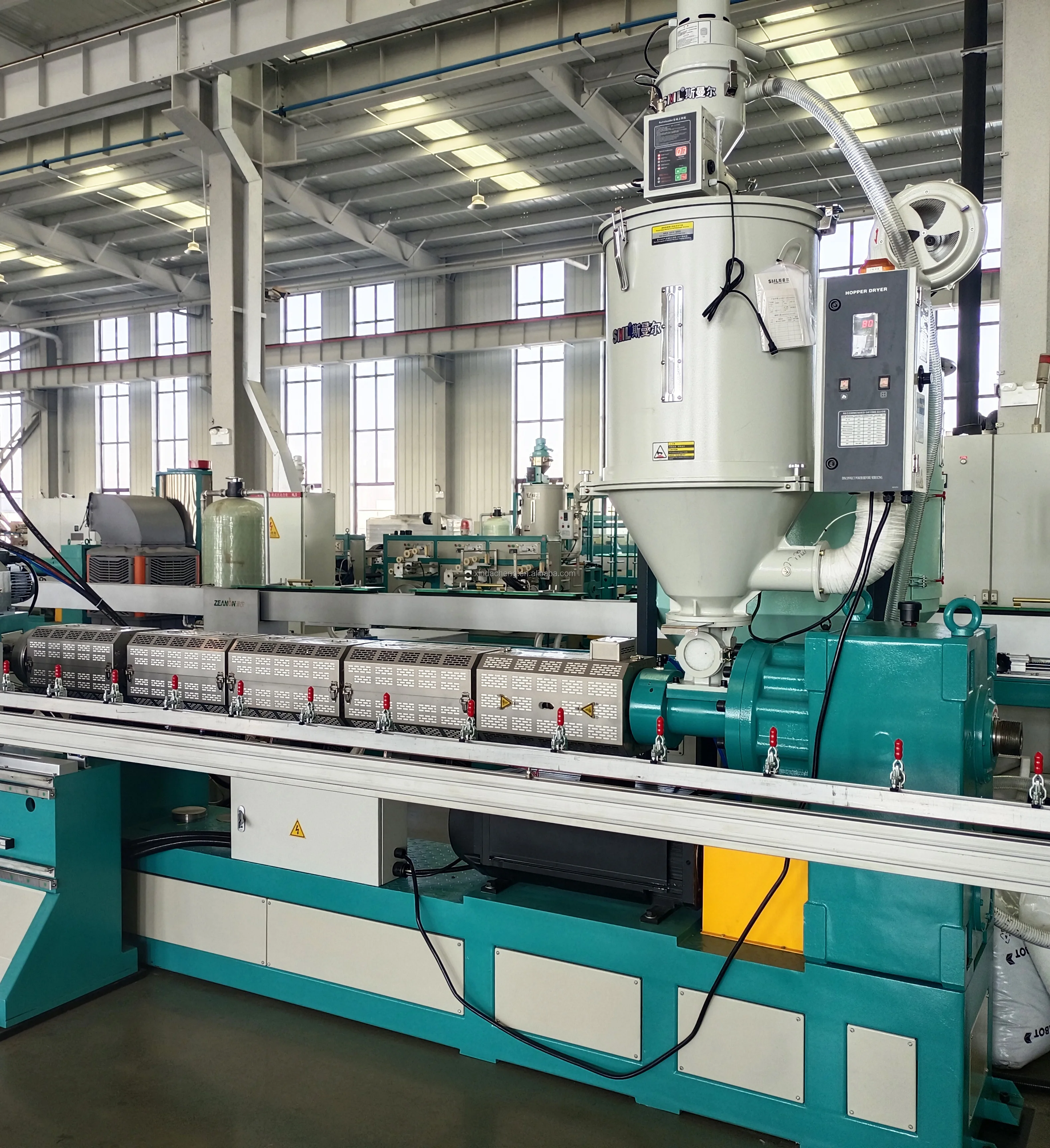

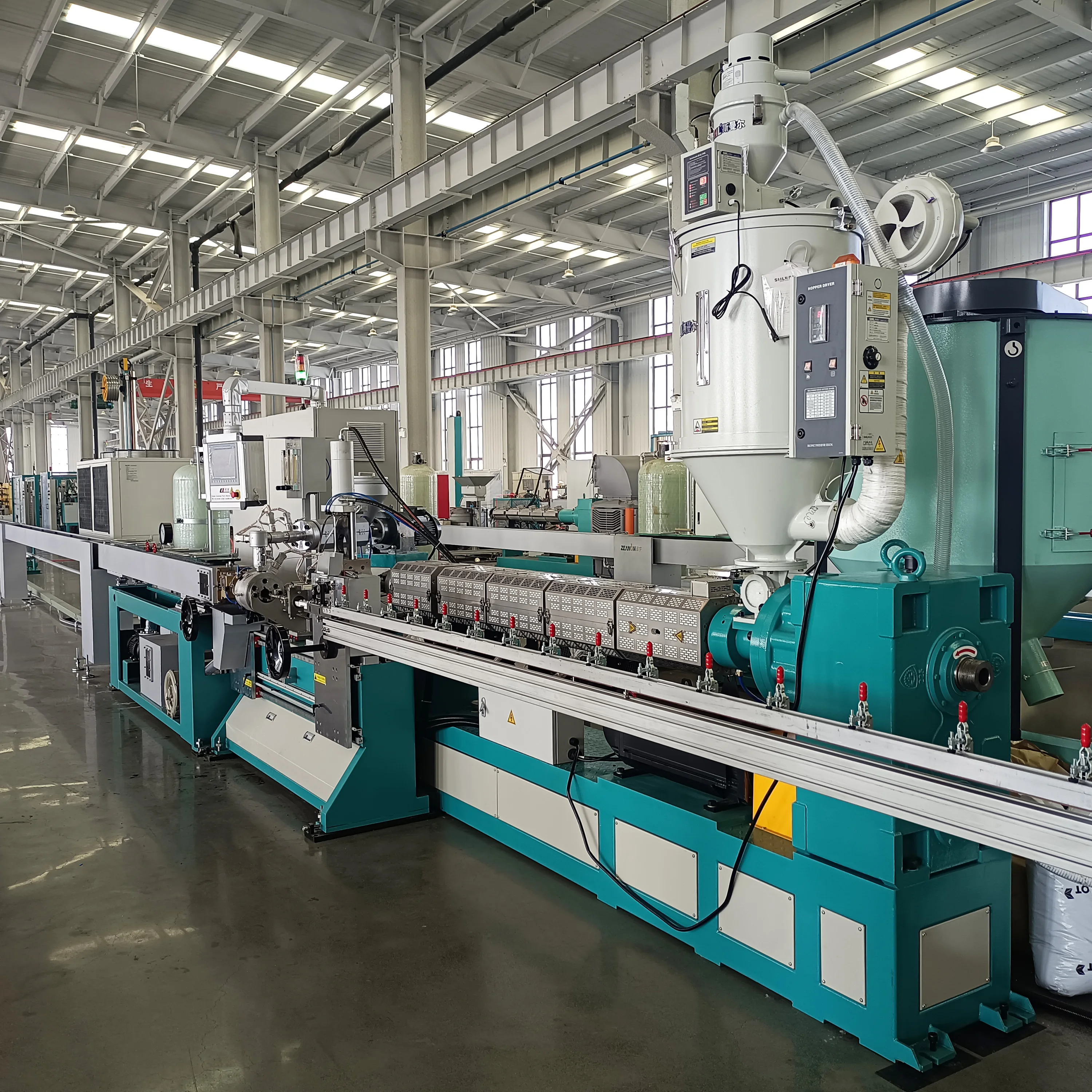

2. Single screw extruder with automatic feeding system
(a) High-speed special screw and PLC temperature control system ensure high efficiency and high output.
(b) Both recycled or new PE materials are available, the proportion of recycled materials can reach 80%.
(c) Production Speed: 400 or 450 m/min.

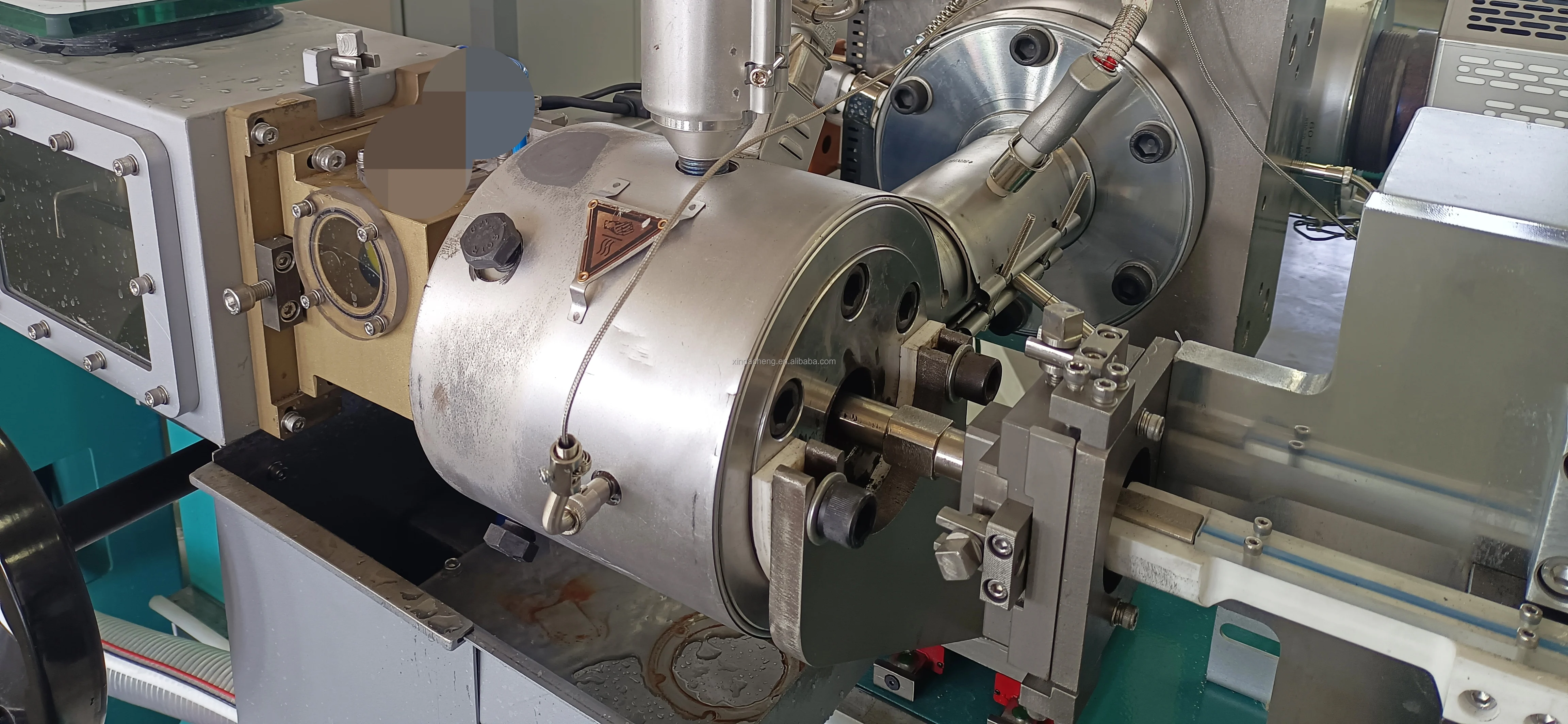

3. Die head and dripper sticking device
(a) Special design and materials, no need to adjust wall thickness.
(b) It is very reliable when producing thickness 0.12-0.15mm pipes at high speed.
Thickness 0.15mm pipe only weighs 7g/m, saving raw material costs.
(c) It can produce reinforced drip irrigation pipes, increase the stretching strength of the pipes by 15-20% at the same wall thickness and weight.

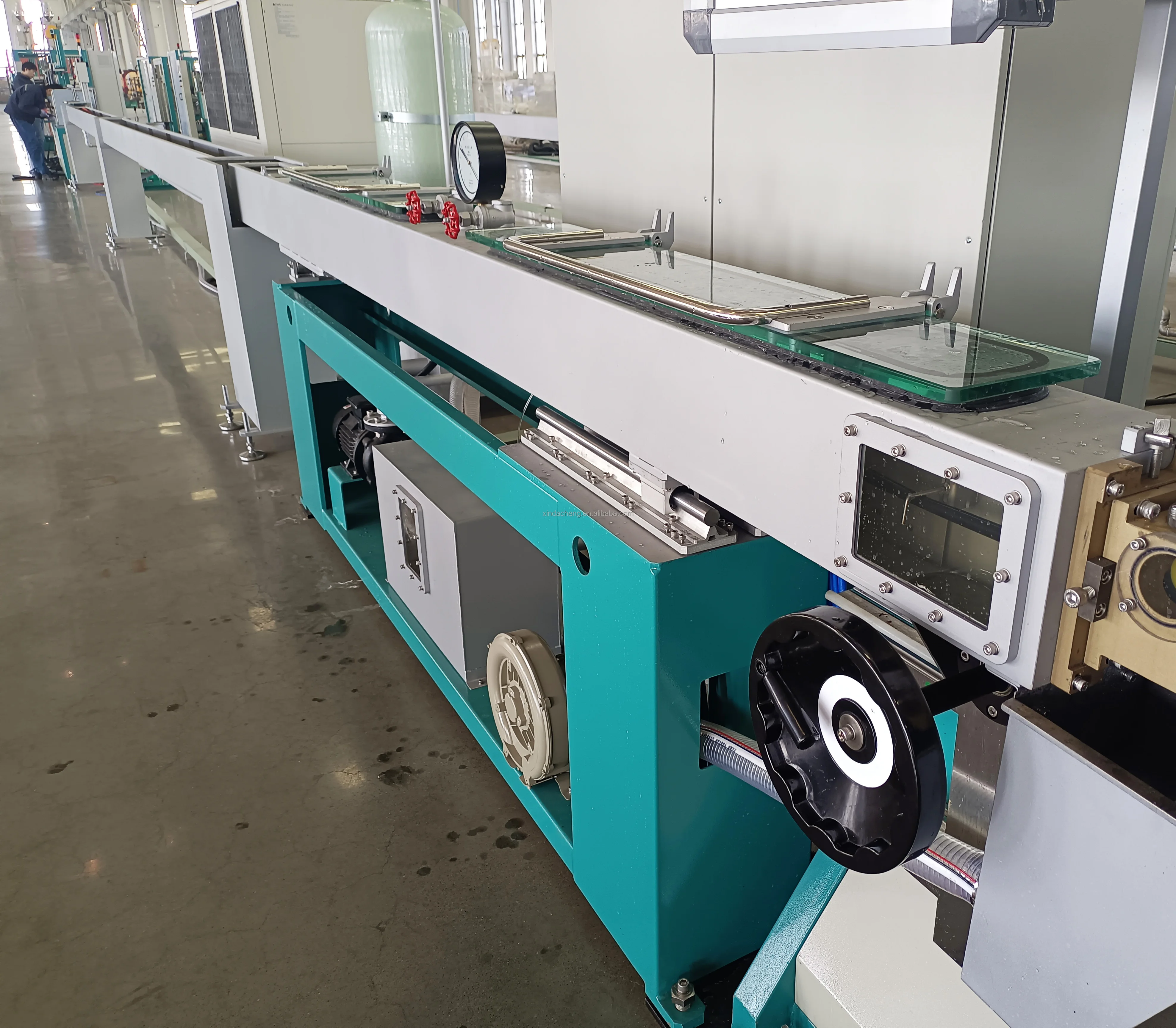

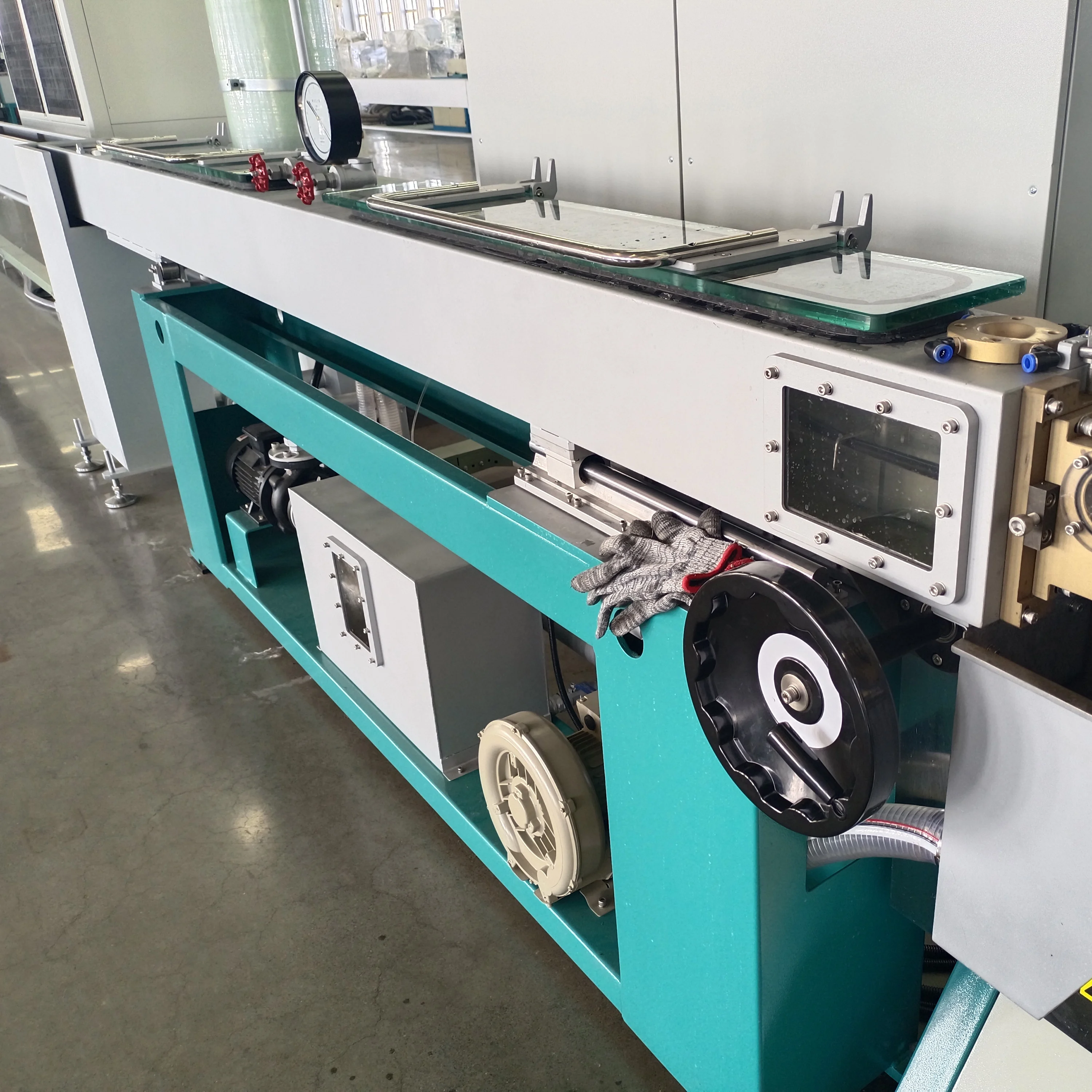

4. Vacuum calibration tank and water cooling tank (including chiller & water circulation filtration system)
(a) Under high-speed production, the tanks calibrate and cool the pipe and makes the dripper stick more firmly.
(b) Equipped with anti-rotation pipe device, pipe break alarm systems and automatic detection and alarm device for pinhole in pipe wall.
(c) Independent cool water providing device and water filter device, realized auto-adjustment of cool water and hot water, make sure of production water clean.

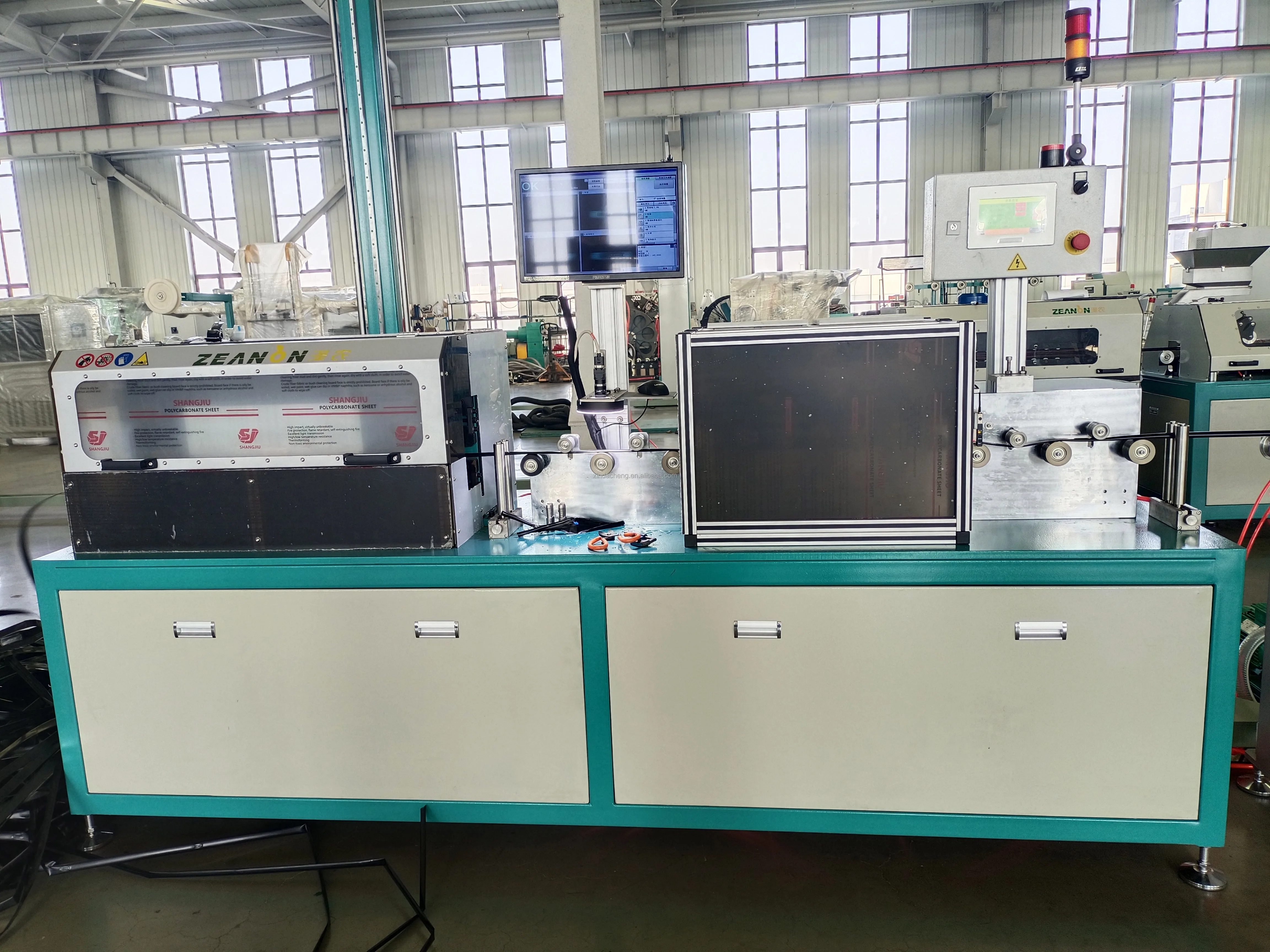

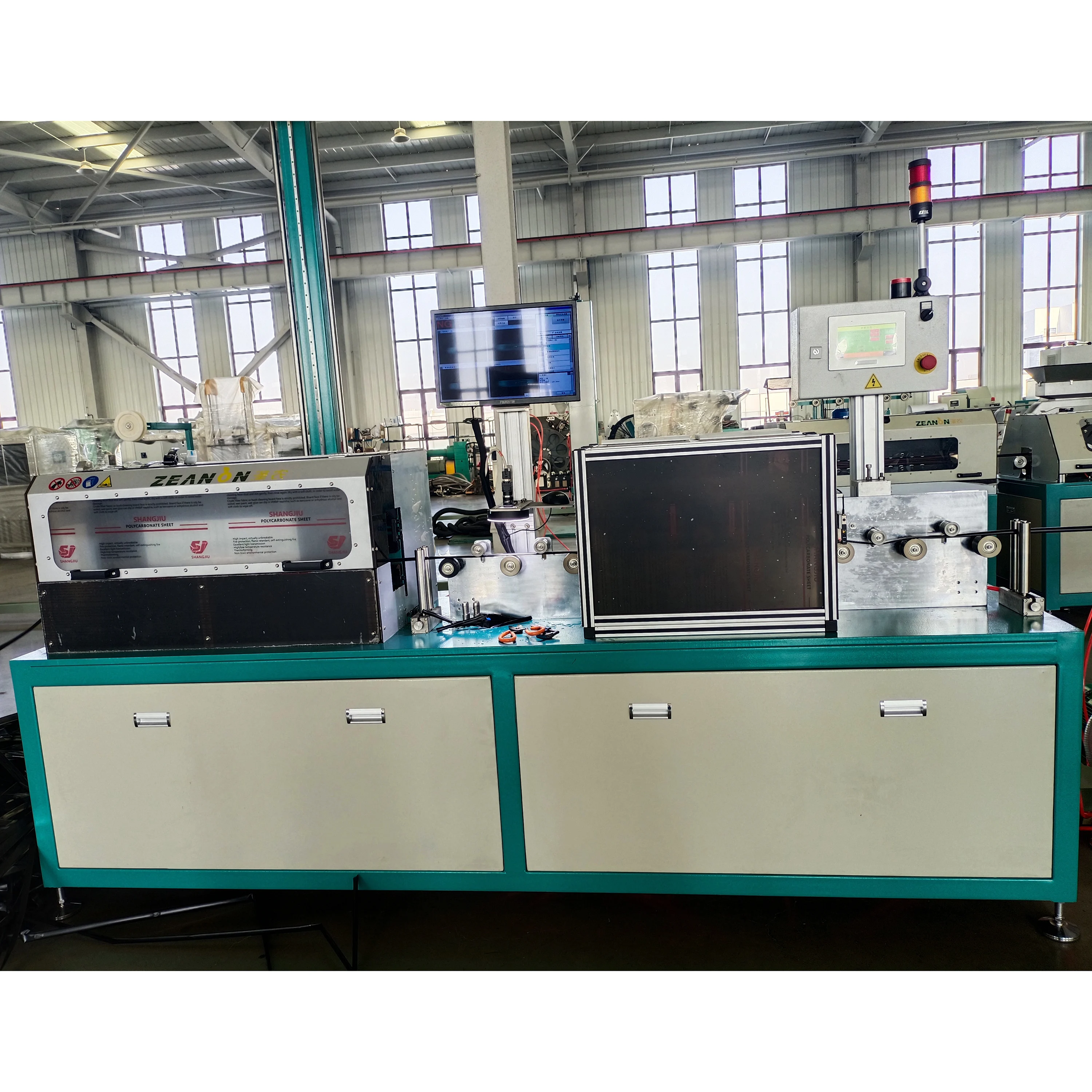

5.1 Full automatic punching machine
(a) Adopting advanced European technology, it can punch more than 3000-5000 holes per minute;
(b) PLC control system, high-speed, high-accuracy punching and effective monitoring.
5.2 Automatic online imaging, monitoring, analyzing and alarming system
(a) Take photo and analyze of every hole and storage information under high speed production.
(b) Once there is an error in the hole, it will automatically alarm.
(c) This system works online with the winding machine to avoid winding the drip irrigation pipes with unqualified holes.
5.3 Haul-off machine
(a) Ensure high-speed synchronization of the pipe, smooth traction, and control the speed through the servo motor.

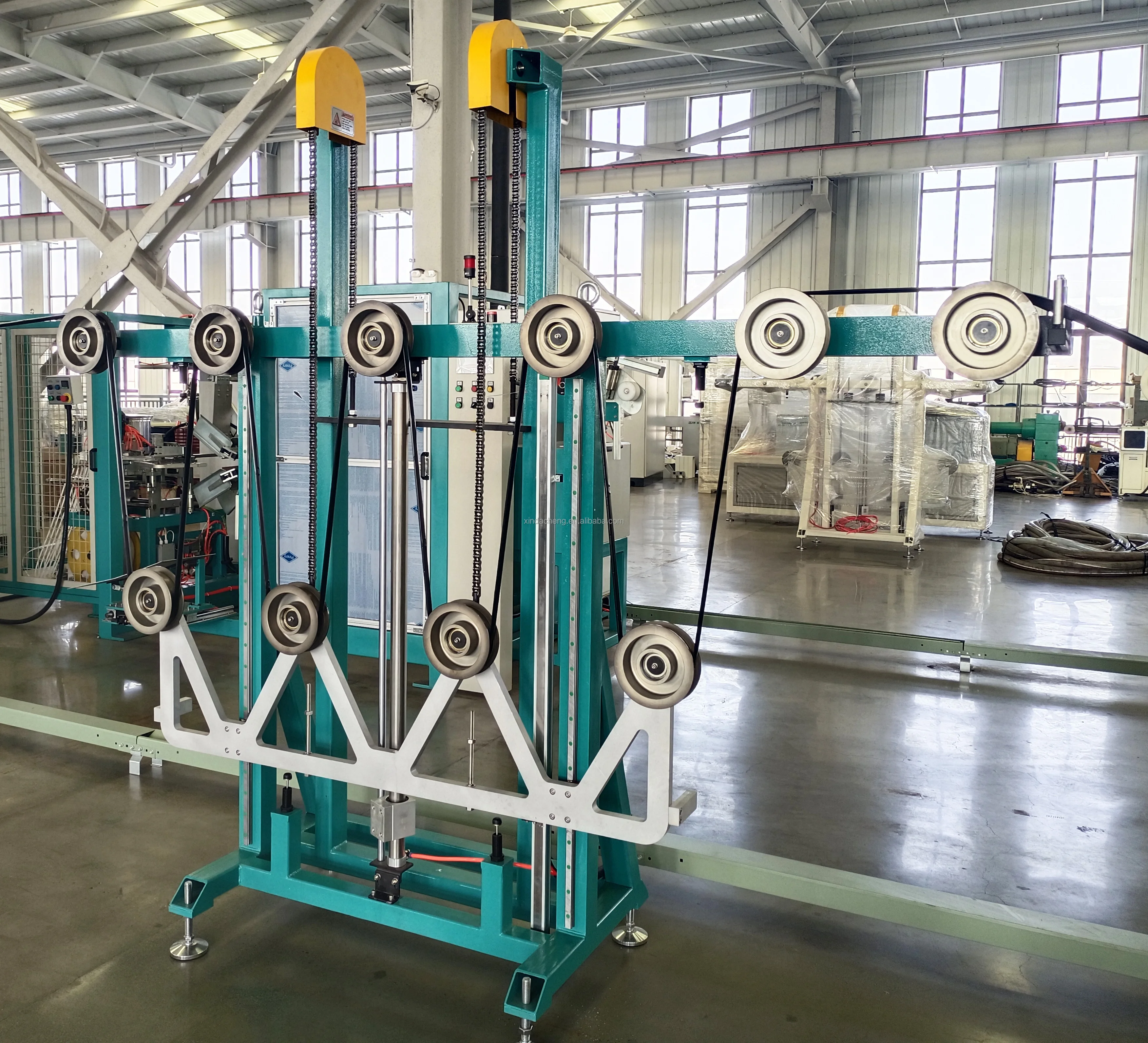

6. Accumulate device
(a) Automatic accumulate device can prevent the drip irrigation pipe fall to the ground during the roll changing process.

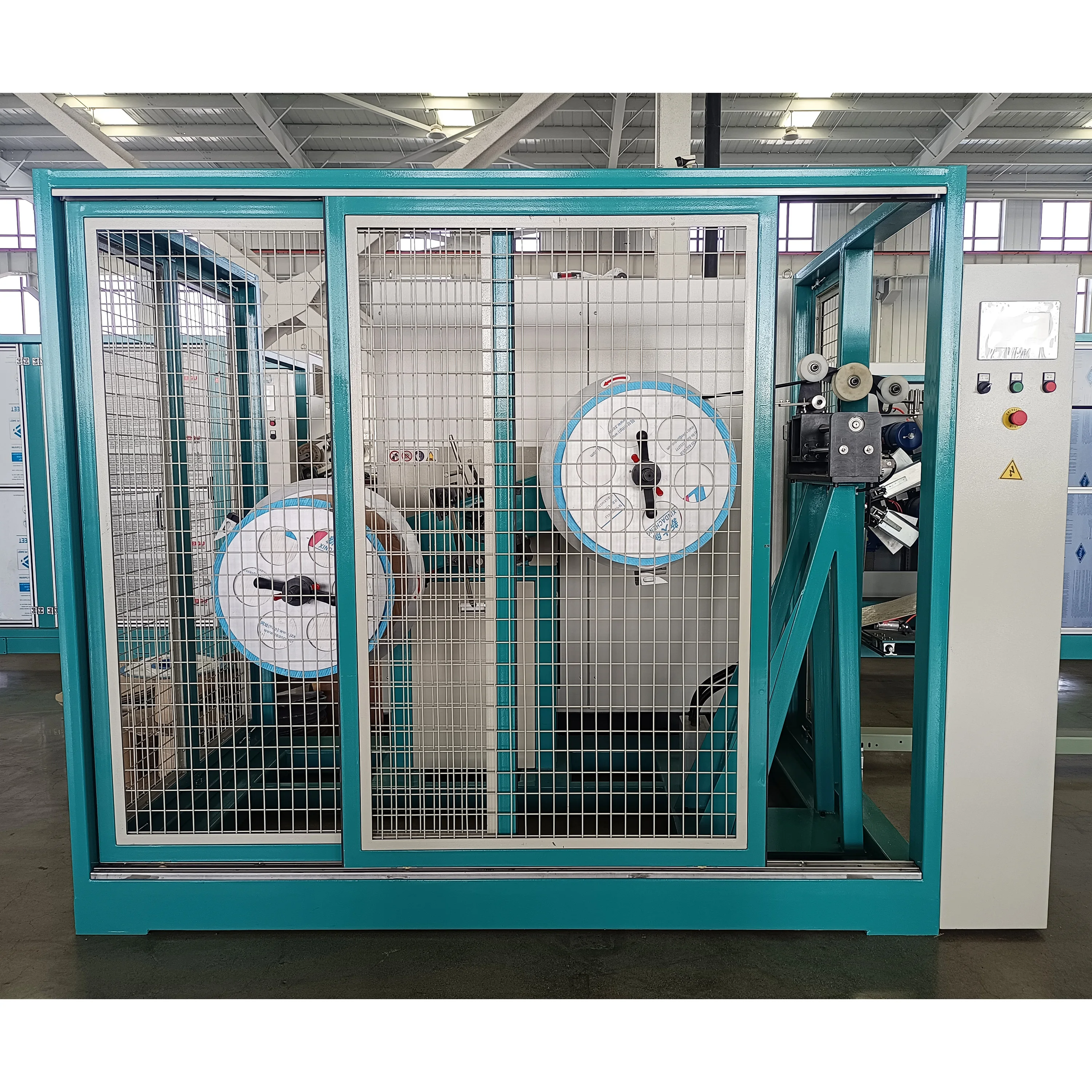

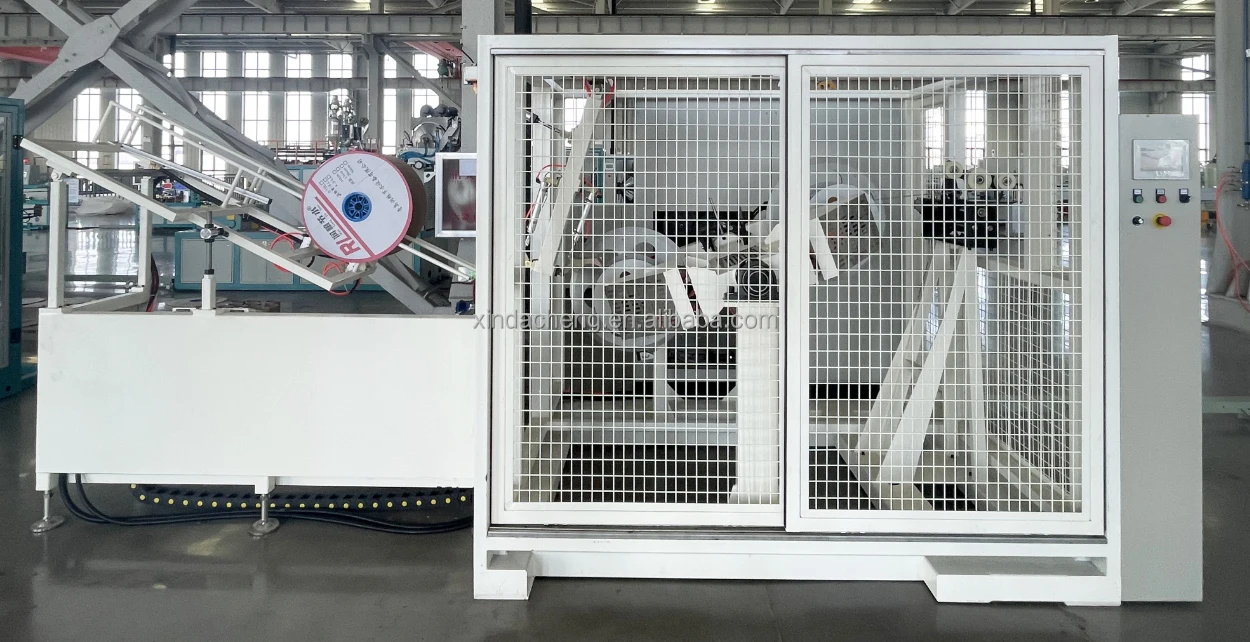

7. Full automatic winding and roll changing machine
(a) Can automatically complete the pipe displacement, winding, cutting, roll changing and meter counting.
(b) Winding speed will be easily operate and control by PLC system.
(c) Fully enclosed safety protection structure.
Other Related Products
We also manufacture and sell drippers and injection molding machines for the convenience of our customers：

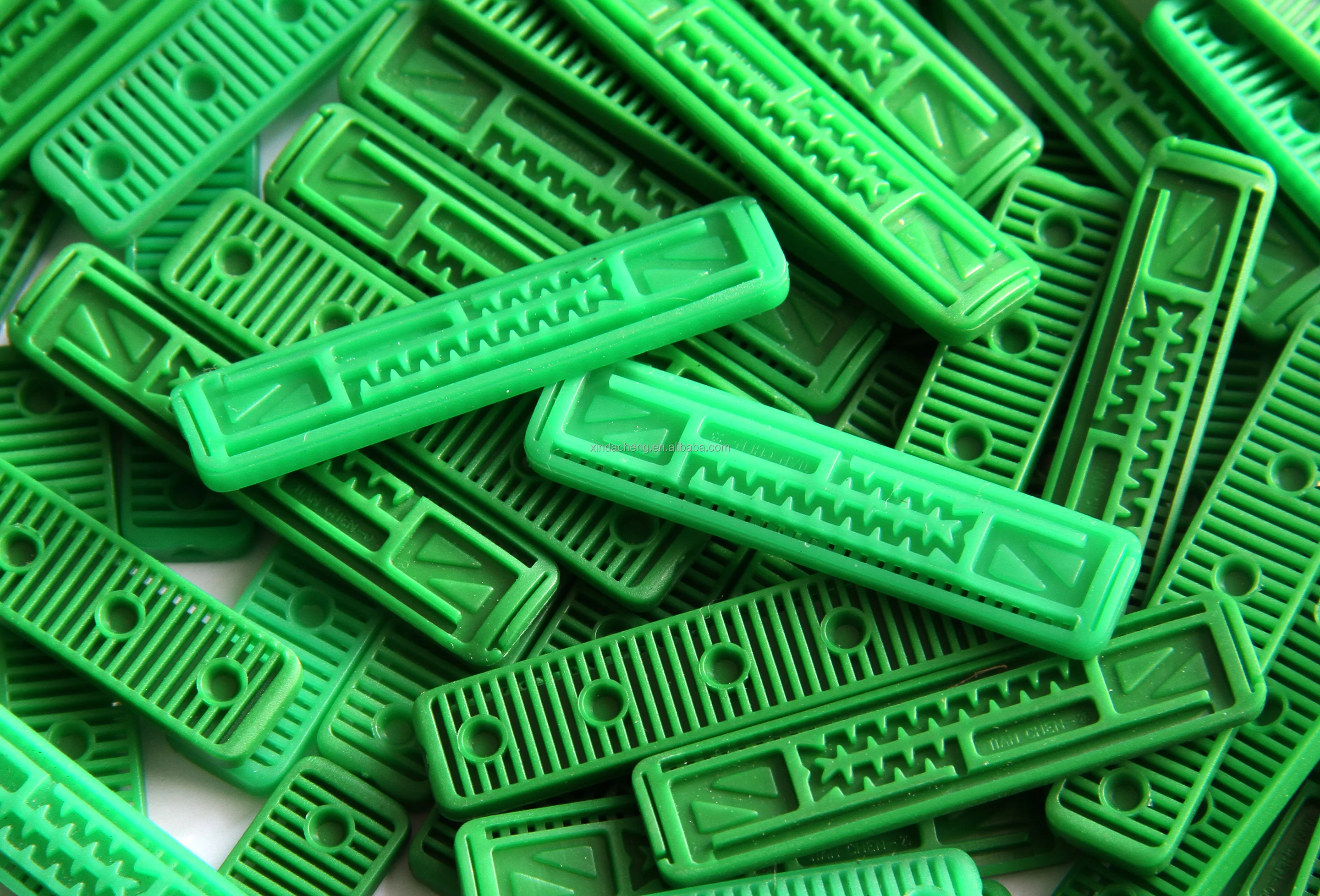

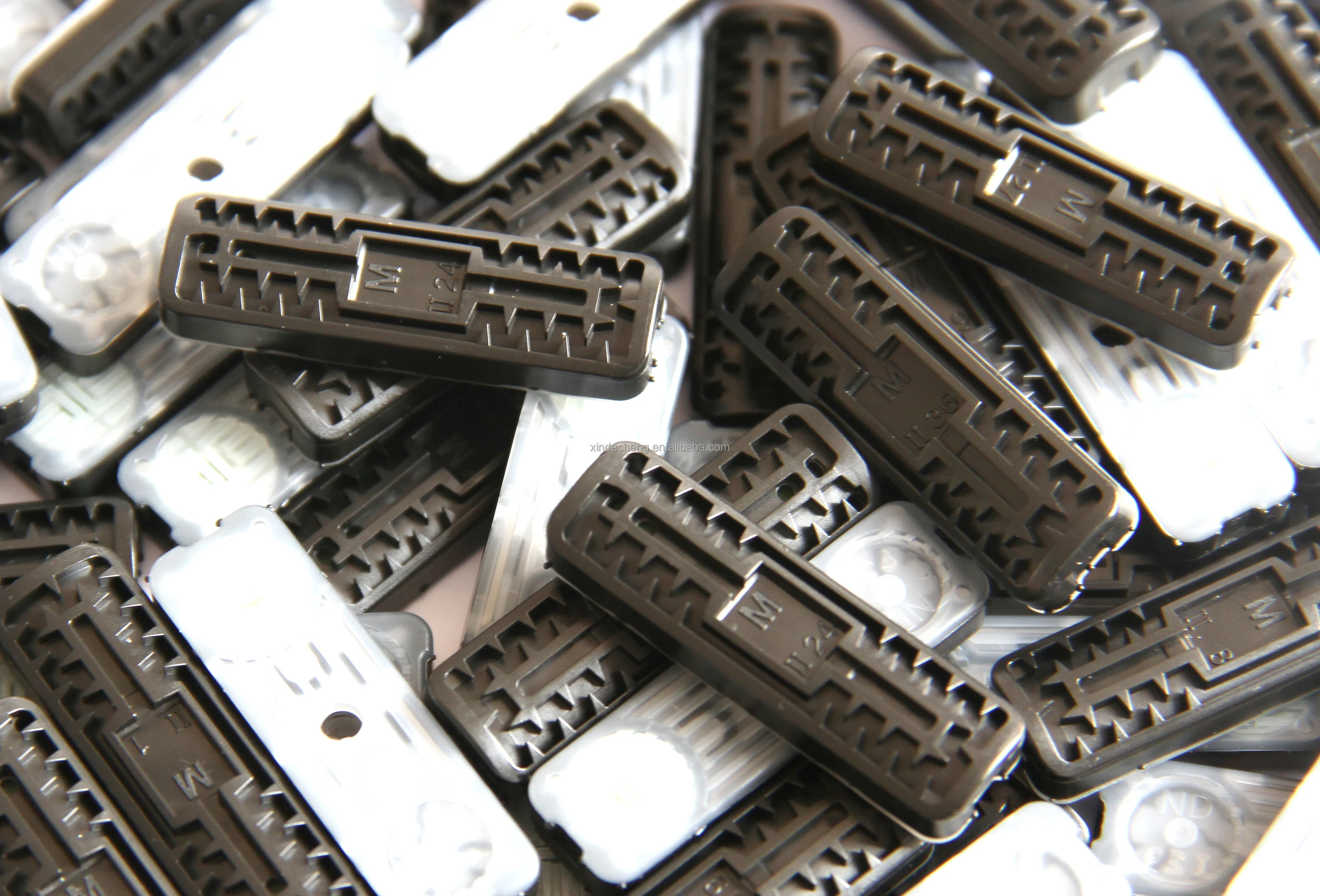

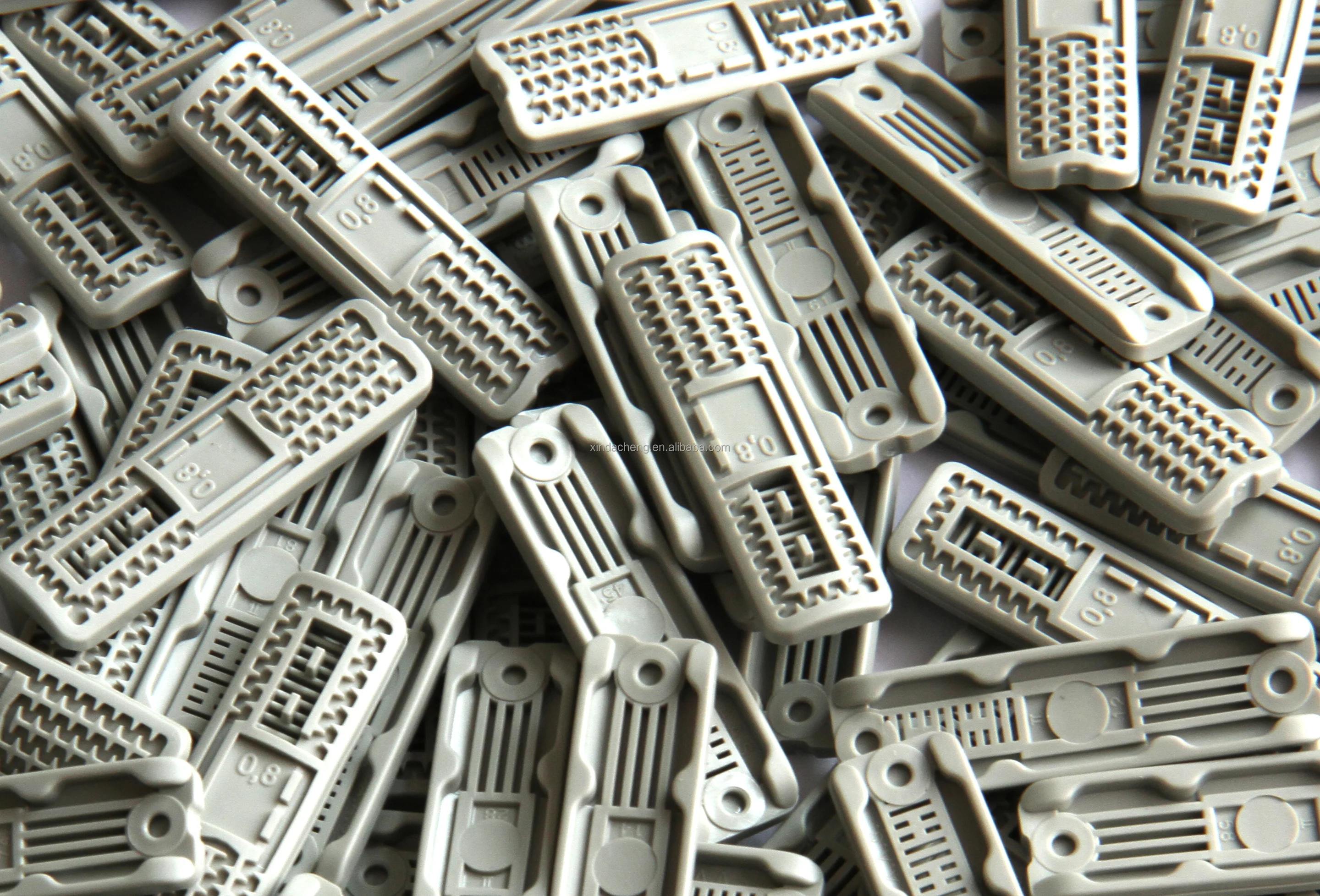

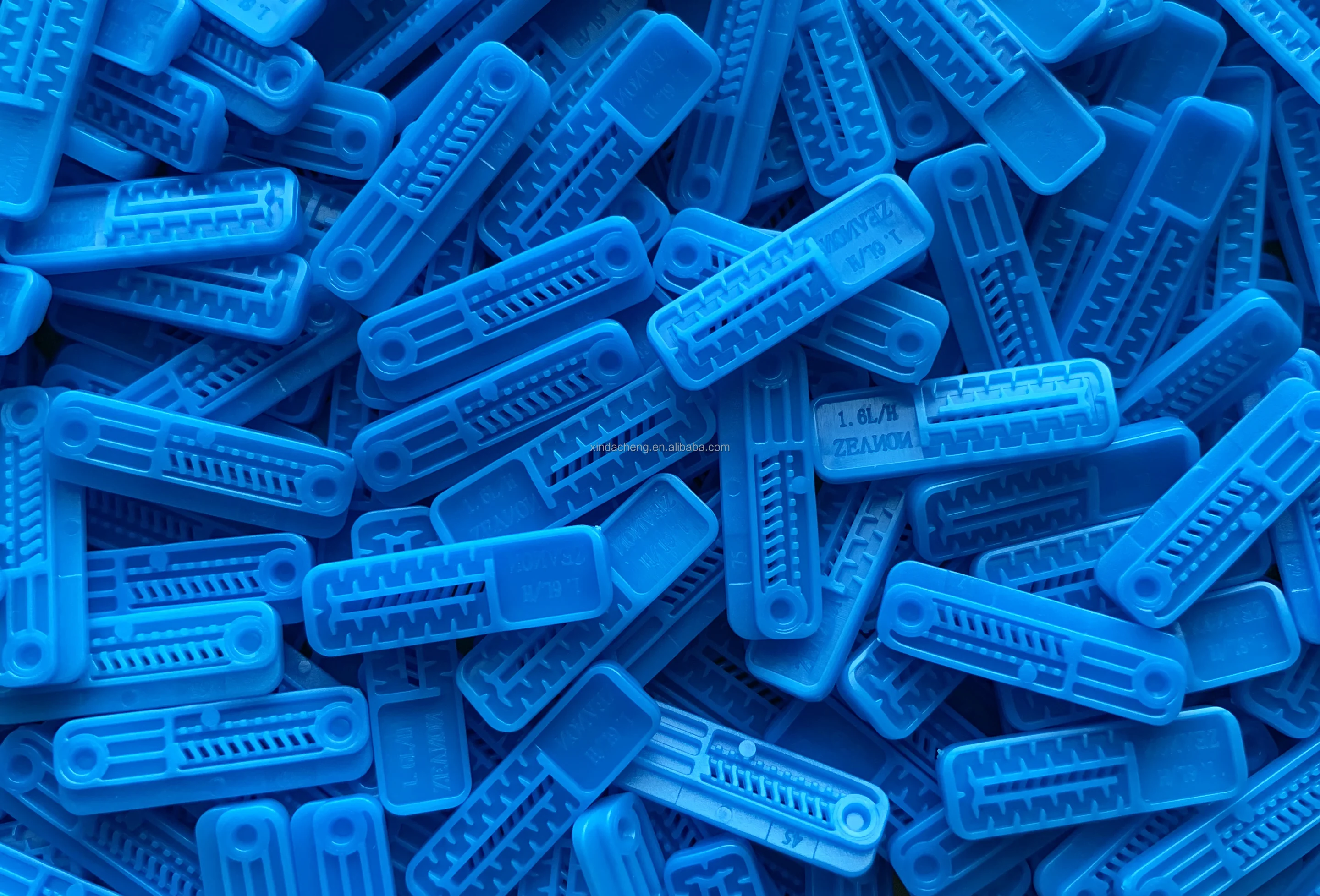

Nano Dipper Middle Drip Hole Dripper Double Hole Dripper PC Dripper

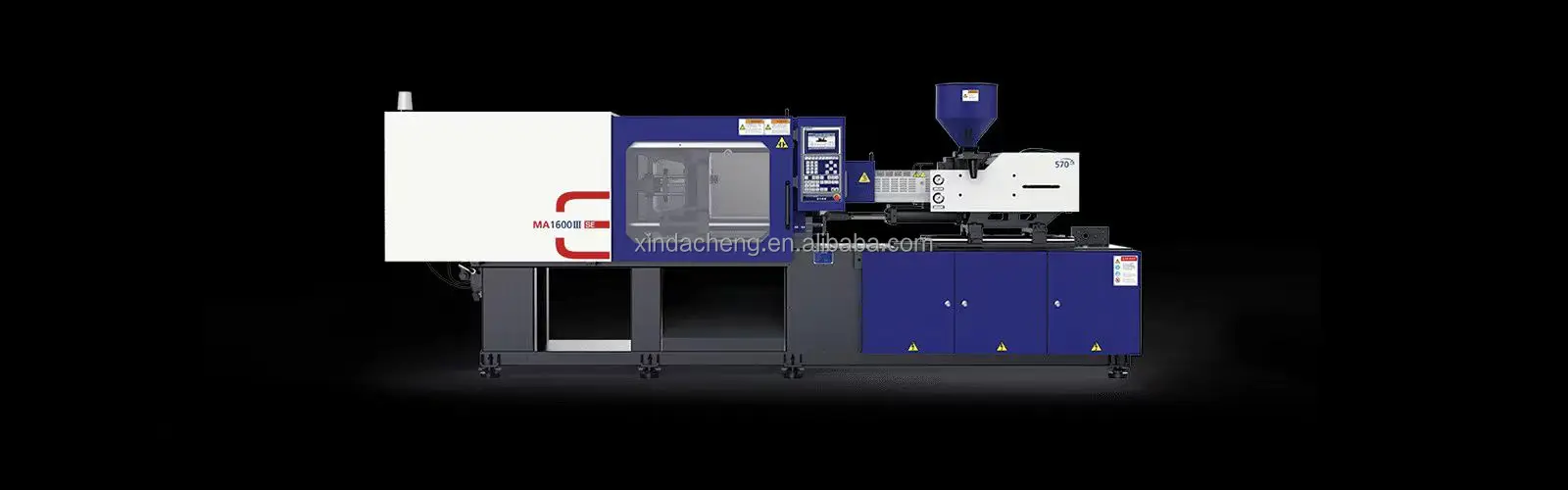

Injection Molding Machine for Dripper

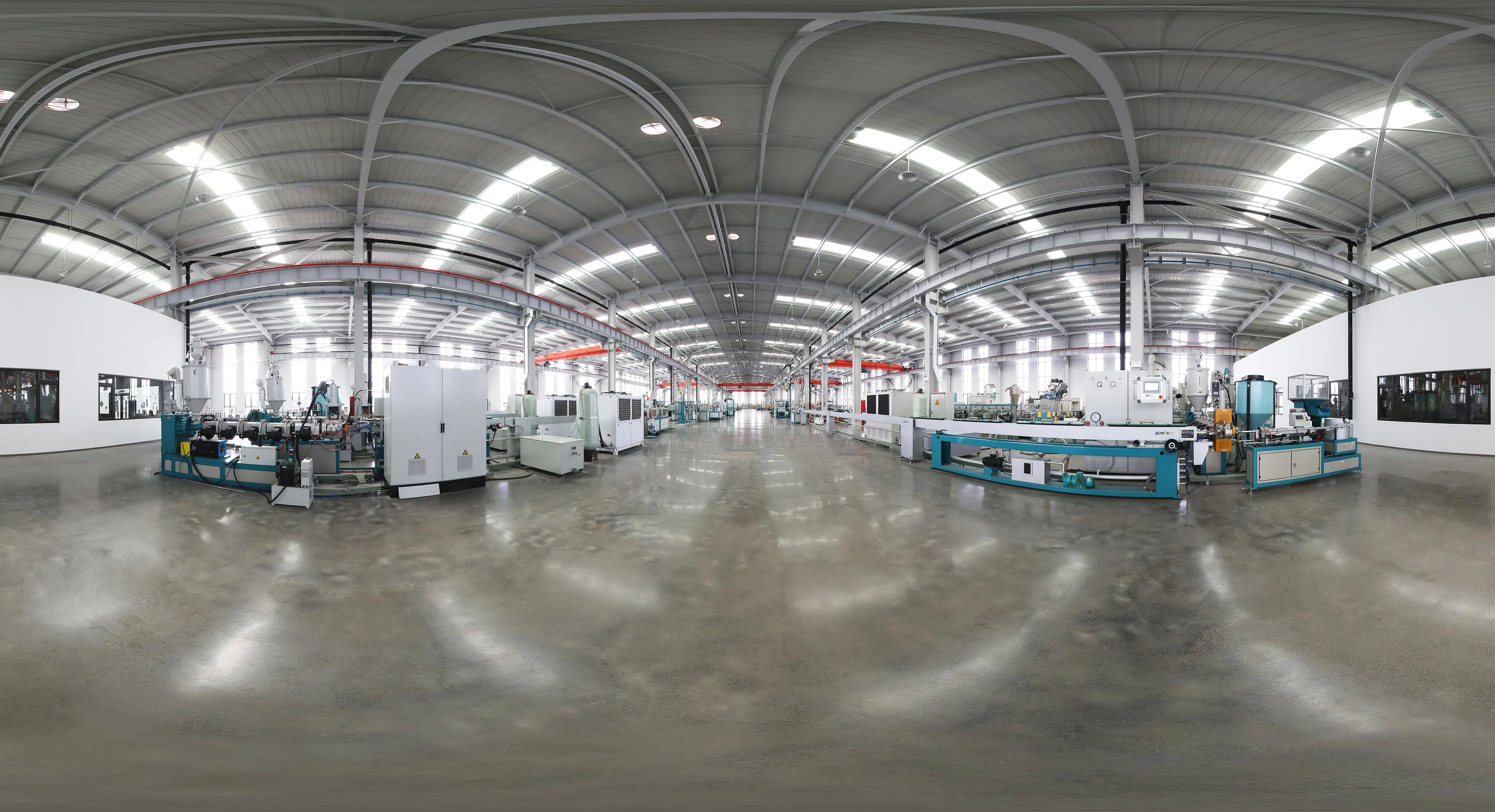

Company Profile

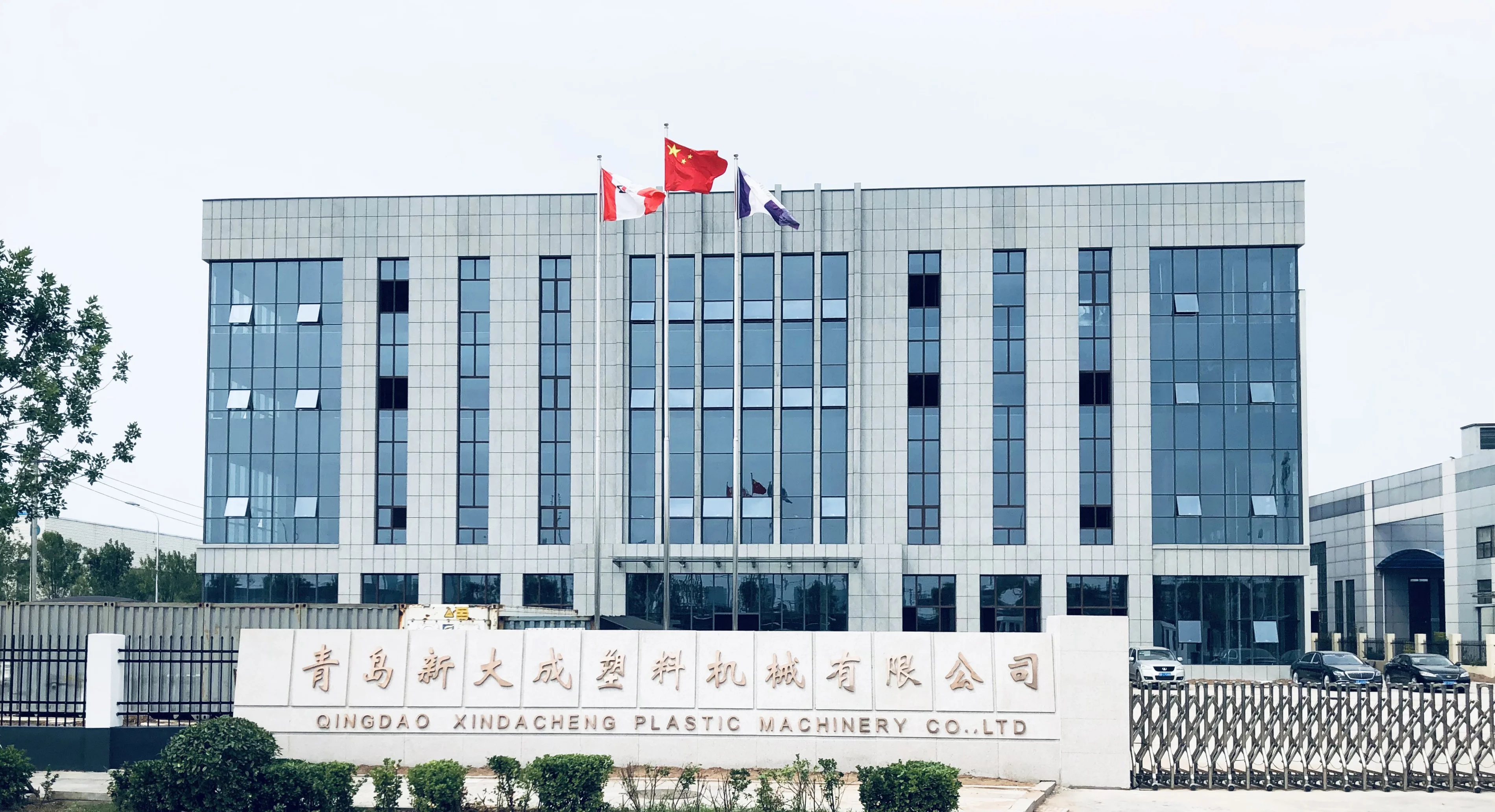

Qingdao Xindacheng Plastic Machinery Co., Ltd
Our company was established in 1998, engaged in R & D, production and sales of new plastic machinery, including drip irrigation pipe production line, PET&PP strap production line, plastic sheet & film production line, plastic pipe production line and other plastic extrusion machinery.
Our leading product is the drip irrigation pipe production line. We are the only company in China that has fully mastered the production technology of internal flat dripper type & round dripper type & internal tape type irrigation pipe production lines.
Have passed the IS09001 quality management system, GB/T29490 intellectual property management system, EU CE and SGS certifications.
Own 12 invention patents and 52 utility model patents. Have won 10 honors including the China "Giant" Award.
Our machines have been sold all over the country and exported to USA, Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech Republic, Turkey, Saudi Arabia, Mexico, Algeria, Egypt, Indonesia, Malaysia and other countries and regions. We have won the appraisement from customers with excellent product quality and perfect after-sales service.
Certificates and Patents
Exhibition
Packaging and Delivery
FAQ
1.Where is our factory? How can the customer get here?
Our factory is located in Qingdao, China. You can take a plane to Jiaodong International Airport (Qingdao), we will pick you up.
2.When was the company founded?
Our company was established in 1998.
3.Delivery time: 60~90 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% ) should be paid before delivery by T/T or irrevocable L/C（at sight).
5.After-sales service:
Free Spare Parts ;
2.When was the company founded?
Our company was established in 1998.
3.Delivery time: 60~90 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% ) should be paid before delivery by T/T or irrevocable L/C（at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
Field maintenance and repair service ;
Video/Online technical support.
