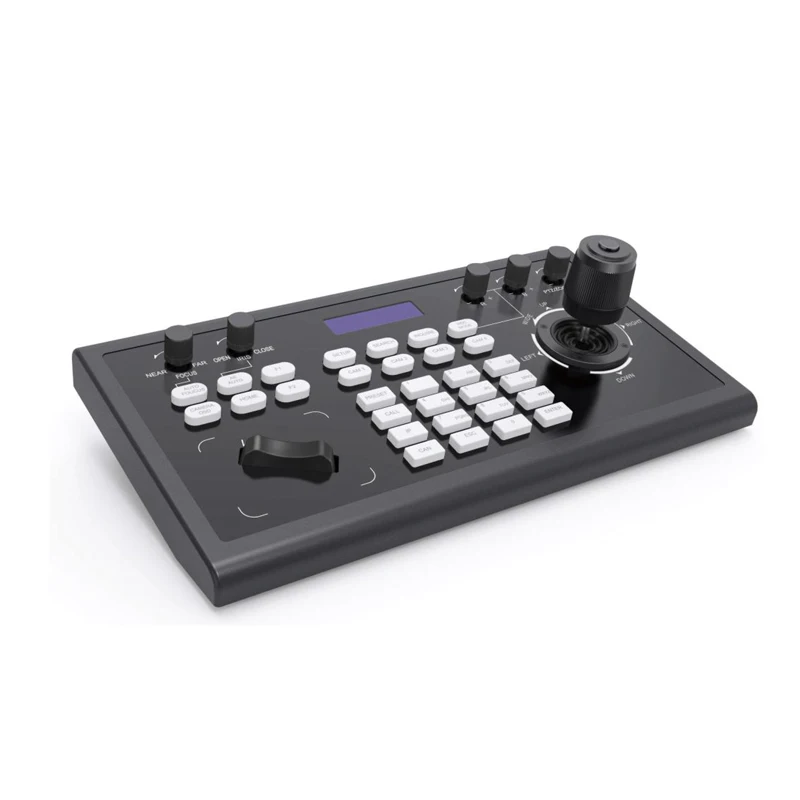

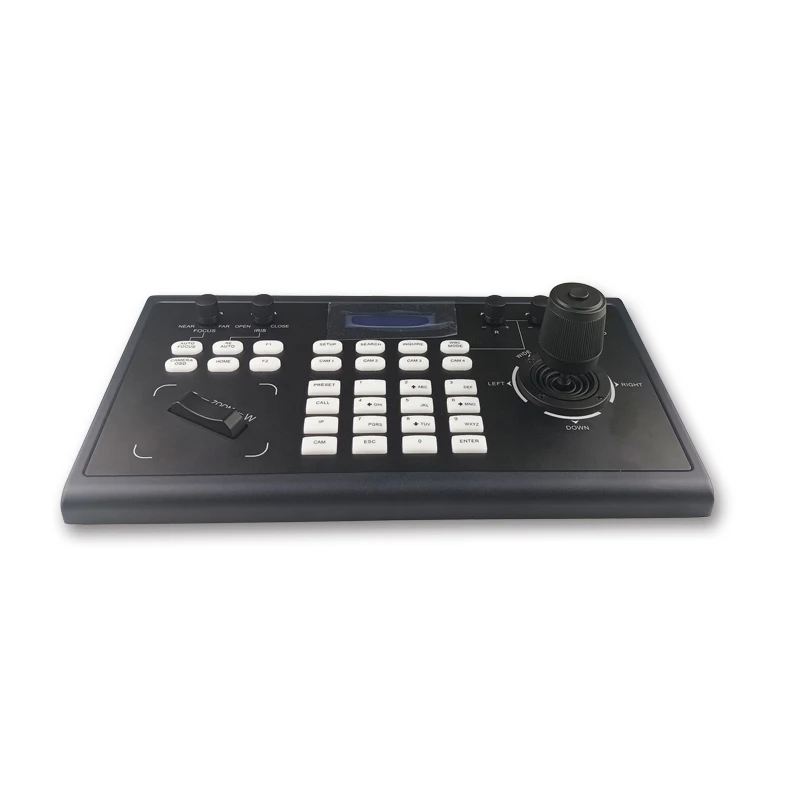

New RS232 RS485 POE PTZ Remote Joystick Camera Keyboard Controller For Conference
- Category: >>>
- Supplier: Shenzhen Moertek Technology Co. ltd.
Share on (1601091707550):
Product Overview
Description
Products Description
Selling Points:
2.RJ45 RS422, RS485, RS232 control interfaces; Control up to 255 Cameras
3. LAN port supports PoE. Control and power in one cable
4.Unique control code learning function allows customers to modify the control code instructions
5.Any device on the RS485 bus can be individually configured with different protocols and baud rates.
6.All camera parameters can be set through the button operation
7.Metal shell, silicone key designLCD display, keypad sound prompt, real-time display decoder and matrix working status
8.4D joystick allows variable speed control to cameras
9.Maximum communication distance: 1200M (0.5MM Twisted-Pair Cable)
1.Supportes ONVIF, IP VISCA and VISCA, PELCO-D/P protocols
2.RJ45 RS422, RS485, RS232 control interfaces; Control up to 255 Cameras
3. LAN port supports PoE. Control and power in one cable
4.Unique control code learning function allows customers to modify the control code instructions
5.Any device on the RS485 bus can be individually configured with different protocols and baud rates.
6.All camera parameters can be set through the button operation
7.Metal shell, silicone key designLCD display, keypad sound prompt, real-time display decoder and matrix working status
8.4D joystick allows variable speed control to cameras
9.Maximum communication distance: 1200M (0.5MM Twisted-Pair Cable)

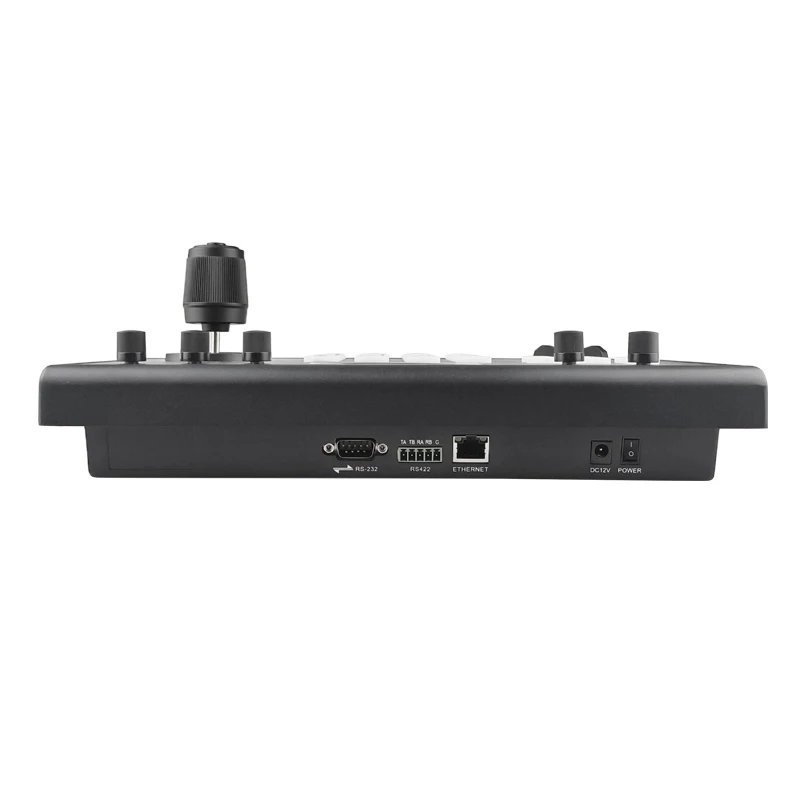

Port | Network: R145 (PoE) Serial Port: RS422. RS232. RS485 |
Network: | ONVIF, IP VISCA Serial Port: VISCA. PELCO-D. PELCO-PProtocol |
Communication BPS | 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps |
Interface | 5PIN (RS422、RS485), RS232, RJ45 |
Joystick 4D | up, down, left, right, zoom, lock |
Display | LCD Blue Screen |
prompt tone | ON/OFF |
Power Consumption | 6W MAXPower Supply |
Working Temperature | -10℃-50℃ |
Storage Temperature | -20℃-70℃ |
Environment humidity | ≤90%RH (nodew) |
Dimensions(mm) | 320mm (L) x179.3mm (W) X109.9mm(H) |
Upgrade | WEB Upgrading |
