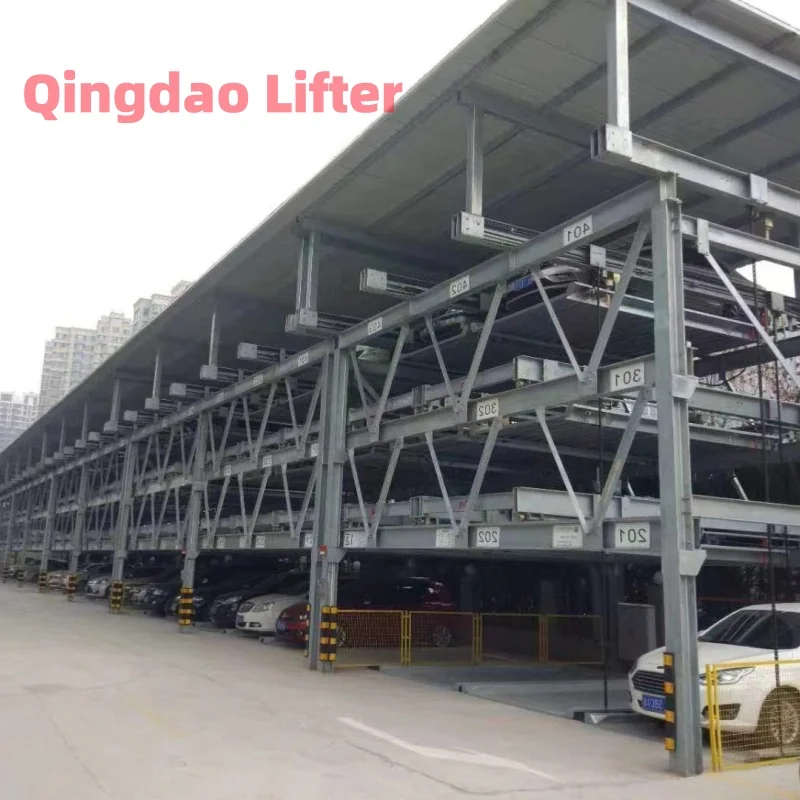

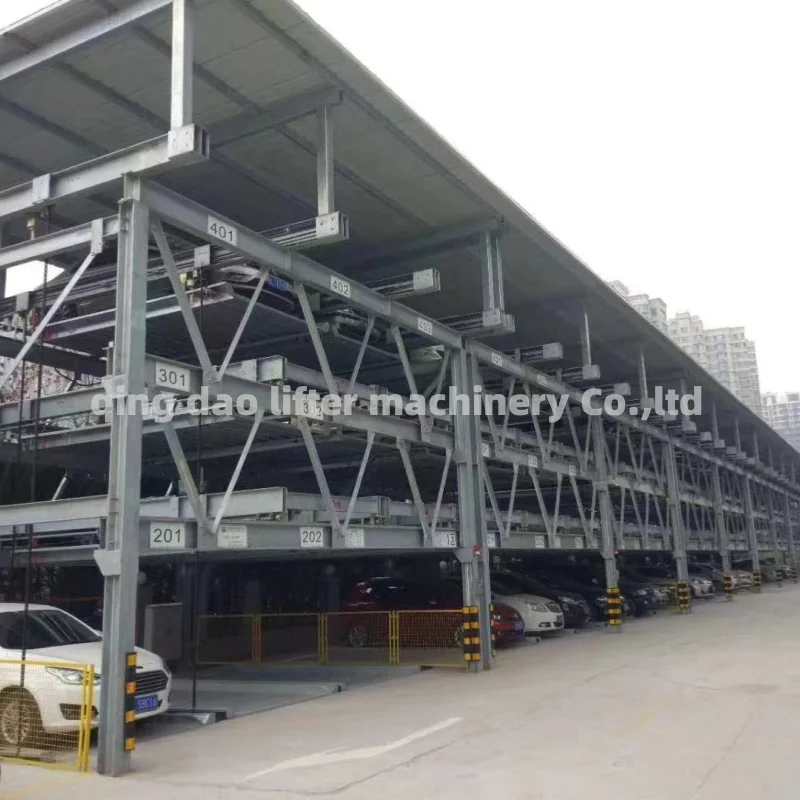

Automated Car Storage Parking System Slide Puzzle Parking Platform

Features

 1.The system structure is very flexible and can be arranged according to your site condition and requirements.
2.According to custmer's requirement,whole pack,half pack,or simple pack awning for the equipment can be adopted
3.save land area and take full use of space ,the parking quantity is about 5 times compared with normal plane parking lot.

4.Low equipment cost and maintenance cost.
5.Lift smoothly and low noise,convenient for car to go in or out

6.Comprehensive security protection system, such as safety anti-falling hook, mechanism detect people or car entering,car parking limit mechanism,interlock mechanism,emergency brake mechanism.
7.Adopt PLC automatic control system,use button,ic card and remote control system,make operation very easy.

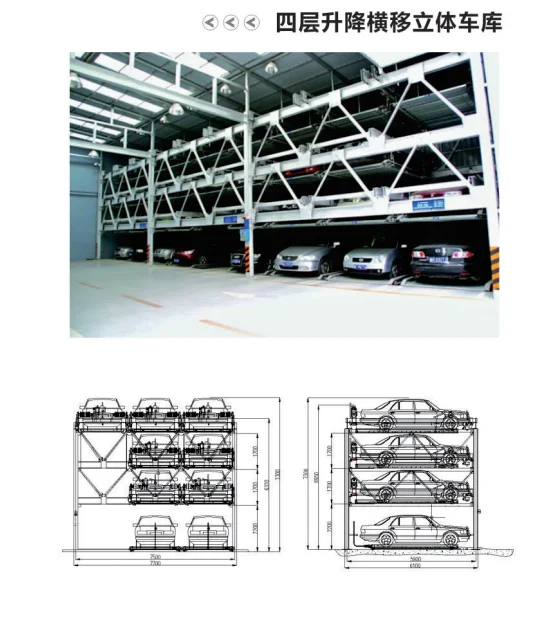

four level lift parking system

Operating Principle

This is multi-column design equipment.the ground level can only slide right or left ,the top level can only lift  and the middle levels can both slide and lift.except the top level,there is an empty space on each level that can slide right or left ,cars parked /un parked by the lifting of car pallets on top level,the sliding of car pallets on ground level and the lift and sliding of car pallets on middle levels,parking space on ground level can park/unpark car directly .when parking /unparking car on middle level ,the car pallets that underneath the parked /unparked car all slide right or left to leave an empty space and make the empty space just underneath the parked/unparked car,so the car pallet can reach to ground level,then the car can be parked or unparked,the park/ unpark process can be seen in below diagrams

Applicable occasion

this is an above ground type parking system,it is suitable for residential area, commercial center,office buildings,stations,hospitals etc .

 1.On -time Delievery

2.professional technical support during pre-sale and after sale

3. Effective OEM&ODM service

4.Good quality control
5. Highly competitive prices

 About us
Qingdao lefter Machinery Co, Ltd is a comprehensive enterprise specialized in three-dimensional garage, steam equipment research and development. production, installation, maintenance services and development, is the China automobile market reserve backbone enterprises, parking equipment industry association'unit.
The company, in cooperation with the American Ryan Ford Motor Co,introduces the technology of foreign enterprises and the modern scientific management system. Has a modern production plant more than 30000 square meters, in 20 senior engineers. 50 technicians, international trade personnel20, computerized management for all product design, manufacture, installation and service of compre- hensive customer service, with a strong technical force, rich design experience and perfect sales service system, develop the domestic and foreign markets, have been exported to Ou Yamei and Oceania and other countries and regions, favored by users at home and abroad and praise.

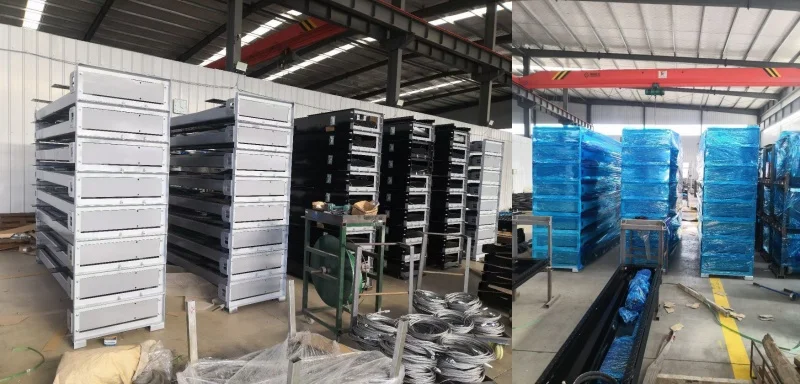

The company has perfect quality assurance system. has the domestic advanced machining equipment: CNC shearing machine, bending machine.CNC fame plasma cutting machine, machining center, drilling machine, sawing machine, all products are in accordance with the international standard of processing and manufacturing. using manual arc welding, submerged arc welding, TIG,MIG gas welding and other modem welding technology. with large sets of shot blasting and spraying production line, installation and commissioning of production line, formed a three-dimensional garage, lifting machine for the industrial chain of production base. There are more than 50 varieties, which can meet the requirements of different customers.
The company has made full use of the advantages of talents, technology and equipment to develop and produce a series of products that are suitable for the national conditions and cost-effective products: double column parking equipment, four column parking equipment, pitching parking equipment and scissors parking equipment. And has developed six kinds of mechanical parking equipment, such as lifting, traversing, simple lifting, flat mobile, vertical lifting,vertical circulation. etc.,which is in the leading position in the solid garage industry.
Company to "quality, integrity to win the trust brand" for the purpose, to "unity, innovation, dedication" spirit of enterprise, to benefit as the center, take the quality as the theme, to the management of the main line, the technical innovation and continuous innovation, forge ahead, make excellent products beyond the industry same the level and quality of service, and gradually become the industry's leading"Qing Bo" brand, and has obtained a lift, parking equipment manufacturing license, the characteristics of equipment installation and maintenance permit,ISO9001 quality system certification,the national compulsory 3C certification,CE certification and other qualification certificates.

FAQ

Q1:Are you a manufacturer?

A: Yes, we have own factory and engineer .

Q2.What is your terms of delivery?

A: EXW,FOB, CFR, CIF.

Q3. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4.What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost
