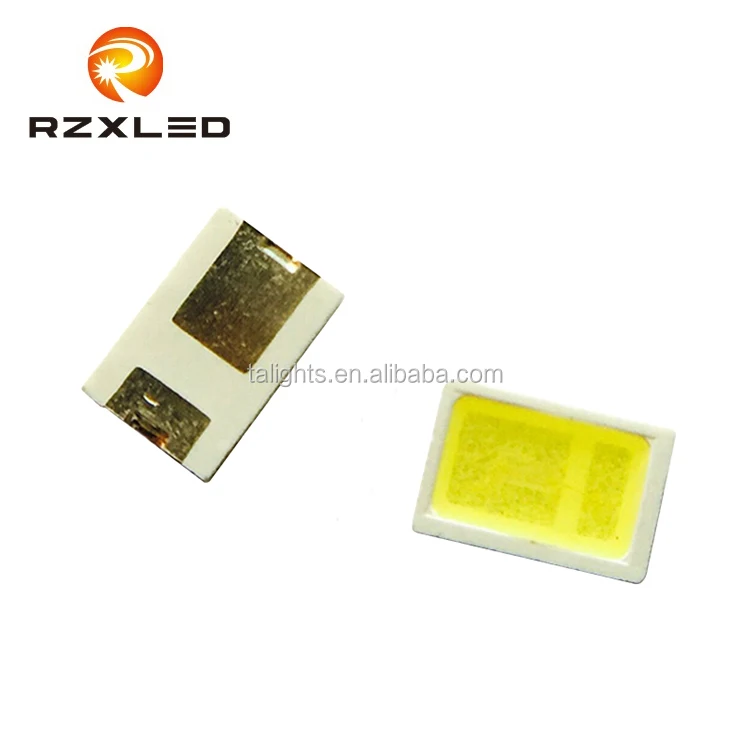

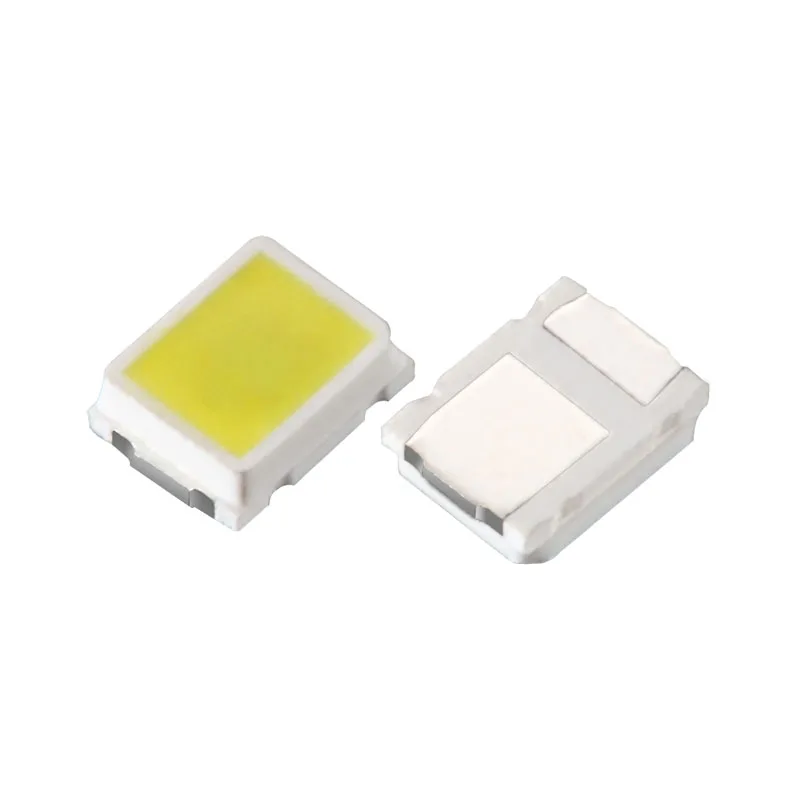

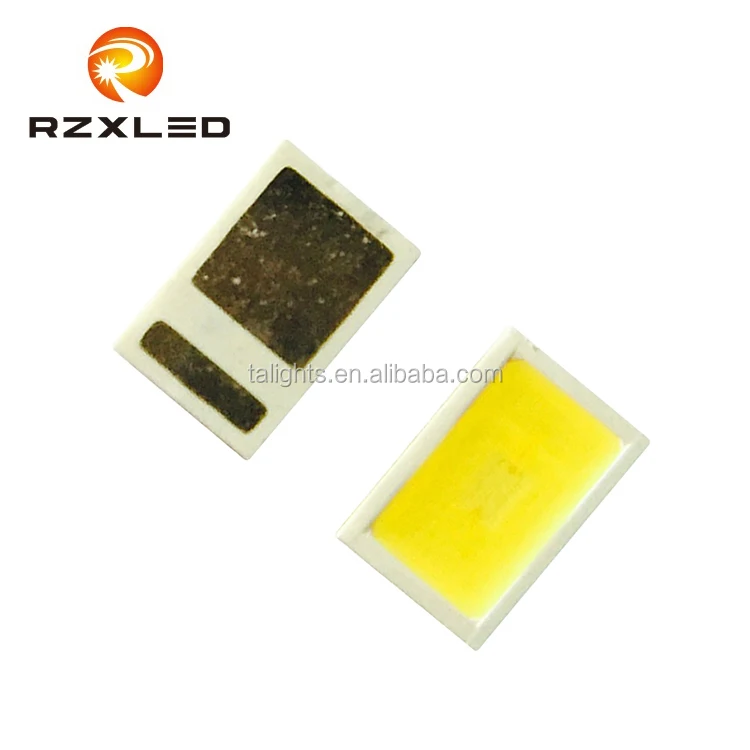

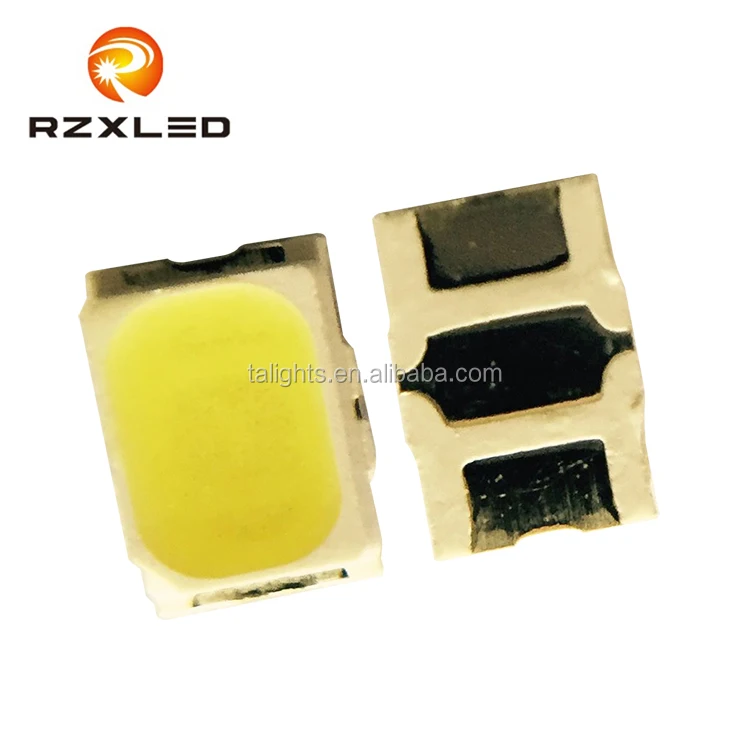

RZXLED Sanan Chip 3020 SMD LED 0.1W 0.2W 0.5W 2.8v 3v 3.6v white 6000k 6500k package chip for led light

Product Overview

Description

RZXLED Sanan Chip 3020 SMD LED 0.1W 0.2W 0.5W 2.8v 3v 3.6v white  6000k 6500k package chip for led light

luminous diameter:3.0*2.0mm
the use of voltage:2.8-3.0V/3.0-3.2V/3.2-3.4V
use current:20-150ma

Power:0.1W 20-30MA;0.2W 60MA;0.5W 150MA
color classification:White:5000-6500K; Cool white 9000-12000K,

luminous angle:surface luminous

product brightness:0.1W 7-8LM;0.2W 24-28LM;0.5W:55-65LM

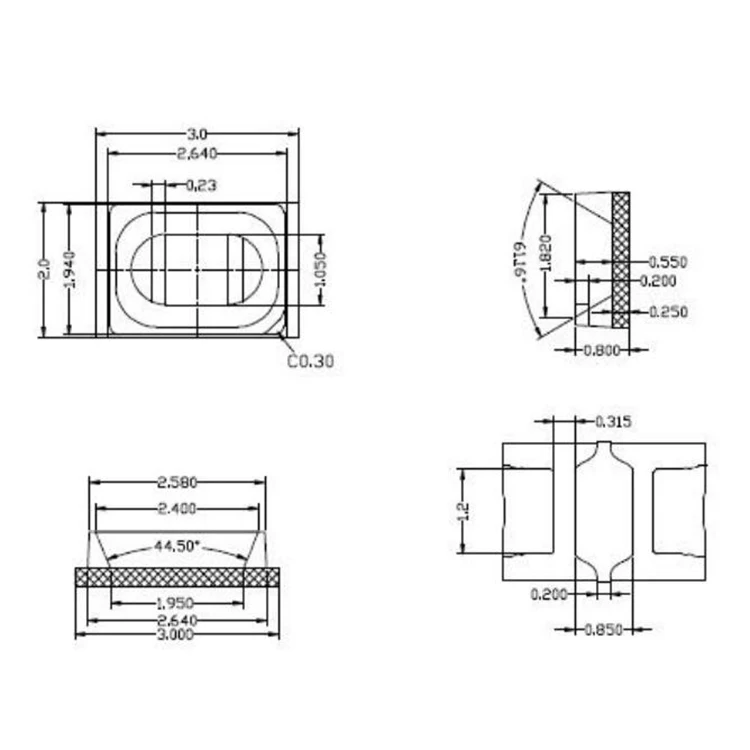

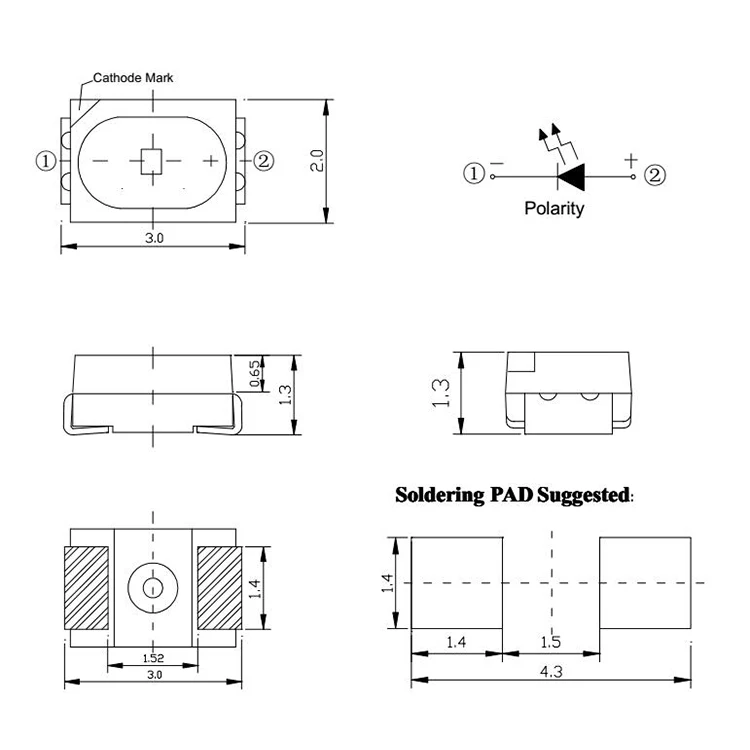

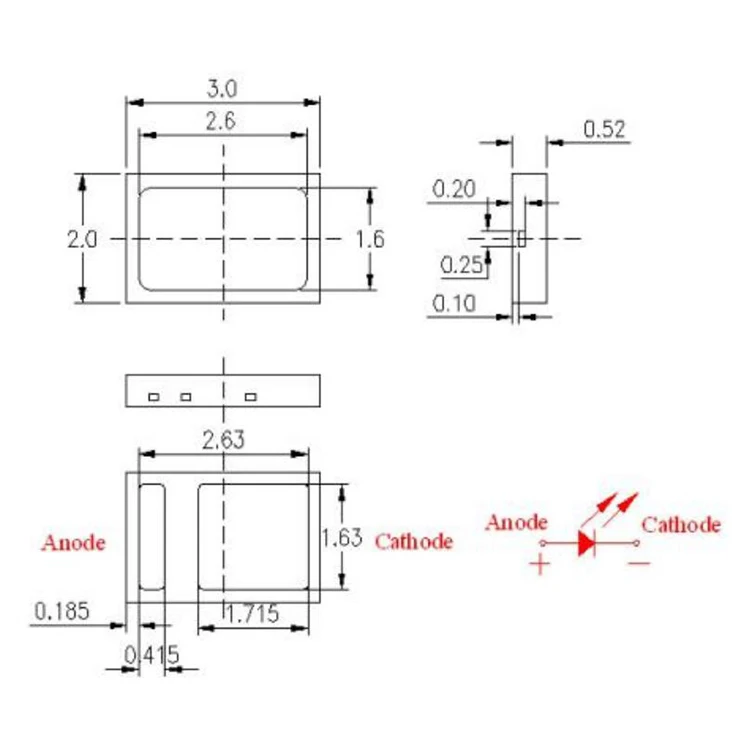

3020Package(0.1W0.2W0.5W 3V )

Dimension	3.0*2.0mm
Power Consumption	0.1W 0.2W 0.5W
Color Temperature	White5000-6500K /Cool white9000-12000K
Efficiency	100-120lm/W
Current	0.1W 20-30mA/0.2W 30-60MA/0.5W 60-150MA
Voltage	2.8-3.4V
Application	LCD TV Backlight Mobile Phone Fill Light

range of application:indoor lighting,commercial lighting,
Note:not waterproof,not more than load,cooling temperature is not

higher than sixty degrees
There are thousands of modules so we can't list all in our store.
Please contact us for check if you can't find in the store.
Thank you!

Package included:2000PCS/roll

Package in 8mm tape on 7" diameter reels.
- Compatible with automatic placement equipment.
- Compatible with infrared and vapor phase reflow solder process.
- EIA STD package.
- I.C. compatible.
- Meet green pro



Note :
