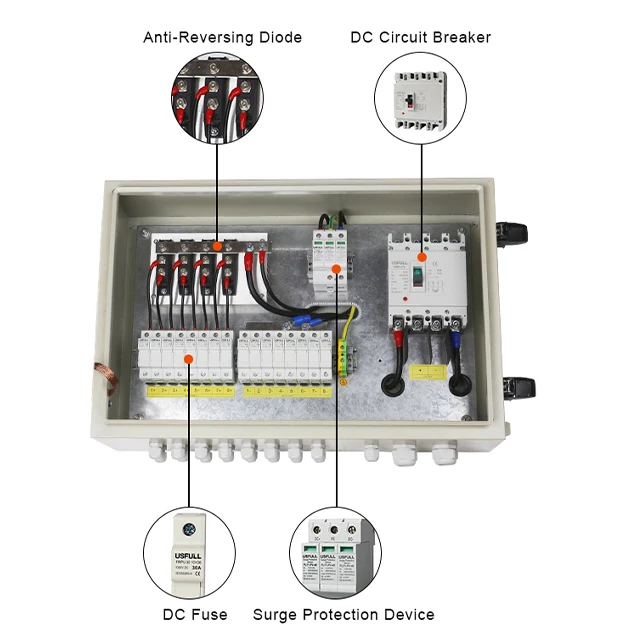

USFULL IP66 Iron shell combiner box PV string combiner box 4 in 1 out 4 ways 500V 1000V 1500V pv combiner box
- Category: >>>
- Supplier: Zhejiang Fullwill Electric Co. Ltd.
Share on (1601092222030):
Product Overview

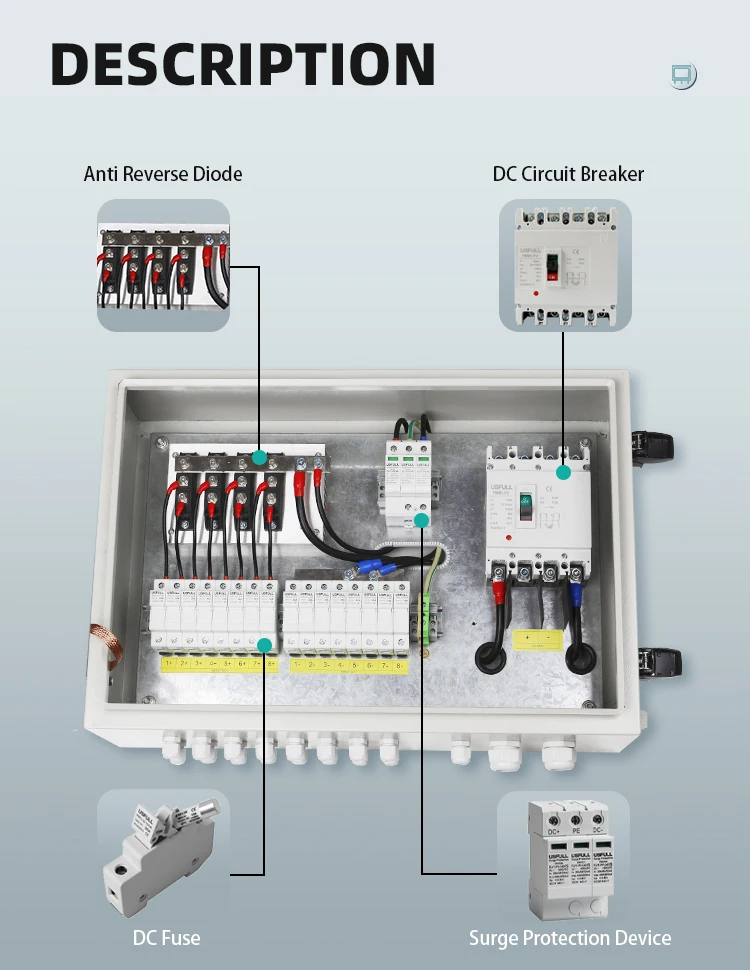

Description
PV combiner box IP65 lightning protection PV Array 6 in 2 out 250VDC DC Solar Combiner Box

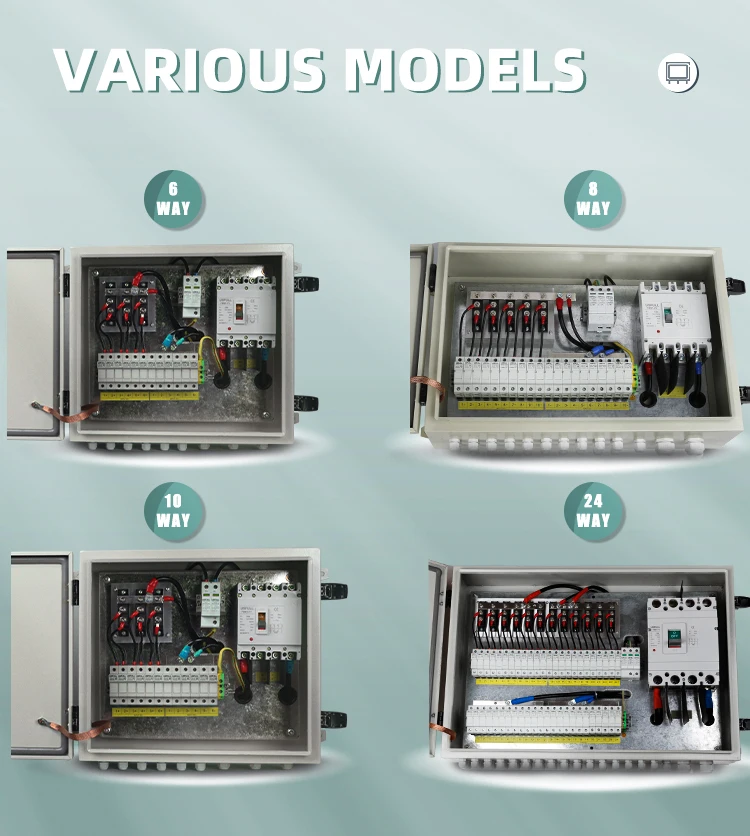

| Model | FUCB-MD2 | FUCB-MD4 | FUCB-MD6 | FUCB-MD8 | FUCB-MD10 | FUCB-MD12 | FUCB-MD14 | FUCB-MD16 | FUCB-MD18 | FUCB-MD20 | FUCB-MD22 | FUCB-MD24 |
| Number of DC Inputs | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Material of Box | Coated Iron | |||||||||||

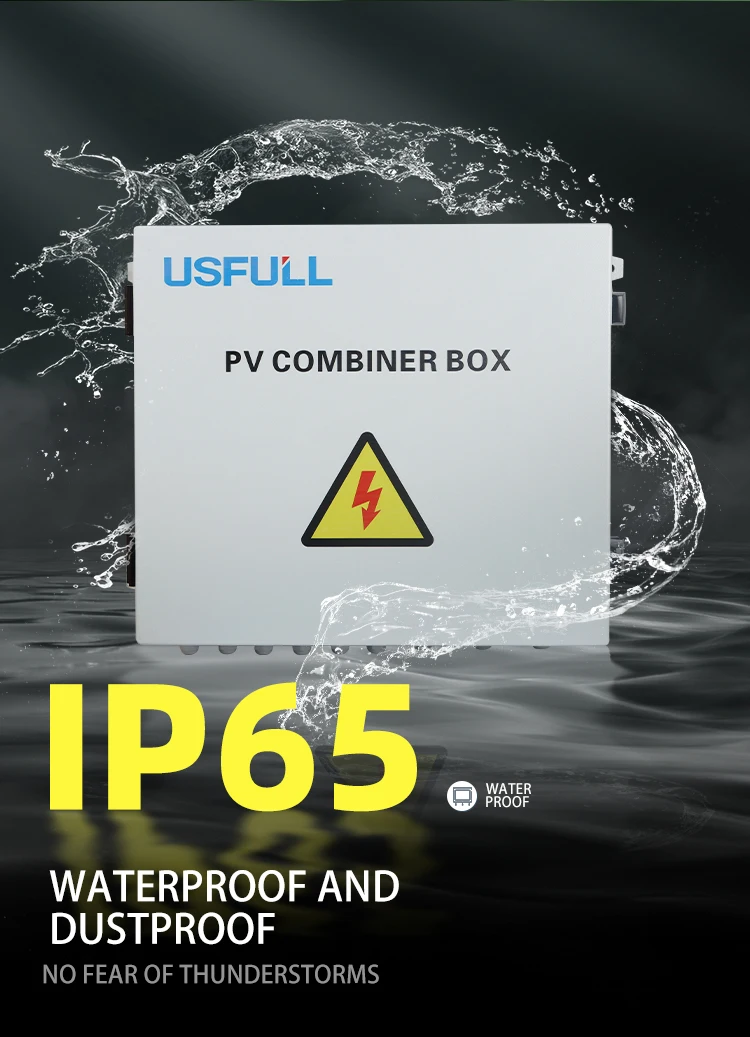

| Protection Level | IP65/IP66 | |||||||||||
| Max Rated Voltage DC | 1000VDC | |||||||||||
| DC Fuse | 15A (Recommend 15A, support other ampre) | |||||||||||
| Fuse Holder | 1000V DC 30A | |||||||||||
| DC Breaker | 32A | 63A | 100A | 125A | 150A | 200A | 225A | 250A | 275A | 300A | 315A | 350A |
| Surge Protection DC | Type II In=20KA, Imax=40KA, Ucpv=1000V DC | |||||||||||
| Over-Voltage Category | Cat III | |||||||||||

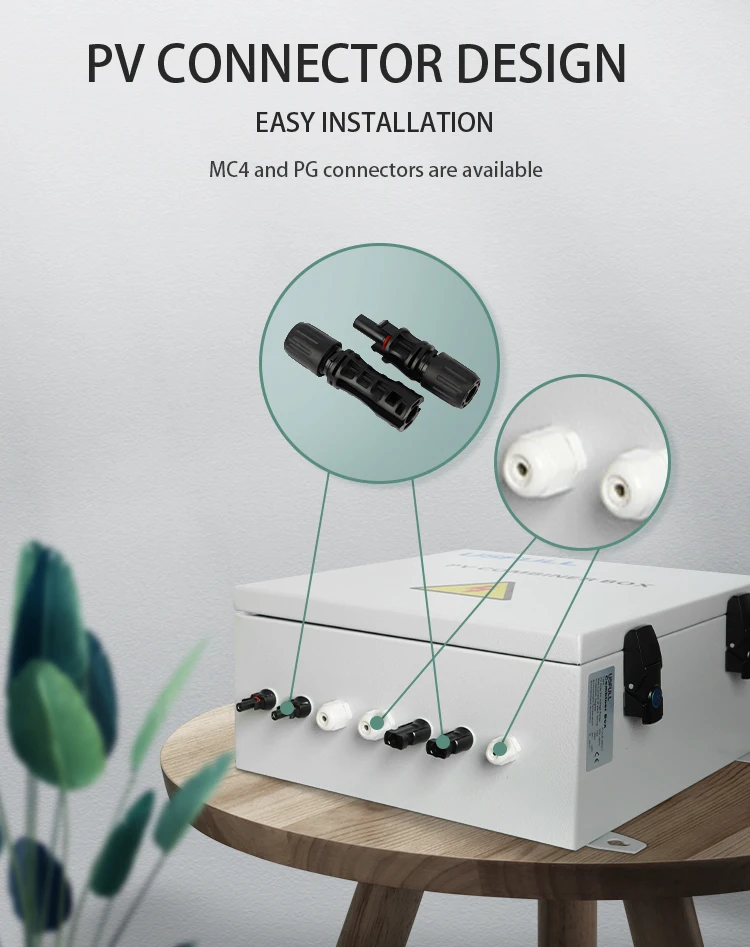

| Connection Type DC Input | PG09, IP68 | |||||||||||
| Number of DC Outputs | 1 (Support customize for output number) | |||||||||||
| Input Cable Size for Negative and Positive | Φ4-8mm | |||||||||||
| Installation | Wall mounting/Padlockable latch | |||||||||||

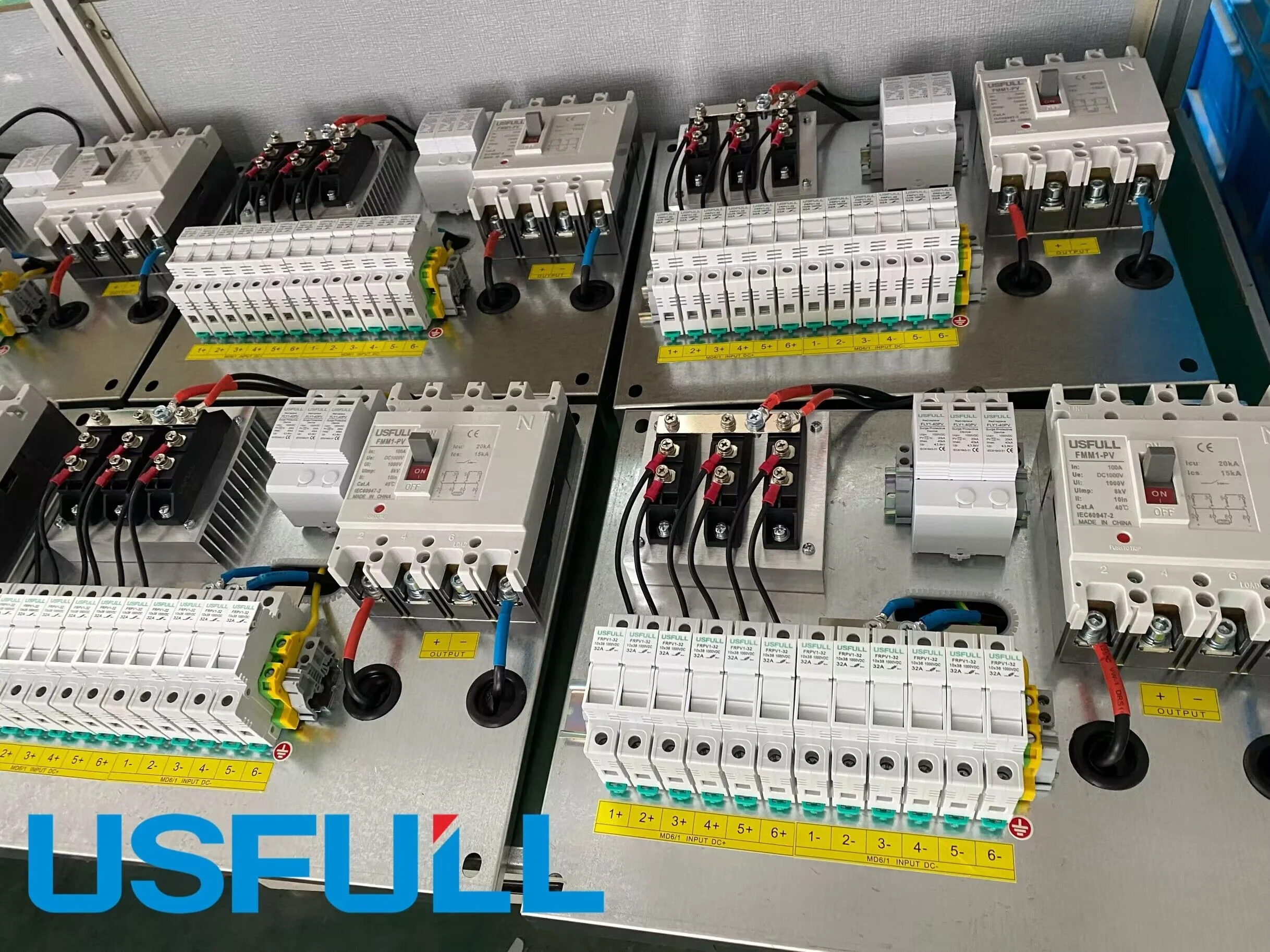

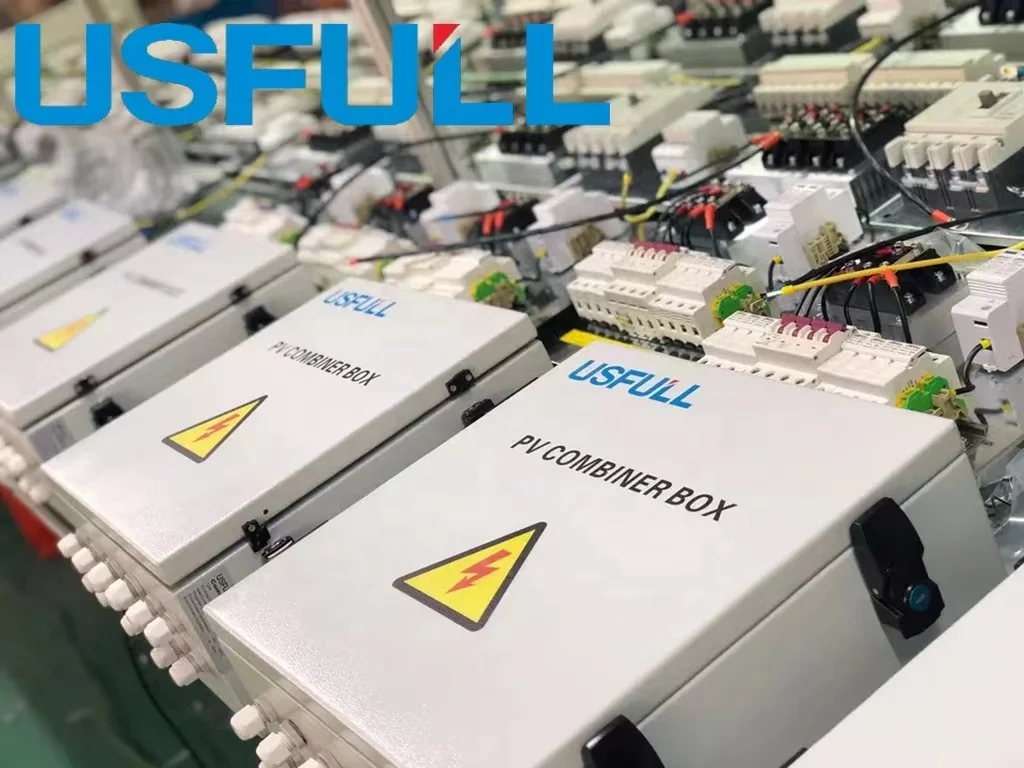

product display
