Product Overview

Description





Product Description




China Factory 10000L 5ton Bulk LPG Storage Tanks Carbon Steel Gas Tank LPG for Sale




China Factory 10000L 5ton Bulk LPG Storage Tanks Carbon Steel Gas Tank LPG for Sale

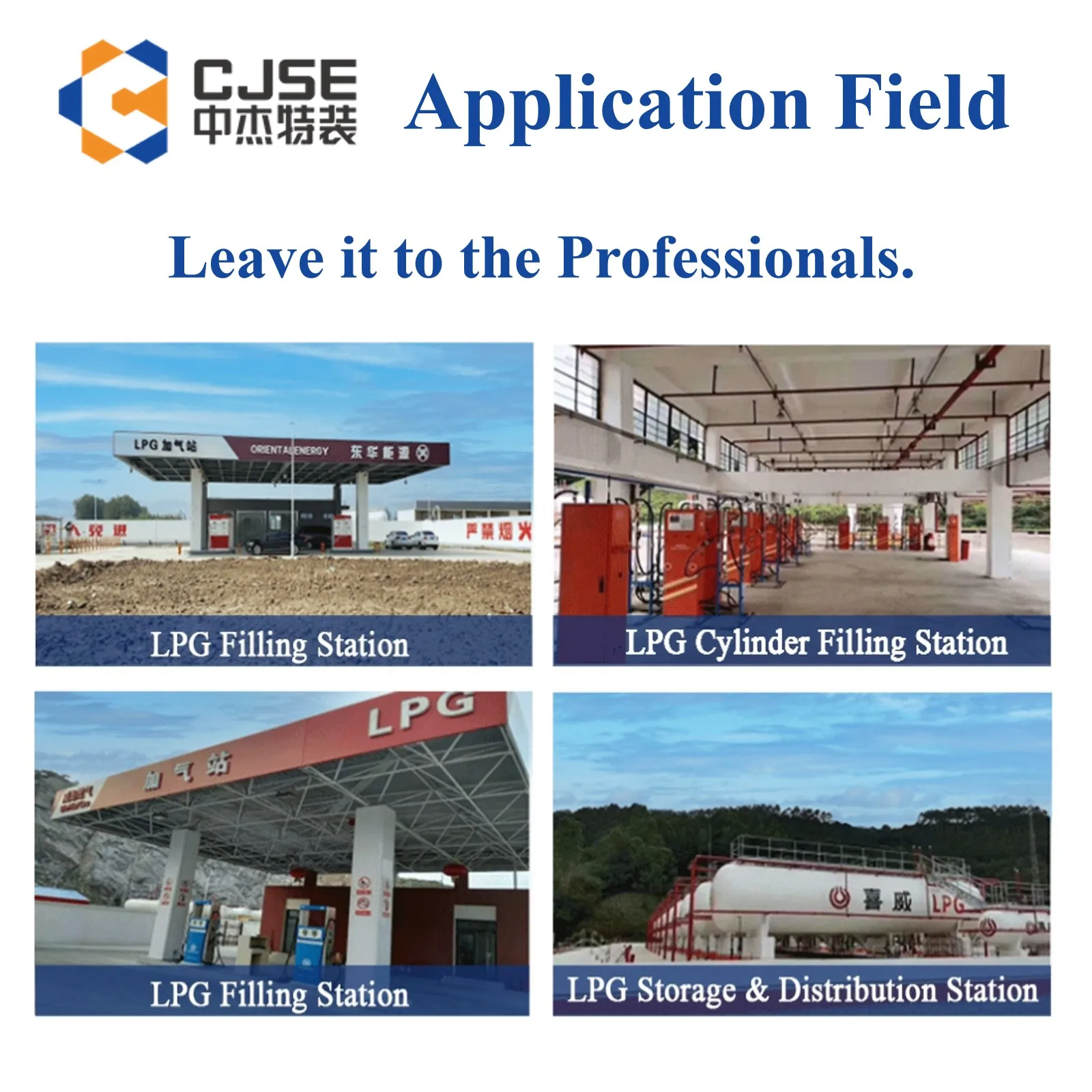

The liquefied petroleum gas storage tank (LPG Tank) is a pressure vessel for storing liquefied petroleum gas, and is mainly used in lpg gas storage stations and chemical enterprises.
LPG storage tanks are special equipment that can only be produced by enterprises approved by the General Administration of Quality Supervision, Inspection and Quarantine. It is necessary to have three types of pressure vessel design and manufacturing qualifications issued by the General Administration of Quality Supervision, Inspection and Quarantine. Our gas storage tanks for sale in south Africa, Nigeria and other countries



Design Parameters of LPG Tank
LPG Tank Type
III
Capacity of LPG Tank
cbm
10
Orientation of LPG Storage Tank
Horizontal Single Layer LPG Tank
Working Pressure
MPa
1.63
Design Pressure
MPa
1.77
Max.allowance working pressure
MPa
1.82
Working Temperature
-19~50
Design Temperature
-20/54
Medium
LPG (Propane)
Density of Medium
kg/m3
560
Main Material
Q345R
Filling Coefficient
0.9
Setting Pressure of Safety Valve
MPa
1.82
Design Life
20 Years
Heat Treatment
Post-weld heat treatment for LPG Tank
Hydrostatic test pressure
MPa
2.28
Air tightness test pressure
MPa
1.77
Design, Manufacturing and Inspection Standard
GB150/ASME




LPG Storage Tank Specifications Available
China Factory 10000L 5ton Bulk LPG Storage Tanks Carbon Steel Gas Tank LPG for Sale
Model of LPG Tank
Specifications (mm)
Weight (KG)
LPG Tank Length (mm)
WG1.77-1200-5
DN1200 x 3980 x 8/8
1605
4663
WG1.77-1400-5
DN1400 x 2750 x 10/10
1780
3535
WG1.77-1400-10
DN1400 x 5980 x 10/10
2925
6775
WG1.77-1600-10
DN1600 x 4400 x 10/10
2765
5295
WG1.771800-15
DN1800 x 5250 x 12/12
4265
6247
WG1.77-2000-20
DN2000 x 5650 x 12/12
5060
6747
WG1.77-2000-25
DN2000 x 7250 x 12/12
5980
8347
WG1.77-2000-30
DN2000 x 8840 x 12/12
6935
9937
WG1.77-2400-40
DN2400 x 7970x 14/14
9055
9304
WG1.77-2600-40
DN2600 x 6600 x 14/16
8910
8036
WG1.77-2600-50
DN2600 x 8500 x 14/14
10525
9934
WG1.77-2600-60
DN2600 x 10360 x14/14
12335
11796
WG1.77-3000-80
DN3000 x 10250 x 16/18
16800
11888
WG1.77-3000-100
DN3000 x 13200 x16/18
19970
14838
WG1.77-3200-100
DN3200×11300×18/18
21210
13038
WG1.77-3400-100
DN3400×9850×20/20(18)
22620
11700
WG1.77-3600-100
DN3600×8550×20/22(20)
22285
10492
WG1.77-3600-120
DN3600×10500×20/22(20)
25765
12442
WG1.77-3600-150
DN3600×13500×20/22(20)
31140
15442
WG1.77-3800-200
DN3800×16300×22/22(20)
41515
18342
Note: we also can customize according to users' demand.

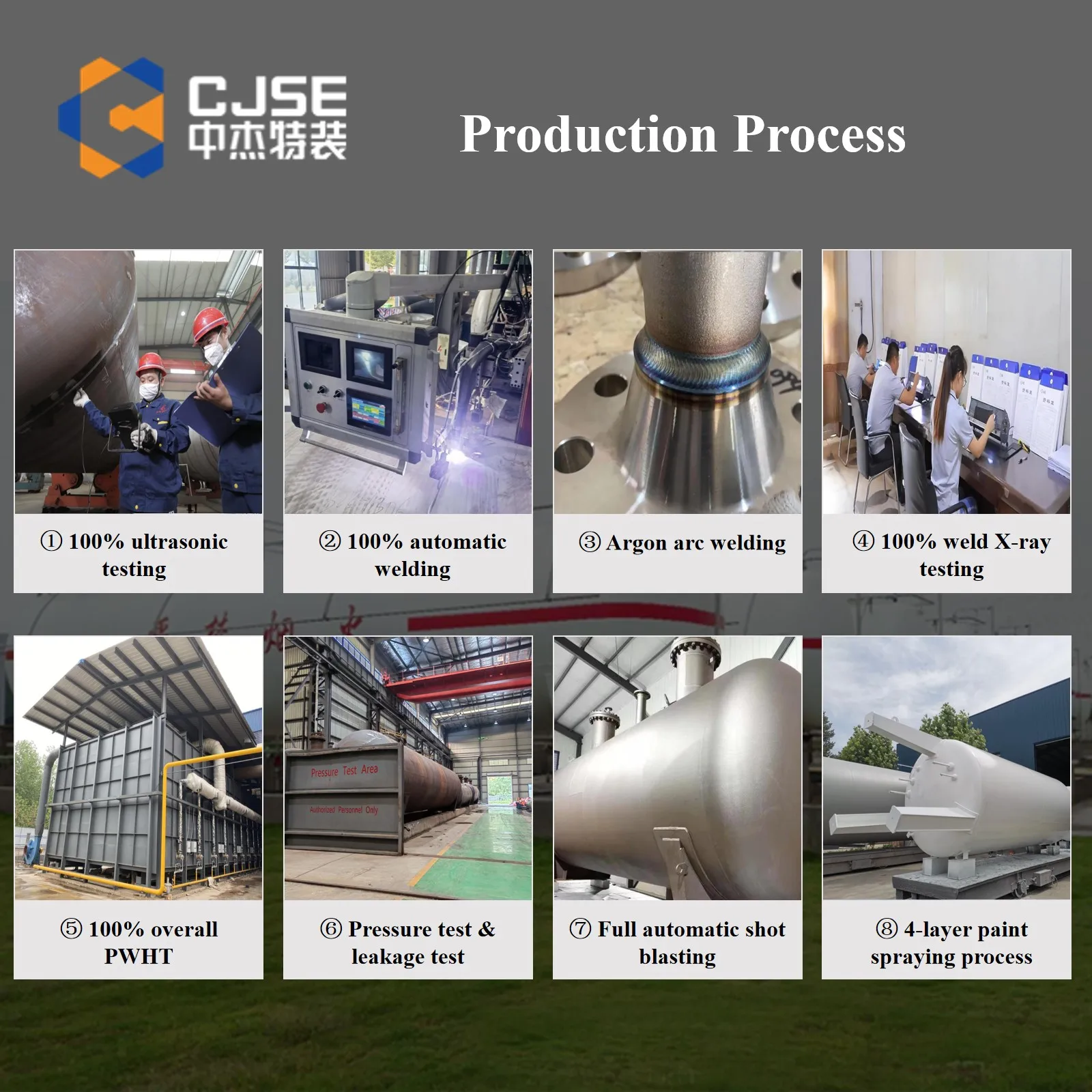

Shot Blasting
In order to improve the binding force of the protective layer, the iron shot is sprayed on the metal surface at high speed by means of special tools driven by compressed air.

X-Ray Inspection

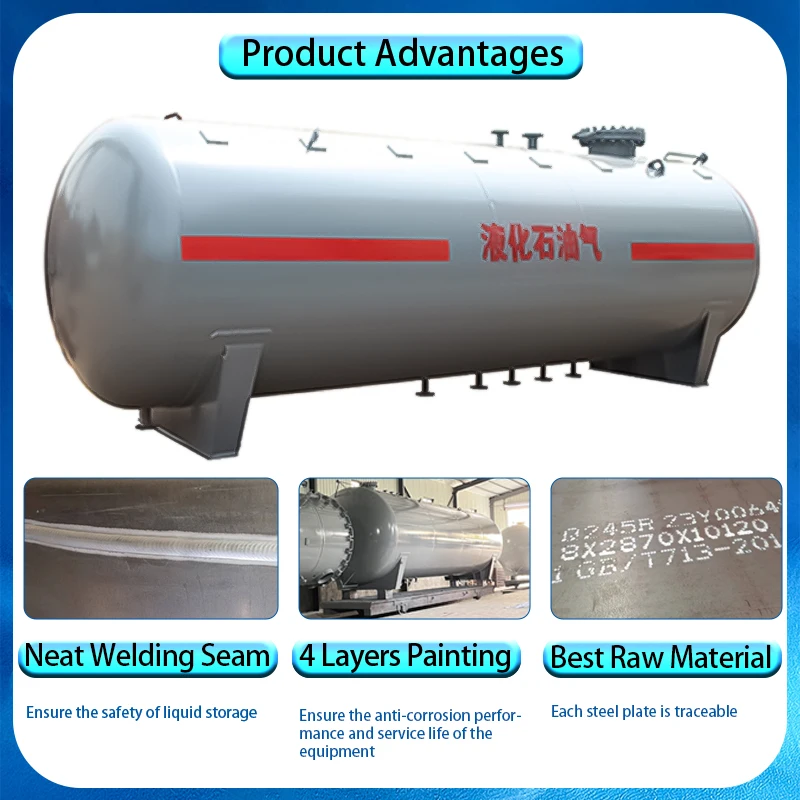

All main welding seam 100% X-ray detection,

Nozzle, flange C.D welding 100% surface flaw detection to ensure welding quality

Modern Spraying Room

Modern spraying room, spraying primer twice for each tank and topcoat twice to ensure the appearance quality of products




China Factory 10000L 5ton Bulk LPG Storage Tanks Carbon Steel Gas Tank LPG for Sale

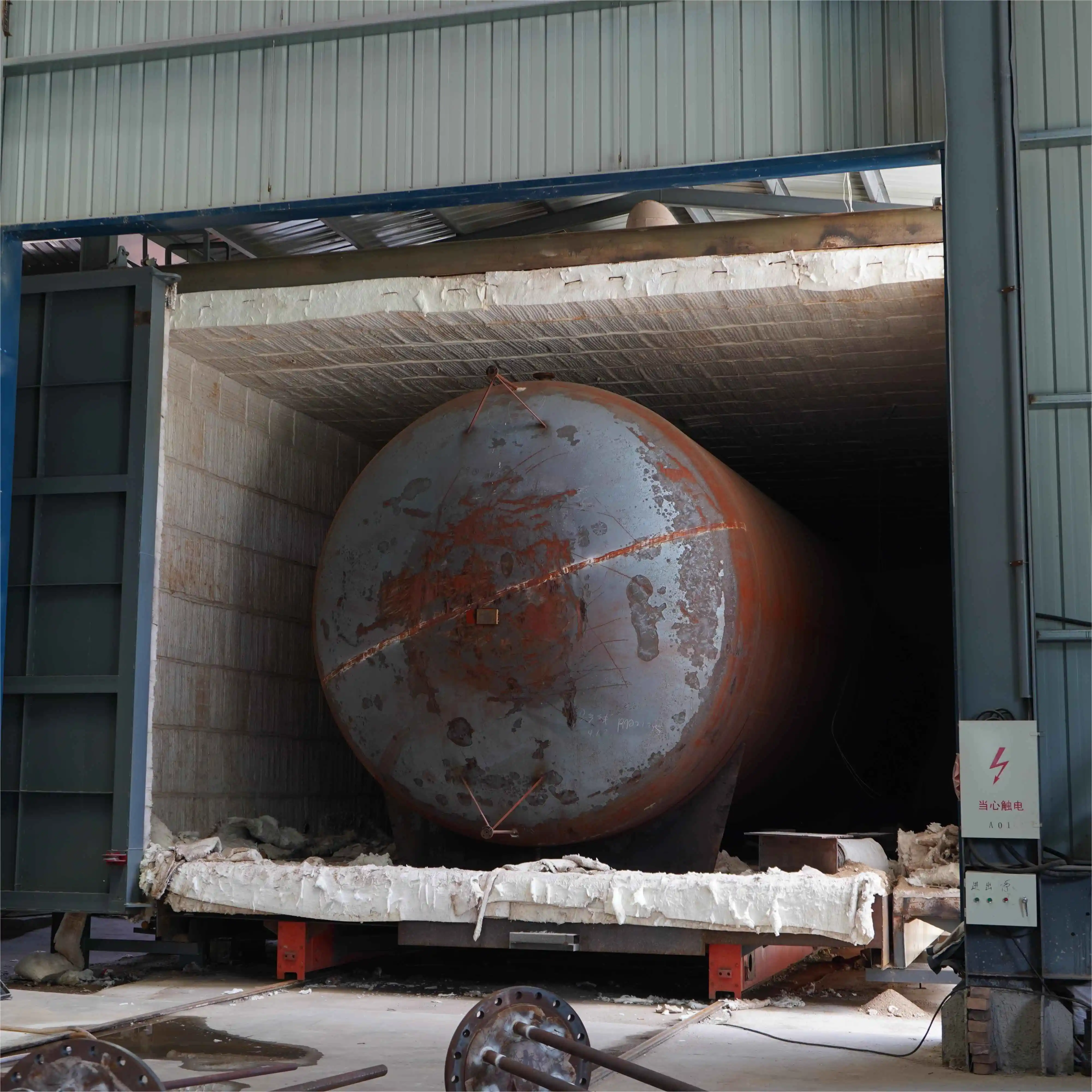

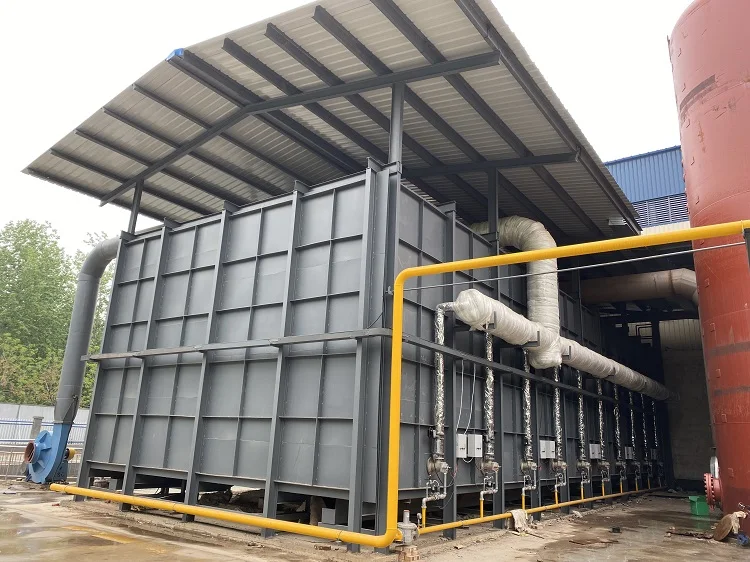

The whole annealing process is adopted to completely remove the internal stress of the tank body, which is of high safety.Different from local annealing with electric heating belt.

Our company has the largest one-time annealing furnace with 300 cubic meters lpg tank. According to the characteristics of metals, the heating curve is set to completely remove the internal stress of the tank, which greatly improves the safety performance



Hot Sale Products

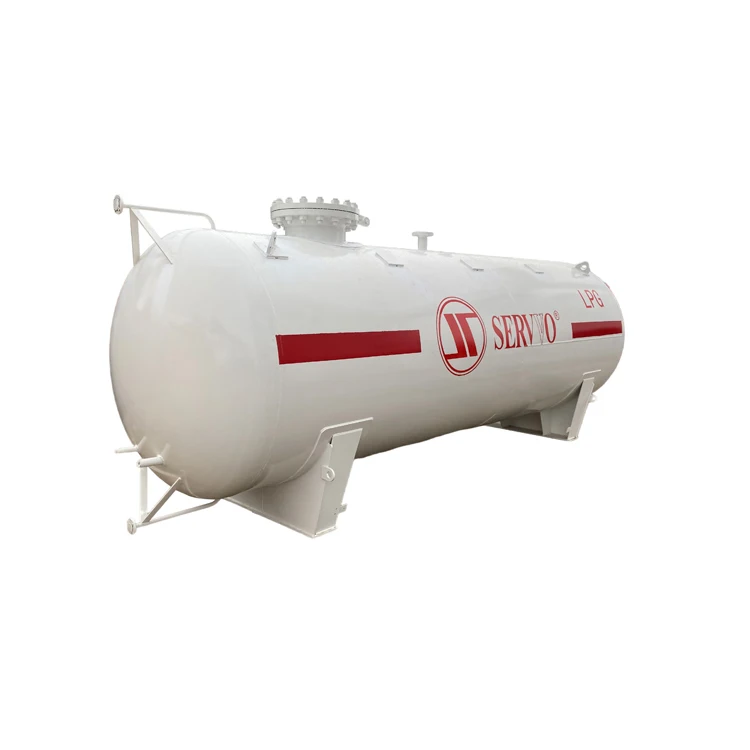

LPG TANK

Aboveground lpg tank : 5000L to 200,000 L
Underground lpg storage tank: 5000 L to 100,000 L
Design Pressure: 1.77MPa
Max. allowance working pressure: 1.82MPa
LPG Tank type: Horizontal Elliptical head Single Layer Pressure Vessel

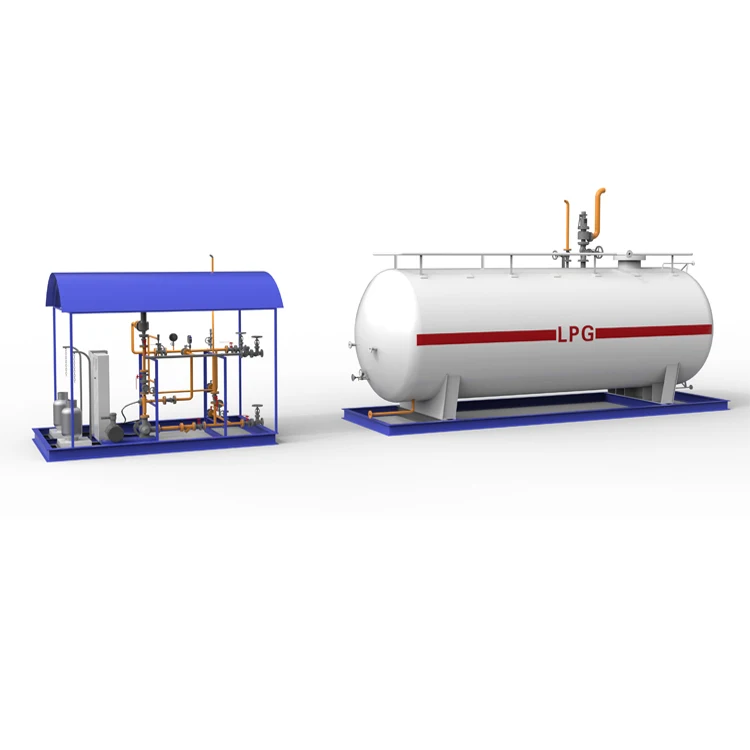

Skid Mounted LPG Filling Stations

Capacity: 5m3 10m3 15m3 20m3 25 m3 30m3 and 50m3
Standard configuration:
LPG Tank x 1pc. Valves x 1 set,
Hydrocarbon Pump x 2 pcs,
Universal crane tube hose x 1 pc
Gas alarm x 1 pc, Anti-static x 1pc,
Skid base x 1 pc, ,Electricity x 1set,
lpg dispensesr and filling scales will be equipped according to user' demands.



LNG TANK

Capacity: 5M3 to 150M3
LNG Tank type: Horizontal or Vertical Double Layer Vacuum Insualted Cryogenic Tank
Inner Materials: SS30408 Stainless Steel
Shell Materials: Q345R Carbon Steel

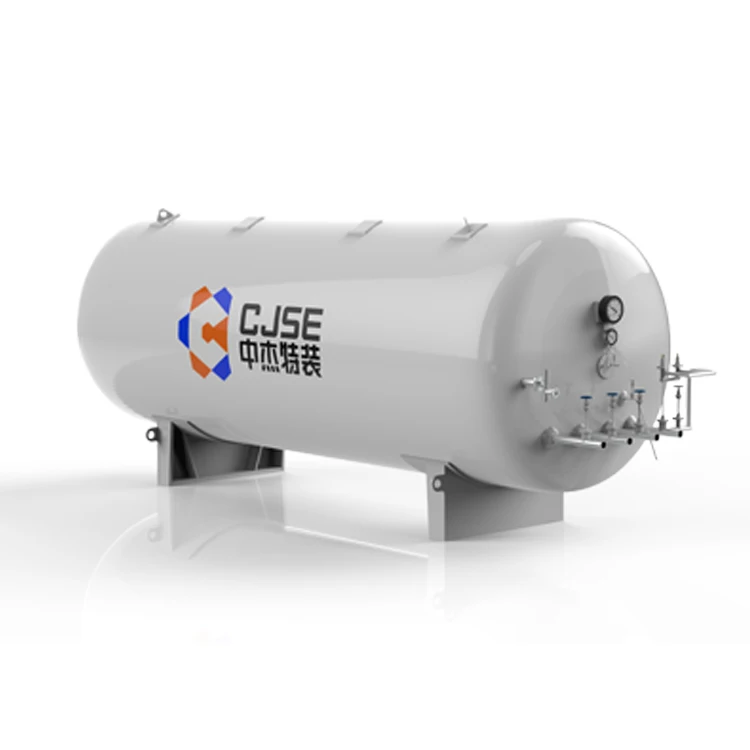

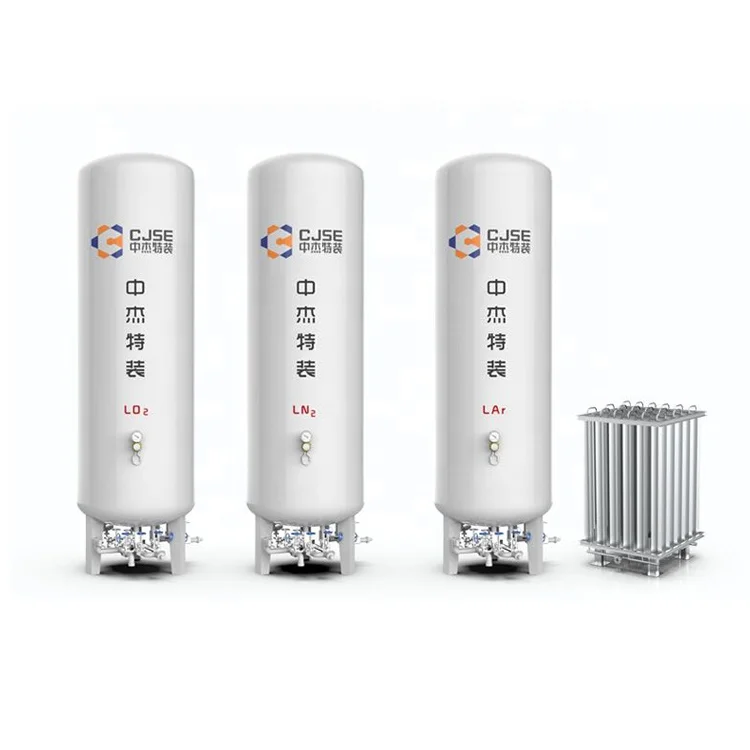

Cryogenic LO2/LN2/LAR/LCO2 TANK

LOX/LIN/LAR Tank
Capacity: 5000L to 50,000 L with 8bar and 16bar pressure
Inner materials: SS30408 Stainless Steel
Shell materials: Q345R Carbon Steel
LCO2 Tank
Capacity: 5000L to 100,000 L with 22bar pressure
Inner Materials: 16MnDR
Shell materials: Q345R

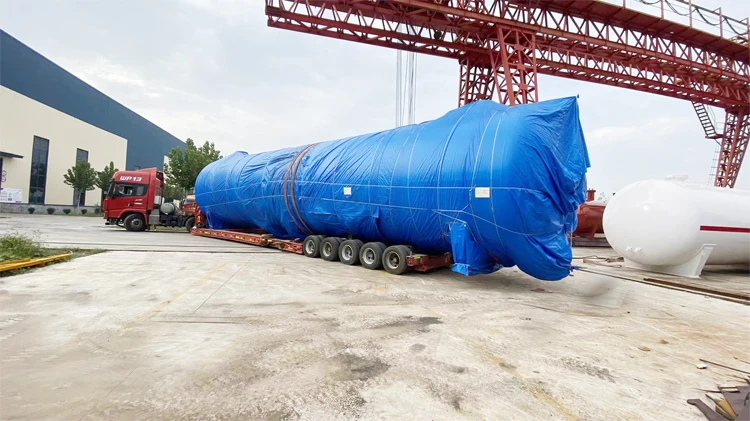

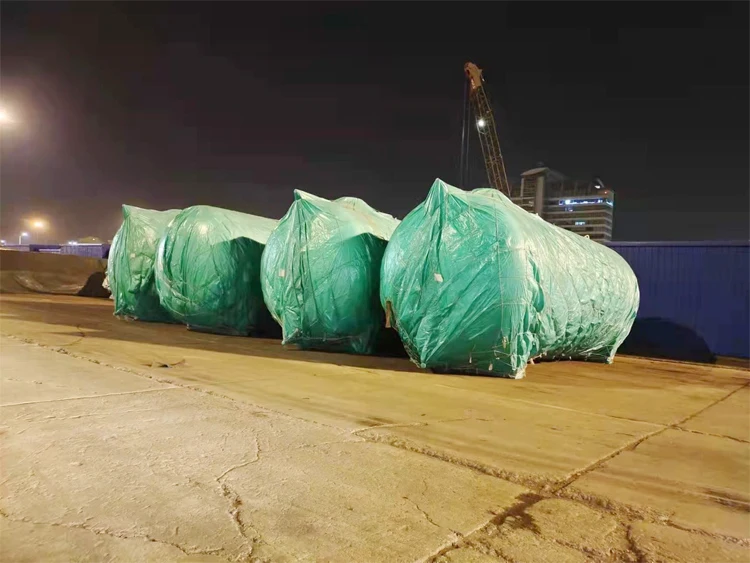

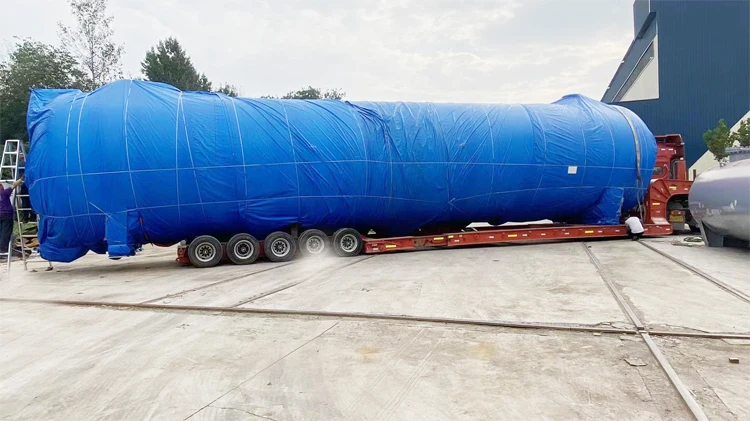

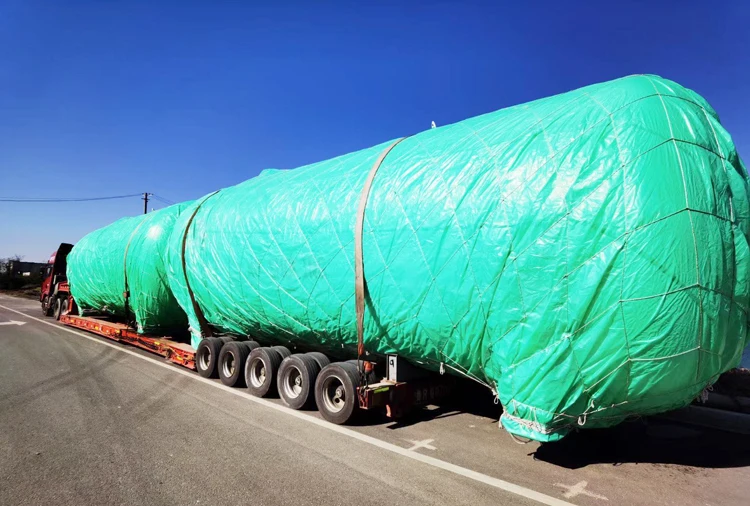

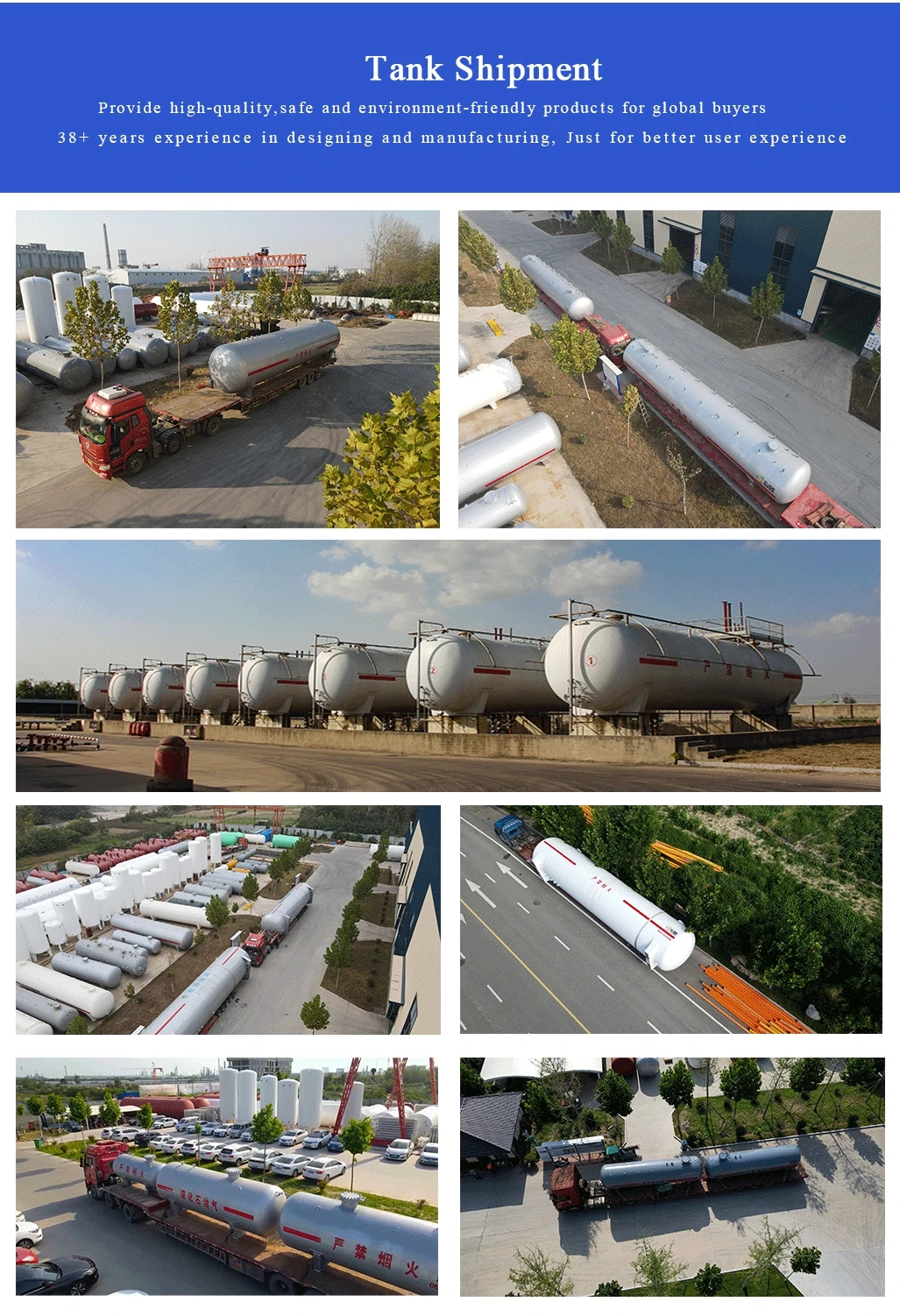

Packing & Delivery




China Factory 10000L 5ton Bulk LPG Storage Tanks Carbon Steel Gas Tank LPG for Sale

Loading conditions by sea transportation:
1.one set 5m3 LPG Tank load in one 20GP;
2.one set 10m3 (DN1600)lpg storage tank load in one 20GP;
3.one set 15m3 lpg gas tank load in one 40HQ;
4.one set 20m3 lpg storage tank load in one 40HQ;
5.one set 30m3 lpg tank load in one 40HQ;
6.40m3 lpg tank price,50m3 lpg storage tank, 60m3 lpg tank should be load in 40FR;
7.More than 60m3 lpg storage tank should be load in bulk vessel .also according to customers special request.

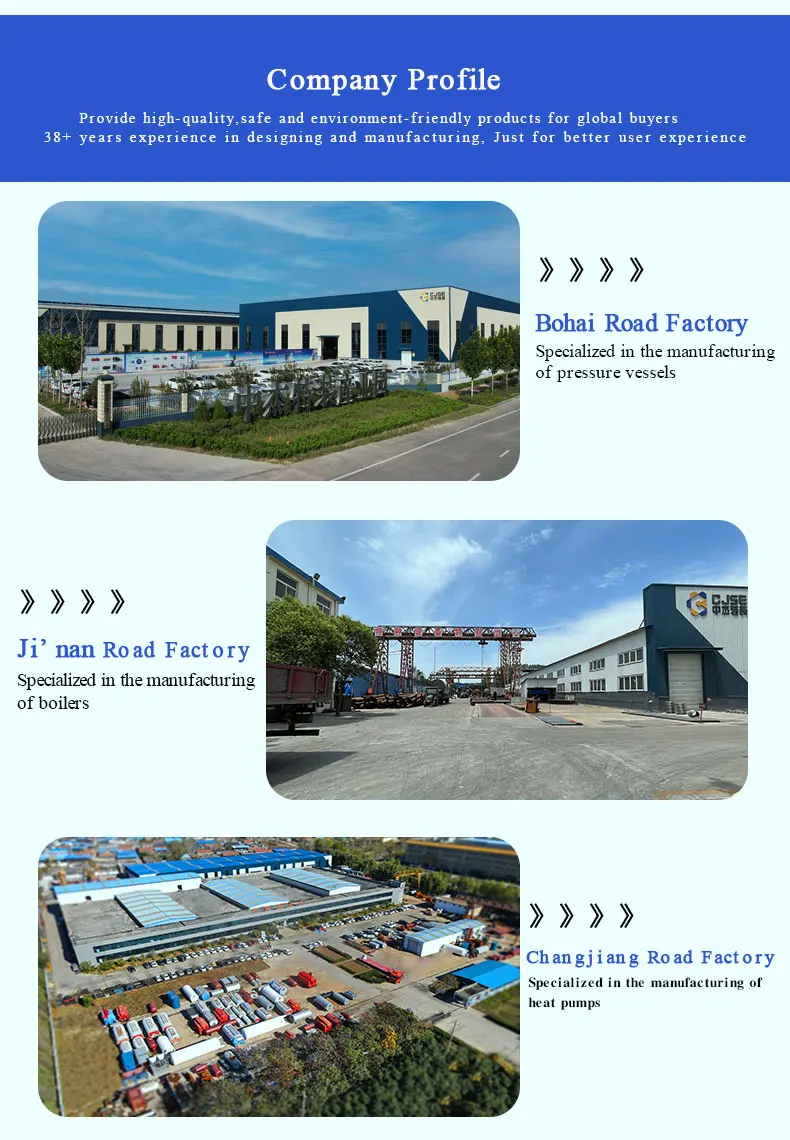

Company Profile






Shandong Zhongjie Pressure Equipment Co., Ltd.(CJSE), established in1984, is an ASME and CE certified professional manufacturer of LPG Storage tanks, LNG storage tanks, liquid ammonia tanks and other cryogenic gas tanks of storage oxygen, nitrogen, argon and carbon dioxide. We are located in Heze City of Shandong Province with convenient transportation access. Now we have over 700 employees, covers area over 200000 square meters with capability of manufacturing over 2000 tanks every year. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our company has Class A pressure vessel design certification, Class A pressure vessel manufacturing certification, Class A boiler manufacturing certification, GC2/GB2 pressure pipe installation and renovation maintenance certification, boiler level 2 installation and renovation maintenance certification, Class A II refrigeration and air conditioner equipment maintenance and installation certification and so on.






Certifications




Shandong Zhongjie Pressure Equipment(CJSE) has been specialized in providing our customer with professional equipment, integra solutions and other related installation services for over 30 years, accumulated plenty of experience in boilers, pressure vessels(LNG/LPG/industrial storage tanks) manufacturing, LNG/LPG overall solution developing, station/factory engineering and customized equipment manufacturing. Now our company processes ASME certification and our equipment has been exported to over 30 countries.





Engineer Project






Related Products


Horizontal Carbon Steel Ground LPG Tank

91.8% Response Rate

Underground 50m3 LPG Storage Tank for LPG Station

91.8% Response Rate

Mobile LPG Skid Mounted Filling Station

91.8% Response Rate





FAQ


1.Q: Are you a factory or trading company?
A: We are the professional lpg tank manufacturer in China,including lpg storage tank, LNG storage tank, cryogenic vacuum insulated storage tank, liquid ammonia tank, skid mounted lpg filling stations,and spare parts with more than 30 years experiences. We are the largest production base of lpg storage tank in China now, sincerely welcome to visit our factory.


2. Q: Could you customize exactly according to my requirements ?
A: Yes. OEM is available by lpg tank manufacturer. We have professional R&D team, we can produce the product exactly according to your requirements.


3. Q:What service can I get from you?

A: We can offer complete solutions integrated with design, manufacturing, installation, inspection and maintenance at competitive prices. And We provide lifelong tracking service and one year free warranty for all of our products. we also provide training and technical support to guide you install and commission your product.

4.Q: What is the MOQ ?
A: One piece is acceptable for lpg storage tank, the more the quantity, the more favorable the price.


If you are interested in our any product, please kindly contact us soon
