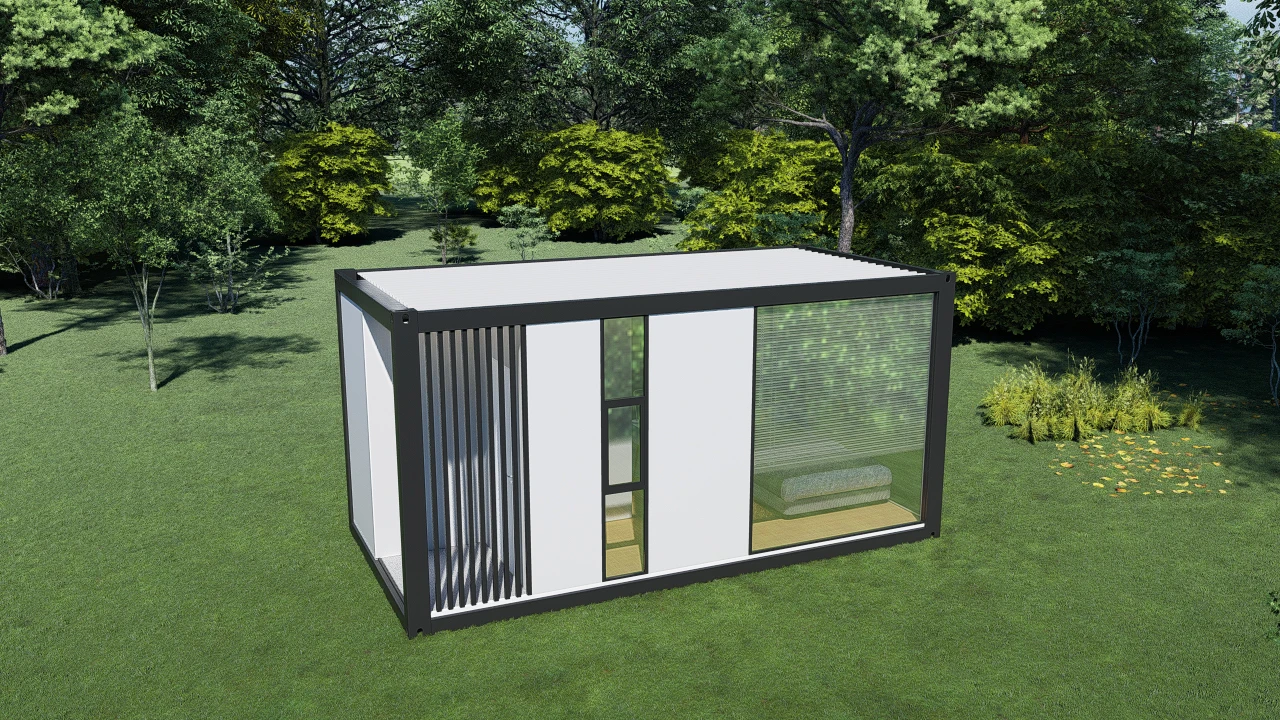

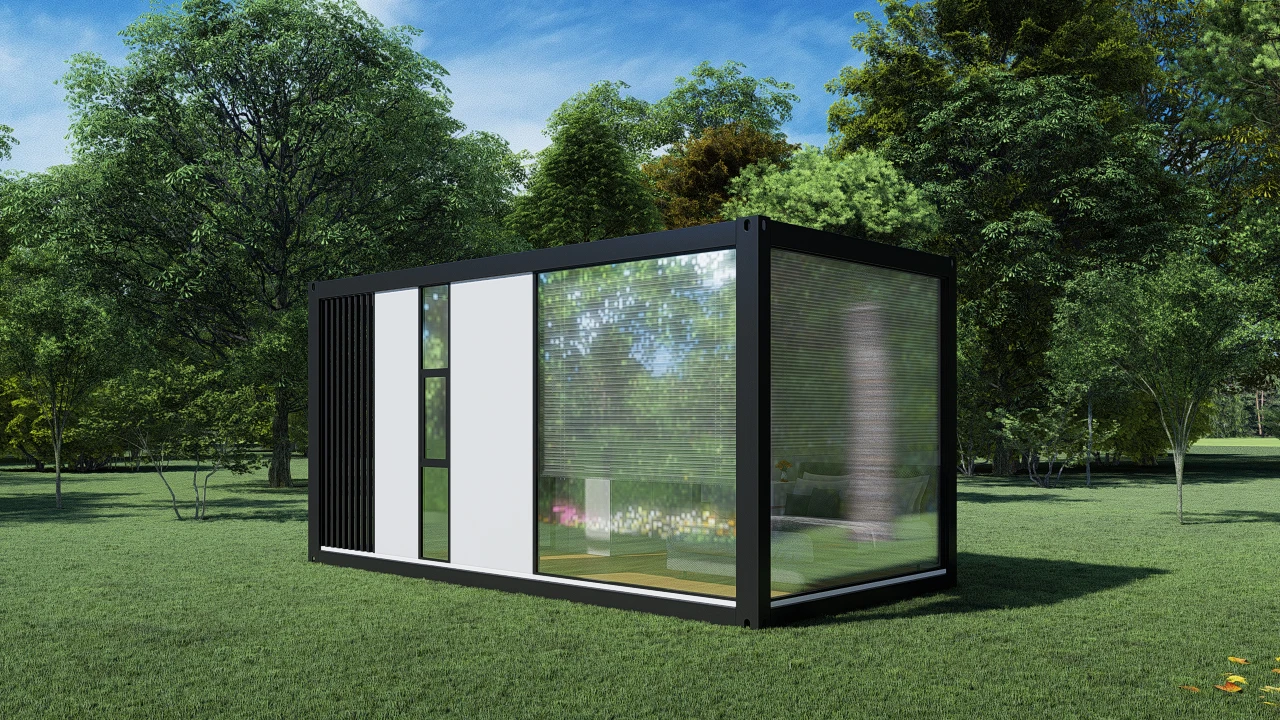

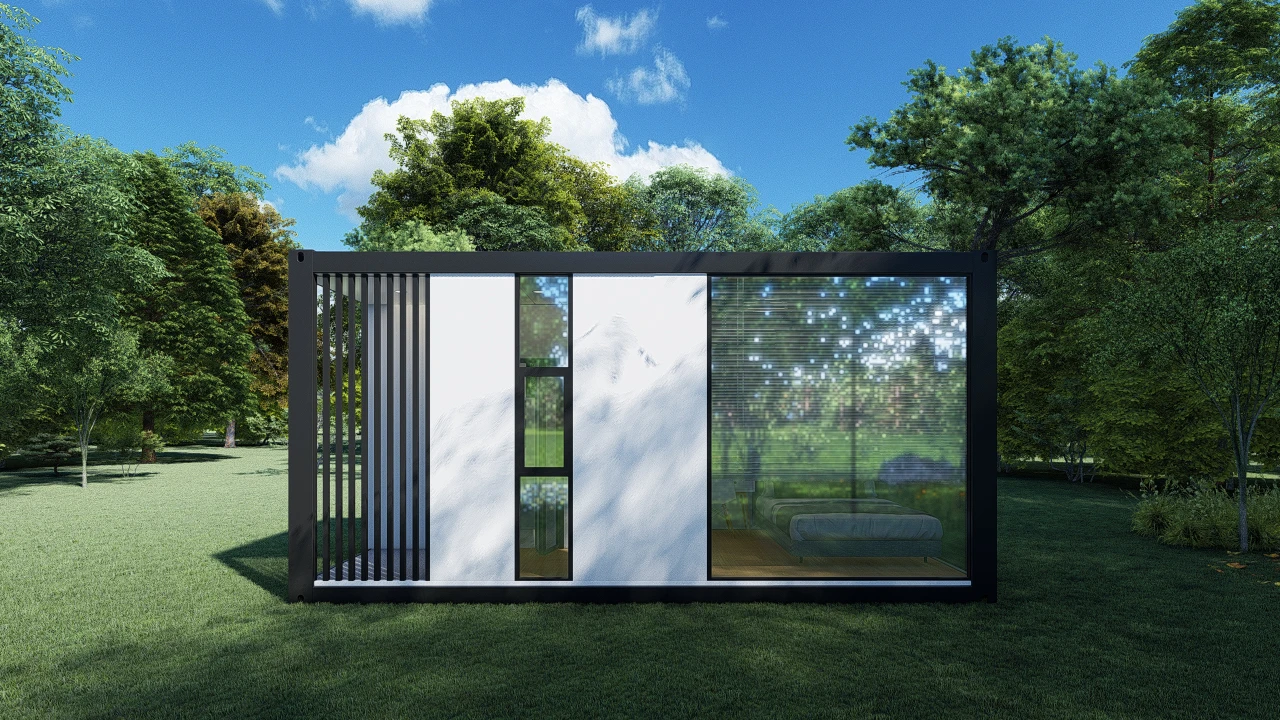

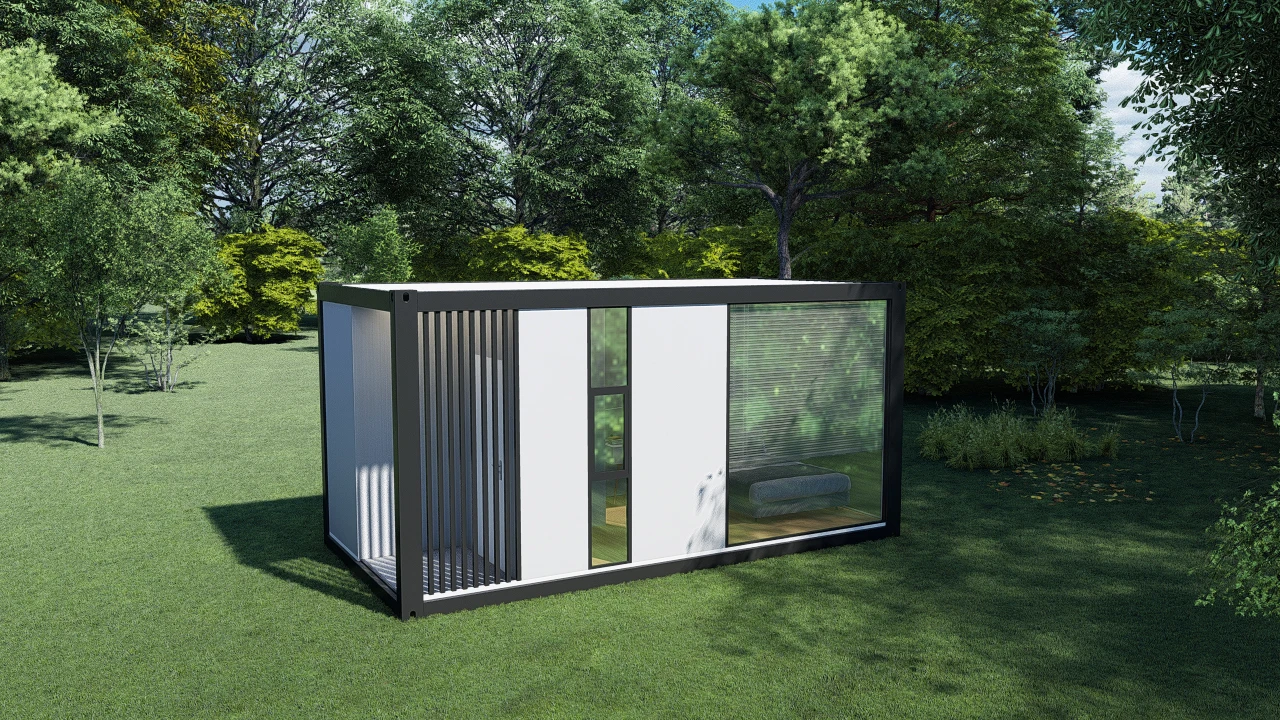

CDPH 4 Season Winter Gardens Sun House For Glass Conservatory Prices Sunroom
- Category: >>>
- Supplier: CDPH (hainan) Company Limited
Share on (1601092236737):
Product Overview
Description
PRODCUT DESCRIPTION
Specification | 1 | L*W*H（mm） | |
2 | Roof Type | Corrugated, roof draining via 4 pipes at the corner | |
Frame | 3 | Corner Column | Profile: L210*150mm, galvanized, t=2.5mm, metal code SGH340 |
4 | Roof Beam | Profile: 185mm, galvanized, t=2.5mm, metal code SGH340 | |
5 | Floor Beam | Profile: 160mm, galvanized, t=2.5mm, metal code SGH340 | |
6 | Roof Purlin | Profile: square tube 60*60*1.5mm, metal code Q235B | |
7 | Floor Purlin | Π type high strength, 101*1.0mm profile, metal code Q345 | |
8 | Painting | Bottom painting and surface painting, thickness 40μm, grey white | |
Roof | 9 | Roof Cladding | 0.4mm thick, galvalume metal sheet, white color |
10 | Insulation | 75mm glass wool, one side with aluminum film, density≥14kg/m³ | |
11 | Ceiling | 0.35mm thick, galvalume metal sheet, white color | |
Floor | 12 | Flooring Sheet | 1.6mm PVC flooring sheet |
13 | Base Plate | 18mm thick fiber cement board, density≥1.3g/cm³ | |
Wall | 14 | Thickness | 50mm panel, both sides 0.35mm metal sheet, grey white color |
15 | Insulation | Glass wool, density 50kg/m³ | |
Door | 16 | Size（mm） | WXH=840*2035 |
17 | Profile | Metal door | |
Window | 18 | Size（mm） | WXH=1120*1100 |
19 | Frame Profile | PVC integrated sliding window with security bar and screen | |
20 | Glass | 4mm+9A+4mm double glazed | |
Electrics | 21 | Voltage | 220V~250V |
22 | Electric Wires | Main circuit BVVB-3*6.0, air conditioner BVVB-3*4.0, socket BVVB-3*2.5, lighting BVVB-3*1.5 | |
23 | DB Box | 10 digit unexposed PVC box*1（Including high breaking circuit breaker 10A/1P, high breaking circuit breaker 20A/2P, high breaking circuit breaker 5A/2P, leakage protection circuit breaker 16A/2P, 1 piece each break） | |
24 | Lighting | LED lamp（LED 16.5W*2）*2 | |
25 | Socket | Industrial socket（3P/32A）*1, three pole multi-functional socket（250V 16A）*4, one gang switch*1 | |
Plumping and Sanitary | 26 | Sanitary Wares | Wash basin, toilet, shower, faucet, mirror, towel rail, soap holder, water supply and drainage pipelines, etc. |
Fittings | 27 | Flashing Part | 0.5mm metal sheet, white color |
28 | Ground Channel | 0.8mm metal sheet, white color | |
Option | 29 | Awning | 50mm thick glass wool awning, 1150mm wide |
Company Profile
CDPH (Hainan) Company Limited
CDPH (Hainan) Company Limited, is a newly established trading company since the beginning of the year 2022 and a share-holding subsidiary company of Beijing Chengdong International Modular Housing Corporation (Brief in CDPH). The company's predecessor is the International Department of CDPH, who has been involved in the mobile housing industry for more than 23 years.
To cooperate with us, what you will get--
1. 20+ years experience in mobile housing industry
2. Self-owned factory for modular houses
3. Specialized technical & engineering team
4. integrated supply chain for granite, marble, stone material, ceramic tiles, electric cables and other materials
5. ISO9001, ISO14001, OHSMS18001, TUV, BV, SGS, CE
2. Self-owned factory for modular houses
3. Specialized technical & engineering team
4. integrated supply chain for granite, marble, stone material, ceramic tiles, electric cables and other materials
5. ISO9001, ISO14001, OHSMS18001, TUV, BV, SGS, CE
CERTIFICATIONS

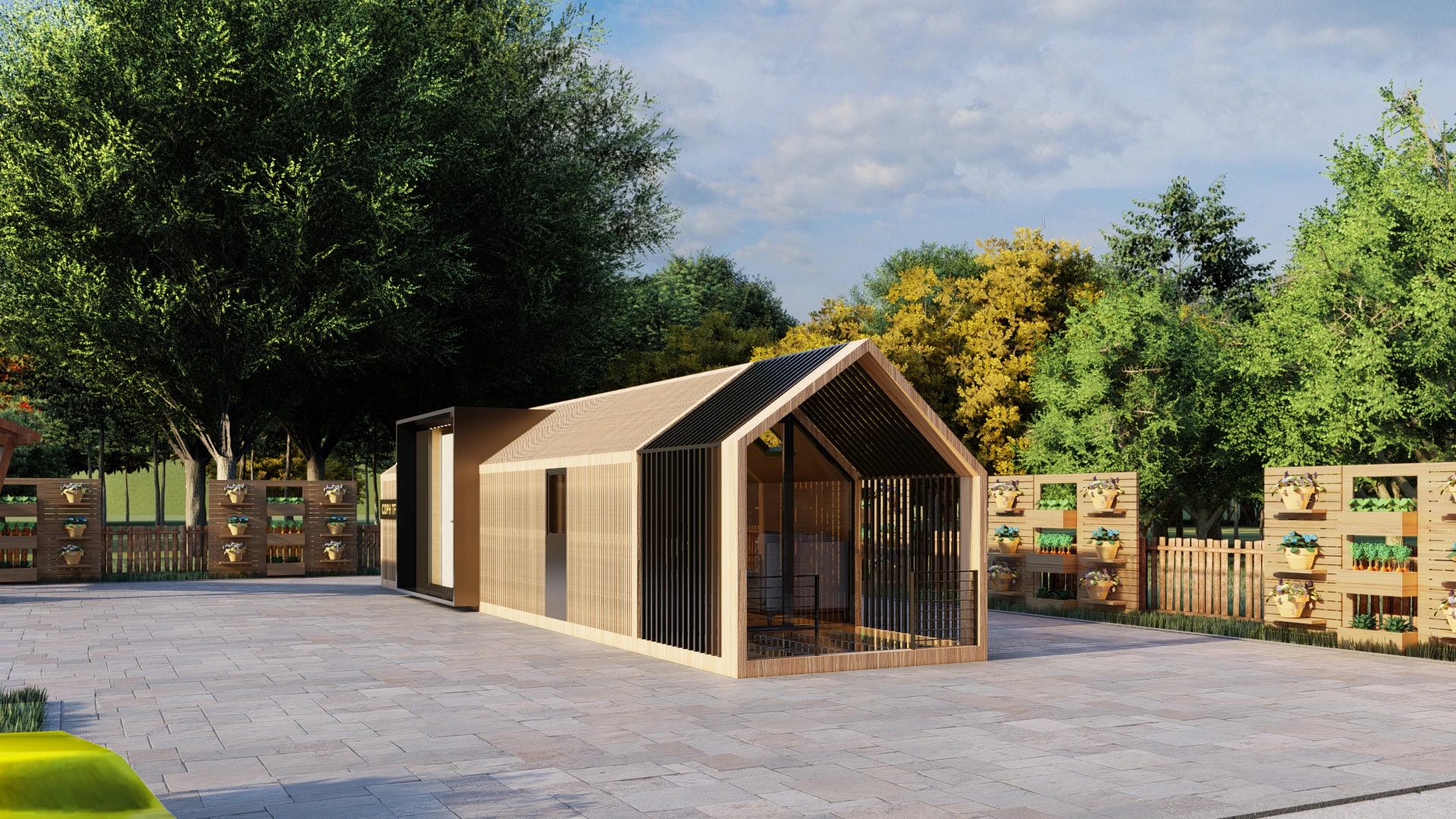

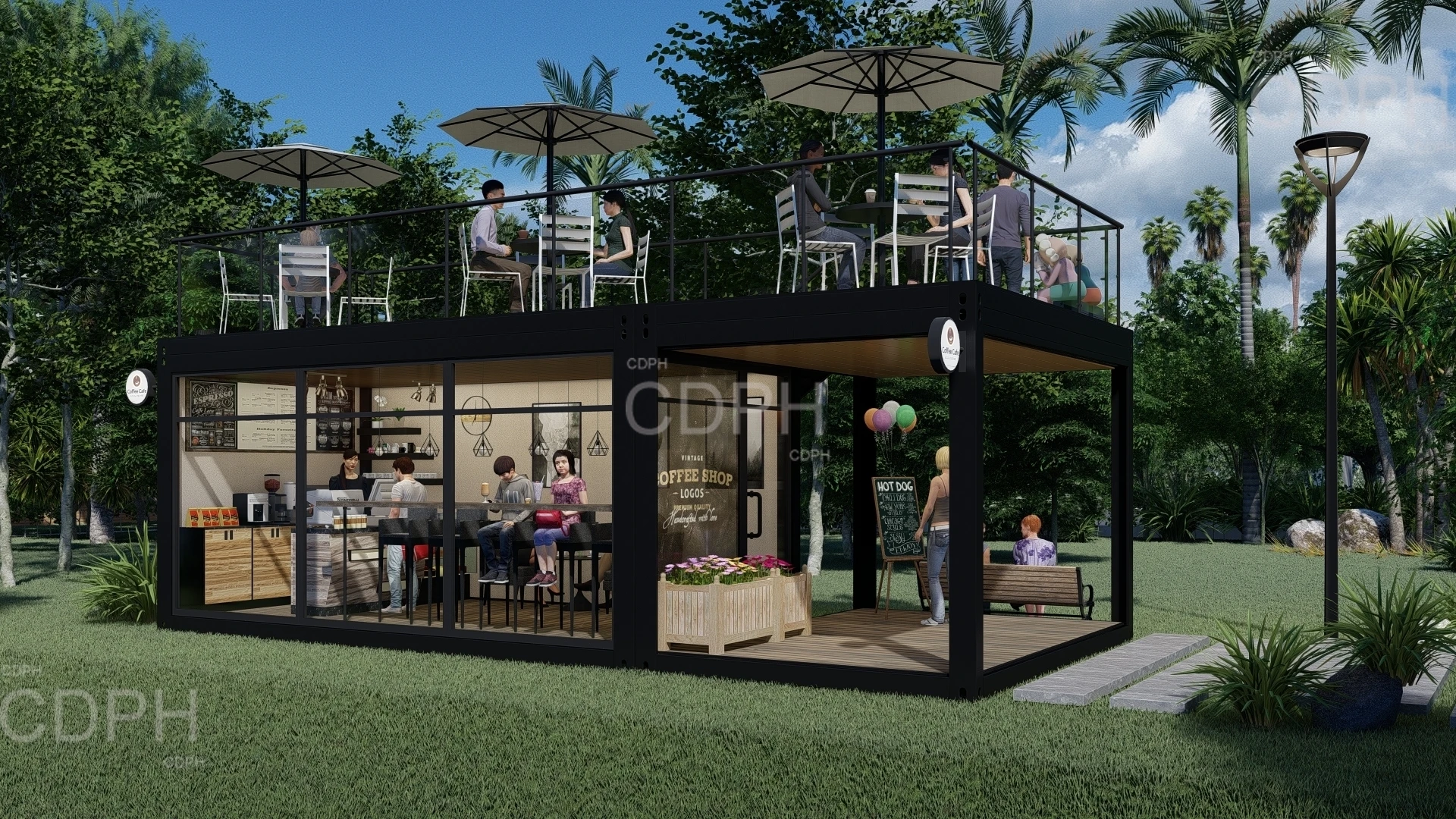

Project Gallery
