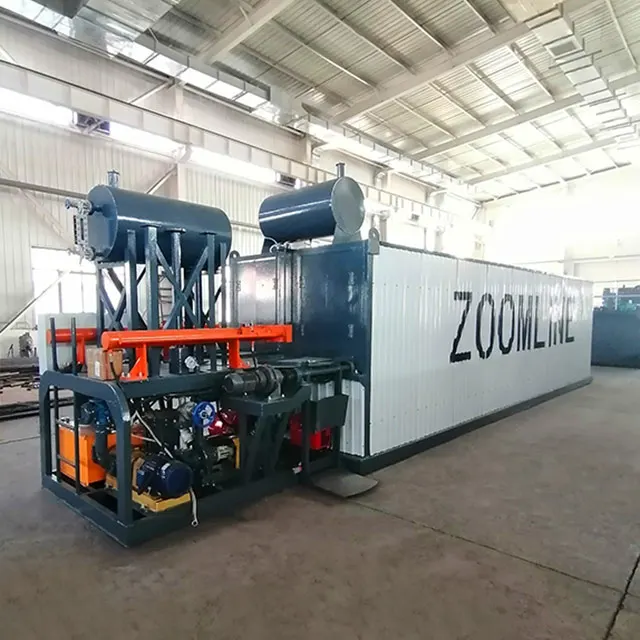

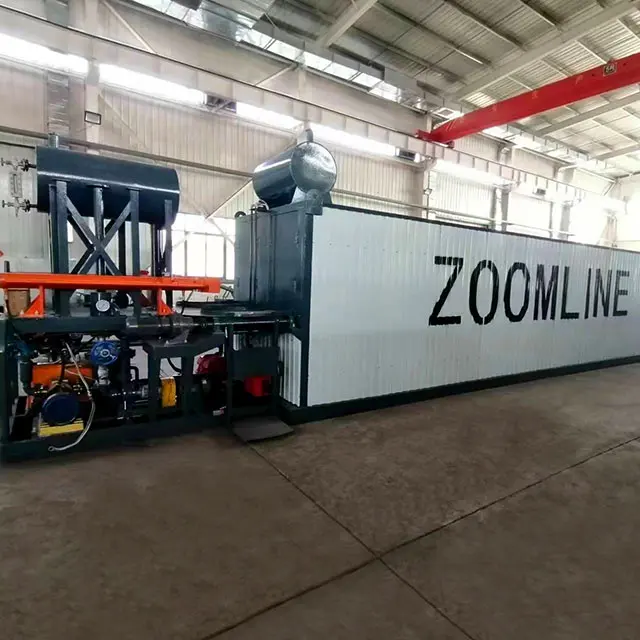

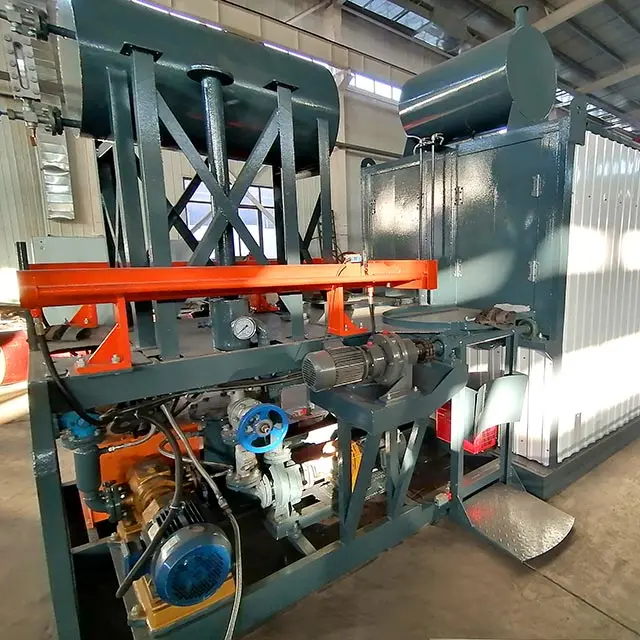

Bitumen Asphalt Melting Equipment 6TPH Bitumen Melting Machine

ZAM series bitumen melting machine is consist of melting tank, sliding supporting platform, thermal oil furnace heating system and electrical apparatus control system. The asphalt melting tank is divided into two chambers. The upper one is melting chamber for barreled bitumen; the lower one is equipped with heating coil, and the heating coil exchange heat with asphalt barrel in radiation way to achieve the purpose of asphalt melting. The lower chamber keeps up heating to bitumen to reach the temperature of suction pump( 100°C),then the bitumen pump pumps the bitumen into high-temperature tank, if increasing the heating time, you can get higher temperature.

The Feature of ZAM series bitumen melting machine
1.Closed type production, Energy Efficiency, No Pollution.
2.Easy operation, modular design, easy to transportation and assembly.
3.Batch-type fully enclosed structure, saving energy 50% than continuous type asphalt melting equipment.
4.Exhaust from thermal oil furnace is used again, high energy utilization.
5.ZAP series asphalt melting equipment can be applied to different specification barrel shape in different country, strong applicability, wide range of application.
6.Using large displacement heat preservation pump to internal circulation and agitation, asphalt be heated more quickly and uniform heating. water vapor is  exhausted quickly by induced draft fan to dewatering by negative pressure.
7.Thermal oil furnace adopts automatic Control System and international brand burner which can automatically control according to oil temperature with instrument monitoring.
8.High power thermal oil furnace, heating speed faster, stable and reliable performance.

ZAM series asphalt melting equipment technical parameter

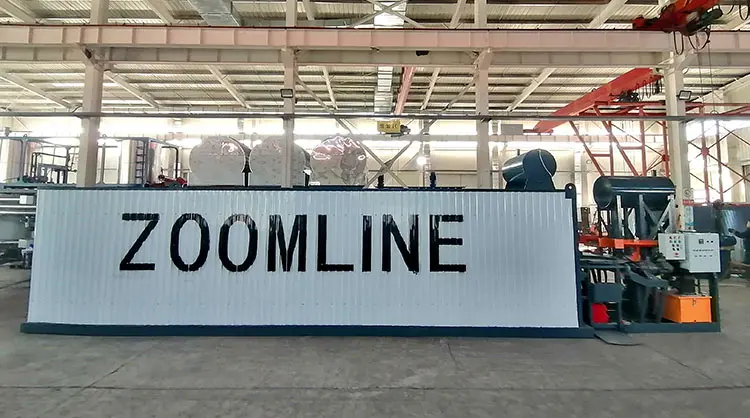

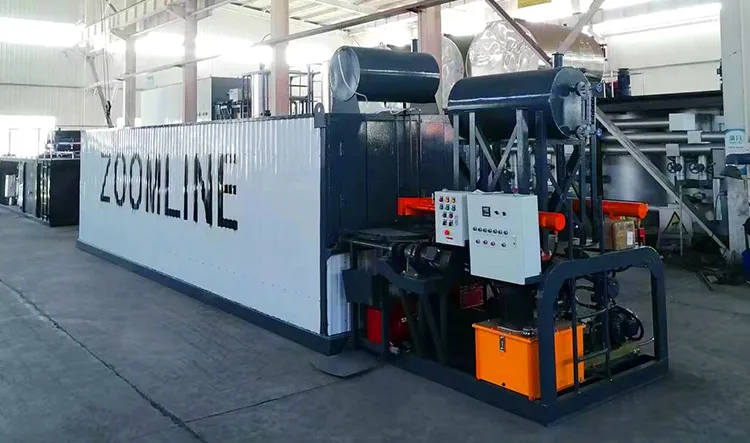

Pictures of asphalt melting equipment,bitumen melting machine delivery:

Based in Nanyang Longsheng Industrial Park of Henan, ZOOMLINE Machinery is a professional manufacturer of asphalt mixing plant,coal burner,oil burner,gas burner and support equipments that draws on years' experiences and technology developments.

Our main asphalt mixing plants include:

Stationary Asphalt Mixing Plant 40-320TPH

Mobile Asphalt Mixing Plant 40-160TPH

Continuous asphalt mixing plant 20-160TPH

One trailer mounted asphalt plant 20-120TPH

Recycling asphalt mixing plant 60-120TPH

Asphalt Plant Parts: Drying drum, vibration screen, control system, bag house filter, mixer, bitumen tank.

Bitumen Melting Machine

Emulsion Bitumen Equipment

Stabilized Soil Mixing Plant

Asphalt Mixing Plant Burner: Coal burner, oil burner, gas burner

Concrete Batching Plant

ZOOMLINE Machinery Factory

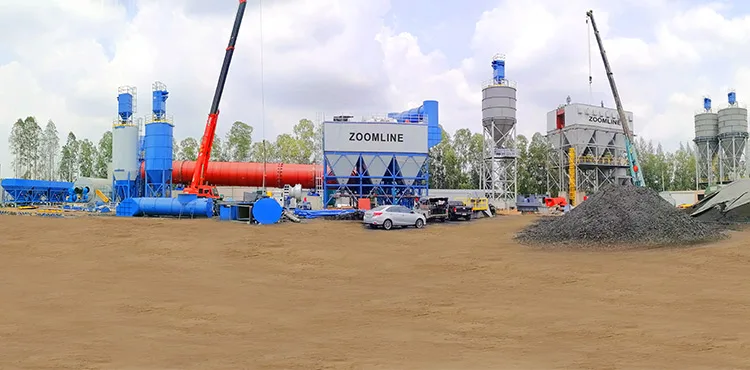

ZOOMLINE Machinery working site

ZOOMLINE Machinery office

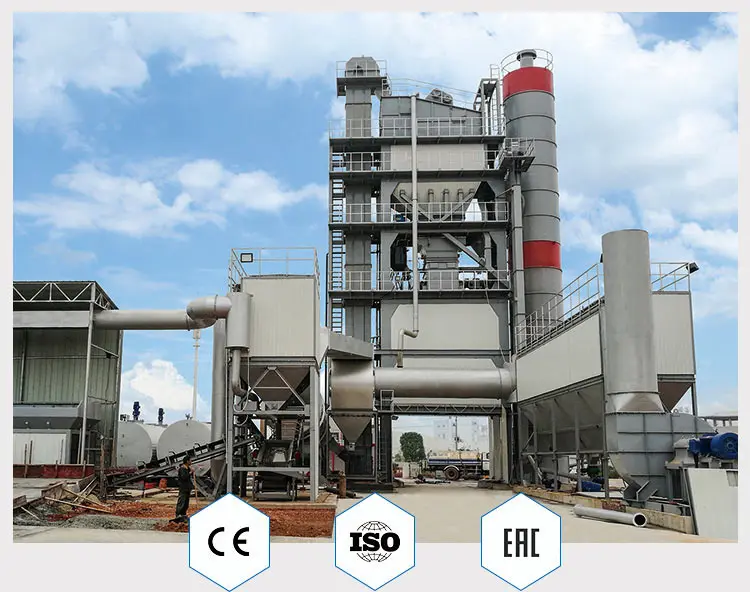

ZAP-S series 40-320t/h Stationary Batch Asphalt Mixing Plant

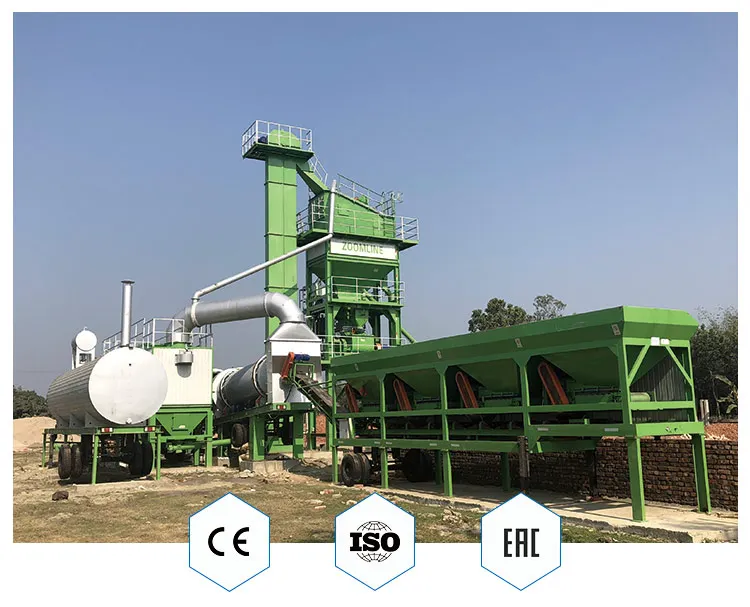

ZAP-M series 40-160TPH Mobile Asphalt Mixing Plant

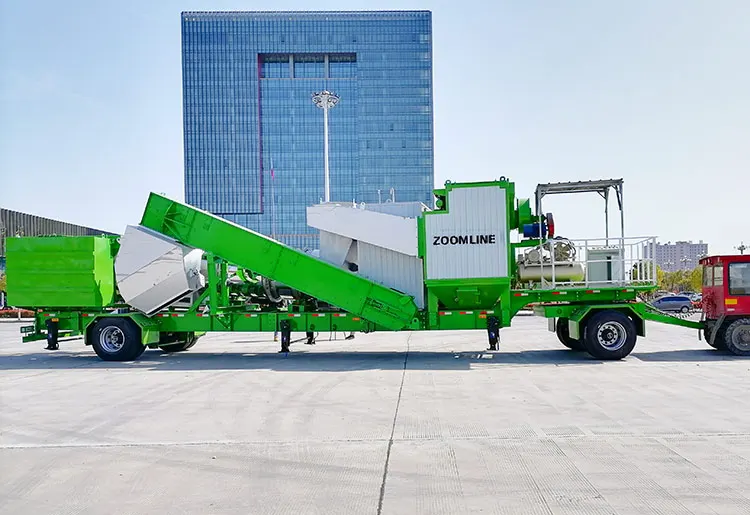

One Trailer Mounted Drum Mix Asphalt Plant

Pulverized Coal Production Line

25m3-180m3 Concrete Batching Plant

Pre-sale Service

We can customize project design and process design for you (OEM service provided), produce machinery and equipment procurement plans suitable for you, and design and manufacture products according to your special needs.

Sales Service

Accompany you to complete the equipment acceptance, and assist in the preparation of construction plans and detailed procedures.

After-sale Service

All the company’s equipment provide a one-year warranty period.
We supply the installation and commissioning service and original spare parts for clients.
We guarantee to provide technical support to users in the whole working life of the ZOOMLINE equipment.
After sales service 7 x 24hrs Hotline:
Phone/WhatsApp/Wechat:+86-18838114766, E-mail: info(at)zoomline.biz

Q1

What payment terms are available for ZOOMLINE company?

T/T (Telegraphic Transfer), L/C(Letter of credit), BG (bank guarantee), D/P(Documents against Payment), D/A((Documents against Acceptance), Western Union and other.

Q2
How long of the delivery time?

Usually 40-80T asphalt plant needs 25-30 working days, 120-200T asphalt plant needs 35-45 working days.

Q3
How long is needed for installation working of one set asphalt mixing plant ?

20-30 working days for batch asphalt mixing plant, and 10-20 working days for continuous(drum) asphalt mixing plant.

Q4
How many person are needed for the operation of whole asphalt mixing plant ?

Six persons

Q5
How long is the service life of your asphalt mixing plant ?

Normally, the service life of our batch asphalt mixing plant is over 15 years, and it of our continuous (drum) asphalt mixing plant is over 10 years.

Q6
How about the quality guarantee period of your asphalt mixing plant ?

The guarantee period of our asphalt mixing plan is 15 months, we will bear the quality issue of all parts except wearing parts in guarantee period.

Q7
How about the spare parts supply of your company?

We will provide some wearing parts along with whole asphalt mixing plant to user freely, and user can purchase more wearing parts along with whole asphalt mixing plant. We will keep the spare parts supply to user in the whole service life of asphalt mixing plant.

Q8
How about the after sales service of your company?

We will send professional technical staff to user’s project working site to guide installing work, and commissioning the plant and training the operators of the buyer. And ZOOMLINE provide the technical support service to user’s within the whole service life of asphalt mixing plant.

Q9

How much does an asphalt plant cost?

The cost of an asphalt plant can vary widely depending on various factors such as capacity, features, location, and market conditions. However, the asphalt plant suitable for small to medium-scale projects might cost anywhere from $50,000 to $500,000. Larger asphalt plants with higher production capacities can cost several million dollars.
Welcome to inquiry ZOOMLINE for get the best price now.

Q10

What are the three types of asphalt plants?

There are primarily three types of asphalt plants commonly used in the industry:
Batch Plants: Batch plants produce asphalt in batches. In these plants, aggregates are proportioned and heated separately before being mixed with asphalt binder in a mixer.
Drum Plants: Drum plants, also known as continuous plants, produce asphalt continuously. In these plants, aggregates are dried and heated in a drum while being continuously mixed with asphalt binder. The mixed asphalt is then discharged from the drum into trucks for transportation.
Batch Drum Mix Plants: Batch drum mix plants combine features of both batch and drum plants. These plants have a drum where the drying and mixing of aggregates occur continuously, similar to drum plants.
Welcome to inquiry ZOOMLINE for get more information now.

Q11

Is it safe to live near asphalt plant?

Living near an asphalt plant can raise concerns about potential health and environmental impacts. While modern asphalt plants are designed to minimize emissions and comply with regulatory standards, there are still some potential risks associated with living in close proximity to such facilities. Here are some factors to consider , like air quality , odors , noise ,traffic and safety.
To mitigate these concerns, regulatory agencies often impose emissions limits, operating standards, and setback requirements for asphalt plants to protect public health and the environment.

Q12

How is asphalt made in a plant?

Asphalt, also known as bitumen, is produced in an asphalt plant through a process that involves heating and mixing various ingredients.
From Aggregate Handling --- Drying and Heating --- Asphalt Binder Preparation --- Mixing --- Storage and Transport --- Quality Control ---Paving
It's worth noting that there are different types of asphalt plants, such as batch plants and drum plants, which may have variations in the production process. However, the fundamental steps involved in asphalt production remain similar across different plant types.
