Power generation in 25 years increases by 0.91%
Saving initial investment by￥5.57 million per 100MW PV station
Saving Levelized Cost of Energy by 2.08%
trina high temperature hjt double 210m risen 700watts 144 cell monocristalino de a grade bifacial 700 wp watt w 700w solar panel
- Category: >>>
- Supplier: Guangdong Leiling Technology Co. Ltd.
Share on (1601092330731):
Product Overview
Description
Specification

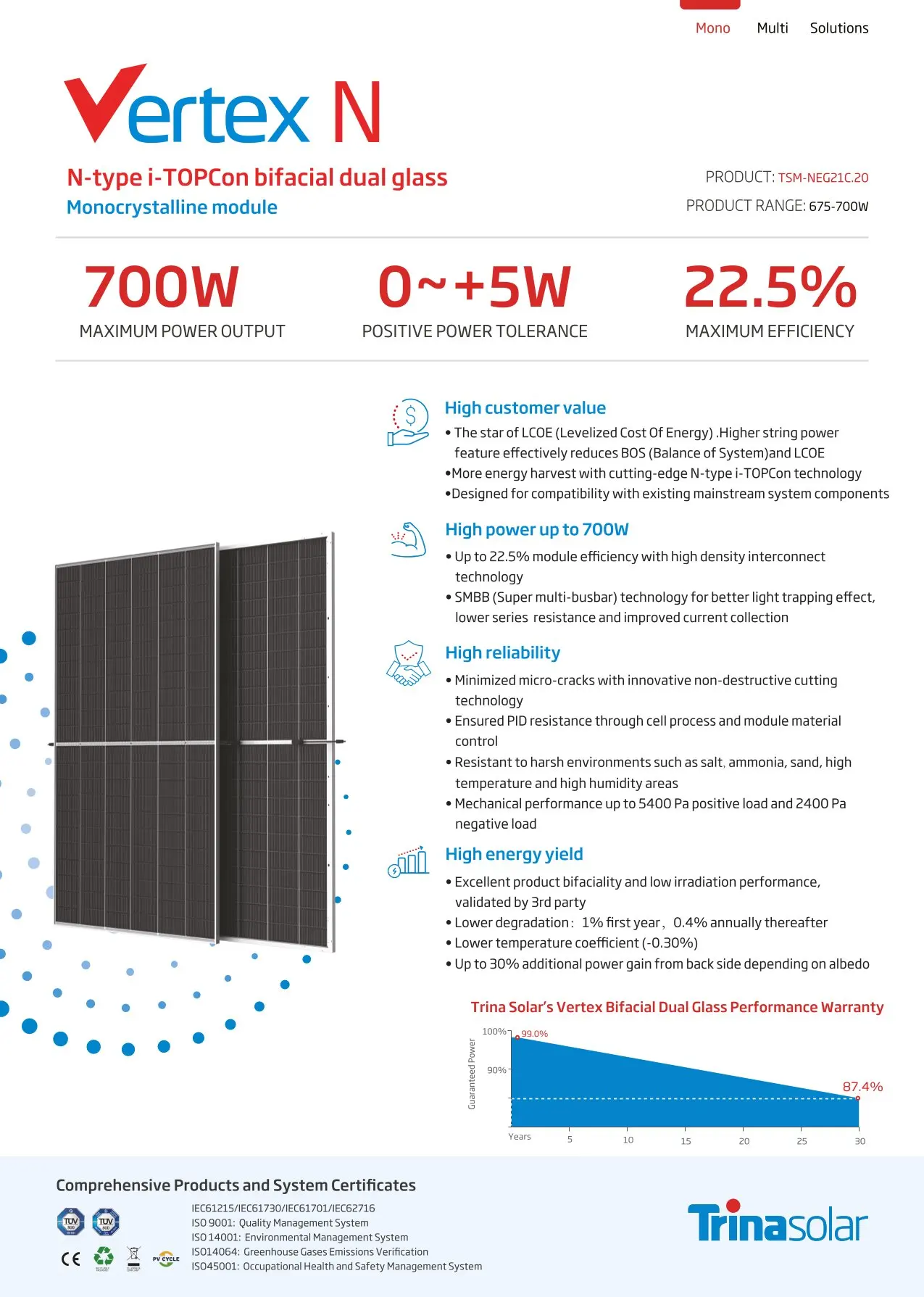

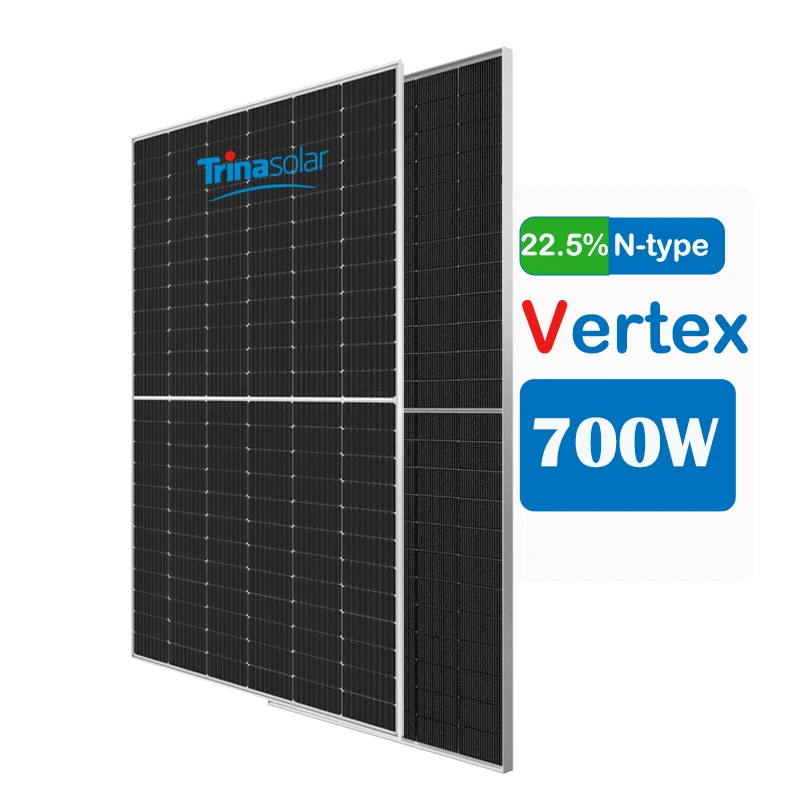

"Ace Group" of ground power plants - Vertex N 700W
Power generation in 25 years increases by 0.91%
Saving initial investment by￥5.57 million per 100MW PV station
Saving Levelized Cost of Energy by 2.08%

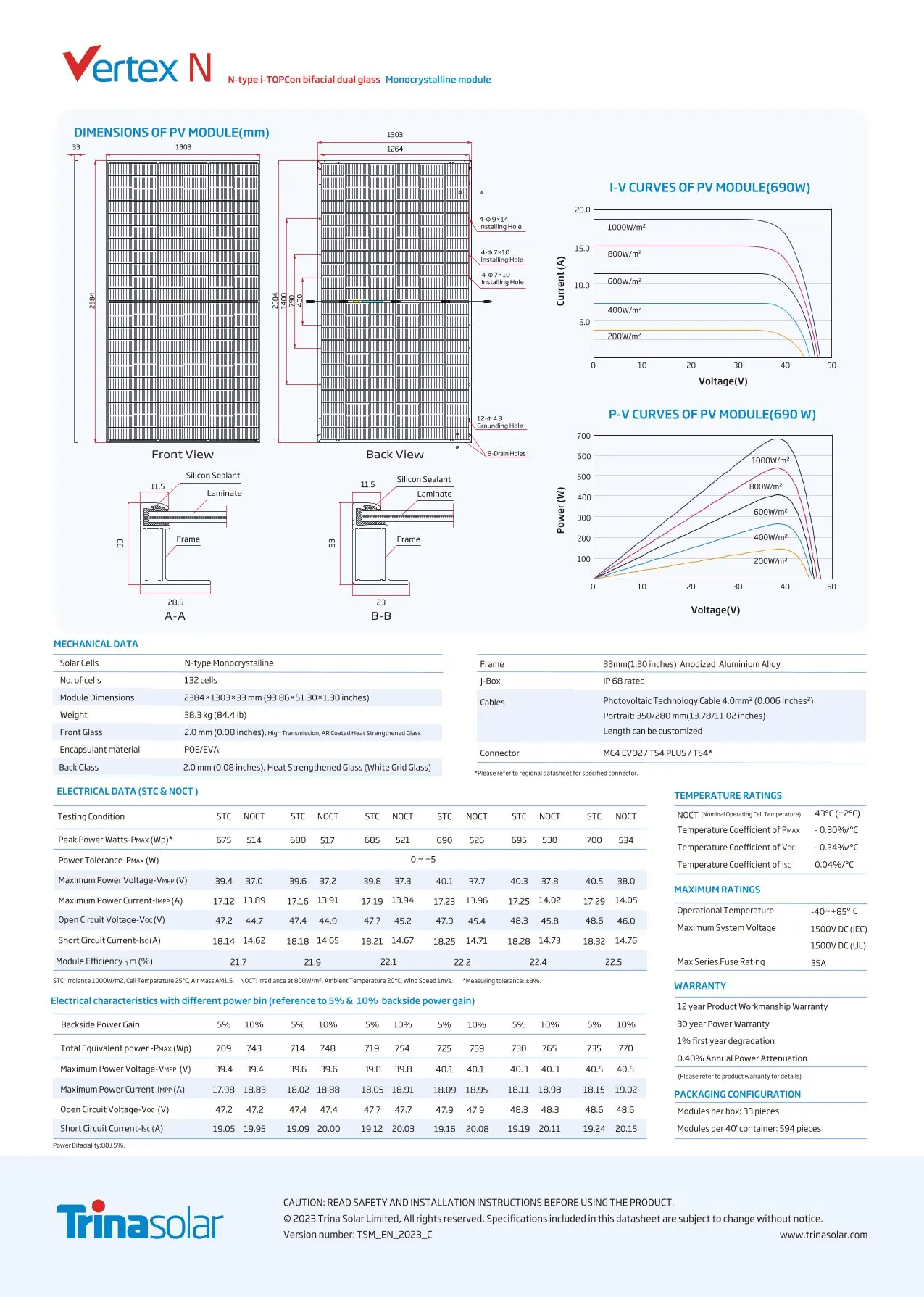

MECHANICAL DATA | ||
Solar Cells | N-type Monocrystalline | |
Module Dimensions | 2384x1303x33 mm(93.86x51.30x1.30inches) | |
Weight | 38.3 kg (84.4 1b) | |
Front Glass | 2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass | |
Encapsulant material | POE/EVA | |
Back Glass | 2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass) | |
Frame | 33mm(1.30 inches) Anodized | |
J-Box | IP 68 rated | |
Cables | Photovoltaic Technology Cable 4.0mm' (0.006 inches?) | |
Portrait: 350/280 mm(13.78/11.02 inches) | ||
Length can be customized | ||
connector | MC4 EVO2/TS4 PLUS/TS4 | |
Nominal Max. Power （Pmax） | 67 5W | 680W | 685W | 690W | 695W | 700W |
Opt. Operating Voltage （Vmp） | 39.4 | 39.6 | 39.8 | 40.1 | 40.3 | 40.5 |
Opt. Operating Current （Imp） | 17.12 | 17.16 | 17.19 | 17.23 | 17.25 | 17.29 |
Open Circuit Voltage （Voc） | 47.2 | 47.4 | 47.7 | 47.9 | 48.3 | 48.6 |
Short Circuit Current （Isc） | 18.14 | 18.18 | 18.21 | 18.25 | 18.28 | 18.32 |
Module Efficiency (%) | 21.7 | 21.9 | 22.1 | 22.2 | 22.4 | 22.5 |
Products Description
VR
Company Profile

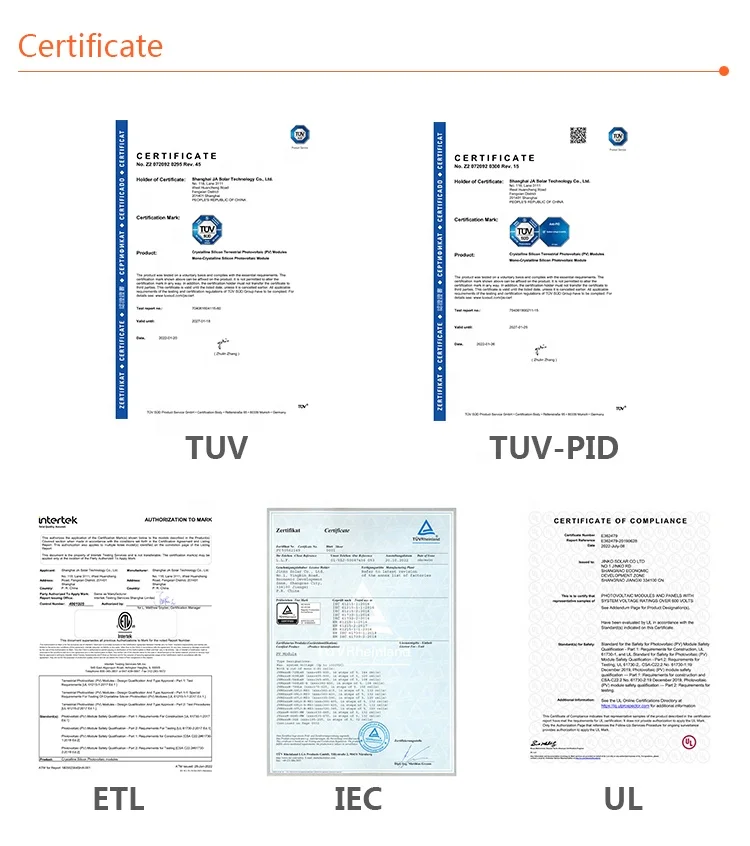

Certifications
Customer visit and Exhibition

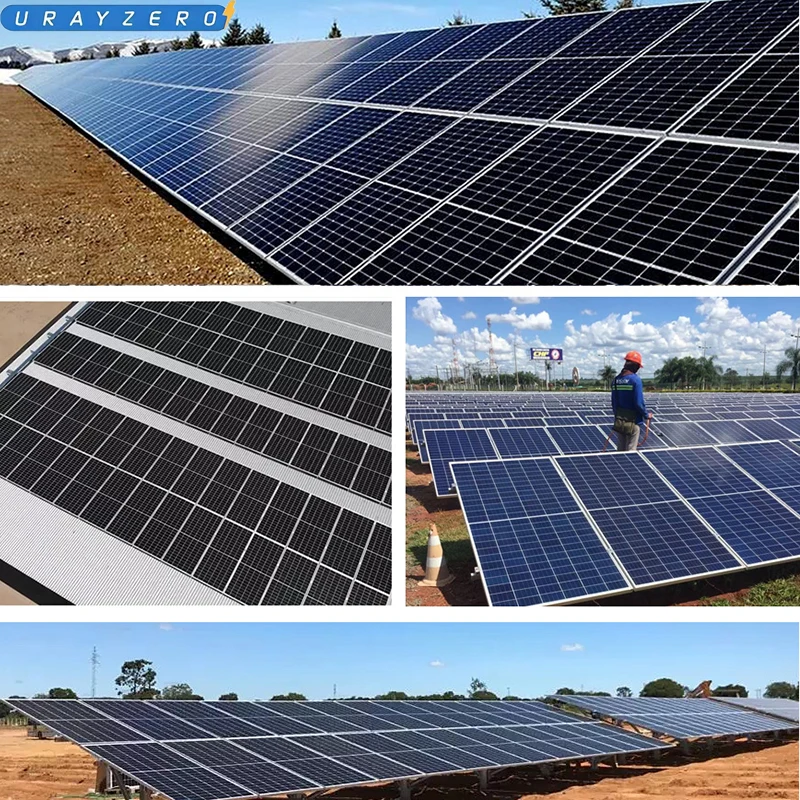

Customer Photos
Packaging & Shipping
FAQ
Q: How about the warranty? What you will do if the inverter in problem during 1 or 2 years? If refund should i return the goods?
A: The inverters are of 2 years warranty, during the warranty we offer you free replacements for parts,no need to send back to china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
Q: How long the delivery time if i order? How soon can you send out the goods?
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
Q: What happen if I meet problem during instalation? Will you support and how?
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
Q: Does your company also provide other solar products except Pure Sine Wave Inverter?
A: Yes, we also provide other solar products, like Lead-acid and lithium batteries, Tier one solar panel, Hybrid/off grid solar inverter, on grid inverter, Complete solar system.
Q: What certificates do you have for your products? Can you provide sample for testing?
A: Sure, please kindly contact us and we will provide sample for you. Our products have acquired ISO9001, CE, EMC, UL, LVD certificates, which is able to satisfy most country’s importing requirements.
Q: How do you ship the goods and how long does it take?
A: Usually by EXW, DDU, DDP, FOB,CIF, DAP. It usually takes 5-10days to arrive. By air, by sea are also acceptable DHL, UPS,FEDEX,TNT., etc. All terms are available.
