- Max. efficiency 98.1%
- Dual/Three MPPTs
- Wide MPPT voltage range
- Touch key and OLED display
- Compact design for one person installation

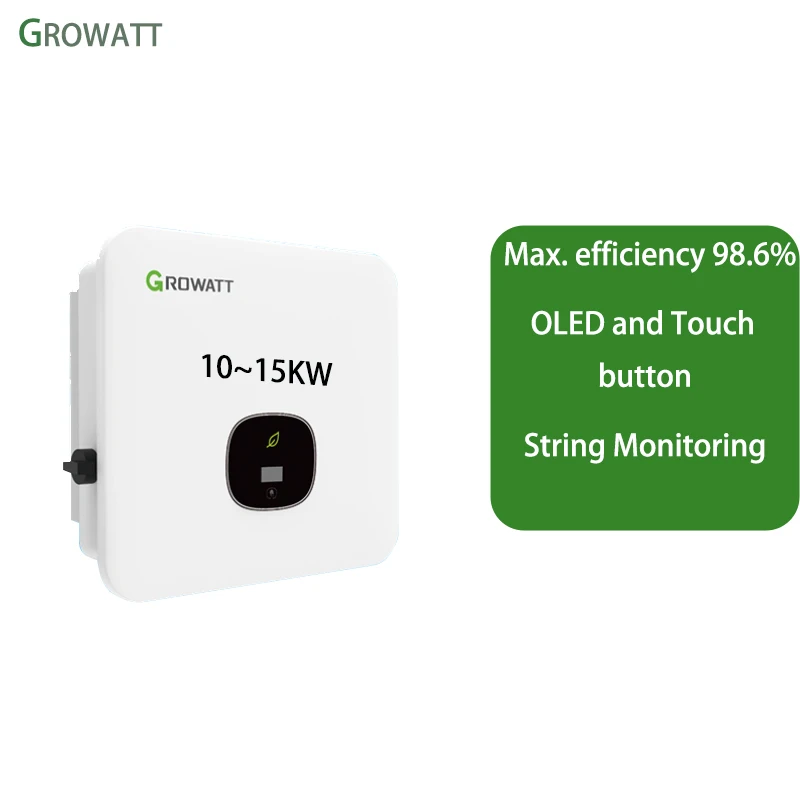

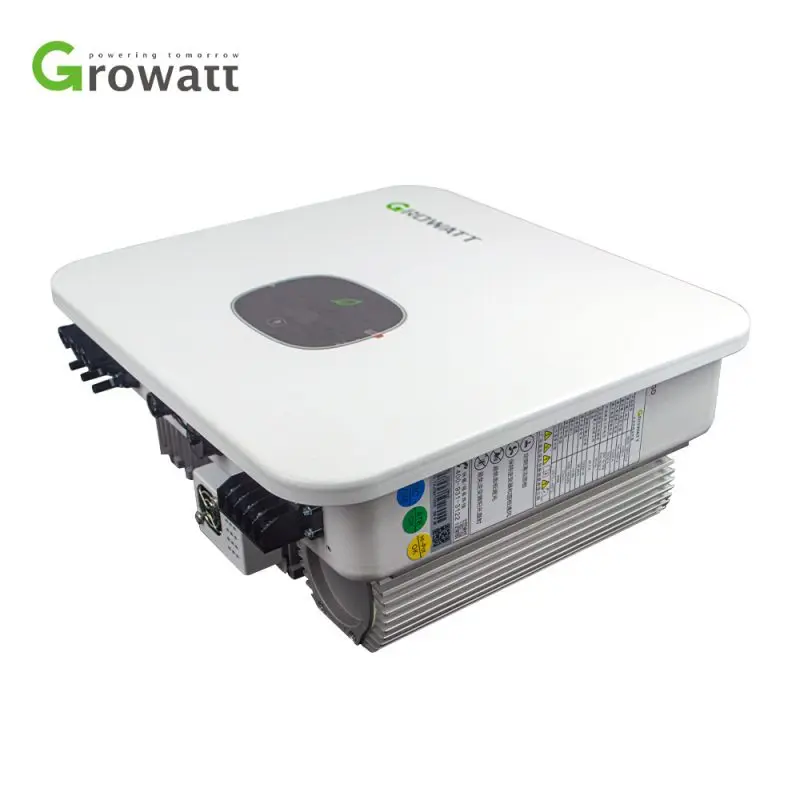

Growatt inverter grid tie 10kw 15kw 20 kw 25kw 30kw 50kw 110kw three phase chinese warehouse DDP delivery solar inverter
- Category: >>>
- Supplier: Guangdong Leiling Technology Co. Ltd.
Share on (1601092446773):
Product Overview
Description
- Type II SPD on DC side
- Support export limitation
- AFCI function optional
- Max. efficiency 98.1%
- Dual/Three MPPTs
- Wide MPPT voltage range
- Touch key and OLED display
- Compact design for one person installation
Specification
Datasheet | MIN 7000TL-X(E) | MIN 8000TL-X(E) | MIN 9000TL-X | MIN 10000TL-X | ||||
Input data (DC) | ||||||||
Max. recommended PV power (for module STC) | 12000W | 12000W | 13500W | 15000W | ||||
Max. DC voltage | 600V | |||||||
Start voltage | 100V | |||||||
Nominal voltage | 360V | |||||||
MPP voltage range | 60-550V | |||||||
No. of MPP trackers | 2 | 3 | ||||||
No. of PV strings per MPP tracker | 1/2 | 1/1/2 | ||||||
Max. input current per MPP tracker | 13.5A/27A | 13.5A/13.5A/27A | ||||||
Max. short-circuit current per MPP tracker | 16.9A/33.8A | 16.9A/16.9A/33.8A | ||||||
Output data (AC) | ||||||||
AC nominal power | 7000W | 8000W | 9000W | 10000W | ||||
Max. AC apparent power | 7000VA | 8000VA | 9000VA | 10000VA | ||||
Nominal AC voltage(range*) | Default:240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V | |||||||
AC grid frequency(range*) | 50/60 Hz (45-55Hz/59.5-60.5Hz) | |||||||
Max. output current | 33.5A | 38.3A | 43A | 45.5A | ||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||
THDi | <3% | |||||||
AC grid connection type | Single phase | |||||||
Efficiency | ||||||||
Max.efficiency | 98.1% | |||||||
European efficiency | 97.3% | 97.6% | ||||||
MPPT efficiency | 99.5% | |||||||
General data | ||||||||
Dimensions (W / H / D) | 425/387/180mm | |||||||
Weight | 18.2kg | |||||||
Operating temperature range | –25 °C ... +60 °C | |||||||
Nighttime power consumption | < 1W | |||||||
Topology | Transformerless | |||||||
Cooling | Natural convection | |||||||
Protection degree | IP 66 | |||||||
Relative humidity | 0-100% | |||||||
Altitude | 4000m | |||||||
DC connection | H4/MC4(Optional) | |||||||
AC connection | Cable gland +OT terminal | |||||||
Display | OLED+LED/WIFI+APP | |||||||
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN | Yes/Yes/Optional/Optional/Optional /Optional | |||||||
Warranty: 5 years / 10 years | Yes/Optional | |||||||
Products Description
Features of GROWATT MIN 7000~10000 TL-X
· Maximum efficiency 98.1% · 2/3 MPP trackers · Type II SPD on DC side · Supports export control · Touch key and OLED display

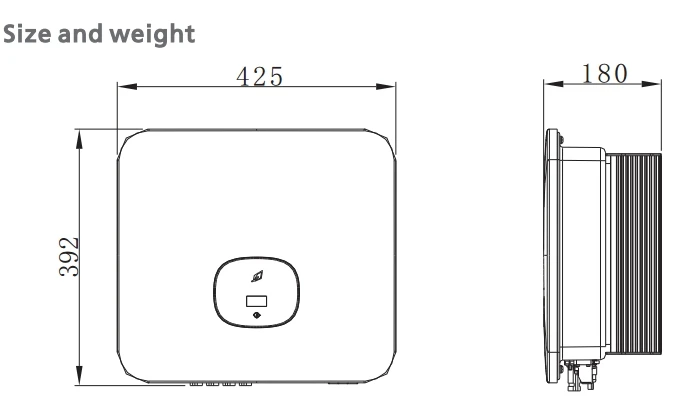

Size and Weight | ||||||||
Model | Height (H) | Width (W) | Depth (D) | Weight | ||||
MIN 7000-10000 TL-X | 425 | 387 | 180 | 18.2kg | ||||

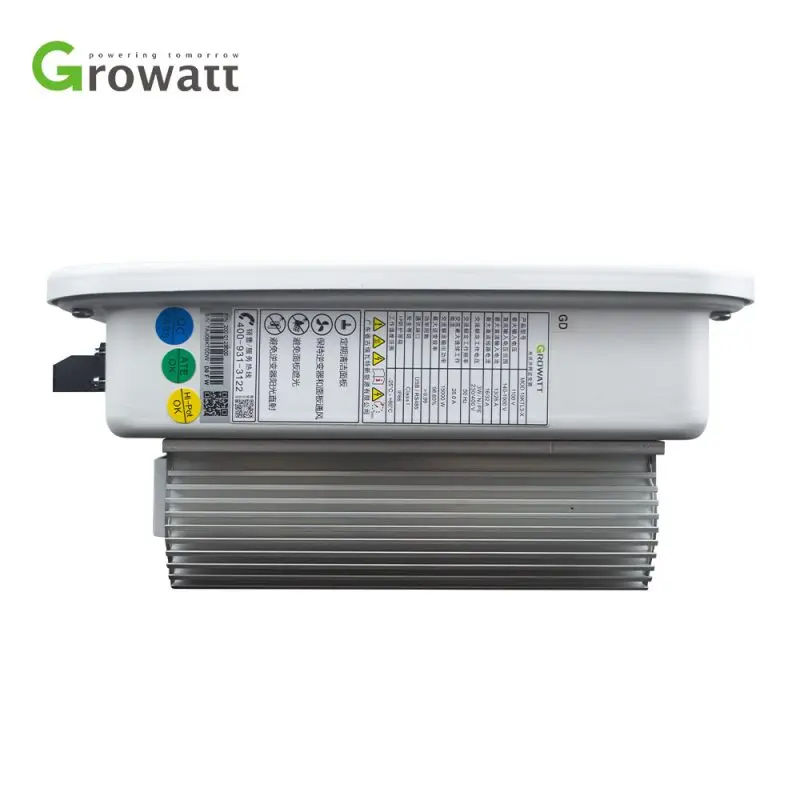

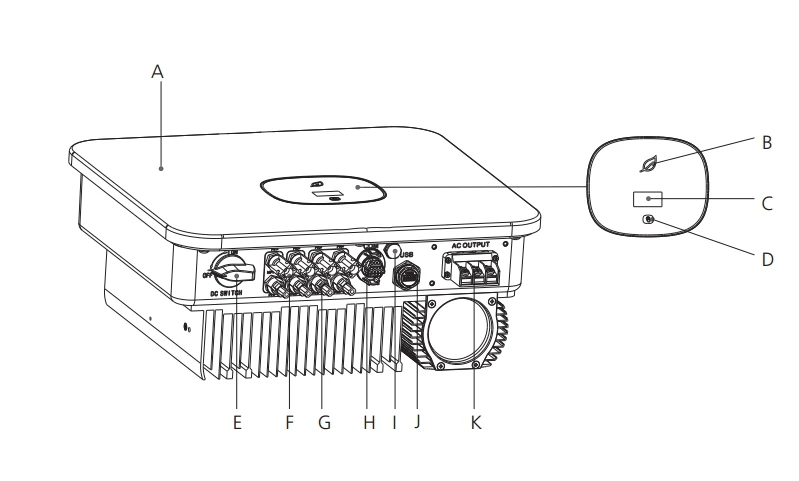

Back panel
The instructions for appearance are as follows. | ||||||
No. | Description | No. | Description | |||
A. | COVER | B. | LED | |||
C. | OLED | D. | TOUCH BUTTON | |||
E. | DC SWITCH | F. | PV+ INPUT | |||
G. | PV- INPUT | H. | COM PORT | |||
I. | VENTILATION VALVE | J. | USB PORT | |||
K. | AC OUTPU | |||||

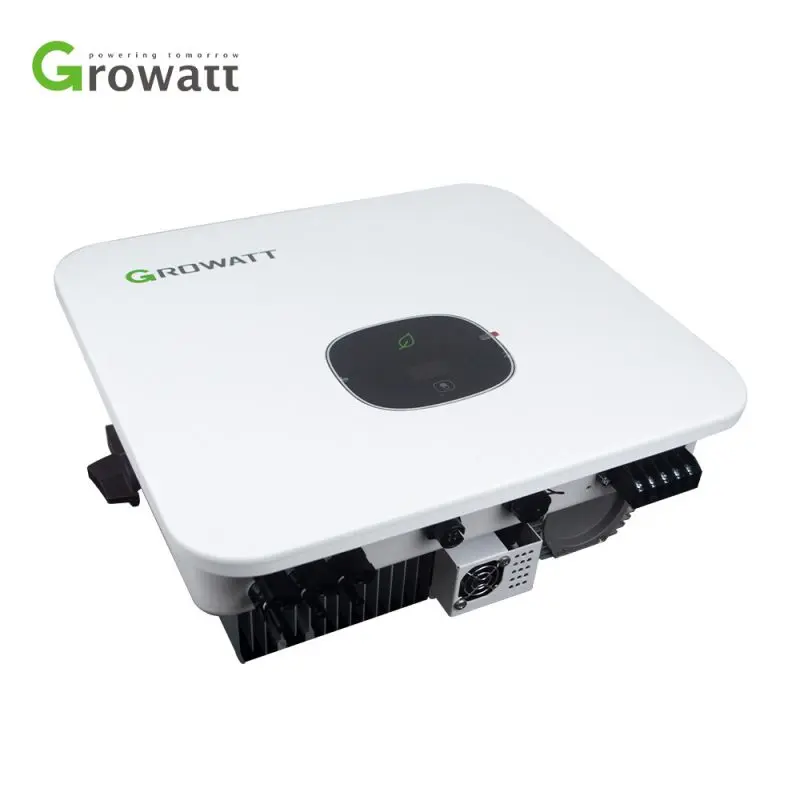

Product Detail

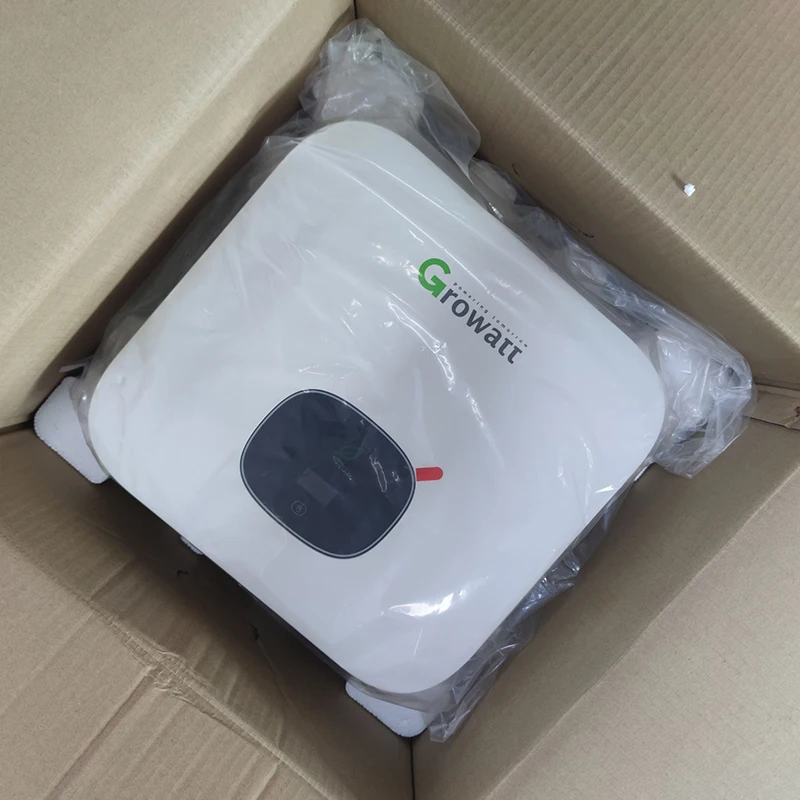

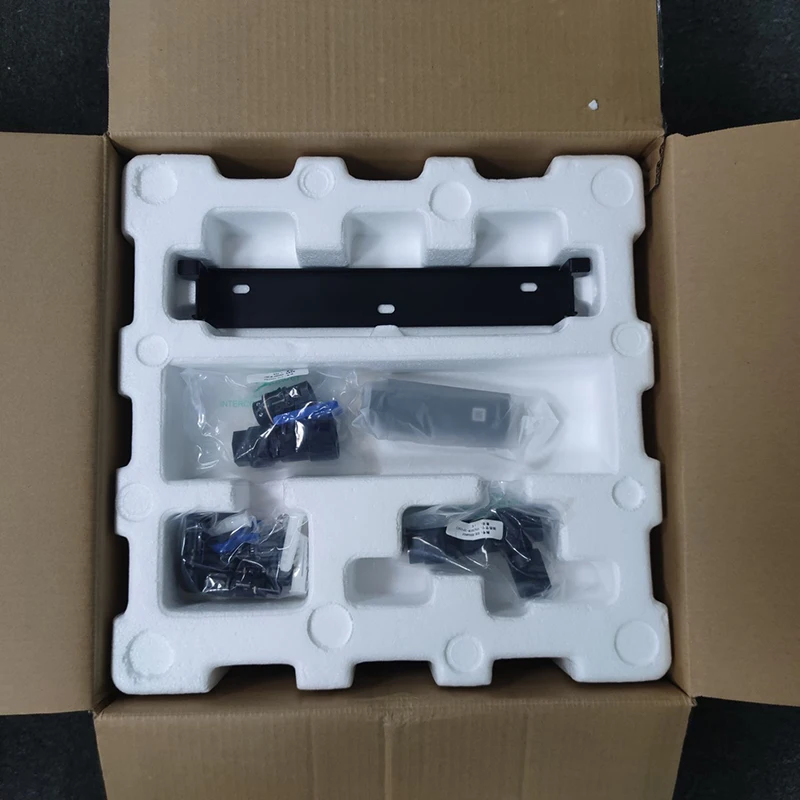

Product packaging

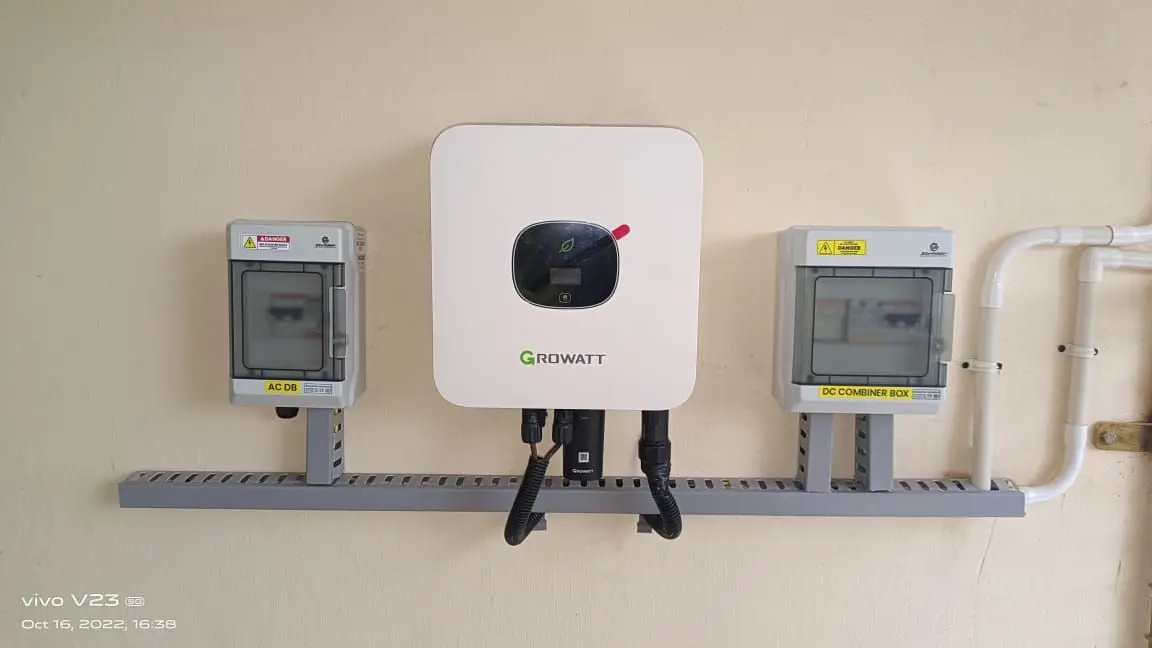

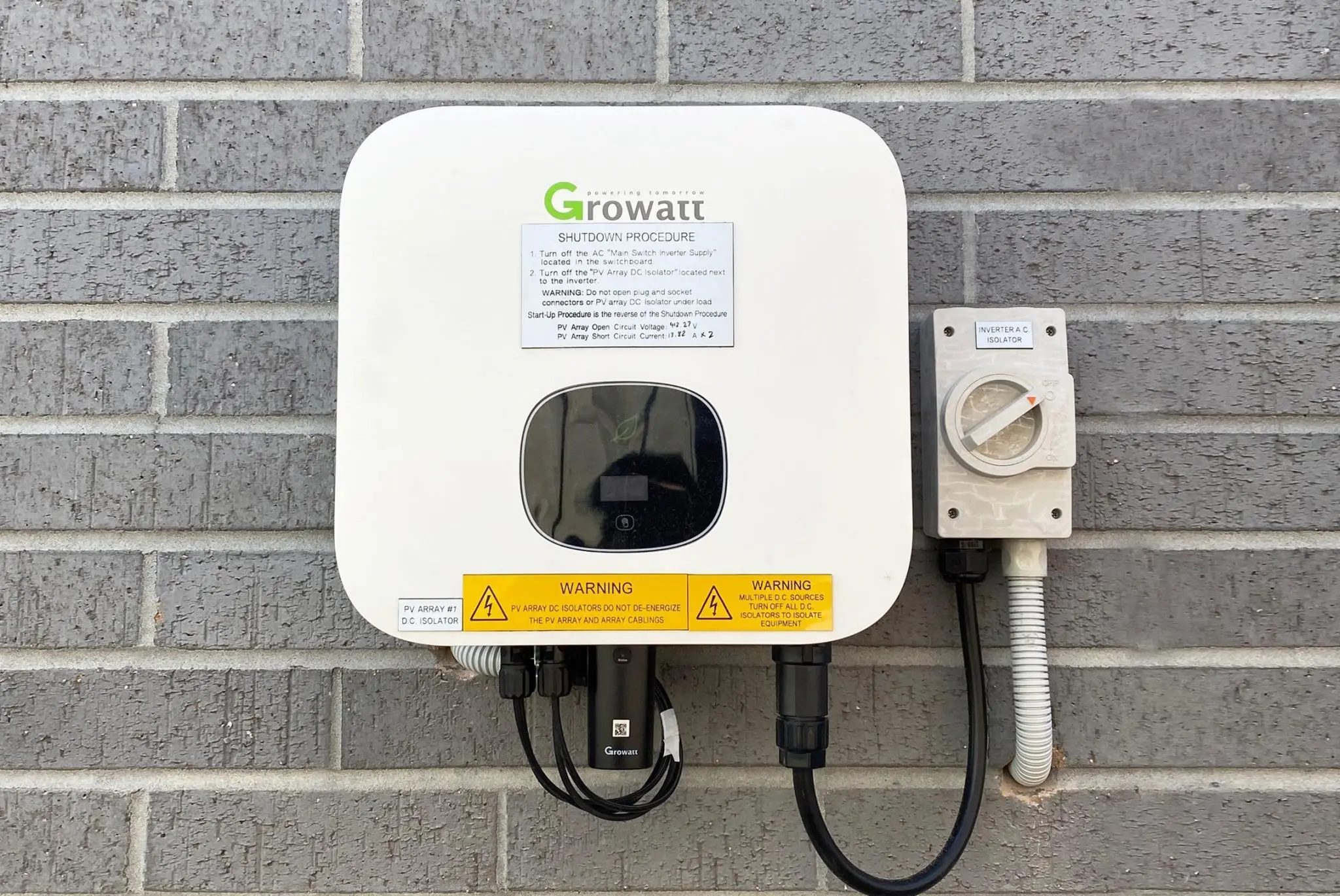

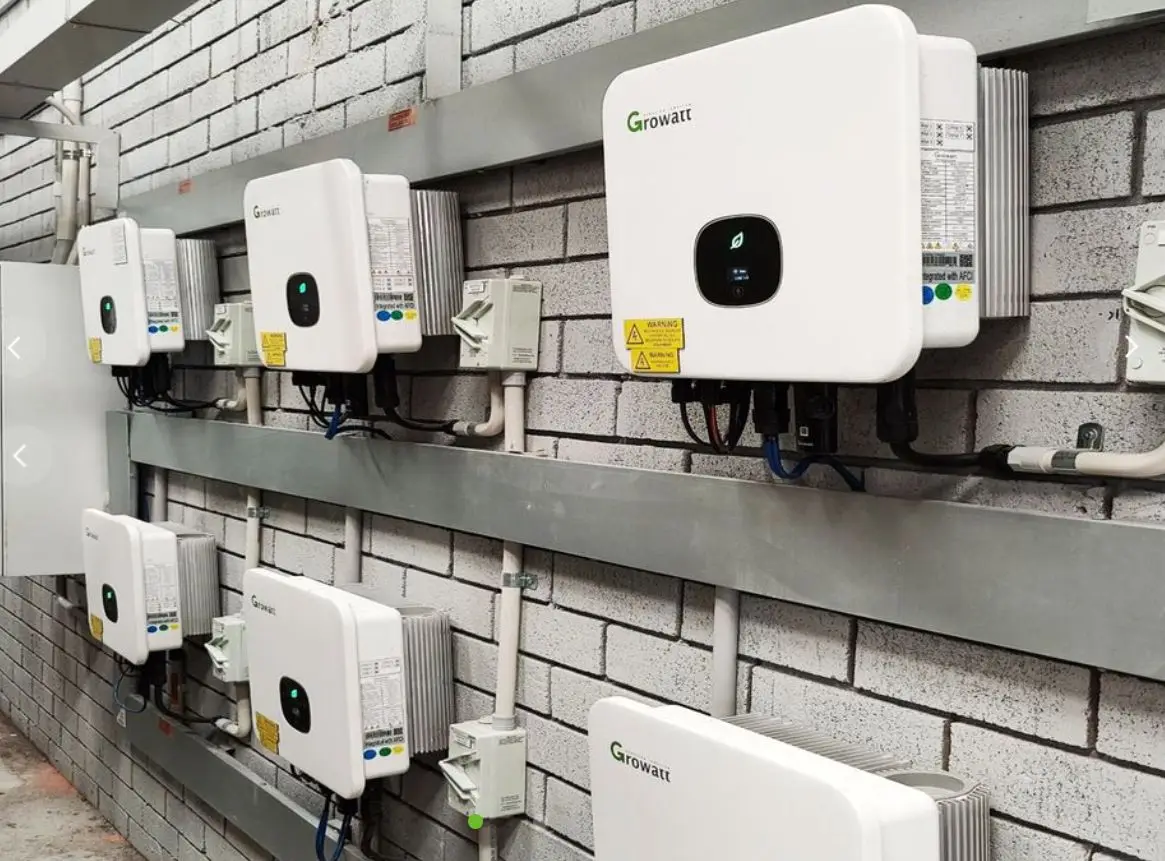

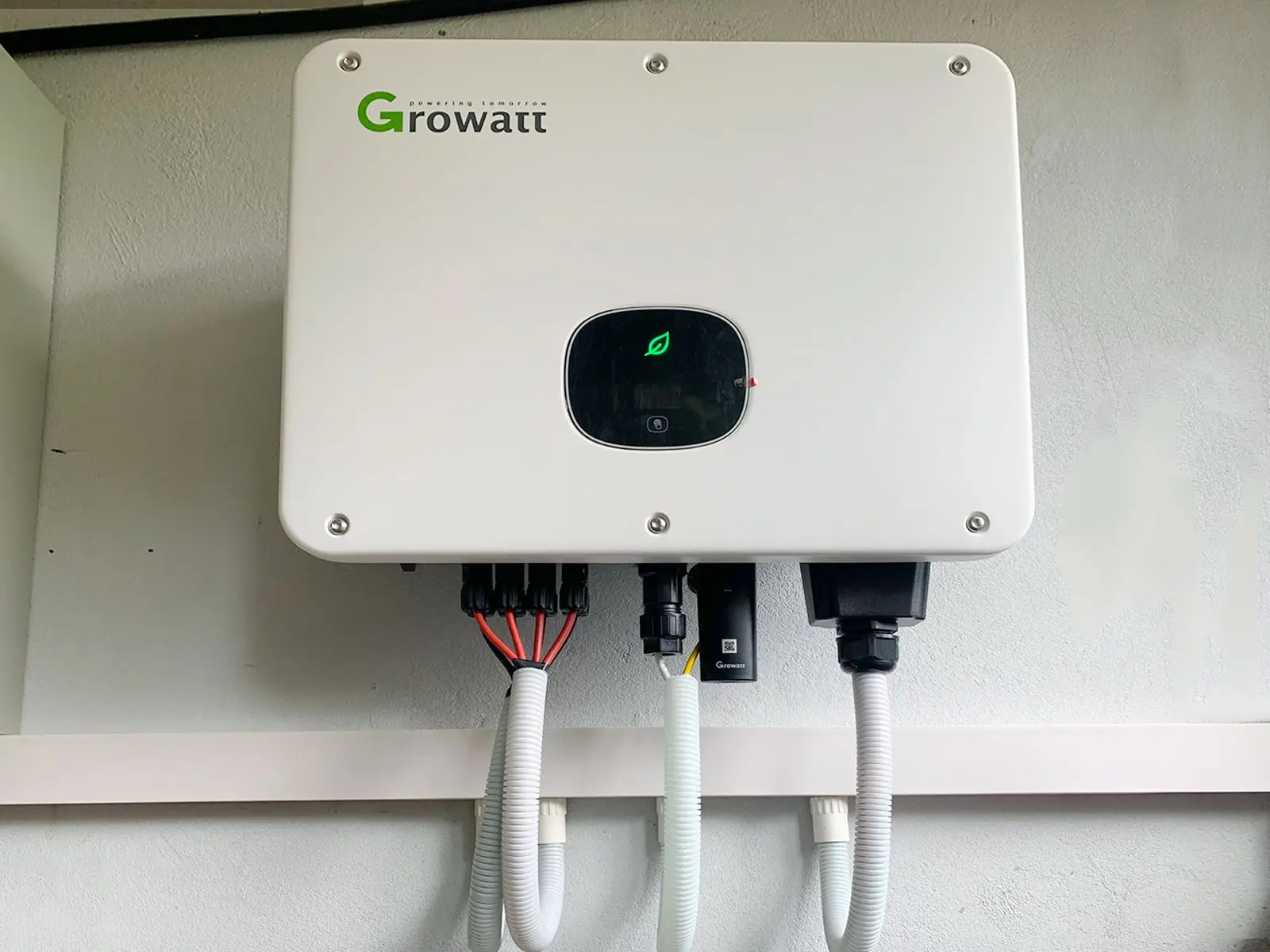

Project Case
