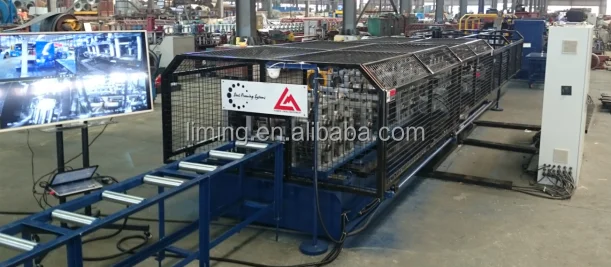

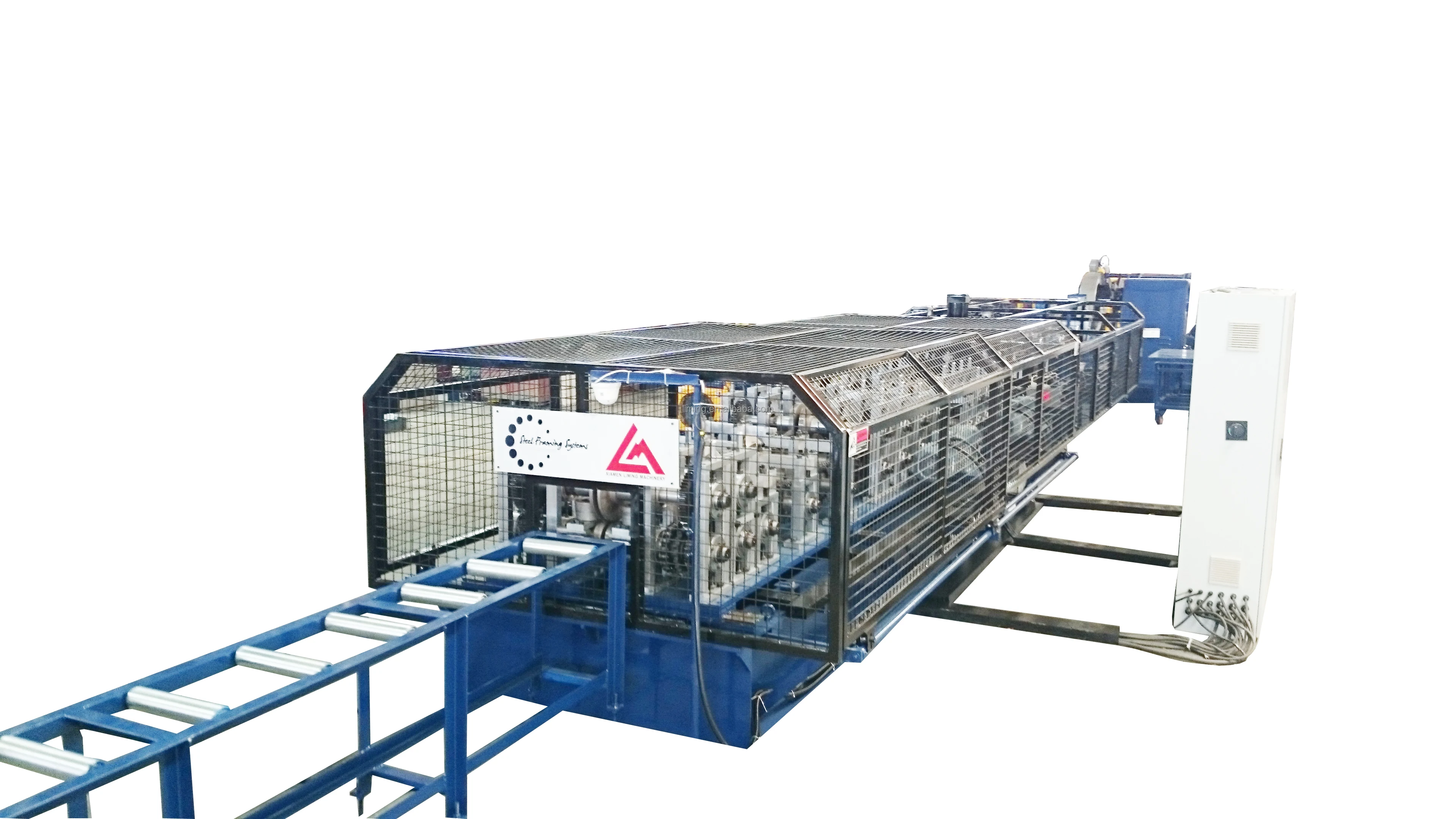

Lgs Frame Villa House Lgs Roll Forming Machine

Product Overview

Description

1.   The Vertex software can be connected with producing software, and creat out producing data automatically, and then input rhe producing software to print. It can be automatically data produce, and with the dynamic calculation function, and create out the dsign picture automatically.
2.   The machine can be produce goods in batch and continuity,
Profile Parameters:
Size  C75/U78
Thickness 0.55-0.75mm,550mpa
Maximum roll forming machine:3-10m/min

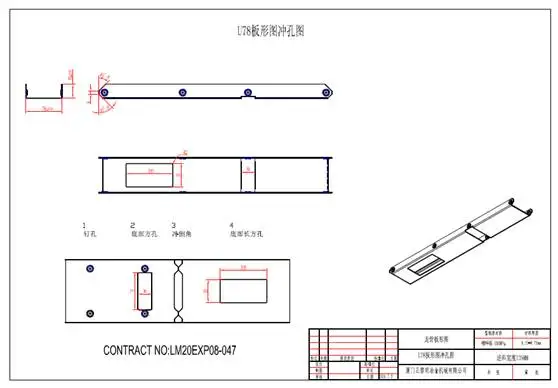

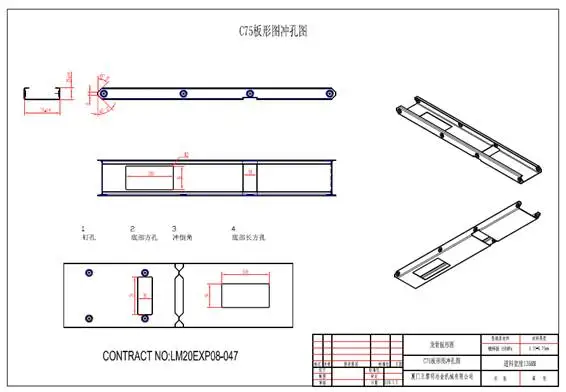

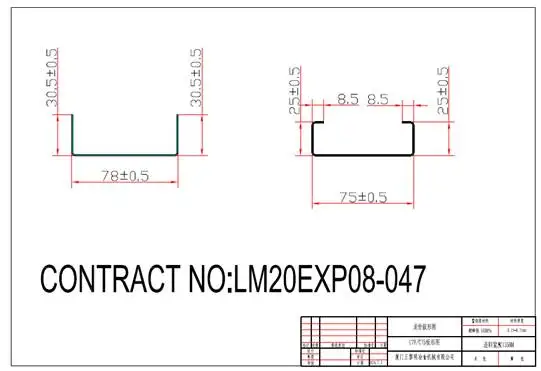

Drawing Profile:
Here are the models we have made for your reference. If you need more models, please contact us.

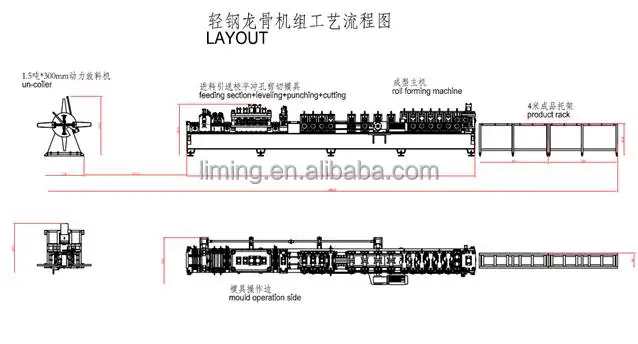

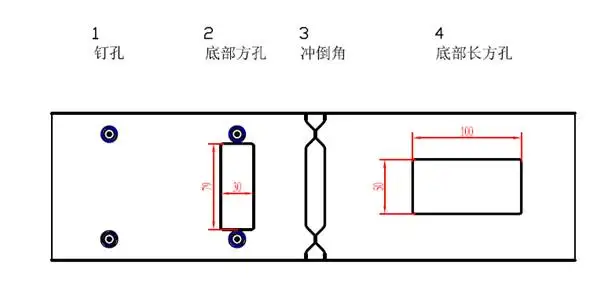

Producing Process Sketch





All details below could be customized

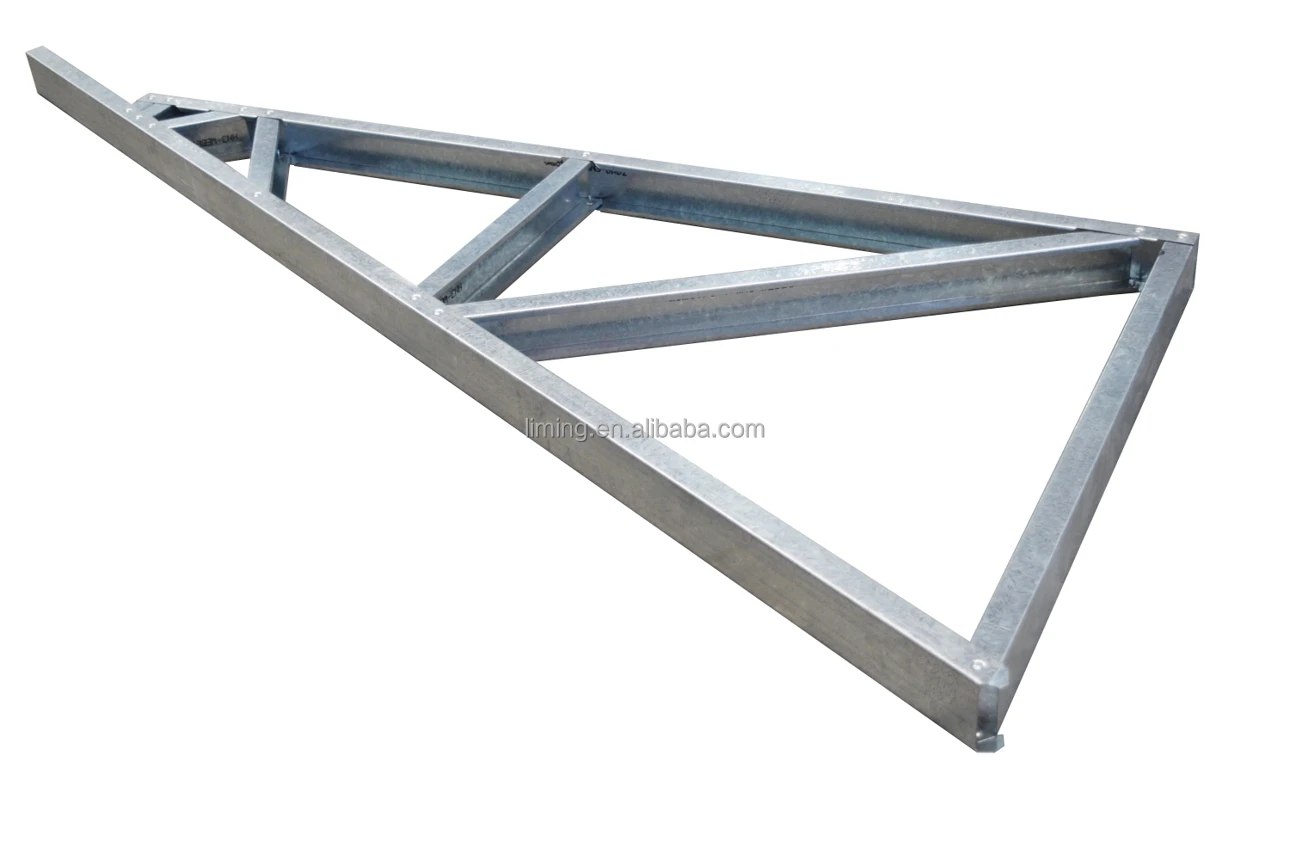

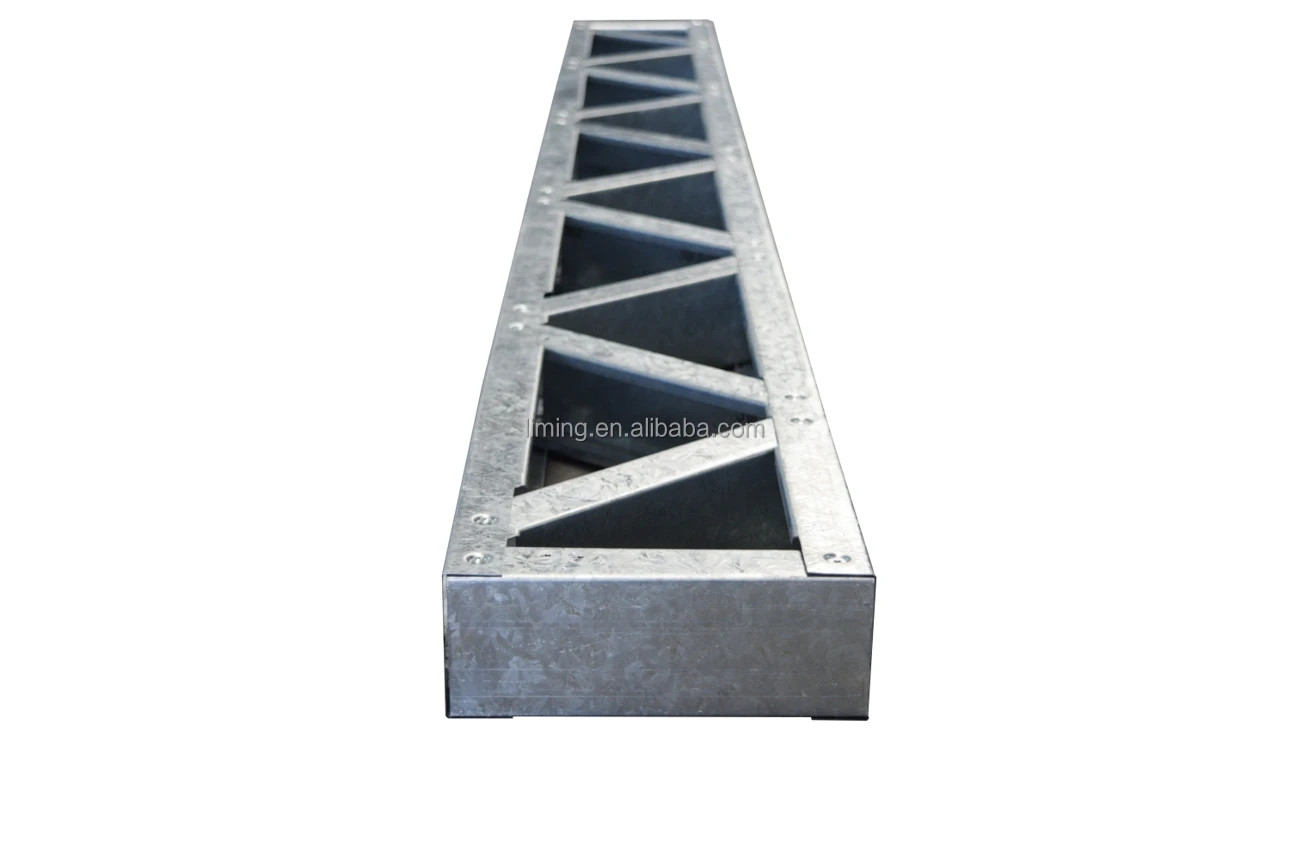

Function	Used to produce truss for villa
Size (L*W*H)	about 11m*2.1m*1.5m
Weight	about 10T
Thickness of Coil	0.55-0.75mm, other thickness make price different
Operating System	Liming operating system in both Chinese and English
Main motor power--Forming	11KW Frequency speed control
Driven	Gear & Sprocket
Max. speed of roll forming	3-10m/min (Higher speed available)
Electric Standard	380V /50HZ/3PH or as the customer's requirements
Touch Screen	Siemens
PLC	Siemens
Inverter	Schneider
Encoder	Omron
Profile	Customer's draw or our profiles
5T*1250mm Hydraulic De-coiler included; Safe Guard included
Pre punch & pre cutting, with 13 molds to punch & notch
Options	Stacker
	CE certificate

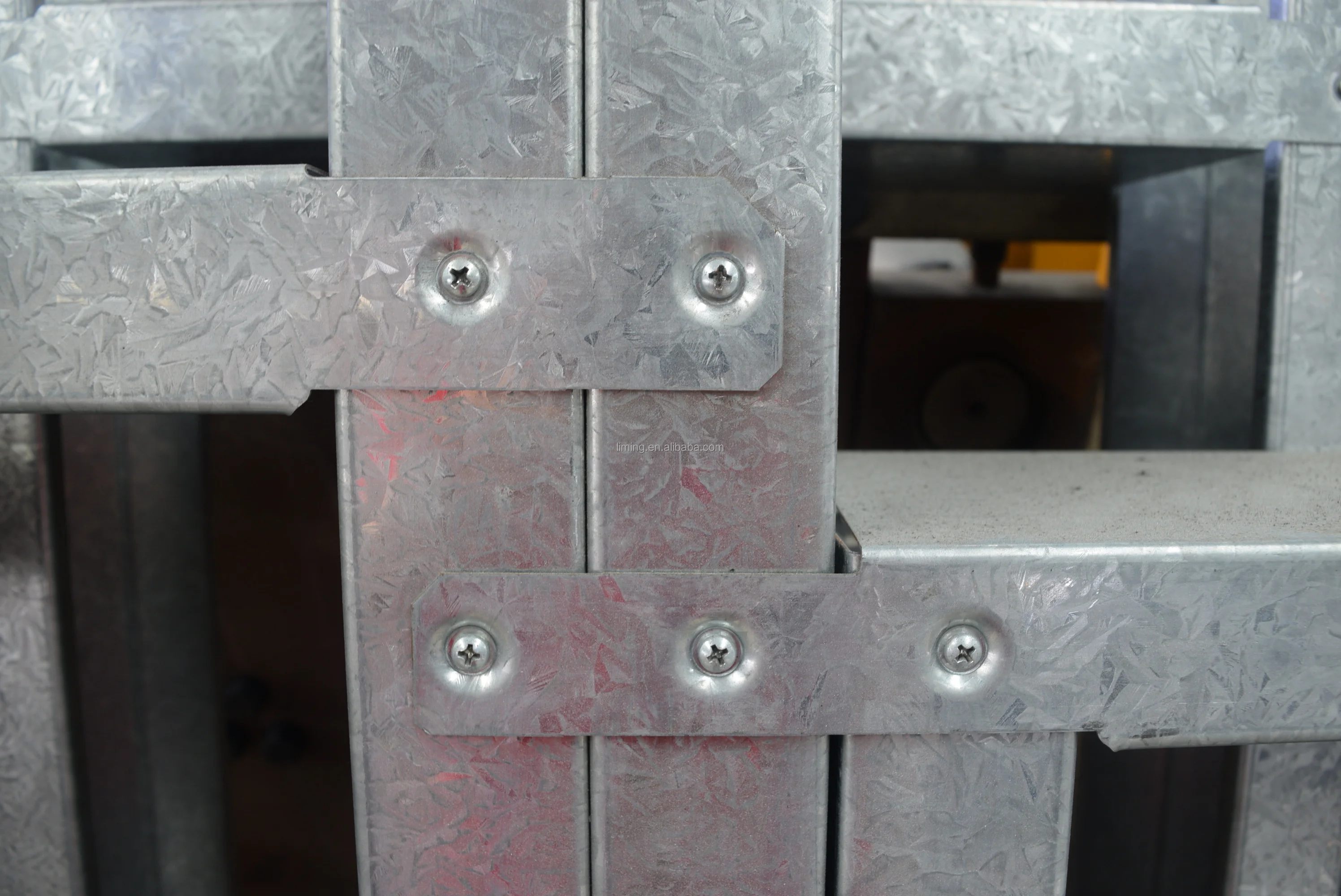

Seamless end cut connection

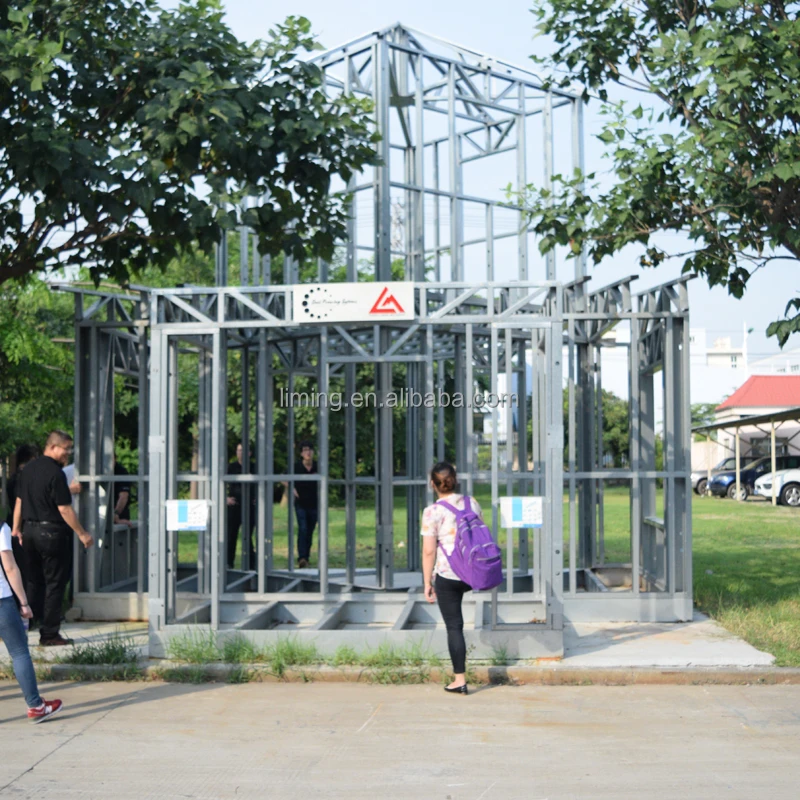

    Seamless end-cut connection is a patent design of LIMING LGS ROLL FORMER. The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames. So the weight of the house can be directly loaded and passed by the vertical frame, which makes the house safer.

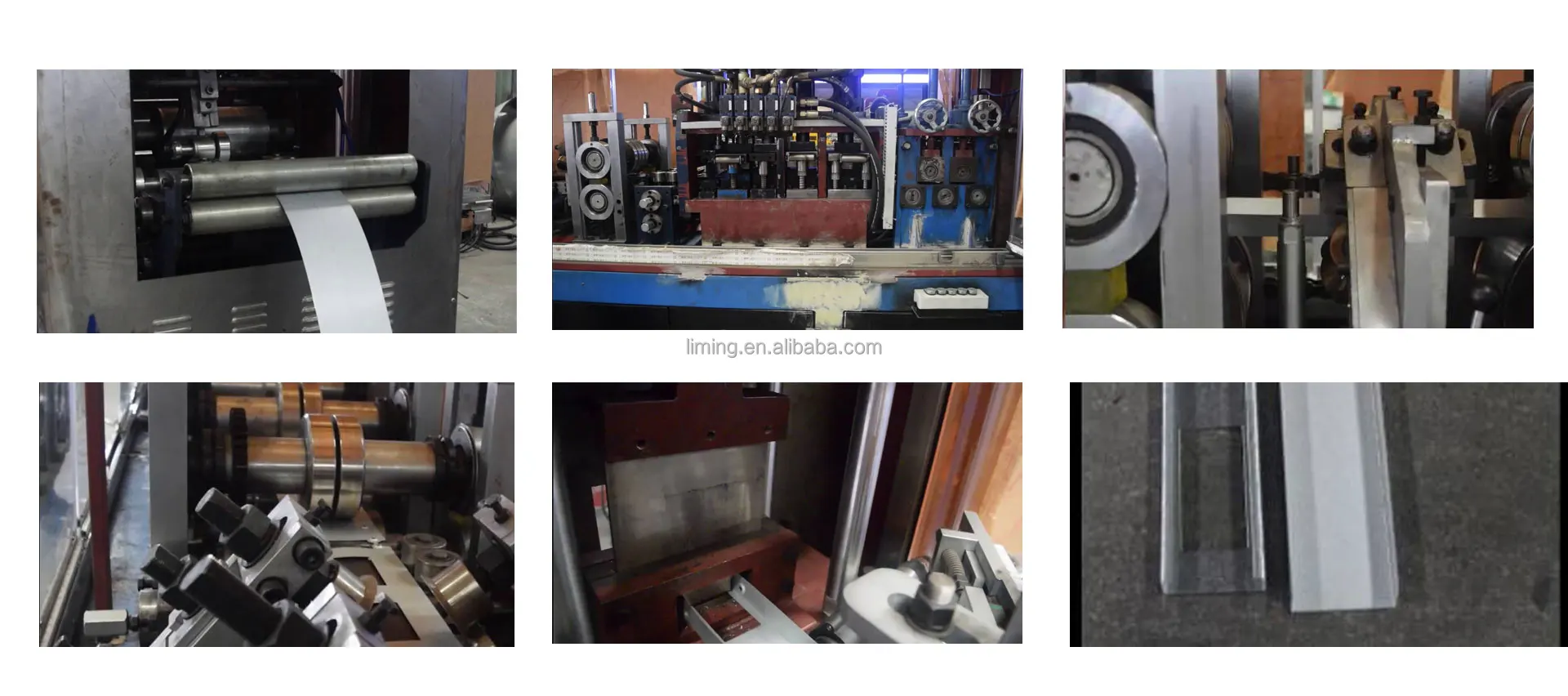

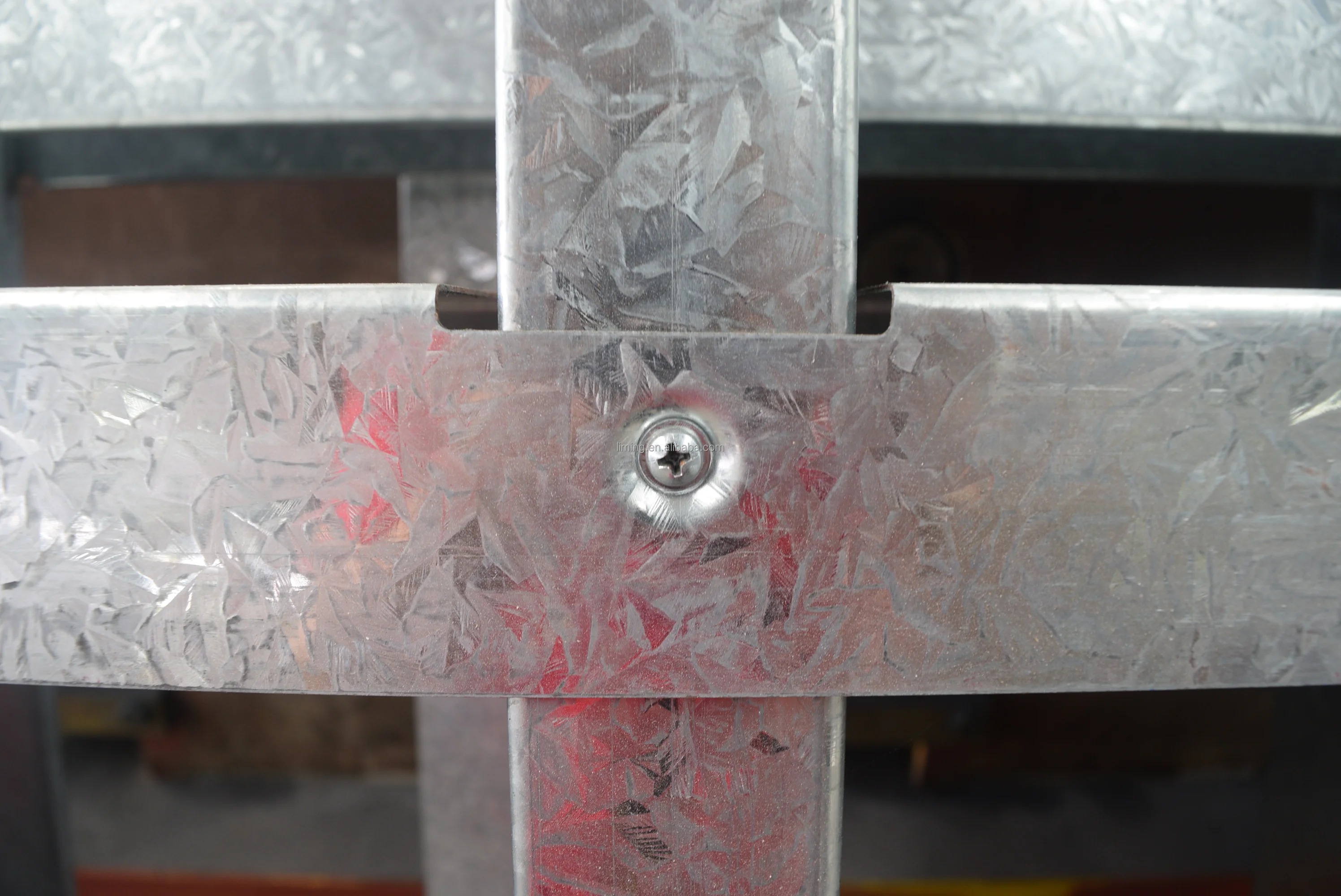

Continuous web notch punching without extruding material

The strength of raw material will be greatly reduced when continuous web & lip notches are made, thus material in the pre-punching machine may be easily extruded and then cause machine jam during roll forming process.LIMING LGS MPA 300Machine with Pre-punching system,which we can do more continuous web notch even in 0.55mm thin thickness without extruding material.
