Good Quality Tuna Fish Factory Machine Cooking Autoclave Tuna Cooker
$15,800.00-16,900.00

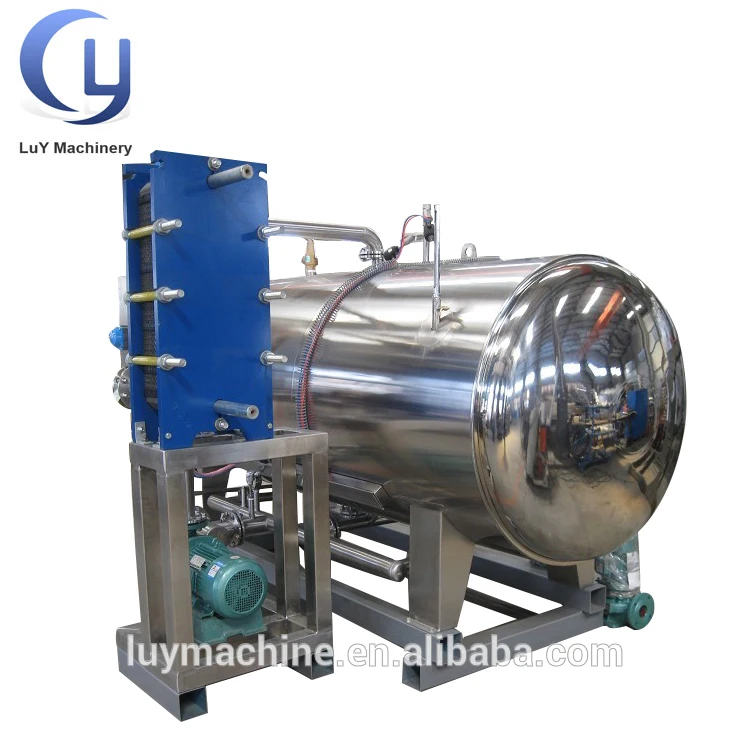

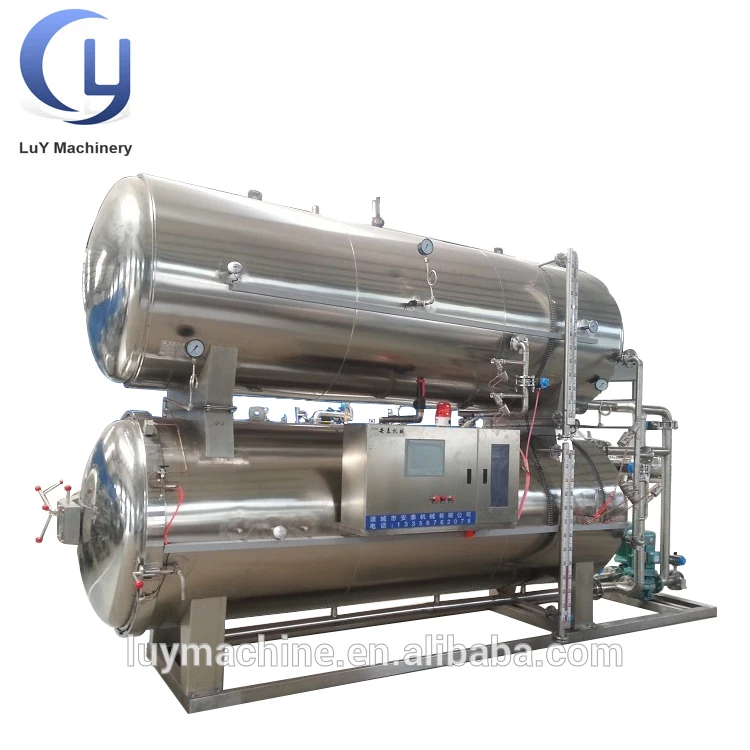

Automatic industrial 500L food autoclave sterilizer pressure retort machine for canned meat pet food canning machine
- Category: >>>
- Supplier: Henan Luy Machinery Equipment Co. Ltd.
Share on (1601092459671):
Product Overview
Description
pressure retort machine for canned meat pet food canning machine
Product Description
• According to the material divided into carbon steel type and stainless steel type.
• According to the sterilization method divided into spray type, water bath type, steam type and rotary type.
• According to the heating method divided into steam heat type andelectric heat type.

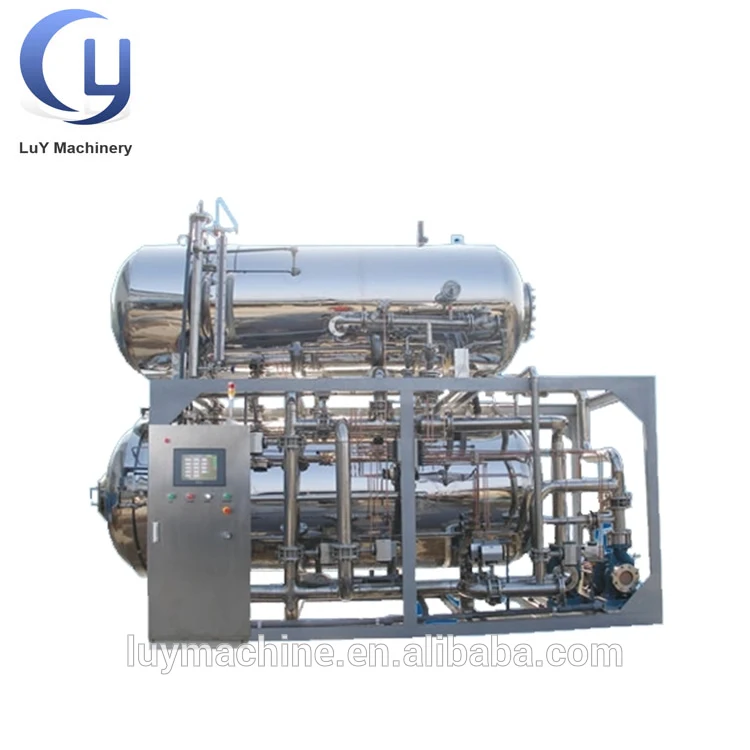

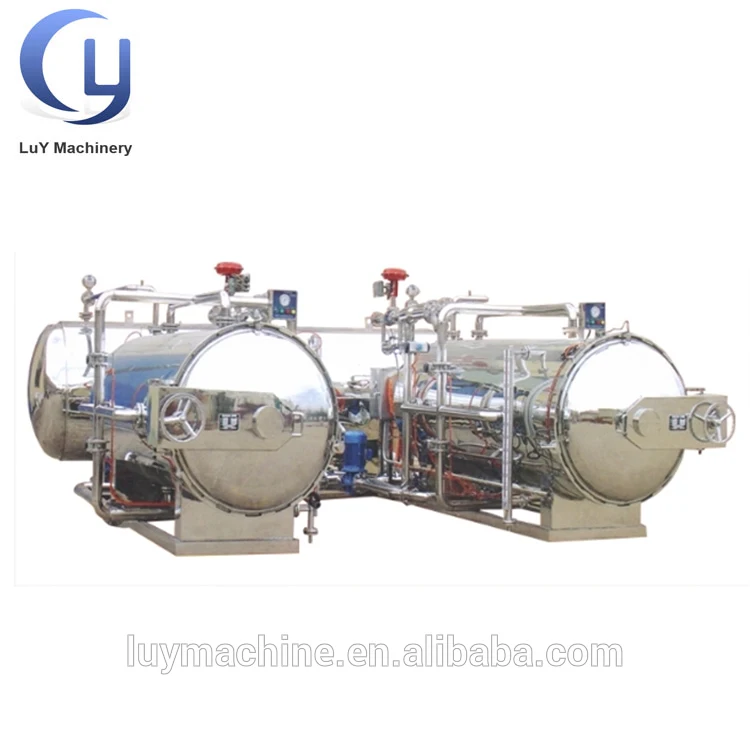

• According to the structure divided into single-deck type, double-deck type, two-pot parallel type and three-pot parallel type.
Technical Parameters
| Model | ATP-09 | ATP-09 | ATP-10 | ATP-10 | ATP-10 | ATP-12 |
ATP-12 | ATP-12 | ATP-14 | ATP-15 |
ATP-15 |
ATP-15 |
| Length of cylinder(mm) | 900 | 1800 | 1800 | 2400 | 2700 | 1800 | 2700 | 3600 | 4000 | 4000 | 5000 | 6000 |
| Capacity(m3) | 0.78 | 1.35 | 1.80 | 2.16 | 2.40 | 2.60 | 3.70 | 4.80 | 6.89 | 7.97 | 9.73 | 11.50 |
| Material thickness(mm) | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 6 |
| Installed power(Kw) | 6 | 7 | 8.5 | 10 | 12 | 13.5 | 15.5 | 18.5 | 26 | 26 | 37 | 45 |
| Design pressure(Mpa) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Design temperature(°c) | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |

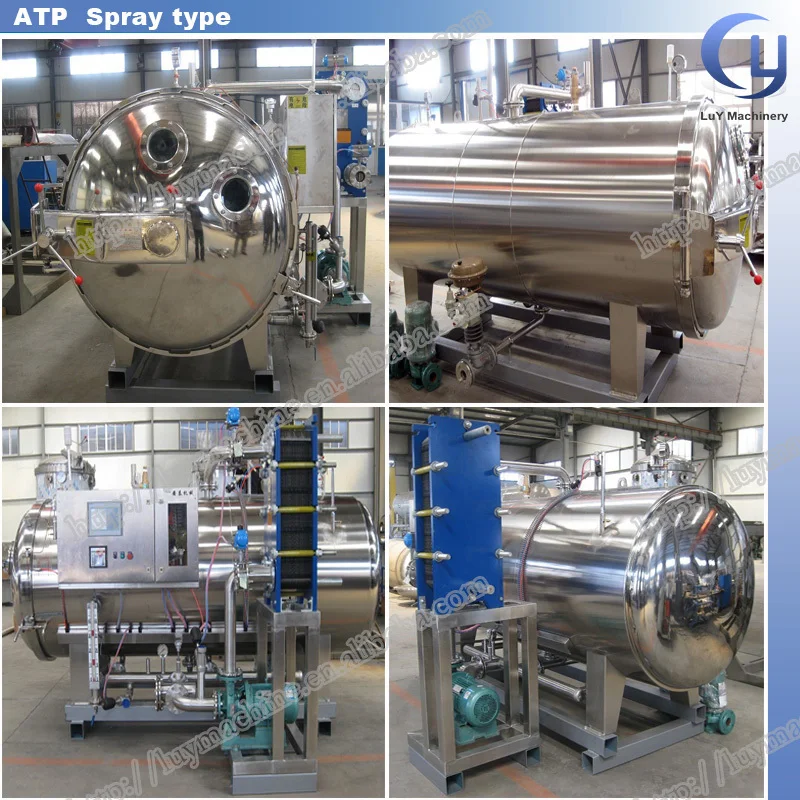

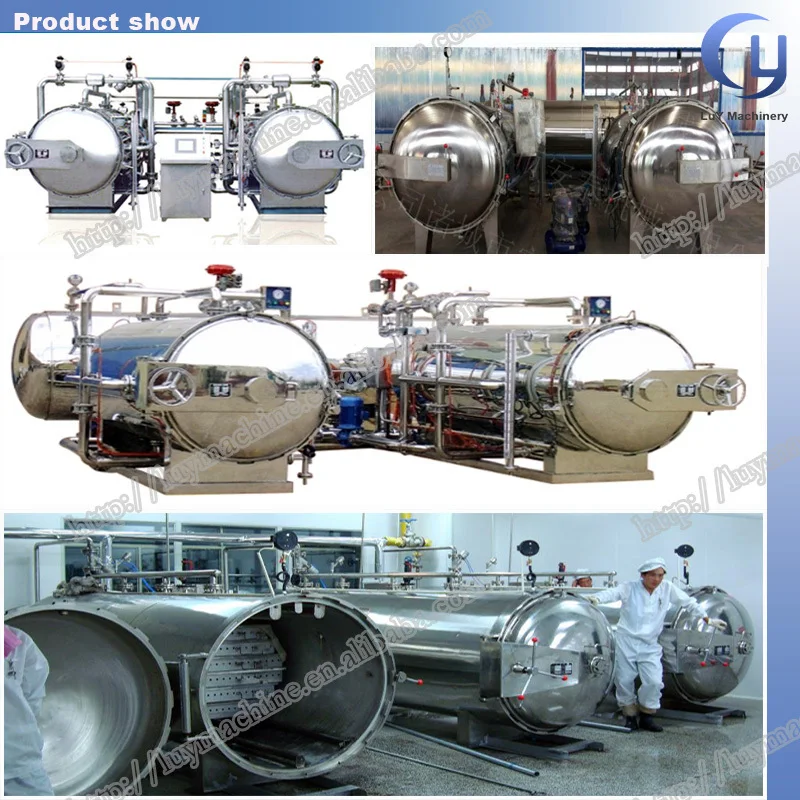

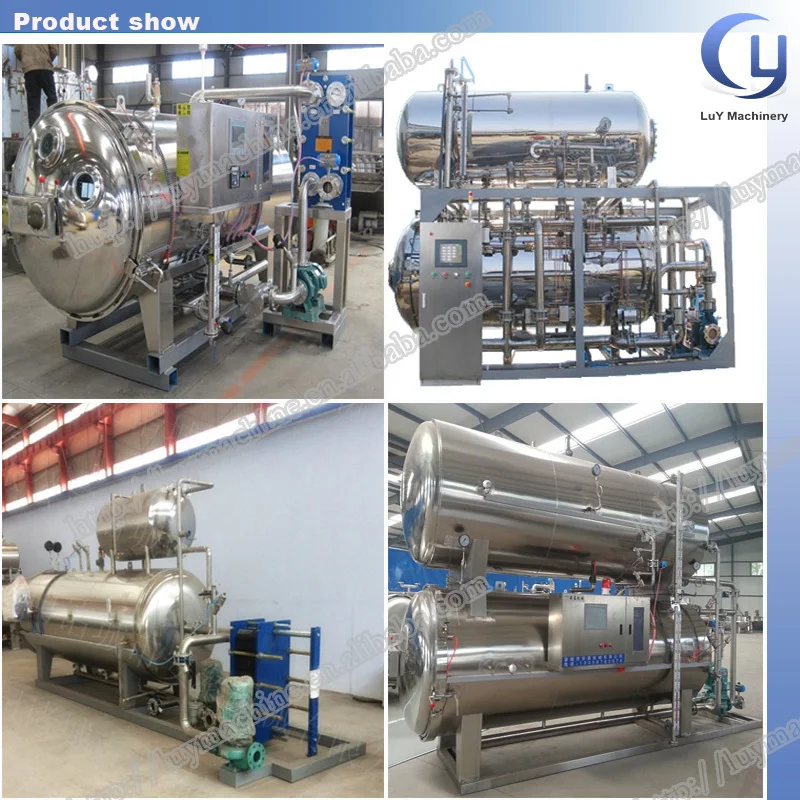

Detailed Images
Features
1. Sterilization methods
Using wavy hot water spray system, through a multi-stage heating, uniform heating, short time sterilization and cooking.
2. Control system
• Use screen analog control.
• All times has analog sensors and automatic control valves.
• You can switch from a single to a multi-stage sterilization process.
• Pressure and temperature are digital display.
3. Analog temperature control system
According to requirements of different food sterilization conditions to set heating and cooling procedures, so that every kind of food is sterilized in the best condition. It can avoid the cooking odors
which produced by high temperature and pressure processing method.
4. Pressure control system
The pressure continues to adjust to adapt to the changes inside the product packaging, so that the degree of deformation of the product packaging to achieve the lowest, especially for gas-packaged products.
5. Process water rapid cycling, quickly reach the sterilization temperature.
6. Water sterilization adopts demineralized water to avoid the pollution of the outer packing because of water quality problem.
Application Fields
• Glass container: glass bottles, ceramic bottles and etc.
• Metal container: tin cans and etc
• Plastic container: PP bottles, HDPE bottles and etc.
• Soft package: aluminum foil bags, high temperature cooking bags and etc
• Gas-packing boxes

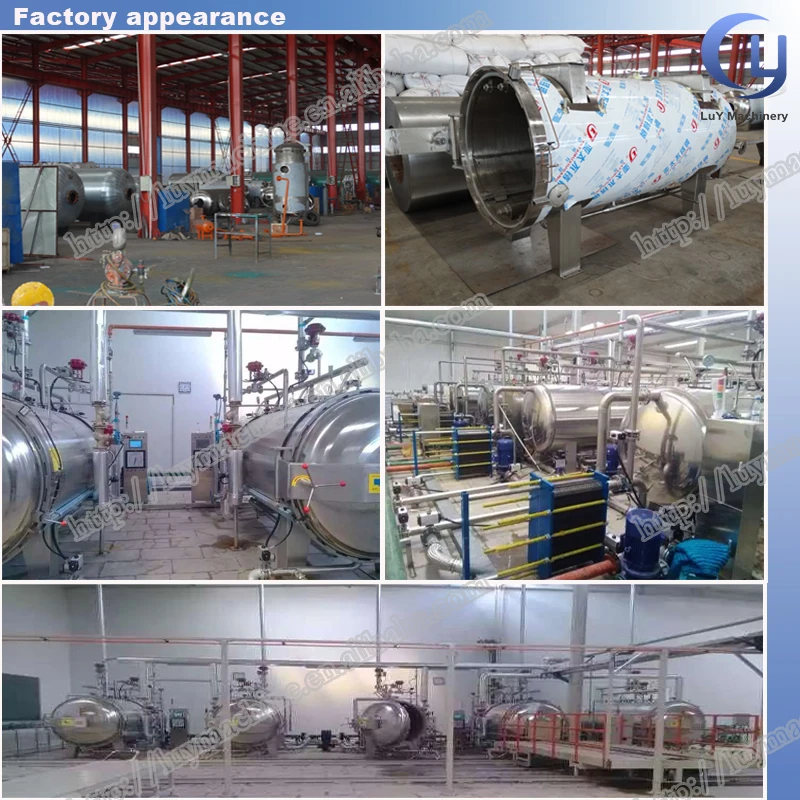

Factory Appearance
Customer Visit
Company Information
Contact Us
QQ: 2381887727
Wetchat/Whatsapp: 8615036078206
Mailbox: luymachine#foxmail.com
Address: Xinghua Road, Zhucheng city Shangdong Provice
Telephone: +8615036078206
