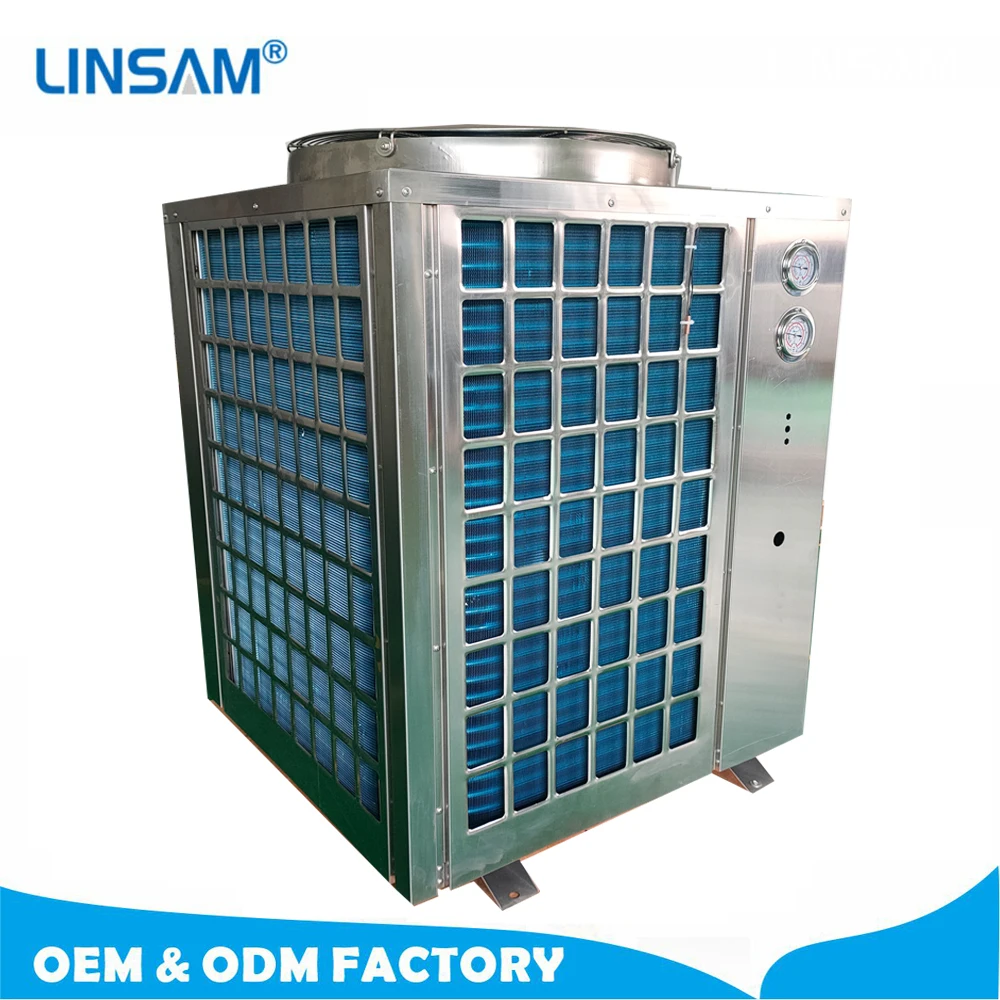

Air heat pump 9 kw wifi monoblock Hoszivattyu Varmepumpe heat pump (cooling & heating)
- Category: >>>
- Supplier: Foshan Tianzhiyi Air-Conditioning Equipment Co. Ltd.Foshan Ltd.
Share on (1601092464678):
Product Overview
Description
| Air Source Heat Pump (cooling&heating) | |||
| Model | TAN-03R | ||
| Heating capacity | kW | 9.2 | |
| Input power | kW | 2.7 | |
| Cooling capacity | kW | 7.6 | |
| Input power | kW | 2.45 | |
| Input current | A | 11.23/4.1 | |
| Max running current | A | 17.1/7.5 | |
| Power source | V/Ph/Hz | 220V/380V | |
| Nosie level | dB(A) | 53 | |
| Unit size | Length(A) | mm | 710 |
| Width(B) | mm | 710 | |
| Height(C) | mm | 840 | |
| Unit quality | kg | 115 | |
| Working temp range | ℃ | -15℃-43℃ | |
| Throttle | Electronic expansion valve / Thermal expansion valve optional | ||
| Refrigerant | R410A/R417A/R407C optional | ||
| Refrigerant charge qty | kg | 1.7 | |
| Compressor | Hermetically sealed scroll compresor ( Copeland, Sanyo, Daikin optional ) | ||
| Compressor qty | pcs | 1 | |
| Evaporator | High efficiency blue finned aluminium tube heat exchanger | ||
| Controller | LCD controller easy operation(built-in high pressure, low pressure, over heating, over current, water flow, phase protections and so on) | ||
| Air conditioning side | Heat exchanger type | High efficiency tube in shell type/ high efficiency tube in tube heat exchanger optional | |
| Water flow | m3/h | 1.90 | |
| Conncetion in / out | DN | 20 | |
| Test conditions: | |||
| 1. Cooling: ambient temp 35℃,AC side inlet water temp 12℃, outlet water temp is 7℃ | |||
| 2. Heating condition: Air source side DB/WB 7℃/6℃, AC side inlet water temp 40℃,outlet water temp 45℃ | |||
