Single Acting Manual Hydraulic Pump PMS-2A
$70.00-78.00
Deeleap 2.3L 70Mpa PAS12 Air Hydraulic Pump for garage equipment
- Category: >>>
- Supplier: Yantai Dongyue Hydraulic Technology Co. Ltd.
Share on (1601092598511):
Product Overview
Description
Product Overview

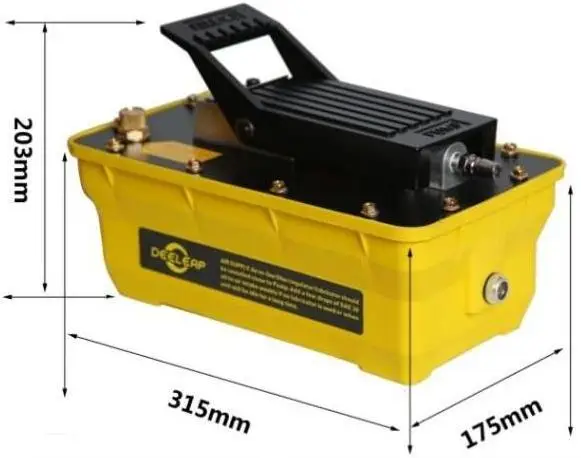

Deeleap 2.3L 70Mpa PAS12 Air Hydraulic Pump for garage equipment
Name:Foot-operated pneumatic hydraulic pump
Function type:single-speed single-acting
Drive mode:pneumatic Operation mode:pedal or hand operated.
Medium:L-HM32#or L-HV32#anti-wear hydraulic oil
Applicable tools:suitable for single-acting cylinders and hydraulic tools
PRODUCT CONFIGURATION

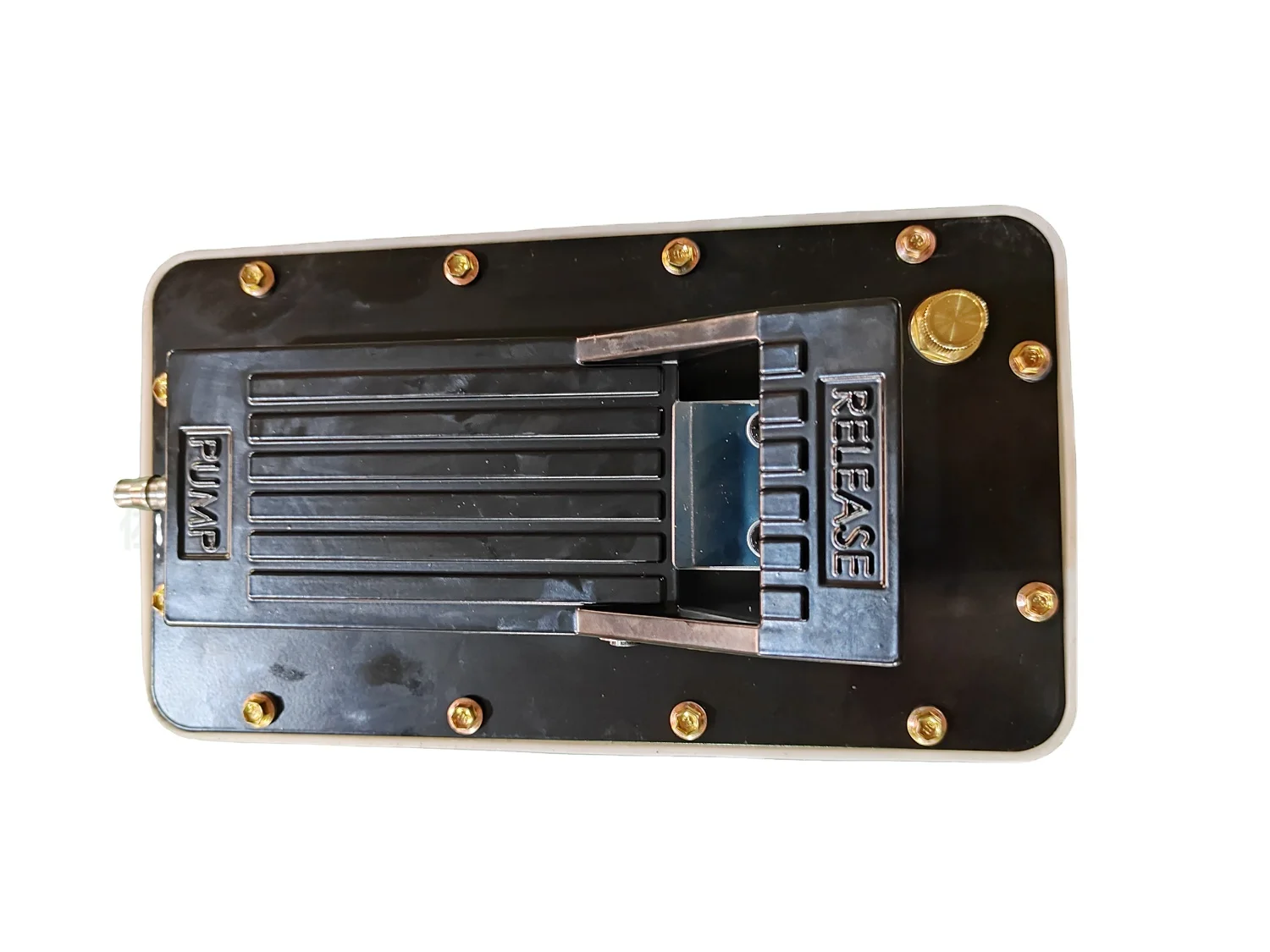

VIEW1

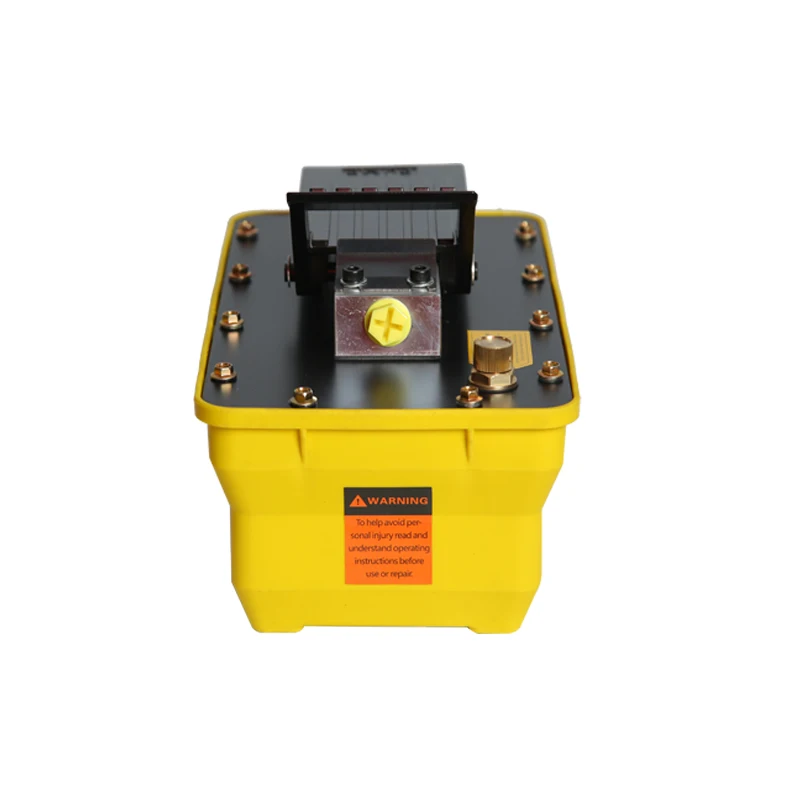

VIEW2

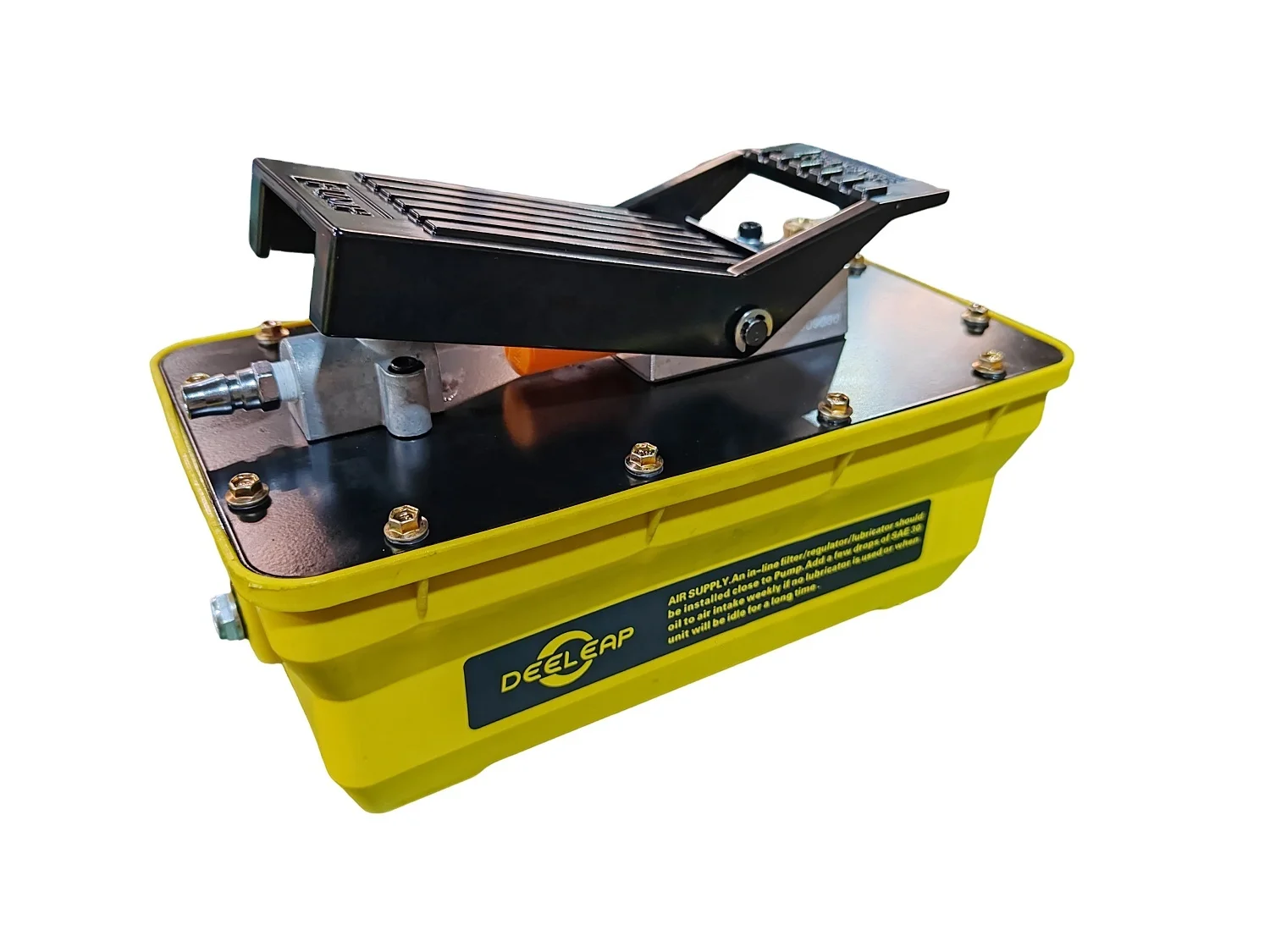

VIEW3
FEATURES AT A GLANCE
1. Driven by compressed air, there is no danger of electric sparks or flames, which can be used in flammable and explosive working
environments.
2. The structure is compact, light and easy to carry with a low price.
3. Low air consumption and low operating cost.
4. High-strength fuel tank and special hydraulic oil can adapt to harsh working environment.
environments.
2. The structure is compact, light and easy to carry with a low price.
3. Low air consumption and low operating cost.
4. High-strength fuel tank and special hydraulic oil can adapt to harsh working environment.
PRODUCT SPECIFICATIONS
Features:
1. The rated pressure is 70MPa, and the built-in safety relief valve is used for overload protection.
2. The threaded hole of the oil outlet is 3/8"NPTF, and the elevation angle is 11°, which is convenient for oil pipe or joint
connection and sealing.
3. There are threaded mounting holes at the bottom of the fuel tank for easy installation and fixation.
4. High-quality seals ensure stable performance and long service life of the pump; simple maintenance and low cost of use.
5. The accessories are with high processing precision, good sealing performance, no leakage and good pressure-holding performance.
2. The threaded hole of the oil outlet is 3/8"NPTF, and the elevation angle is 11°, which is convenient for oil pipe or joint
connection and sealing.
3. There are threaded mounting holes at the bottom of the fuel tank for easy installation and fixation.
4. High-quality seals ensure stable performance and long service life of the pump; simple maintenance and low cost of use.
5. The accessories are with high processing precision, good sealing performance, no leakage and good pressure-holding performance.
No | Item | Data |
1 | Air pressure | 1.7-8.6 kg/cm³ |
2 | Air consumption | 255 L/min |
3 | Rated pressure | 70 MPA |
4 | Air Intake Port | 1/4"-18NPTF |
5 | Oil Port | 3/8"-18 NPTF |
6 | Oil tank capacity | 3.5 L |
7 | Reservoir Type | Polyethylene reservoir |
8 | Available oil capacity | 2.3 L |
