Construction Material Modern Steel Structure Warehouse Building Noise Reduce Warehouse
Construction Material Modern Steel Structure Warehouse Building Noise Reduce Warehouse
Construction Material Modern Steel Structure Warehouse Building Noise Reduce Warehouse
Construction Material Modern Steel Structure Warehouse Building Noise Reduce Warehouse
Construction Material Modern Steel Structure Warehouse Building Noise Reduce Warehouse
Construction Material Modern Steel Structure Warehouse Building Noise Reduce Warehouse
Construction Material Modern Steel Structure Warehouse Building Noise Reduce Warehouse

Construction Material Modern Steel Structure Warehouse Building Noise Reduce Warehouse

Share on (1601092621130):


Price:$15.00 - $25.00

Quantity:


Product Overview

Description



Product Description

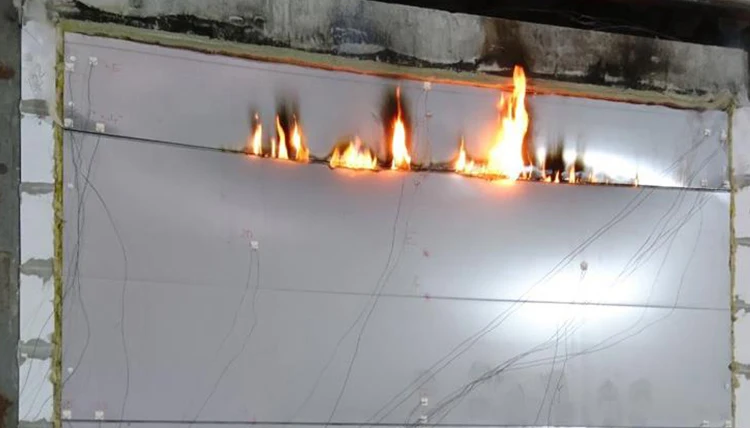

Rock wool Normally classed as A2-s1, d0. Panels with a hard core of high-density mineral wool fibre. A mineral wool panel generally achieves a very high fire performance and normally produces less smoke and heat than a panel with a polymer core. However, even a mineral wool panel is not classed as wholly non-combustible (class A1), as the fibre core contains binders and the core is glued to the sheets, usually with a polyurethane adhesive. For this reason, it is classed as A2. For structures serving as fire cell partitions, where a high fire resistance is required (greater than EI30), requirements are currently only satisfied by panels with a mineral wool core.

Fibreglass Normally classed as A2-s1, d0. Fibreglass is, like mineral wool, a mineral fibre, although its fire characteristics are not as good as those of mineral wool. Fibreglass shrinks at high temperatures. A fibreglass panel normally achieves a maximum rating of EI90.




Details Images


Product
Rock Wool Sandwich Panel
Rock Wool Sandwich Panel with Pur or Pir Edge
Width
1000mm
1000mm
Top plate/Bottom
plate
0.4-1mm
0.4-1mm
Core thickness
50mm,75mm,100mm,120mm,15
0mm,200mm
50mm,75mm,100mm,120mm,15
0mm
Length
Less than 11.8m (For transport ne
ed)
Less than 11.8m (For transport n
eed)
Density
100-180kg/m3
100-180kg/m3
Color
White, Red, Blue
White, Red, Blue
Connection Way
Hidden
Hidden
Sound insulation
20-25db
20-25db
Application
various walls of large size factory
warehouse, exhibition halls,gymnasiums
various walls of large size factory
warehouse,
exhibition halls, gymnasiums


Specification


Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm)
W/㎡K
G(kg)
P=KN/㎡
0.60
0.80
1.00
1.20
1.50
50
0.75
15.53
L(m)
3.66
3.13
2.75
2.46
2.12
70
0.53
18.37
L(m)
4.90
4.22
3.73
3.35
2.91
100
0.41
21.21
L(m)
5.99
5.17
4.58
4.12
3.59
125
0.36
24.05
L(m)
6.91
5.96
5.28
4.79
4.14
150
0.31
26.88
L(m)
7.82
6.75
5.98
5.37
4.68
200
0.23
22.78
L(m)
9.65
8.33
7.38
6.62
5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm)
W/㎡K
G(kg)
P=KN/㎡
0.60
0.80
1.00
1.20
1.50
50
0.69
12.95
L(m)
3.74
3.23
2.86
2.57
2.23
70
0.47
14.50
L(m)
5.01
4.34
3.86
3.48
3.05
100
0.36
16.04
L(m)
6.21
5.32
4.73
4.28
3.75
125
0.34
17.06
L(m)
7.11
6.31
5.77
4.93
4.32
150
0.33
19.14
L(m)
8.00
6.94
6.18
5.58
4.89
200
0.30
22.78
L(m)
9.79
8.56
7.63
6.88
6.00


Product packaging




We have undertaken many domestic and foreign projects. We have more than ten years of experience. We are professional. If you have any questions, please contact us. We will be responsible for your projects and look forward to your visit.










Advantages
1. Quality: imported equipment from Germany and Switzerland, professional workers who have been engaged in more than ten years,have their own research and development department, and fully meet the use standards of various countries.
2. Customized service:We arrange special person to connect according to customer needs, one-to-one service.
3. Technical support: Activity room: We provide online guidance and installation services by dedicated personnel, as well as after-sales team service 24/7. Workshop: We have nearly 50 professional engineers who can go abroad to provide technical support and guidance until all problems are solved for our customers.
4. International trade operation: We have been focusing on international trade in the construction industry for more than ten years, and have accumulated various experiences from different customers in different countries. So we can keep our operations up to date with our customers and new rules. Helps in customs clearance and saves cost and time for our customers.






24 hours to reply, 48 hours to give solutions.
