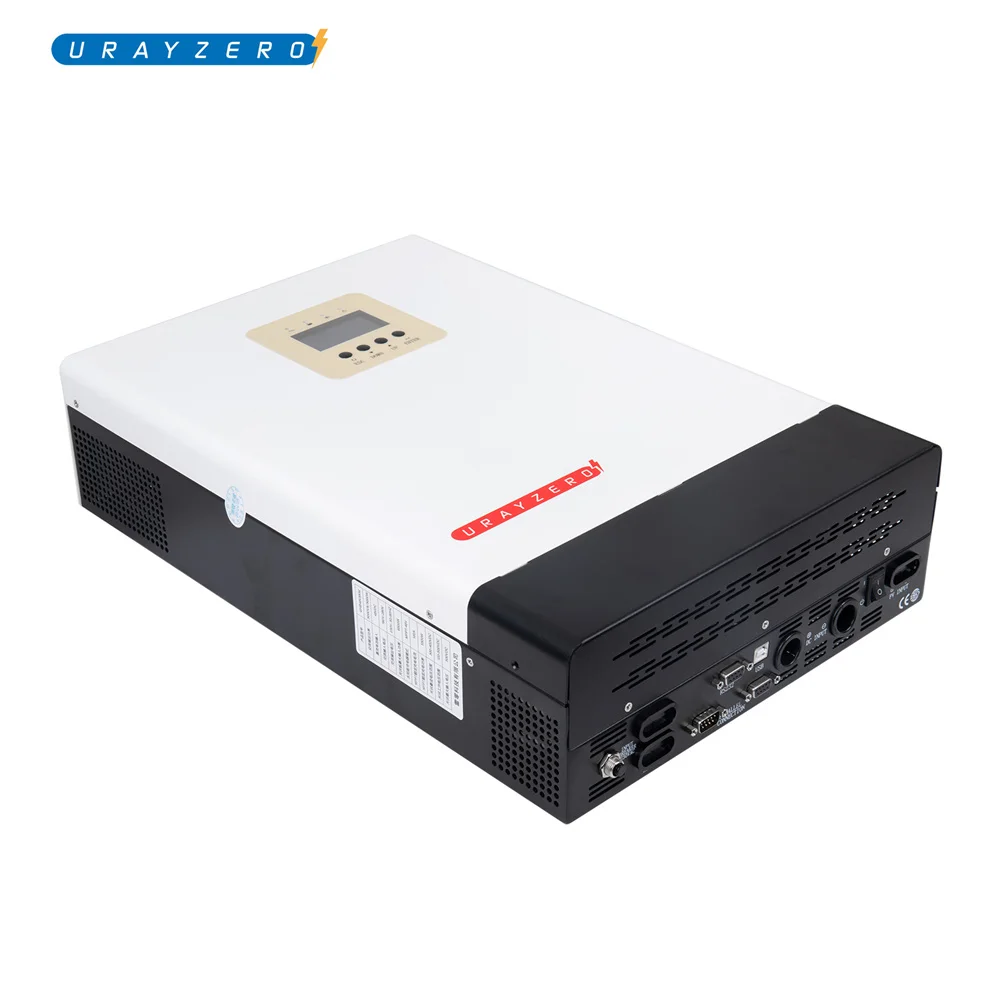

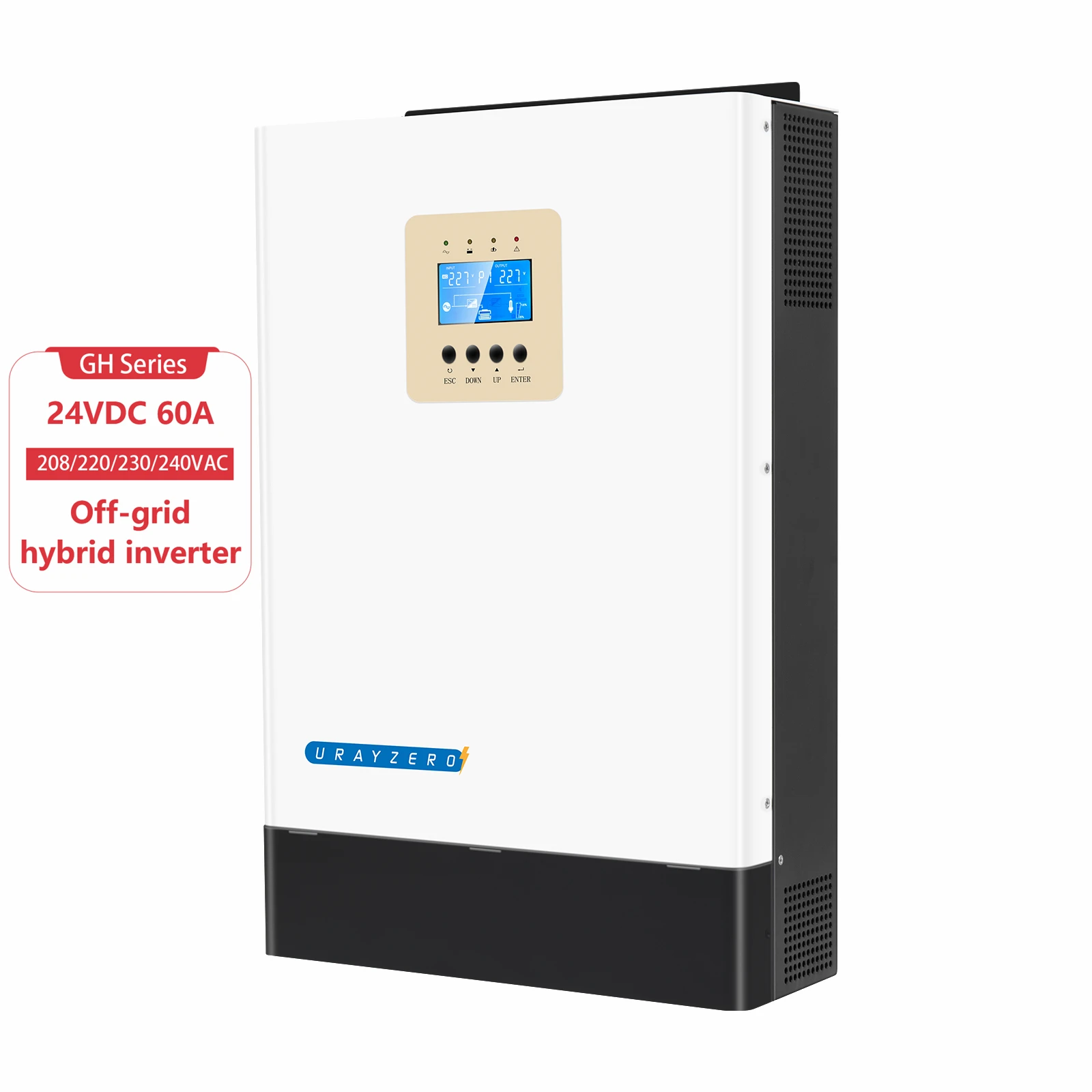

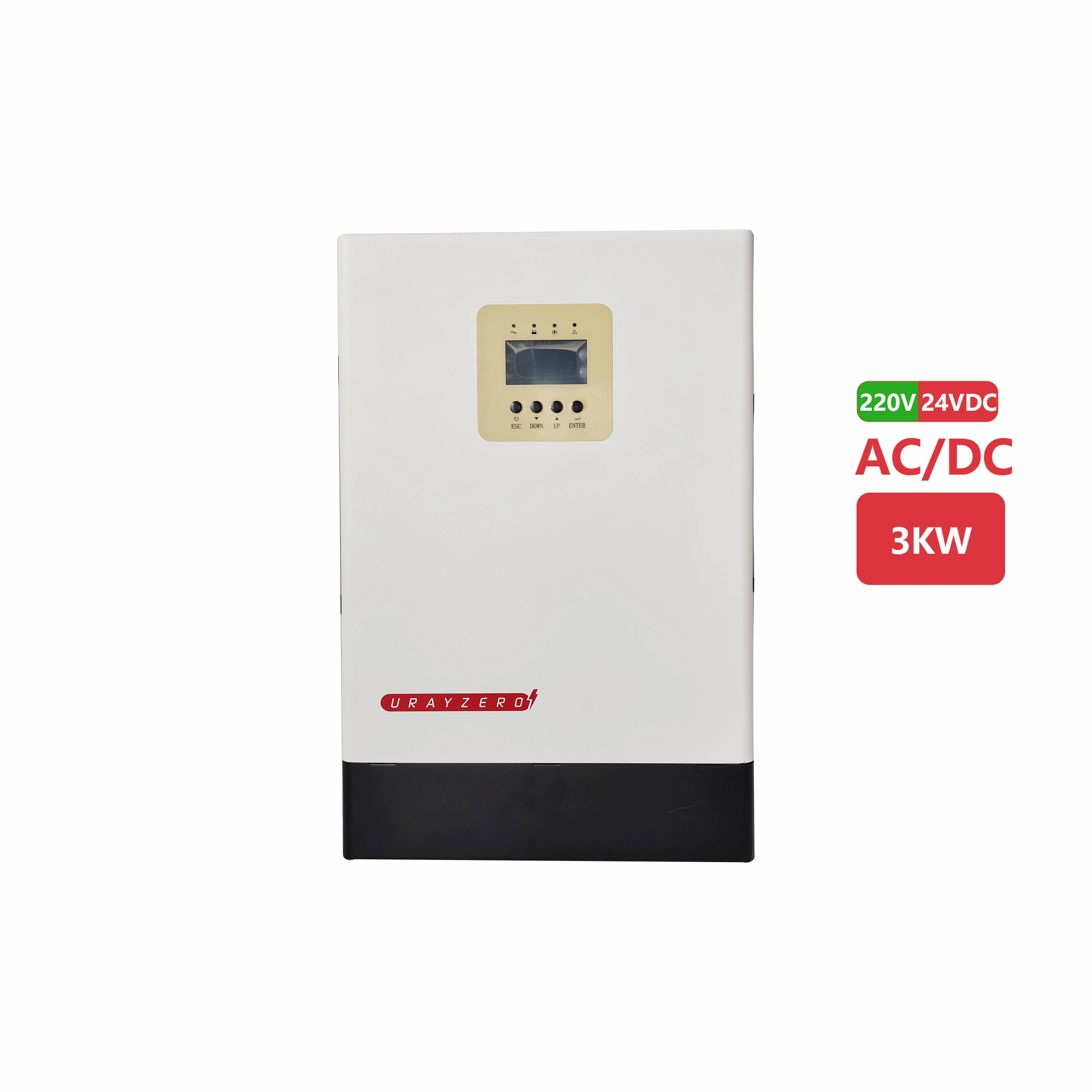

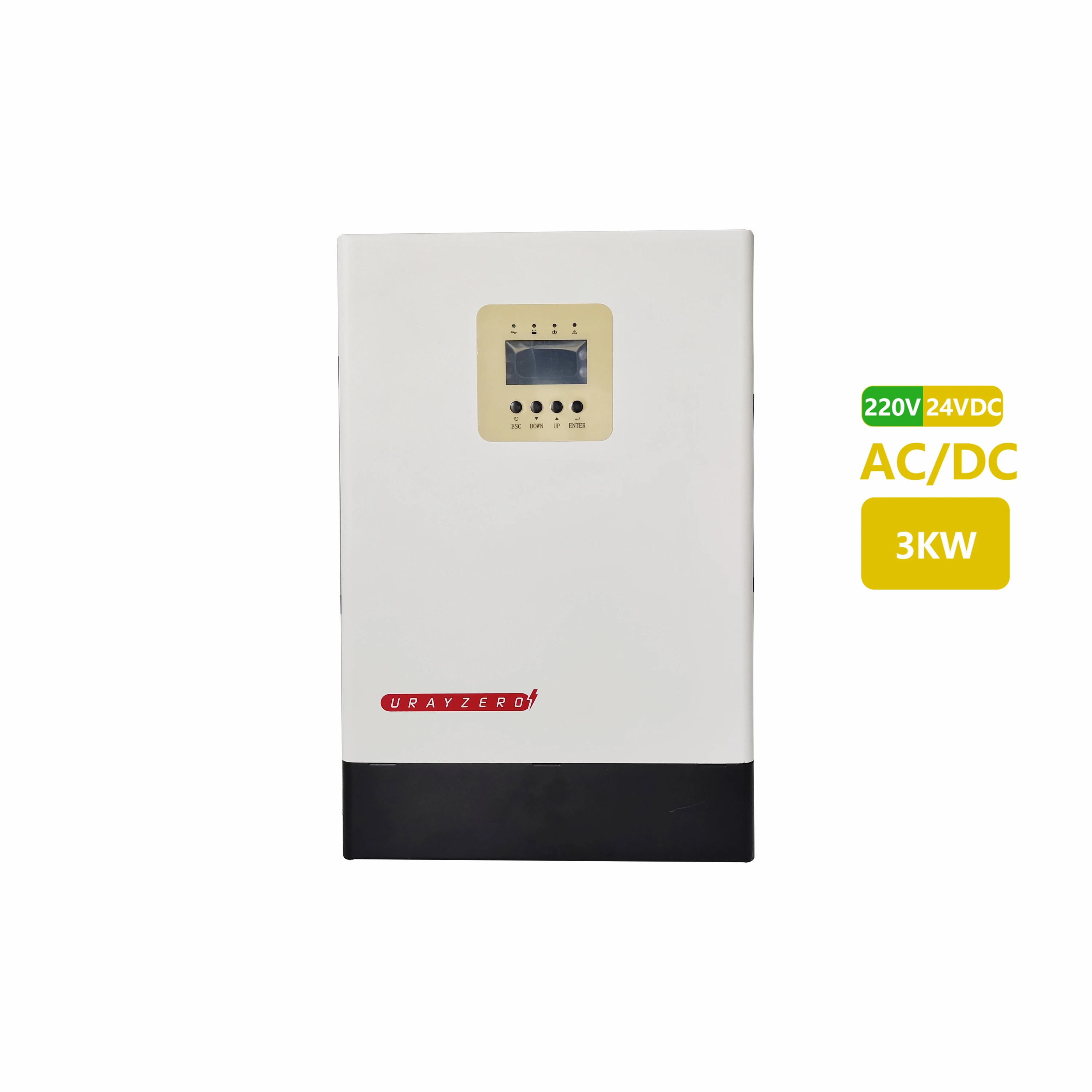

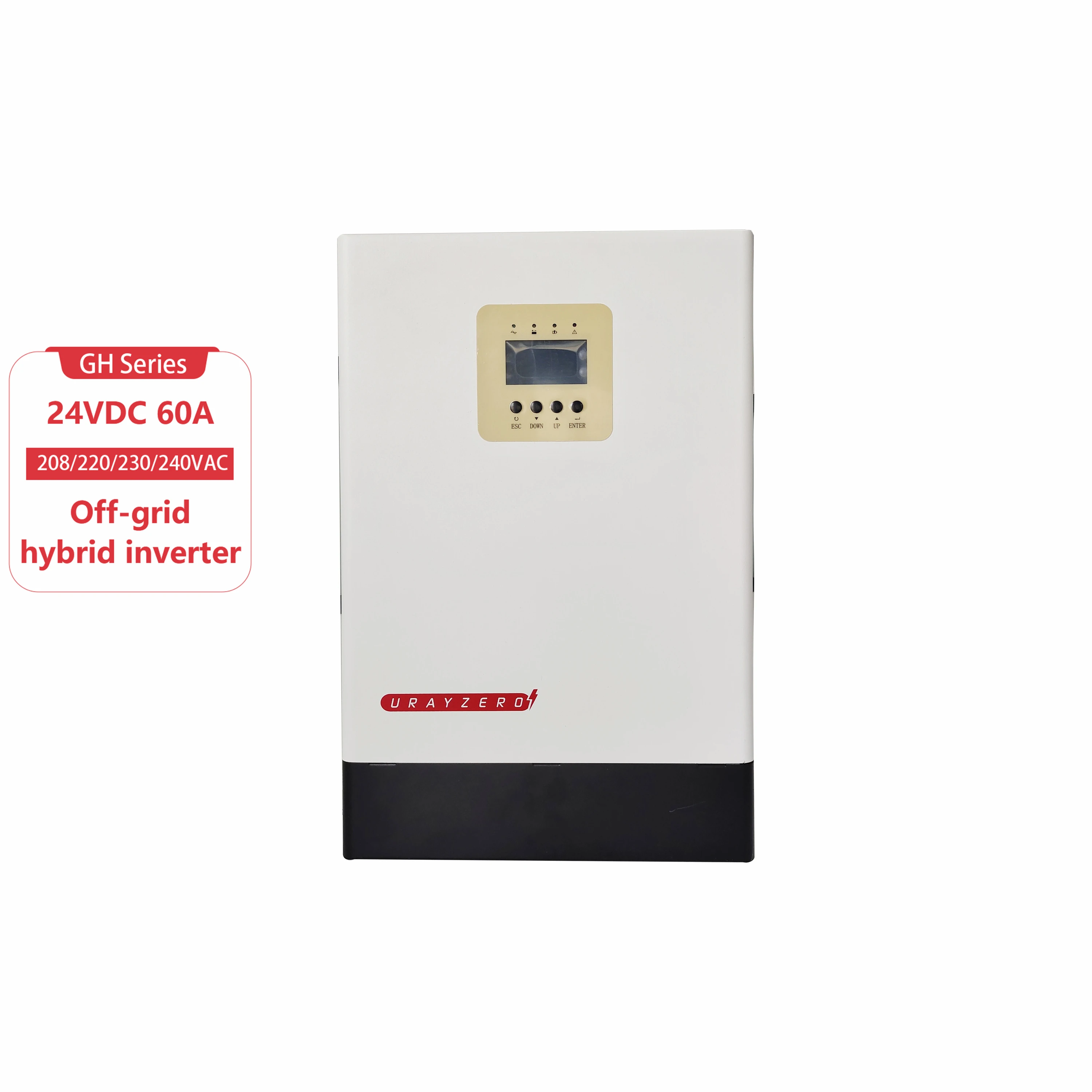

OEM 3KW Mppt Solar Inverter Hybrid Off Grid Solar Power Inverter Pure Sine Wave Inverter
- Category: >>>
- Supplier: Guangdong Leiling Technology Co. Ltd.
Share on (1601092634305):
Product Overview
Description
Products Description
Datesheet | URAYZERO 3000W | URAYZERO 5000W | |||||||||
Battery Voltage | 24VDC | 48VDC | |||||||||
Battery Type | Lithium/Lead-acid | ||||||||||
Inverter Output | |||||||||||
Rated Power | 3200VA/3000W | 5000VA/ 5000W | |||||||||
AC Voltage Regulation | 230VAC土5% @ 50/60Hz | ||||||||||
Surge Power | 6000VA | 10000VA | |||||||||
Efficiency | 98% | ||||||||||
Waveform | Pure sine wave | ||||||||||
Transfer Time | 10ms typical,20ms Max | ||||||||||
solar Chargers | |||||||||||
Maximnum PV Array Power | 3000W | 5000W | |||||||||
Maximum PV change current | 145VDC | 450VDC | |||||||||
Maximum AC Charge Current | 60A | 100A | |||||||||
Maximum Charging Current | 60A | 100A | |||||||||
Physical | |||||||||||
Protection Degree | IP20 | ||||||||||
Dimension (W/H/D ） | 440*340*170mm | 440*340*170mm | |||||||||
Net Weight | 6.3KG | 9.71KG | |||||||||
Operating Environment | |||||||||||
Humidity | 5% to 95% Relative HumidityNon-condensing) | ||||||||||
Operating Temperature | -10 -50°C(14F- 122F) | ||||||||||
Storage Temperature | -15°C -60C(5F-140) | ||||||||||
·Overload/ Over temperature/ short circuit protection
·Smart battery charger design for optimized battery performance·Configurable input voltage range for home appliances and personal computers via LCD setting
·Configurable battery charging current based on applications via LCD setting
·Configurable AC/Solar Charger priority via LCD setting
·Smart battery charger design for optimized battery performance·Configurable input voltage range for home appliances and personal computers via LCD setting
·Configurable battery charging current based on applications via LCD setting
·Configurable AC/Solar Charger priority via LCD setting
Details Images
Company Profile
FAQ
Q: How about the warranty? What you will do if the inverter in problem during 1 or 2 years? If refund should i return the goods?
A: The inverters are of 2 years warranty, during the warranty we offer you free replacements for parts,no need to send back to
china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
A: The inverters are of 2 years warranty, during the warranty we offer you free replacements for parts,no need to send back to
china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
Q: How long the delivery time if i order? How soon can you send out the goods?
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
Q: What happen if I meet problem during instalation? Will you support and how?
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
Q: Does your company also provide other solar products except Pure Sine Wave Inverter?
A: Yes, we also provide other solar products, like Lead-acid and lithium batteries, Tier one solar panel, hybrid/off grid solar inverter, on grid inverter, Complete solar system.
A: Yes, we also provide other solar products, like Lead-acid and lithium batteries, Tier one solar panel, hybrid/off grid solar inverter, on grid inverter, Complete solar system.
Q: What certificates do you have for your products? Can you provide sample for testing?
A: Sure, please kindly contact us and we will provide sample for you. Our products have acquired ISO9001, CE, EMC, UL, LVD certificates, which is able to satisfy most country’s importing requirements.
Q:How do you ship the goods and how long does ittake?
A: Usually byEXW, DDU, DDP, FOB,CIF, DAP. It usually takes 5-10days to arrive. By air, by sea are also acceptableDHL, UPS, FEDEX,TNT., etc. All terms are available.
A: Usually byEXW, DDU, DDP, FOB,CIF, DAP. It usually takes 5-10days to arrive. By air, by sea are also acceptableDHL, UPS, FEDEX,TNT., etc. All terms are available.
