Product Overview
Description

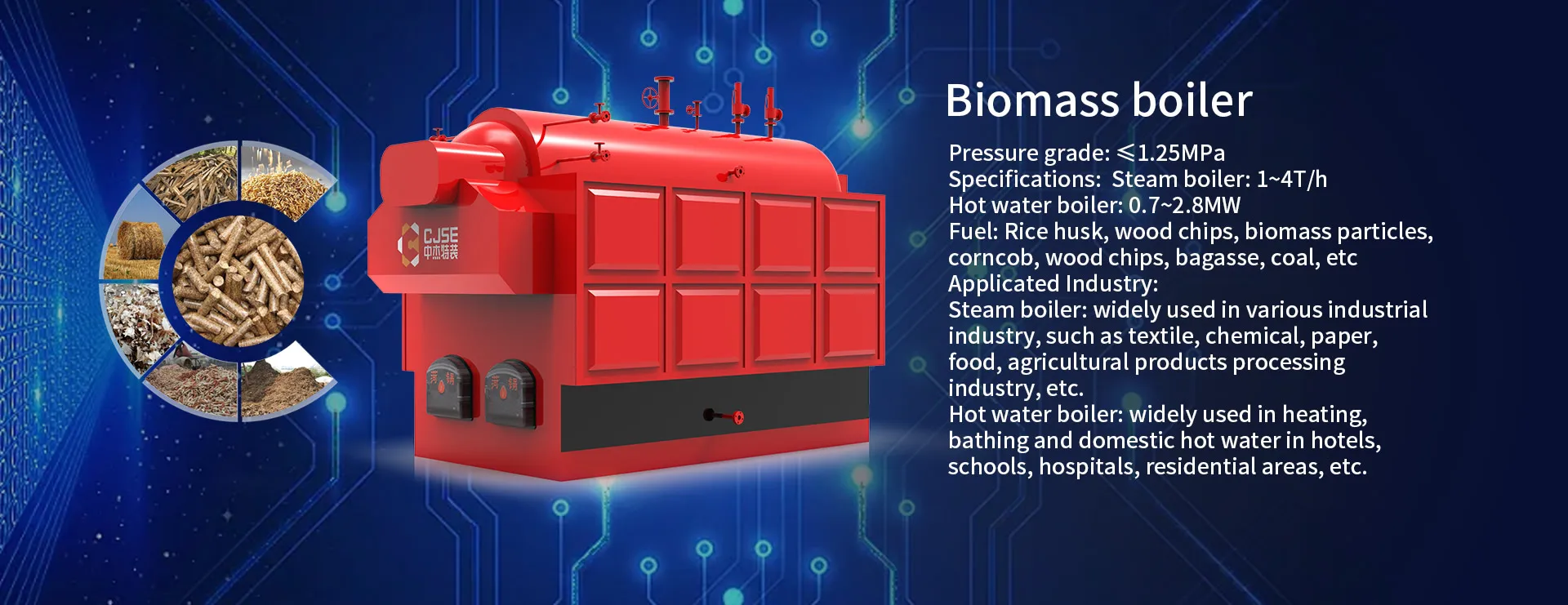

DZH series biomass fired industrial steam boiler
1.It could burn rice husk,wood chips,biomass particles, corncob,wood chips,bagasse,coal,etc.
2.compact structure,small installation dimension,shorten installation period and reduce the cost of boiler room.
3.Inertia separation design of smoke and dust at furnace outlet can effectively reduce the dust concentration in smoke exhaust and reduce the wear of rear heating surface.
4.The unique feeding device has strong fuel adaptability to prevent front combustion and upper combustion of furnace fire.
Boiler model: DZH steam boiler
Rated Capacity:1-6 ton/h
Rated Capacity:1-6 ton/h
Pressure grade:≤ 1.25 MPa
Fuel: Rice husk, wood chips,biomass particles corncob, wood chips, bagasse,coal,etc
Steam boiler: widely used in various industrial industry,such as textile, chemical,paper, food,agricultural products processing industry,etc.

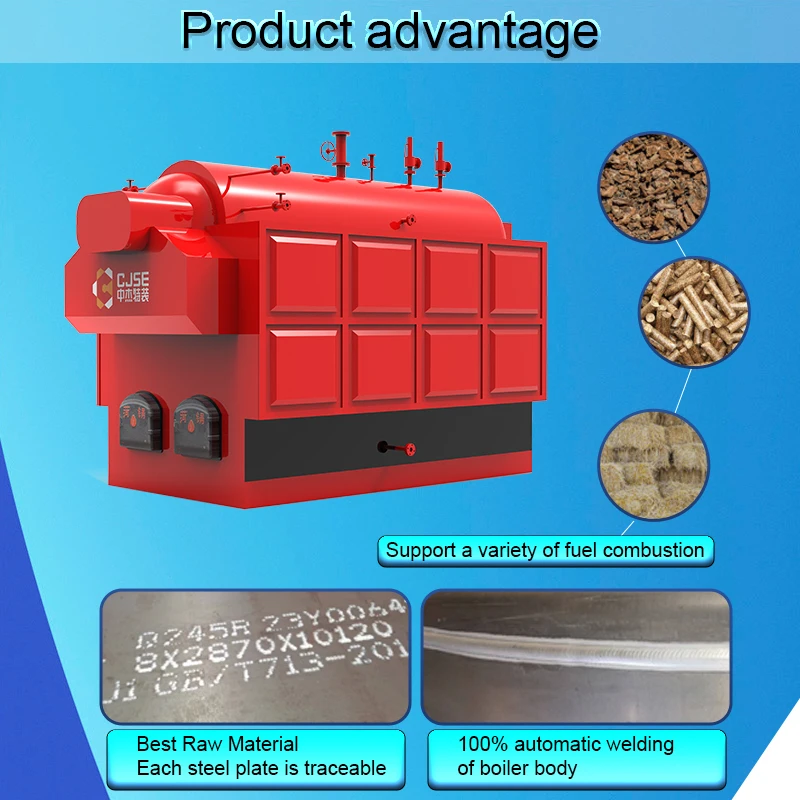

Product Advantages

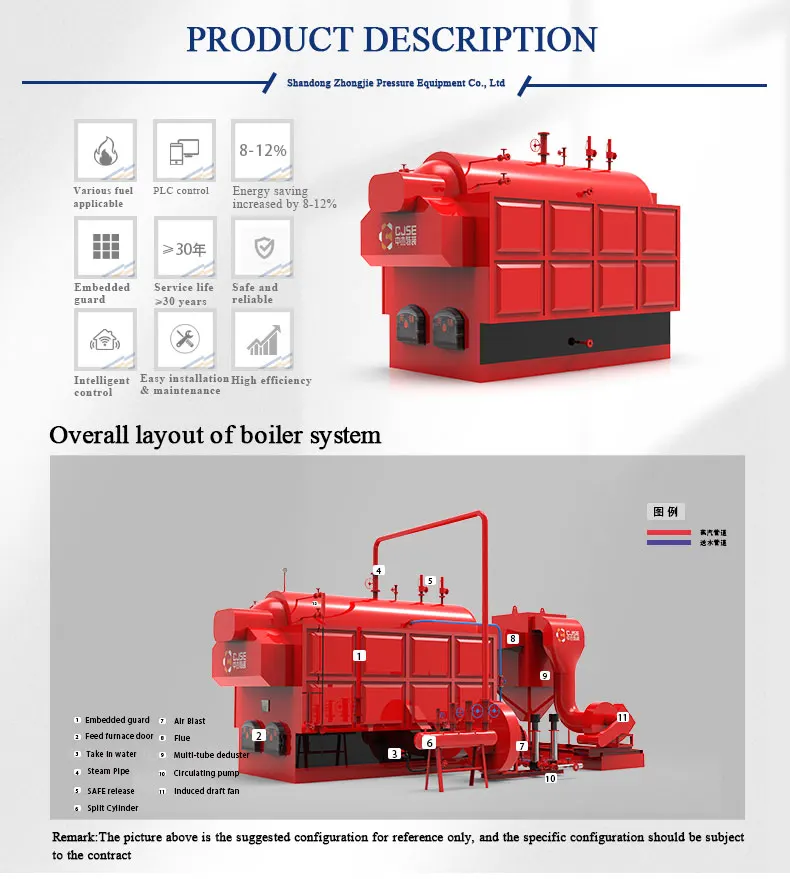

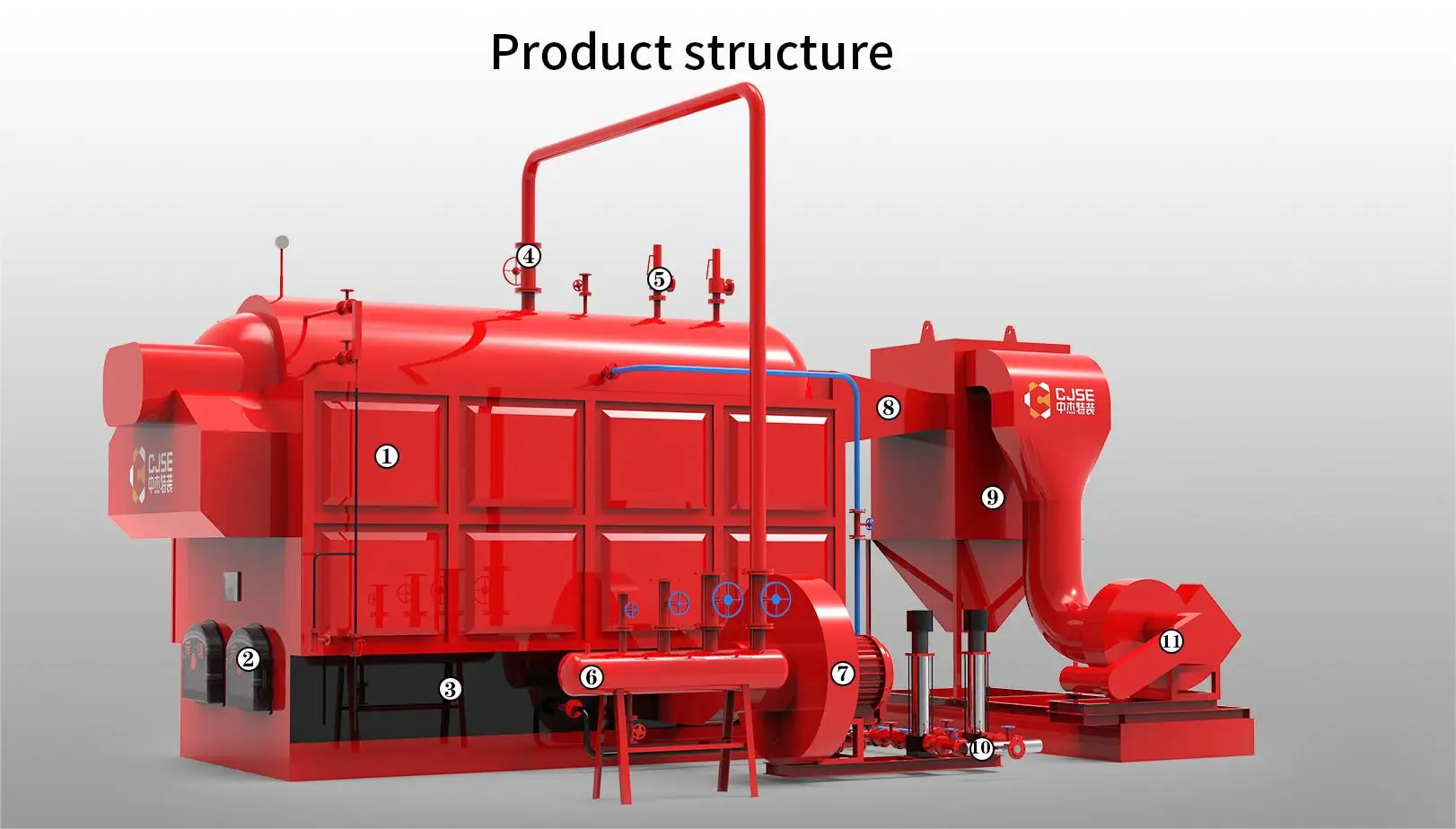

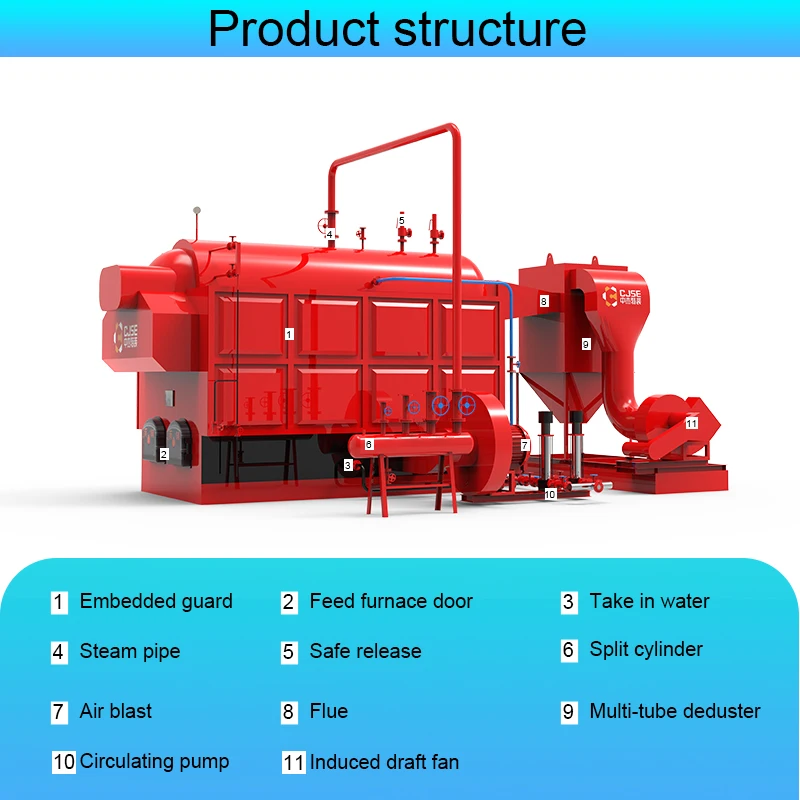

① Embedded guard | ② Feed furnace door | ③ Take in water |
④ steam pipe | ⑤ safe release | ⑥ Split cylinder |
⑦ Air blast | ⑧ Flue | ⑨ Multi-tube deduster |
⑩ Circulating pump | ⑪ Induced draft fan |
Products Description
Model/Item | Rated Steam capacity(T/H) | Rated Working Pressure(Mpa) | Rated Steam Temperature(℃) | Design Thermal Efficiency |
DZH1-1.0 | 1 | 1 | 184 | 81.77% |
DZH1-1.25 | 1 | 1.25 | 193 | 81.54% |
DZH2-1.0 | 2 | 1 | 184 | 84.59% |
DZH2-1.25 | 2 | 1.25 | 194 | 80.12% |
DZH4-1.0 | 4 | 1 | 184 | 82.82% |
DZH4-1.25 | 4 | 1.25 | 193 | 80.83% |
DZH6-1.25 | 6 | 1.25 | 193 | 82.60% |

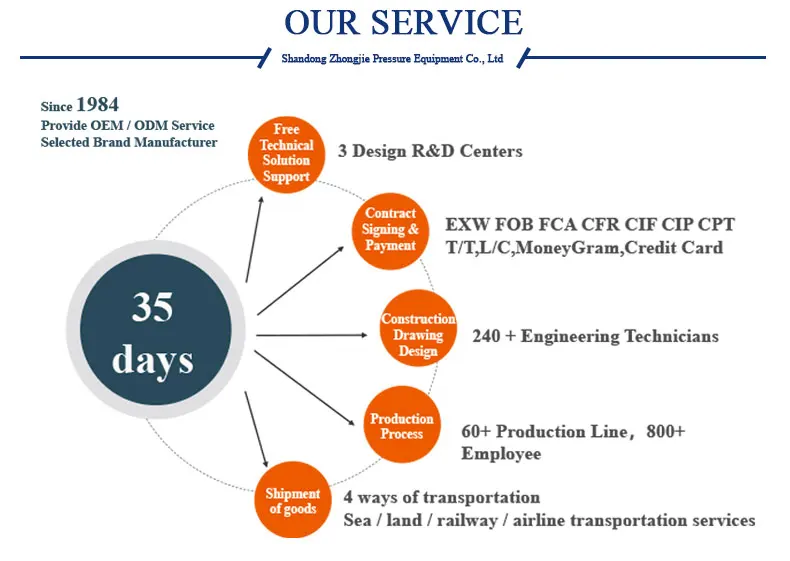

Our Service
Why Choose Us
Company Factory
Certifications
Exhibition

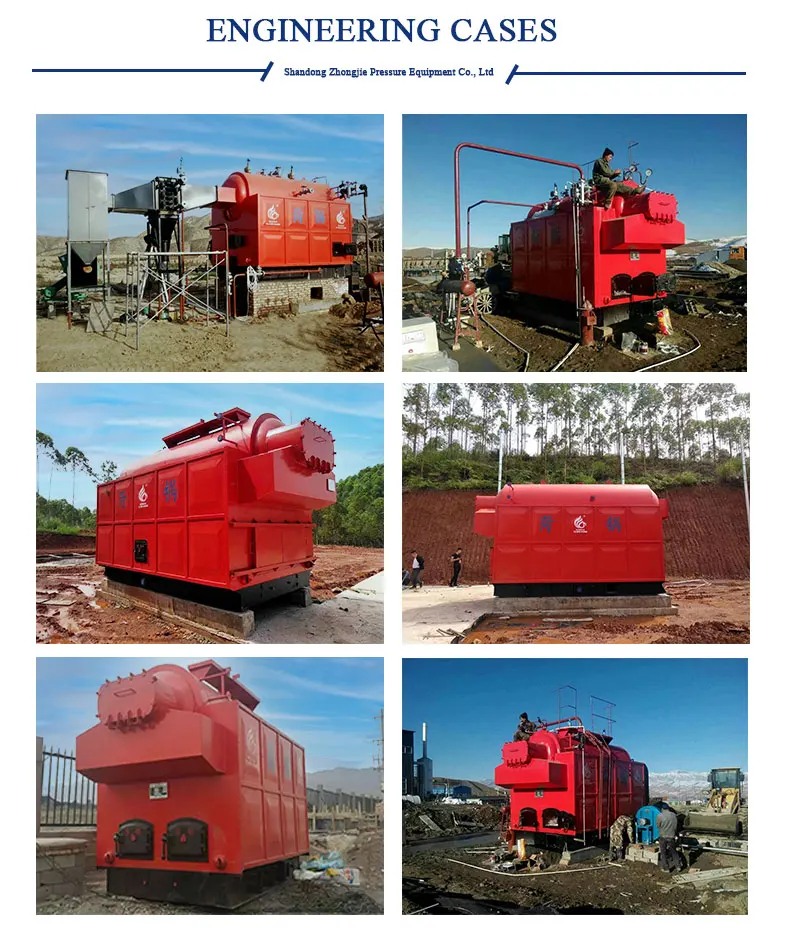

Successful Project
