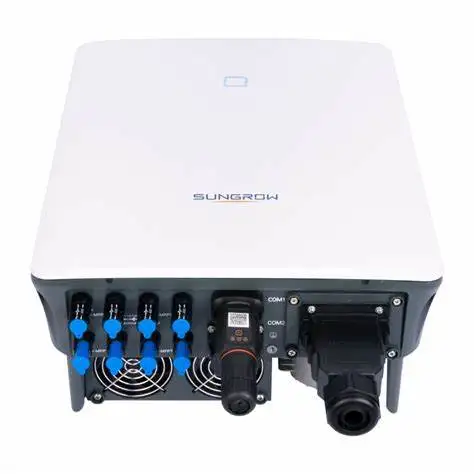

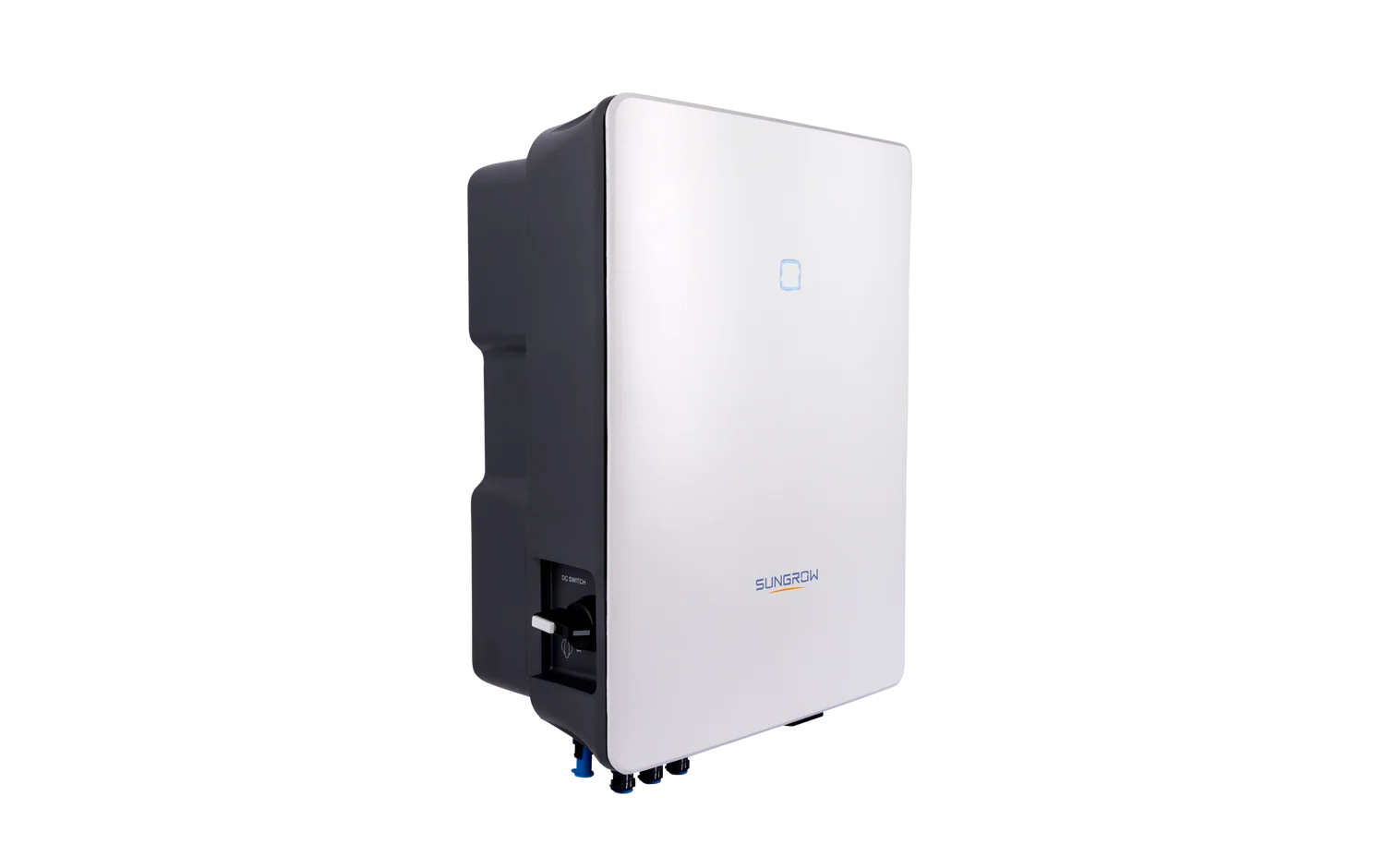

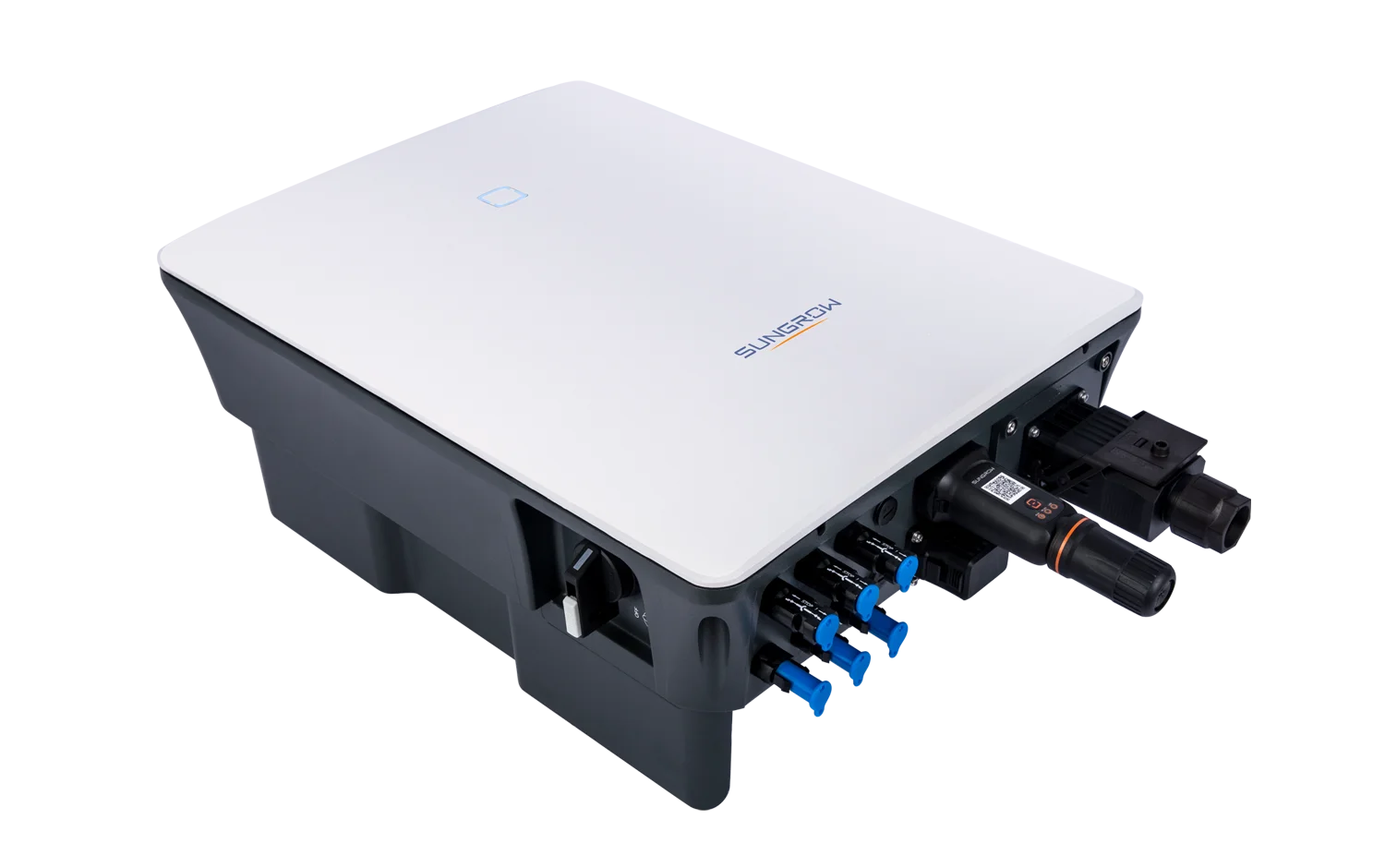

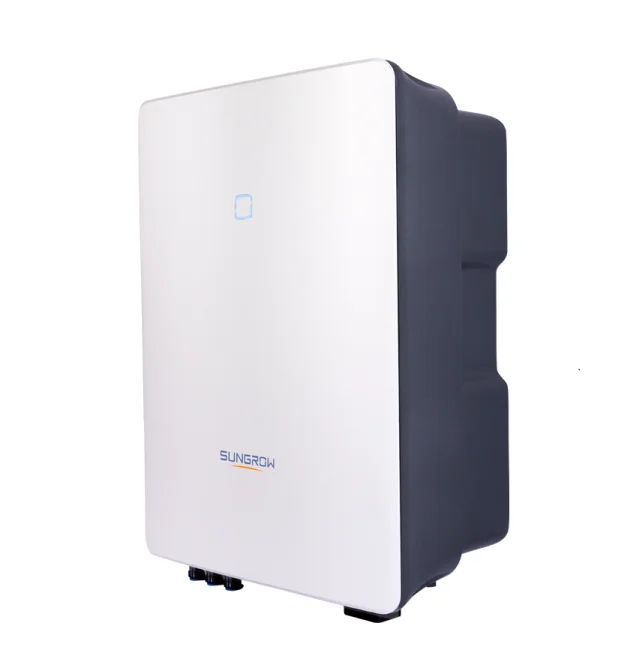

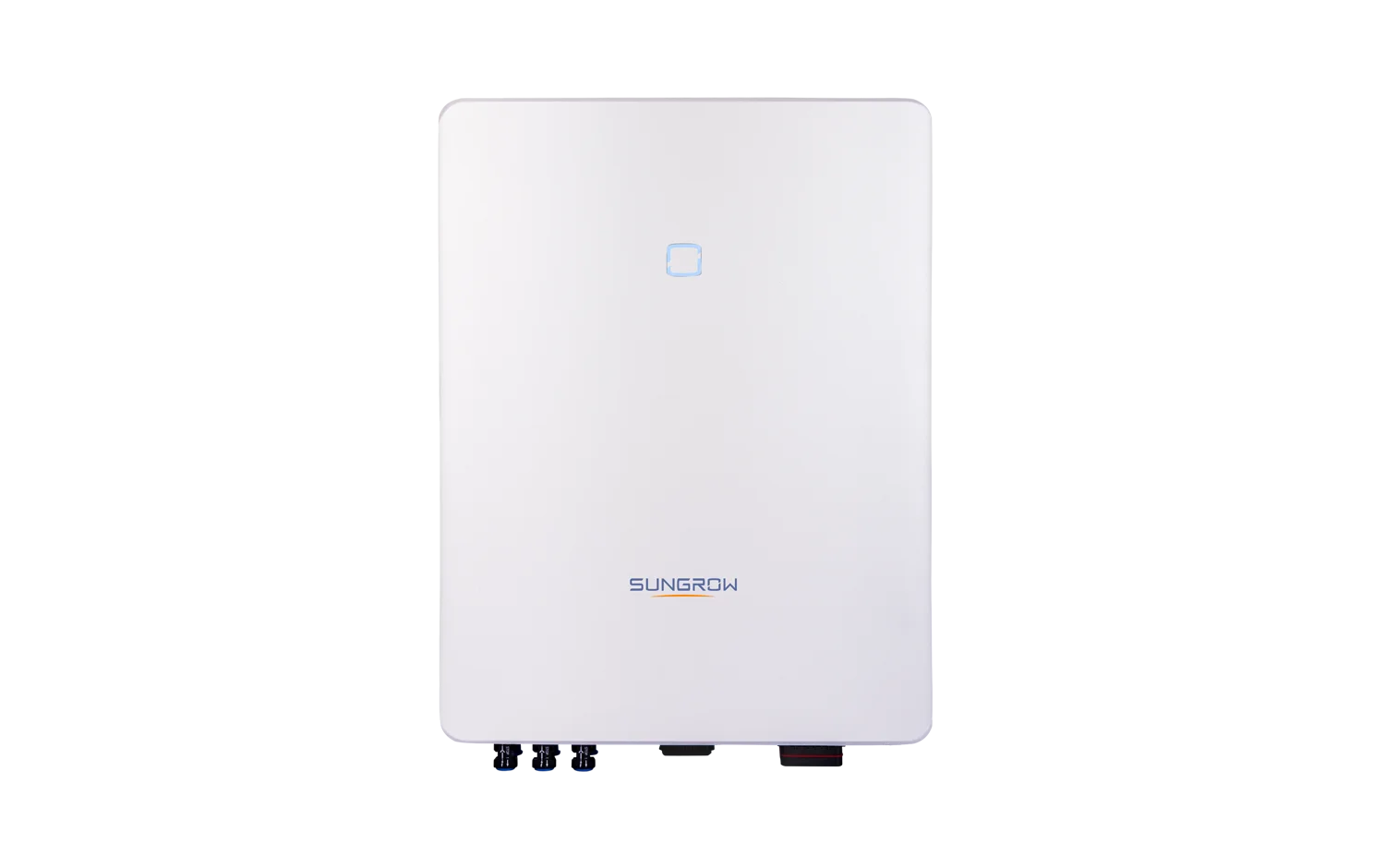

SUNGROW Multi MPPT String Inverter for 1000 Vdc System SG15RT SG17RT SG20RT IP65 three phase grid tie solar inverter
- Category: >>>
- Supplier: Guangdong Leiling Technology Co. Ltd.
Share on (1601092767406):
Product Overview
Description
Product Description

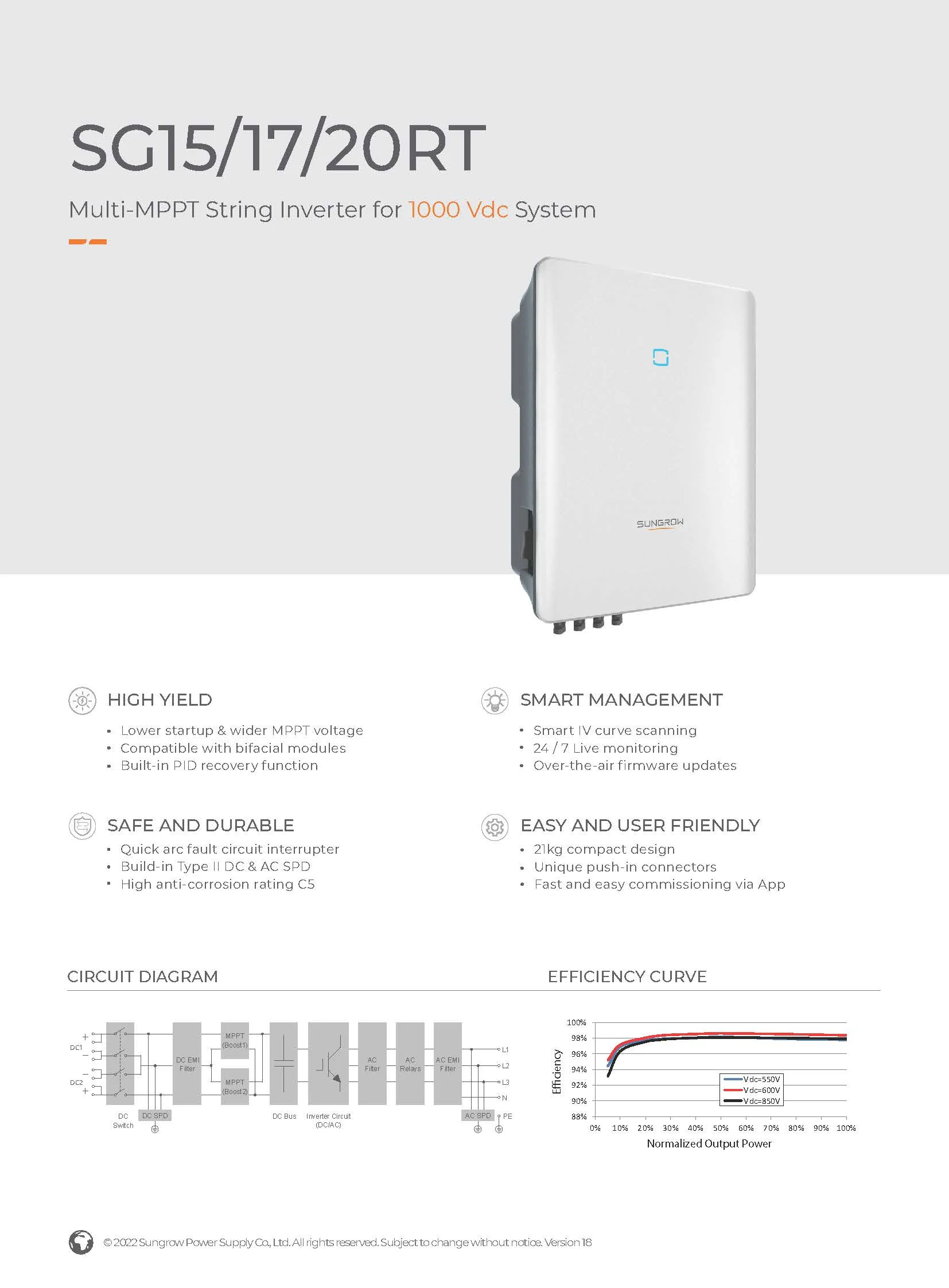

Multi-MPPT String Inverter for 1000 Vdc System
SG15/17/20RT
HIGH YIELD
Lower startup & wider MPPT voltage
Compatible with bifacial modules
Built-in PID recovery function
SMART MANAGEMENT
Smart IV curve scanning
24 / 7 Live monitoring
Over-the-air firmware updates
SAFE AND DURABLE
Quick arc fault circuit interrupter
Build-in Type II DC & AC SPD
High anti-corrosion rating C5
EASY AND USER FRIENDLY
21 kg compact design

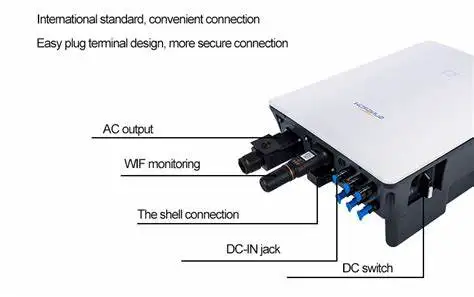

Unique push-in connectors
Fast and easy commissioning via App

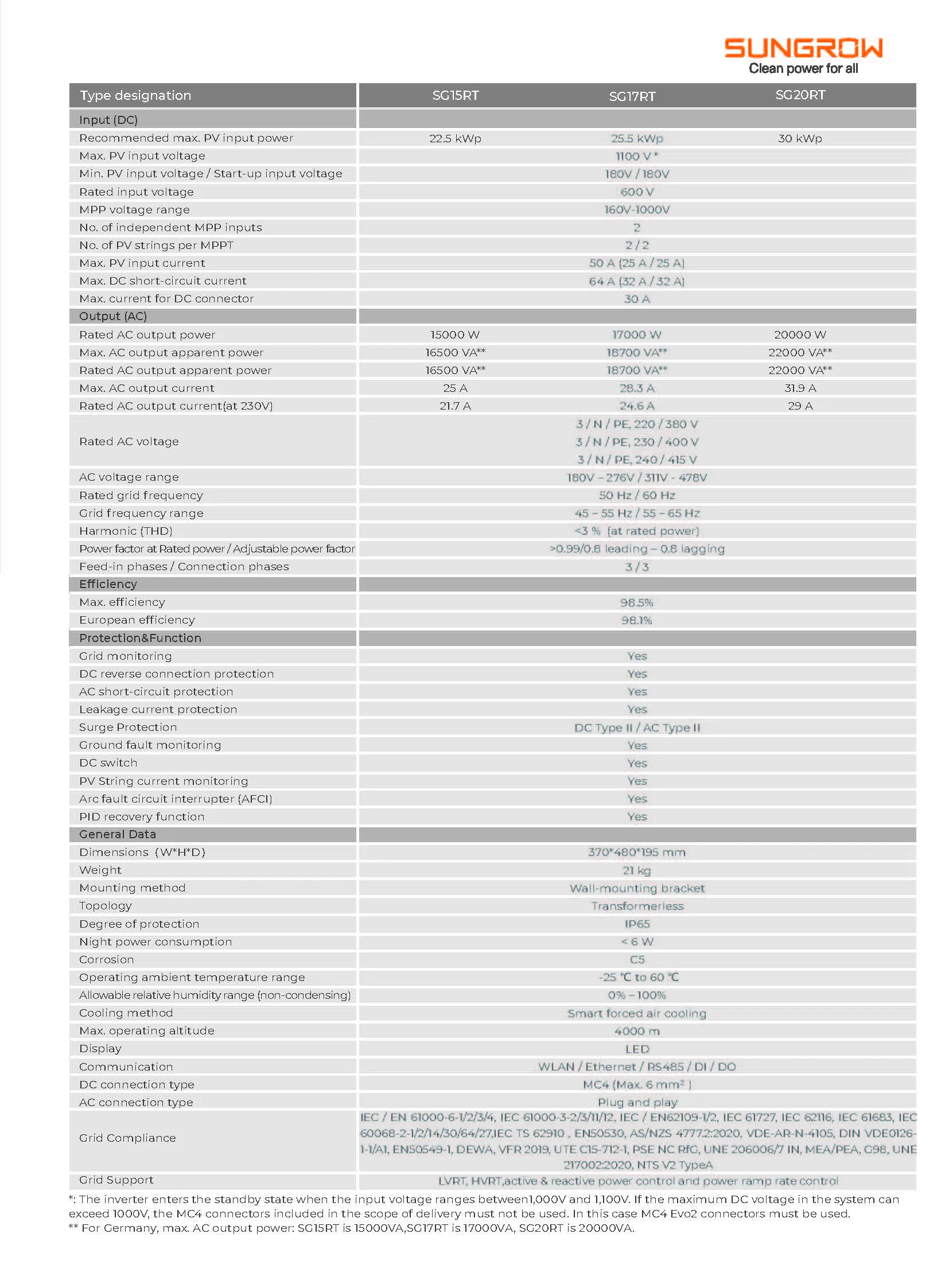

Specification
item | value |
Place of Origin | China |
Brand Name | SUNGROW |
Model Number | 15 17 20 KW |
Input Voltage | 1000VDC |
Output Voltage | 180V |
Output Current | 30A |
Output Frequency | 50/60Hz |
Output Type | Three Phase |
Size | 370*480*195MM |
Type | DC/AC Inverters |
Inverter Efficiency | 98.5% |
Certificate | CE/IEC |
Warranty | 10 Years |
Weight | 21KG |
MODEL | SG15/17/20RT |
MAX PV Input voltage | 1100V |
MPPT voltage range | 160-1000V |
No. of PV strings per MPPT | 2 |
Max. PV input current | 50A |
Max. current for input connector | 64A |
Rated grid frequency | 50-60HZ |
Max. efficiency | 98.5% |
Communication | WLAN / Ethernet / RS485 / DI / DO |
Cooling method | Smart forced air cooling |
Packing & Delivery
1 SET PER CARTON
