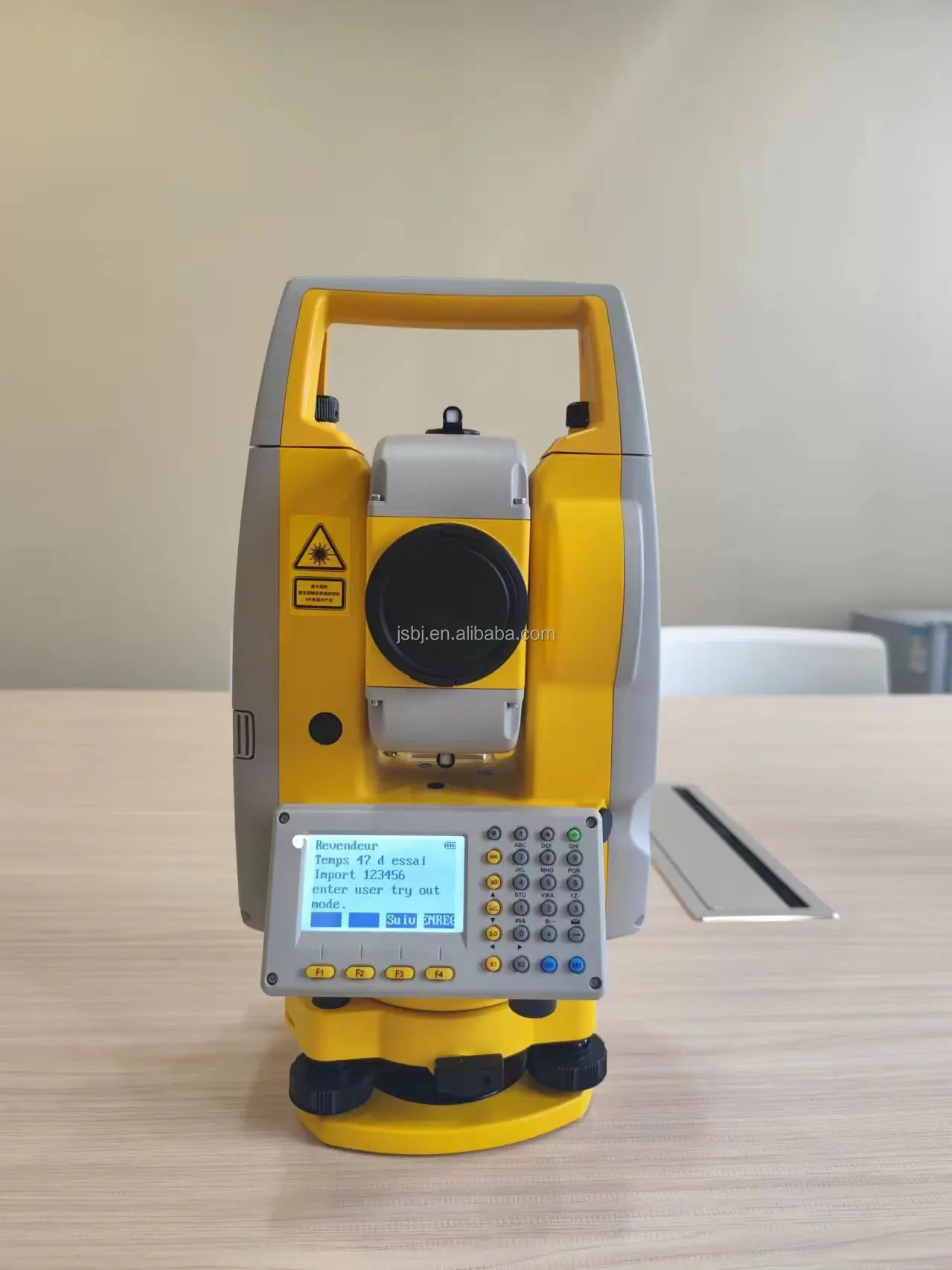

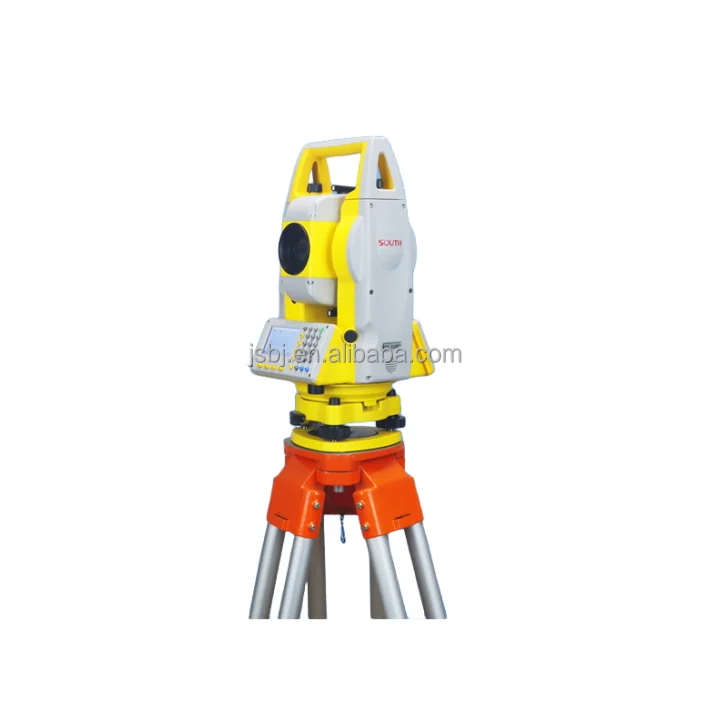

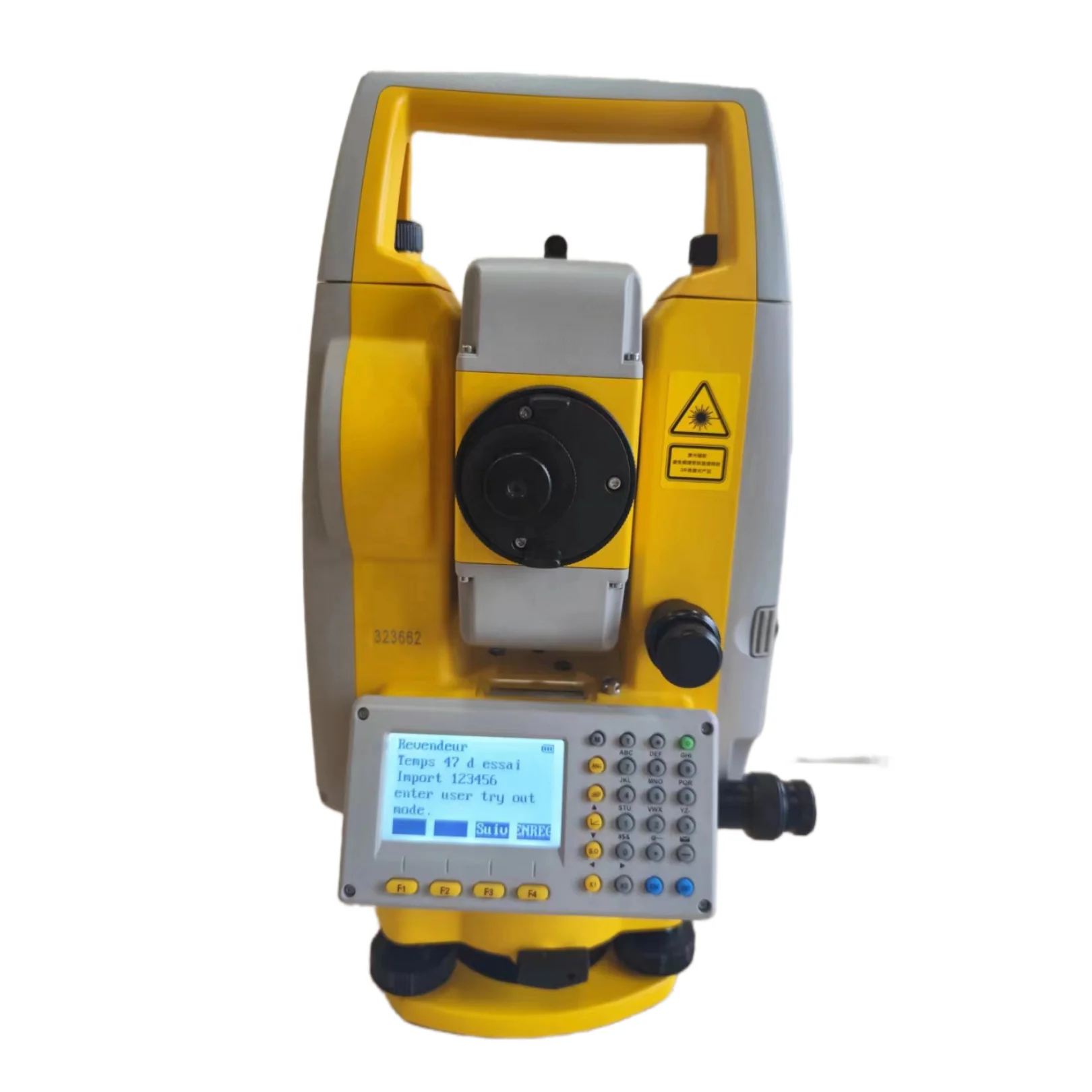

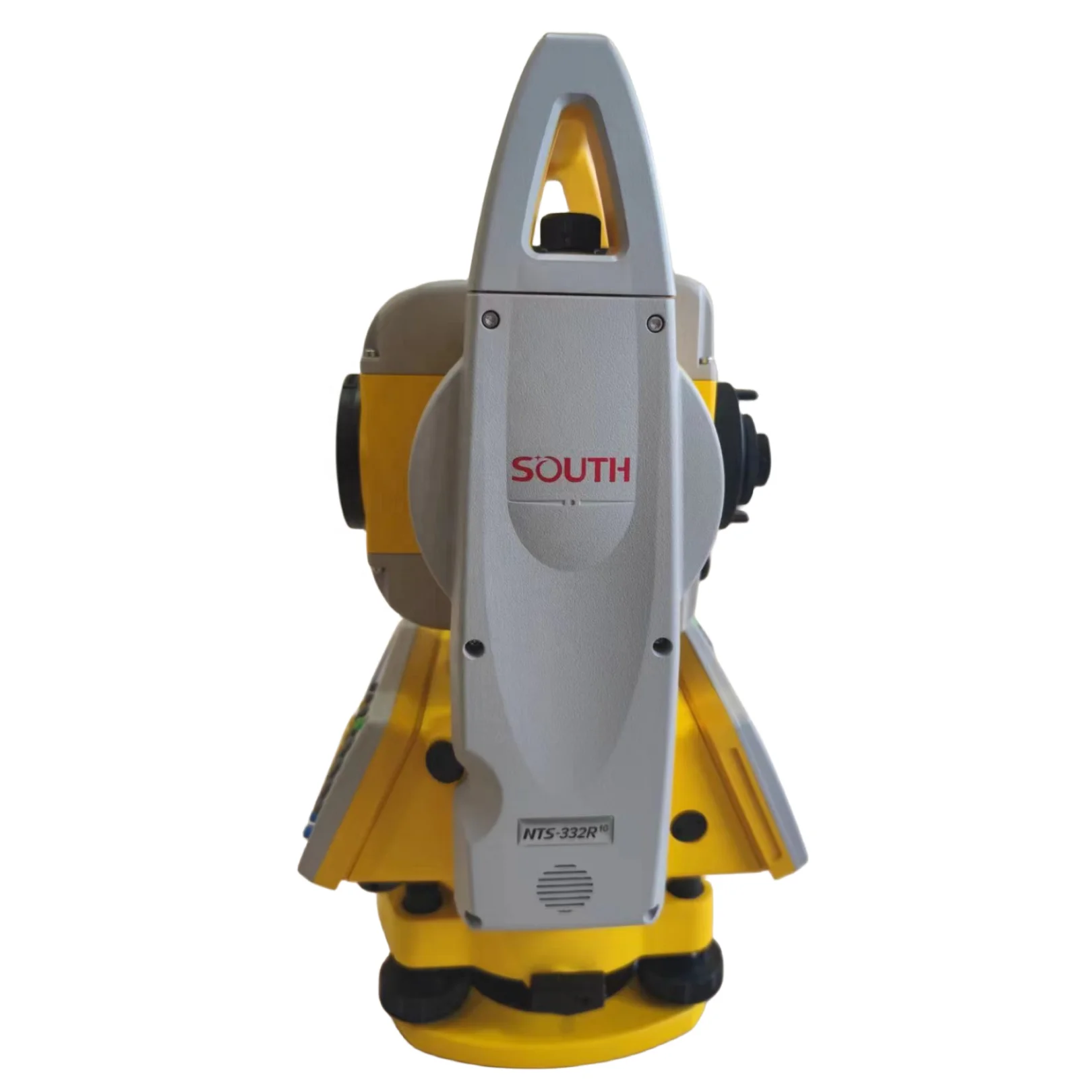

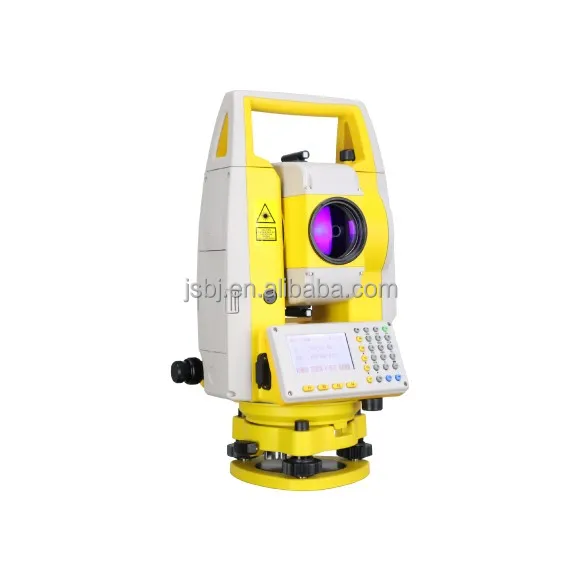

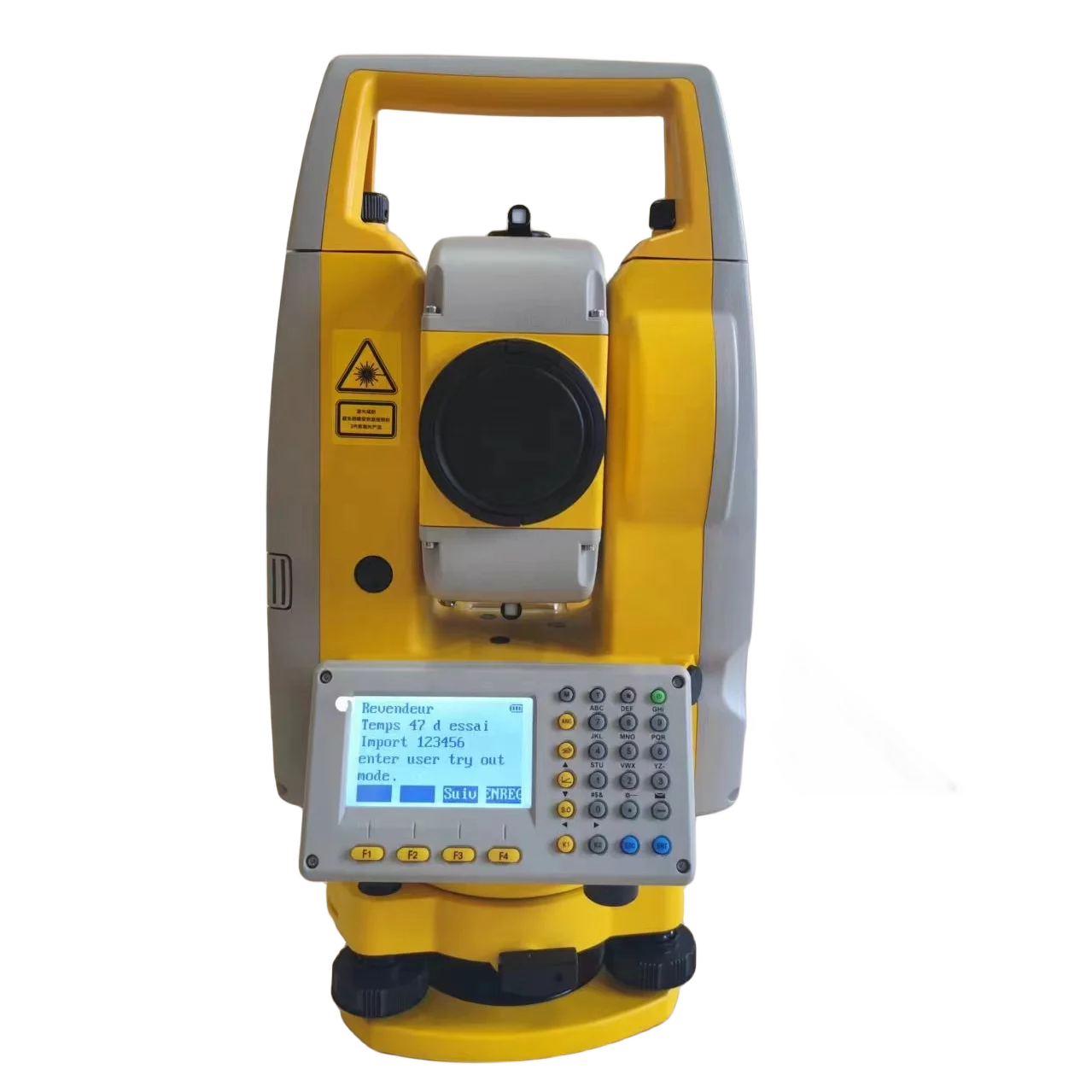

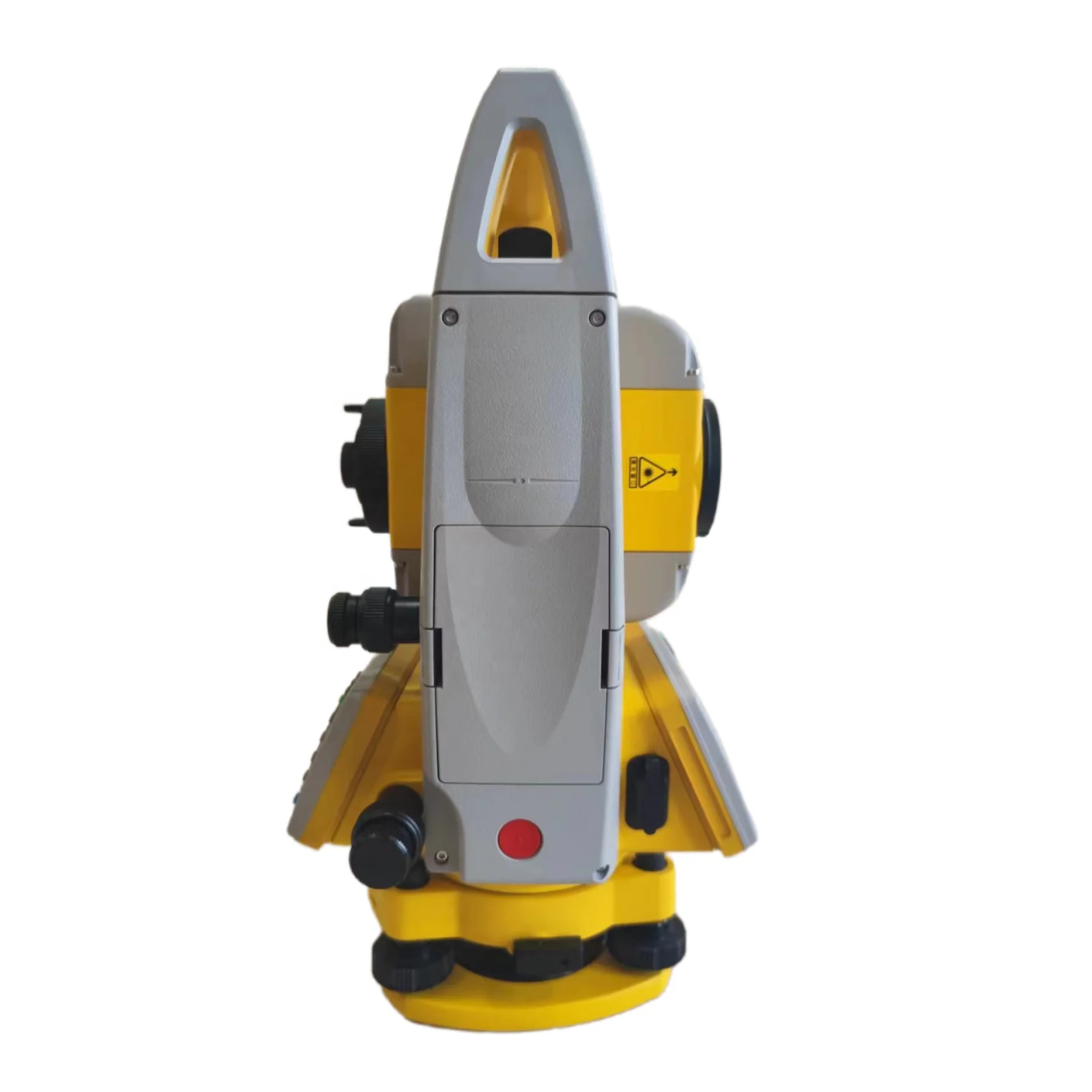

SOUTH Total Station NTS 332R10 with Laser ranging and absolute encoding and dual axis compensation
- Category: >>>
- Supplier: Jiangsu Bangjie Trading Co. Ltd.
Share on (1601092799248):
Product Overview
Description
Product Description
Features
Simple But Practical Onboard Software
NTS-332R4offers the quick response and clear feedback for its onboard software, like data input, measurement, stake out and roads.
Higher Efficiency with Auto Height
NTS-332R4 is available to add the function of Auto Height on its laser plummet. Free your hands by automatically measurement for
instrument height (±2mm) to avoid the extra mistakes by manual. Auto height will increase the efficiency by its simple steps.
Stable Performance Under Low Temperature
NTS-332R4, the modified model concentrated on operation and test under low-temperature -35℃. It’s an economical choice that keep
the high accuracy in extremely tough conditions.
Simple But Practical Onboard Software
NTS-332R4offers the quick response and clear feedback for its onboard software, like data input, measurement, stake out and roads.
Higher Efficiency with Auto Height
NTS-332R4 is available to add the function of Auto Height on its laser plummet. Free your hands by automatically measurement for
instrument height (±2mm) to avoid the extra mistakes by manual. Auto height will increase the efficiency by its simple steps.
Stable Performance Under Low Temperature
NTS-332R4, the modified model concentrated on operation and test under low-temperature -35℃. It’s an economical choice that keep
the high accuracy in extremely tough conditions.
Specification
Distance measurement | |||||
The maximum distance (Good weather) | Single prism | 5.0KM | |||
Figures show | Maximum:999999.999 Least:1MM | ||||
Accuracy | 2+2PPM | ||||
Measurement time | Precision measurement 3S, Track 1S | ||||
Meteorological correction | Manual input ,auto correction | ||||
Prism constant correction | Manual input,auto correction | ||||
Angle measurement | |||||
A goniometer | Photoelectric incremental | ||||
Code disc diameter | 79MM | ||||
Minimum reading | 1"/5"Optional | ||||
Accuracy | 2" | ||||
Detection method | Level disk:Of radial Caine straight plate:Of radial | ||||
Telescope | |||||
Imaging | Erect | ||||
Tube length | 154MM | ||||
Lens effective aperture | 45MM EDM:50MM | ||||
Magnification | 30* | ||||
Field of view | 1Degree30Second | ||||
Resolution | 3" | ||||
Minimum focusing distance | 1M | ||||
Automatic vertical compensator | |||||
System | Dual axis liquid electric | ||||
Scope of work | +/-6' | ||||
Accuracy | 1" | ||||
Spirit level | |||||
Vial | 30"/2MM | ||||
Circular level | 8'/2MM | ||||
Laser plummet | The Laser precision :+/-M | ||||
Optical Plummet | |||||
Imaging | Erect | ||||
Magnification | 3* | ||||
Adjustment range | 0.3M To infinity | ||||
Field of view | 5 degree | ||||
Display section | |||||
Type | Dual-side | ||||
Mechanical battery | |||||
Power supply | Rechargeable nickel-Metal hydride batteries | ||||
Voltage | DC6V | ||||
Continuous working time | 8Hour | ||||
Size and weight | |||||
Size | 206*180*353MM | ||||
Weight | 5.4Kg | ||||
