M3 SERIES (RHD for option) | ||||||||
Fuel type | DIESEL TYPE | DIESEL TYPE | DIESEL TYPE | DIESEL TYPE | ||||
Model | M36 | M37A | M37 | M39A | ||||
Emission | E-V | Euro-III | Euro-IV | Euro-Ⅱ | ||||
Suggested payload | 3T | 5 T | 5 T | 3T | ||||
Cabin | single cabin | single cabin | single cabin | single cabin | ||||
Wheel Base (mm) | 3300 | 3300 | 3300 | 3300 | ||||
Overall dimensions (mm) | 5995*2030*2390 | 5995*2030*2390 | 5995*2030*2390 | 5995*2030*2390 | ||||
Cargo Box Size (mm) | 4200*1920*400 | 4200*1920*400 | 4200*1920*400 | 4200*1900*400 | ||||
Curb Weight (Kg) | 2560 | 2560 | 2600 | 2800 | ||||
G.V.W | 5560 | 7560 | 7600 | 5280 | ||||
Max. Speed (Km/h) | 95 | 110 | 110 | 110 | ||||
Tyre model | 7.00R16 | 7.00R16 | 7.50R16 | 7.50R16 | ||||
Quantity of wheels | 6+1 | 6+1 | 6+1 | 6+1 | ||||
Brake system | Air brake | Air brake | Air brake | Air brake | ||||
Parking brake | Spring energy air cut brake | Spring energy air cut brake | Spring energy air cut brake | Spring energy air cut brake | ||||

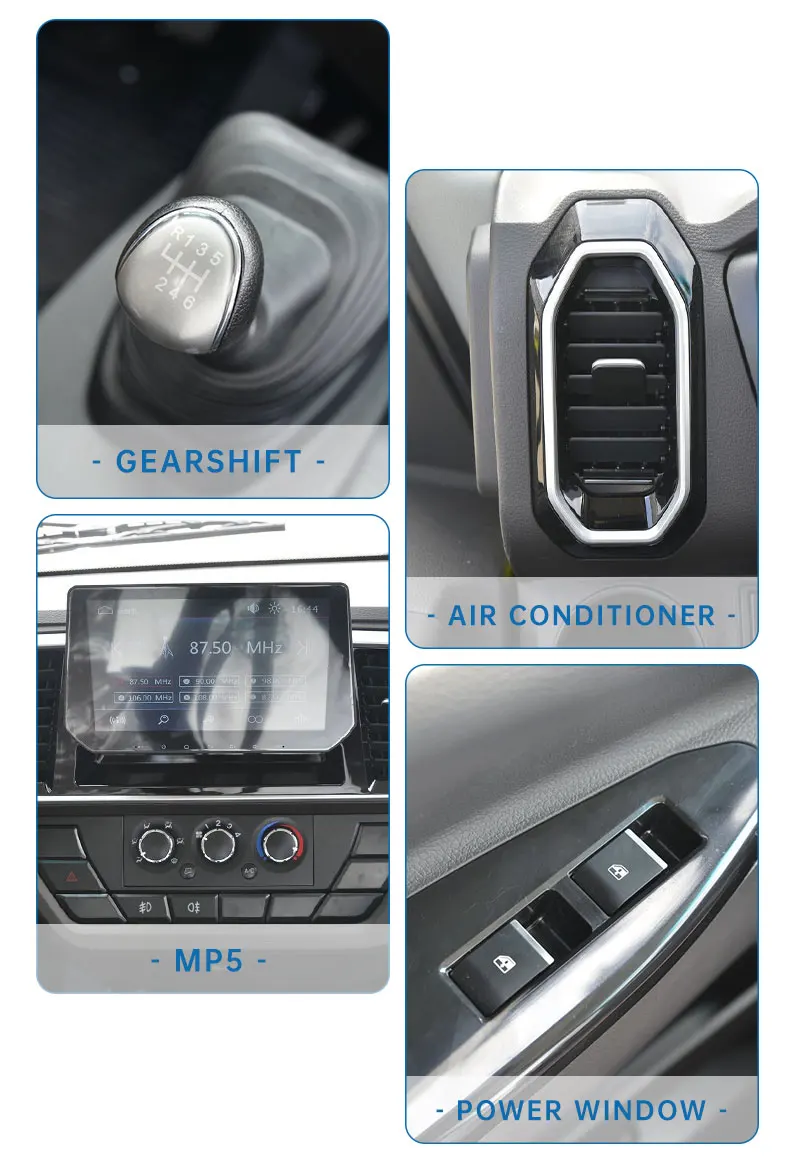

Gearshift | 5+1 speed, manually | 5+1 speed, manually | 5+1 speed, manually | 5+1 speed, manually | ||||
Battery volt | 24V | 12V | 12V | 24V | ||||
Engine power | ||||||||
Engine Model | WP2.3NQ130E50 (WEICHAI) | JE493ZLQ3A (ISUZU) | JE493ZLQ4 (ISUZU) | YN4100QBZL (YUNNEI) | ||||
Displacement (cc) | 2290 | 2771 | 2771 | 3298 | ||||
Power (KW)/Rpm | 96/3200 | 75/3600 | 80/3400 | 81/3200 | ||||
Torque (N.m)/Rpm | 380/1600-2400 | 240/2000 | 260/2000 | 285/200-2200 | ||||
CONFIGURATIONS | ||||||||
ABS | ● | ○ | ◎ | ◎ | ||||
Power steering | ● | ● | ● | ● | ||||
Media | MP5 | MP5 | MP5 | MP5 | ||||
A/C | ● | ● | ◎ | ◎ | ||||
Power window | ● | ● | ● | ● | ||||
Central lock | ● | ● | ● | ● | ||||
Units/ 40HQ | 3 | 3 | 3 | 3 |
