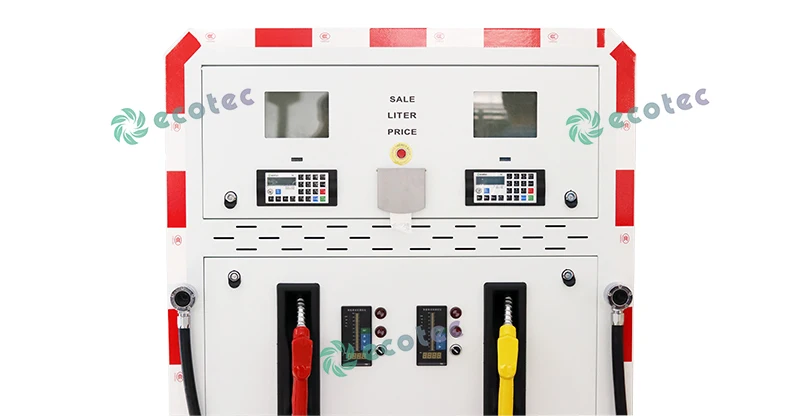

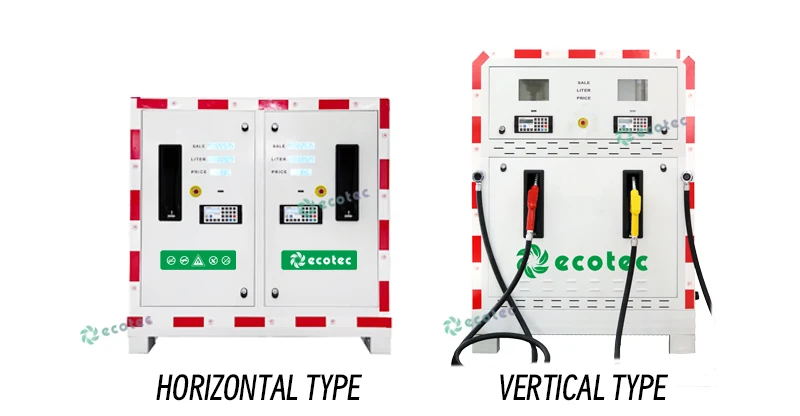

Portable Gas Fuel Station Container Station Portable petrol station Fuel Dispenser with 3 nozzle 3000 Tank






Emergency Stop
Shut off machine in a sec
Flange Connection
More durable, design life 10 years
Manhole Design
Able to clean tank inside, longer life


- Ecotec Design & Manufacture
Ecotec mini fuel station meets OIML and ATEX standards and achieving optimum balance of excellent performance economically.
Model available from 1 nozzle to 3 nozzle, from 200 liter to 20,000 liter optional. Both gear pump and motor pump available.

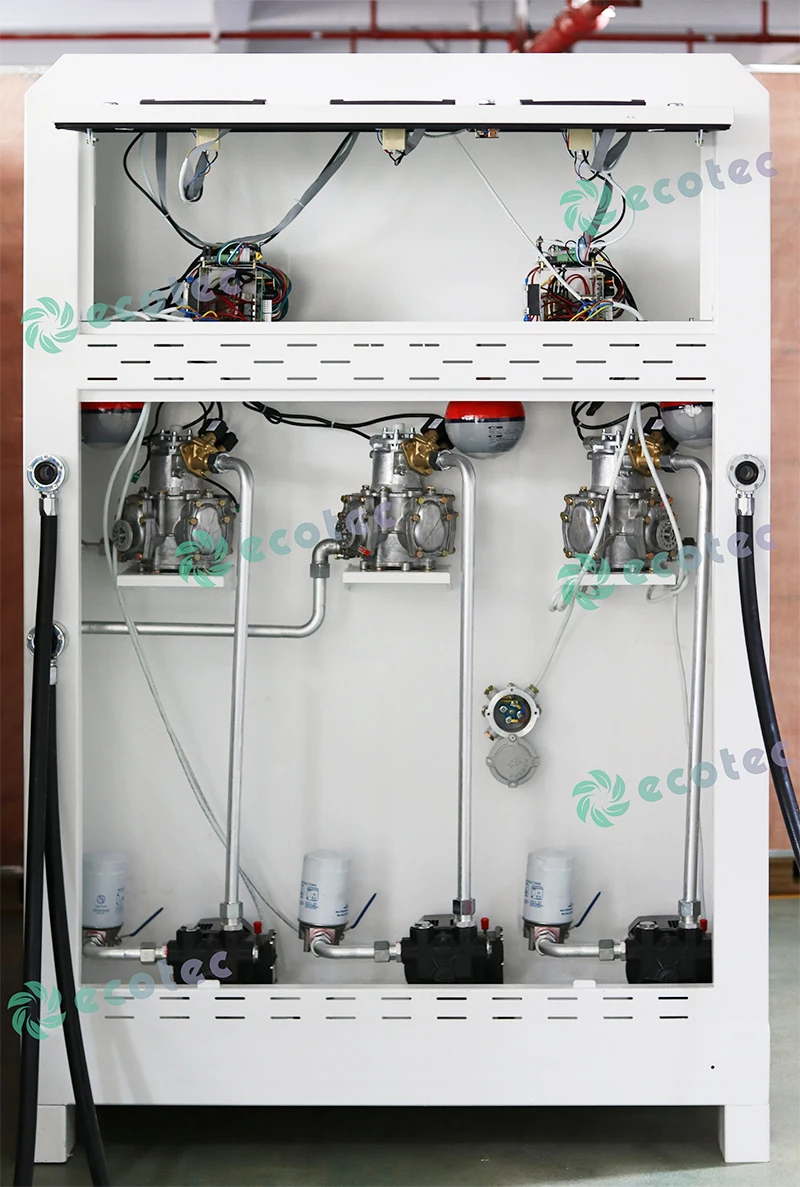

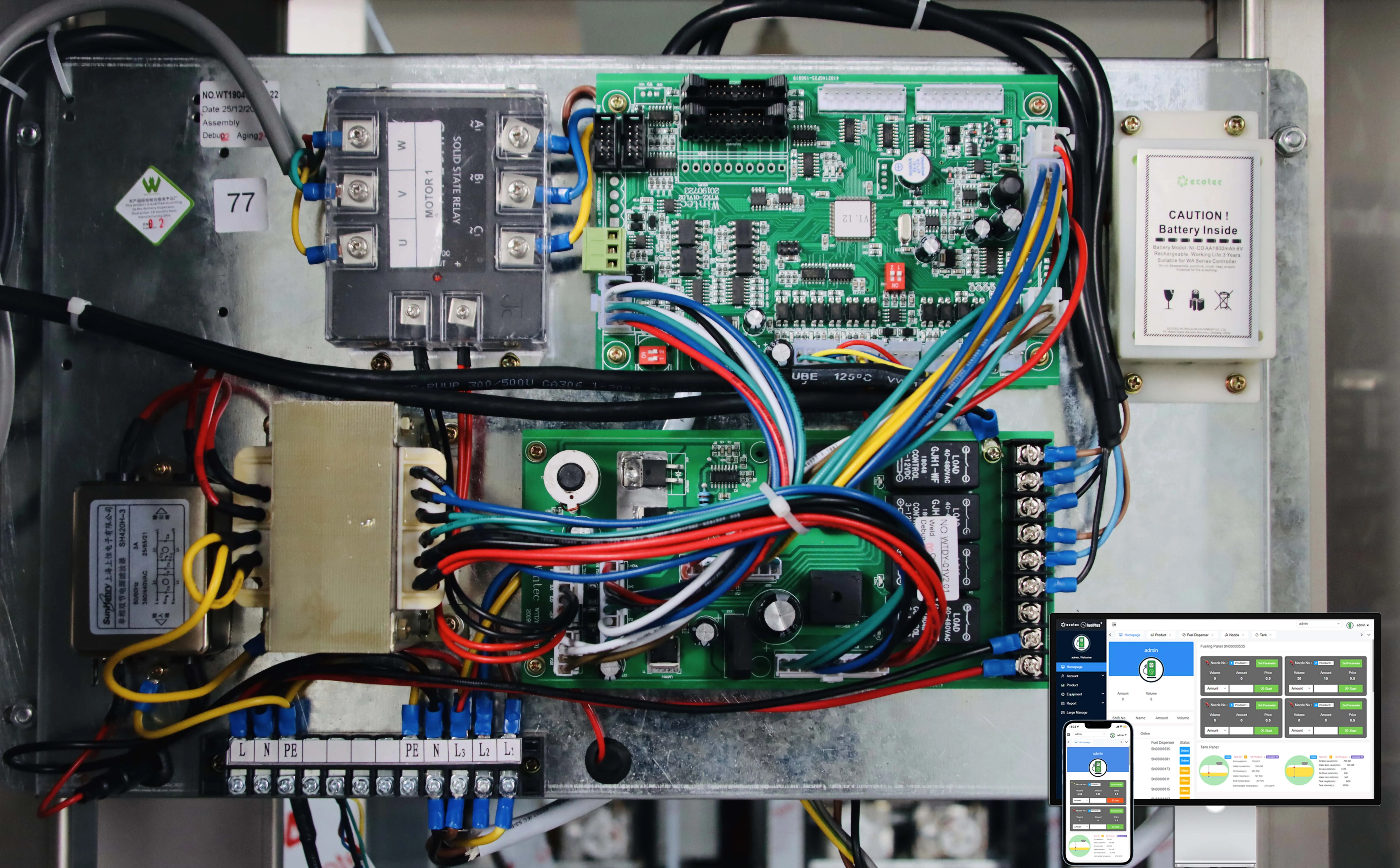

- Ecotec Smart Dispenser Controller
Ecotec smart controller is durable and stable, and it can work with FuelPlus+ station management system.


Function List
Easy operation
Less maintenance
Stable and accurate
Wide range of power supply
Varies of keyboard and display board to meet
different market
Many special function for different area use
Self diagnostics with error code
Working with FuelPlus+ station management system


- Safty always first
Ecotec believe safty is most important for petrol equipment.


Laser computer welding
Over 10 years without leakage
Certificated EX Proof
Both MID and ATEX aprroved
Fire Extinguisher Ball
Free one for every nozzle


- Optional function
Ecotec offer customized solution for all customer


Solar Panel
Keep business while power off
Digital Level Gauge
Accurate manage stock
FuelPlus+ System
Control your machine by phone&PC

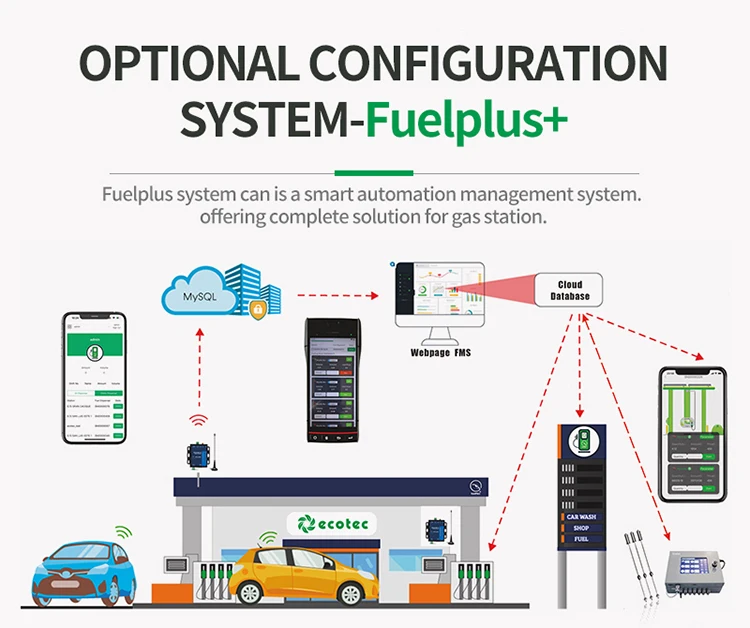

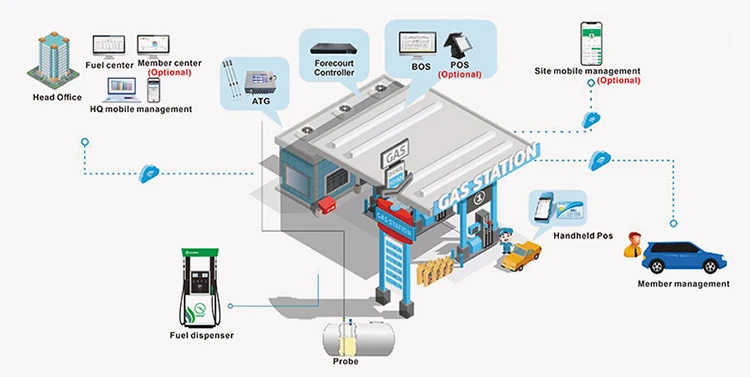

FuelPlus+ Station Management System




- Oil depot, oil tanker trailer, Fuelplus can manage the fuel dispenser, ATG, LED price boardand another device by means of Rs485, Rj45, Lora, wifi,4G/3G and GRPS with database on doudor local basis

- Available on PC, Laptop, Cell phone both i0S and android, as well as other payment termina l(POS)




- Fuelplus can set up center database to control and monitor all fleet stations, every station can have local management system tocontrol the fuel dispenser, ATG,LED price, every fuel dispenser can install POS terminal, IC card reader, lD card reader to achieve self-service, every ATG can linked to fuelplus timely

- Fuelplus also can work as single station or single dispenser, also container station solution, you can install the application on can smart control screen or POS to achieve the control. It can working without any PC


Products Specifications


Model List
Model
Capacity
Storage Tank
Product
Pump Qty
Meter Qty
Nozzle Qty
Manhole Qty
MS-1K-1D
1000L
1 of 1000L
1
1
1
1
1
MS-2K-1D
2000L
1 of 2000L
1
1
1
1
1
MS-3K-1D
3000L
1 of 3000L
1
1
1
1
1
MS-1K-2D
1000L
2 of 500L
2
2
2
2
2
MS-2K-2D
2000L
2 of 1000L
2
2
2
2
2
MS-3K-2D
3000L
2 of 1500L
2
2
2
2
2
MS-1K-2D
1000L
2 of 500L
2
2
2
2
2
MS-2K-2D
2000L
2 of 1000L
2
2
2
2
2
MS-3K-2D
3000L
2 of 1500L
2
2
2
2
2
MS-1.5K-3D
1500L
3 of 500L
3
3
3
3
3
MS-3K-3D
3000L
3 of 1000L
3
3
3
3
3
Any model, andy nozzle number can do, contact seller for details!


Specification


Pump
Type
Optional (Motor pump or gear pump)
Inlet Pressure
≥54kPa.
Flow rate (L/min. )
55±5
Suction Distance (m)
6(vertical meter) / 50(horizontal meter)


Flow Meter
Type
Optional
Accuracy
±0.2%


Motor
Voltage(V)
12v/24v/110v/220v
Capacity(HP)
0.6kw per nozzle
Input Voltage
12v/24v/110v/220v
Nozzle
Auto Shut-off Nozzle
Environmental Condition
-40ºC~~+55ºC
Control Type
Solenoid Vale Control Type
Preset
Function Provided(Small LCD Indicator)


Display(Counter)
Type
LCD and Bright Backlight
Digit of Volume
0~~999, 999(6 Digits), Decimal point can be changed
Digit of Amount
0~~999, 999(6 Digits), Decimal point can be changed
Digit of Unit price
0~~9999(4 Digits), Decimal point can be changed
Digit of Total Range
0~~99, 999, 999, 99


Optional Display
Type
LCD and Bright Backlight
Digit of Volume
0~~99, 999, 999(8 Digits), Decimal point can be changed
Digit of Amount
0~~99, 999, 999(8 Digits), Decimal point can be changed
Digit of Unit price
0~~999999(6 Digits), Decimal point can be changed
Digit of Total Range
0~~99, 999, 999, 99
Totalizer
1~~9, 999, 999
Hose
4.5m
Weight
800 kgs
Dimension(L×W×H)
Depending on the model
Qty of Container
40FT: 14 pcs


Company Profile






WENZHOU ECOTEC ENERGY EQUIPEMNT CO., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer thebetter products with better price.

Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can offer package service from Design, Manufacturing, Delivery to after-sale service, and we have exported to over 60 countries now, also have agent in Africa, Middle East, Asia and South American countries.

Customer and Dedication is what we standing for, we will always focus customers need, and struggle for it, Looking forward to cooperate with you!

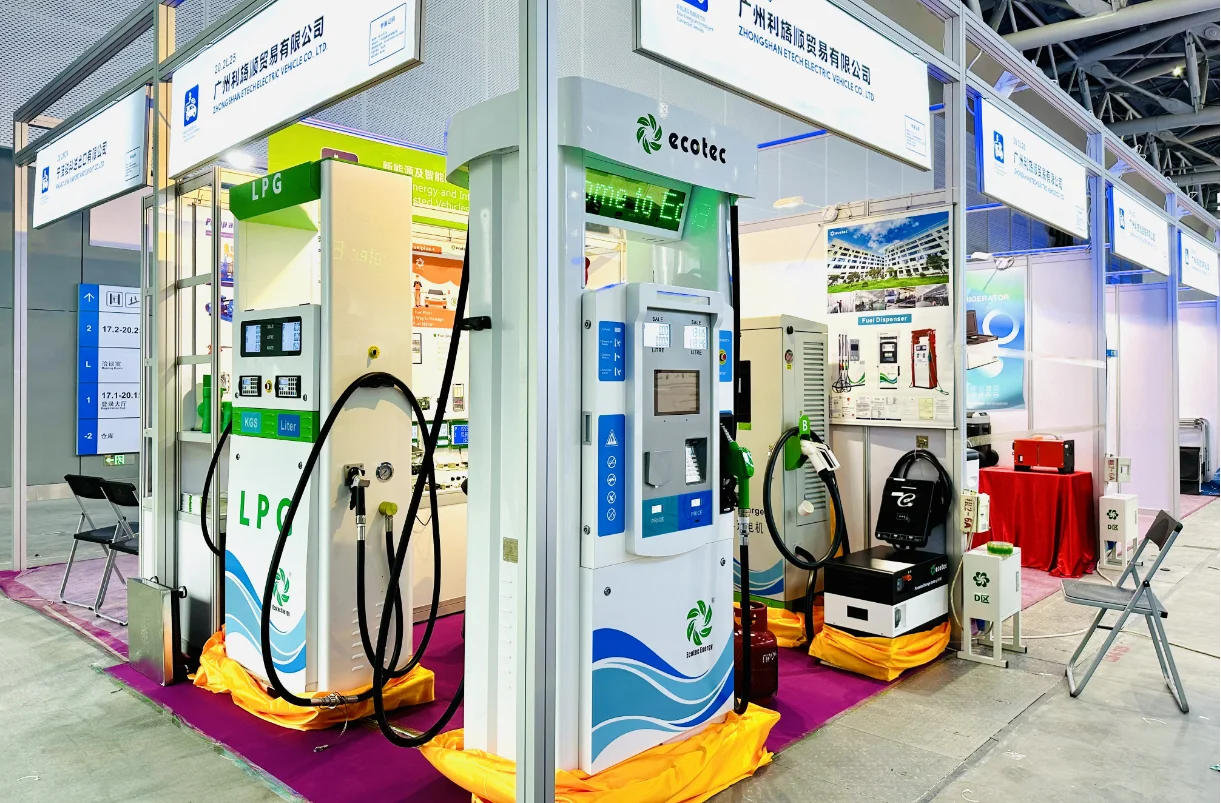

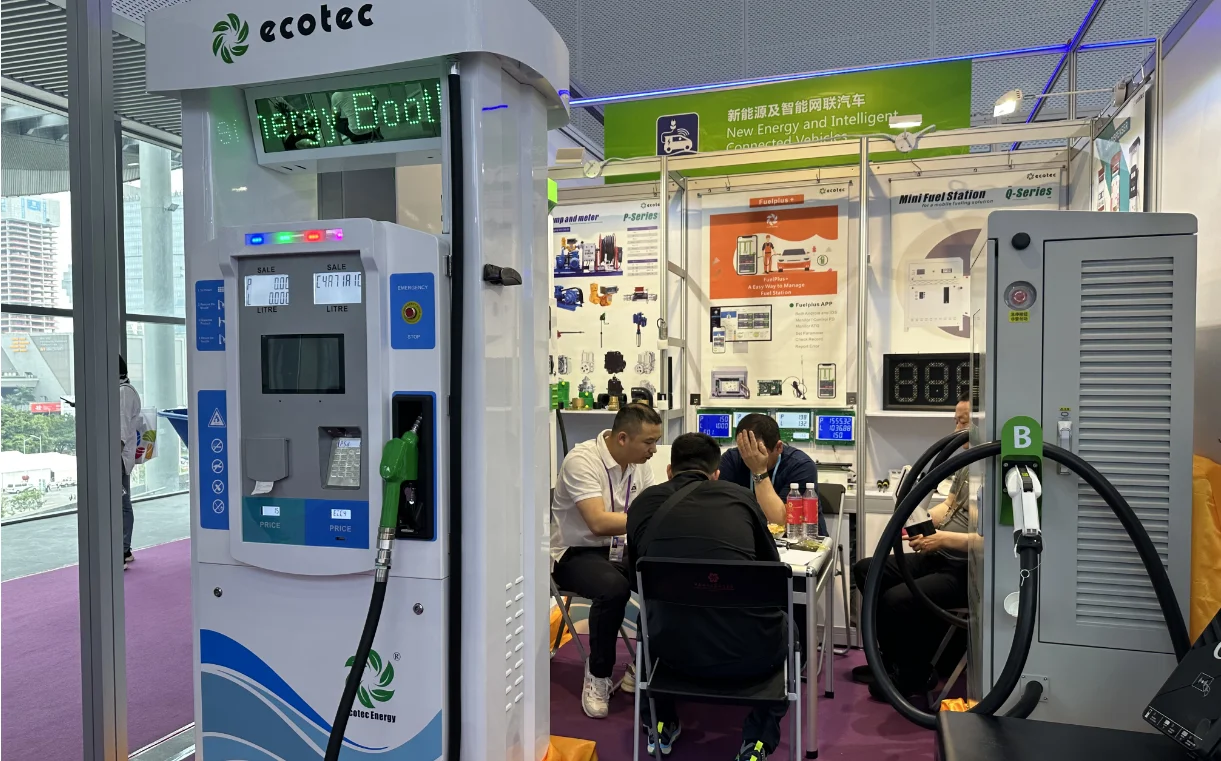

Exhibition






Ecotec frequently participate in exhibitions around the world to strengthen contact with customers and provide better services


Certifications


Ecotec produce products with higher standards than the industry, and have been certified by relevant institutions and have a variety of certificates.




Packaging & Shipping




Ecotec accept air, ocean, and land shipping, and will choose the most suitable packaging for you according to the shipping
transportation.


FAQ


1. Who are we?
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and fulllife tech support.

3.What can you buy from us?
FUEL DISPENSER,LPG TANK,LPG SKID,SUBMERSIBLE PUMP,Container Station

4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
