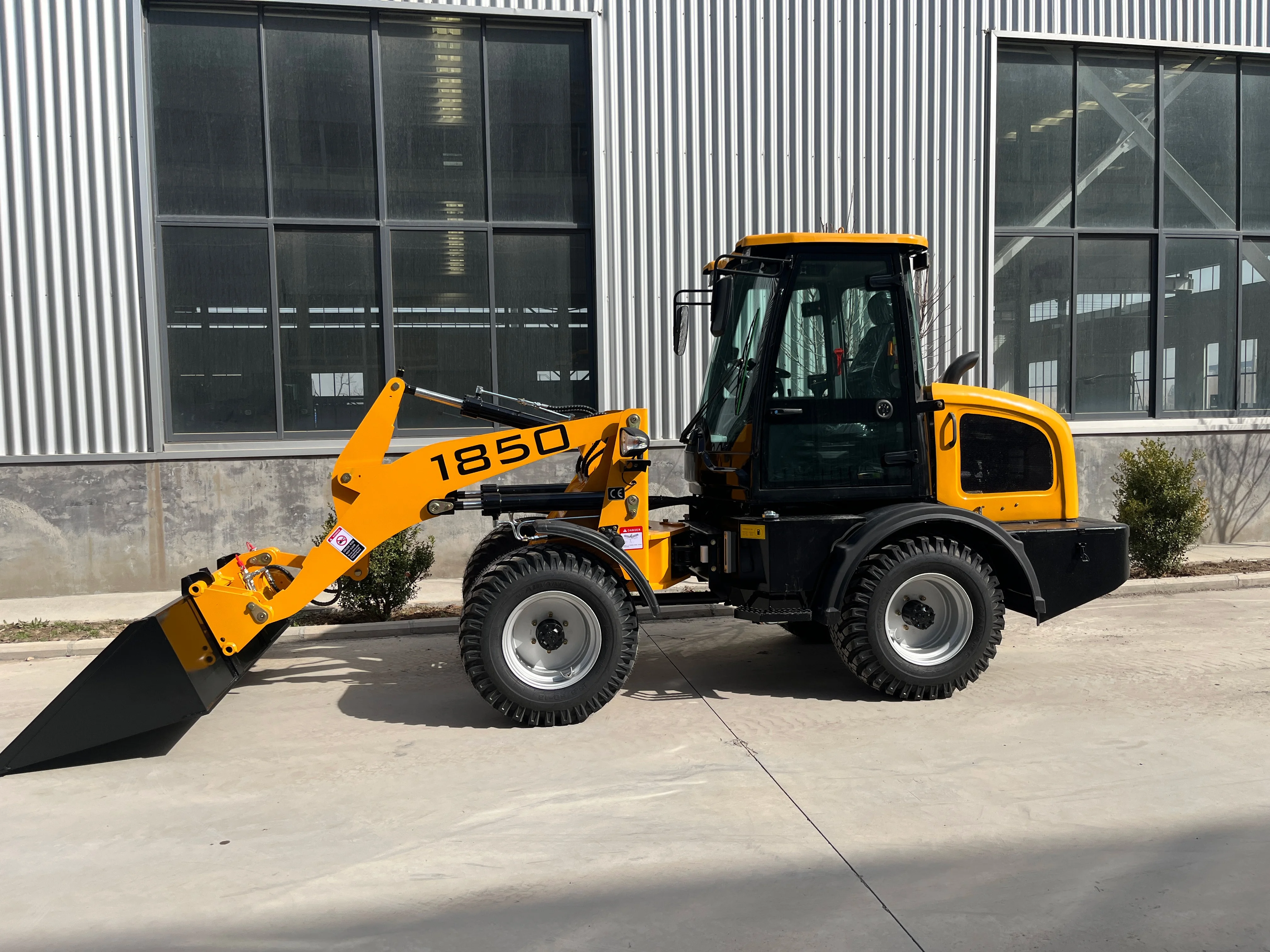

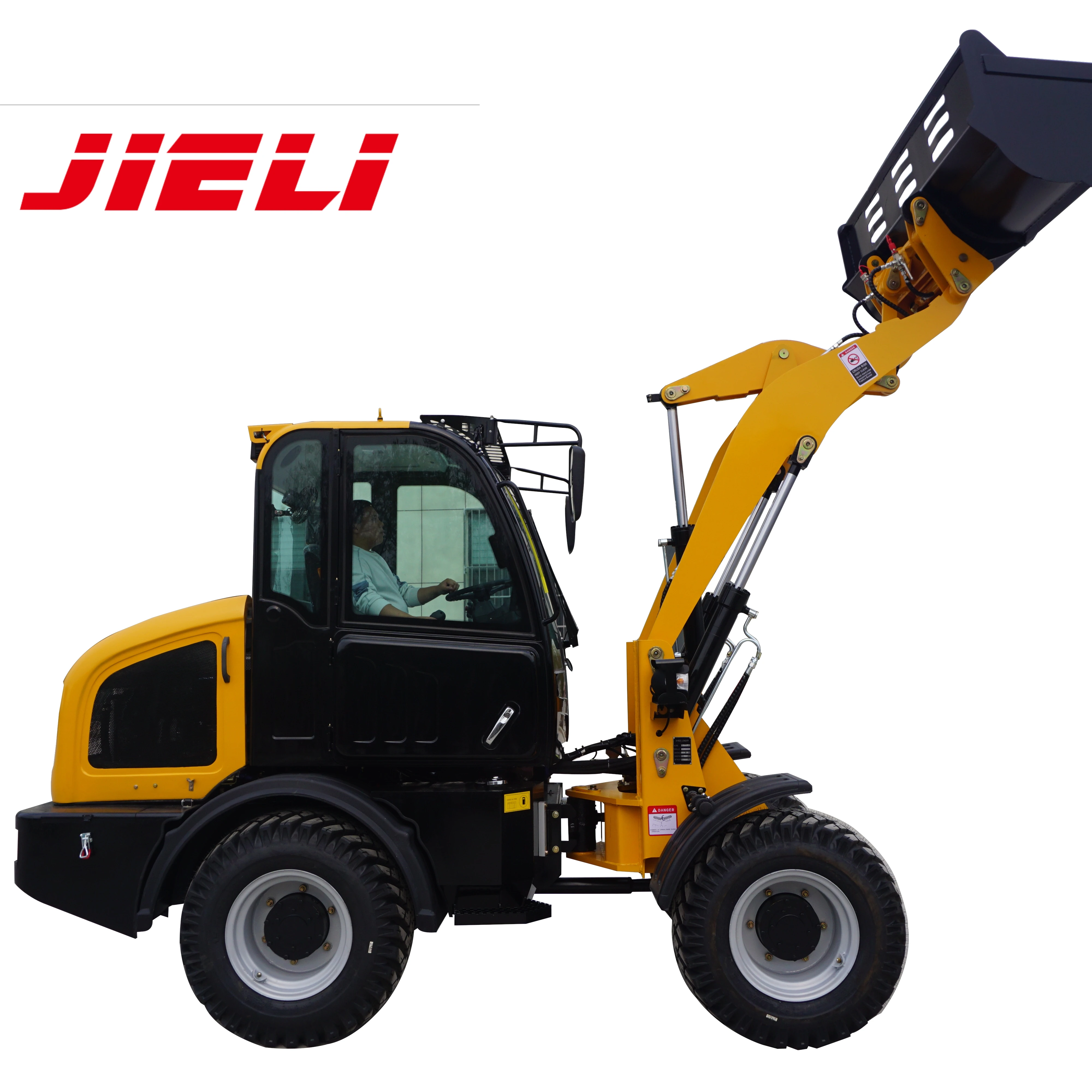

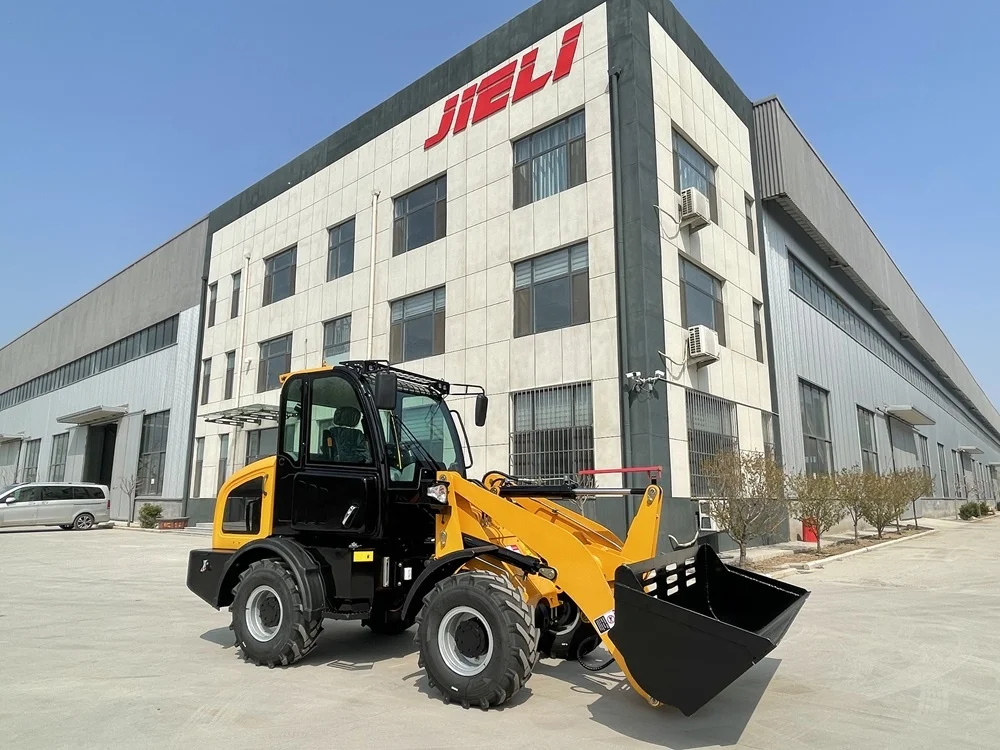

Earth moving construction machinery telescopic mini skid steer wheel loader front end wheel loadr
- Category: >>>
- Supplier: Qingzhou Jeili Machinery Co. Ltd.
Share on (1601093214973):
Product Overview
Description
Product Overview

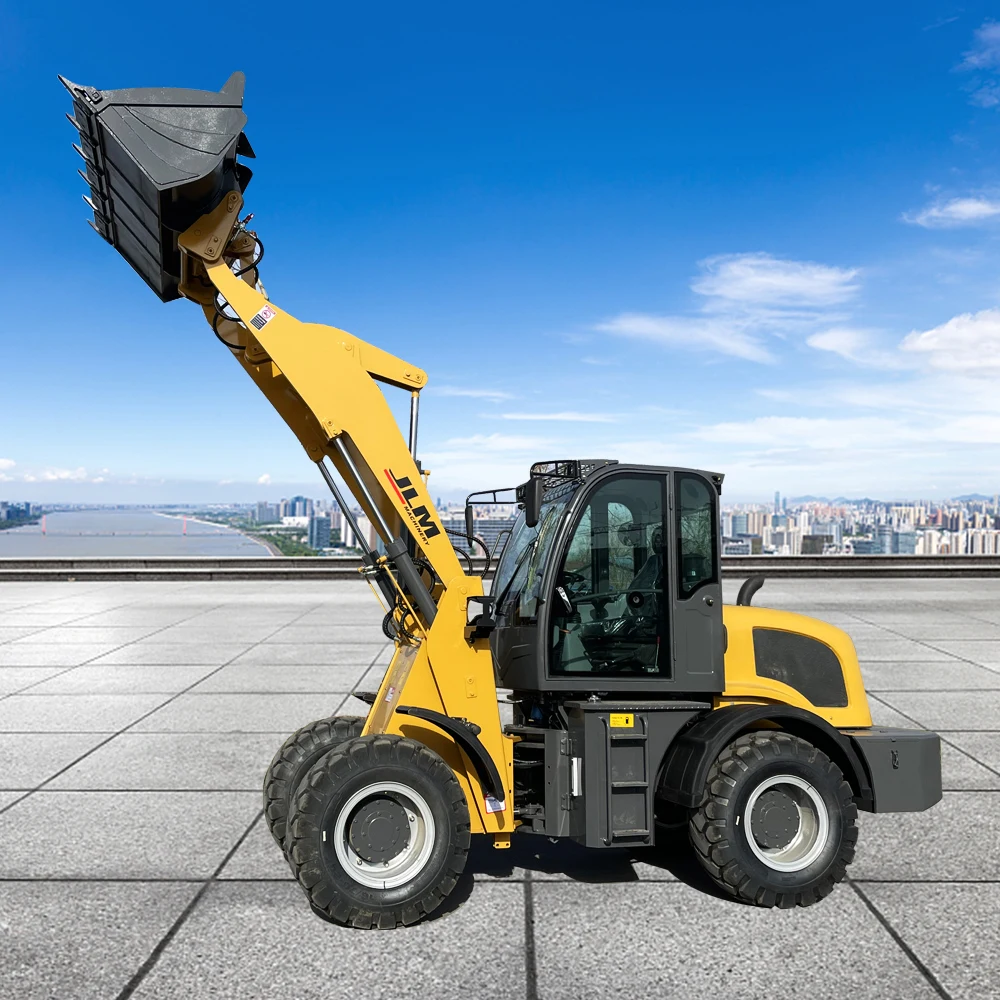

Jieli 1.6 ton wheel loader
FEATURES AT A GLANCE
1.option engine :Xinchai 498 Euro 3 engine, Yunnei Euro 5 engine ,EPA4 engine, Yanmar engine
2,Qinjin brand winter tire
3.Max.dumping height reach 3 m.
4.Hydraulic quick hitch to exchange attachments easily and conveniently.
5.Strong axle to meet diverse terrains and traction requirements.
6.Hydraulic transmission system offers superior power and high efficiency.

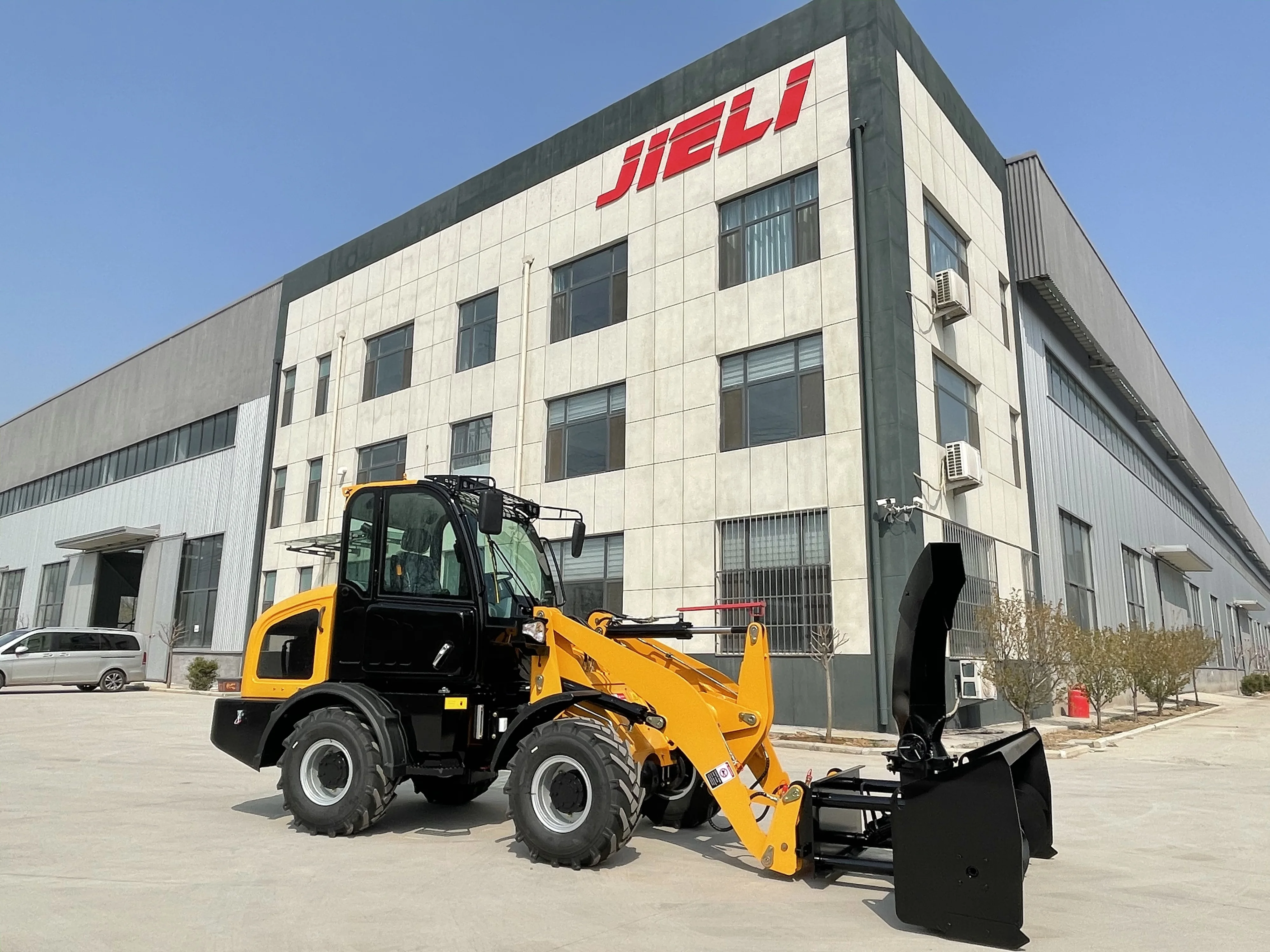

7.Various optional attachments make your loader be multifunctional machine.
2,Qinjin brand winter tire
3.Max.dumping height reach 3 m.
4.Hydraulic quick hitch to exchange attachments easily and conveniently.
5.Strong axle to meet diverse terrains and traction requirements.
6.Hydraulic transmission system offers superior power and high efficiency.
7.Various optional attachments make your loader be multifunctional machine.

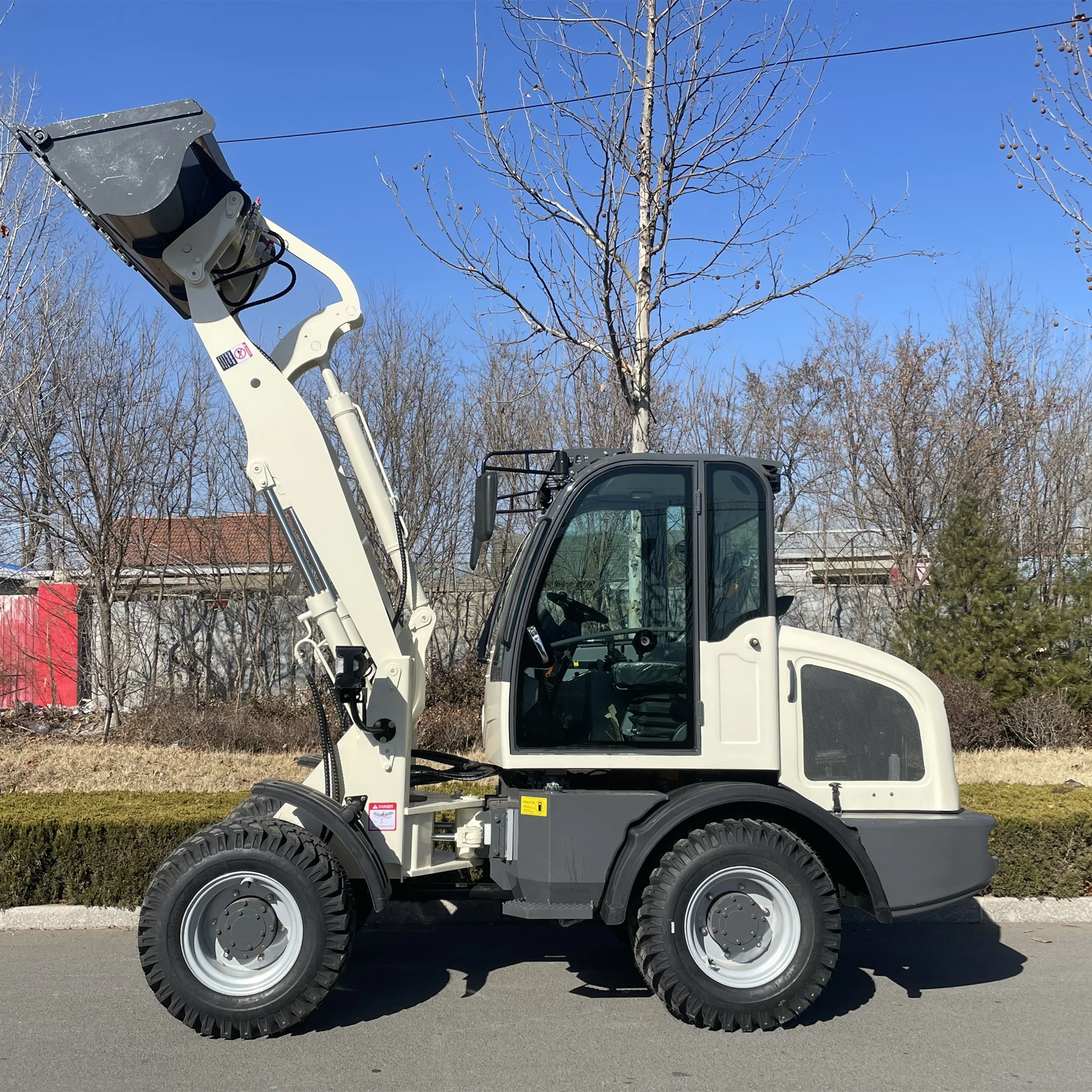

Right elevation
Left elevation

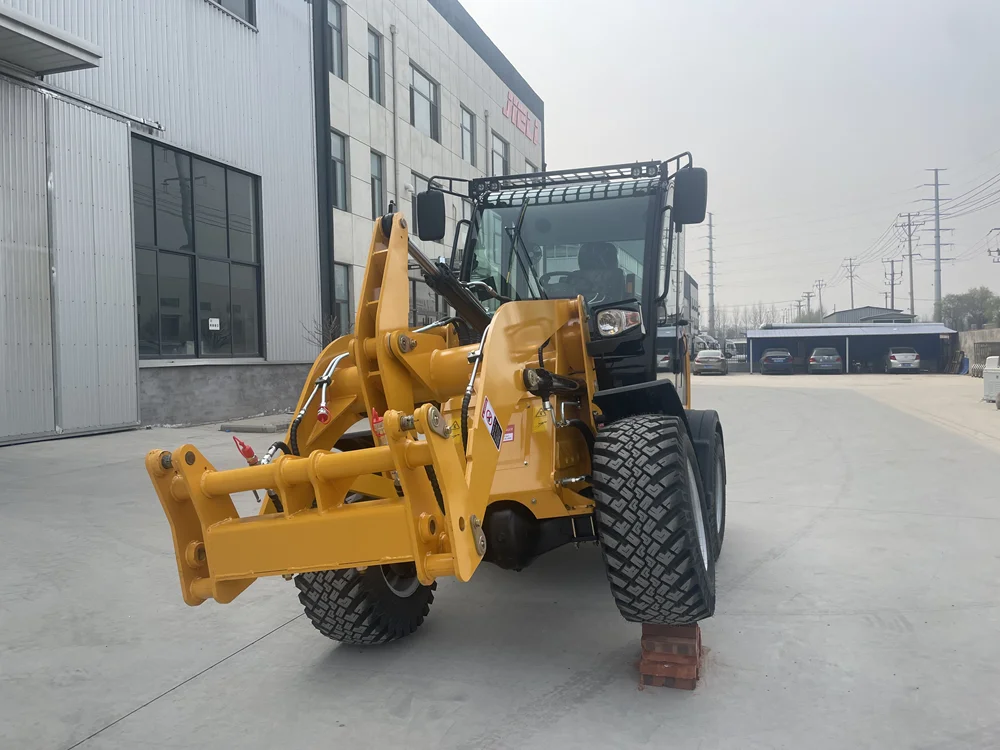

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Axle-base(mm) | 2050 |
2 | Loader clearance radius(mm) | 4600 |
3 | Mini base to the ground(mm) | 310 |
4 | Dump clearance(mm) | 2700 |
5 | Distance acc.to the height(mm) | 900 |
6 | Time of raise(s) | 4 |
7 | Hydraulic cycle time(s) | 8.5 |
8 | Turns to pick the strength mose greatly(kn) | 45 |
9 | Drive ways | four are drive |
10 | Torque Converter Model | YJ280 |
11 | Gear Shift | 2 forward & 2 reverse shift 4 forward & 4 reverse shift |
12 | Tyre size | 20.5/70- 16 23.5/70- 16 14- 17.5 15.5/60- 18 |
13 | Operating weight(kg) | 4,000 |
14 | Overall dimensions(mm) | 5000* 1700*2550 |
15 | Engine model | XinChai498 YunNeiEuro5 YANMAR |
16 | Engine Type | Four strokes, Water cooling, Inline, injecting combustion chamber |
17 | Cylinder No.-Bore*Stroke(mm) | 4- 102* 115 |
18 | Engine rated power(kw) | 36.8KW 45KW 55KWS |
19 | Engine rated output(rpm) | 2500 |

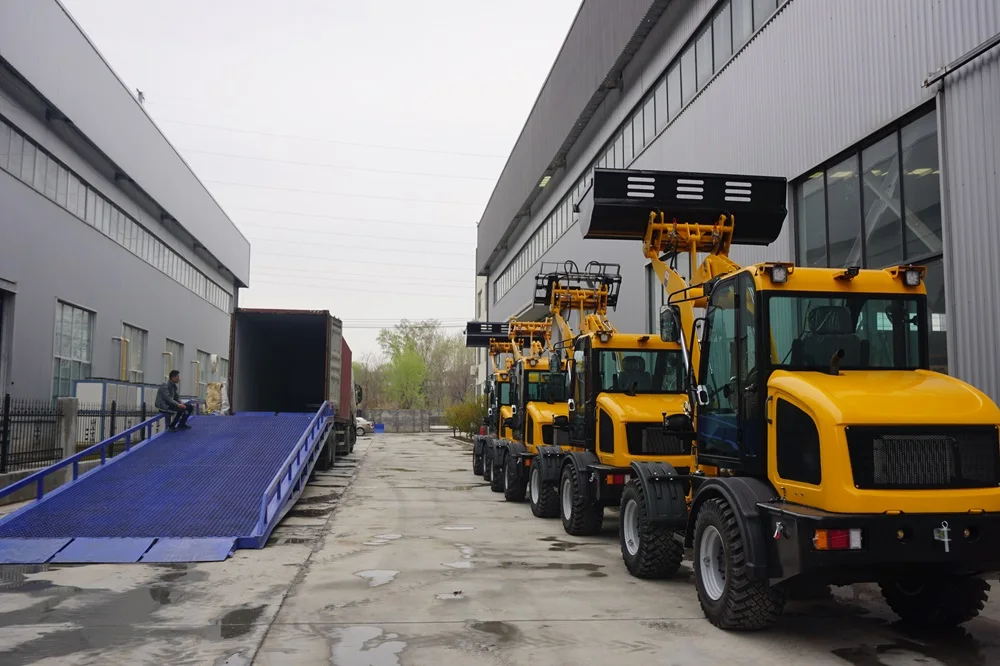

Packing & Delivery
SIMILAR PRODUCTS
Certifications
FAQ
Q1：Are you a manufacturer?
A1： Yes, we are a professional R&D and manufacture of small construction machine in China.
Q2：Can you make custom machines?
A2：Yes, we can supply custom machines according to your requirements.
Q3：How ia your after-sales services?
A3: We have a number of after-sales services that provide 24-hour technical support via phone and mail.
Q4: What is your lead time?
A4: It takes 20 days for normal goods and 30 days for customization.
Q5: Is it convenient to visit your factory? How do i get there?
A5: Welcome you to visit our factory. We'll pick you up when you arrive.
