1T/H biomass poultry feed and wood pellets cooler and dryer animal feed pellet cooler with CE
- Category: >>>
- Supplier: Xingtai Tianruo Machinery Manufacturing Co. Ltd.
Share on (1601093245380):
Product Overview
Description
Products Description

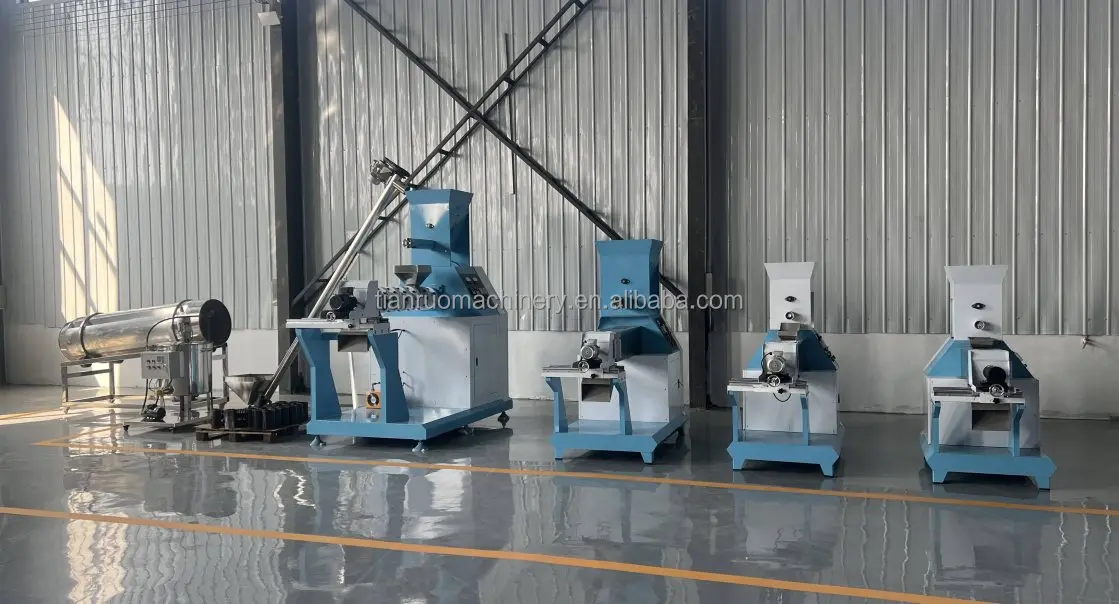

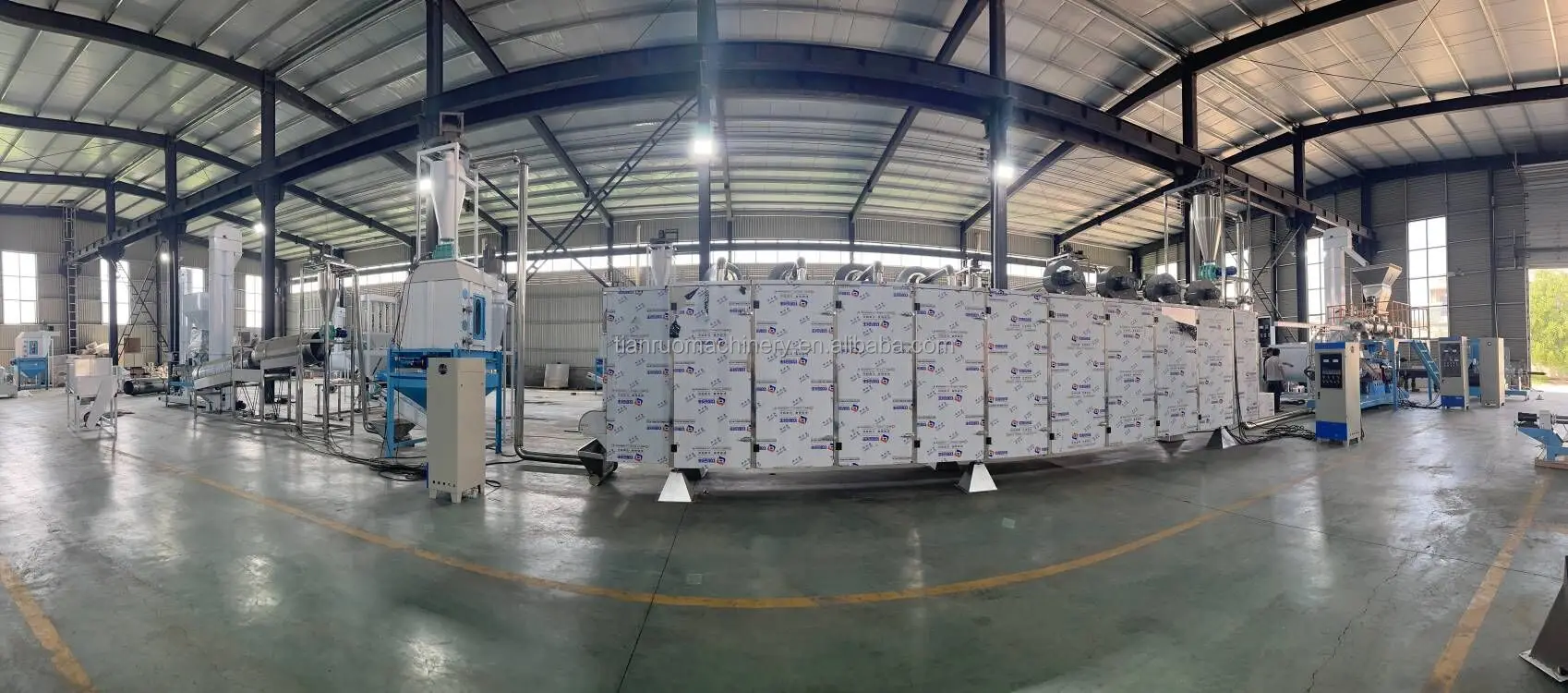

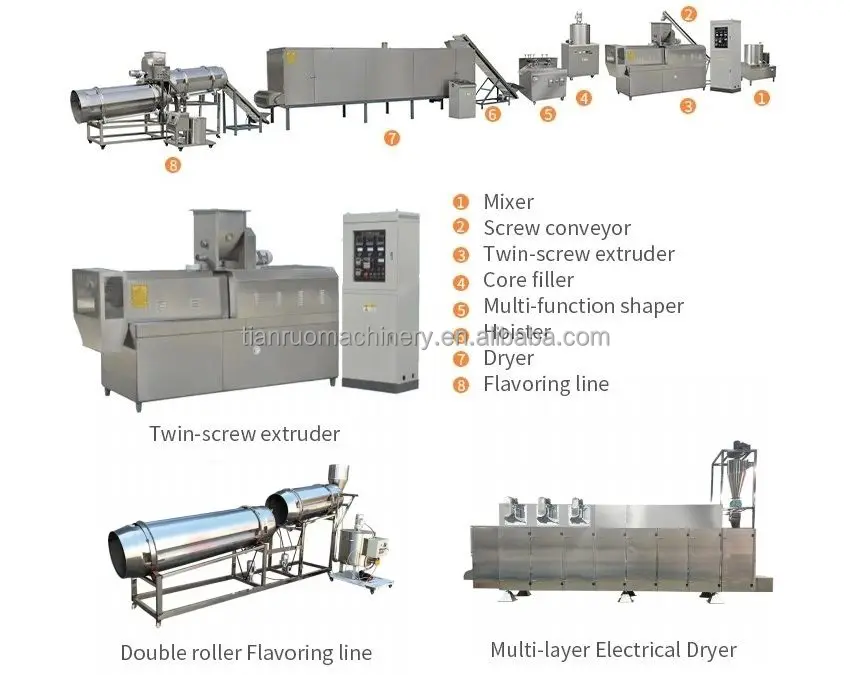

Complete equipment Floating Fish feed pet food production line
The fish feed pet food production line is increasing with the variety of pets, and various pets are different from adults and children. The requirements for pet food are also increasing. Tianruo Machinery Co., Ltd. has developed a variety of pet food production lines according to the market demand. According to the different output, the production line also has a variety of configurations to meet the needs of different customers. The production equipment can adjust the raw materials, temperature, moisture and other process parameters to make the product have the characteristics of novel shape, unique taste, rich nutrition, and delicate tissue, which is suitable for different pet tastes. The production line is widely applicable to the production of dog, cat, fish, shrimp, fox and various pet feeds, and is an ideal choice for different manufacturers.
Model | Capacity | Power | Cutter Power | Dimension |
DGP-40 | 40-60 kg/h | 7.5 kw | 0.4 kw | 1.25*1.03*1.3 |
DGP-50 | 60-80 kg/h | 11kw | 0.4 kw | 1.28*1.03*1.2 |
DGP-60 | 100-150 kg/h | 15 kw | 0.4 kw | 1.45*0.95*1.5 |
DGP-70 | 180-250 kg/h | 18.5 kw | 0.4 kw | 1.6*1.4*1.45m |
DGP-80 | 300-350 kg/h | 22 kw | 0.6 kw | 1.87*1.4*1.5m |
DGP-100 | 400-450 kg/h | 37 kw | 0.6 kw | 1.7*2.3*1.4m |
DGP-120 | 500-700 kg/h | 55kw | 1.5kw | 2.2*2.9*1.2m |
DGP-135 | 800-1000 kg/h | 75kw | 2.2kw | 2.25*3.1*1.37m |
DGP-160 | 1200-1500 kg/h | 90kw | 2.2kw | 2.2*3.15*1.37m |
DGP-200 | 1800-2000 kg/h | 132kw | 3.0kw | 2.3*3.45*1.65m |

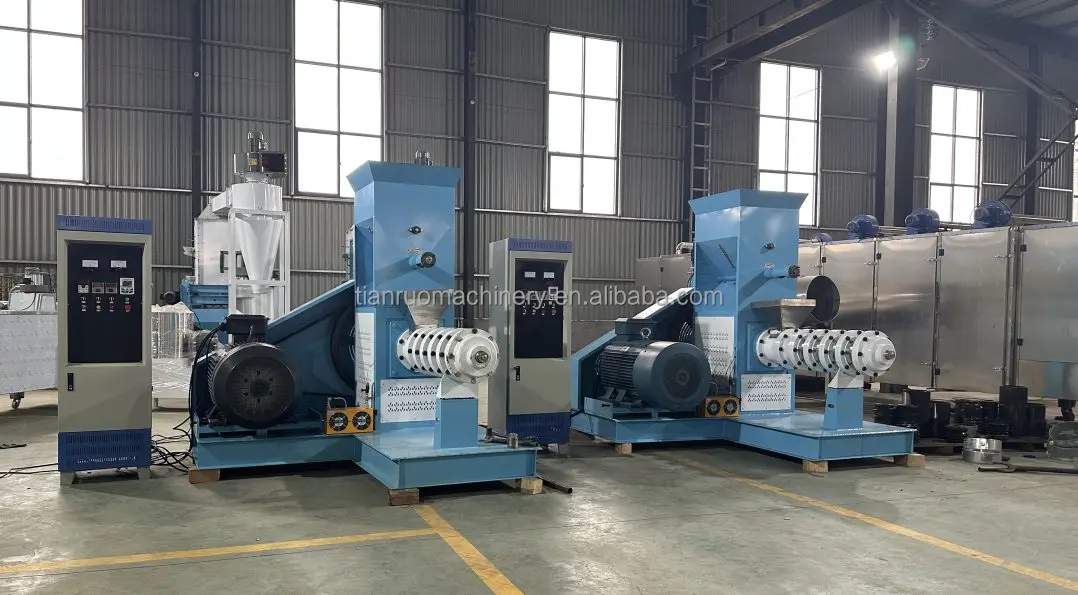

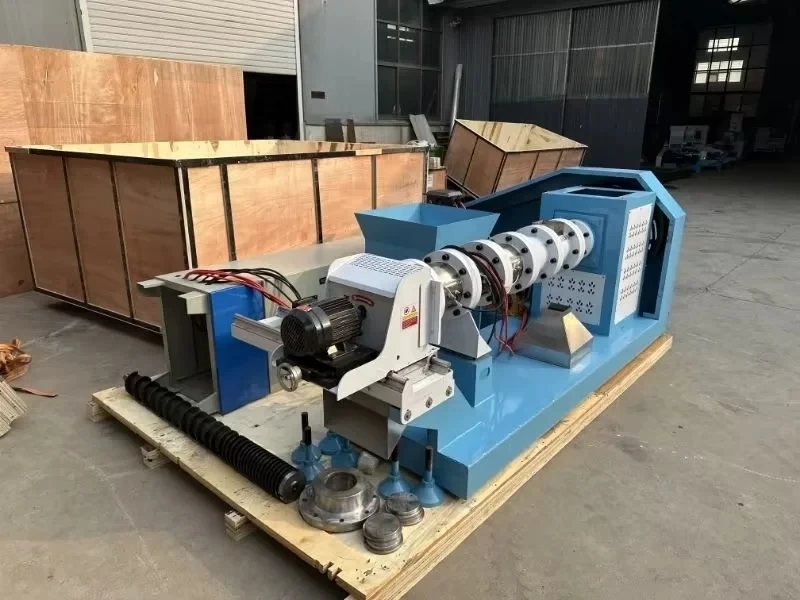

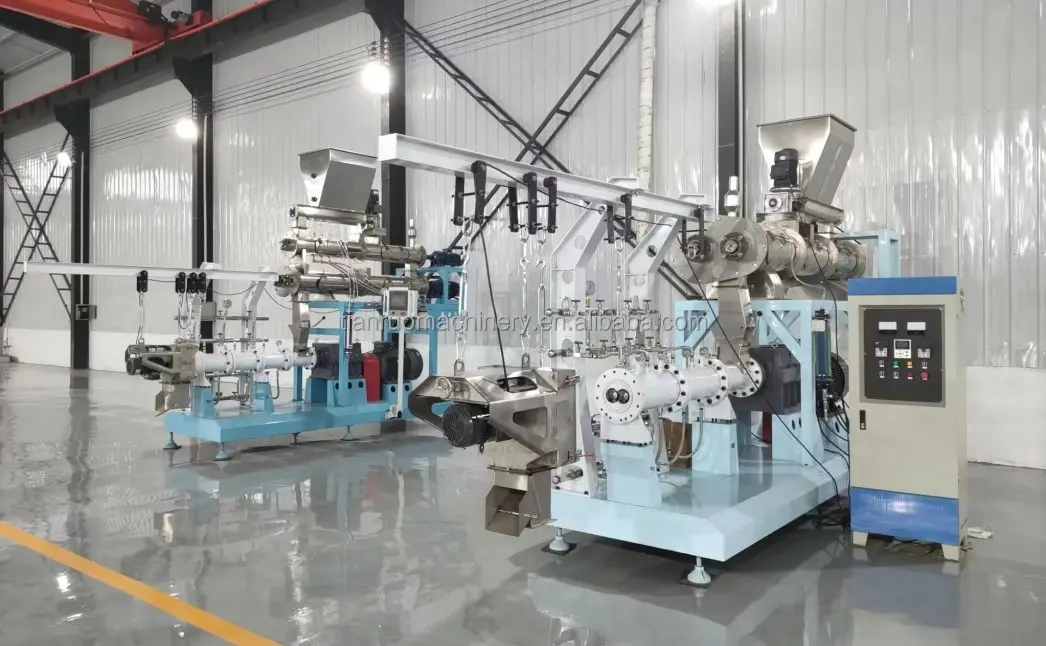

Wet Type Single Screw / Twin Screw Extruder
Twin screw extruder is very suitable for aquatic pet feed. The energy consumption of twin-screw is lower than that of single screw by kneading and rubbing each other. In this way, the material can be kneaded and ripened more fully, the overall ripening degree can reach more than 95%, the stability of the product in water can be maintained at more than 24h, and the surface finish and particle uniformity of the particles are also better. After the extruded feed is fully cooked, the animals will not only taste good, but also have high digestibility and easy to absorb nutrients.
Model | Capacity | Power | Conditionor | Cutter Power | Dimension |
WT-75-B | 400-500kg/h | 22 kw | 1.5 kw | 0.75 kw | 1.25*1.03*1.3 m |
WT-85-B | 600-650kg/h | 30kw | 2 kw | 1.1 kw | 1.28*1.03*1.2 m |
WT-90-B | 700-850kg/h | 37kw | 3 kw | 1.1 kw | 1.45*0.95*1.5 m |
WT-100-B | 900-1000kg/h | 55 kw | 3 kw | 1.5 kw | 1.6*1.4*1.45 m |
WT-135-B | 1200-1500kg/h | 75 kw | 5.5 kw | 2.2 kw | 1.87*1.4*1.5 m |
WT-145-B | 2000-3000kg/h | 90 kw | 7.5 kw | 2.2 kw | 1.7*2.3*1.4 m |
Related Product

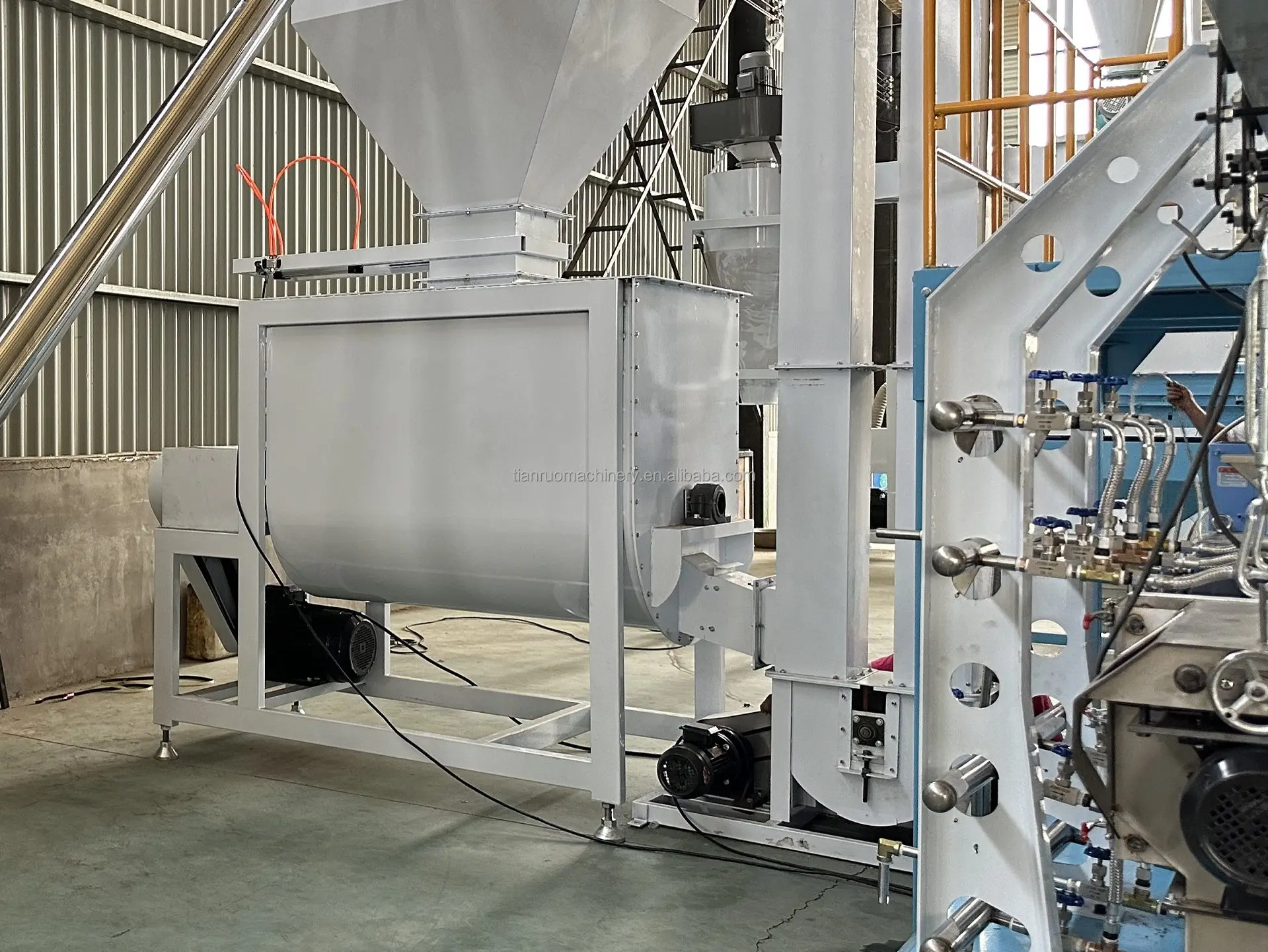

Multi-Function Feed Mixing Machine Stainless Steel Animal Poultry Feed Mixer Machine
Feed mixer machine is usually used to fully and evenly mix the crushed feed raw materials together. Like wheat flour, corn flour, soybean flour, bone meal, soybean oil, etc. It is their full mixing to ensure that the manufactured feed pellets are more nutritionally balanced.
The feed mixer machine is suitable for the family farm use and small factories. mixer is suitable for mixing powdery raw materials, high efficiency and fast mixing speed, suitable for small-scale feed processing below 300kg. This is a small scale feed mixer machine. The material is high quality stainless steel. this feed mixer machine posses lower conception, less area of occupancy, easily to loading and discharging, but long mixing time.
The feed mixer machine is suitable for the family farm use and small factories. mixer is suitable for mixing powdery raw materials, high efficiency and fast mixing speed, suitable for small-scale feed processing below 300kg. This is a small scale feed mixer machine. The material is high quality stainless steel. this feed mixer machine posses lower conception, less area of occupancy, easily to loading and discharging, but long mixing time.

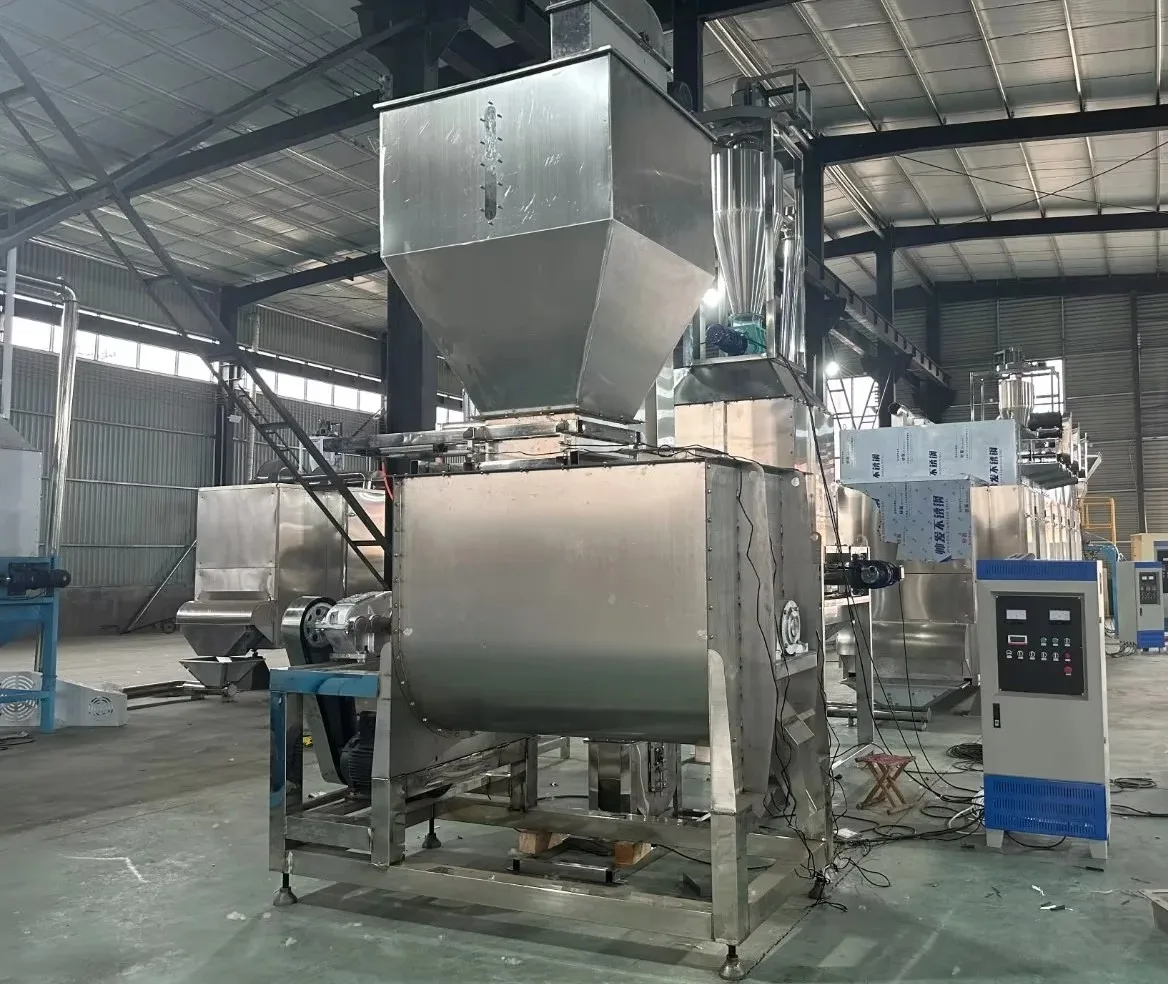

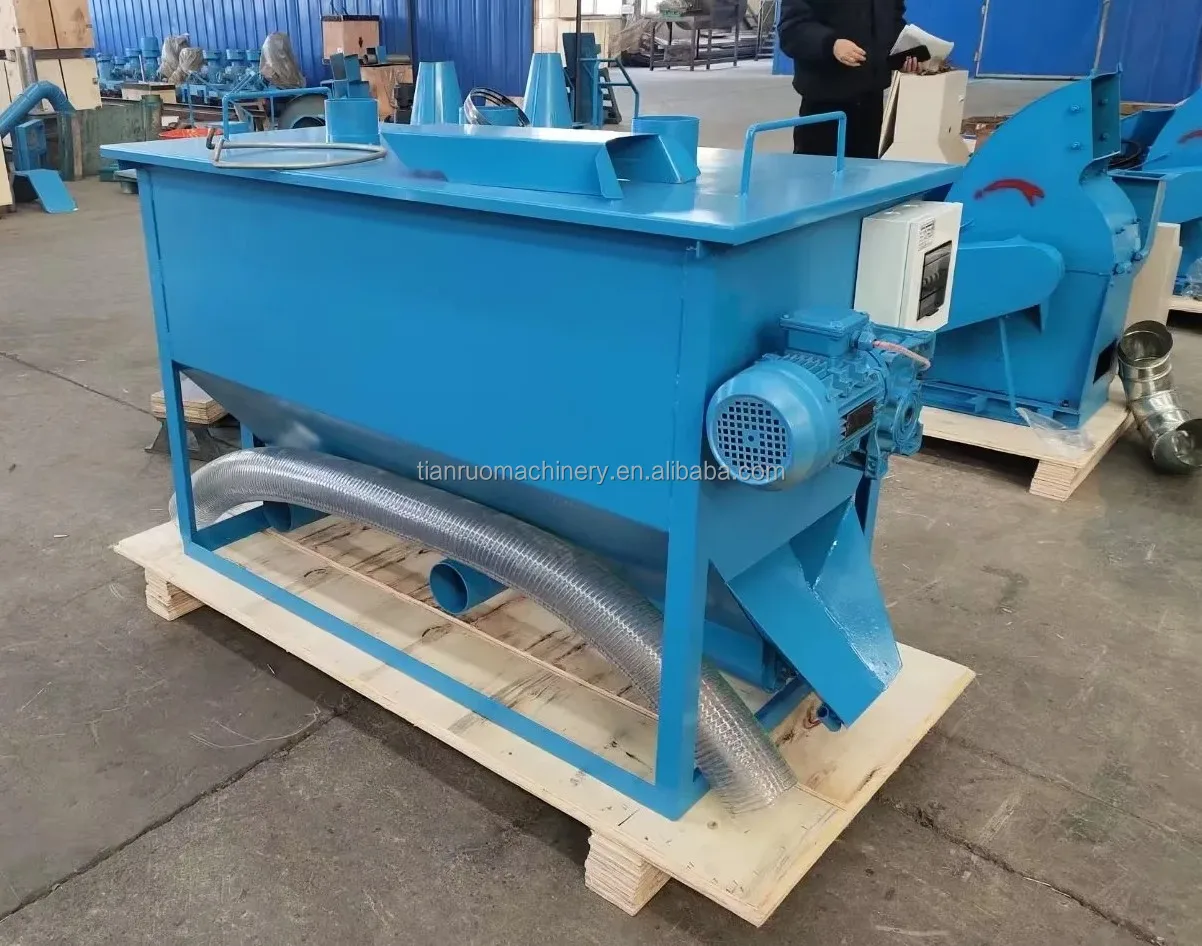

1.Mixer Machine
used for food, pharmaceutical industry powder raw materials ,a small amount of liquid or dry powder mixing, such as pastry stuffing or mix dry powder, etc.
2.Feed Dryer Machine
It is designed to remove moisture from feed pellets, which are widely used to fish feed pellets, dry cat food, dog food, pet food, chicken feed, cattle feed etc
3.Oil Sprayer Machine
is equipped with adjustable speed pneumatic stirring, liquid temperature is adjustable andcontrollable, the flow can be adjusted too

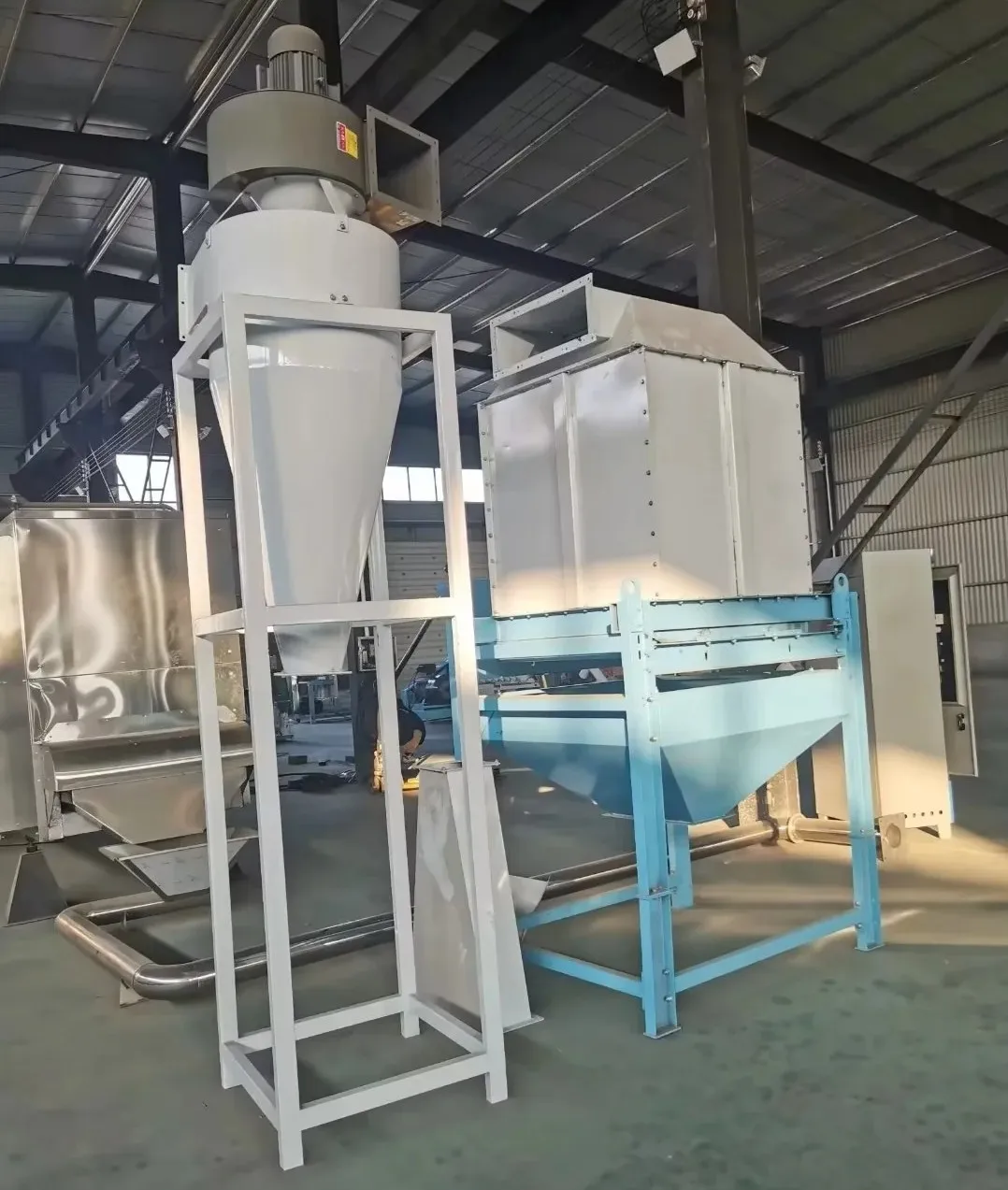

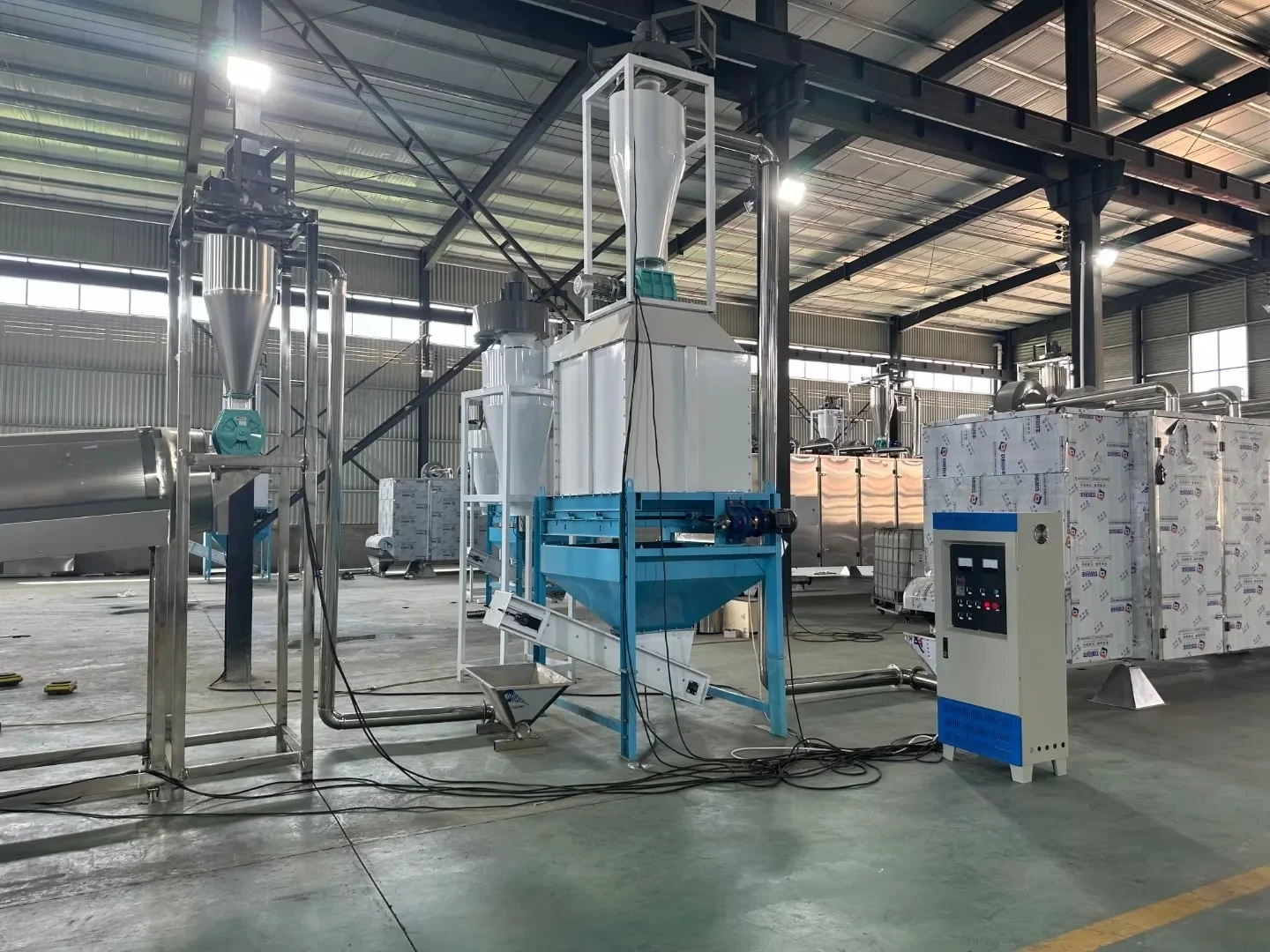

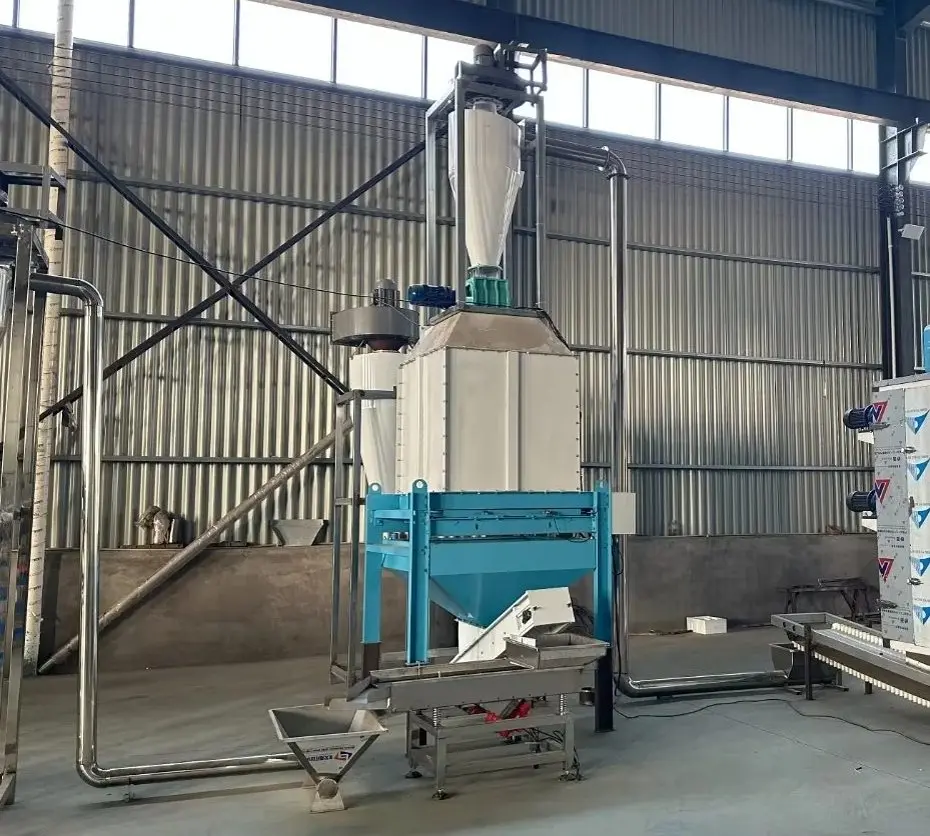

Counter Flow Cooler
Counter Flow Pellet Cooler is a kind of advanced cooler equipment for granule materials, mainly equipped in pellet production line, used for cooling the granular materials produced from pelleter which contain certain moisture and higher temperature, dry and cooling,meet the storage requirements. Advantage :
1. The counterflow cooling principle is adopted to cool the pellets with high temperature and moisture so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets.
2. Airlock feeder is used for feeding, with large air volume, good cooling effect.
3. The octagon cooling bin has eliminated dead cooling corner, which is beneficial to the cooling treatment of materials.
4. Multiple pressurereducing plate is equipped with discharging device, can lighten the working load of discharging device, reduce the deformation, prolong the working life.
5. The gearbox drives eccentric shaft as transmission gear, smooth and reliable running, no material deposit, lower noise, easy to install and maintain.
1. The counterflow cooling principle is adopted to cool the pellets with high temperature and moisture so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets.
2. Airlock feeder is used for feeding, with large air volume, good cooling effect.
3. The octagon cooling bin has eliminated dead cooling corner, which is beneficial to the cooling treatment of materials.
4. Multiple pressurereducing plate is equipped with discharging device, can lighten the working load of discharging device, reduce the deformation, prolong the working life.
5. The gearbox drives eccentric shaft as transmission gear, smooth and reliable running, no material deposit, lower noise, easy to install and maintain.
Model | SKLB1.5 | SKLB2.5 | SKLB4 | SKLB6 | SKLB8 | ||||
Cooling Capacity(m³) | 1.5 | 2.5 | 4 | 6 | 8 | ||||
Production Capacity(t/h) | 3 | 5 | 10 | 15 | 20 | ||||
Cooling Time(min) | Not less than 10-15 | ||||||||
Temperature after Cooling | Not higher than room temperature +3°C to -5°C | ||||||||
Auxiliary Power(kw) | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | ||||
Exhaust Fan Power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 1.5 | ||||
Pellet Cooler - Cooling System for Feed Mill Plant Price
Pellet Cooler is mainly used for cooling of Animal Feed and Wood Pellets in the pelleting section. It cools the pellet coming from pellet mill and with a temperature of 70°C-90°C to a temperature 3°C~5°C slightly higher than ambient temperature, and is capable of lowering to a safety moisture content. The cooled pellets not only improve the pellet firmness but also can prevent from going moldy, that it is good for the transportation and storage of pellet feed.
1)The counter flow pellet cooler is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the Same time, The airlock is used for feeding and space of air inlet bigger,therefore it can get better cooling effects.
2)Slide reciprocating discharger has smooth and reliable discharging,low residue.
3) Low pow consumption, easily operation.
4) Pellet temperature after cooling is less than 3-5ºC ambient temperature.
1)The counter flow pellet cooler is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the Same time, The airlock is used for feeding and space of air inlet bigger,therefore it can get better cooling effects.
2)Slide reciprocating discharger has smooth and reliable discharging,low residue.
3) Low pow consumption, easily operation.
4) Pellet temperature after cooling is less than 3-5ºC ambient temperature.
Model | Power | Capacity | Dimension | Weight |
CLN-500 | 0.75+2.2 kw | 500kg/h | 1800*750*1100mm | 300kg |
CLN-700 | 0.75+4.4 kw | 1000kg/h | 1800*750*1100 mm | 360kg |
Drum Flavoring Coating Machinee.
flavoring and mixing coating machine for all kinds of food, such as chips, french fries, fruit brittle, fried food, puffed food, snack food, etc.can mix the flavor with the food uniformly, to make the food delicious and good taste.
Octagonal Flavoring Coating Machine
flavoring and mixing all kinds of food, such as chips, french fries, fruit brittle, fried food, puffed food, snack food, leisure
food, fruit chips, potato chips etc.
food, fruit chips, potato chips etc.
Model | Octagonal Seasoning Machine | Single Drum Seasoning Machine | Double Drum Seasoning Machine |
Capacity | 120-150kg/h | 200-300kg/h | 1000-2000kg/h |
Power(kw) | 0.75 | 0.75+0.37 | 2.2+0.55+1.5 |
Dimension | 1200*800*1500mm | 2450*650*1450mm | 5000*800*1550mm |
Weight(kg) | 80 kg | 190 kg | 380 kg |

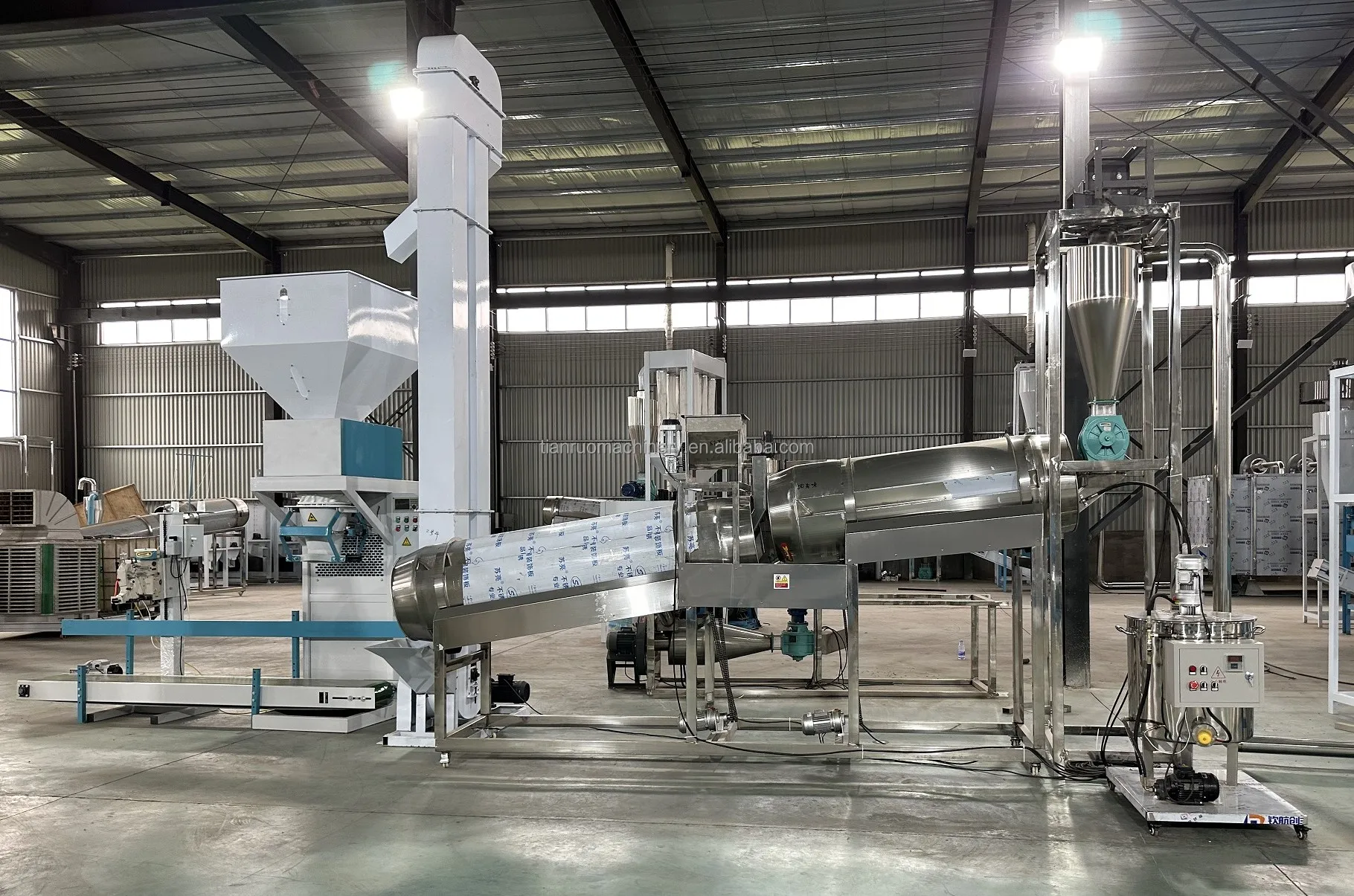

Flavoring Machine+ Oil Sprayer + Bucket Elevator+Packing Machine.
Application:
Our packaging machines are widely used in feed, fertilizer, grain, chemical industry,building materials, starch, food, rubber and plastics, hardware, minerals,covering more than 20 industries, more than 3,000 kinds of materials.It can suit different type of top open mouth bags such as woven bags, sacks, kraft paper bags, plastic bags etc, and bag top closed by sewing or heat sealing.
Packing Machine Workflow:
Giving the bag (loading the bag) → automatically clamps the bag→ material is automatically quantitatively weighed and filled into bags→ automatic bag release /bag holding/bag transfer→ automatic label feeding /folding /or heat sealing/or sewing→ entering the next process such as stacking on pallet and wrapping.
Our packaging machines are widely used in feed, fertilizer, grain, chemical industry,building materials, starch, food, rubber and plastics, hardware, minerals,covering more than 20 industries, more than 3,000 kinds of materials.It can suit different type of top open mouth bags such as woven bags, sacks, kraft paper bags, plastic bags etc, and bag top closed by sewing or heat sealing.
Packing Machine Workflow:
Giving the bag (loading the bag) → automatically clamps the bag→ material is automatically quantitatively weighed and filled into bags→ automatic bag release /bag holding/bag transfer→ automatic label feeding /folding /or heat sealing/or sewing→ entering the next process such as stacking on pallet and wrapping.

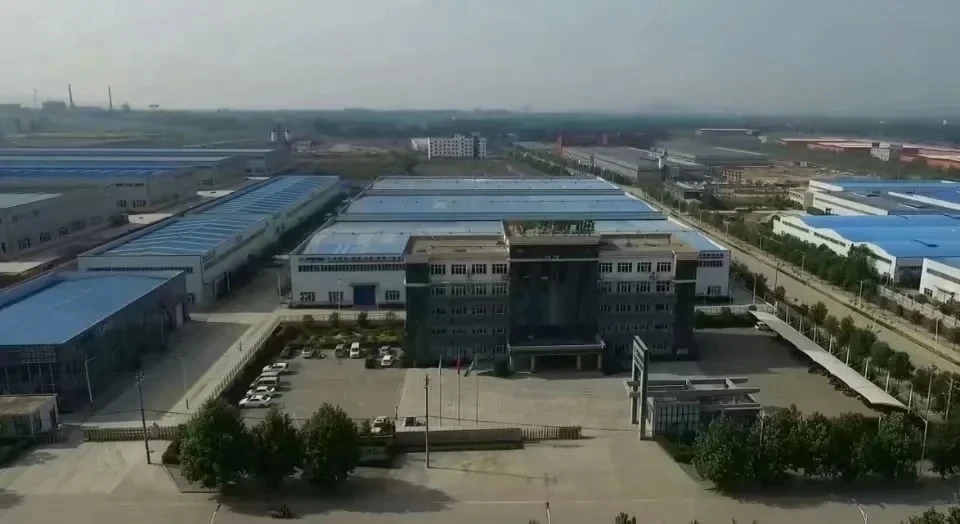

Company Profile
Xingtai Tianruo Machinery Manufacturing CO.,LTD is one leading Comprehensive company with own brand and after-service for projects related with Aquatic Feed extruder machine,pet food extruder ,snack food extruder ,animal feed production plant ,for fish ,shrimp,dog ,cat,poultry ,bird etc.company has passed the ISO9001 authentication , Standing on the international market.
We have a strong and agile team for purchase,tracking production, packing, delivery and after-sales, we have a dedicated team of specialists ready to serve for you.With our diverse product-line and expertise, we will help you make the right decision.
We have a strong and agile team for purchase,tracking production, packing, delivery and after-sales, we have a dedicated team of specialists ready to serve for you.With our diverse product-line and expertise, we will help you make the right decision.

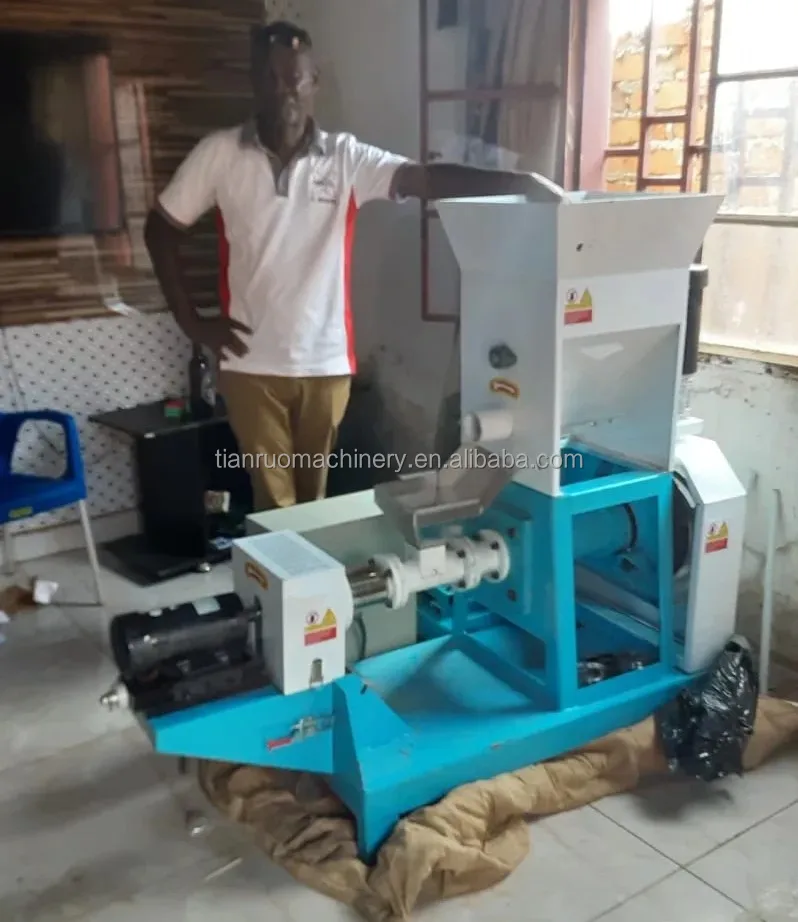

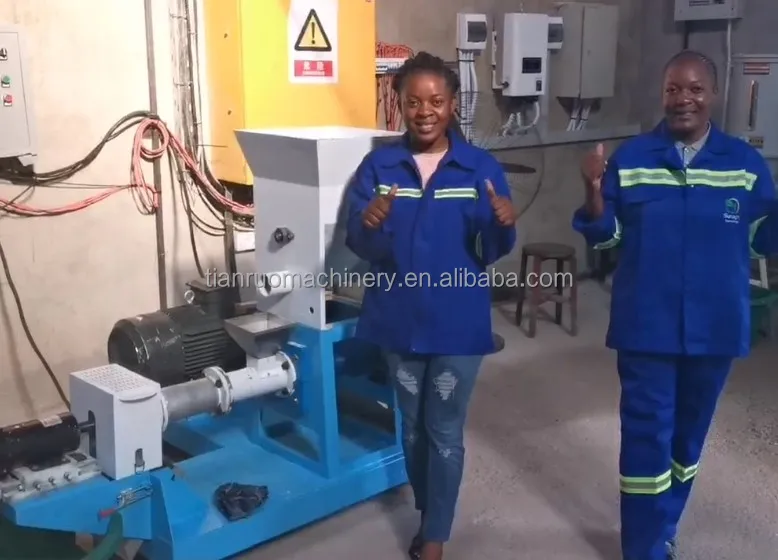

Customer feedback, Good Evaluation

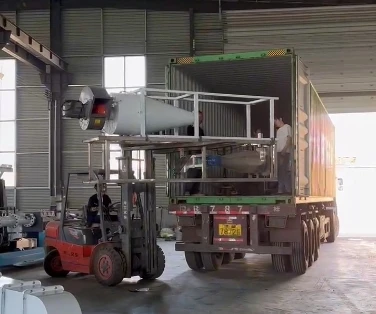

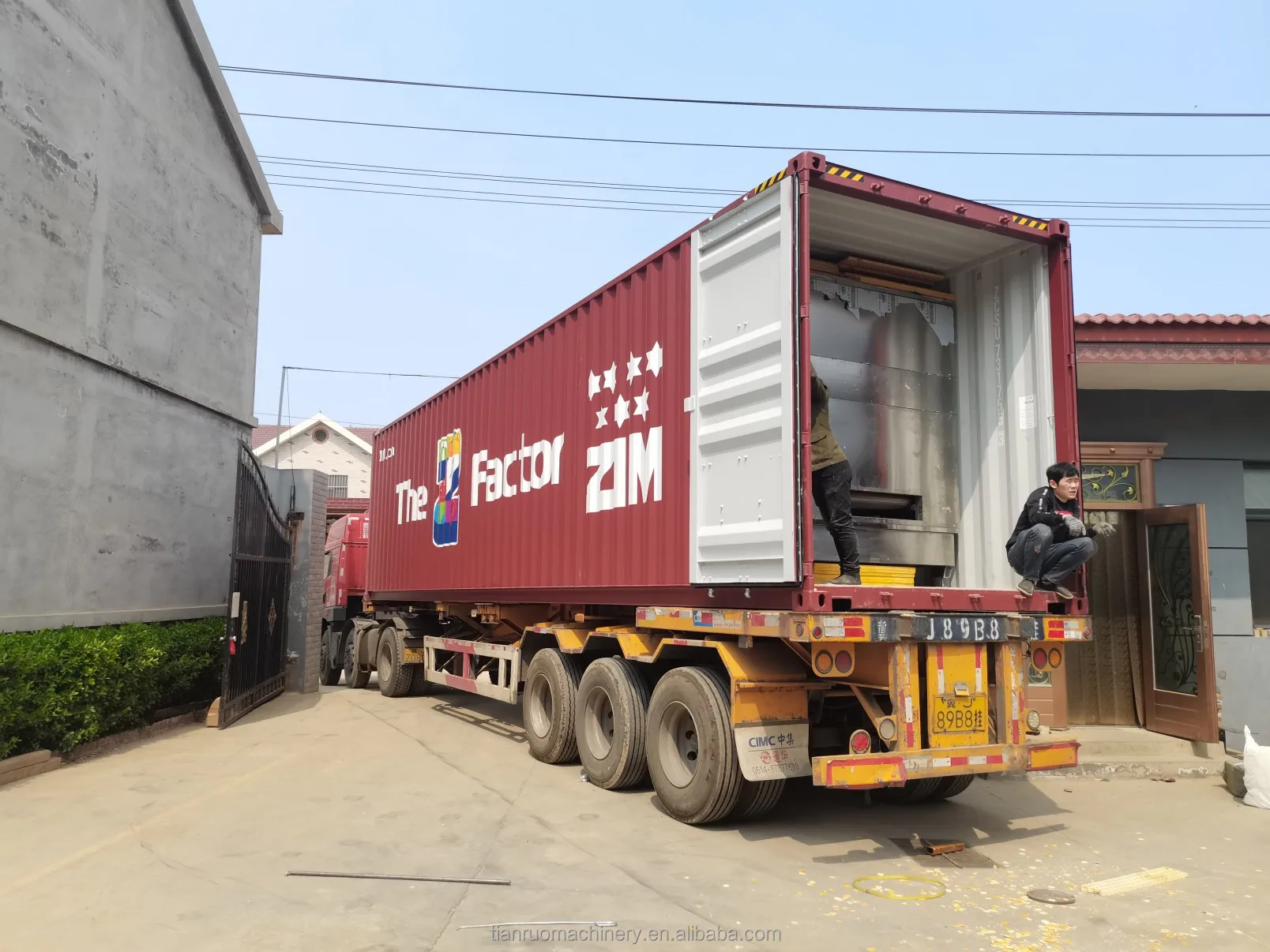

Loading Container Shipping
Loading Container in our warehouse

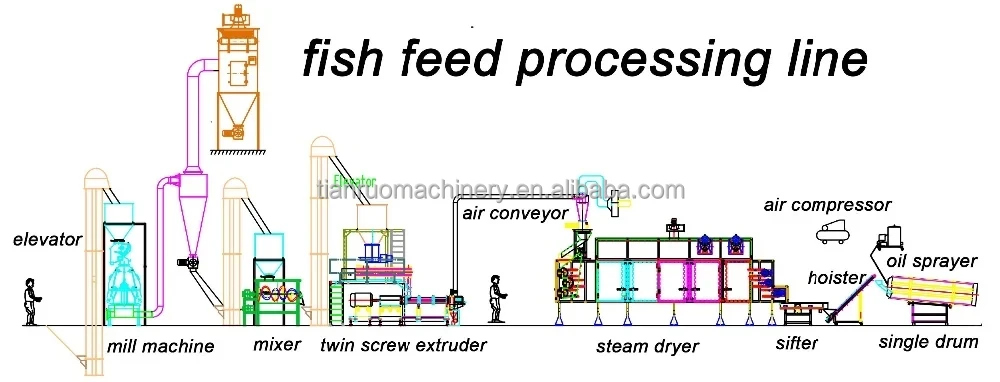

Aquatic Feed Processing Poduction Plant for fish ,shrimp ,Crab, Tortoise
