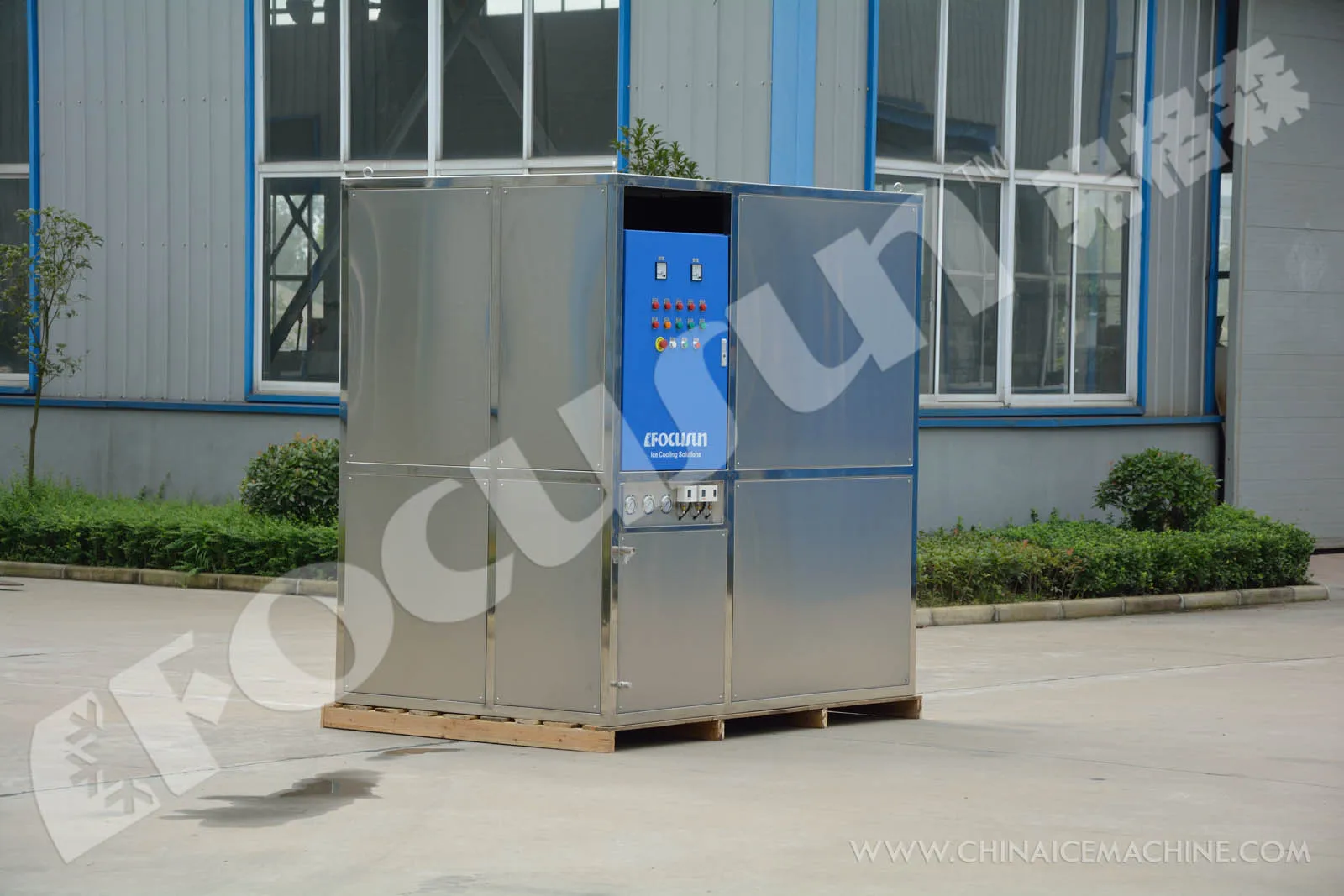

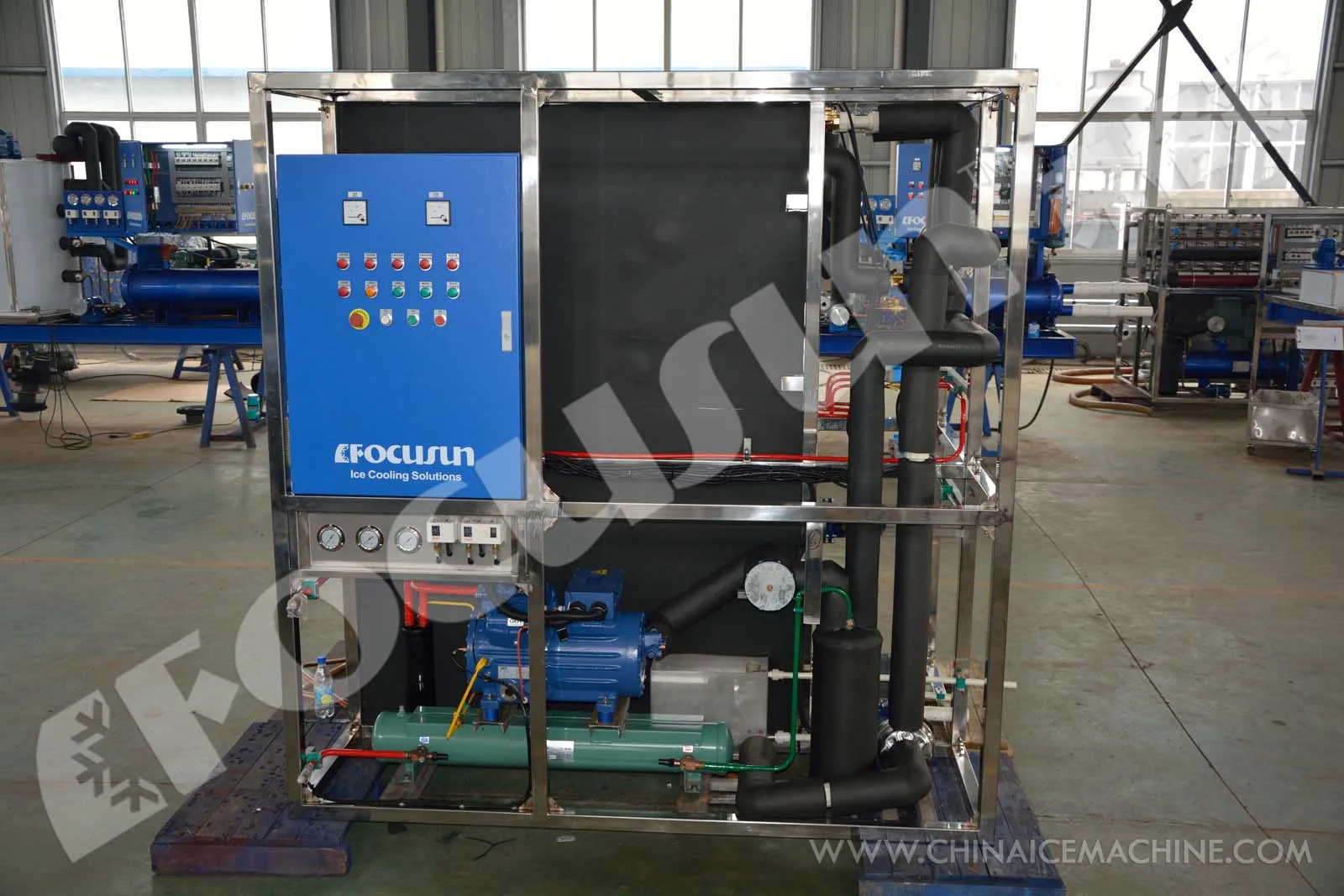

Auto ice maker 2T industrial ice machine for sale plate ice machine
- Category: >>>
- Supplier: Focusun Technology (Shanghai) Corporation
Share on (1601093269795):
Product Overview
Description
PRODUCT OVERVIEW

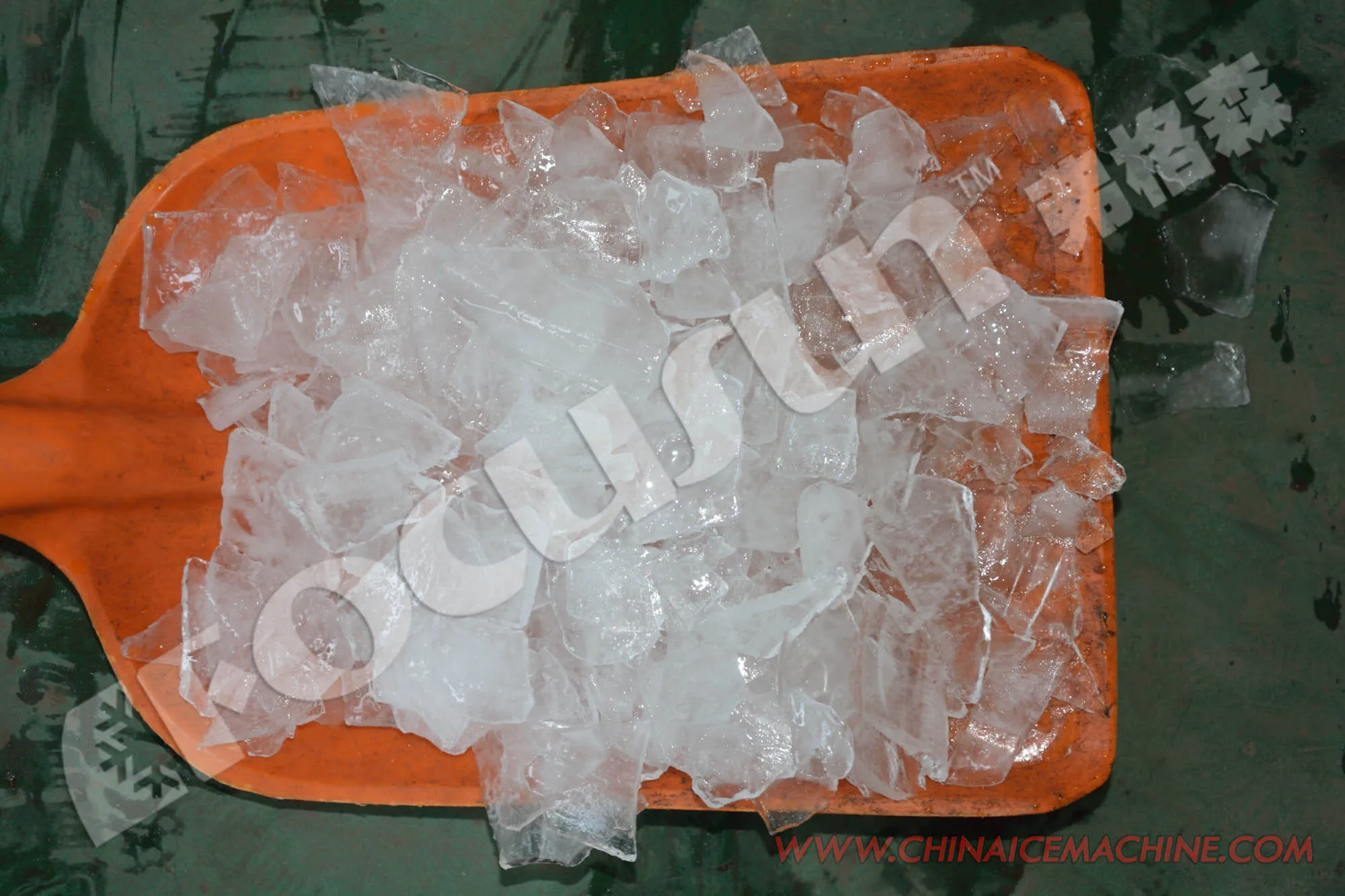

Plate ice
Plate ice is a type of irregular sheet ice with about 40*40mm~80*80mm in size,and 10mm~15mm in thickness.The thickness can be adjusted according to the ice making time.The maximum thickness is 30mm.It is a kind of thick and transparent ice which has good air permeability and long shelf life.
Application fields
Usually used for ice storage systems，also can be applied to concrete mixing plants，also can be applied to concrete mixing plants,chemical plants,mining,fresh vegetables,fishing and other aquatic food industry.
FEATURES AT A GLANCE
Ice making process introduction:

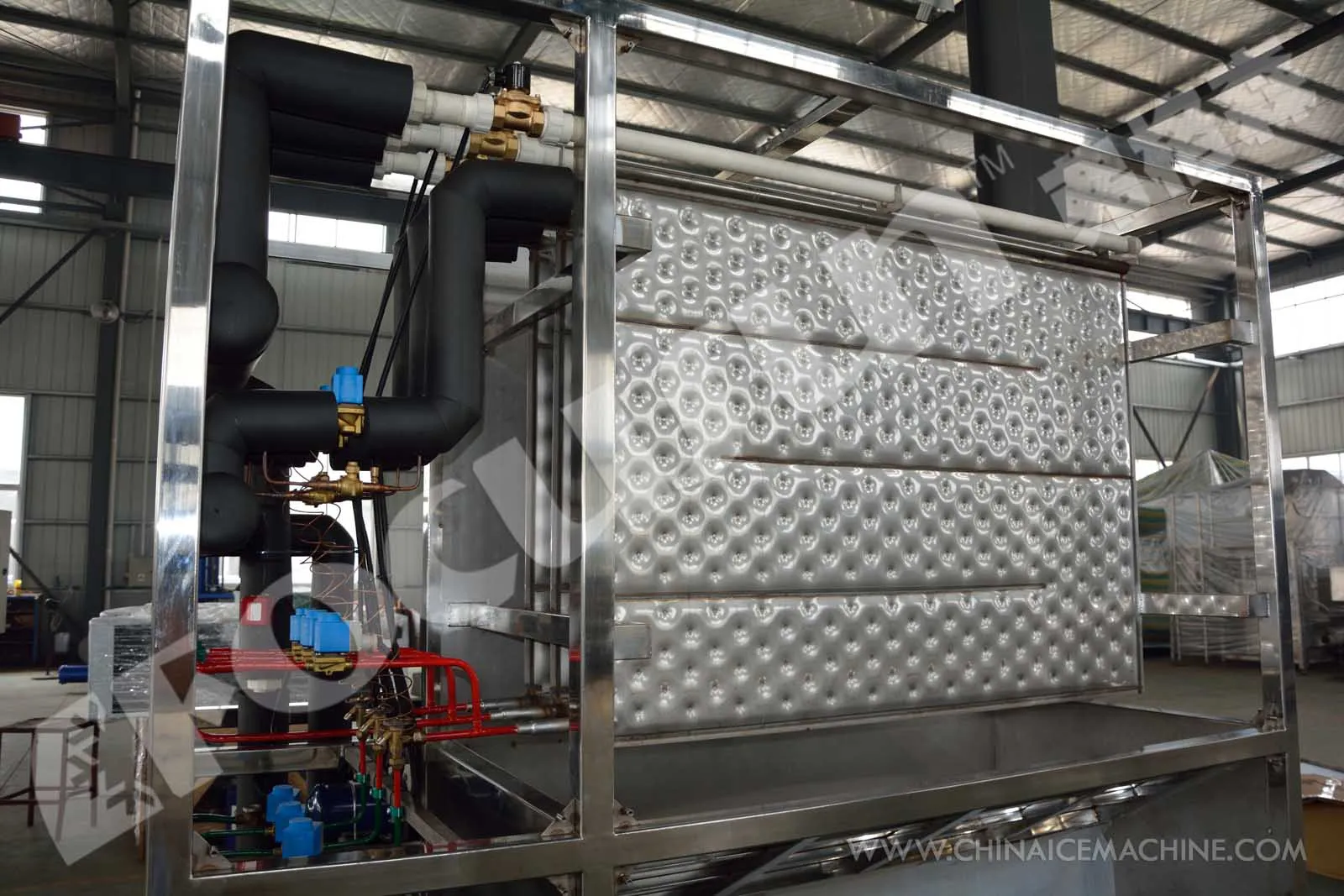

When the refrigeration system begins operating normally, the water in the tank below is transported from the cold water tank to the cold water sprinkler by the cold water pump. It is then evenly sprinkled on the surface of the evaporator. Through the cycle working of the refrigerant, some water is created into plate ice, while the water which does not become ice returns to the cold water tank below and waits for the next water cycle.
After a period of time the water cycle and refrigeration stops and the water and overheating refrigerants gas begin a heat

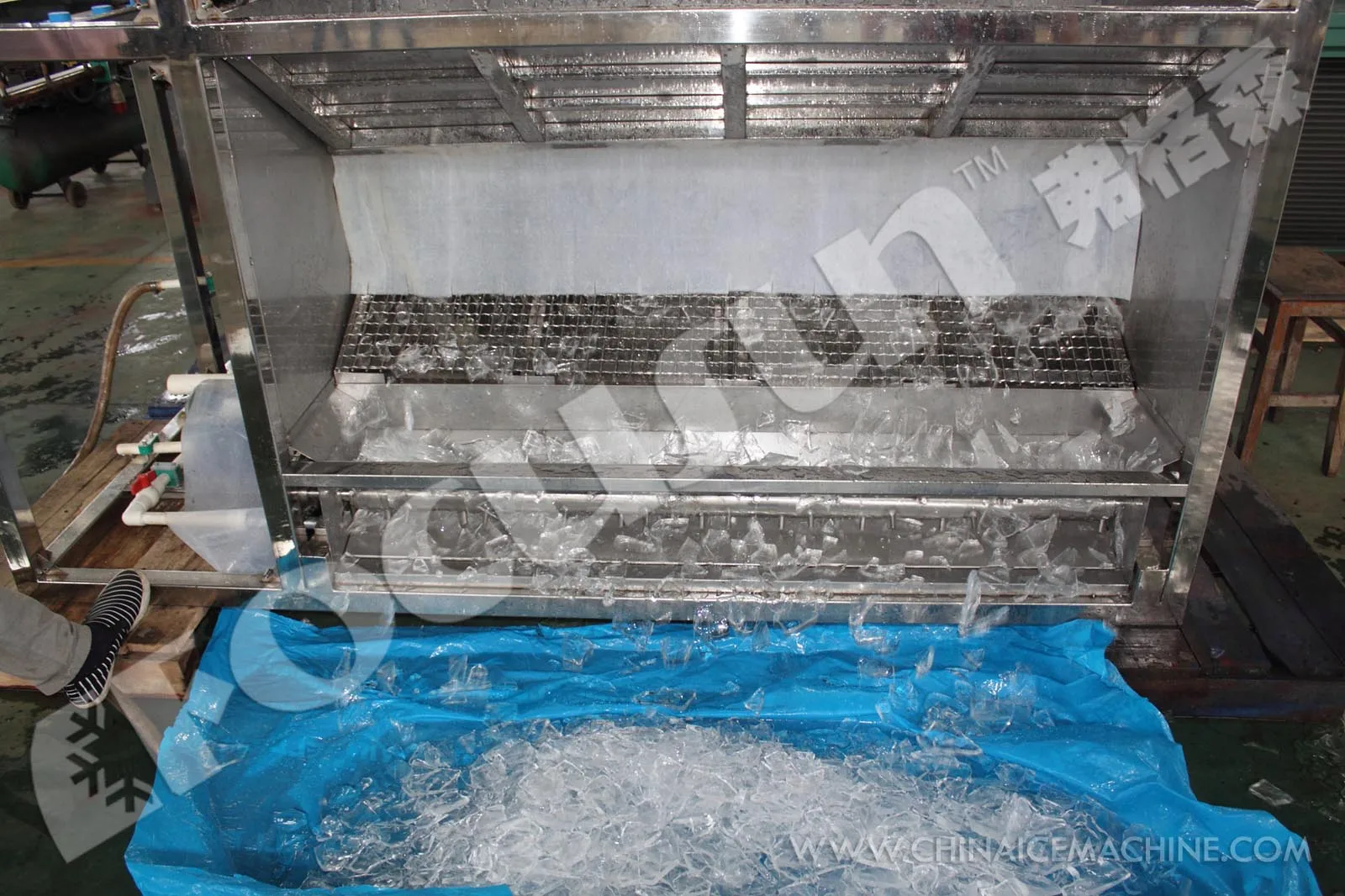

exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle.
exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle.
PRODUCT SPECIFICATIONS
Capacity | Time | Cooling Way | Power | |
Small Plate Ice Maker | 1-5 TONS | 24 H | Air | 80 kw |
Medium Plate Ice Maker | 8-15 TONS | 24 H | Water/ Evaporative | 80 kw |
Large Plate Ice Maker | 20-48 TONS | 24 H | Water/ Evaporative | 80 kw |

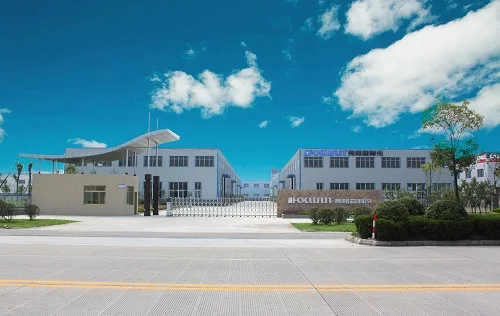

OUR COMPANY
FOCUSUN---Cooling Technical Master Since 1929, Germany
As one of the most professional ice machine manufacturers in the world, Focusun always develops high refrigeration technology with innovation. Our R&D center is located in Jiangsu Province, China, with more than 35,000 square meters of standardized modern factory and advanced product testing platform. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 88 countries around the world.

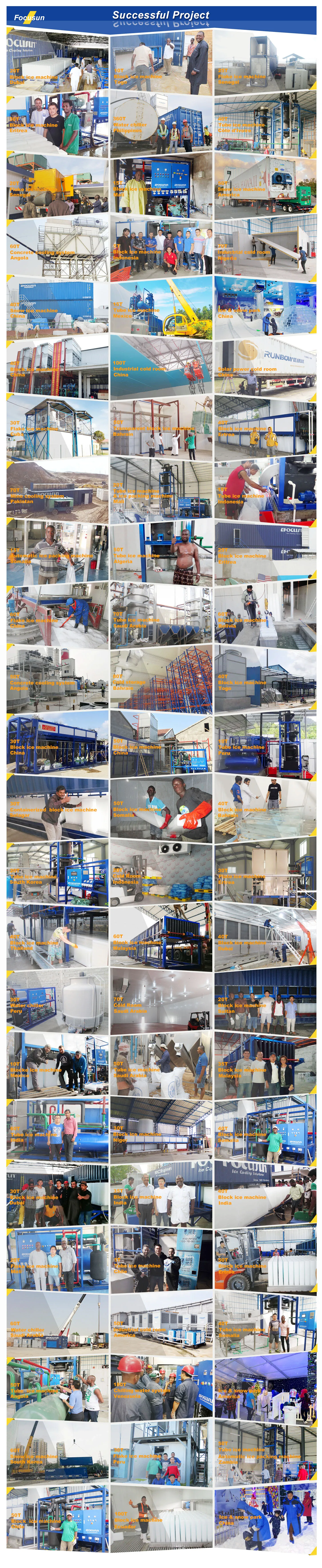

CUSTOMER ON-SITE
SALES AND SERVICE NET WORK
FOCUSUN CERTIFICATIONS
FAQ
Q:What is the minimum order quantity for your ice machines?
R:Our Focusun minimum order quantity for ice machines is typically 1 unit. However, this may vary depending on the specific model you are interested in.
Q:What is the lead time for production and delivery of your ice machines?
R:The lead time for production and delivery of our Focusun ice machines can vary depending on the specific model and quantity you are ordering. Generally, our lead time is between 30 to 45 working days.
Q:What is the warranty period for your ice machines?
R:Our Focusun ice machines typically come with a 1and a half year warranty. However, this may vary depending on the specific model and terms of the agreement.
Q:Can you provide customizations for your ice machines?
R:Yes, we can provide customizations for our ice machines depending on the specific requirements of your project. Please provide us with detailed specifications and we can discuss further.
Q:What certifications do your ice machines have?
R:Our ice machines typically have SGS,ISO,BV, CE, FORM E, as well as certifications for specific markets such as the Kuwait, and Europea. If you require specific certifications, please let us know and we can check if our products meet those requirements.
Q:What is the refrigerant used in your ice machines?
R:ice machines use R404A, R507, R448, R22, R134a or R449 refrigerant, depending on the specific model.
Q:What is the energy efficiency rating of your ice machines?
R:Our ice machines have an energy efficiency rating of at least A+, with some models reaching A+++.
Q:What is the production capacity of your ice machines?
R:Our ice machines have varying production capacities depending on the specific model, ranging from 1000 kg/day to 70,000 kg/day.
Q:What type of ice do your machines produce?
R:Our machines can produce various types of ice, including tube, block, snow, cubed, flaked, and crushed ice as well as cold storage, vacuum cooler, packing machine automatic and semi-automatic.
Q:What is the noise level of your ice machines?
R:Our ice machines have a noise level of 60 dB or lower, with some models reaching as low as 40 dB.
Q:What is the voltage and frequency requirement for your ice machines?
R:Our ice machines typically require a voltage of 380V and a frequency of 50Hz. However, this may vary depending on the specific model and market. Focusun also do 220V/3P/60HZ in Philippines, Cobumbia, etc.
Q:Can you provide installation and maintenance services for your ice machines?
R:Yes, Focusun can provide installation and maintenance services for our ice machines on-site. Please let us know if you require these services.
R:Our Focusun minimum order quantity for ice machines is typically 1 unit. However, this may vary depending on the specific model you are interested in.
Q:What is the lead time for production and delivery of your ice machines?
R:The lead time for production and delivery of our Focusun ice machines can vary depending on the specific model and quantity you are ordering. Generally, our lead time is between 30 to 45 working days.
Q:What is the warranty period for your ice machines?
R:Our Focusun ice machines typically come with a 1and a half year warranty. However, this may vary depending on the specific model and terms of the agreement.
Q:Can you provide customizations for your ice machines?
R:Yes, we can provide customizations for our ice machines depending on the specific requirements of your project. Please provide us with detailed specifications and we can discuss further.
Q:What certifications do your ice machines have?
R:Our ice machines typically have SGS,ISO,BV, CE, FORM E, as well as certifications for specific markets such as the Kuwait, and Europea. If you require specific certifications, please let us know and we can check if our products meet those requirements.
Q:What is the refrigerant used in your ice machines?
R:ice machines use R404A, R507, R448, R22, R134a or R449 refrigerant, depending on the specific model.
Q:What is the energy efficiency rating of your ice machines?
R:Our ice machines have an energy efficiency rating of at least A+, with some models reaching A+++.
Q:What is the production capacity of your ice machines?
R:Our ice machines have varying production capacities depending on the specific model, ranging from 1000 kg/day to 70,000 kg/day.
Q:What type of ice do your machines produce?
R:Our machines can produce various types of ice, including tube, block, snow, cubed, flaked, and crushed ice as well as cold storage, vacuum cooler, packing machine automatic and semi-automatic.
Q:What is the noise level of your ice machines?
R:Our ice machines have a noise level of 60 dB or lower, with some models reaching as low as 40 dB.
Q:What is the voltage and frequency requirement for your ice machines?
R:Our ice machines typically require a voltage of 380V and a frequency of 50Hz. However, this may vary depending on the specific model and market. Focusun also do 220V/3P/60HZ in Philippines, Cobumbia, etc.
Q:Can you provide installation and maintenance services for your ice machines?
R:Yes, Focusun can provide installation and maintenance services for our ice machines on-site. Please let us know if you require these services.
